Common Automobiles Wire Harness Issues And Proactive Tips To Extend Their Lifespan

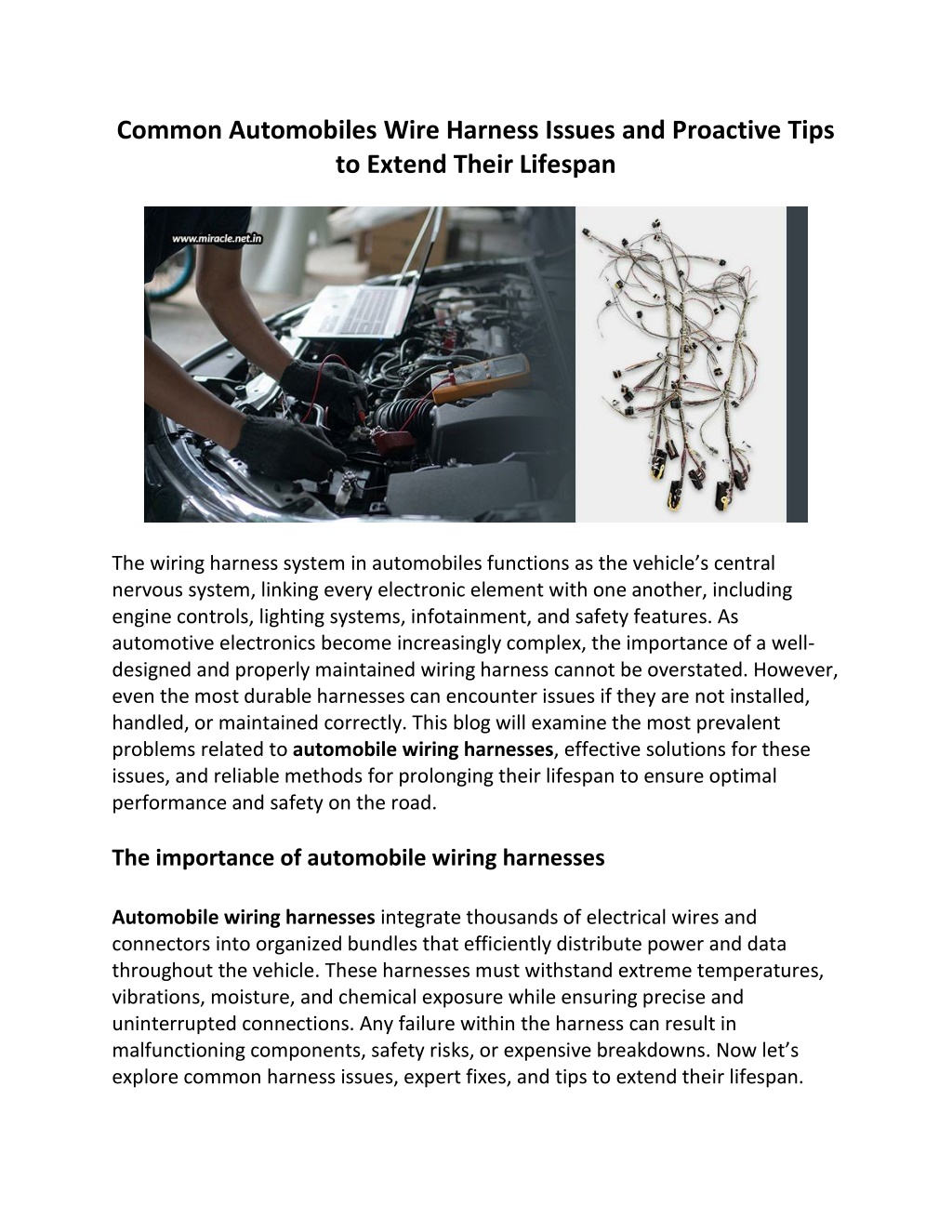

1. Common Automobiles Wire Harness Issues and Proactive Tips to Extend Their Lifespan The wiring harness system in automobiles functions as the vehicle’s central nervous system, linking every electronic element with one another, including engine controls, lighting systems, infotainment, and safety features. As automotive electronics become increasingly complex, the importance of a well- designed and properly maintained wiring harness cannot be overstated. However, even the most durable harnesses can encounter issues if they are not installed, handled, or maintained correctly. This blog will examine the most prevalent problems related to automobile wiring harnesses, effective solutions for these issues, and reliable methods for prolonging their lifespan to ensure optimal performance and safety on the road. The importance of automobile wiring harnesses Automobile wiring harnesses integrate thousands of electrical wires and connectors into organized bundles that efficiently distribute power and data throughout the vehicle. These harnesses must withstand extreme temperatures, vibrations, moisture, and chemical exposure while ensuring precise and uninterrupted connections. Any failure within the harness can result in malfunctioning components, safety risks, or expensive breakdowns. Now let’s explore common harness issues, expert fixes, and tips to extend their lifespan.

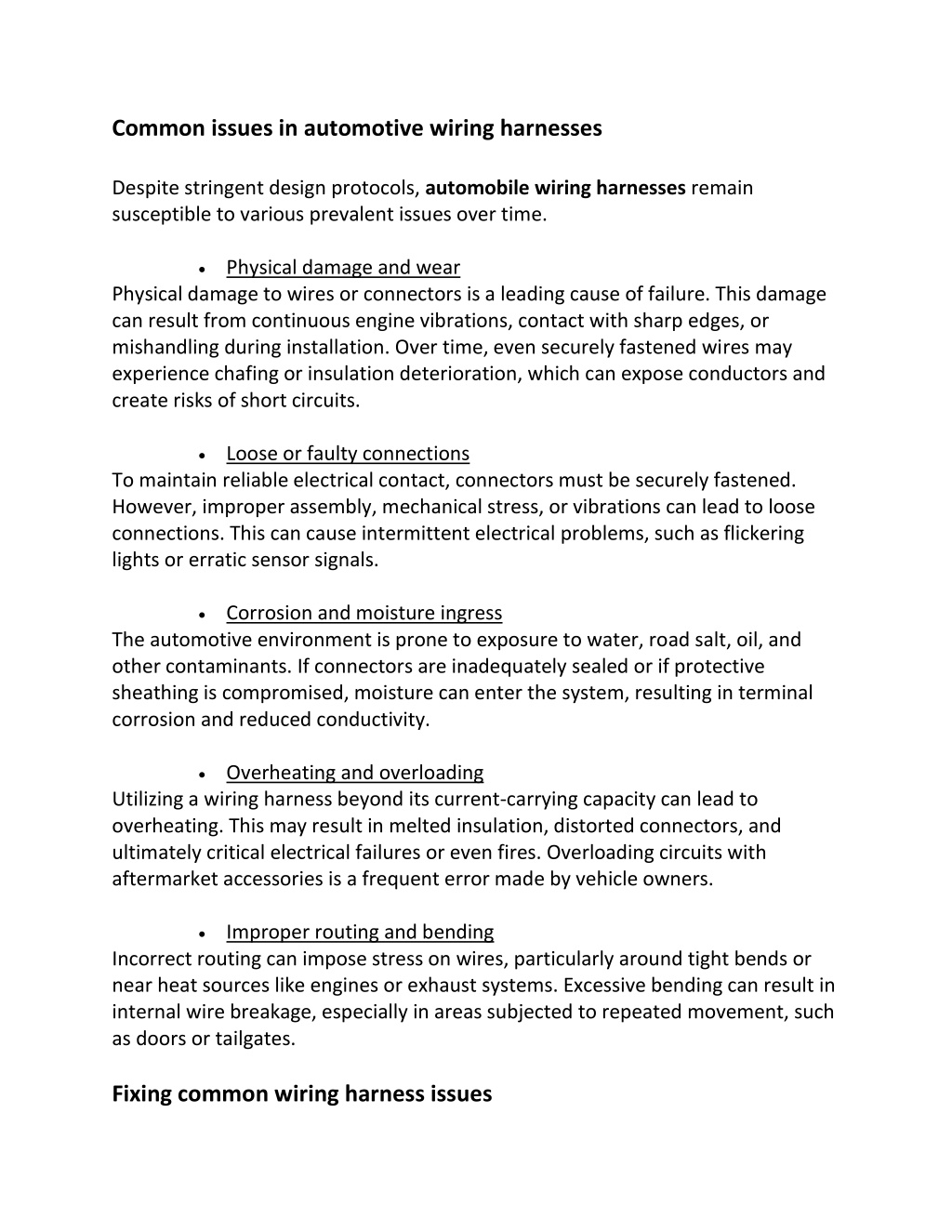

2. Common issues in automotive wiring harnesses Despite stringent design protocols, automobile wiring harnesses remain susceptible to various prevalent issues over time. •Physical damage and wear Physical damage to wires or connectors is a leading cause of failure. This damage can result from continuous engine vibrations, contact with sharp edges, or mishandling during installation. Over time, even securely fastened wires may experience chafing or insulation deterioration, which can expose conductors and create risks of short circuits. •Loose or faulty connections To maintain reliable electrical contact, connectors must be securely fastened. However, improper assembly, mechanical stress, or vibrations can lead to loose connections. This can cause intermittent electrical problems, such as flickering lights or erratic sensor signals. •Corrosion and moisture ingress The automotive environment is prone to exposure to water, road salt, oil, and other contaminants. If connectors are inadequately sealed or if protective sheathing is compromised, moisture can enter the system, resulting in terminal corrosion and reduced conductivity. •Overheating and overloading Utilizing a wiring harness beyond its current-carrying capacity can lead to overheating. This may result in melted insulation, distorted connectors, and ultimately critical electrical failures or even fires. Overloading circuits with aftermarket accessories is a frequent error made by vehicle owners. •Improper routing and bending Incorrect routing can impose stress on wires, particularly around tight bends or near heat sources like engines or exhaust systems. Excessive bending can result in internal wire breakage, especially in areas subjected to repeated movement, such as doors or tailgates. Fixing common wiring harness issues

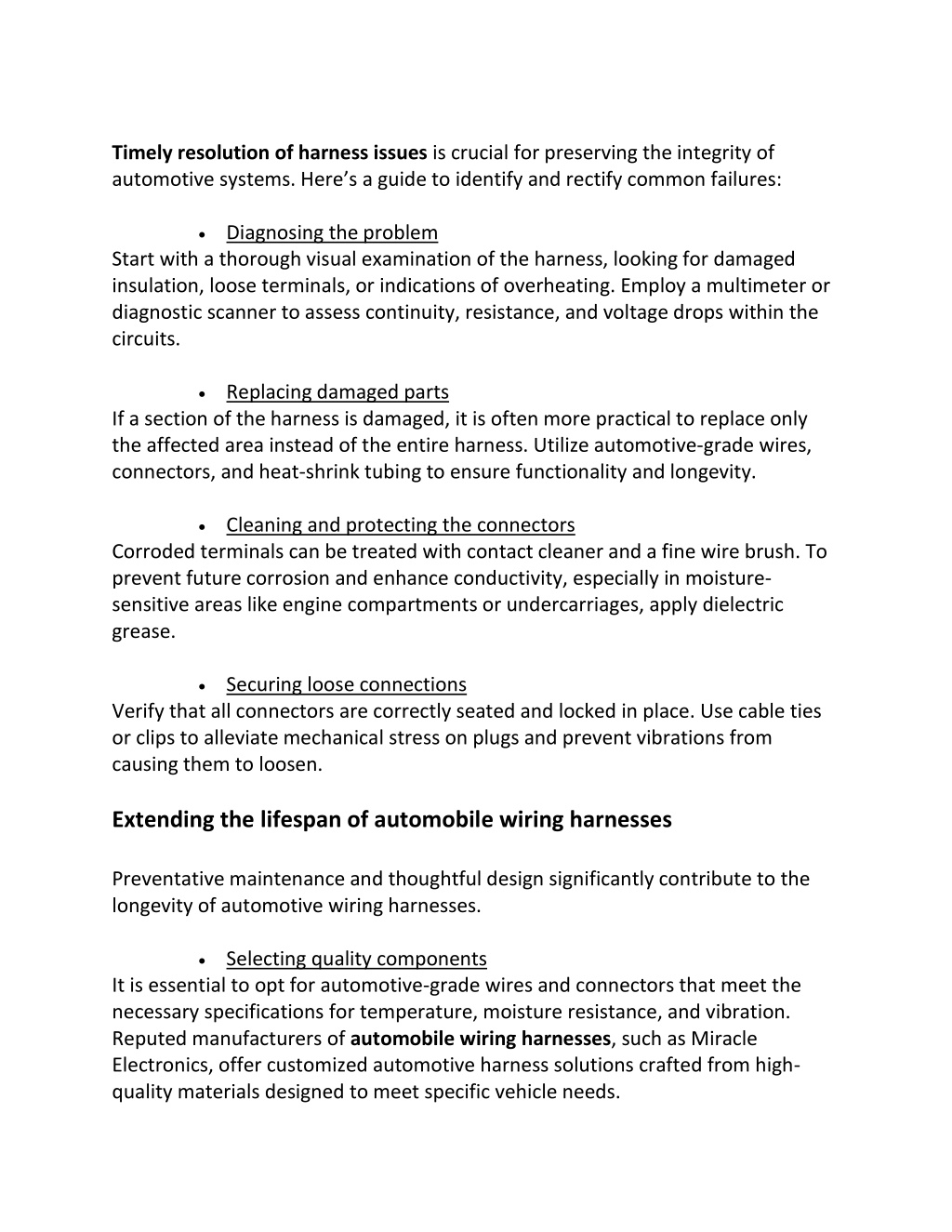

3. Timely resolution of harness issues is crucial for preserving the integrity of automotive systems. Here’s a guide to identify and rectify common failures: •Diagnosing the problem Start with a thorough visual examination of the harness, looking for damaged insulation, loose terminals, or indications of overheating. Employ a multimeter or diagnostic scanner to assess continuity, resistance, and voltage drops within the circuits. •Replacing damaged parts If a section of the harness is damaged, it is often more practical to replace only the affected area instead of the entire harness. Utilize automotive-grade wires, connectors, and heat-shrink tubing to ensure functionality and longevity. •Cleaning and protecting the connectors Corroded terminals can be treated with contact cleaner and a fine wire brush. To prevent future corrosion and enhance conductivity, especially in moisture- sensitive areas like engine compartments or undercarriages, apply dielectric grease. •Securing loose connections Verify that all connectors are correctly seated and locked in place. Use cable ties or clips to alleviate mechanical stress on plugs and prevent vibrations from causing them to loosen. Extending the lifespan of automobile wiring harnesses Preventative maintenance and thoughtful design significantly contribute to the longevity of automotive wiring harnesses. •Selecting quality components It is essential to opt for automotive-grade wires and connectors that meet the necessary specifications for temperature, moisture resistance, and vibration. Reputed manufacturers of automobile wiring harnesses, such as Miracle Electronics, offer customized automotive harness solutions crafted from high- quality materials designed to meet specific vehicle needs.

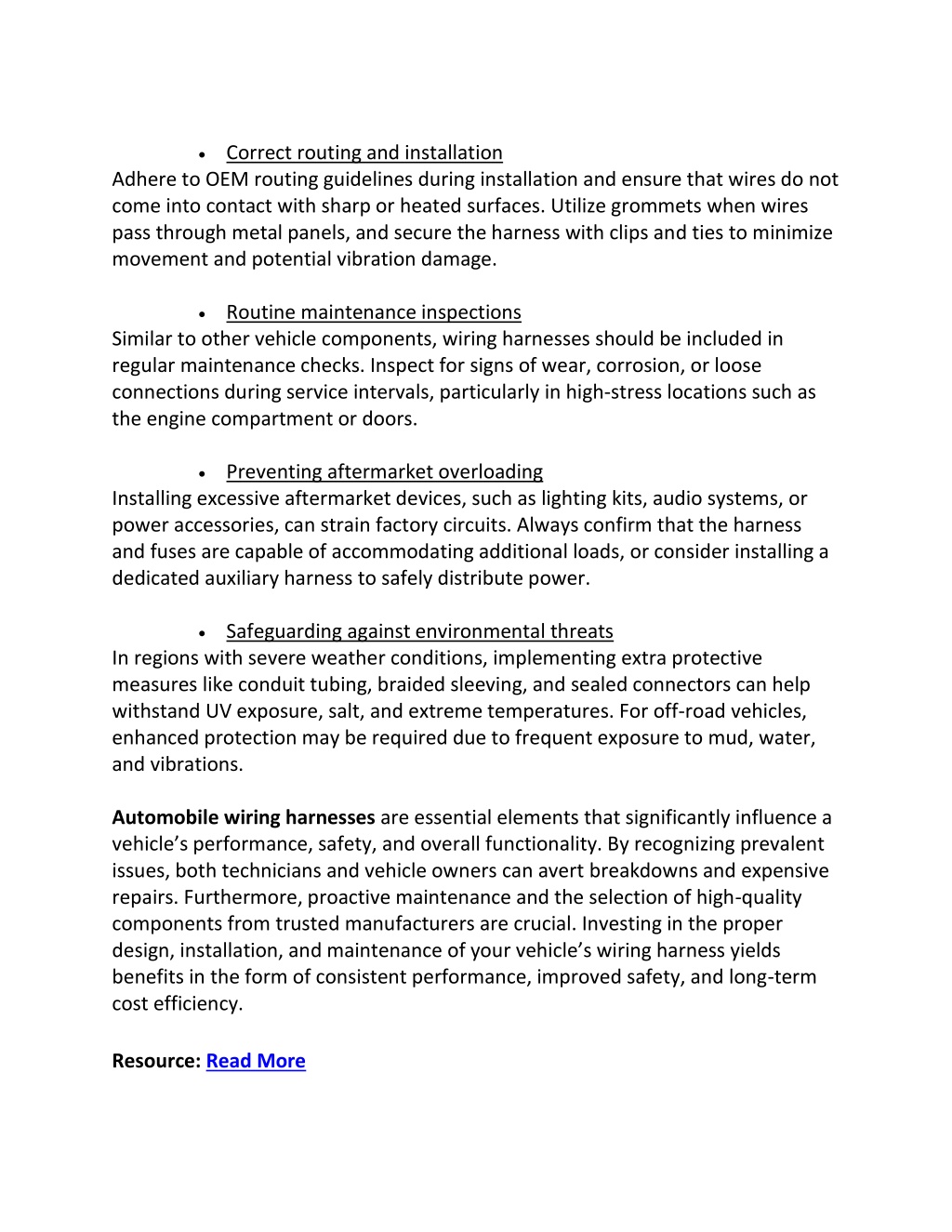

4. •Correct routing and installation Adhere to OEM routing guidelines during installation and ensure that wires do not come into contact with sharp or heated surfaces. Utilize grommets when wires pass through metal panels, and secure the harness with clips and ties to minimize movement and potential vibration damage. •Routine maintenance inspections Similar to other vehicle components, wiring harnesses should be included in regular maintenance checks. Inspect for signs of wear, corrosion, or loose connections during service intervals, particularly in high-stress locations such as the engine compartment or doors. •Preventing aftermarket overloading Installing excessive aftermarket devices, such as lighting kits, audio systems, or power accessories, can strain factory circuits. Always confirm that the harness and fuses are capable of accommodating additional loads, or consider installing a dedicated auxiliary harness to safely distribute power. •Safeguarding against environmental threats In regions with severe weather conditions, implementing extra protective measures like conduit tubing, braided sleeving, and sealed connectors can help withstand UV exposure, salt, and extreme temperatures. For off-road vehicles, enhanced protection may be required due to frequent exposure to mud, water, and vibrations. Automobile wiring harnesses are essential elements that significantly influence a vehicle’s performance, safety, and overall functionality. By recognizing prevalent issues, both technicians and vehicle owners can avert breakdowns and expensive repairs. Furthermore, proactive maintenance and the selection of high-quality components from trusted manufacturers are crucial. Investing in the proper design, installation, and maintenance of your vehicle’s wiring harness yields benefits in the form of consistent performance, improved safety, and long-term cost efficiency. Resource: Read More
