Inside A Landscape Lighting Transformer – Key Features You Should Know About

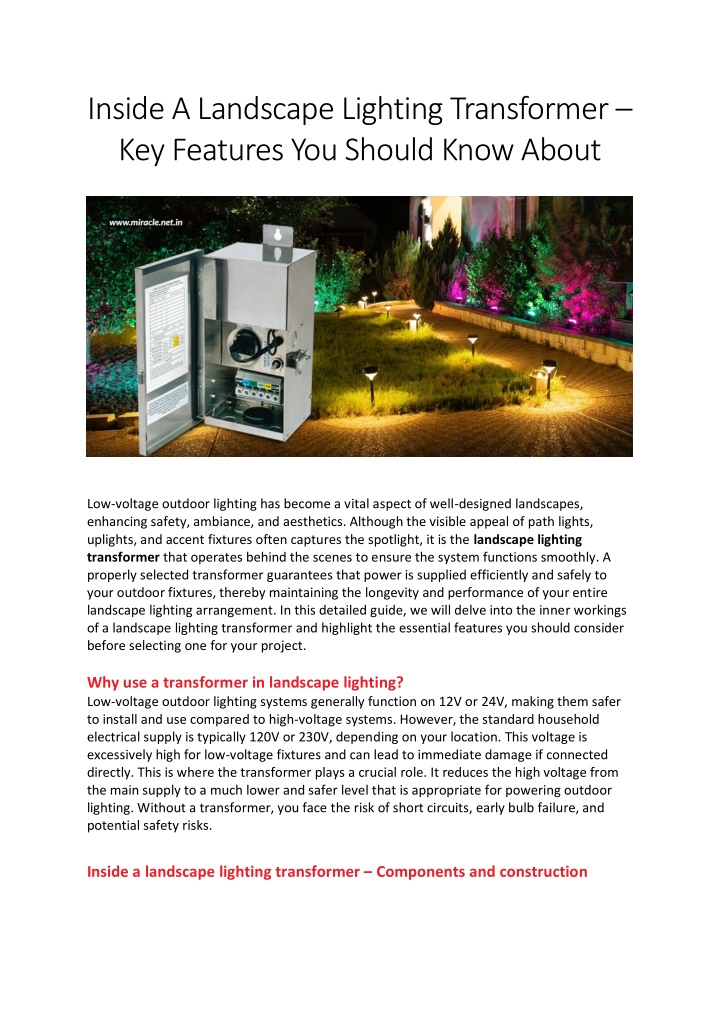

1. Inside A Landscape Lighting Transformer – Key Features You Should Know About Low-voltage outdoor lighting has become a vital aspect of well-designed landscapes, enhancing safety, ambiance, and aesthetics. Although the visible appeal of path lights, uplights, and accent fixtures often captures the spotlight, it is the landscape lighting transformer that operates behind the scenes to ensure the system functions smoothly. A properly selected transformer guarantees that power is supplied efficiently and safely to your outdoor fixtures, thereby maintaining the longevity and performance of your entire landscape lighting arrangement. In this detailed guide, we will delve into the inner workings of a landscape lighting transformer and highlight the essential features you should consider before selecting one for your project. Why use a transformer in landscape lighting? Low-voltage outdoor lighting systems generally function on 12V or 24V, making them safer to install and use compared to high-voltage systems. However, the standard household electrical supply is typically 120V or 230V, depending on your location. This voltage is excessively high for low-voltage fixtures and can lead to immediate damage if connected directly. This is where the transformer plays a crucial role. It reduces the high voltage from the main supply to a much lower and safer level that is appropriate for powering outdoor lighting. Without a transformer, you face the risk of short circuits, early bulb failure, and potential safety risks. Inside a landscape lighting transformer – Components and construction

2. Understanding the internal structure of a transformer is essential for selecting the appropriate one for your specific landscape needs. A transformer is not merely a metal enclosure; it is a device designed for efficiency, protection, and longevity. Core and windings At the core of every transformer are its core and windings. The core, usually constructed from laminated silicon steel, plays a crucial role in generating the magnetic field necessary for voltage induction. The primary winding draws electricity from the power source, while the secondary winding delivers the reduced voltage. High-quality winding materials, such as oxygen-free copper or insulated aluminium, improve conductivity and thermal stability. The core is generally coated to minimize energy losses due to eddy currents and hysteresis, ensuring effective power conversion with minimal heat production. Multiple voltage taps A significant feature of a landscape lighting transformer is the multi-tap output system. Rather than having a single 12V output, contemporary transformers provide several voltage taps – typically 12V, 13V, 14V, and 15V. This capability is crucial for addressing voltage drop, which can happen when electricity travels over extended distances or through numerous fixtures. By selecting a higher output tap for lights that are farther away, you can maintain consistent brightness throughout the entire system. Overload and short circuit protection Outdoor lighting systems are vulnerable to environmental factors, which can lead to moisture infiltration, debris obstruction, or defective wiring. Consequently, integrated circuit protection is essential. Most transformers come equipped with circuit breakers that deactivate power during overload situations, fuses that serve as a safety mechanism against short circuits, and thermal sensors that disconnect the transformer in the event of overheating. These components safeguard both the transformer and your outdoor fixtures from potential harm. Weatherproof enclosure Transformers designed for outdoor lighting are typically installed on walls, posts, or within enclosures located near gardens, patios, or building exteriors. They need to be constructed to endure rain, humidity, dust, and variations in temperature. You must look for corrosion- resistant aluminium or stainless-steel enclosures, weather-sealed access panels, uv-resistant coatings, and ip65 or higher ingress protection ratings. These attributes guarantee long- lasting reliability, even in coastal or high-humidity settings. Toroidal vs. Laminated core

3. Two core designs are frequently utilized – toroidal and laminated. Toroidal cores are doughnut-shaped, and are smaller and lighter in design. They function with minimal electromagnetic interference (EMI), and operate cooler and more efficiently. On the other hand, laminated cores utilize stacked metal laminations, and are slightly larger in size. These cores are generally more cost-effective, and are reliable for heavy-duty applications. A landscape lighting transformer might not be the most prominent component of your outdoor lighting arrangement, yet it is certainly the most essential. The characteristics within a high-quality transformer, from voltage conversion to overload protection and effective power distribution, determine the overall success of your entire system. By comprehending its internal components, functionality, and the features that should be prioritized, you can make well-informed choices that result in brighter, safer, and more energy-efficient outdoor spaces. Whether you are tackling a small backyard project or illuminating a large estate or commercial facade, selecting the appropriate transformer guarantees that your landscape lighting operates reliably for many years ahead. For an expertly engineered landscape lighting transformer, turn to Miracle Electronics– a trusted name in precision-built, reliable, and efficient transformer solutions. Whether you require standard or custom configurations, Miracle Electronics offers robust products tailored for long-lasting outdoor performance and safety in diverse landscape lighting applications. Read More: Inside A Landscape Lighting Transformer – Key Features You Should Know About
