Safety Considerations When Working With Current Transformers

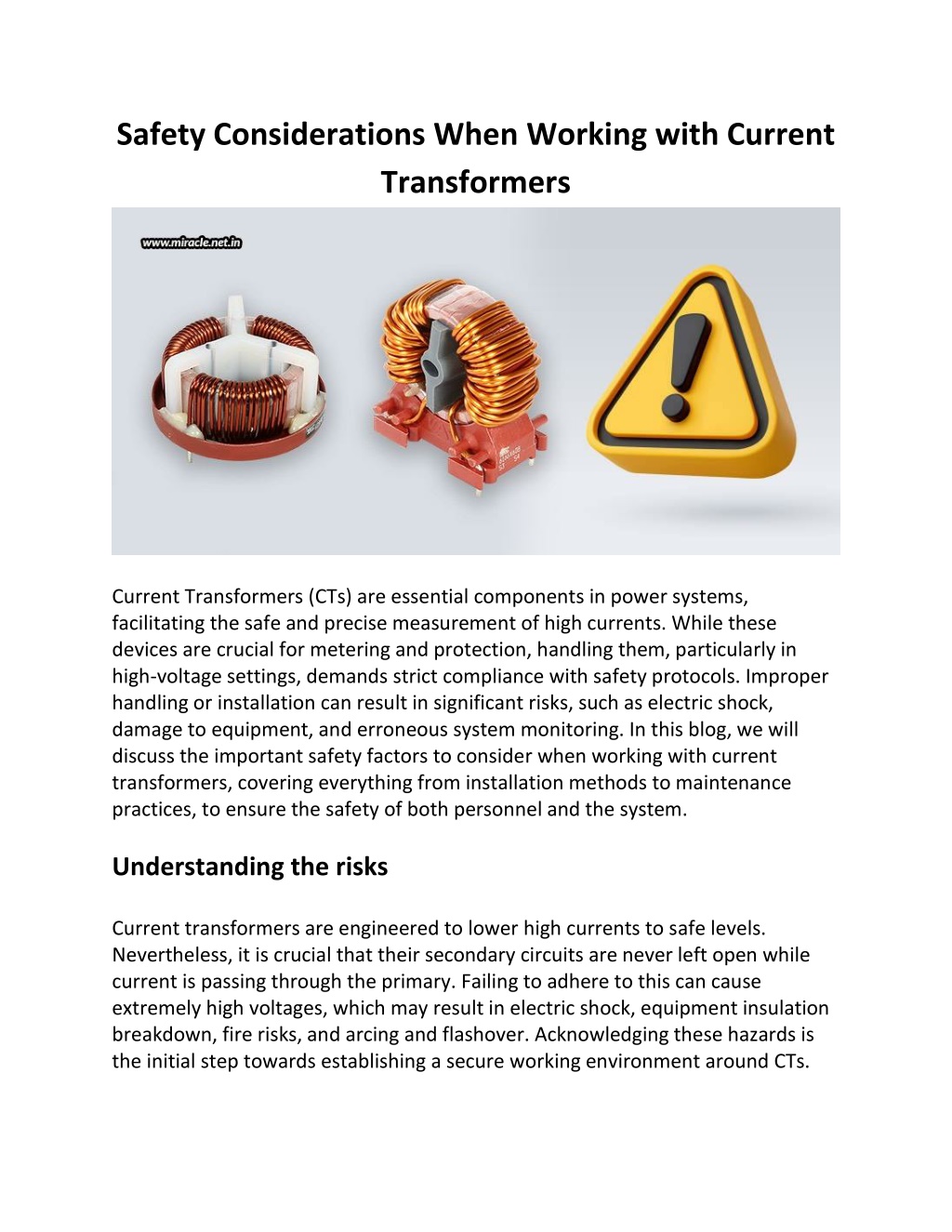

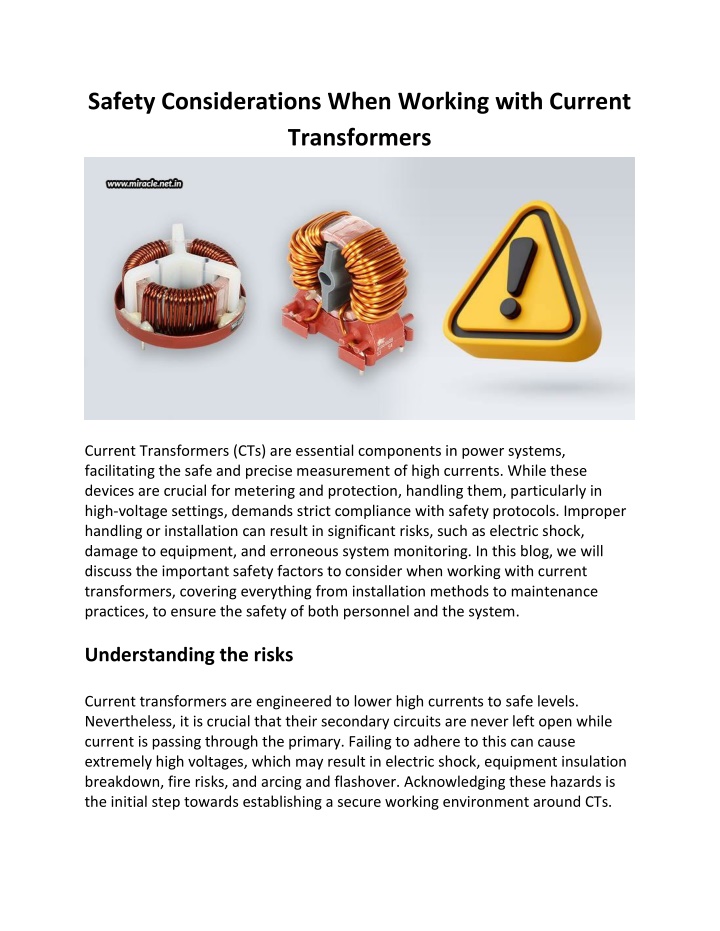

1. Safety Considerations When Working with Current Transformers Current Transformers (CTs) are essential components in power systems, facilitating the safe and precise measurement of high currents. While these devices are crucial for metering and protection, handling them, particularly in high-voltage settings, demands strict compliance with safety protocols. Improper handling or installation can result in significant risks, such as electric shock, damage to equipment, and erroneous system monitoring. In this blog, we will discuss the important safety factors to consider when working with current transformers, covering everything from installation methods to maintenance practices, to ensure the safety of both personnel and the system. Understanding the risks Current transformers are engineered to lower high currents to safe levels. Nevertheless, it is crucial that their secondary circuits are never left open while current is passing through the primary. Failing to adhere to this can cause extremely high voltages, which may result in electric shock, equipment insulation breakdown, fire risks, and arcing and flashover. Acknowledging these hazards is the initial step towards establishing a secure working environment around CTs.

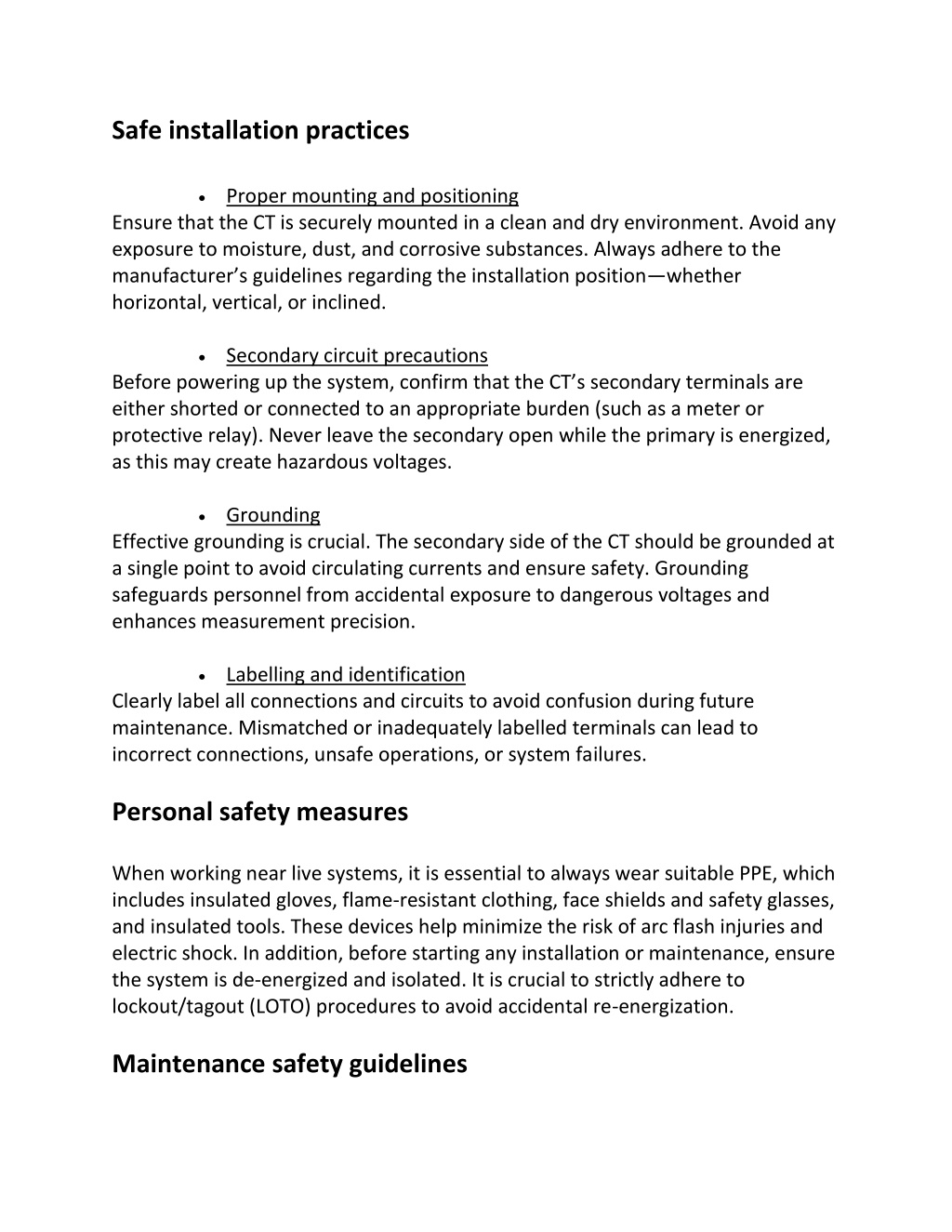

2. Safe installation practices •Proper mounting and positioning Ensure that the CT is securely mounted in a clean and dry environment. Avoid any exposure to moisture, dust, and corrosive substances. Always adhere to the manufacturer’s guidelines regarding the installation position—whether horizontal, vertical, or inclined. •Secondary circuit precautions Before powering up the system, confirm that the CT’s secondary terminals are either shorted or connected to an appropriate burden (such as a meter or protective relay). Never leave the secondary open while the primary is energized, as this may create hazardous voltages. •Grounding Effective grounding is crucial. The secondary side of the CT should be grounded at a single point to avoid circulating currents and ensure safety. Grounding safeguards personnel from accidental exposure to dangerous voltages and enhances measurement precision. •Labelling and identification Clearly label all connections and circuits to avoid confusion during future maintenance. Mismatched or inadequately labelled terminals can lead to incorrect connections, unsafe operations, or system failures. Personal safety measures When working near live systems, it is essential to always wear suitable PPE, which includes insulated gloves, flame-resistant clothing, face shields and safety glasses, and insulated tools. These devices help minimize the risk of arc flash injuries and electric shock. In addition, before starting any installation or maintenance, ensure the system is de-energized and isolated. It is crucial to strictly adhere to lockout/tagout (LOTO) procedures to avoid accidental re-energization. Maintenance safety guidelines

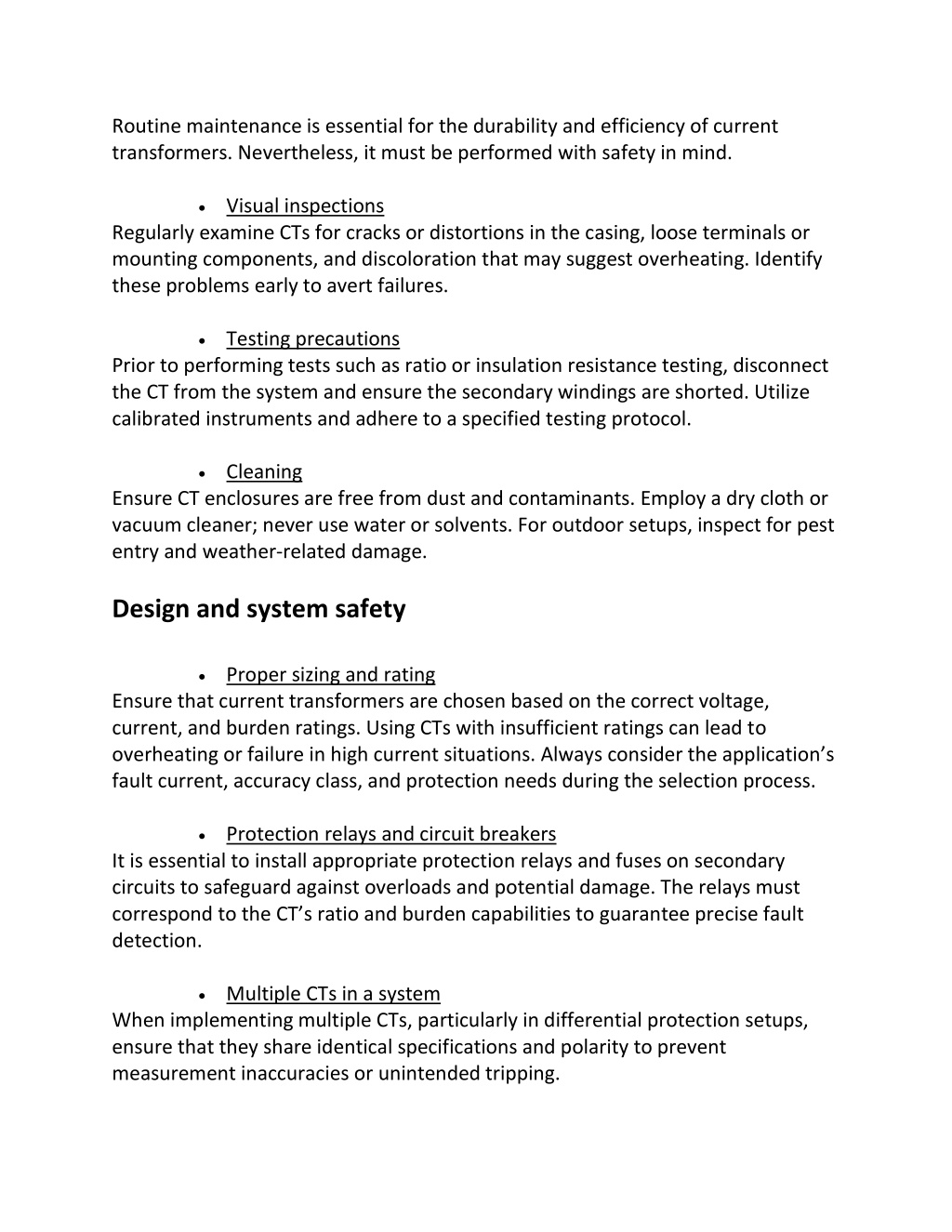

3. Routine maintenance is essential for the durability and efficiency of current transformers. Nevertheless, it must be performed with safety in mind. •Visual inspections Regularly examine CTs for cracks or distortions in the casing, loose terminals or mounting components, and discoloration that may suggest overheating. Identify these problems early to avert failures. •Testing precautions Prior to performing tests such as ratio or insulation resistance testing, disconnect the CT from the system and ensure the secondary windings are shorted. Utilize calibrated instruments and adhere to a specified testing protocol. •Cleaning Ensure CT enclosures are free from dust and contaminants. Employ a dry cloth or vacuum cleaner; never use water or solvents. For outdoor setups, inspect for pest entry and weather-related damage. Design and system safety •Proper sizing and rating Ensure that current transformers are chosen based on the correct voltage, current, and burden ratings. Using CTs with insufficient ratings can lead to overheating or failure in high current situations. Always consider the application’s fault current, accuracy class, and protection needs during the selection process. •Protection relays and circuit breakers It is essential to install appropriate protection relays and fuses on secondary circuits to safeguard against overloads and potential damage. The relays must correspond to the CT’s ratio and burden capabilities to guarantee precise fault detection. •Multiple CTs in a system When implementing multiple CTs, particularly in differential protection setups, ensure that they share identical specifications and polarity to prevent measurement inaccuracies or unintended tripping.

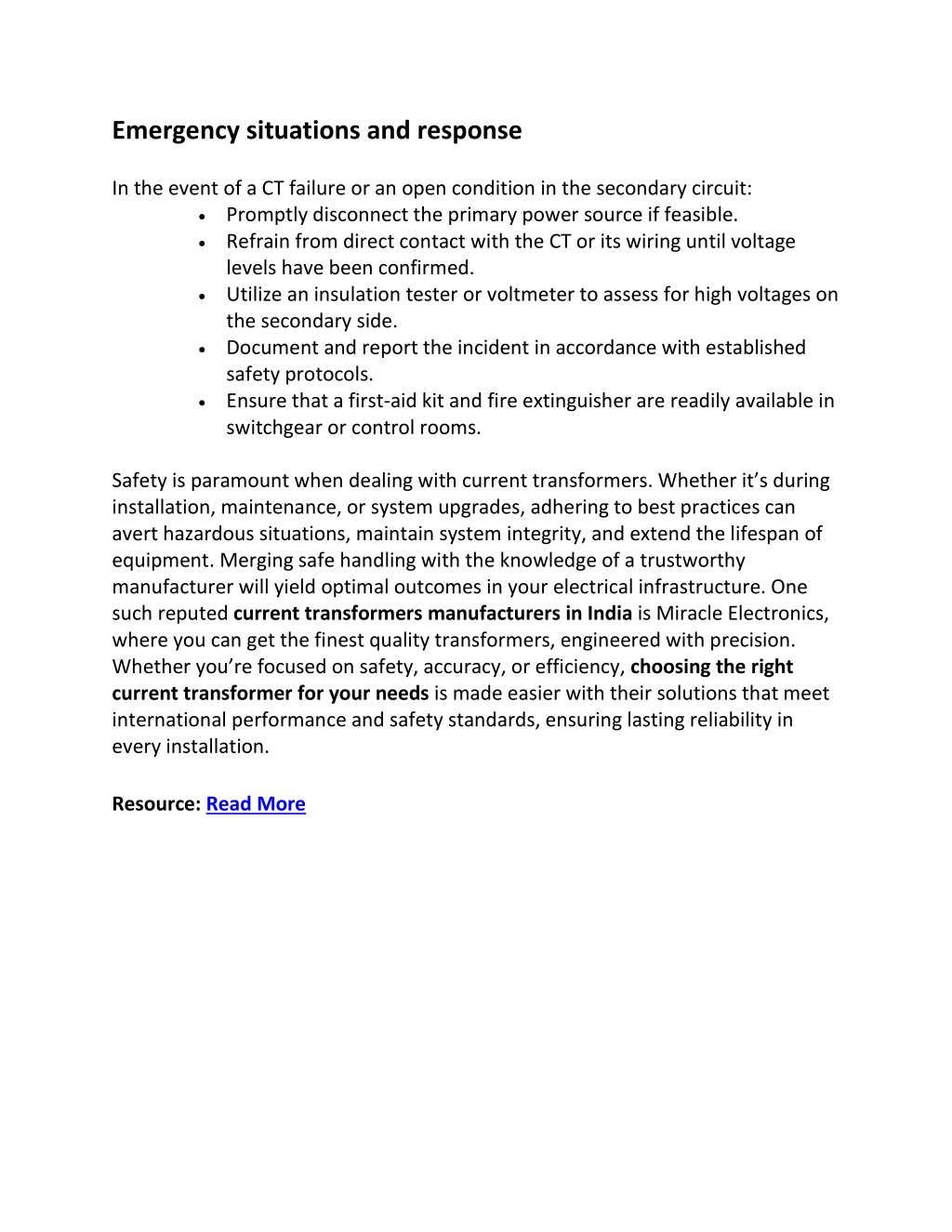

4. Emergency situations and response In the event of a CT failure or an open condition in the secondary circuit: •Promptly disconnect the primary power source if feasible. •Refrain from direct contact with the CT or its wiring until voltage levels have been confirmed. •Utilize an insulation tester or voltmeter to assess for high voltages on the secondary side. •Document and report the incident in accordance with established safety protocols. •Ensure that a first-aid kit and fire extinguisher are readily available in switchgear or control rooms. Safety is paramount when dealing with current transformers. Whether it’s during installation, maintenance, or system upgrades, adhering to best practices can avert hazardous situations, maintain system integrity, and extend the lifespan of equipment. Merging safe handling with the knowledge of a trustworthy manufacturer will yield optimal outcomes in your electrical infrastructure. One such reputed current transformers manufacturers in India is Miracle Electronics, where you can get the finest quality transformers, engineered with precision. Whether you’re focused on safety, accuracy, or efficiency,choosing the right current transformer for your needs is made easier with their solutions that meet international performance and safety standards, ensuring lasting reliability in every installation. Resource: Read More
