Edge Crush Tester – Ensuring Packaging Strength and Durability

An Edge Crush Tester (ECT) is an essential tool for evaluating the strength of corrugated boxes and packaging materials. It measures the ability of a material to withstand crushing forces from the edges, ensuring durability and reliability in transportation and storage. Widely used in industries like packaging, logistics, and manufacturing, the ECT helps in maintaining product safety by preventing box deformation. Investing in an edge crush tester ensures compliance with quality standards and enhances the performance of packaging materials.<br><br>Read more:- https://www.prestogroup.com/products/edg

Prestogroup1
Télécharger la présentation

Edge Crush Tester – Ensuring Packaging Strength and Durability

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

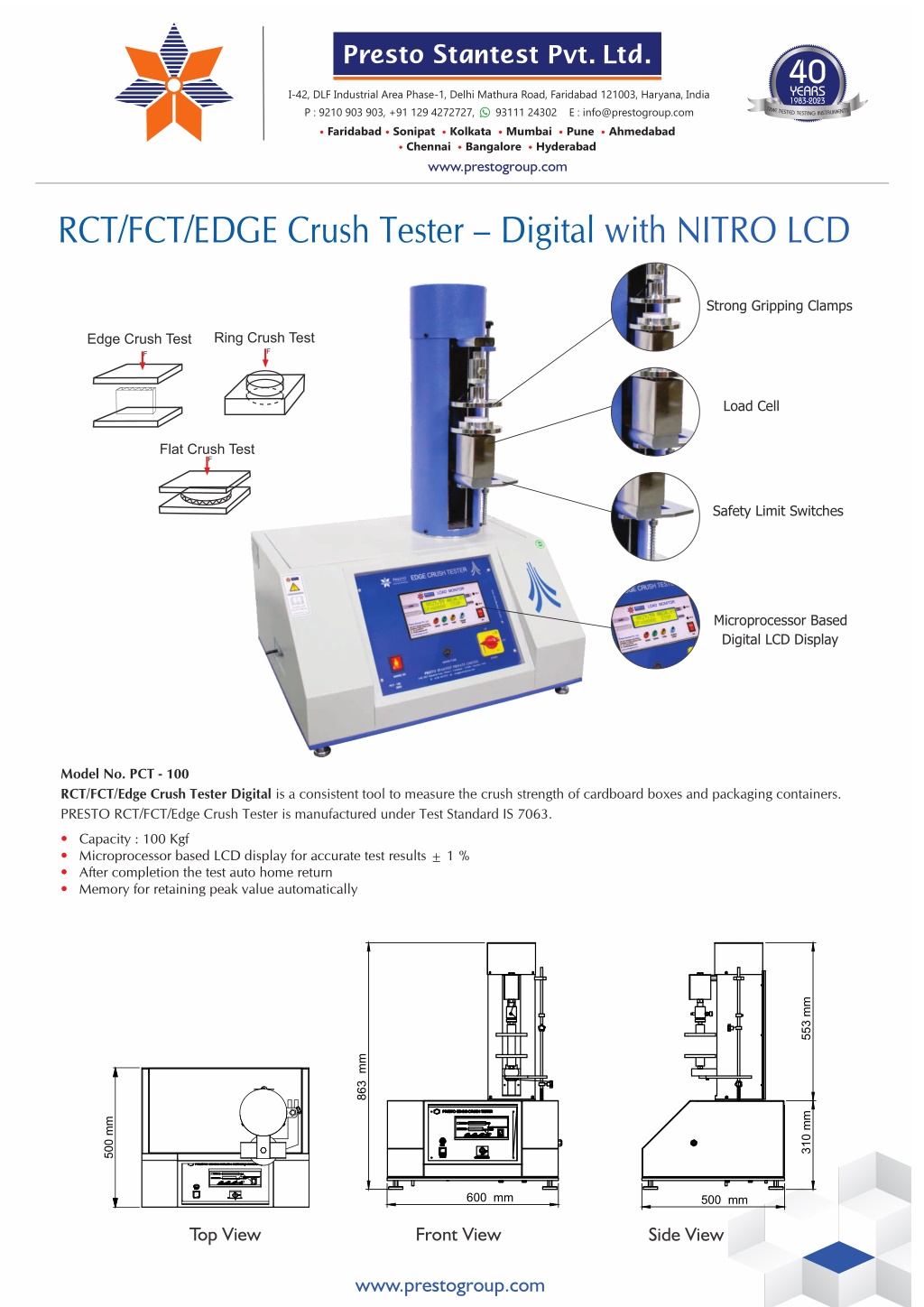

  1. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com 40 YEARS 1983-2023 TIME S T T EN ES UM TE STR D T ESTING IN • Faridabad Sonipat • Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore Hyderabad www.prestogroup.com • • • • • RCT/FCT/EDGE Crush Tester – Digital with NITRO LCD Strong Gripping Clamps F F Load Cell F Safety Limit Switches Microprocessor Based Digital LCD Display Model No. PCT - 100 RCT/FCT/Edge Crush Tester Digital is a consistent tool to measure the crush strength of cardboard boxes and packaging containers. PRESTO RCT/FCT/Edge Crush Tester is manufactured under Test Standard IS 7063. • Capacity : 100 Kgf • Microprocessor based LCD display for accurate test results ± 1 % • After completion the test auto home return • Memory for retaining peak value automatically 553 mm 863 mm 310 mm 500 mm 600 mm 500 mm Top View Front View Side View www.prestogroup.com

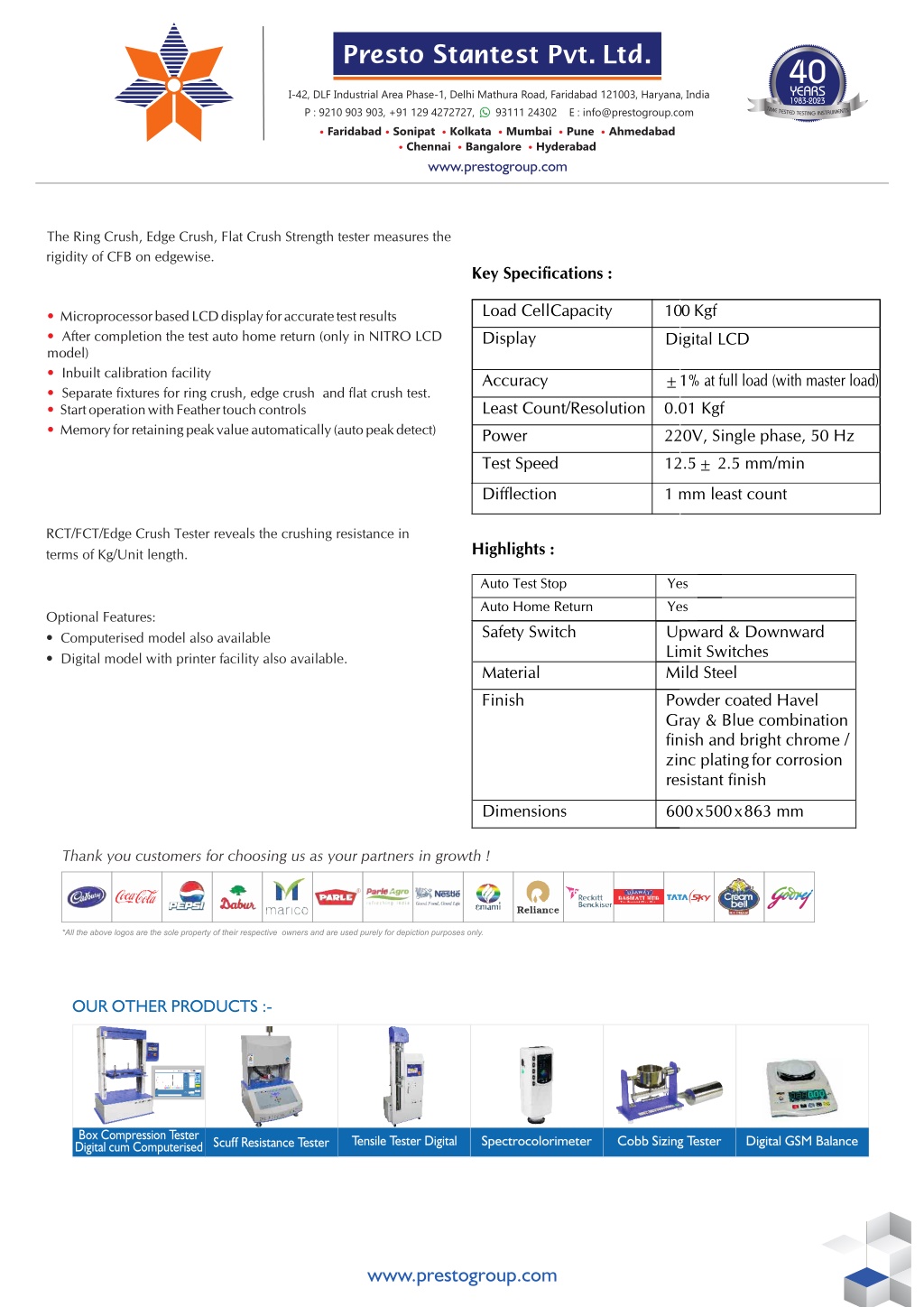

  2. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com 40 YEARS 1983-2023 TIME S T T EN ES UM TE STR D T ESTING IN • Faridabad Sonipat • Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore Hyderabad www.prestogroup.com • • • • • The Ring Crush, Edge Crush, Flat Crush Strength tester measures the rigidity of CFB on edgewise. Key Specifications : Load Cell Capacity Display 100 Digital LCD Kgf • Microprocessor based LCD display for accurate test results • After completion the test auto home return (only in NITRO LCD model) • Inbuilt calibration facility • Separate fixtures for ring crush, edge crush and flat crush test. • Start operation with Feather touch controls • Memory for retaining peak value automatically (auto peak detect) Accuracy Least Count/Resolution Power Test Speed Difflection ±1% at full load (with master load) 0.01 Kgf 220V, Single phase, 50 Hz 12.5 1 mm least count ± 2.5 mm/min RCT/FCT/Edge Crush Tester reveals the crushing resistance in terms of Kg/Unit length. Highlights : Auto Test Stop Yes Auto Home Return Yes Optional Features: • Computerised model also available • Digital model with printer facility also available. Safety Switch Upward & Downward Limit Switches Mild Steel Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish Material Finish Dimensions 600x500x 863 mm OUR OTHER PRODUCTS :- Box Compression Tester Digital cum Computerised Tensile Tester Digital Spectrocolorimeter Cobb Sizing Tester Digital GSM Balance Scuff Resistance Tester www.prestogroup.com
