Ensure Secure Packaging with a Heat Seal Tester

A Heat Seal Tester is essential for evaluating the seal integrity of packaging materials like plastic films, laminates, and foils. This testing device ensures strong and consistent seals by applying controlled heat, pressure, and dwell time, preventing leakage and contamination. It is widely used in the food, pharmaceutical, and packaging industries to enhance product safety and shelf life. <br><br>Read more:- https://www.prestogroup.com/products/heat-sealer/

Prestogroup1
Télécharger la présentation

Ensure Secure Packaging with a Heat Seal Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

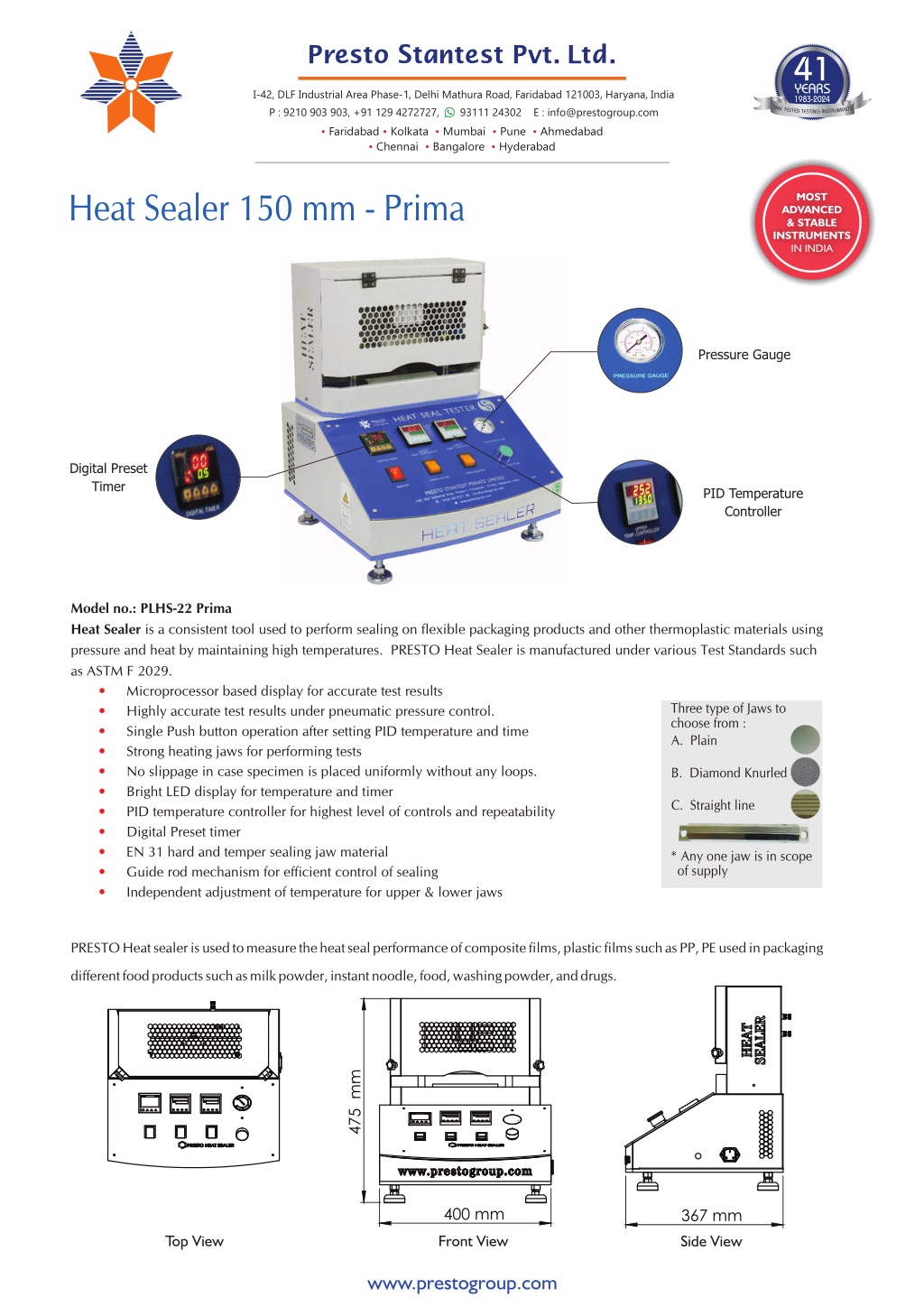

  1. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com YEARS 41 1983-2024 TIME S T EN T ES UM TE STR D T ESTING IN • Faridabad Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore • • • • • Hyderabad Heat Sealer 150 mm - Prima MOST ADVANCED & STABLE INSTRUMENTS IN INDIA Pressure Gauge Digital Preset Timer PID Temperature Controller Model no.: PLHS-22 Prima Heat Sealer is a consistent tool used to perform sealing on flexible packaging products and other thermoplastic materials using pressure and heat by maintaining high temperatures. PRESTO Heat Sealer is manufactured under various Test Standards such as ASTM F 2029. • Microprocessor based display for accurate test results • Highly accurate test results under pneumatic pressure control. • Single Push button operation after setting PID temperature and time • Strong heating jaws for performing tests • No slippage in case specimen is placed uniformly without any loops. • Bright LED display for temperature and timer • PID temperature controller for highest level of controls and repeatability • Digital Preset timer • EN 31 hard and temper sealing jaw material • Guide rod mechanism for efficient control of sealing • Independent adjustment of temperature for upper & lower jaws Three type of Jaws to choose from : A. Plain B. Diamond Knurled C. Straight line * Any one jaw is in scope of supply PRESTO Heat sealer is used to measure the heat seal performance of composite films, plastic films such as PP, PE used in packaging different food products such as milk powder, instant noodle, food, washing powder, and drugs. 475 mm 400 mm 367 mm Top View Front View Side View www.prestogroup.com

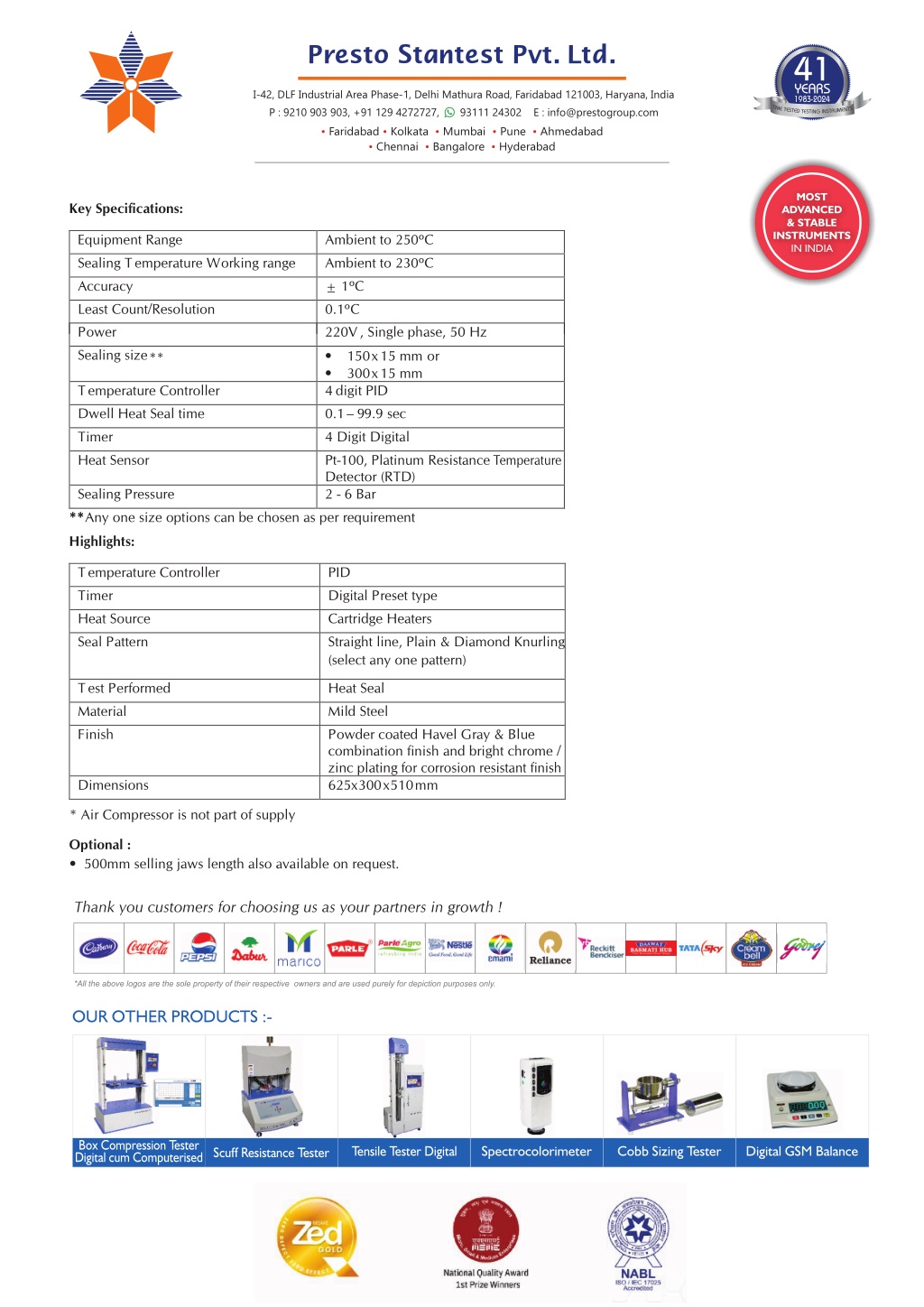

  2. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com YEARS 41 1983-2024 TIME S T EN T ES UM TE STR D T ESTING IN • Faridabad Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore • • • • • Hyderabad MOST ADVANCED & STABLE INSTRUMENTS IN INDIA Key Specifications: Equipment Range Sealing Temperature Working range Accuracy Least Count/Resolution Power Sealing size** Ambient to 250ºC Ambient to 230ºC ± 1ºC 0.1ºC 220V, Single phase, 50 Hz 150x15 mm or 300x15 mm 4 digit PID 0.1 – 99.9 sec 4 Digit Digital Pt-100, Platinum Resistance Temperature Detector (RTD) 2 - 6 Bar • • Temperature Controller Dwell Heat Seal time Timer Heat Sensor Sealing Pressure ** ** Any one size options can be chosen as per requirement Highlights: Temperature Controller Timer Heat Source Seal Pattern PID Digital Preset type Cartridge Heaters Straight line, Plain & Diamond Knurling (select any one pattern) Heat Seal Mild Steel Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish 625x300x510 mm Test Performed Material Finish Dimensions * Air Compressor is not part of supply Optional : • 500mm selling jaws length also available on request. OUR OTHER PRODUCTS :- Box Compression Tester Digital cum Computerised Tensile Tester Digital Spectrocolorimeter Cobb Sizing Tester Digital GSM Balance Scuff Resistance Tester
