Peel Strength Tester Digital with NITRO LCD

Peel Strength Tester is a consistent tool to quantify the permanence of adhesion or peel ability<br>of self-adhesive pressure sensitive materials. PRESTO Peel Adhesion Tester is manufactured<br>under test standard ASTM D 903.<br>For More information Visit Our Website: -https://www.prestogroup.com/products/peel-strength-seal-strength-tester/

Prestogroup1
Télécharger la présentation

Peel Strength Tester Digital with NITRO LCD

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

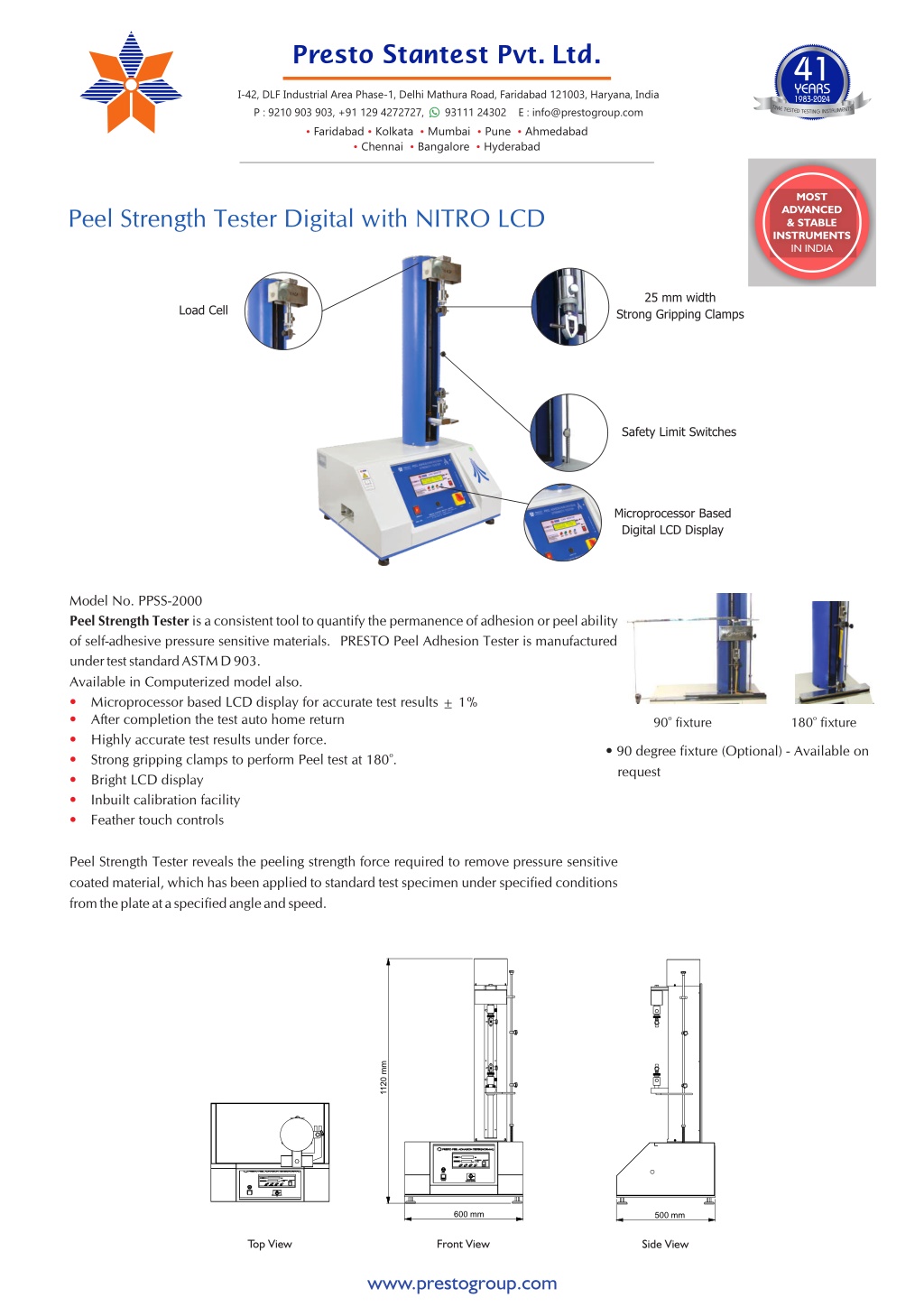

  1. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com YEARS 41 1983-2024 TIME S T EN T ES UM TE STR D T ESTING IN • Faridabad Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore • • • • • Hyderabad MOST ADVANCED & STABLE INSTRUMENTS IN INDIA Peel Strength Tester Digital with NITRO LCD 25 mm width Strong Gripping Clamps Load Cell Safety Limit Switches Microprocessor Based Digital LCD Display Model No. PPSS-2000 Peel Strength Tester is a consistent tool to quantify the permanence of adhesion or peel ability of self-adhesive pressure sensitive materials. PRESTO Peel Adhesion Tester is manufactured under test standard ASTM D 903. Available in Computerized model also. • Microprocessor based LCD display for accurate test results ± 1% • After completion the test auto home return • Highly accurate test results under force. • Strong gripping clamps to perform Peel test at 180 . • Bright LCD display • Inbuilt calibration facility • Feather touch controls o o 90 fixture 180 fixture • 90 degree fixture (Optional) - Available on request o Peel Strength Tester reveals the peeling strength force required to remove pressure sensitive coated material, which has been applied to standard test specimen under specified conditions from the plate at a specified angle and speed. 1120 mm 600 mm 500 mm Top View Front View Side View www.prestogroup.com

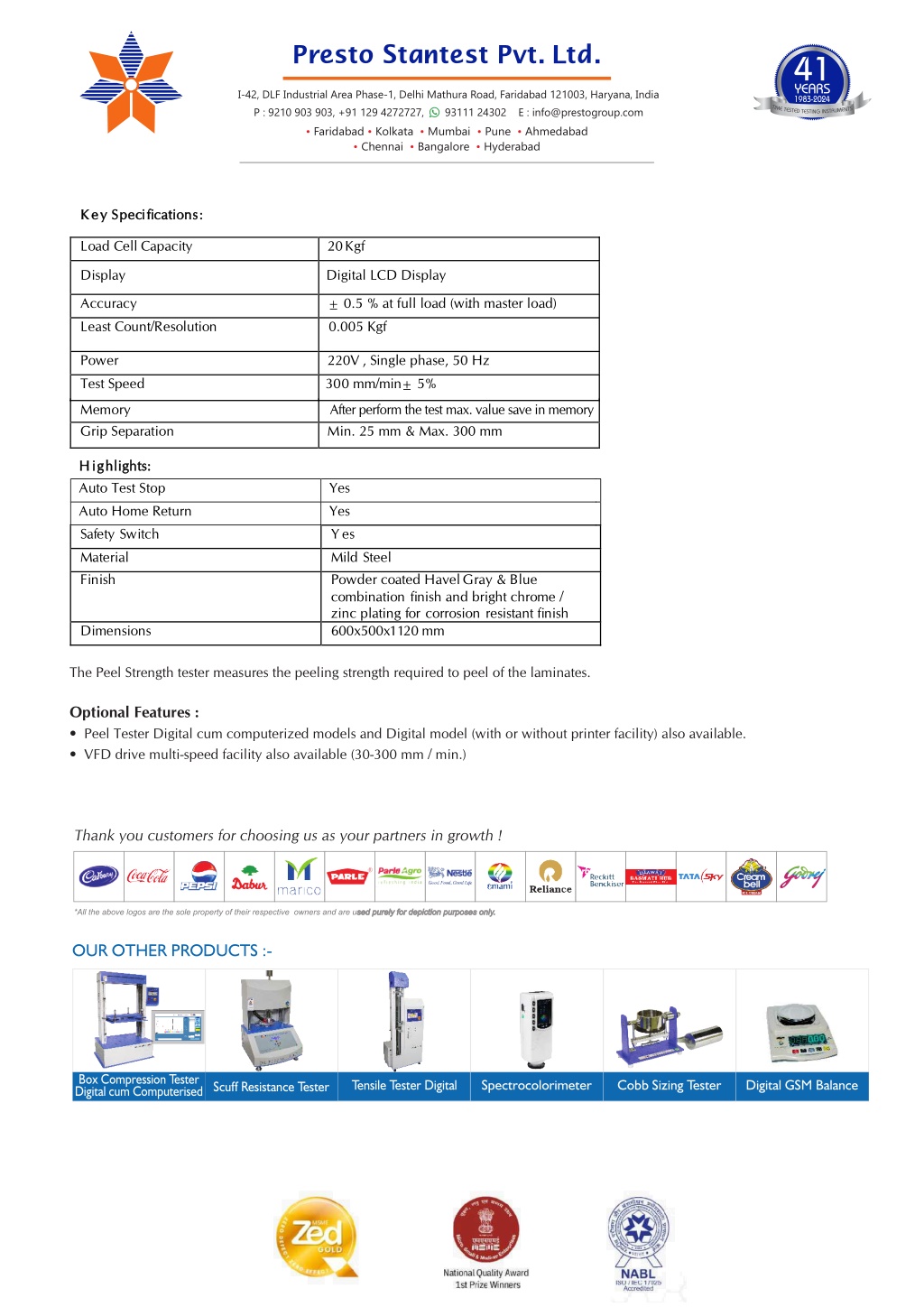

  2. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com YEARS 41 1983-2024 TIME S T EN T ES UM TE STR D T ESTING IN • Faridabad Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore • • • • • Hyderabad Key Specifications: Key Specifications: Load Cell Capacity Display 20 Kgf Digital LCD Display ± 0.5 % at full load (with master load) 0.005 Kgf 220V , Single phase, 50 Hz 300 mm/min ± 5% After perform the test max. value save in memory Min. 25 mm & Max. 300 mm Accuracy Least Count/Resolution . Power Test Speed Memory Grip Separation Highlights: Highlights: Auto Test Stop Yes Auto Home Return Yes Safety Switch Material Finish Yes Mild Steel Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish 600x500x1120 mm Dimensions The Peel Strength tester measures the peeling strength required to peel of the laminates. Optional Features : • Peel Tester Digital cum computerized models and Digital model (with or without printer facility) also available. • VFD drive multi-speed facility also available (30-300 mm / min.) OUR OTHER PRODUCTS :- Box Compression Tester Digital cum Computerised Tensile Tester Digital Spectrocolorimeter Cobb Sizing Tester Digital GSM Balance Scuff Resistance Tester
