ADU Casita Drafting Requirements

The essential drafting requirements for ADUs and casitas, including square footage limits, setback rules, access, utilities, parking, and permitting. A simple visual guide to help homeowners create accurate, code-compliant ADU plans.

ResDraft
Télécharger la présentation

ADU Casita Drafting Requirements

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

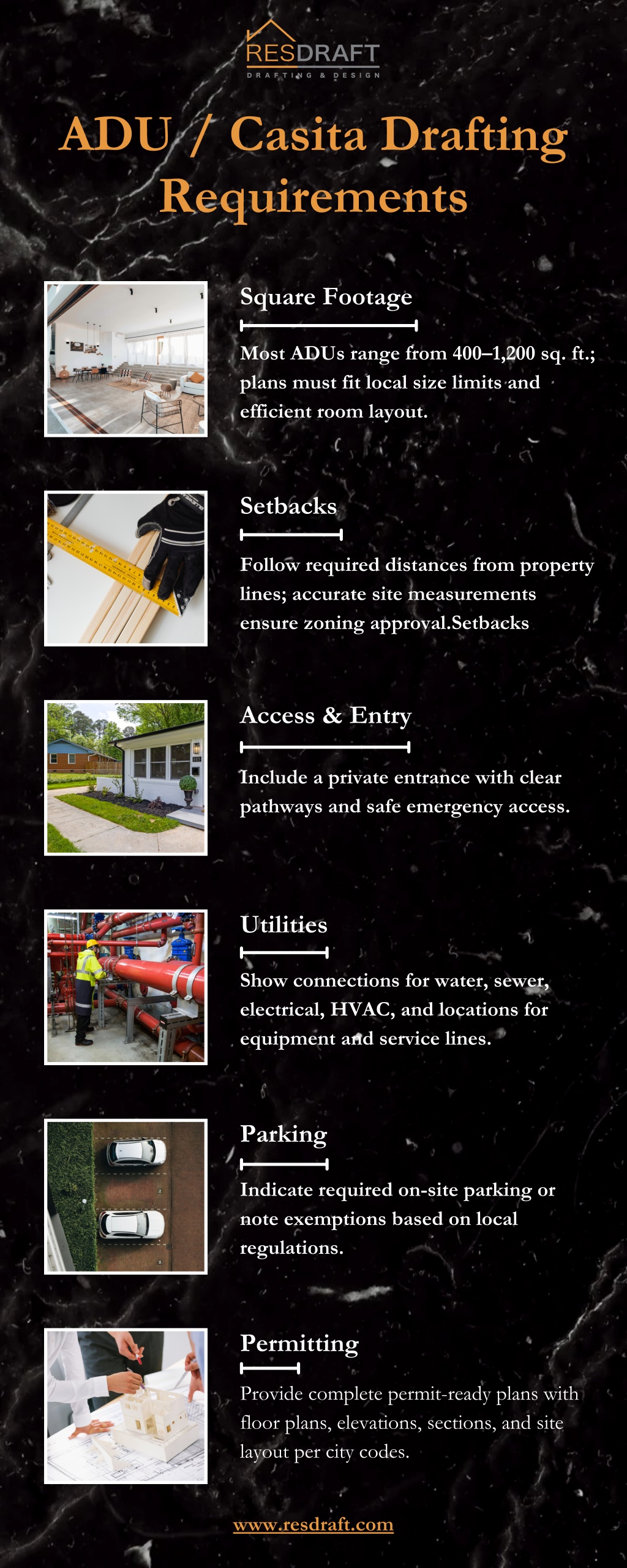

  1. ADU / Casita Drafting Requirements Square Footage Most ADUs range from 400–1,200 sq. ft.; plans must fit local size limits and efficient room layout. Setbacks Follow required distances from property lines; accurate site measurements ensure zoning approval.Setbacks Access & Entry Include a private entrance with clear pathways and safe emergency access. Utilities Show connections for water, sewer, electrical, HVAC, and locations for equipment and service lines. Parking Indicate required on-site parking or note exemptions based on local regulations. Permitting Provide complete permit-ready plans with floor plans, elevations, sections, and site layout per city codes. www.resdraft.com
