Presentation Transcript

  1. Security Products Division

  2. TOA Video Surveillance Solutions

  3. Digital Video Recorders

  4. Sixteen new models! Integrated multiplexer supports 9 or 16 cameras 80, 160, 320, 600GB versions (expandable with optional Disk Arrays) Optional DVD Recorder C-DR091 / 161 SeriesDigital Video Recorders

  5. 720 x 240 Resolution and 120fps Recording Rate Audio Input and Output USB Interface for mobile recording media Large System Capacity – cascade up to 8 DVRs for 128 camera inputs and 43.2 Terrabyte data storage C-DR091 / 161 SeriesDigital Video Recorders

  6. Network Interface (100BaseT) Remote Surveillance using standard web browser E-mail Notification Double Keylock Protection (Password, Password+USB) Network Time Protocol (NTP) ensures accurate time-stamp C-DR091 / 161 SeriesDigital Video Recorders

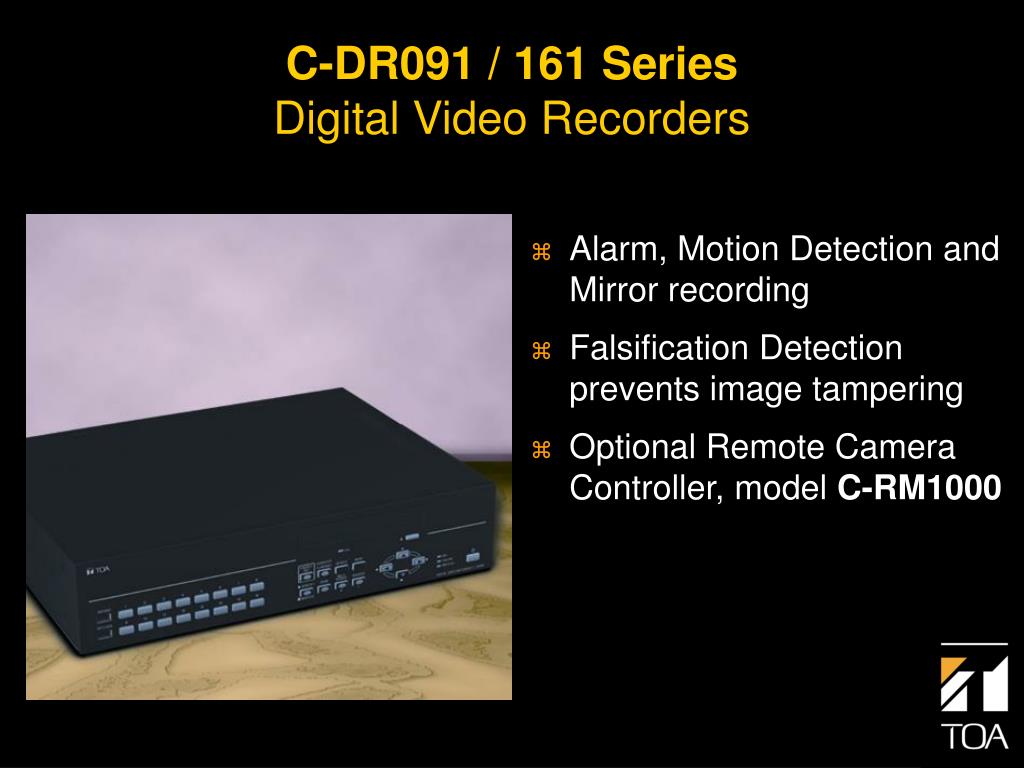

  7. Alarm, Motion Detection and Mirror recording Falsification Detection prevents image tampering Optional Remote Camera Controller, model C-RM1000 C-DR091 / 161 SeriesDigital Video Recorders

  8. C-DR091 / 161 SeriesDigital Video Recorders Connect up to four remote controllers per system

  9. C-DR091 / 161 SeriesDigital Video Recorders Cascade up to eight DVR’s

  10. C-DR091 / 161 SeriesDigital Video Recorders

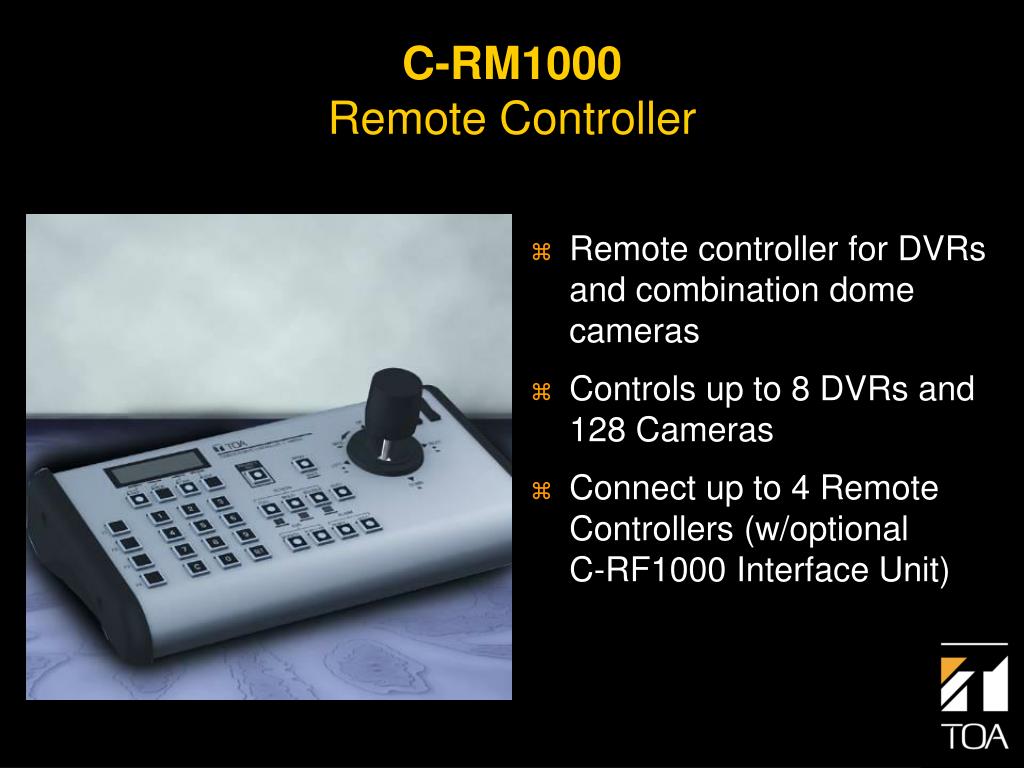

  11. Remote controller for DVRs and combination dome cameras Controls up to 8 DVRs and 128 Cameras Connect up to 4 Remote Controllers (w/optional C-RF1000 Interface Unit) C-RM1000Remote Controller

  12. Cameras

  13. C-CC564 / 764Combination Dome Cameras • Indoor and Outdoor models • High Speed Pan/Tilt: 360°/Second • Wide Dynamic Range • 255 Preset Positions • Privacy Masking • 1/4-Inch CCD, 480 TVL • Zoom: 23x Optical, 12x Electronic • Bosch, Panasonic and Pelco “D” Protocol Compatible

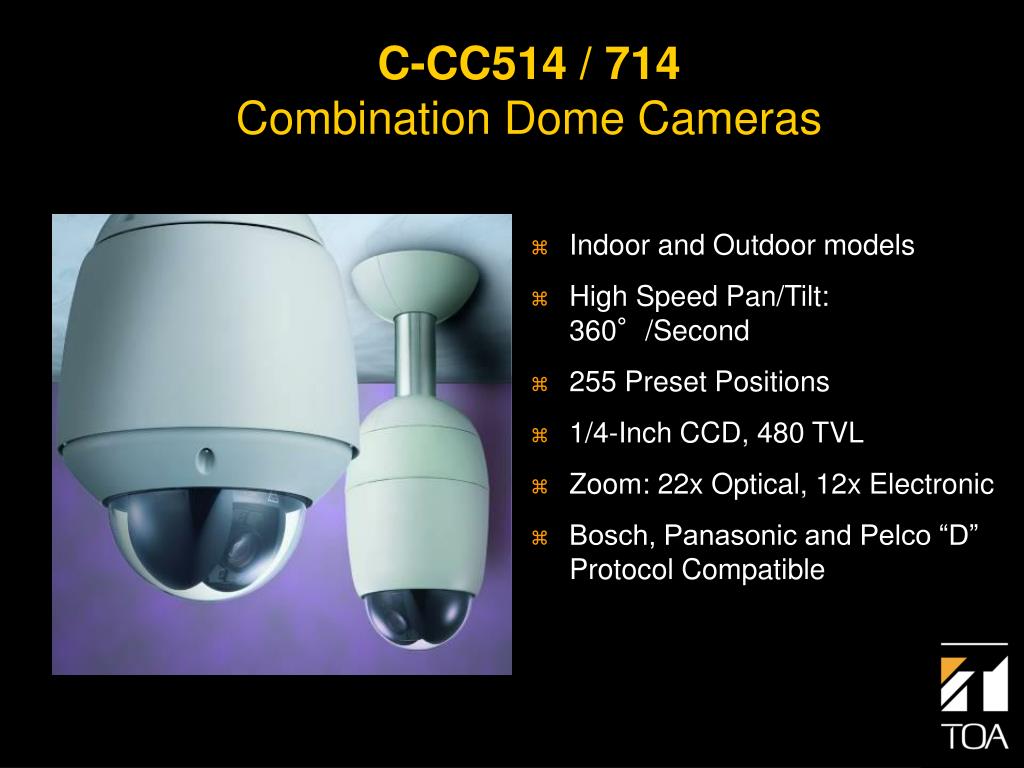

  14. C-CC514 / 714Combination Dome Cameras • Indoor and Outdoor models • High Speed Pan/Tilt: 360°/Second • 255 Preset Positions • 1/4-Inch CCD, 480 TVL • Zoom: 22x Optical, 12x Electronic • Bosch, Panasonic and Pelco “D” Protocol Compatible

  15. Wide Dynamic Range Day/Night High sensitivity 1/3-Inch CCD Imager 500 TVL Resolution Alarm input 24 VAC or 12 VDC CS lens compatible Optional C-RU10 Remote Controller C-CC364 Wide Dynamic Range Cameras

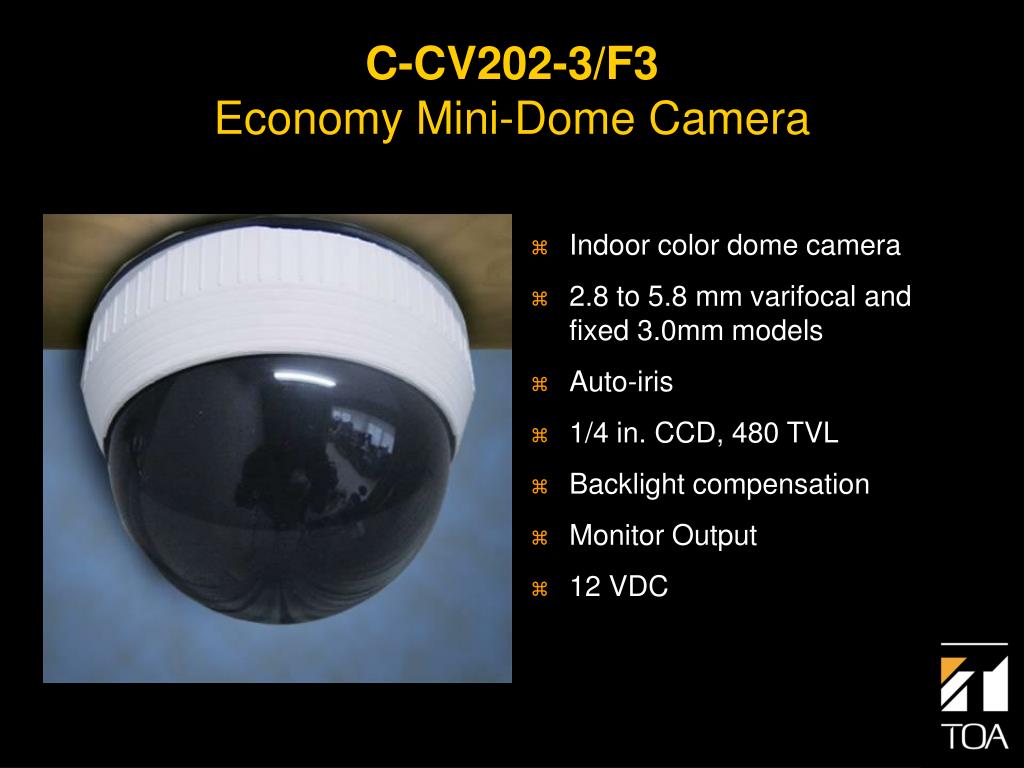

  16. Indoor color dome camera 2.8 to 5.8 mm varifocal and fixed 3.0mm models Auto-iris 1/4 in. CCD, 480 TVL Backlight compensation Monitor Output 12 VDC C-CV202-3/F3Economy Mini-Dome Camera

  17. 2.0 to 4.0mm Varifocal Auto-iris 1/4-Inch CCD 480 TVL Resolution Backlight compensation 24 VAC or 12 VDC C-CV24-2 Mini-Dome Indoor Camera

  18. High impact polycarbonate resin dome cover Indoor and Outdoor (IP65) 2.8 to 5.8 mm or 4 to 9 mm varifocal Auto-iris 1/4 in. CCD, 480 TVL 24 VAC or 12 VDC Q-CV24VP-3/4Vandal-proof Mini-Dome Cameras

  19. Indoor color camera CS lens compatible (available separately) 1/4 in. CCD, 480 TVL Backlight compensation 12 VDC C-CV102CSEconomy CS-mount Camera

  20. CS lens compatible (available separately) Auto-iris 1/4-Inch CCD 480 TVL Resolution Backlight compensation 24 VAC or 12 VDC C-CV14-CSIndoor Camera

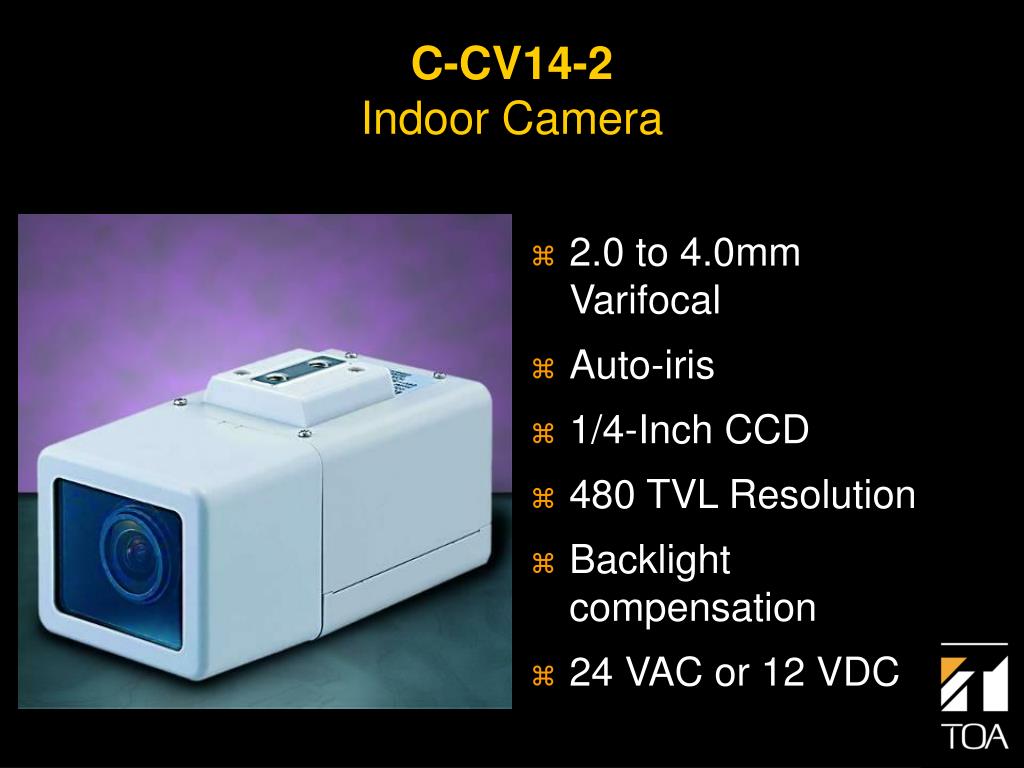

  21. 2.0 to 4.0mm Varifocal Auto-iris 1/4-Inch CCD 480 TVL Resolution Backlight compensation 24 VAC or 12 VDC C-CV14-2Indoor Camera

  22. 3.0 to 6.0mm Varifocal Water & Dust resistant (IP66) Auto-iris 1/4-Inch CCD 480 TVL Resolution Backlight compensation 24 VAC or 12 VDC C-CV44-3 Outdoor Camera

  23. Other CCTV Products

  24. Duplex Multiplexers C-MS91D 9-Channel C-MS161D 16-Channel Simultaneous viewing of up to 16 cameras Multiple split-screen displays Dual DVR/VCR connections Motion detection function Multiplexers

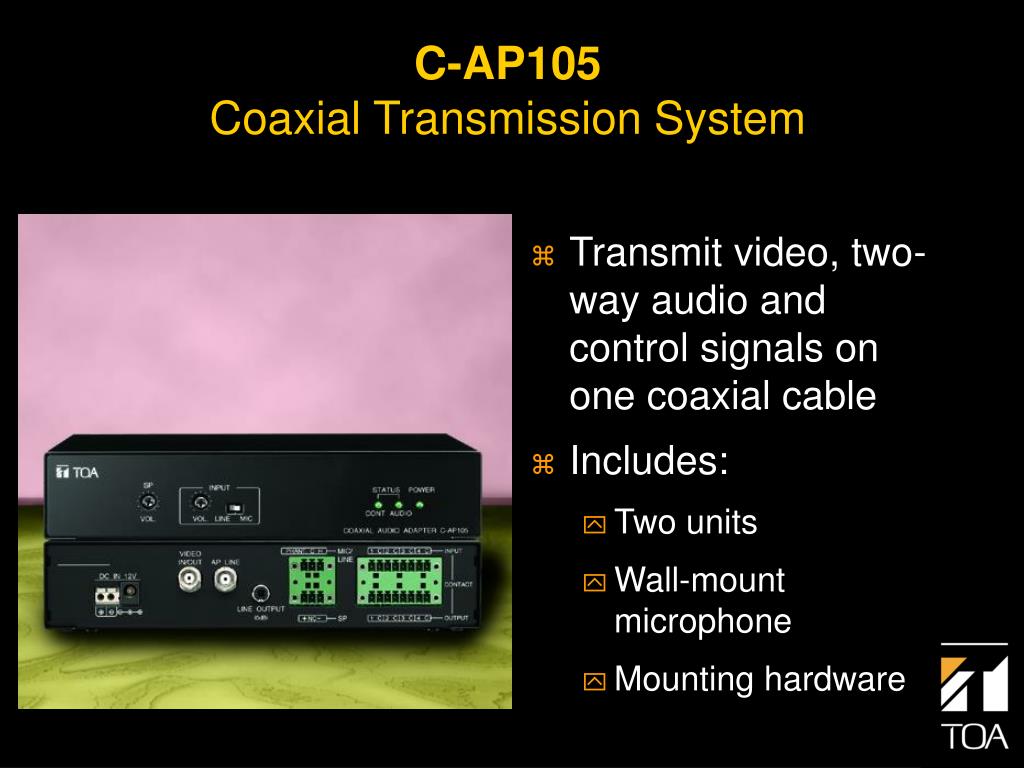

  25. Transmit video, two-way audio and control signals on one coaxial cable Includes: Two units Wall-mount microphone Mounting hardware C-AP105 Coaxial Transmission System

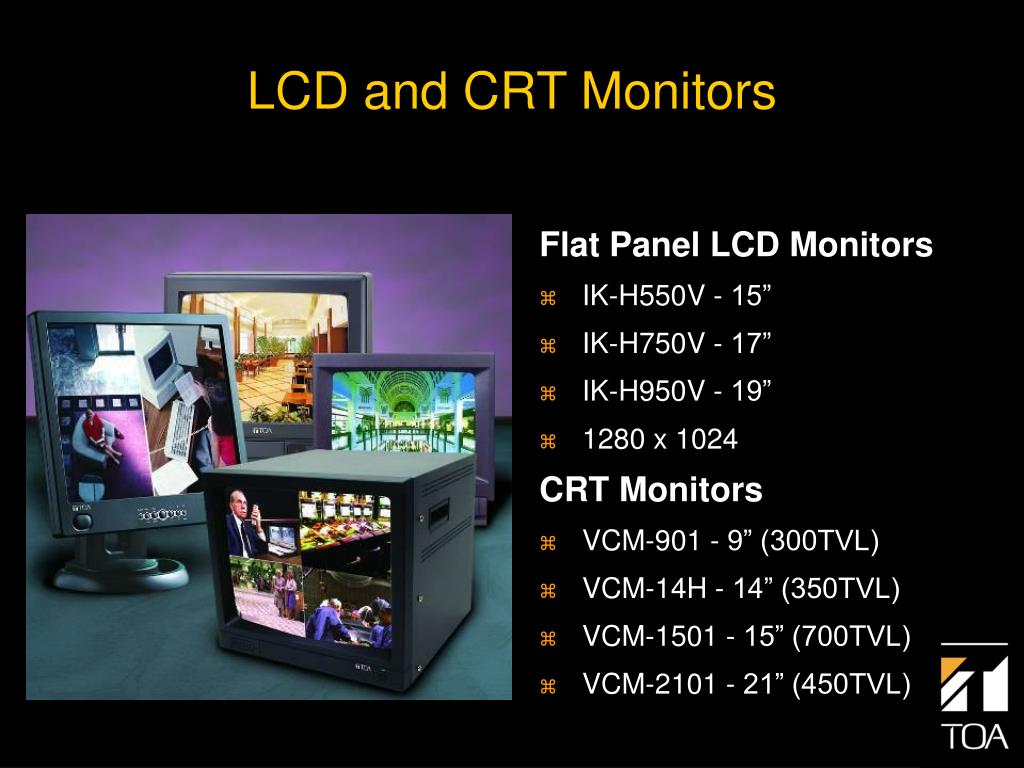

  26. Flat Panel LCD Monitors IK-H550V - 15” IK-H750V - 17” IK-H950V - 19” 1280 x 1024 CRT Monitors VCM-901 - 9” (300TVL) VCM-14H - 14” (350TVL) VCM-1501 - 15” (700TVL) VCM-2101 - 21” (450TVL) LCD and CRT Monitors

  27. Intercom Systems

  28. N-8000 Series IP Intercom Systems • Network communications over IP networks (LAN/WAN) • Up to 80 exchanges and 1,280 stations • Occupies minimal bandwidth — 130 kbps maximum (station to station call)

  29. N-8000 Series IP Intercom Systems • Versatile features including: • automatic call forwarding • scan monitoring • paging to up to 160 zones • Handset and hands-free full-duplex conversation • Control and monitoring via software and web browser

  30. N-8000 Series IP Intercom Systems • IP Stations with Ethernet port connect directly to the network (up to 80 stations) • Connect up to sixteen two-wire stations to compact Network Exchange (up to 80 exchanges for up to 1,280 stations)

  31. VS-900 Security Intercom • "Sub-to-Master" and "Master-to-Master" station communication • Single Exchange: • 4 Master Stations • 64 Sub-Stations • Max. 16 Exchanges: • 64 Master stations • 1,024 Sub-stations

  32. VS-900 Security Intercom • Comprehensive call-forwarding • Time-based • No-Answer • Busy • C/O line • Recording Outputs • Event Logging

  33. www.toaelectronics.com
