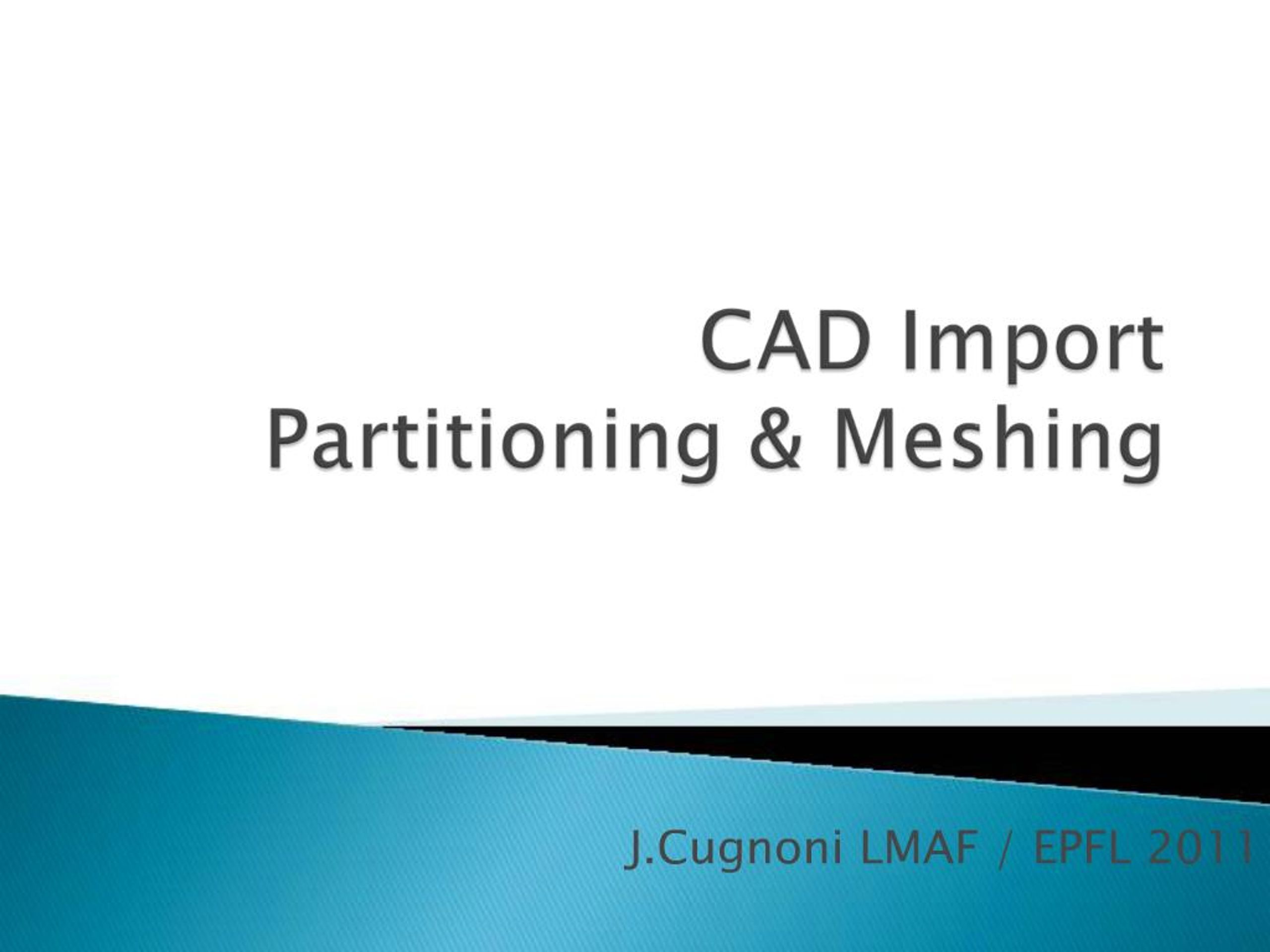

    1. CAD Import Partitioning & Meshing J.Cugnoni LMAF / EPFL 2011

    2. Vertices (0D): Coordinates & coordinate system Edges (1D): several Vertices => line / curve Surfaces (2D): closed loop of edges (shared vertices), parametric 2D space, normal = orientation Volumes (3D): a closed set of surfaces (shared edges), unified normal orientation CAD Model Structure

    3. CAD Example
