Derivatives

Derivatives. Difference quotients are used in many business situations, other than marginal analysis (as in the previous section). Derivatives. Difference quotients Called the derivative of f ( x ) Computing Called differentiation. Derivatives. Ex. Evaluate if .

Rita
Télécharger la présentation

Derivatives

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

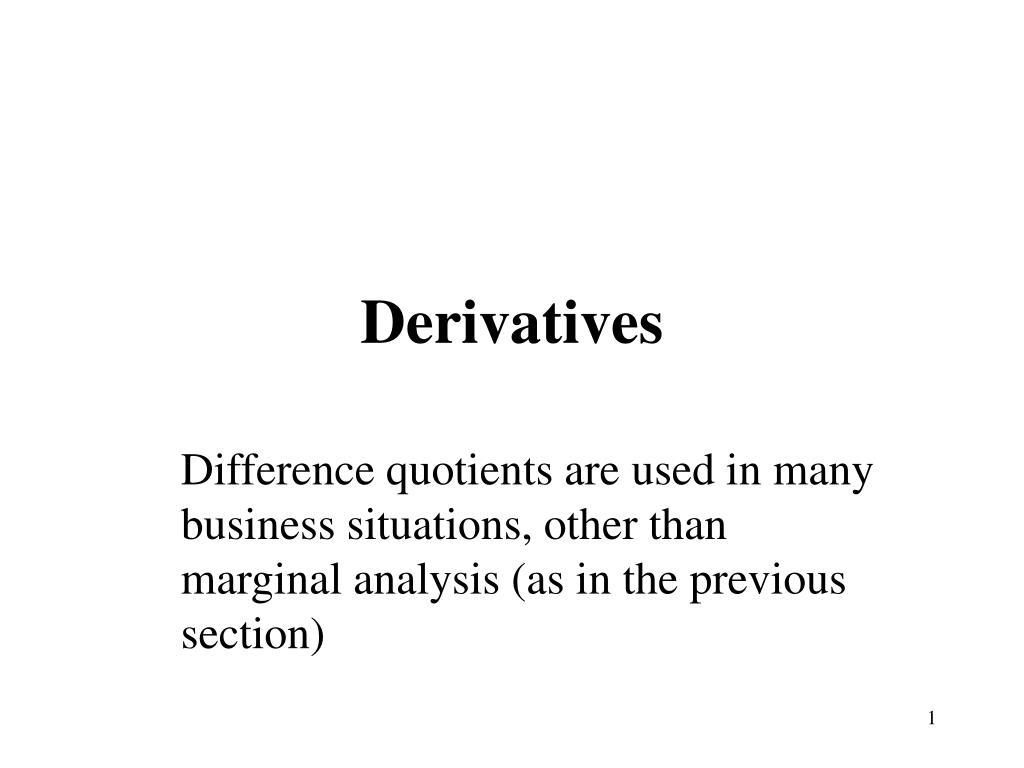

  1. Derivatives Difference quotients are used in many business situations, other than marginal analysis (as in the previous section)

  2. Derivatives • Difference quotients • Called the derivative of f(x) • Computing Called differentiation

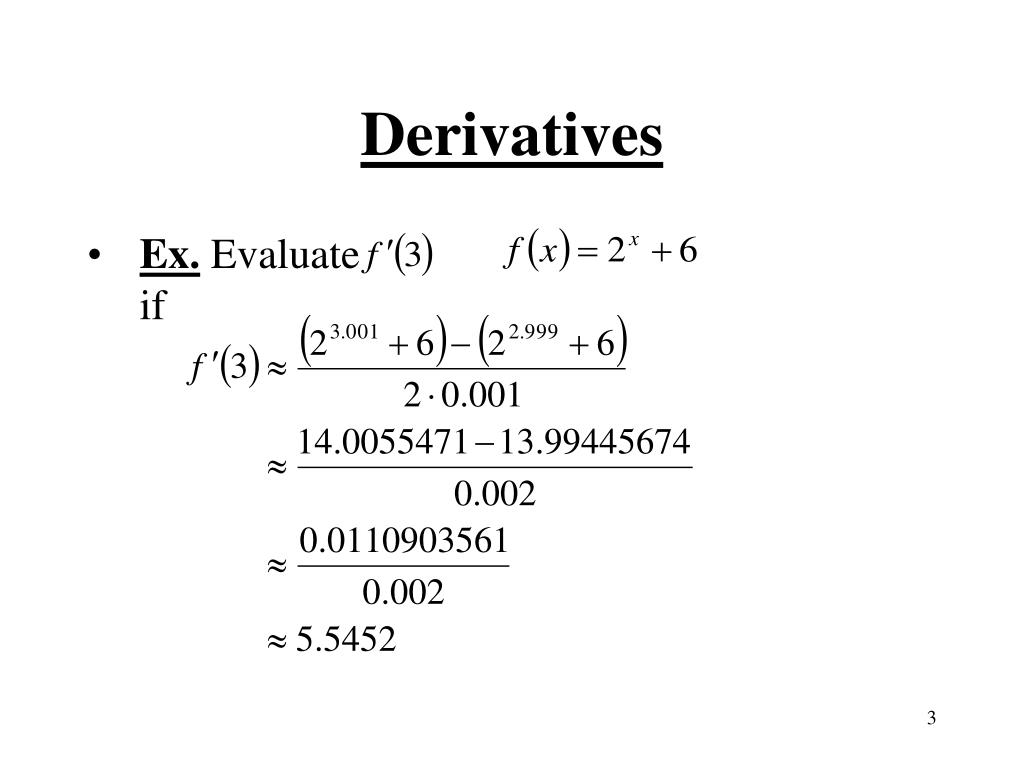

  3. Derivatives • Ex. Evaluate if

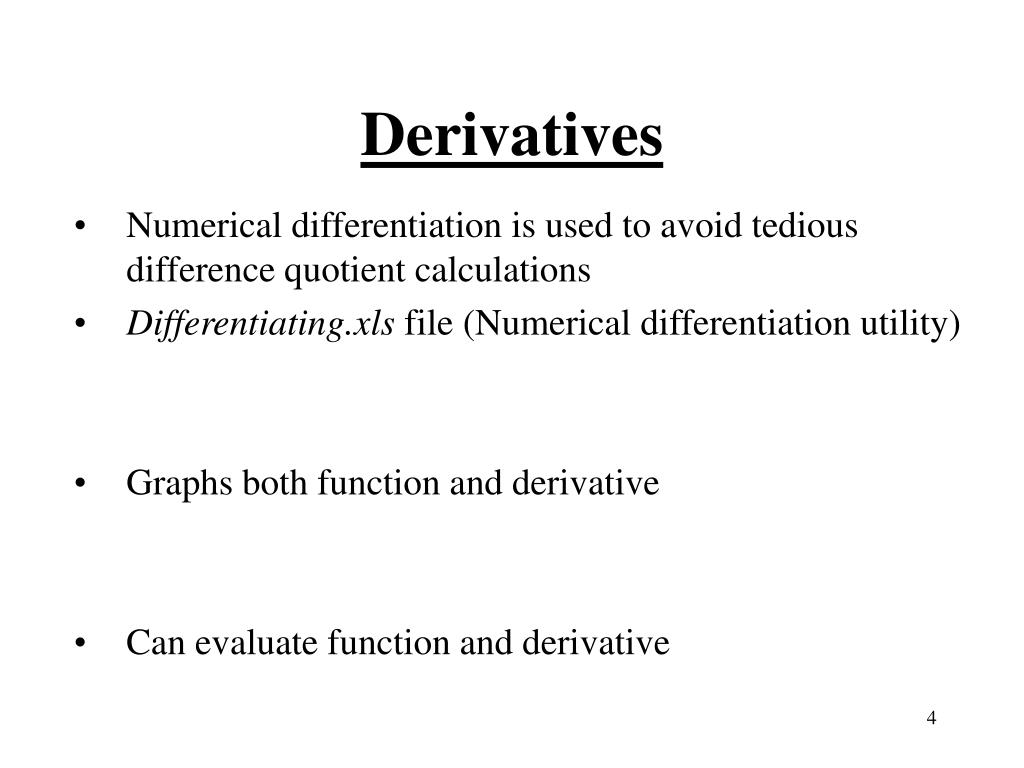

  4. Derivatives • Numerical differentiation is used to avoid tedious difference quotient calculations • Differentiating.xls file (Numerical differentiation utility) • Graphs both function and derivative • Can evaluate function and derivative

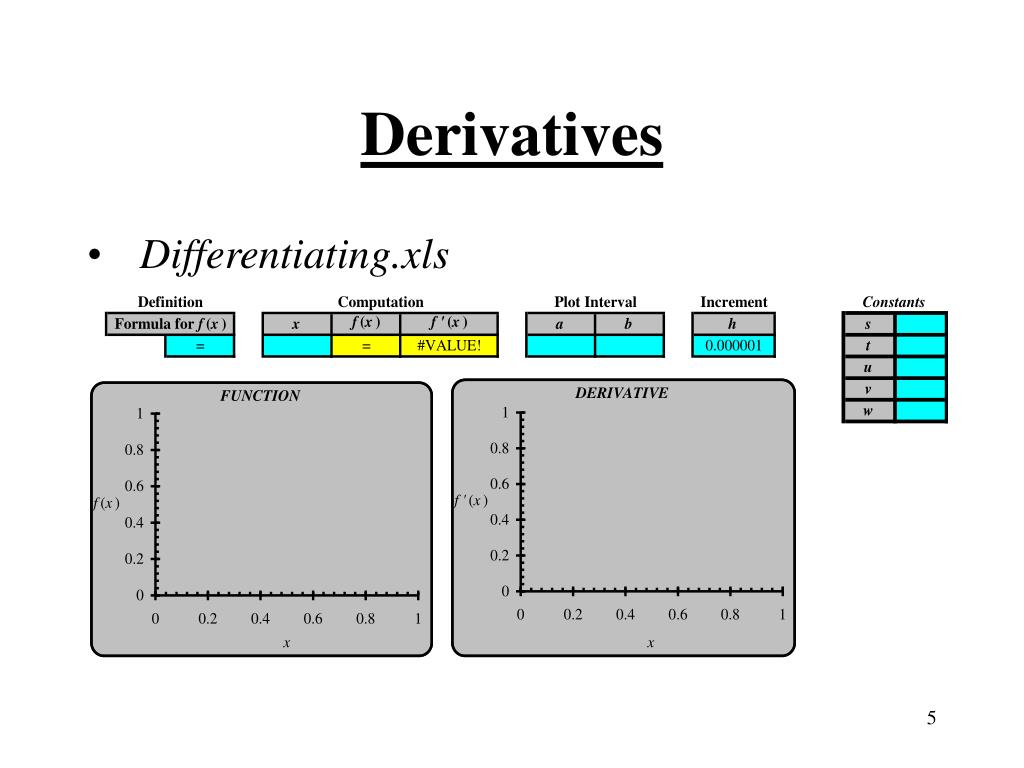

  5. Derivatives • Differentiating.xls

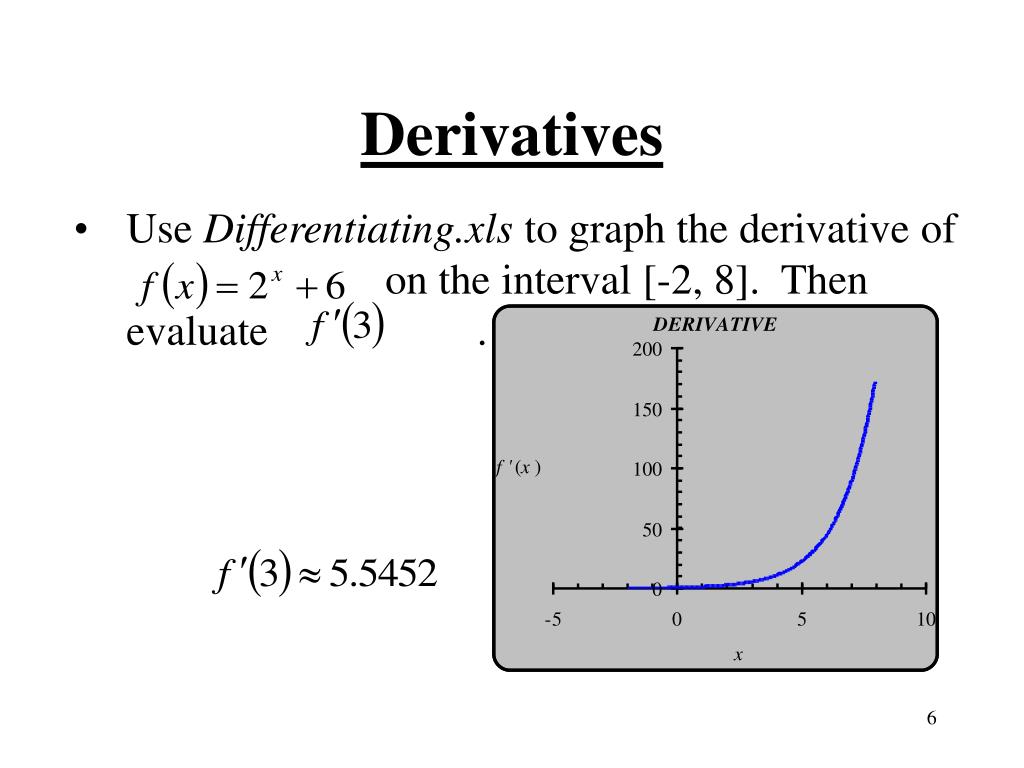

  6. Derivatives • Use Differentiating.xls to graph the derivative of on the interval [-2, 8]. Then evaluate .

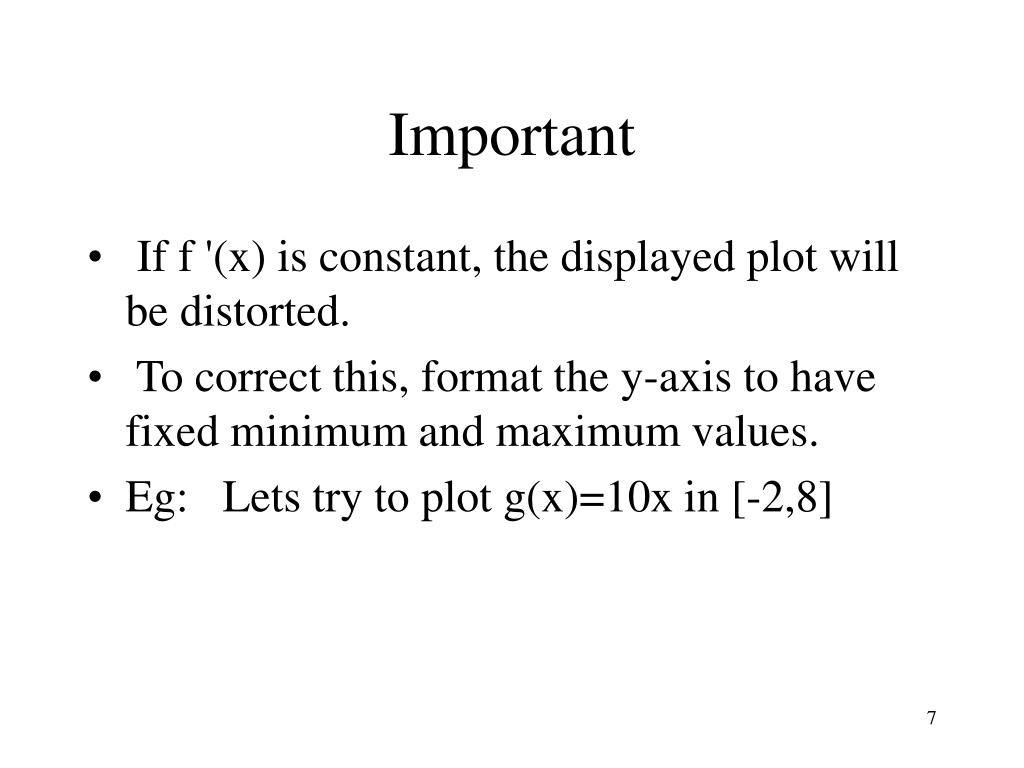

  7. Important • If f '(x) is constant, the displayed plot will be distorted. • To correct this, format the y-axis to have fixed minimum and maximum values. • Eg: Lets try to plot g(x)=10x in [-2,8]

  8. Derivatives • Properties If then If then If then If then

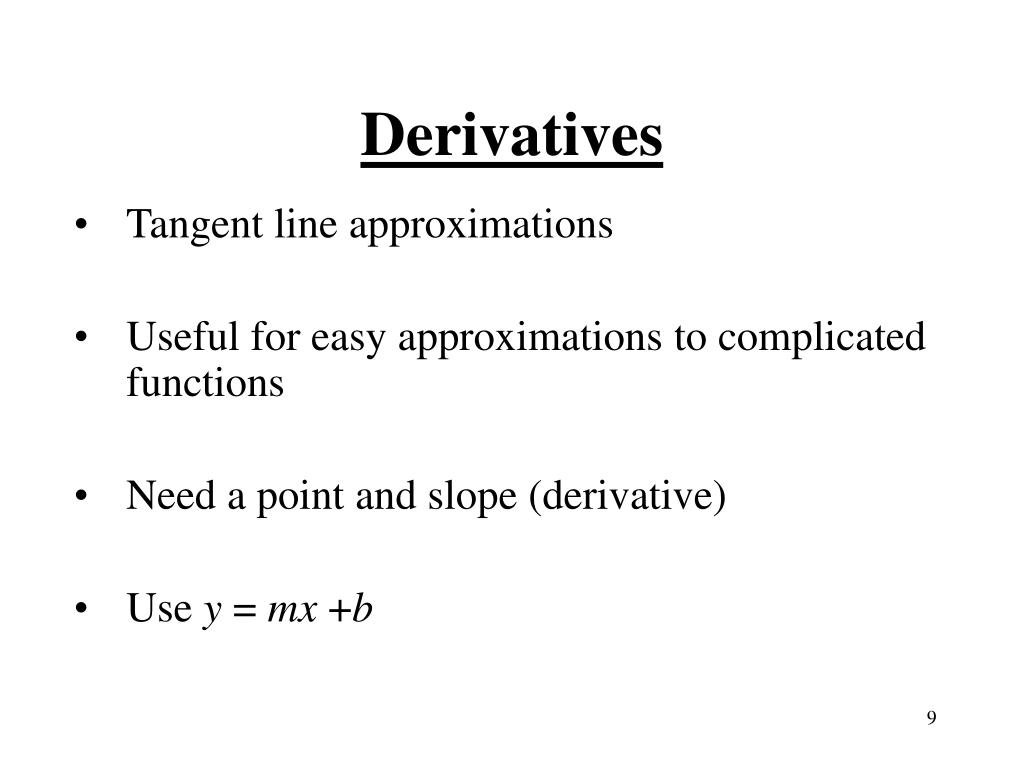

  9. Derivatives • Tangent line approximations • Useful for easy approximations to complicated functions • Need a point and slope (derivative) • Use y = mx +b

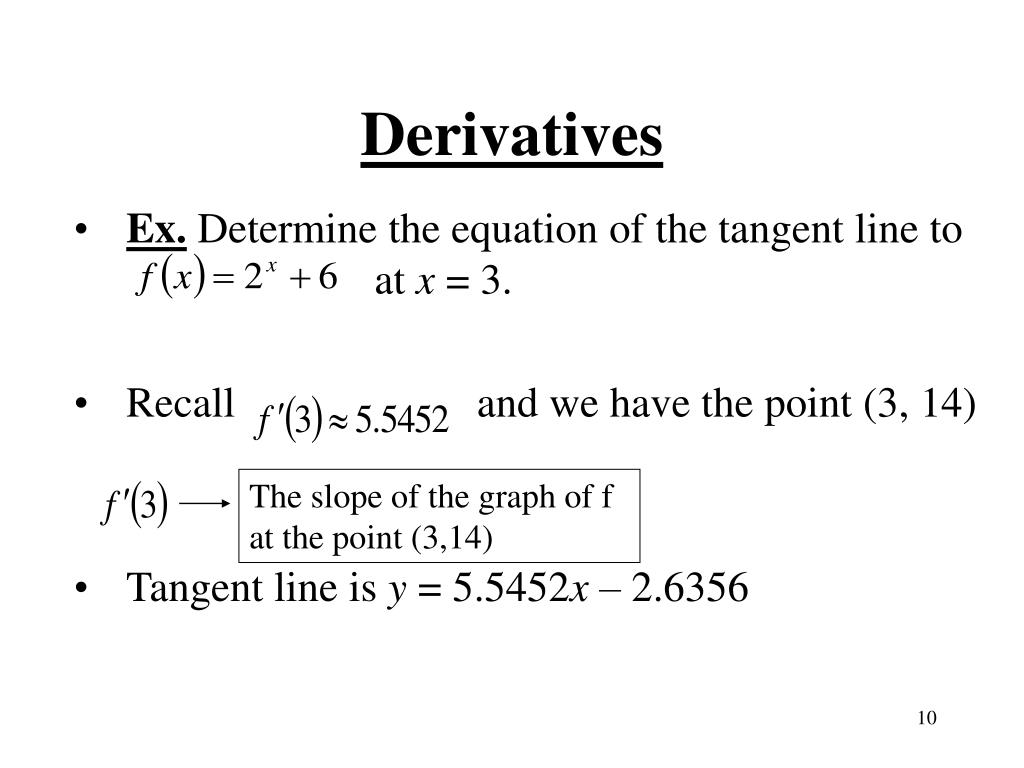

  10. Derivatives • Ex. Determine the equation of the tangent line to at x = 3. • Recall and we have the point (3, 14) • Tangent line is y = 5.5452x – 2.6356 The slope of the graph of f at the point (3,14)

  11. Derivatives • Project (Marginal Revenue) - Typically - In project, - Why ?

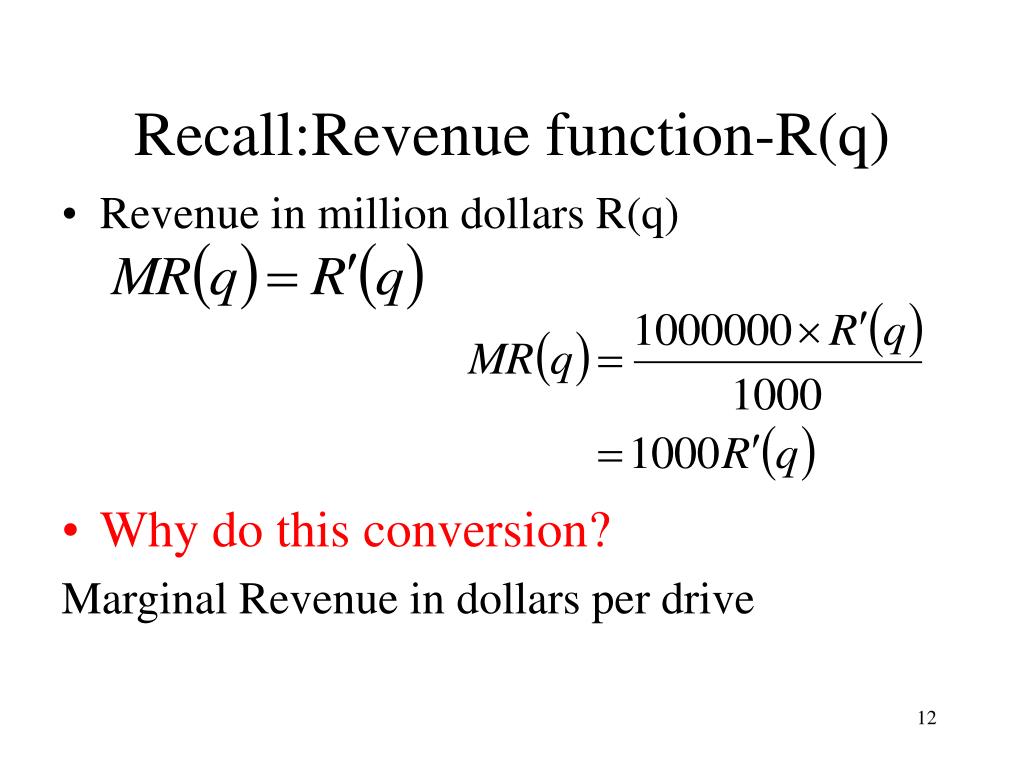

  12. Recall:Revenue function-R(q) • Revenue in million dollars R(q) • Why do this conversion? Marginal Revenue in dollars per drive

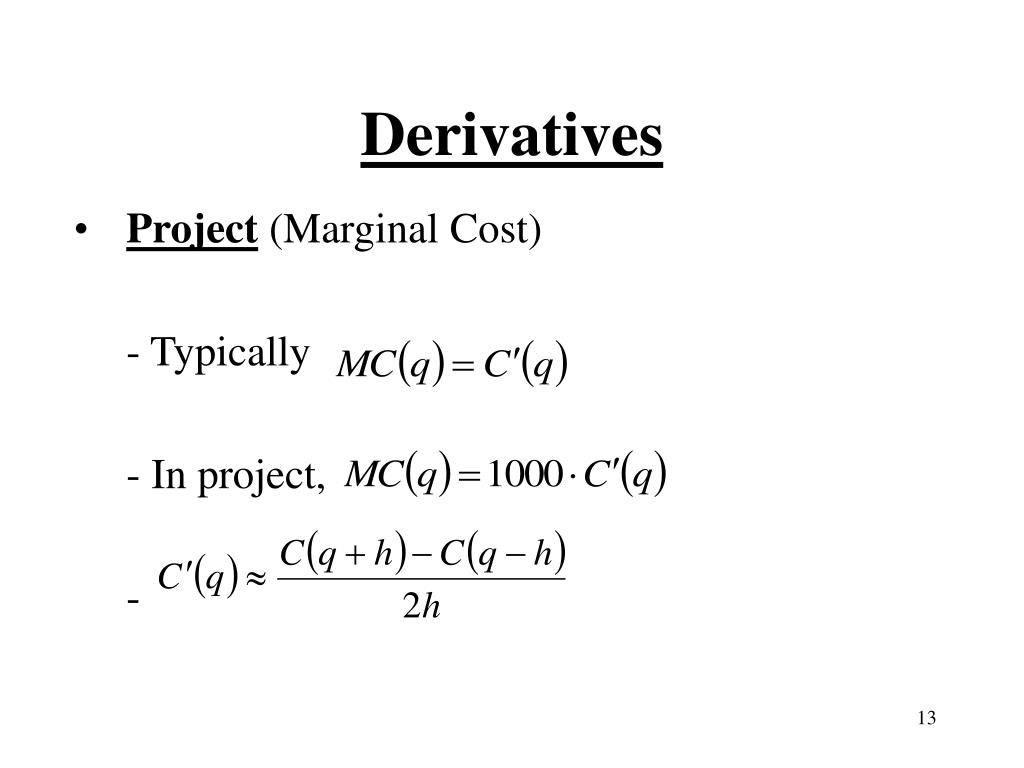

  13. Derivatives • Project (Marginal Cost) - Typically - In project, -

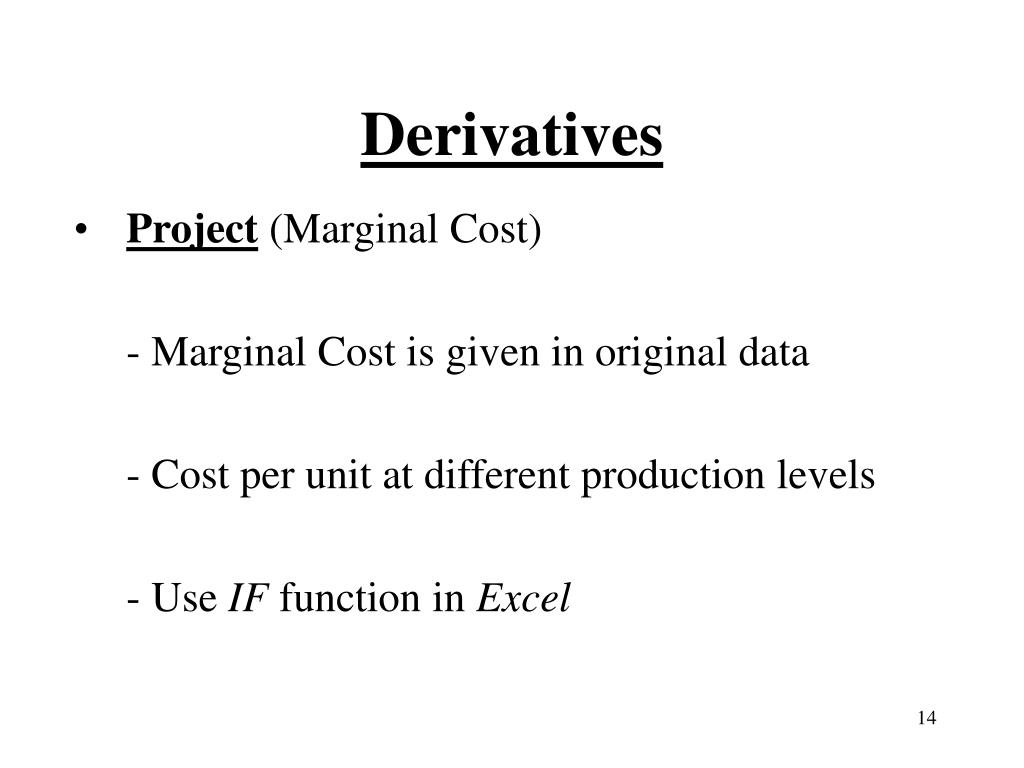

  14. Derivatives • Project (Marginal Cost) - Marginal Cost is given in original data - Cost per unit at different production levels - Use IF function in Excel

  15. Derivatives • Project (Marginal Profit) MP(q) = MR(q) – MC(q) - If MP(q) > 0, profit is increasing - If MR(q) > MC(q), profit is increasing - If MP(q) < 0, profit is decreasing - If MR(q) < MC(q), profit is decreasing

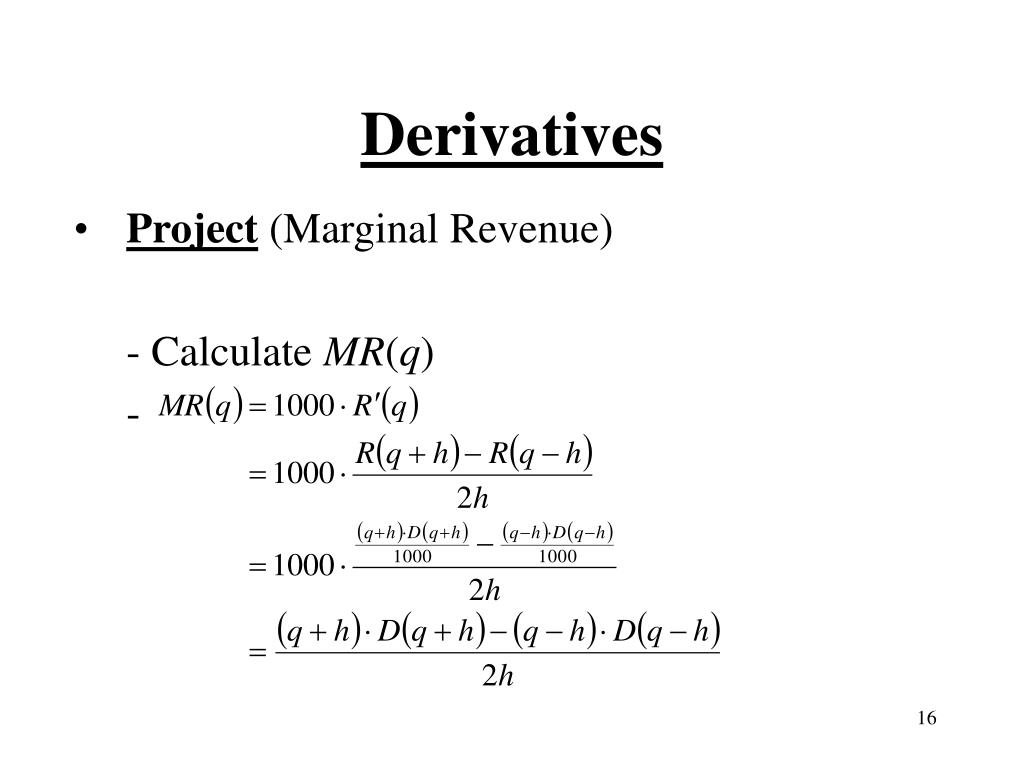

  16. Derivatives • Project (Marginal Revenue) - Calculate MR(q) -

  17. Derivatives • Project (Marginal Cost) - Calculate MC(q) - IF(q<=500,115,IF(q<=1100,100,90))

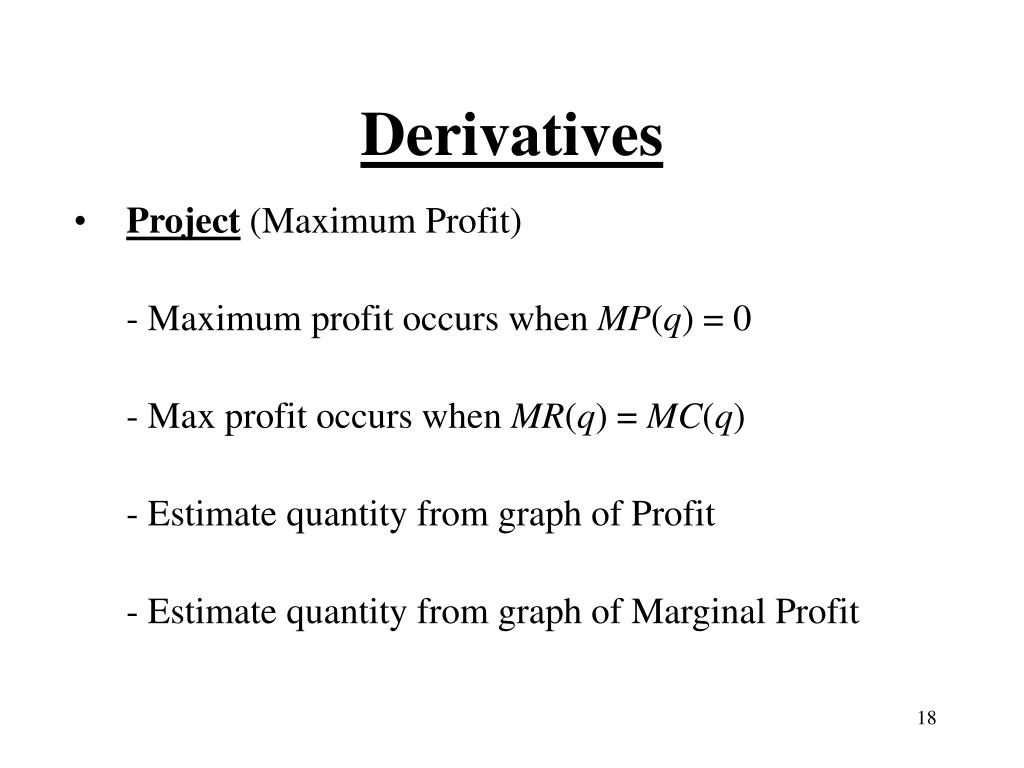

  18. Derivatives • Project (Maximum Profit) - Maximum profit occurs when MP(q) = 0 - Max profit occurs when MR(q) = MC(q) - Estimate quantity from graph of Profit - Estimate quantity from graph of Marginal Profit

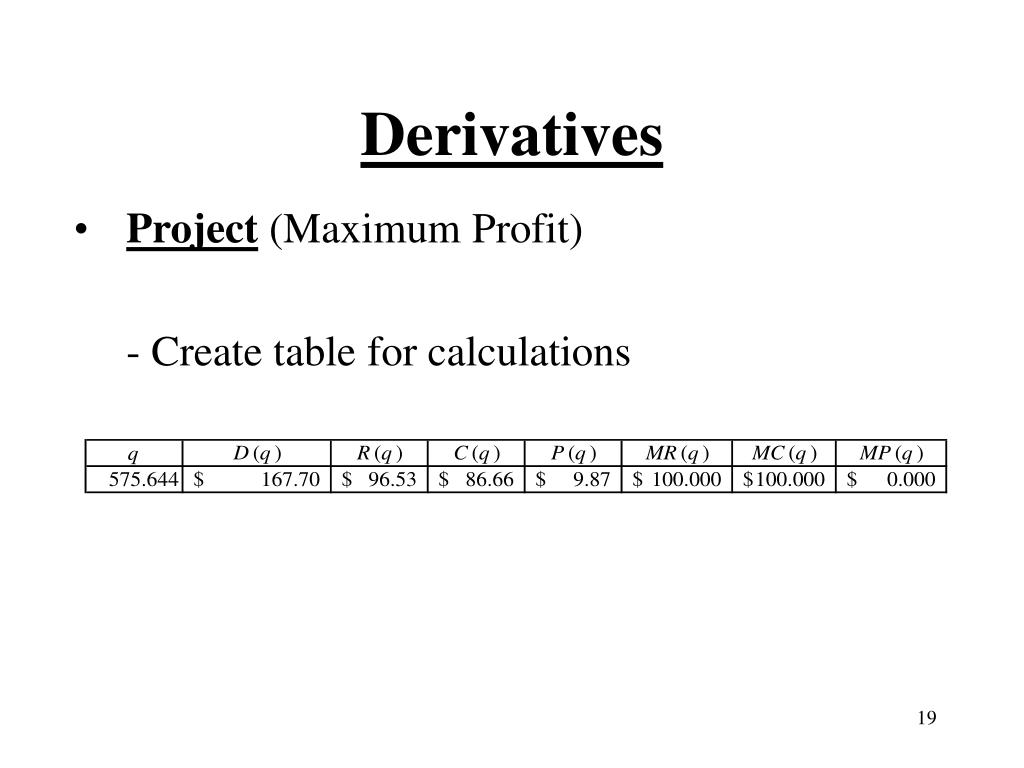

  19. Derivatives • Project (Maximum Profit) - Create table for calculations

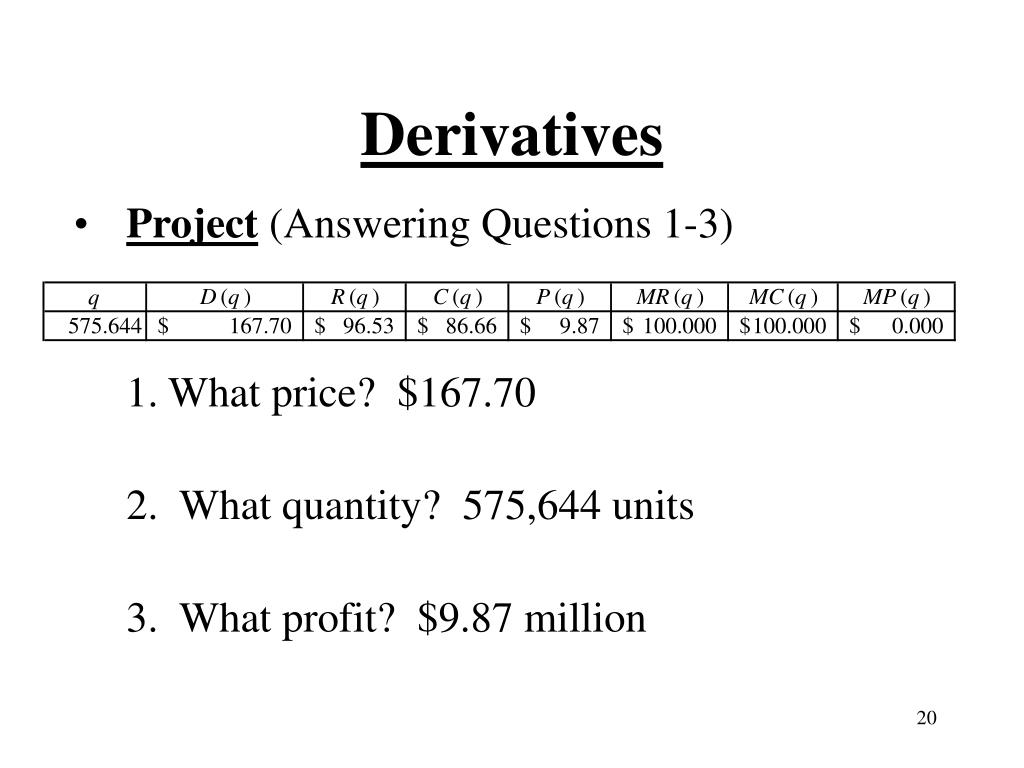

  20. Derivatives • Project (Answering Questions 1-3) 1. What price? $167.70 2. What quantity? 575,644 units 3. What profit? $9.87 million

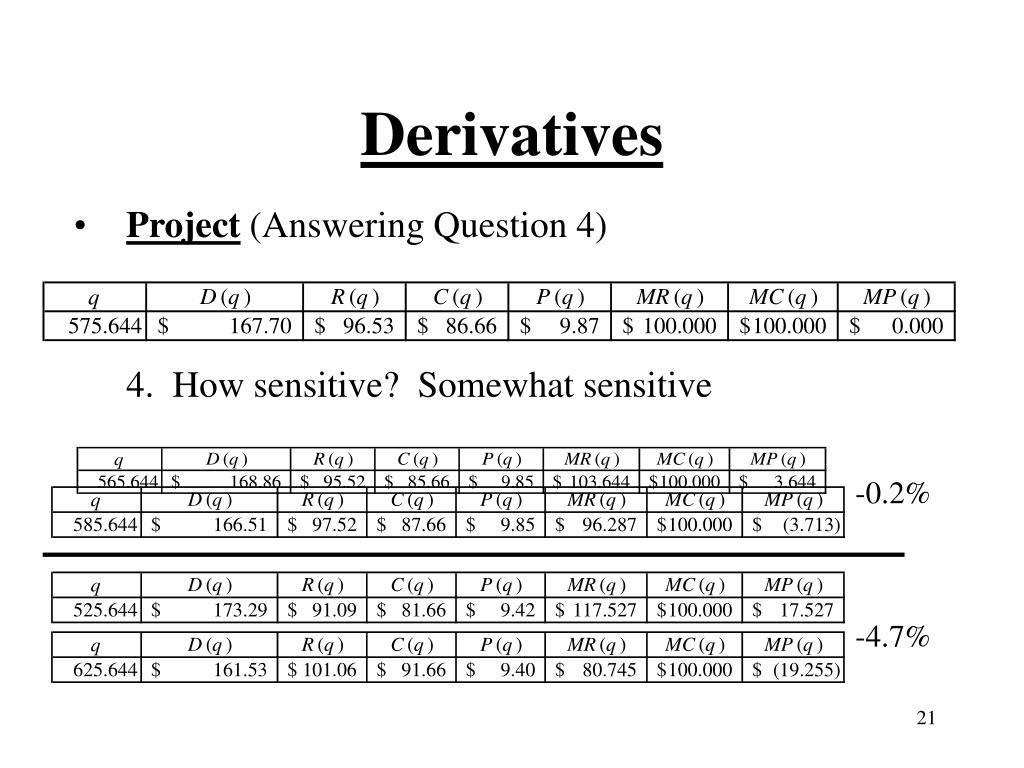

  21. Derivatives • Project (Answering Question 4) 4. How sensitive? Somewhat sensitive -0.2% -4.7%

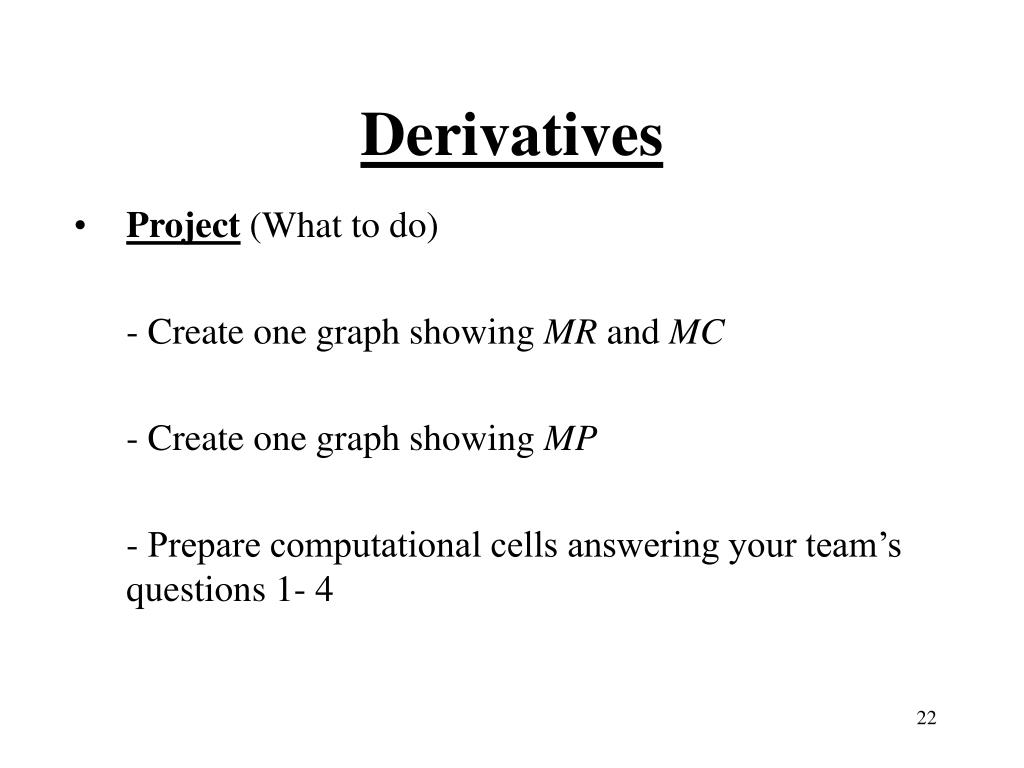

  22. Derivatives • Project (What to do) - Create one graph showing MR and MC - Create one graph showing MP - Prepare computational cells answering your team’s questions 1- 4
