  1. Impression procedure

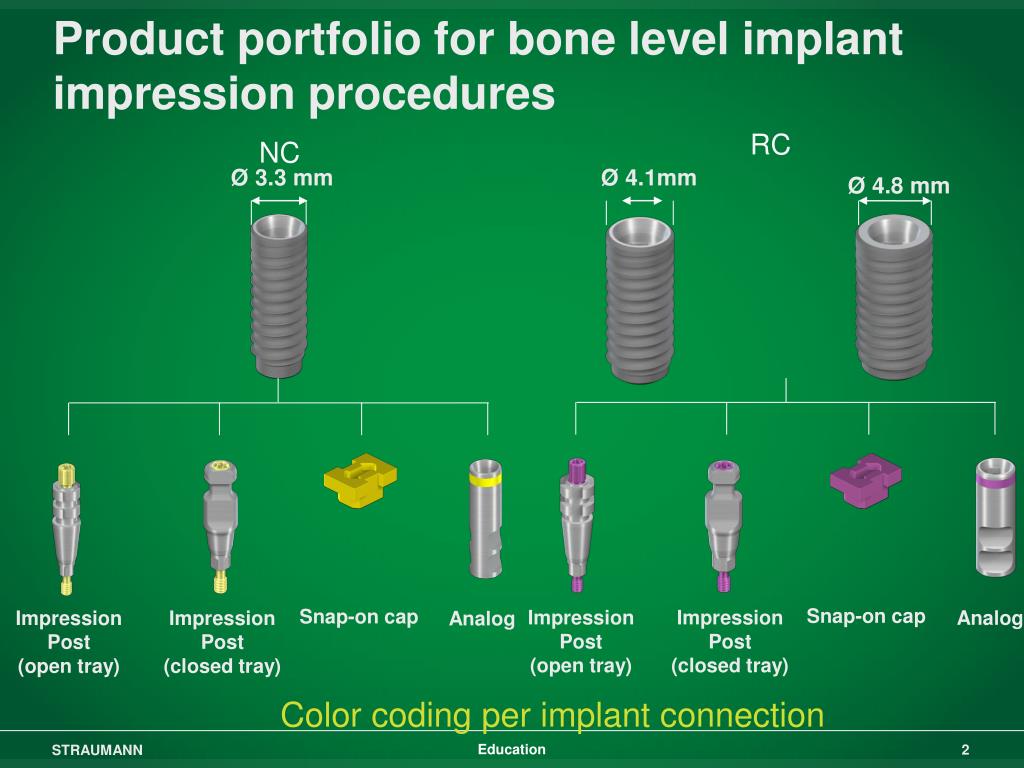

  2. Product portfolio for bone level implant impression procedures RC NC Ø 3.3 mm Ø 4.1mm Ø 4.8 mm Snap-on cap Snap-on cap Impression Post (open tray) Impression Post (closed tray) Analog Impression Post (open tray) Impression Post (closed tray) Analog Color coding per implant connection Education

  3. Bone Level implant impression concept 2 impression techniques Open tray impressionClosed tray impression The choice depends on user preference and the clinical situation Education

  4. Open tray impressionConcept Implant & impression post Intraoral situation Analog & impression post Education

  5. Open tray impressionConcept • Components • Impression post (TAN)*, guide screw (TAN) • Benefits • Color-coded components correspond to prosthetic connection • High precision impression • Clear-cut tactile response for accurate positioning • Guide screw can be tightened by hand or with the SCS screwdriver • Adaptable in height (1 retention ring) • Length = synOcta® post + 2.8 mm *TAN is one type of titanium alloy material Impression components are intended for single use only Education

  6. Step by step procedureOpen tray impression

  7. Impression procedure • Remove closure screw or healing abutment • Insert impression post and hand tighten screw with the SCS screwdriver Education

  8. Impression procedure • Take impression with an open tray • Use an elastomeric impression material Education

  9. Impression procedure • When impression material is set, unscrew and remove the impression Education

  10. Impression procedure • Screw the implant analog onto the impression post and cast master model Education

  11. It’s recommended to articulate the master model before making the restoration Education

  12. Closed tray impressionConcept of snap-on impression cap • Components: • Cap (Polymer), Post (TAN), Screw (TAN) • Benefits • Color-coded components correspond to prosthetic connection • No additional preparation of tray • High precision impression • Clear-cut tactile response for accurate positioning Impression components are intended for single use only Education

  13. Closed tray impressionConceptof snap-on impression cap NC RC Screw retained impression post Implant level impression Color coded snap-on cap & guide screw Education

  14. Step by step procedureClosed tray impression

  15. Impression procedure • Remove closure screw or healing abutment • Insert impression post and hand tighten screw with the SCS screwdriver Education

  16. Impression procedure • Ensure that the colors match (cap and screw) and the arrows are positioned in a buccal-lingual direction • Snap impression cap onto the impression post Education

  17. Impression procedure • Take impression with a closed tray • Use an elastomeric impression material Education

  18. Impression procedure • Remove the impression • Remove the impression post from implant • Mount impression post onto the analog (same color) • Reposition and snap back into the impression Education

  19. Impression procedure • Cast master model • Articulate the master model before making the restoration Education
