  1. Reference List ?? ? COOLING TOWER SOLUTION Energy Saving for Cooling Tower Fan Blade Sahatool Engineering Co., Ltd.| www.ste-cuttingtool.com

  2. BANGKOK COGENERATION Co.,Ltd. Complete 3 cell Fan Dia (mm) Old Fan Cofimco Fan After Replace Fan Blade Flow (m3/s) Rotor Shaft Power (KW) Flow (m3/s) Rotor Shaft Power (KW) Flow Energy Saving % Increase % 10,058 636.76 168.57 657.76 125.62 + 3.3 + 25.48

  3. BANGKOK SYNTHETIC Co.,Ltd. Complete 5 cell Fan Dia (mm) Old Fan Cofimco Fan After Replace Fan Blade Flow (m3/s) Rotor Shaft Power (KW) Flow (m3/s) Rotor Shaft Power (KW) Flow Energy Saving % Increase % 8,534 489.16 131.77 571.10 113.03 + 14.35 + 14.22

  4. PTTGC (BPE) Plant (1) Complete 2 cell for Q-3301-1-2 Fan Dia (mm) Old Fan Cofimco Fan After Replace Fan Blade Flow (m3/s) Rotor Shaft Power (KW) Flow (m3/s) Rotor Shaft Power (KW) Flow Energy Saving % Increase % 7,925 358.87 78.32 363.11 58.46 + 1.17 + 25.36 Sahatool Engineering Co., Ltd.| www.ste-cuttingtool.com

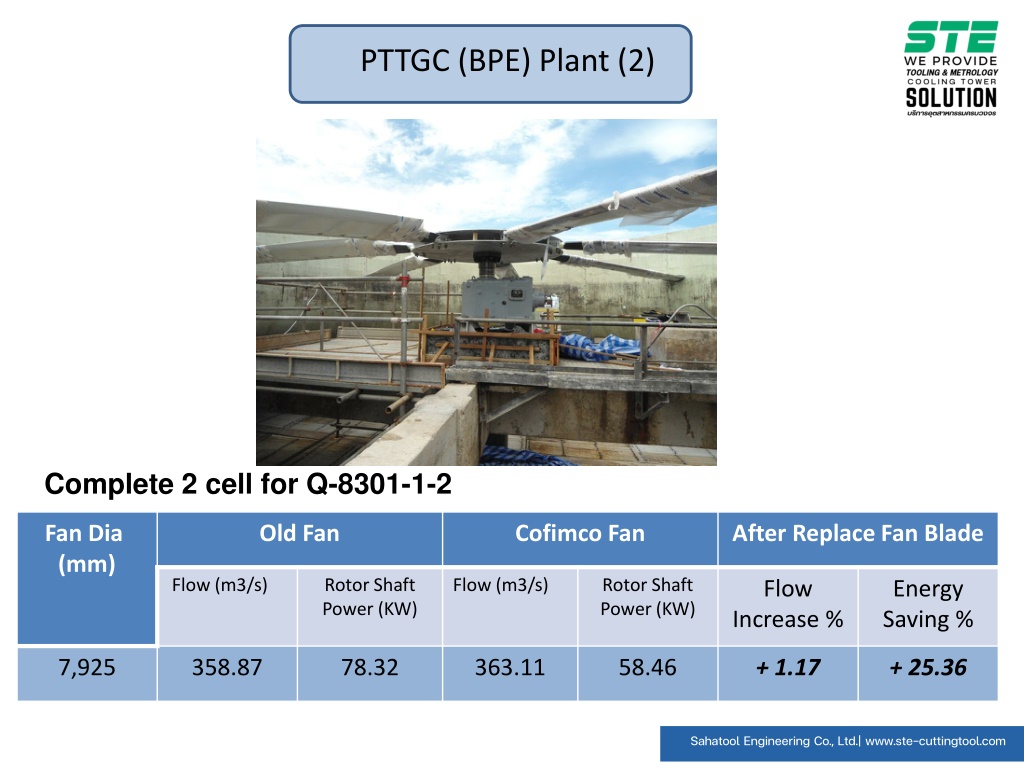

  5. PTTGC (BPE) Plant (2) Complete 2 cell for Q-8301-1-2 Fan Dia (mm) Old Fan Cofimco Fan After Replace Fan Blade Flow (m3/s) Rotor Shaft Power (KW) Flow (m3/s) Rotor Shaft Power (KW) Flow Energy Saving % Increase % 7,925 358.87 78.32 363.11 58.46 + 1.17 + 25.36 Sahatool Engineering Co., Ltd.| www.ste-cuttingtool.com

  6. SIAM UNITED STEEL Complete 1 Cell and wait for install2 Cell on 1/12/13 Fan Dia (mm) Old Fan Cofimco Fan After Replace Fan Blade Flow (m3/s) Rotor Shaft Power (KW) Flow (m3/s) Rotor Shaft Power (KW) Flow Energy Saving % Increase % 5,486 195.57 48.94 197.23 38.64 + 0.84 + 21.05

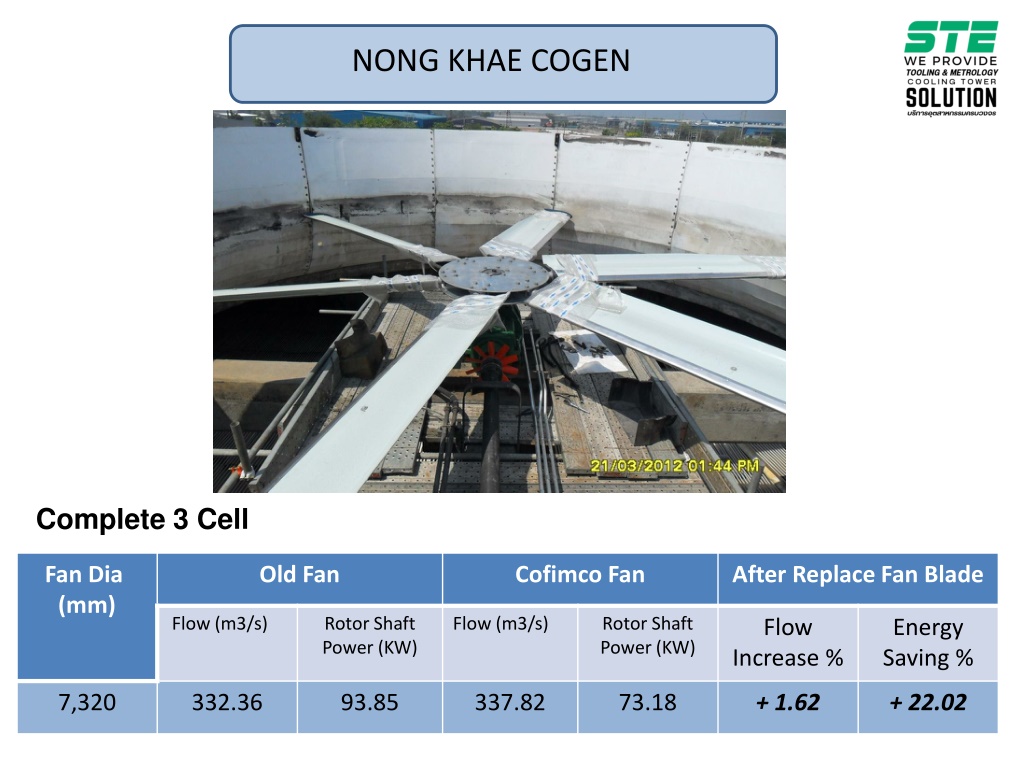

  7. NONG KHAE COGEN Complete 3 Cell Fan Dia (mm) Old Fan Cofimco Fan After Replace Fan Blade Flow (m3/s) Rotor Shaft Power (KW) Flow (m3/s) Rotor Shaft Power (KW) Flow Energy Saving % Increase % 7,320 332.36 93.85 337.82 73.18 + 1.62 + 22.02

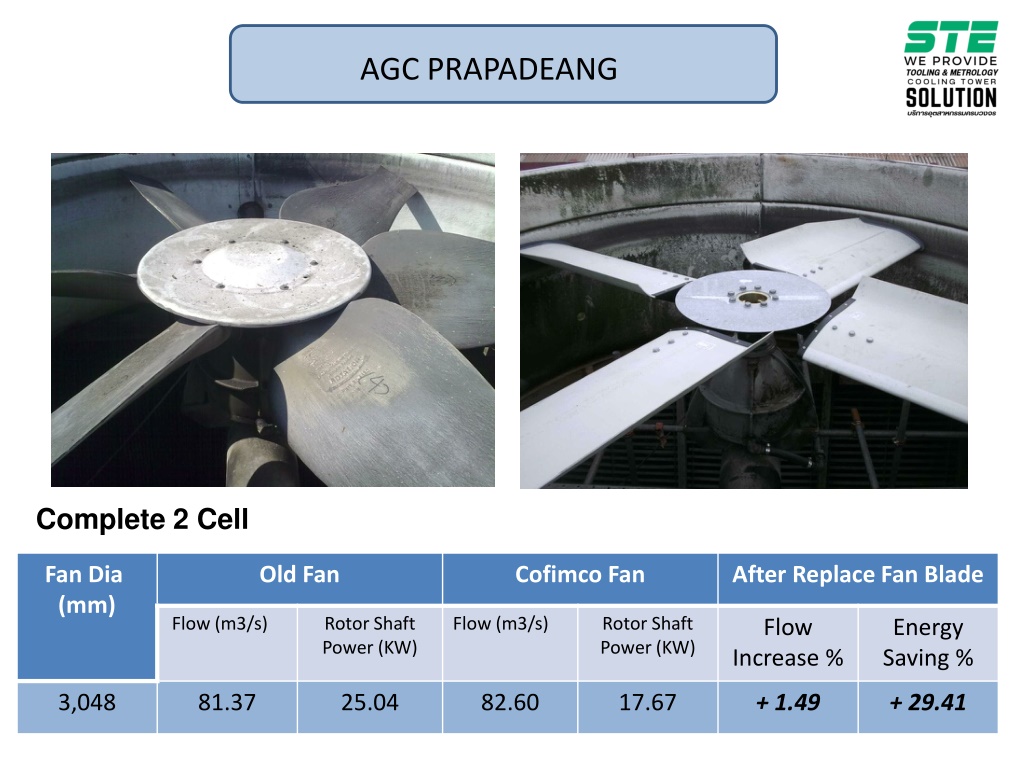

  8. AGC PRAPADEANG Complete 2 Cell Fan Dia (mm) Old Fan Cofimco Fan After Replace Fan Blade Flow (m3/s) Rotor Shaft Power (KW) Flow (m3/s) Rotor Shaft Power (KW) Flow Energy Saving % Increase % 3,048 81.37 25.04 82.60 17.67 + 1.49 + 29.41

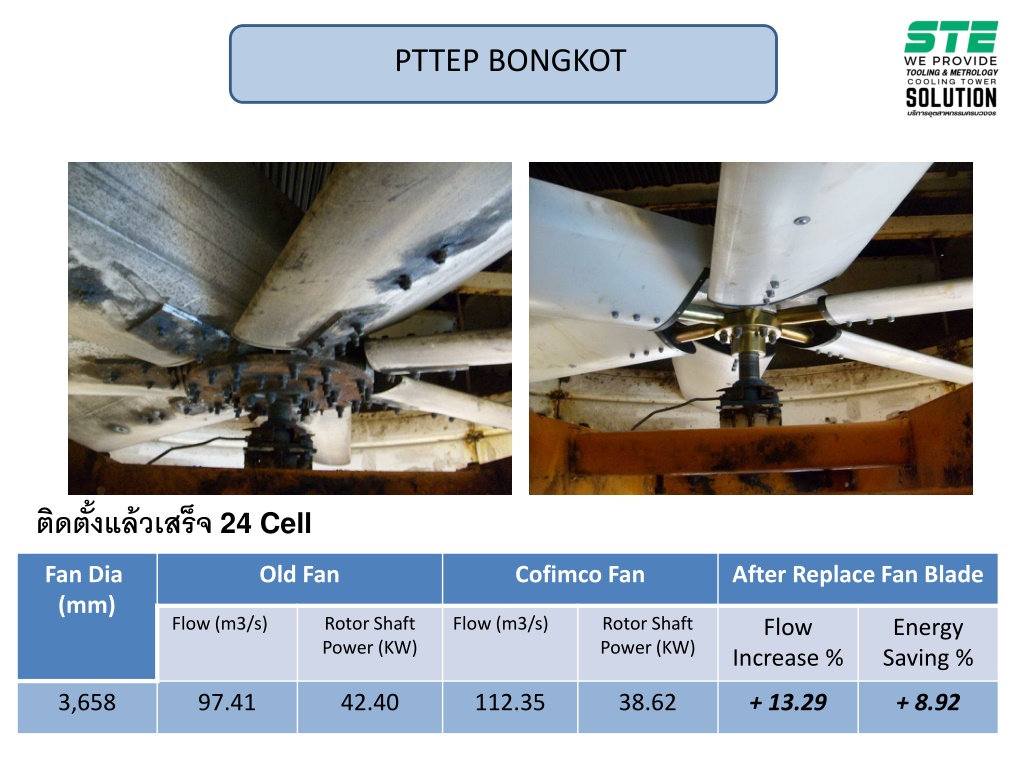

  9. PTTEP BONGKOT ติดตั้งแล้วเสร็จ24 Cell Fan Dia (mm) Old Fan Cofimco Fan After Replace Fan Blade Flow (m3/s) Rotor Shaft Power (KW) Flow (m3/s) Rotor Shaft Power (KW) Flow Energy Saving % Increase % 3,658 97.41 42.40 112.35 38.62 + 13.29 + 8.92

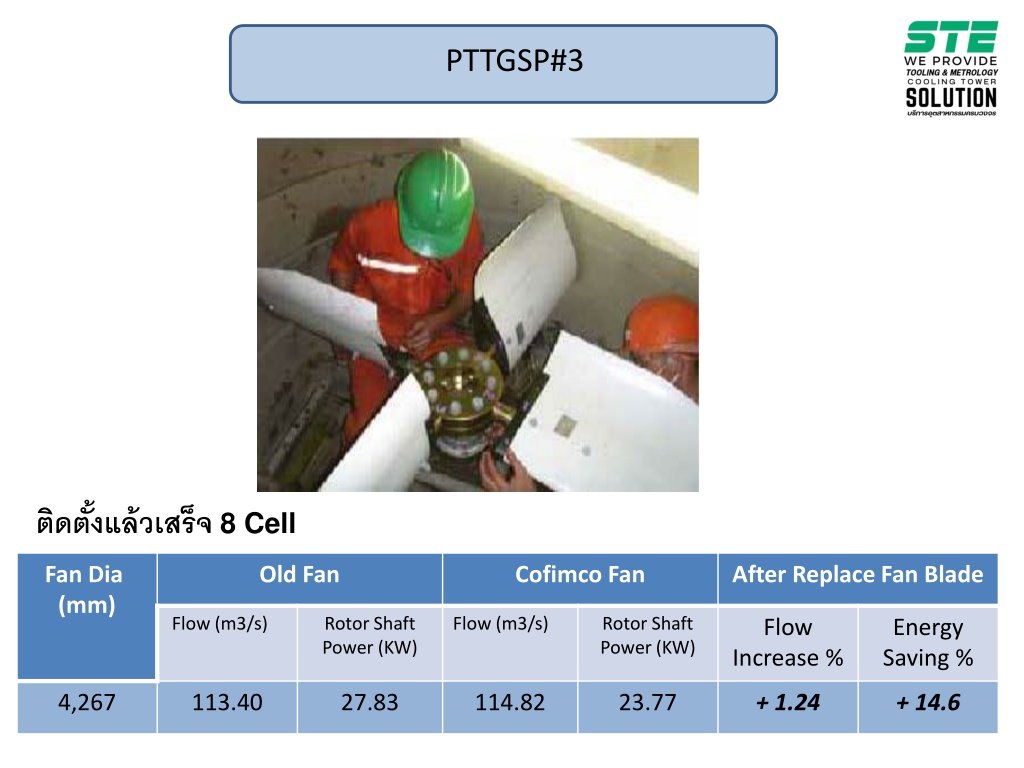

  10. PTTGSP#3 ติดตั้งแล้วเสร็จ8 Cell Fan Dia (mm) Old Fan Cofimco Fan After Replace Fan Blade Flow (m3/s) Rotor Shaft Power (KW) Flow (m3/s) Rotor Shaft Power (KW) Flow Energy Saving % Increase % 4,267 113.40 27.83 114.82 23.77 + 1.24 + 14.6

  11. SAHAVIRIYA STEEL Complete 3 Cell Fan Dia (mm) Old Fan Cofimco Fan After Replace Fan Blade Flow (m3/s) Rotor Shaft Power (KW) Flow (m3/s) Rotor Shaft Power (KW) Flow Energy Saving % Increase % 6,710 291.00 78.8 294.71 64.46 + 1.26 + 18.2

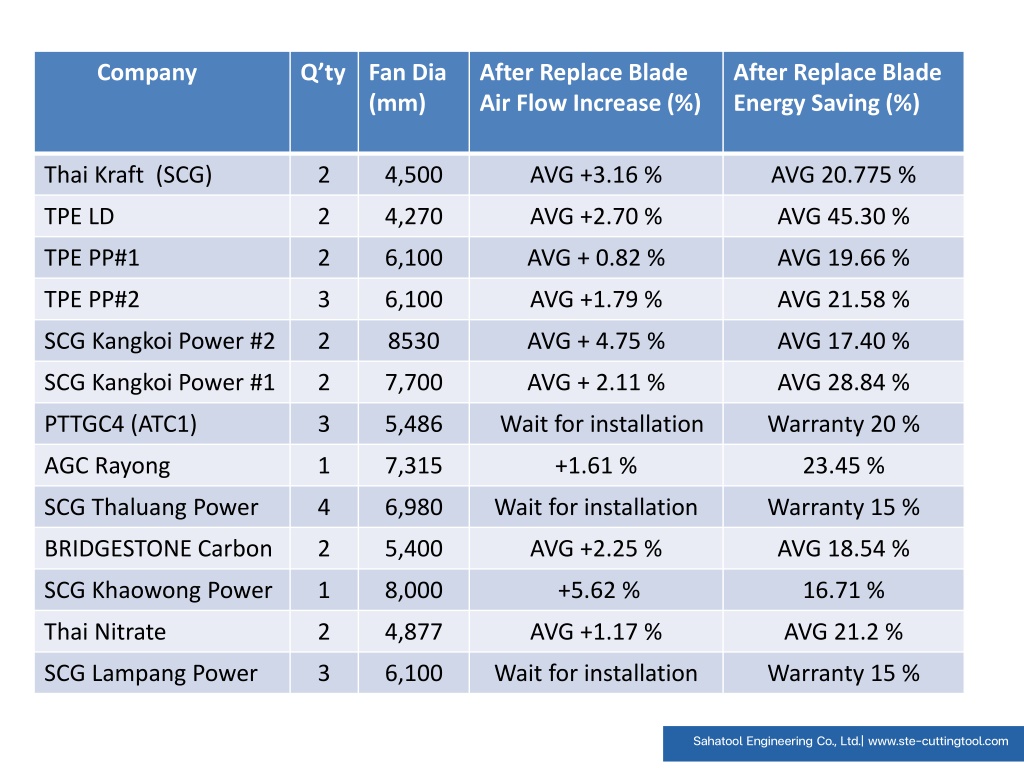

  12. Company Q’ty Fan Dia (mm) After Replace Blade Air Flow Increase (%) After Replace Blade Energy Saving (%) Thai Kraft (SCG) 2 4,500 AVG +3.16 % AVG 20.775 % TPE LD 2 4,270 AVG +2.70 % AVG 45.30 % TPE PP#1 2 6,100 AVG + 0.82 % AVG 19.66 % TPE PP#2 3 6,100 AVG +1.79 % AVG 21.58 % SCG Kangkoi Power #2 2 8530 AVG + 4.75 % AVG 17.40 % SCG Kangkoi Power #1 2 7,700 AVG + 2.11 % AVG 28.84 % PTTGC4 (ATC1) 3 5,486 Wait for installation Warranty 20 % AGC Rayong 1 7,315 +1.61 % 23.45 % SCG Thaluang Power 4 6,980 Wait for installation Warranty 15 % BRIDGESTONE Carbon 2 5,400 AVG +2.25 % AVG 18.54 % SCG Khaowong Power 1 8,000 +5.62 % 16.71 % Thai Nitrate 2 4,877 AVG +1.17 % AVG 21.2 % SCG Lampang Power 3 6,100 Wait for installation Warranty 15 % Sahatool Engineering Co., Ltd.| www.ste-cuttingtool.com

  13. Company Q’ty Fan Dia (mm) After Replace Blade Air Flow Increase (%) After Replace Blade Energy Saving (%) PTTGC BPE2 2 10,363 AVG + 2.43 % AVG 17.54 % PTTEP 24 3,658 AVG + 13.29 % AVG 8.92 % PTTGSP#3 8 4,267 AVG + 1.24 % AVG 14.6 % PTT KHAO BO YA 3 3,658 Wait Installation Warranty 15 % UBE 1 8,534 AVG + 1.66 % AVG 23.95 % MOC (SCG) 4 10,363 Wait Installation Warranty 11 % GRAN SIAM COM (SCG) 6 2,100 Wait Installation Warranty 15 % TPX 1 4,267 AVG + 1.01 % AVG 31.91 % Sahatool Engineering Co., Ltd.| www.ste-cuttingtool.com
