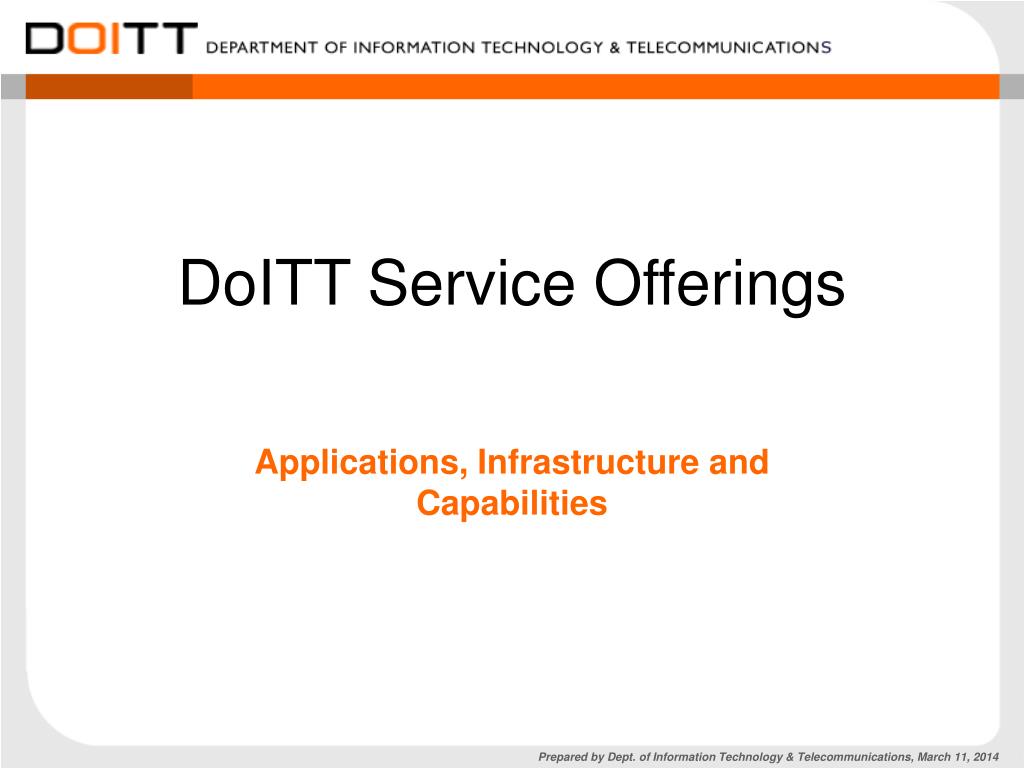

  1. DoITT Service Offerings Applications, Infrastructure and Capabilities

  2. Agenda • Data Center Offerings • Storage Management • Backup and Data Protection • Disaster Recovery and Data Replication • Hosting Environment • Mainframe Hosting • UNIX Hosting (UNIX, Linux) • WINTEL Hosting • Database Management – Oracle, SQL and Mainframe Identity and Enterprise Systems Management

  3. DoITT introduction • Presenters • Gregory Neuhaus, Assistant Commissioner, Unix Shared System Services • Diane Sciabarra, Director, Database Technologies • Donovan Hall, Directory Services Engineer • Diane Witek, Director, CityServ - Enterprise Email and Application Hosting Services

  4. DoITT DataCenter Offering • Datacenter Facilities, Storage Management, • Disaster Recovery, Data Replication

  5. Data Center OfferingsFacilities Planning and Management • Storage Management • Enterprise Storage Area network – Scalable storage – Reduced cost over standalone storage • Disaster Recovery and Data Replication • Provide DR Infrastructure and data replication services. Using DWDM technologies to have a 2GB per second data replication channel. • Backup and Recovery Services • Protect data for hosted applications • Facilities Planning and Management • Network management

  6. Enterprise Storage • Scalability of storage is critical for the City’s future application needs • The efficiency and intelligence of storage management is key to the operation of city applications and related services • The demand for storage capacity continues to grow • Replication and Backup • Data replication needs will increase as application availability increases • Disaster recovery continues to increase replication and tape backup needs • Design Considerations • DoITT Overview Open Systems • Design Considerations • Management of Storage • Storage Resource Management

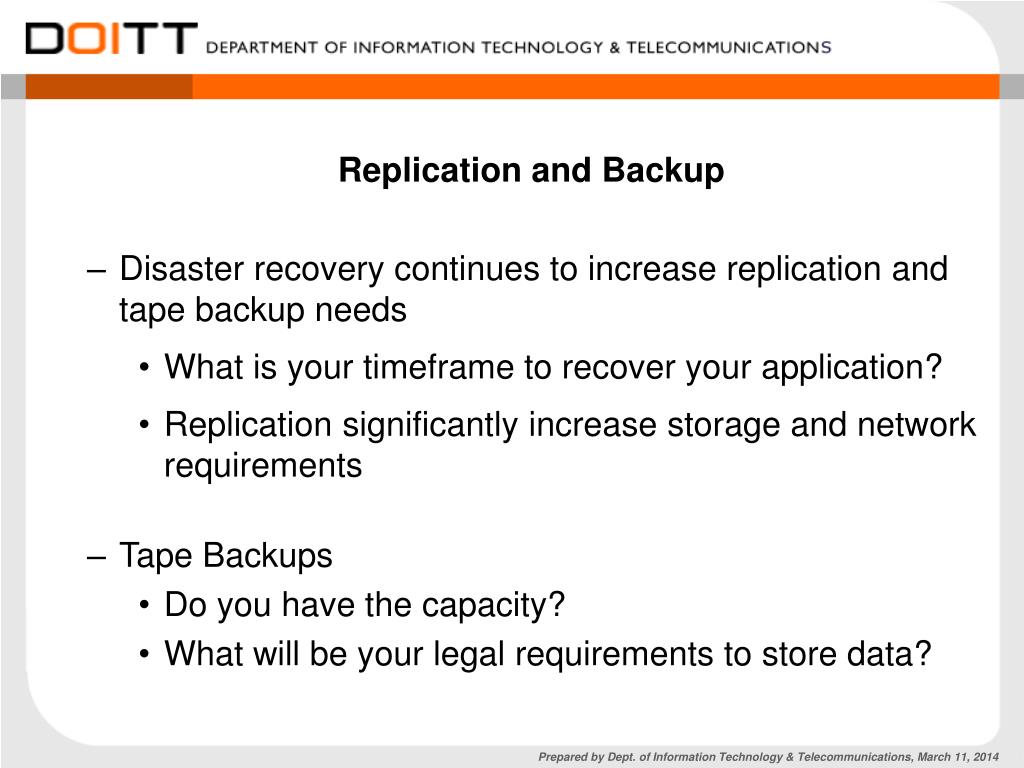

  7. Replication and Backup • Disaster recovery continues to increase replication and tape backup needs • What is your timeframe to recover your application? • Replication significantly increase storage and network requirements • Tape Backups • Do you have the capacity? • What will be your legal requirements to store data?

  8. Overview of DoITT Open System Storage

  9. SAN: Reliability • 2 independent fabrics, providing at least two independent paths for a particular host to its data • Each fabric utilizes separate Brocade directors and separate Hitachi host access ports • No single point of failure • SAN subsystems are actively monitored on a 24x7x365 basis • Silkworm directors utilize Brocade’s FabricWatch monitoring software • As a backup system, Sun Management Center modules actively monitor each director and each frame

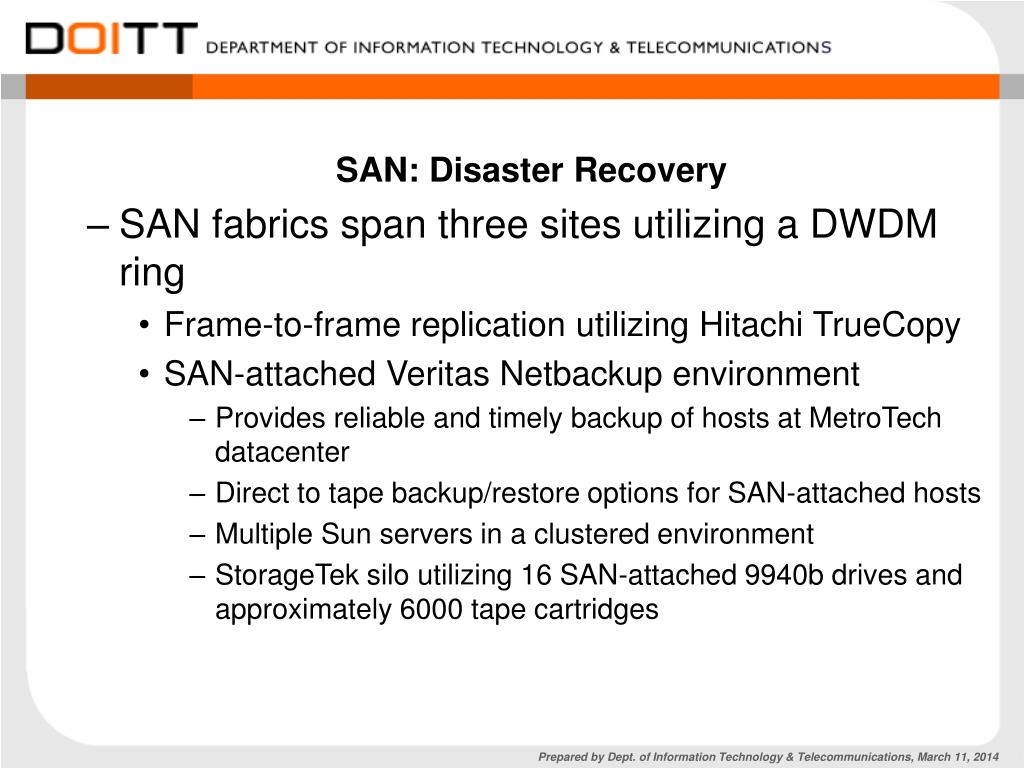

  10. SAN: Disaster Recovery • SAN fabrics span three sites utilizing a DWDM ring • Frame-to-frame replication utilizing Hitachi TrueCopy • SAN-attached Veritas Netbackup environment • Provides reliable and timely backup of hosts at MetroTech datacenter • Direct to tape backup/restore options for SAN-attached hosts • Multiple Sun servers in a clustered environment • StorageTek silo utilizing 16 SAN-attached 9940b drives and approximately 6000 tape cartridges

  11. SAN: Security • Built to be managed and monitored over IP networks • To minimize the risks, independent IP networks utilizing secure, independent switches have been configured at each site • Access via a firewalled bastion host • Within the Hitachi frames, storage allocation is handled via LUN masking • Any LUN masking configuration changes are subject to peer review within DoITT’s open systems group • Within the Brocade directors, storage access is handled via hardware-enforced WWN zoning

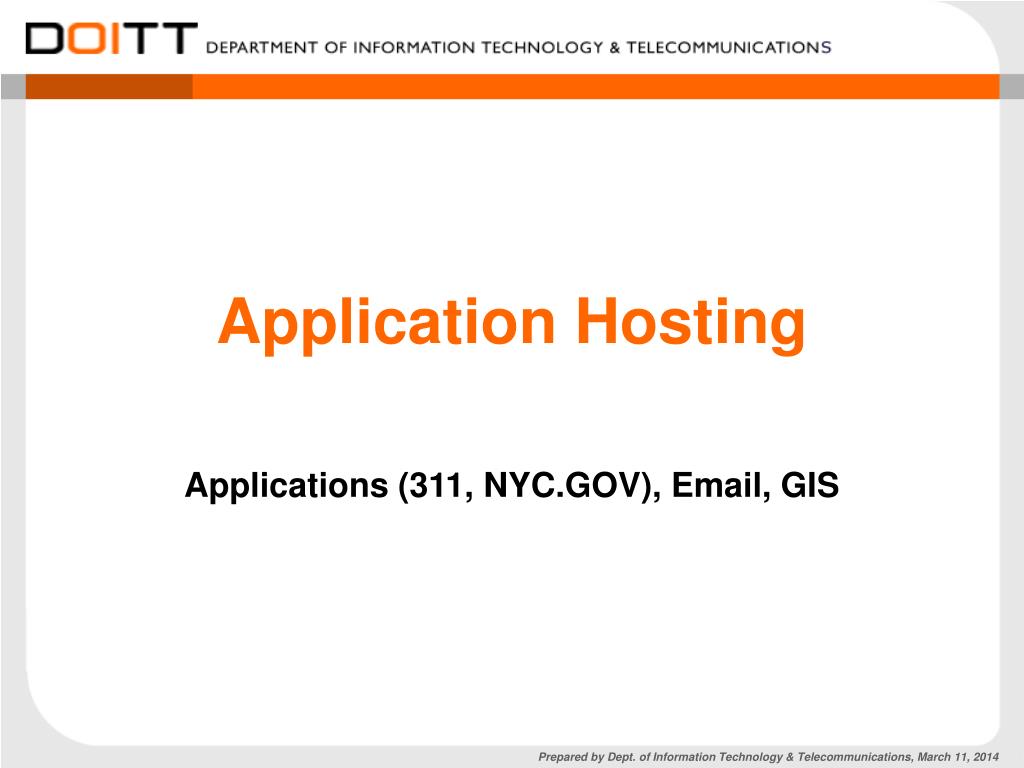

  12. Application Hosting • Applications (311, NYC.GOV), Email, GIS

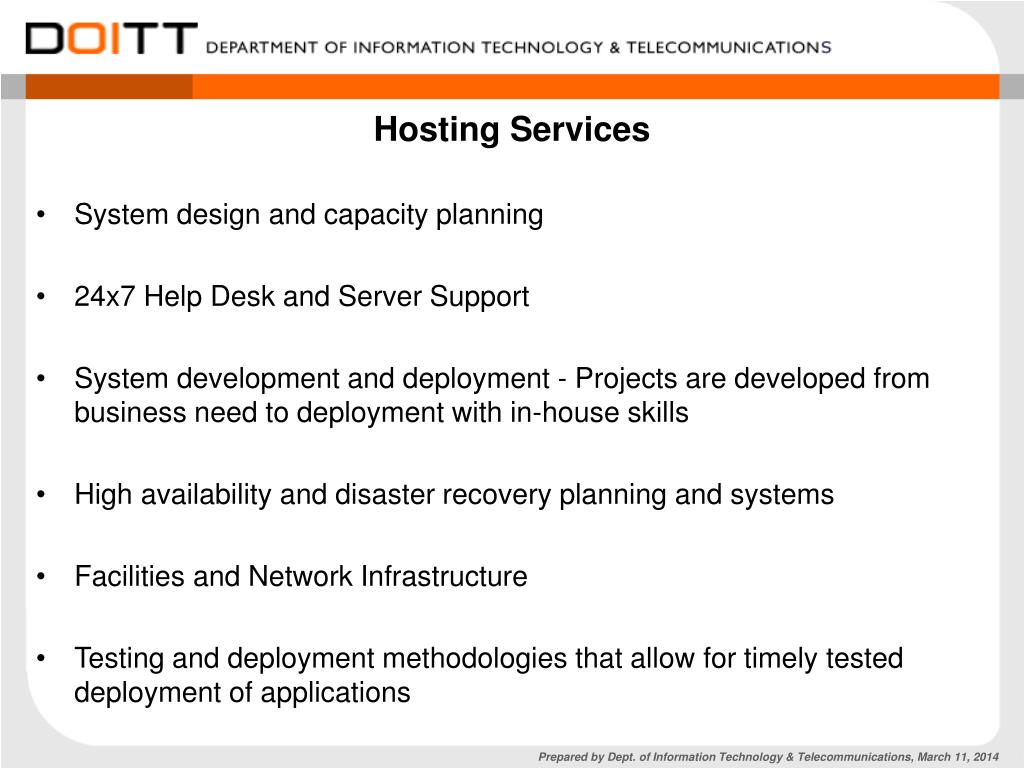

  13. Hosting Services • System design and capacity planning • 24x7 Help Desk and Server Support • System development and deployment - Projects are developed from business need to deployment with in-house skills • High availability and disaster recovery planning and systems • Facilities and Network Infrastructure • Testing and deployment methodologies that allow for timely tested deployment of applications

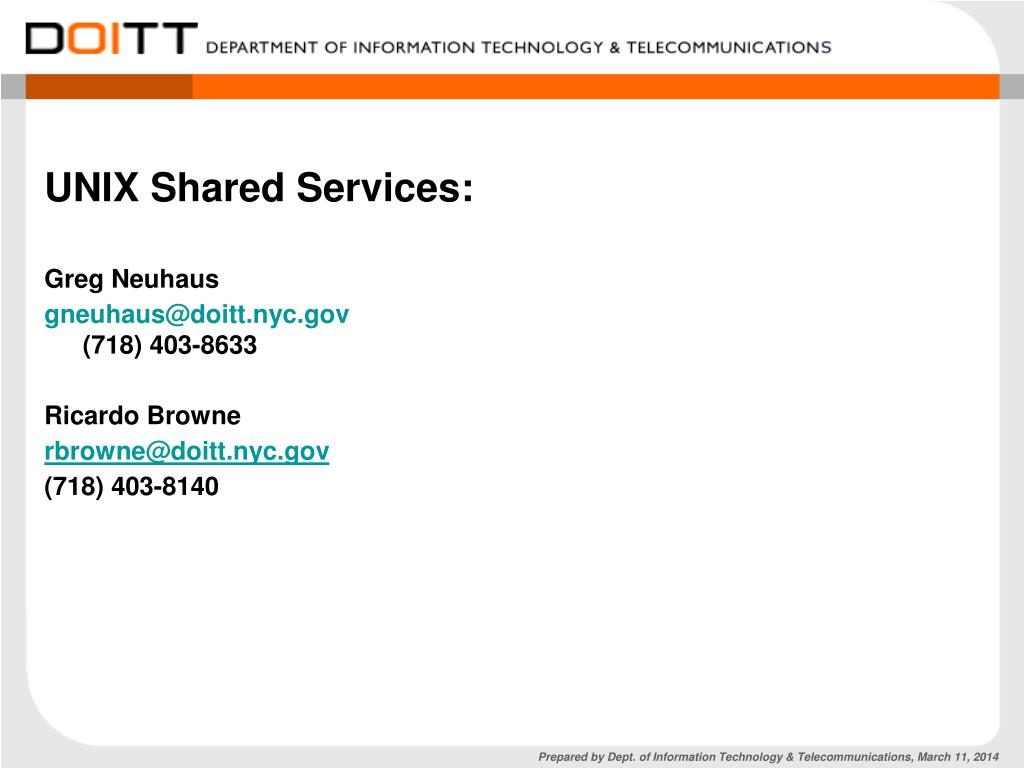

  14. UNIX Shared Services: • Greg Neuhaus • gneuhaus@doitt.nyc.gov(718) 403-8633 • Ricardo Browne • rbrowne@doitt.nyc.gov • (718) 403-8140

  15. DoITT Mainframe Services and Facilities

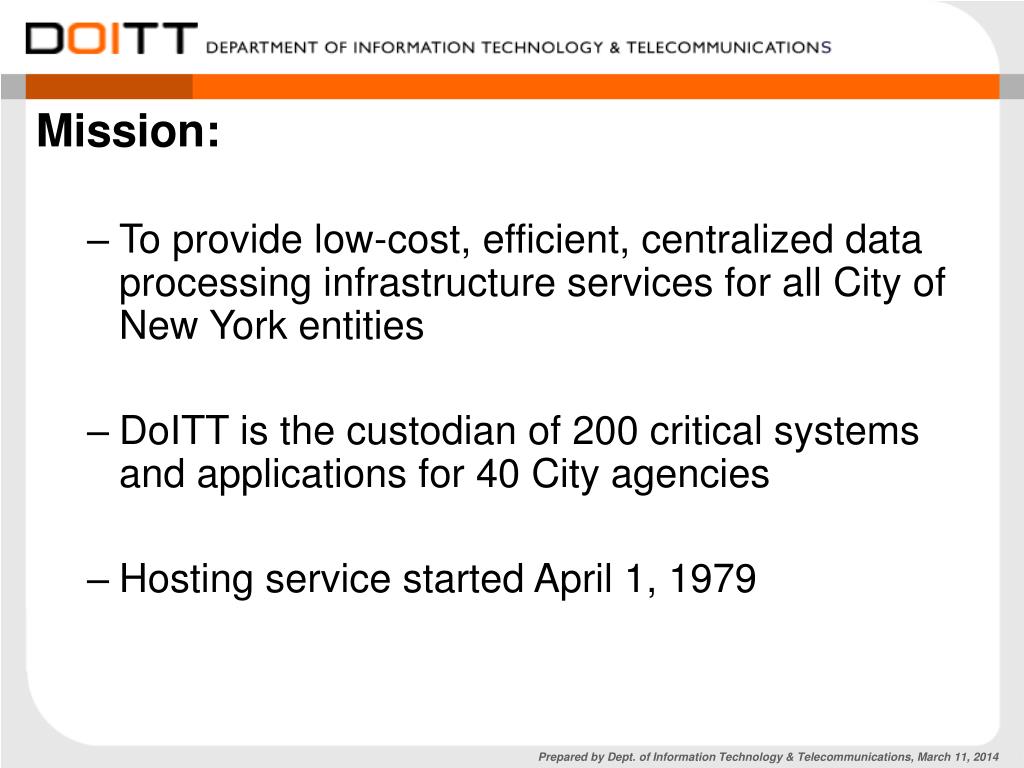

  16. Mission: • To provide low-cost, efficient, centralized data processing infrastructure services for all City of New York entities • DoITT is the custodian of 200 critical systems and applications for 40 City agencies • Hosting service started April 1, 1979

  17. A Few Accomplishments • Data Center Consolidations: • Dept of Finance – 1991 • Dept of Sanitation – 1992 • HPD – 1995 • Dept of Transportation – 1998 • HRA – 1998 • Dept of Education – 2005

  18. A Few Accomplishments (cont’d) • Web Enabled Systems: • BIS -- 2001 • CFB – 2005 • DOF -- 2001 & ongoing • Property Search • Star Exemption • Tax Rebate System • Bar Codes for semi-automated Payment

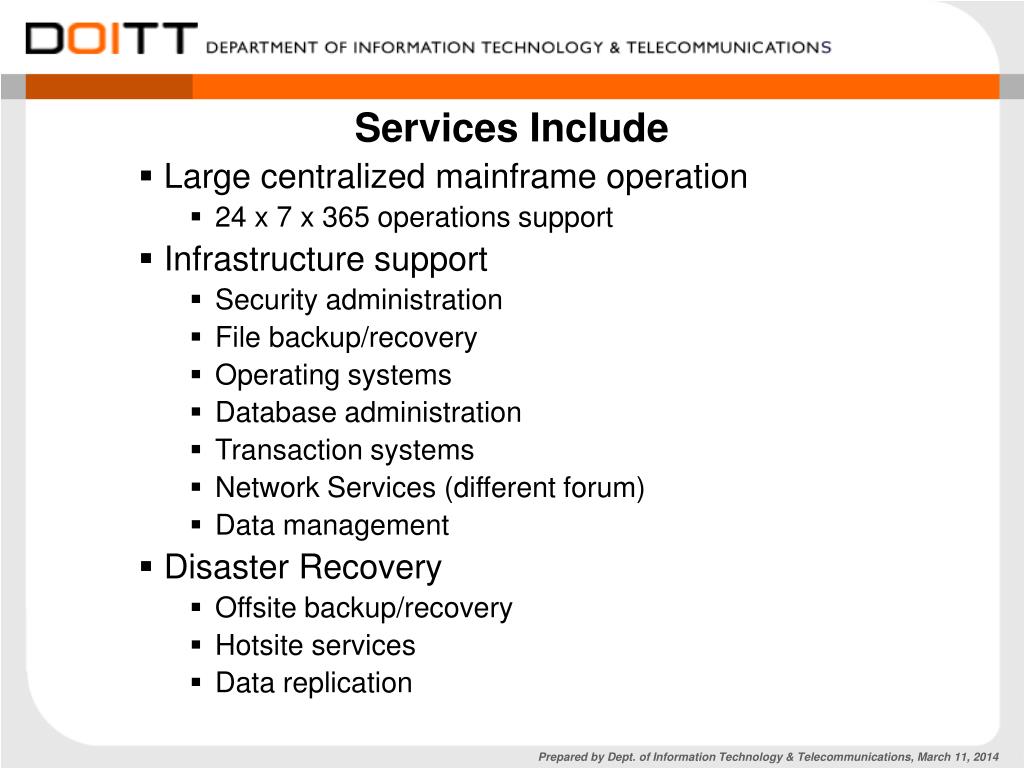

  19. Services Include • Large centralized mainframe operation • 24 x 7 x 365 operations support • Infrastructure support • Security administration • File backup/recovery • Operating systems • Database administration • Transaction systems • Network Services (different forum) • Data management • Disaster Recovery • Offsite backup/recovery • Hotsite services • Data replication

  20. New Data Center - Mainframe Servers • T-REX Technology • IBM 2084-304 w/48GB • IBM 2084-303 w/40GB • Total MIPS: 2863

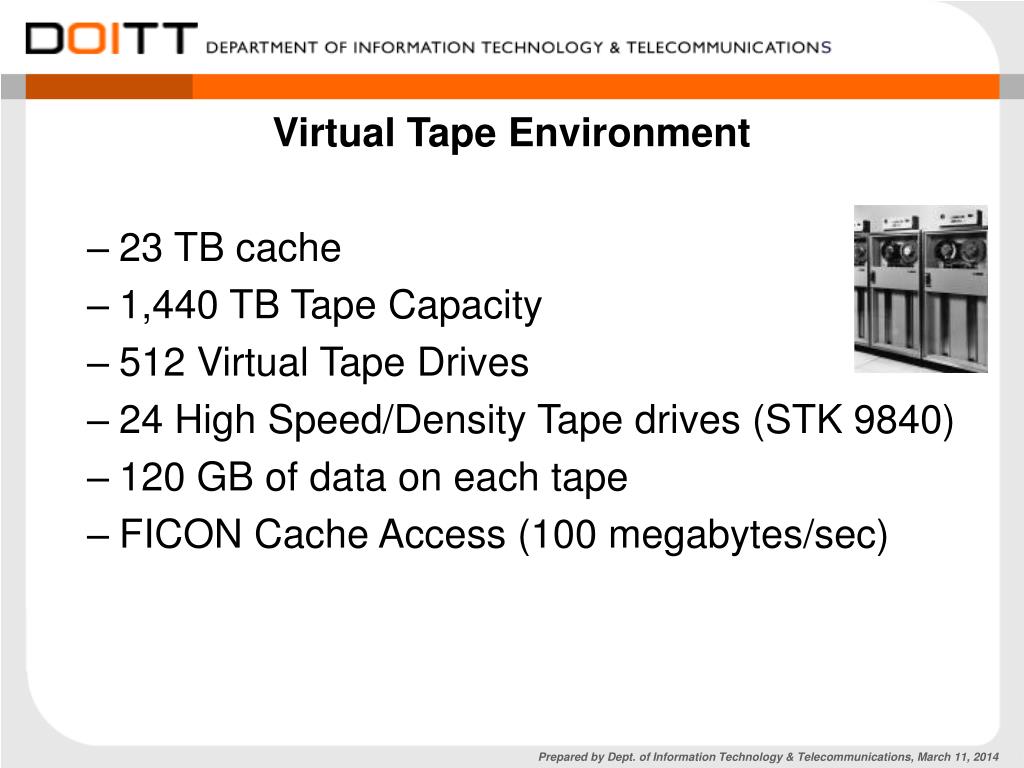

  21. Virtual Tape Environment • 23 TB cache • 1,440 TB Tape Capacity • 512 Virtual Tape Drives • 24 High Speed/Density Tape drives (STK 9840) • 120 GB of data on each tape • FICON Cache Access (100 megabytes/sec)

  22. Drive Systems • DASD Capacity and Throughput • 45 TB capacity • 3 IBM 2105-800 FICON SHARK subsystems • 100 MB/SEC Data Transfer • Logical volumes 8.4 and 25.6 GB each • Synchronous replication to PPRC at 33rd St NYC

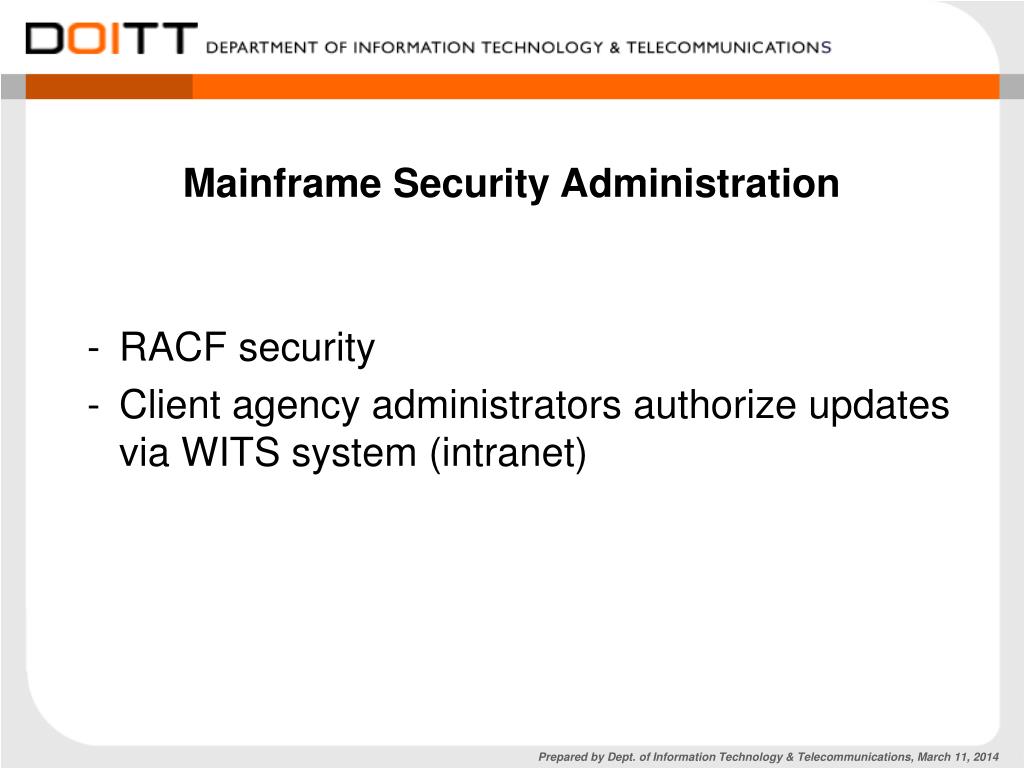

  23. Mainframe Security Administration • RACF security • Client agency administrators authorize updates via WITS system (intranet)

  24. Mainframe Operating Systems • z/OS Release 1.5 (1.7 - soon) • Batch job processing • Transaction systems • Unix System Services • Web Services • Linux • Virtual servers • Unix type environment • Web Services

  25. Linux Environment • IBM 2084-304 • IBM 2084-303 • 2 Dedicated IFL Engines • 900 MIPS • 8 GB Real Memory • Runs Under VM • Can define up to 130,000 Virtual Servers • 8 - 1Gigabit Open system Adapters

  26. Backup/Restore Disk Files • SMS Managed Files • Incremental backup daily at file level • Archive files not recently accessed • Non-SMS Managed Files • Backup to tape at volume level • Five generations of backup • ADABAS Backup • Incremental backup daily

  27. Database Systems/Admin • ADABAS/Natural • DBA services • Install/Customize Software AG products • Support Entire-X for Web access to legacy databases • SQL access to ADABAS • ADABAS data replication to other environments • DB2 • Install/Customize DB2 environments • Provide technical assistance

  28. Transaction Systems • Install/maintain CICS software • Customize environment • Install/maintain related software products • Compuware • Computer Associates • Etc. • Provide Client support

  29. LASTLY, • A WORD ABOUT COBOL

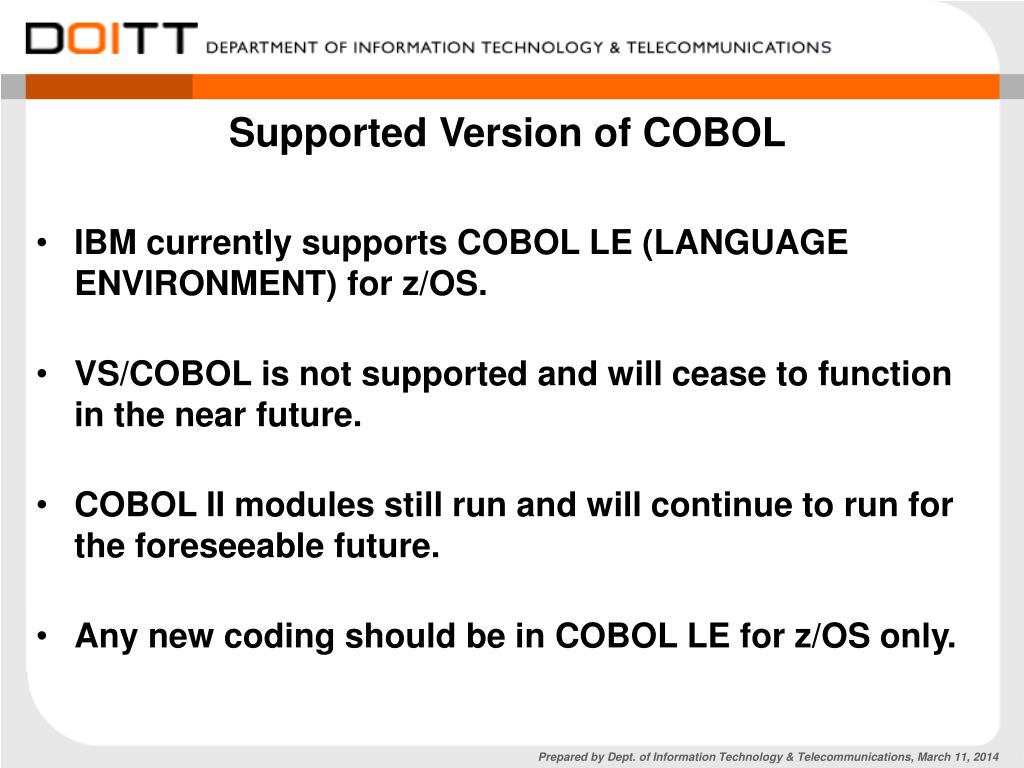

  30. Supported Version of COBOL • IBM currently supports COBOL LE (LANGUAGE ENVIRONMENT) for z/OS. • VS/COBOL is not supported and will cease to function in the near future. • COBOL II modules still run and will continue to run for the foreseeable future. • Any new coding should be in COBOL LE for z/OS only.

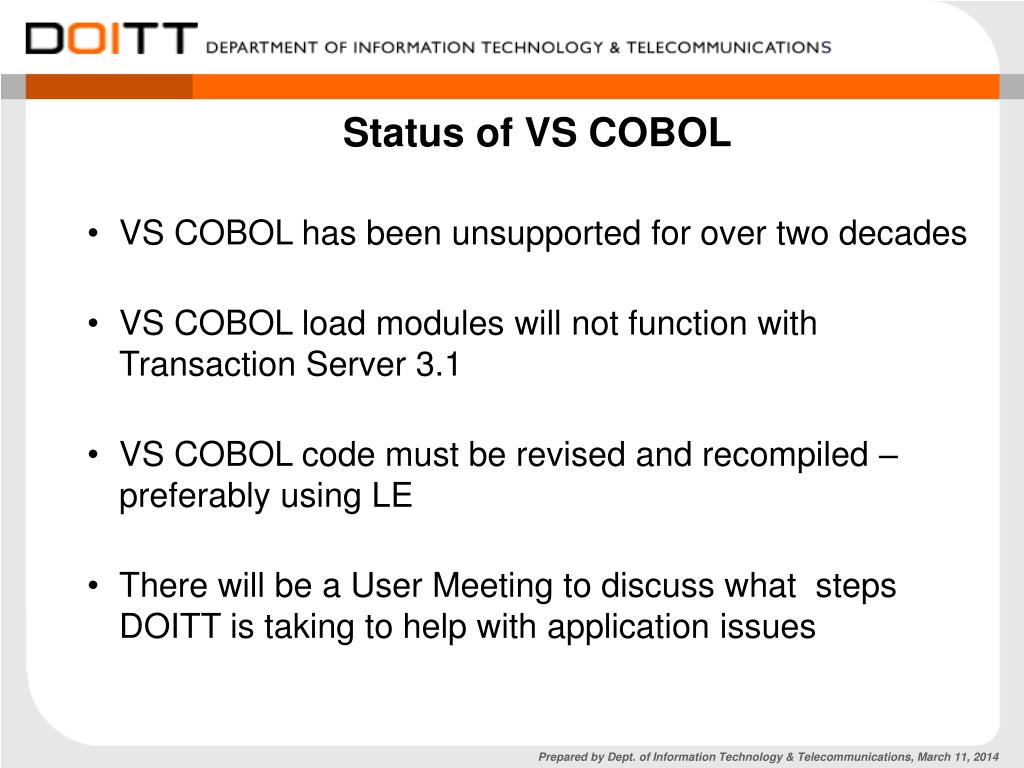

  31. Status of VS COBOL • VS COBOL has been unsupported for over two decades • VS COBOL load modules will not function with Transaction Server 3.1 • VS COBOL code must be revised and recompiled –preferably using LE • There will be a User Meeting to discuss what steps DOITT is taking to help with application issues

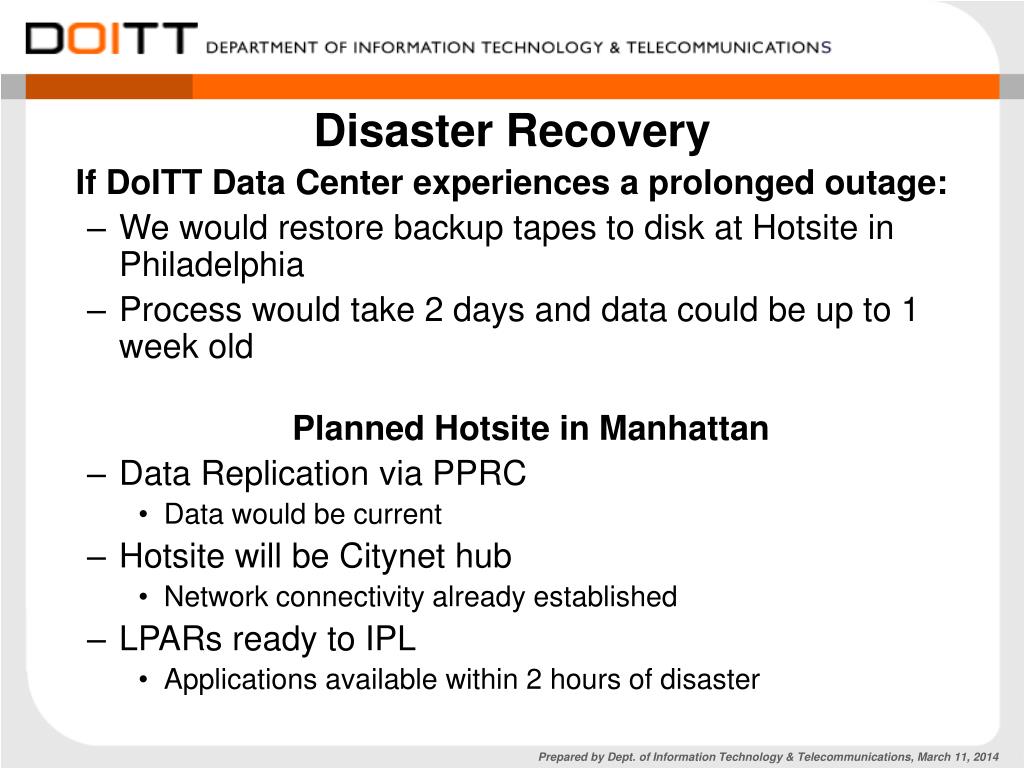

  32. Disaster Recovery • If DoITT Data Center experiences a prolonged outage: • We would restore backup tapes to disk at Hotsite in Philadelphia • Process would take 2 days and data could be up to 1 week old • Planned Hotsite in Manhattan • Data Replication via PPRC • Data would be current • Hotsite will be Citynet hub • Network connectivity already established • LPARs ready to IPL • Applications available within 2 hours of disaster

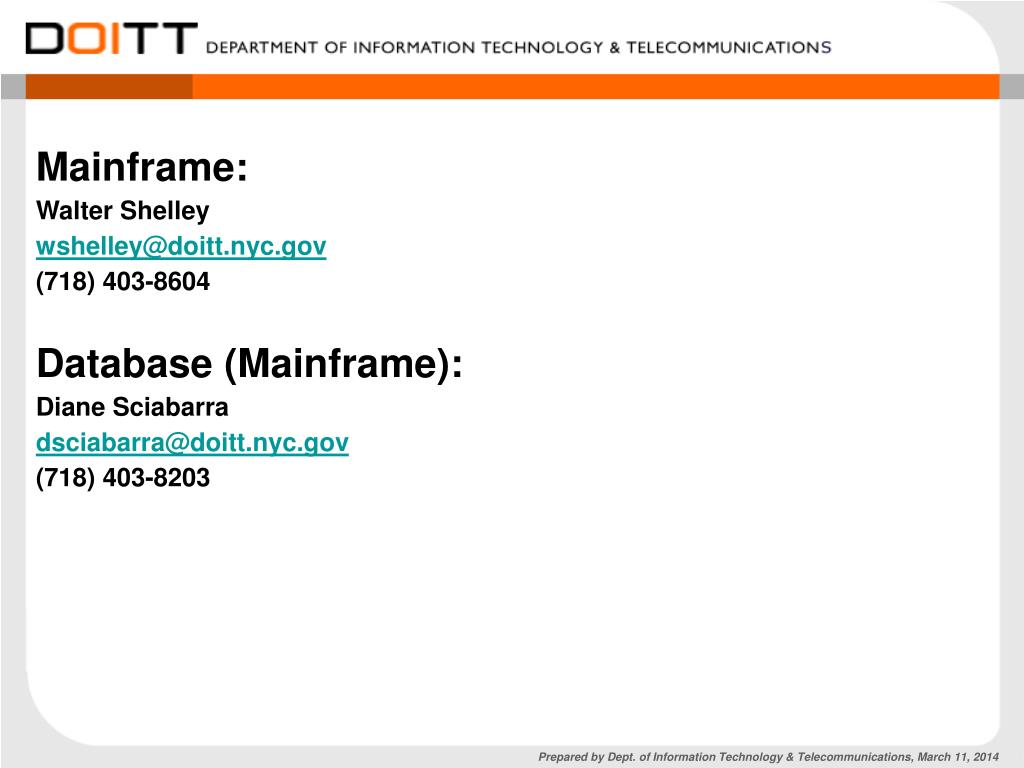

  33. Mainframe: • Walter Shelley • wshelley@doitt.nyc.gov • (718) 403-8604 • Database (Mainframe): • Diane Sciabarra • dsciabarra@doitt.nyc.gov • (718) 403-8203

  34. Identity Management(Formally Referred to as LDAP)

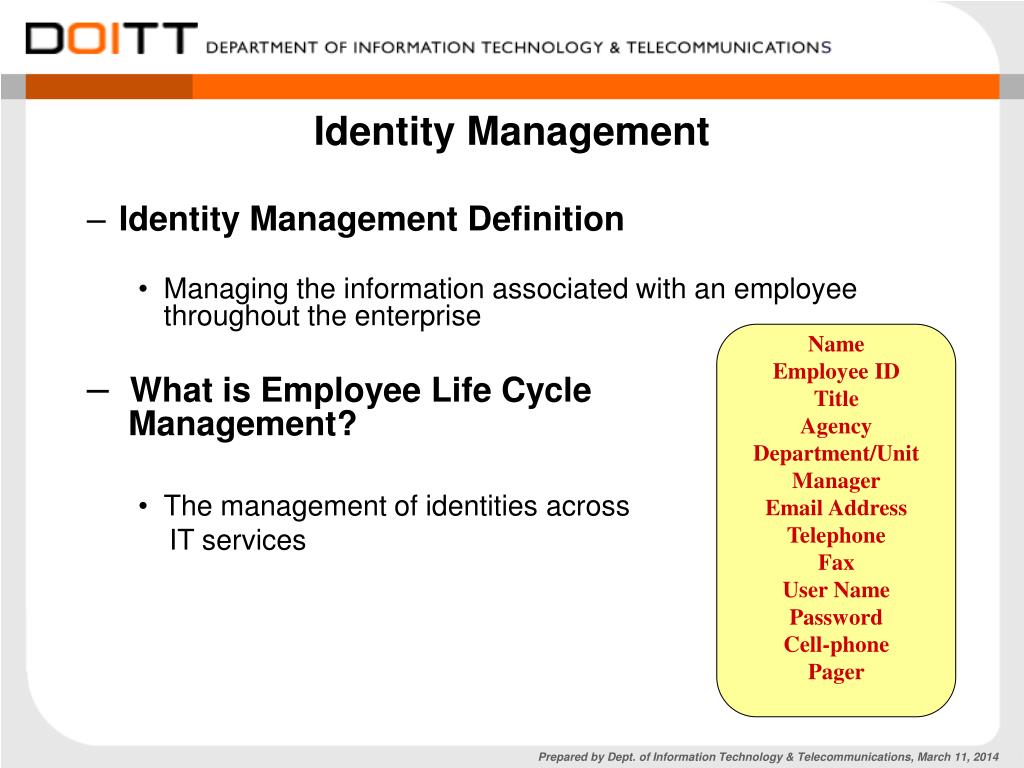

  35. Identity Management • Identity Management Definition • Managing the information associated with an employee throughout the enterprise • What is Employee Life Cycle Management? • The management of identities across IT services Name Employee ID Title Agency Department/Unit Manager Email Address Telephone Fax User Name Password Cell-phone Pager

  36. Identity Management • Identity Management Goals: • Consistent and up to date identity data • Simplify access using reduced sign-on • Improve efficiency of provisioning and de-provisioning • Improve Security Identity Management provides a framework of services to deliver those goals.

  37. Identity Management • Password Management • Password self-service - User ability to manage central authentication credentials • Reduced sign-on by integration of applications and web services to support central authentication credentials • User password management (Single Sign-On) - Automated sign-on to applications at desktop to provide • Consistent password policy enforcement

  38. Identity Management • Authentication and Authorization • Support centralized authentication and authorization • Future support for Web based SSO (City-Wide) and Federated Web SSO (External agencies) • Future support for PKI and other ‘strong authentication’ mechanisms

  39. Directory Services • Services Supported By The Enterprise Directory Directory Services Now Single Sign-On City Directory – City-Wide White Pages VPN Services Remote Access Portal Future Password Self-Service City Share Portal Datashare DNAHits COIB City Time City-Wide Applications Agency Applications

  40. Future Services Directory Services Password Self-Service City Share Portal Datashare DNAHits COIB City Time City-Wide Applications Agency Applications

  41. Identity Management Contacts: • Rakesh Patel • Manager Enterprise Directory Services, IT Security • rapatel@doitt.nyc.gov • 718-403-8620 • Daniel Srebnick • Assistant Commissioner, IT Security • dsrebnick@doitt.nyc.gov • 718-403-8610 • Directory Services Contact: • Donovan Hall • Directory Services Engineer • dhall@doitt.nyc.gov • 718-403-8065

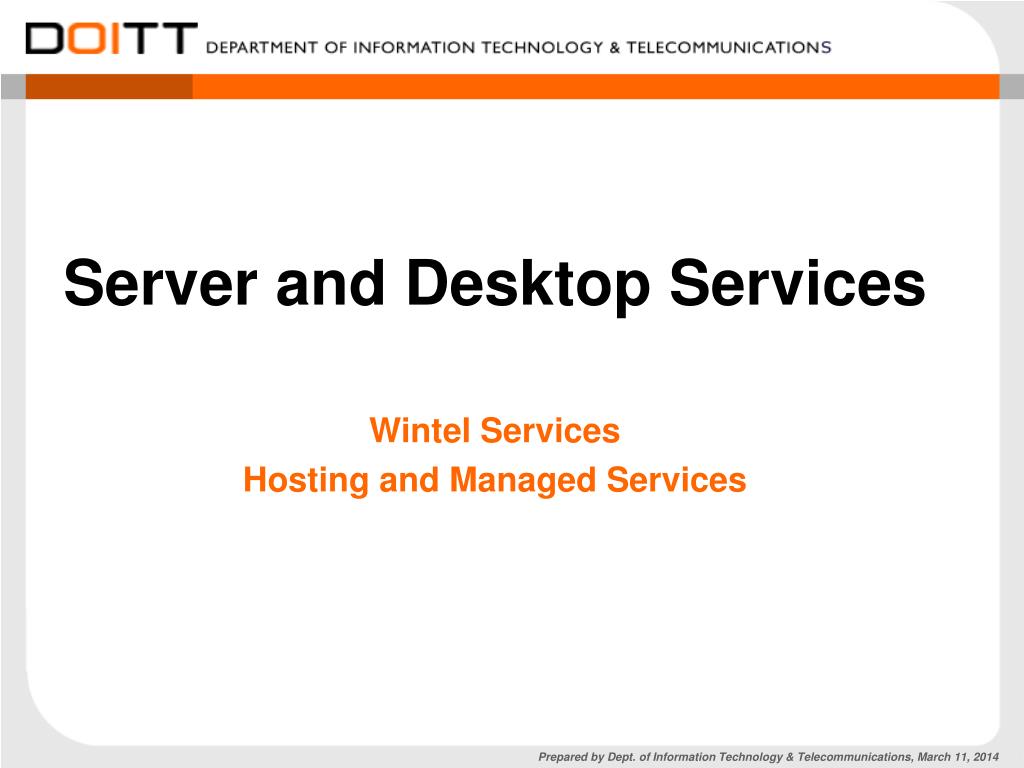

  42. Server and Desktop Services • Wintel Services • Hosting and Managed Services

  43. Mission: • To Provide highly available and scalable systems to service agencies based on the Wintel platform • Leverage existing and future technologies • Increased cost efficiencies with centralized management and architecture • Follow best practice processes and strategies e.g. Microsoft Information Technology Infrastructure Library

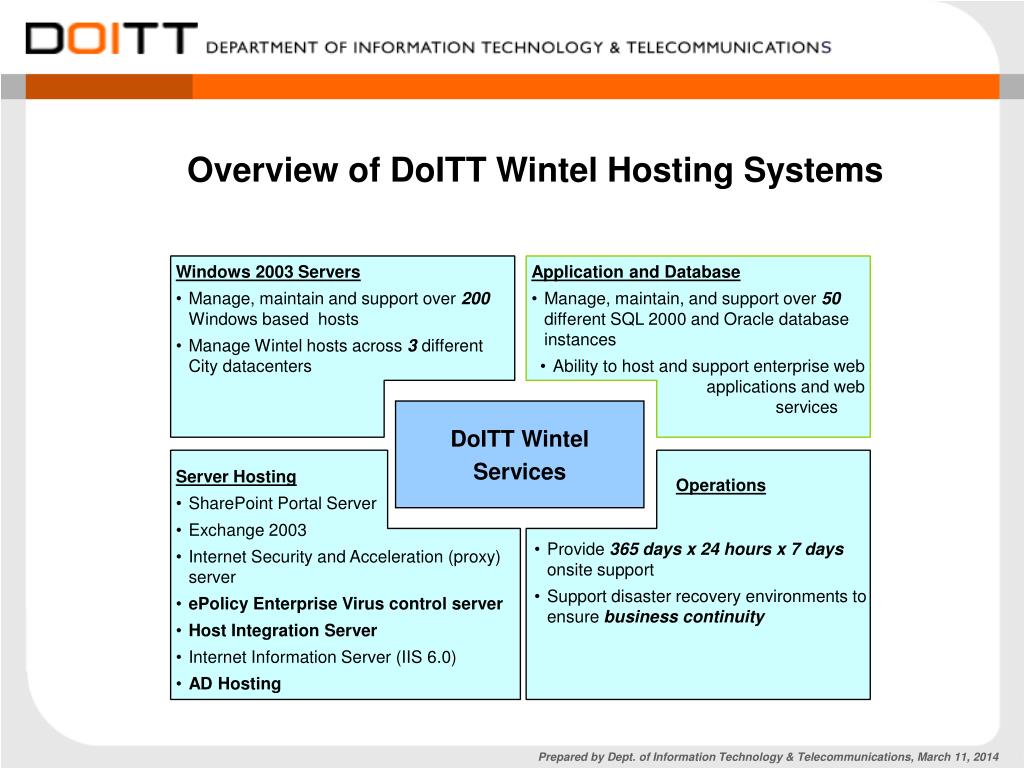

  44. Overview of DoITT Wintel Hosting Systems • Windows 2003 Servers • Manage, maintain and support over 200 Windows based hosts • Manage Wintel hosts across 3 different City datacenters • Application and Database • Manage, maintain, and support over 50 different SQL 2000 and Oracle database instances • Ability to host and support enterprise web applications and web services DoITT Wintel Services • Server Hosting • SharePoint Portal Server • Exchange 2003 • Internet Security and Acceleration (proxy) server • ePolicy Enterprise Virus control server • Host Integration Server • Internet Information Server (IIS 6.0) • AD Hosting Operations • Provide 365 days x 24 hours x 7 daysonsite support • Support disaster recovery environments to ensure business continuity

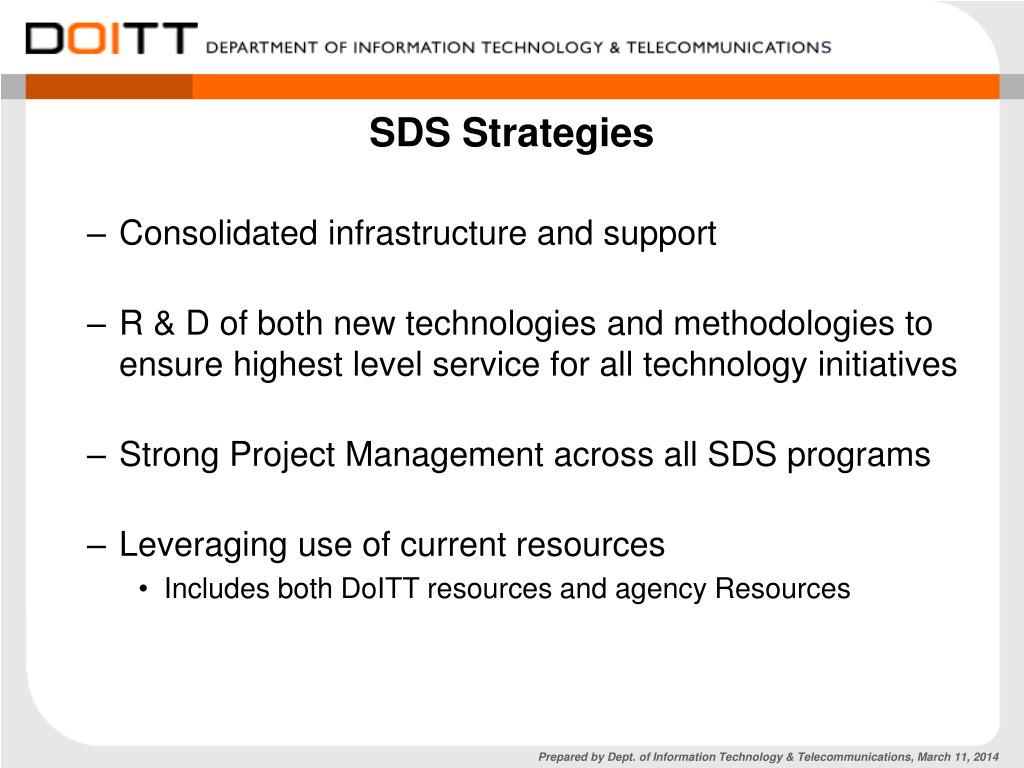

  45. SDS Strategies • Consolidated infrastructure and support • R & D of both new technologies and methodologies to ensure highest level service for all technology initiatives • Strong Project Management across all SDS programs • Leveraging use of current resources • Includes both DoITT resources and agency Resources

  46. Current Cost Benefits • No license fees for Microsoft Server based Technologies • Microsoft Exchange Server Licenses • Microsoft SQL Server Licenses • Microsoft Host Integration Server Licenses (SNA connectivity) • Lower Blackberry licensing fees – Blackberry Web browsing • No-cost storage, back-up and restoration services • Reduced administrative overhead • Increased staff productivity • Platform upgrade without hardware cost • No Microsoft licensing costs via Outlook Web Access

  47. SDS Hosting Services • Messaging Services • Exchange Hosting and migration services • Blackberry • eMail Archiving • Right Fax Service • Live Communication Server (AD Hosting Required) • Secure Instant Messaging, Application Sharing, Video Conferencing • Domain Hosting • Citywide Active Directory Forest Integration • Distributed Virus Protection • Distributed Monitoring of Server Systems and Applications

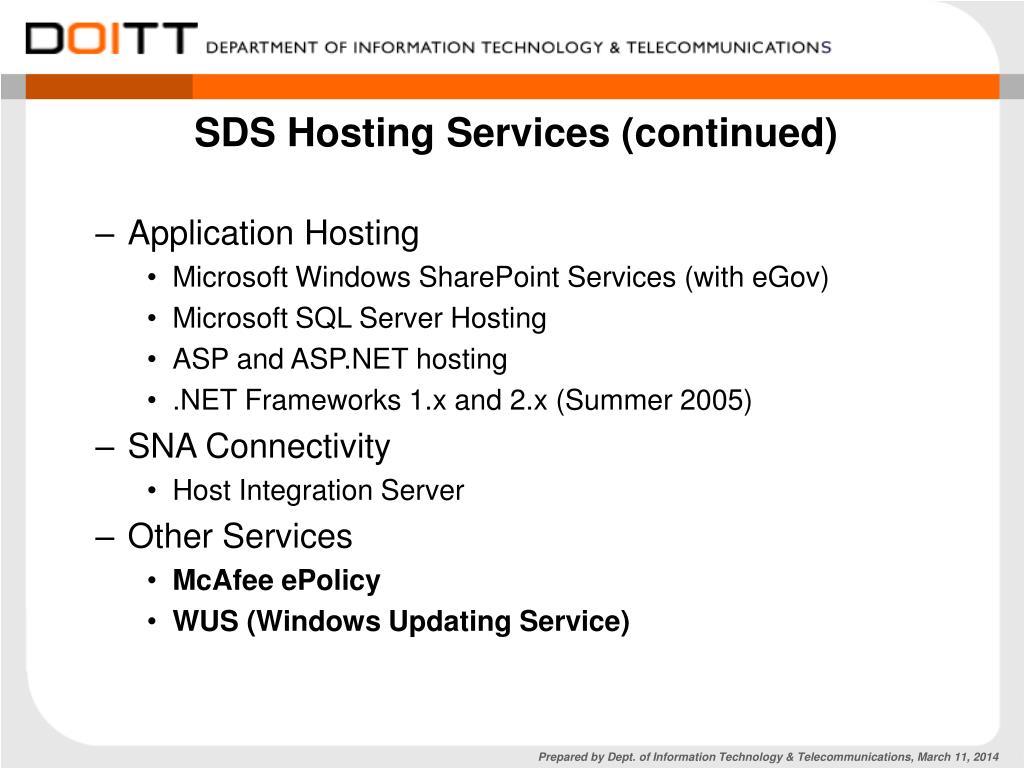

  48. SDS Hosting Services (continued) • Application Hosting • Microsoft Windows SharePoint Services (with eGov) • Microsoft SQL Server Hosting • ASP and ASP.NET hosting • .NET Frameworks 1.x and 2.x (Summer 2005) • SNA Connectivity • Host Integration Server • Other Services • McAfee ePolicy • WUS (Windows Updating Service)

  49. SDS IT Collaboration • Work with Unix team for SAN Storage and backup solutions • Work with Mainframe team to provide offsite storage facilities and connectivity to Mainframe environment via Host Integration Server • Work with eGov to provide the foundation for Wintel Based applications • All teams communicate to determine best solutions across all platforms

  50. Participating Agencies • Bronx District Attorney • City Commission on Human Rights • Civilian Complaint Review Board • Department of Consumer Affairs • Department of Buildings • Department of Finance • Department of Sanitation • Department of Youth and Community Development • Mayor’s Office of Film Broadcasting & Theatre • NYC Marketing • Office of Administrative Trials and Hearings • Office of Collective Bargaining • Office of Payroll Administration • Parks Department • Department of Records and Information Services • Taxi and Limousine Commission
