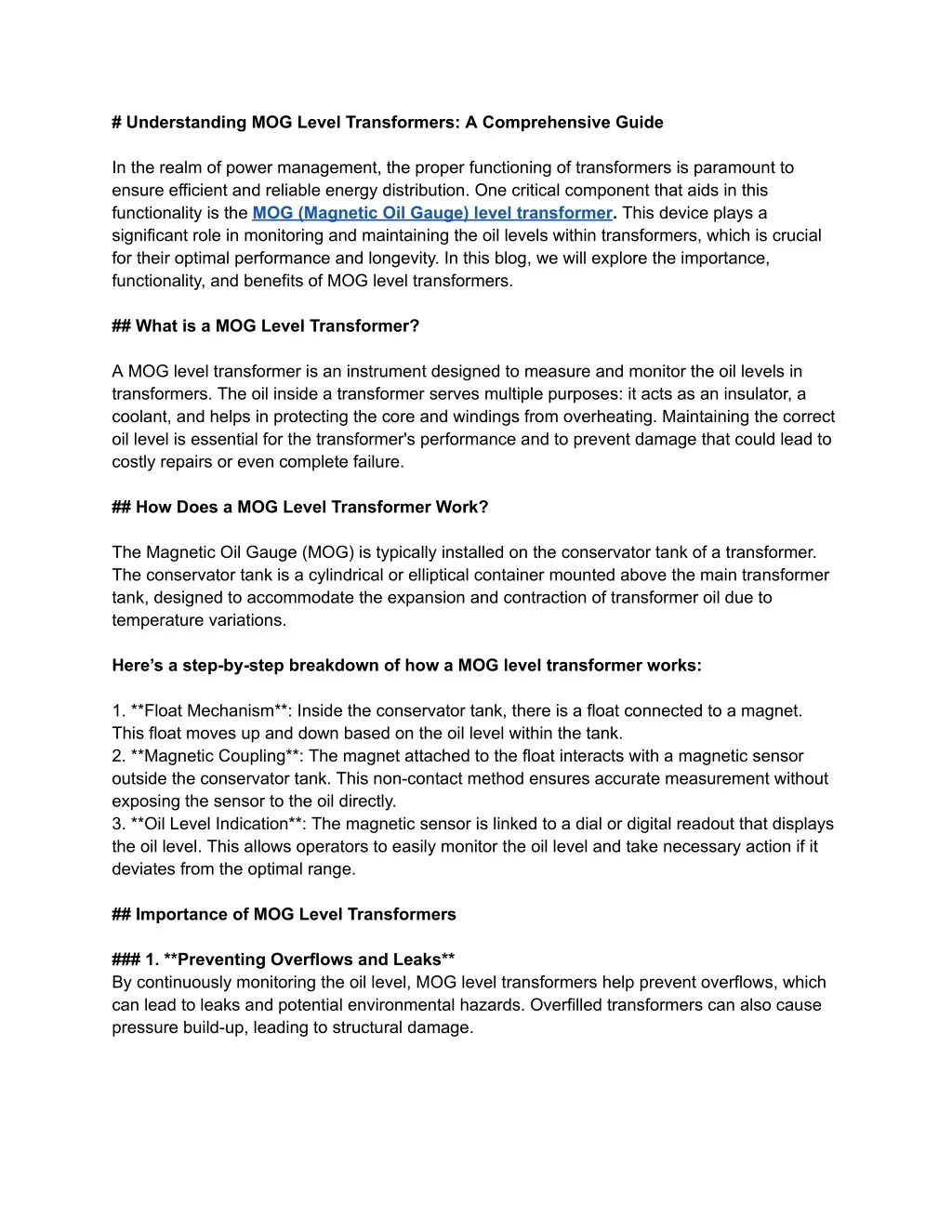

1. # Understanding MOG Level Transformers: A Comprehensive Guide In the realm of power management, the proper functioning of transformers is paramount to ensure efficient and reliable energy distribution. One critical component that aids in this functionality is the MOG (Magnetic Oil Gauge) level transformer. This device plays a significant role in monitoring and maintaining the oil levels within transformers, which is crucial for their optimal performance and longevity. In this blog, we will explore the importance, functionality, and benefits of MOG level transformers. ## What is a MOG Level Transformer? A MOG level transformer is an instrument designed to measure and monitor the oil levels in transformers. The oil inside a transformer serves multiple purposes: it acts as an insulator, a coolant, and helps in protecting the core and windings from overheating. Maintaining the correct oil level is essential for the transformer's performance and to prevent damage that could lead to costly repairs or even complete failure. ## How Does a MOG Level Transformer Work? The Magnetic Oil Gauge (MOG) is typically installed on the conservator tank of a transformer. The conservator tank is a cylindrical or elliptical container mounted above the main transformer tank, designed to accommodate the expansion and contraction of transformer oil due to temperature variations. Here’s a step-by-step breakdown of how a MOG level transformer works: 1. **Float Mechanism**: Inside the conservator tank, there is a float connected to a magnet. This float moves up and down based on the oil level within the tank. 2. **Magnetic Coupling**: The magnet attached to the float interacts with a magnetic sensor outside the conservator tank. This non-contact method ensures accurate measurement without exposing the sensor to the oil directly. 3. **Oil Level Indication**: The magnetic sensor is linked to a dial or digital readout that displays the oil level. This allows operators to easily monitor the oil level and take necessary action if it deviates from the optimal range. ## Importance of MOG Level Transformers ### 1. **Preventing Overflows and Leaks** By continuously monitoring the oil level, MOG level transformers help prevent overflows, which can lead to leaks and potential environmental hazards. Overfilled transformers can also cause pressure build-up, leading to structural damage.

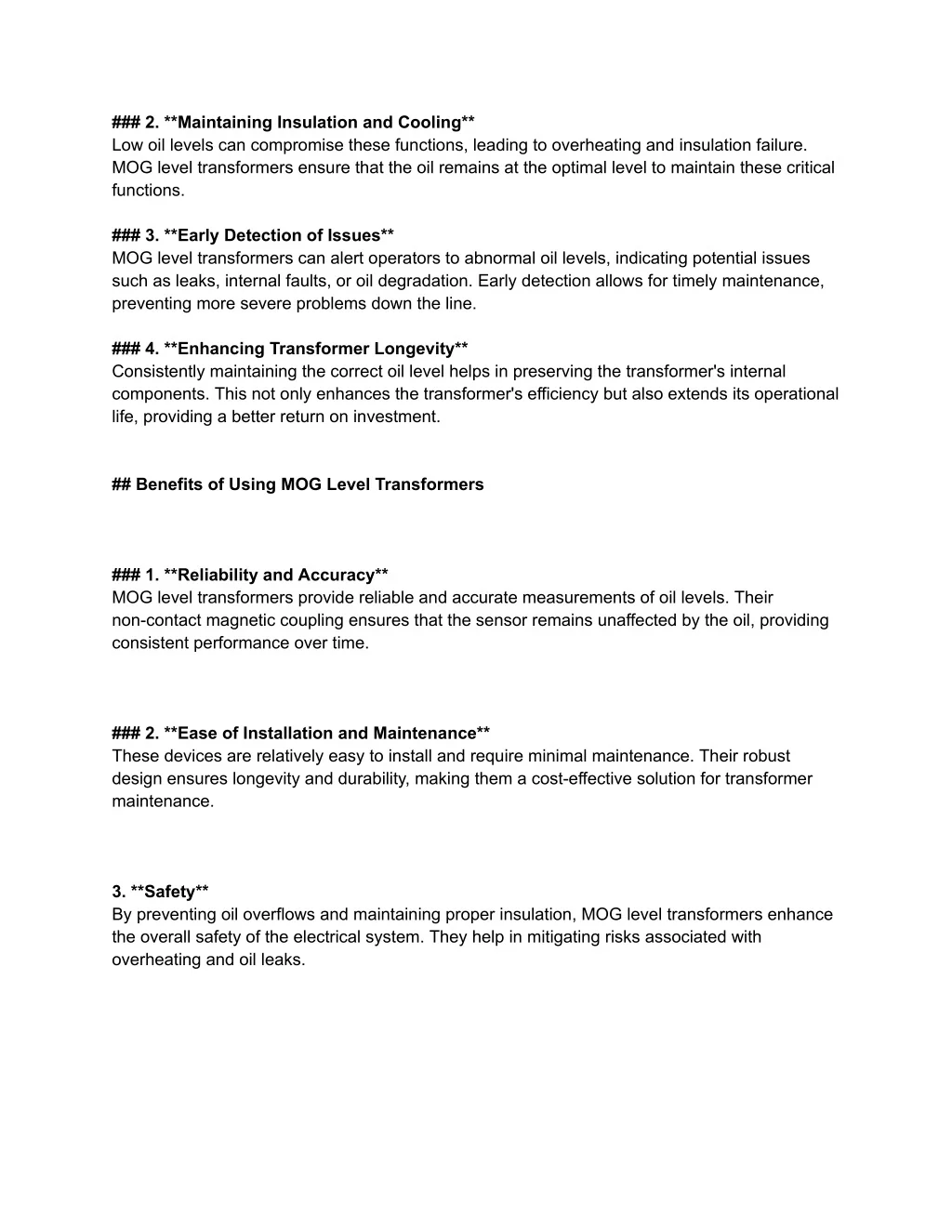

2. ### 2. **Maintaining Insulation and Cooling** Low oil levels can compromise these functions, leading to overheating and insulation failure. MOG level transformers ensure that the oil remains at the optimal level to maintain these critical functions. ### 3. **Early Detection of Issues** MOG level transformers can alert operators to abnormal oil levels, indicating potential issues such as leaks, internal faults, or oil degradation. Early detection allows for timely maintenance, preventing more severe problems down the line. ### 4. **Enhancing Transformer Longevity** Consistently maintaining the correct oil level helps in preserving the transformer's internal components. This not only enhances the transformer's efficiency but also extends its operational life, providing a better return on investment. ## Benefits of Using MOG Level Transformers ### 1. **Reliability and Accuracy** MOG level transformers provide reliable and accurate measurements of oil levels. Their non-contact magnetic coupling ensures that the sensor remains unaffected by the oil, providing consistent performance over time. ### 2. **Ease of Installation and Maintenance** These devices are relatively easy to install and require minimal maintenance. Their robust design ensures longevity and durability, making them a cost-effective solution for transformer maintenance. 3. **Safety** By preventing oil overflows and maintaining proper insulation, MOG level transformers enhance the overall safety of the electrical system. They help in mitigating risks associated with overheating and oil leaks.

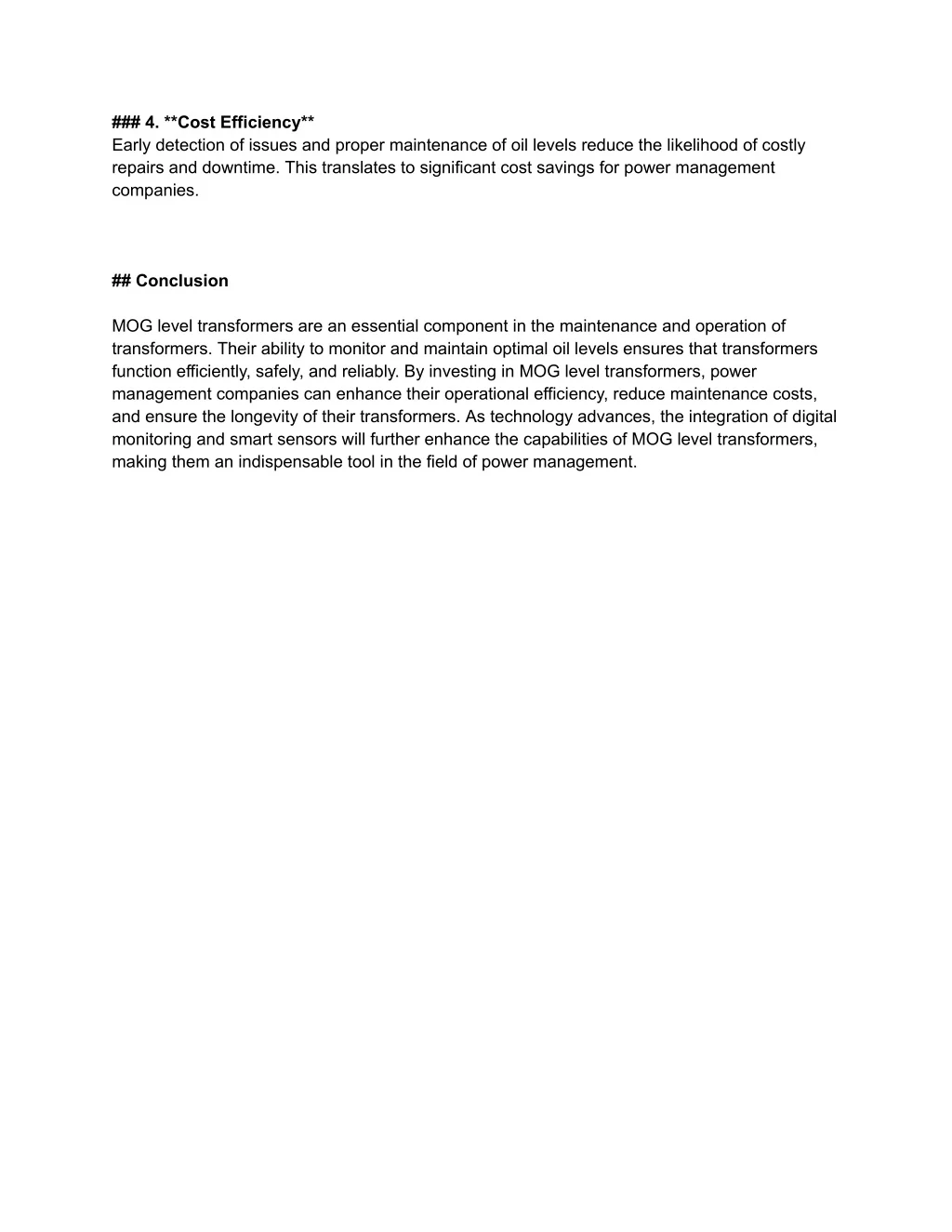

3. ### 4. **Cost Efficiency** Early detection of issues and proper maintenance of oil levels reduce the likelihood of costly repairs and downtime. This translates to significant cost savings for power management companies. ## Conclusion MOG level transformers are an essential component in the maintenance and operation of transformers. Their ability to monitor and maintain optimal oil levels ensures that transformers function efficiently, safely, and reliably. By investing in MOG level transformers, power management companies can enhance their operational efficiency, reduce maintenance costs, and ensure the longevity of their transformers. As technology advances, the integration of digital monitoring and smart sensors will further enhance the capabilities of MOG level transformers, making them an indispensable tool in the field of power management.
