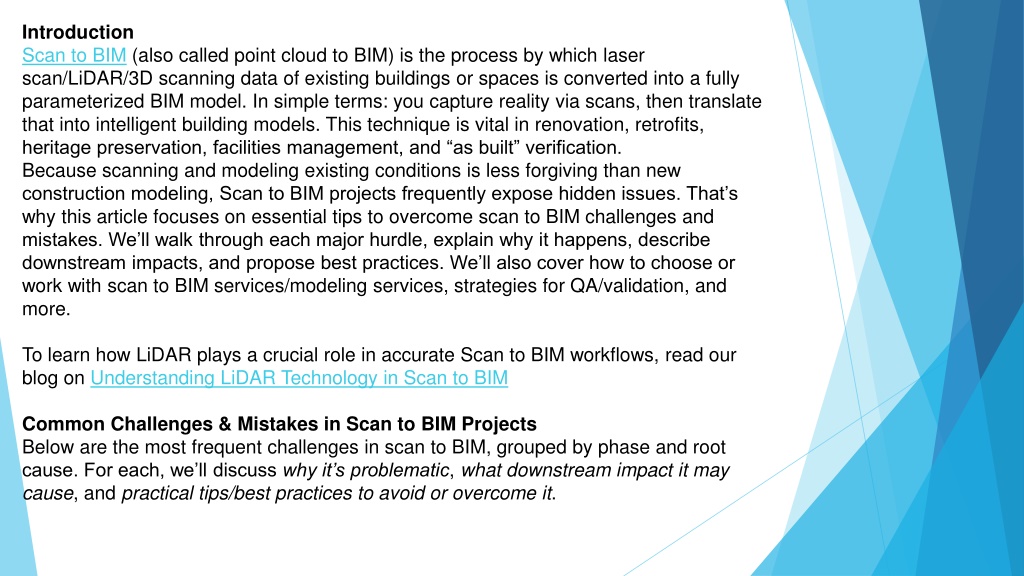

3. Introduction Scan to BIM (also called point cloud to BIM) is the process by which laser scan/LiDAR/3D scanning data of existing buildings or spaces is converted into a fully parameterized BIM model. In simple terms: you capture reality via scans, then translate that into intelligent building models. This technique is vital in renovation, retrofits, heritage preservation, facilities management, and “as built” verification.  Because scanning and modeling existing conditions is less forgiving than new construction modeling, Scan to BIM projects frequently expose hidden issues. That’s why this article focuses on essential tips to overcome scan to BIM challenges and mistakes. We’ll walk through each major hurdle, explain why it happens, describe downstream impacts, and propose best practices. We’ll also cover how to choose or work with scan to BIM services/modeling services, strategies for QA/validation, and more.  To learn how LiDAR plays a crucial role in accurate Scan to BIM workflows, read our blog on Understanding LiDAR Technology in Scan to BIM Common Challenges & Mistakes in Scan to BIM Projects Below are the most frequent challenges in scan to BIM, grouped by phase and root cause. For each, we’ll discuss why it’s problematic, what downstream impact it may cause, and practical tips/best practices to avoid or overcome it.

4. Data Capture & Point Cloud Issues • Why it’s problematic • Incomplete scans, gaps, occlusions, or misaligned registrations lead to missing geometry or distortions.  • Excessive noise, reflections, or outlier points degrade data quality.  • Poor scanner selection (range, accuracy) or a bad scanning strategy compounds errors.  • Downstream impact • Modelers struggle to reconstruct topology, leading to approximations rather than true as-built geometry.  • Clash detection and coordination suffer—if walls, beams, and MEP routing are inaccurately placed, collisions arise.  • The BIM model becomes untrustworthy for renovations, cost estimation, or facility management.  • Tips & Best Practices • Detailed pre-scan planning: define scan stations, overlap, targets, and blind-spot mitigation.  • Choose appropriate scanners (terrestrial, mobile, handheld) based on space, scale, and accuracy needs.  • Use robust registration workflows and set control points/reference markers.  • Perform scan QA immediately on site—spot-check point densities, gaps, and registration errors before leaving site.  • Use noise filters, cropping, and trimming to clean raw scans before modeling.

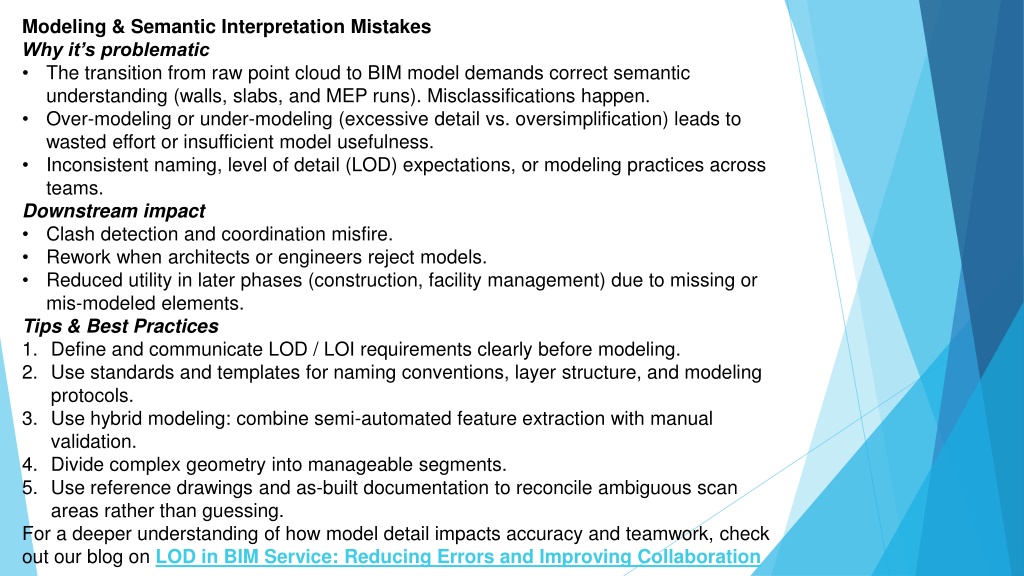

5. Modeling & Semantic Interpretation Mistakes • Why it’s problematic • The transition from raw point cloud to BIM model demands correct semantic understanding (walls, slabs, and MEP runs). Misclassifications happen.  • Over-modeling or under-modeling (excessive detail vs. oversimplification) leads to wasted effort or insufficient model usefulness.  • Inconsistent naming, level of detail (LOD) expectations, or modeling practices across teams.  • Downstream impact • Clash detection and coordination misfire.  • Rework when architects or engineers reject models.  • Reduced utility in later phases (construction, facility management) due to missing or mis-modeled elements.  • Tips & Best Practices • Define and communicate LOD / LOI requirements clearly before modeling.  • Use standards and templates for naming conventions, layer structure, and modeling protocols.  • Use hybrid modeling: combine semi-automated feature extraction with manual validation.  • Divide complex geometry into manageable segments.  • Use reference drawings and as-built documentation to reconcile ambiguous scan areas rather than guessing.  • For a deeper understanding of how model detail impacts accuracy and teamwork, check out our blog on LOD in BIM Service: Reducing Errors and Improving Collaboration

6. Technology, Software & Interoperability Issues • Why it’s problematic • Incompatible formats (E57, LAS, RCP, PTS, IFC) cause data loss or misalignment.  • Large point cloud files strain hardware or software performance.  • Lack of integration between scan processing software and BIM authoring software.  • Downstream impact • Workflow bottlenecks, crashes, slow performance, or lost work.  • Inability to coordinate across disciplines due to format mismatches.  • Extra work for format conversion or manual data translation.  • Tips & Best Practices • Use well-supported, interoperable formats (RCP, OBJ, IFC).  • Segment point clouds (by floors / zones) to reduce processing load.  • Adopt a Common Data Environment (CDE) for version control and storage.  • Ensure your modeling software (e.g., Revit, Navisworks, Recap) is well integrated with scan tools.  • Use cloud or high-performance computing for heavy processing tasks.  • To enhance the precision and efficiency of your BIM models, explore our guide on Revit Family Creation: Boost Your BIM Projects with Superior Results

7. Team Coordination, Roles & Communication Gaps • Why it’s problematic • Surveyors, scanner operators, BIM modelers, architects, and engineers may all work separately.  • Misaligned expectations and deliverable formats lead to confusion.  • No clear ownership for model review, version control, or QA.  • Downstream impact • Duplicate efforts or missed tasks.  • Delays in approvals or iterations.  • Conflicts in model elements and output inconsistencies.  • Tips & Best Practices • Assign clear roles: scanner lead, model lead, QA lead, and coordinator.  • Hold coordination kickoff meetings to align expectations.  • Use a shared collaboration platform (CDE, shared cloud).  • Maintain consistent documentation and change logs.  • Schedule intermediate reviews and checkpoints rather than waiting until the end.

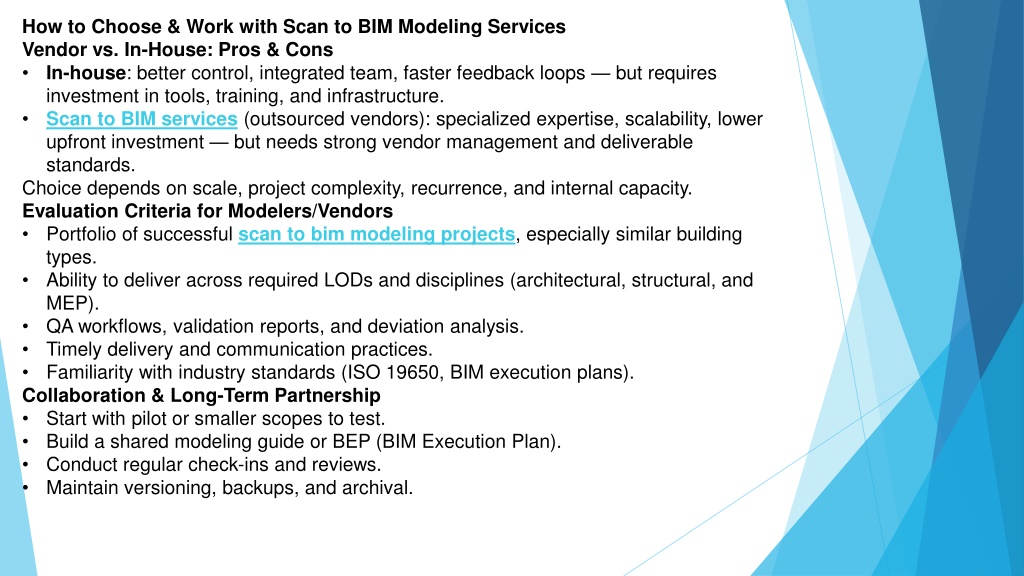

8. How to Choose & Work with Scan to BIM Modeling Services • Vendor vs. In-House: Pros & Cons • In-house: better control, integrated team, faster feedback loops — but requires investment in tools, training, and infrastructure.  • Scan to BIM services(outsourced vendors): specialized expertise, scalability, lower upfront investment — but needs strong vendor management and deliverable standards.  • Choice depends on scale, project complexity, recurrence, and internal capacity.  • Evaluation Criteria for Modelers/Vendors • Portfolio of successful scan to bim modeling projects, especially similar building types.  • Ability to deliver across required LODs and disciplines (architectural, structural, and MEP).  • QA workflows, validation reports, and deviation analysis.  • Timely delivery and communication practices.  • Familiarity with industry standards (ISO 19650, BIM execution plans).  • Collaboration & Long-Term Partnership • Start with pilot or smaller scopes to test.  • Build a shared modeling guide or BEP (BIM Execution Plan).  • Conduct regular check-ins and reviews.  • Maintain versioning, backups, and archival.

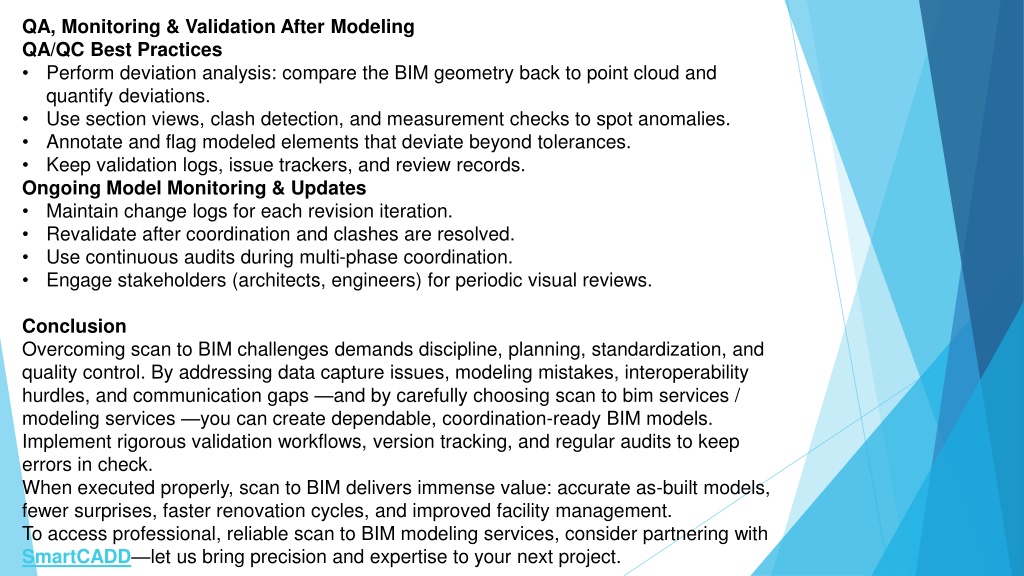

9. QA, Monitoring & Validation After Modeling • QA/QC Best Practices • Perform deviation analysis: compare the BIM geometry back to point cloud and quantify deviations.  • Use section views, clash detection, and measurement checks to spot anomalies.  • Annotate and flag modeled elements that deviate beyond tolerances.  • Keep validation logs, issue trackers, and review records.  • Ongoing Model Monitoring & Updates • Maintain change logs for each revision iteration.  • Revalidate after coordination and clashes are resolved.  • Use continuous audits during multi-phase coordination.  • Engage stakeholders (architects, engineers) for periodic visual reviews.  • Conclusion • Overcoming scan to BIM challenges demands discipline, planning, standardization, and quality control. By addressing data capture issues, modeling mistakes, interoperability hurdles, and communication gaps —and by carefully choosing scan to bim services / modeling services —you can create dependable, coordination-ready BIM models. Implement rigorous validation workflows, version tracking, and regular audits to keep errors in check.  • When executed properly, scan to BIM delivers immense value: accurate as-built models, fewer surprises, faster renovation cycles, and improved facility management.  • To access professional, reliable scan to BIM modeling services, consider partnering with SmartCADD—let us bring precision and expertise to your next project.
