Compact Data Representations and their Applications

1. Compact Data Representations and their Applications Moses Charikar Princeton University

2. sketch complex object 0 1 0 1 1 0 0 1 1 0 0 0 1 0 1 1 0 0 1 0 Sketching Paradigm • Construct compact representation (sketch) of data such that • Interesting functions of data can be computed from compact representation estimated

3. Why care about compact representations ? • Practical motivations • Algorithmic techniques for massive data sets • Compact representations lead to reduced space, time requirements • Make impractical tasks feasible • Theoretical Motivations • Interesting mathematical problems • Connections to many areas of research

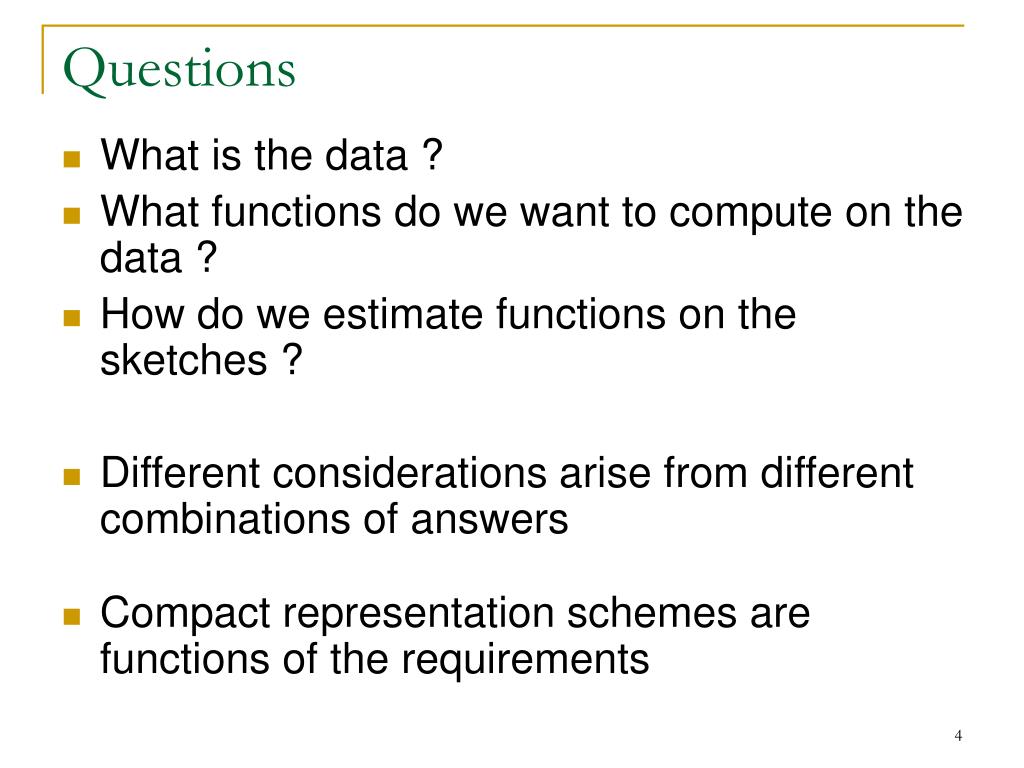

4. Questions • What is the data ? • What functions do we want to compute on the data ? • How do we estimate functions on the sketches ? • Different considerations arise from different combinations of answers • Compact representation schemes are functions of the requirements

5. What is the data ? • Sets, vectors, points in Euclidean space, points in a metric space, vertices of a graph. • Mathematical representation of objects (e.g. documents, images, customer profiles, queries).

6. What functions do we want to compute on the data ? • Local functions : pairs of objectse.g. distance between objects • Sketch of each object, such that function can be estimated from pairs of sketches • Global functions : entire data sete.g. statistical properties of data • Sketch of entire data set, ability to update, combine sketches

7. Local functions: distance/similarity • Distance is a general metric, i.e satisfies triangle inequality • Normed spacex = (x1, x2, …, xd) y = (y1, y2, …, yd) • Other special metrics (e.g. Earth Mover Distance)

8. Estimating distance from sketches • Arbitrary function of sketches • Information theory, communication complexity question. • Sketches are points in normed space • Embedding original distance function in normed space. [Bourgain ’85] [Linial,London,Rabinovich ’94] • Original metric is (same) normed space • Original data points are high dimensional • Sketches are points low dimensions • Dimension reduction in normed spaces[Johnson Lindenstrauss ’84]

9. Global functions • Statistical properties of entire data set • Frequency moments • Sortedness of data • Set membership • Size of join of relations • Histogram representation • Most frequent items in data set • Clustering of data

10. Streaming algorithms • Perform computation in one (or constant) pass(es) over data using a small amount of storage space • Availability of sketch function facilitates streaming algorithm • Additional requirements - sketch should allow: • Update to incorporate new data items • Combination of sketches for different data sets storage input

11. Goals • Glimpse of sketching techniques, especially in geometric settings. • Basic theoretical ideas, no messy details • Concrete application

12. Talk Outline • Dimension reduction • Similarity preserving hash functions • sketching vector norms • sketching Earth Mover Distance (EMD) • Application to image retrieval

13. f http://humanities.ucsd.edu/courses/kuchtahum4/pix/earth.jpg http://www.physast.uga.edu/~jss/1010/ch10/earth.jpg Low Distortion Embeddings • Given metric spaces (X1,d1) & (X2,d2),embedding f: X1 X2 has distortion D if ratio of distances changes by at most D • “Dimension Reduction” – • Original space high dimensional • Make target space be of “low” dimension, while maintaining small distortion

14. Dimension Reduction in L2 • n points in Euclidean space (L2 norm) can be mapped down to O((log n)/2) dimensions with distortion at most 1+.[Johnson Lindenstrauss ‘84] • Two interesting properties: • Linear mapping • Oblivious – choice of linear mapping does not depend on point set • Quite simple [JL84, FM88, IM98, DG99, Ach01]: Even a random +1/-1 matrix works… • Many applications…

15. Dimension reduction for L1 • [C,Sahai ‘02]Linear embeddings are not good for dimension reduction in L1 • There exist O(n) points in L1in n dimensions, such that any linear mapping with distortion  needs n/2dimensions

16. Dimension reduction for L1 • [C, Brinkman ‘03]Strong lower boundsfor dimension reduction in L1 • There exist n points in L1, such that anyembedding with constant distortion  needs n1/2dimensions • Simpler proof by [Lee,Naor ’04] • Does not rule out other sketching techniques

17. Talk Outline • Dimension reduction • Similarity preserving hash functions • sketching vector norms • sketching Earth Mover Distance (EMD) • Application to image retrieval

18. sketch complex object 0 1 0 1 1 0 0 1 1 0 0 0 1 0 1 1 0 0 1 0 Similarity Preserving Hash Functions • Similarity function sim(x,y), distance d(x,y) • Family of hash functions F with probability distribution such that

19. Applications • Compact representation scheme for estimating similarity • Approximate nearest neighbor search [Indyk,Motwani ’98] [Kushilevitz,Ostrovsky,Rabani ‘98]

20. Relaxations of SPH • Estimate distance measure, not similarity measure in [0,1]. • Measure E[f(h(x),h(y)]. • Estimator will approximate distance function.

21. Sketching Set Similarity:Minwise Independent Permutations [Broder,Manasse,Glassman,Zweig ‘97] [Broder,C,Frieze,Mitzenmacher ‘98]

22. Sketching L1 • Design sketch for vectors to estimate L1 norm • Hash function to distinguish between small and large distances [KOR ’98] • Map L1 to Hamming space • Bit vectors a=(a1,a2,…,an) and b=(b1,b2,…,bn) • Distinguish between distances  (1-ε)n/k versus  (1+ε)n/k • XOR random set of k bits • Pr[h(a)=h(b)] differs by constant in two cases

23. Sketching L1 via stable distributions • a=(a1,a2,…,an) and b=(b1,b2,…,bn) • Sketching L2 • f(a) = Σi ai Xi f(b) = Σi bi XiXi independent Gaussian • f(a)-f(b) has Gaussian distribution scaled by |a-b|2 • Form many coordinates, estimate |a-b|2 by taking L2 norm • Sketching L1 • f(a) = Σi ai Xi f(b) = Σi bi XiXi independent Cauchy distributed • f(a)-f(b) has Cauchy distribution scaled by |a-b|1 • Form many coordinates, estimate |a-b|1 by taking median[Indyk ’00] -- streaming applications

24. Earth Mover Distance (EMD) P Q EMD(P,Q)

25. 0.2 0.3 0.2 0.1 0.4 0.2 0.2 0.1 0.2 0.4 0.2 0.1 0.2 0.1 0.1 Bipartite/Bichromatic matching • Minimum cost matching between two sets of points. • Point weights  multiple copies of points Fast estimation of bipartite matching [Agarwal,Varadarajan ’04] Goal: Sketch point set to enable estimation of min cost matching

26. separation cost Assignment cost Detour: Classification with pairwise relationships [Kleinberg,Tardos ’99] we

27. P Q Separation cost measured byEMD(P,Q) Rounding algorithm guarantees E[d(h(P),h(Q)]  O(log n) EMD(P,Q) [C ’02] LP Relaxation and Rounding [Kleinberg,Tardos ’99] [Chekuri,Khanna,Naor,Zosin ‘01]

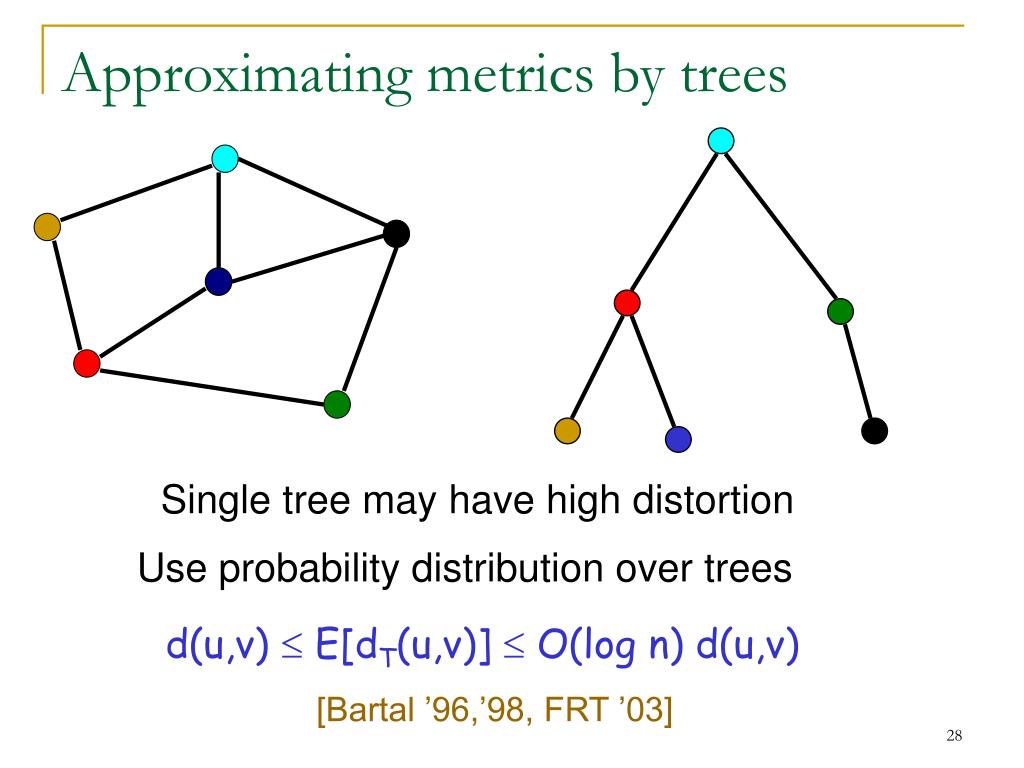

28. Single tree may have high distortion Use probability distribution over trees d(u,v)  E[dT(u,v)]  O(log n) d(u,v) [Bartal ’96,’98, FRT ’03] Approximating metrics by trees

29. ℓT T v(P) = {ℓTwT(P)}T v(Q) = {ℓTwT(Q)}T EMD(P,Q) =|v(P)-v(Q)|1 EMD on trees: embedding into L1 [suggested by Piotr Indyk] |wT(P)-wT(Q)| EMD(P,Q) = ΣTℓT|wT(P)-wT(Q)|

30. EMD on general metrics • Approximate metric by probability distribution on trees • Sample tree from distribution and compute L1representation • EMD(P,Q)  E[d(v(P),v(Q))]  O(log n) EMD(P,Q)

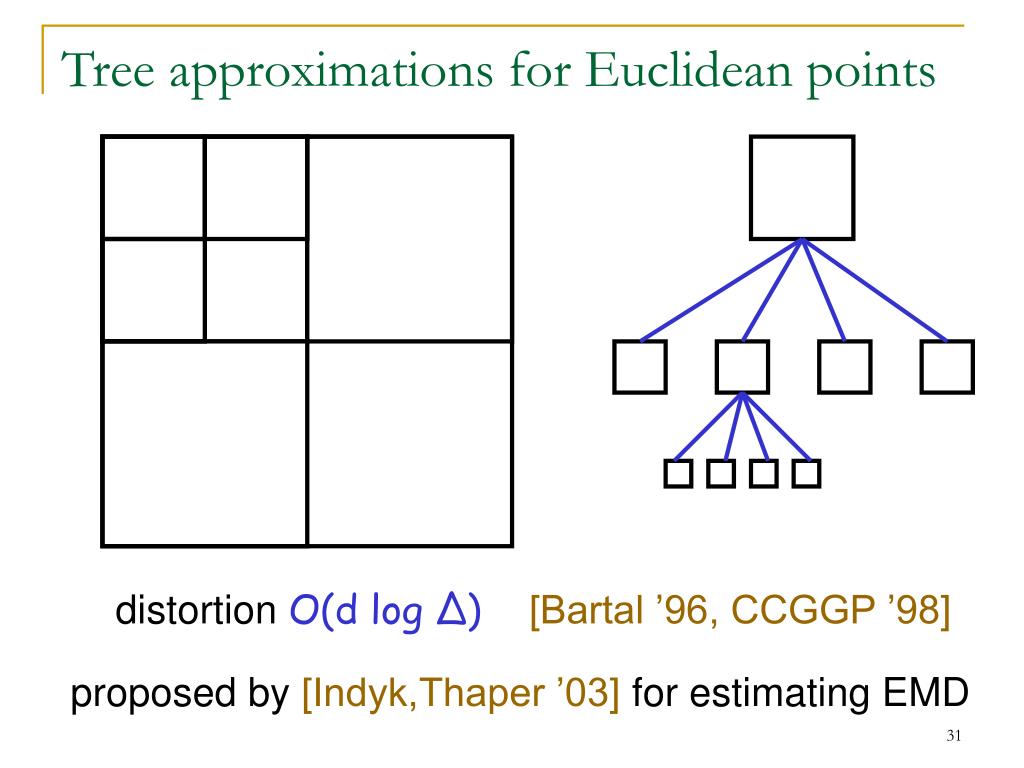

31. Tree approximations for Euclidean points distortion O(d log Δ) [Bartal ’96, CCGGP ’98] proposed by [Indyk,Thaper ’03] for estimating EMD

32. Talk Outline • Dimension reduction • Similarity preserving hash functions • sketching vector norms • sketching Earth Mover Distance (EMD) • Application to image retrieval

33. Motivation • Apply sketching techniques in complex setting • Compact data structures for high-quality and efficient image retrieval ? • Evaluate effectiveness of sketching techniques • [Lv,C,Li ’04]

34. Region Based Image Retrieval (RBIR) • Region representation • color (histogram, moments, fourier coefficients) • position, shape • Region based image similarity measure • Independent best match [Blobworld, NETRA] • each region in one matched to best region in other • One-to-one match [Windsurf, WALRUS] • one-to-one matching between two sets of regions • EMD match

35. Pre-processing Query time Overview

36. Region Representation • Color moments • First three moments in HSV color space  9-D vector • Bounding box • Aspect ratio • Bounding box size • Area ratio • Region centroid •  5-D vector • Weighted L1 distance

37. Addressing problems with EMD match • Region weights: proportional to region size? • Big background has disproportionate effect • Ground distance: region distance? • Pair of different regions can have large effect • distance meaningless beyond certain point • EMD*-match • Region weights = Square root of region size • Ground distance= Thresholded region distance

38. x1 y1 x = (x1,x2,x3,x4) x2 y2 y = (y1,y2,y3,y4) y3 x3 x4 y4 0 1 Compact region representation • 14D region vectors → NK bit vectors • hamming distance  (weighted) L1 distance • XOR groups of K bits → N bit vector • hamming distance  thresholded L1 distance

39. Thresholding distance by XORing bits Number of bits XORed control shape of flattened curve

40. EMD embedding:combining region vectors • Pick random pattern (bit positions and bit values) • Add region weights matching pattern • M such patterns: M coordinates of image vector • Related to [Indyk Thaper 04]

41. Evaluation Criteria • Effectiveness of EMD* match • Compactness of data structureswithout compromising quality • Efficiency and effectiveness of embedding and filtering algorithm

42. Evaluation Methodology • 10,000 images • 32 queries with similar images identifiedhttp://dbvis.inf.uni-konstanz.de/research/projects/SimSearch/effpics.html • Segmentation via JSEGavg. #regions = 7.16, min = 1, max = 57 • Effectiveness measured by average precisionAverage of precision values at positions of k target images

44. Effectiveness of EMD* Match SIMPLIcity: avg. precision = 0.331

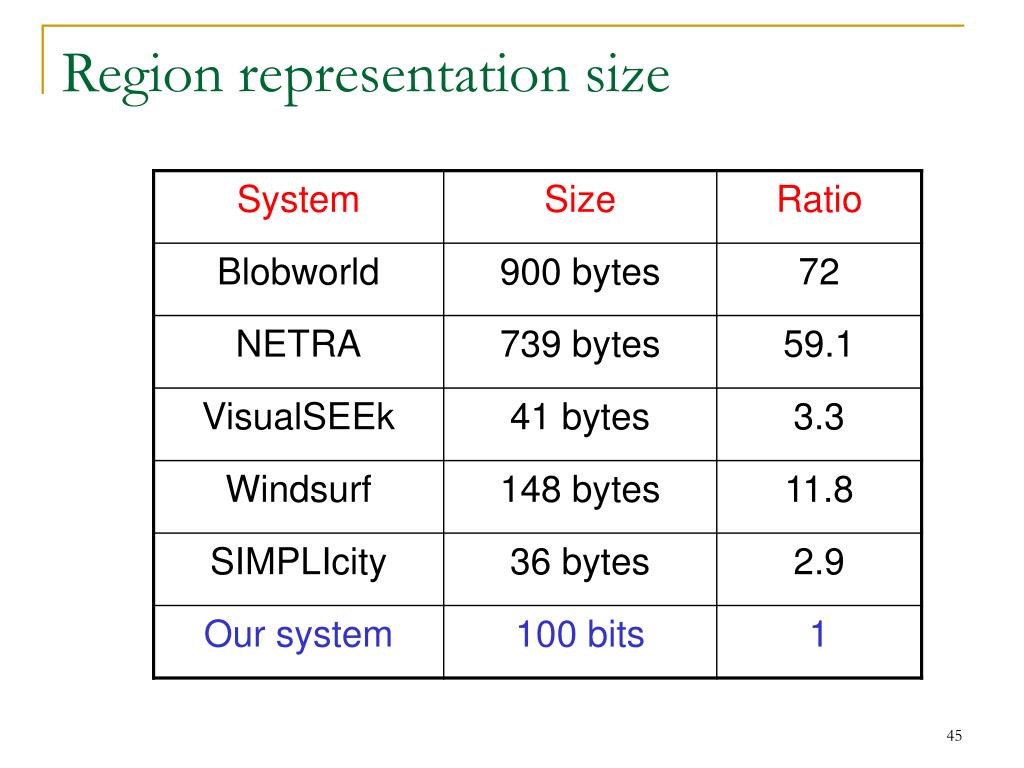

45. Region representation size

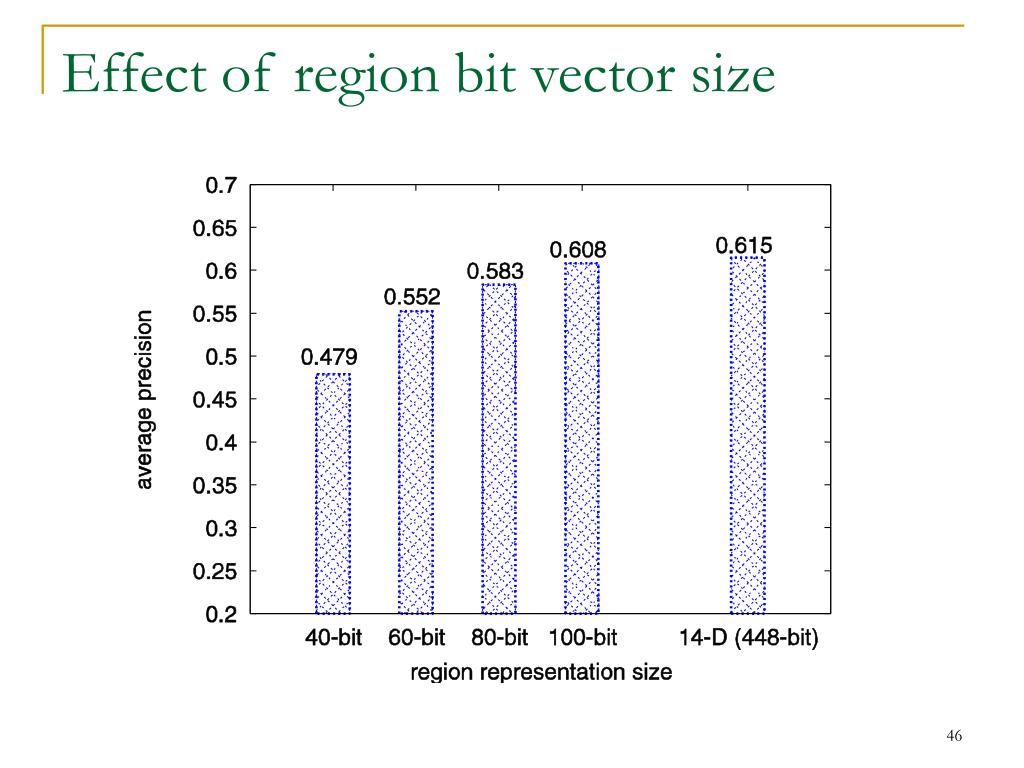

46. Effect of region bit vector size

47. Effect of number of random patterns(raw image vector size)

48. Search quality: Effect of image bit vector size and filtering

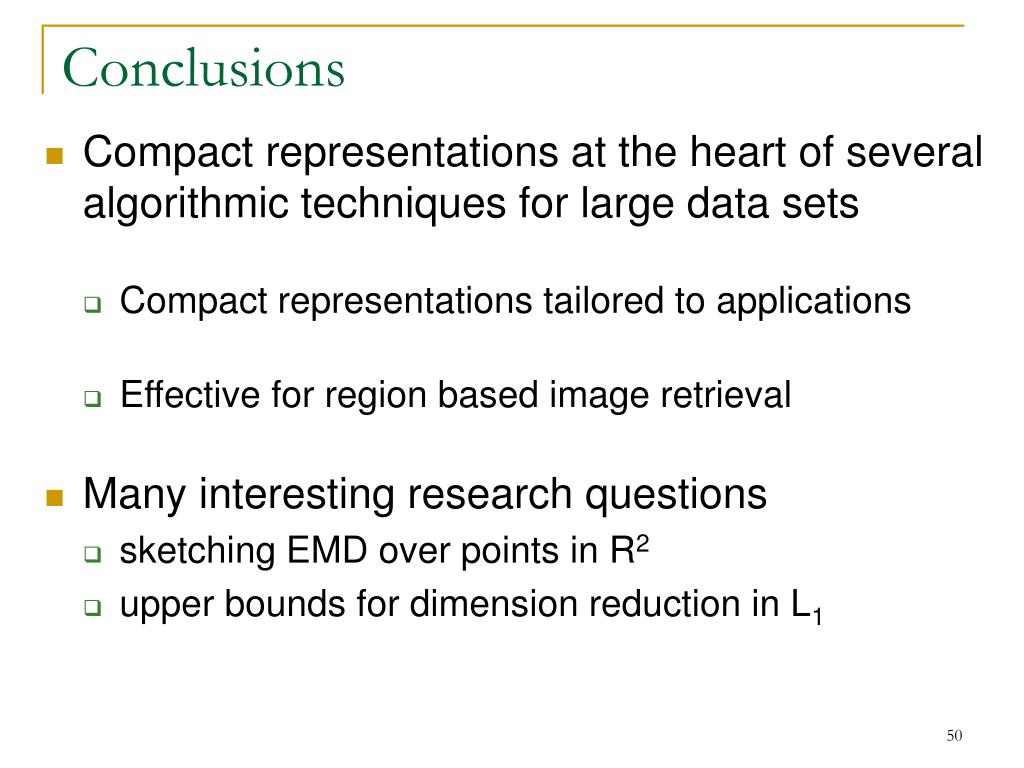

49. Average query time: Effect of image bit vector size and filtering
