  1. Online Access to Fire System Information SafeLINC™Fire Panel Internet Interface

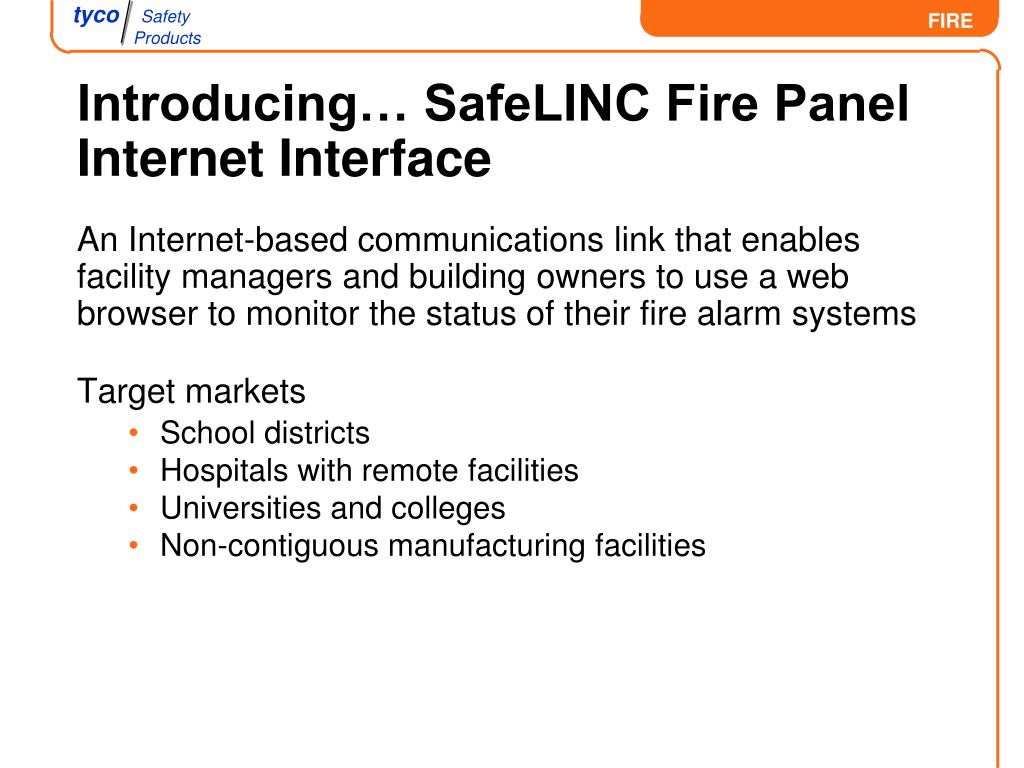

  2. Introducing… SafeLINC Fire Panel Internet Interface An Internet-based communications link that enables facility managers and building owners to use a web browser to monitor the status of their fire alarm systems Target markets • School districts • Hospitals with remote facilities • Universities and colleges • Non-contiguous manufacturing facilities

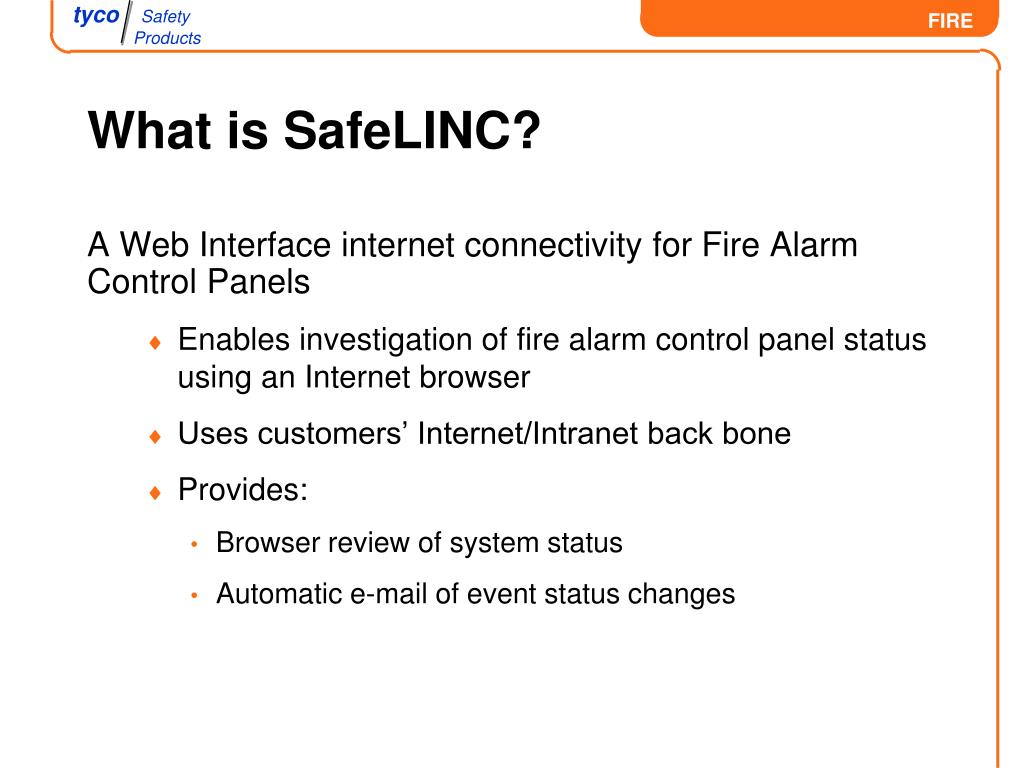

  3. What is SafeLINC? A Web Interface internet connectivity for Fire Alarm Control Panels • Enables investigation of fire alarm control panel status using an Internet browser • Uses customers’ Internet/Intranet back bone • Provides: • Browser review of system status • Automatic e-mail of event status changes

  4. System Overview

  5. Features • Provides single user access for up to 20 different users • Compatible with Internet Explorer 5.0 or higher • UL-listed to Standard 864 • On-board service port for setup and diagnostics • Generic login screen

  6. Login Screen Anonymous login screen for protection

  7. Access Security Selectable login parameters • Programmable login attempts before lockout • Selectable from 1 to 20 with 3 as default • Lockout time after unsuccessful login attempts • Lockout time programmable from 0 to 24 hours • 1 hour is default lockout time • Record of unsuccessful logins e-mailed to administrators • Individual IP addresses or address series can be blocked

  8. Features Automatic e-mail feature provides selectable notification to user accounts • Will automatically notify user accounts of selected status changes • Information can be Alarm, Supervisory, Trouble or TrueAlarm, Dirty or Excessively Dirty status

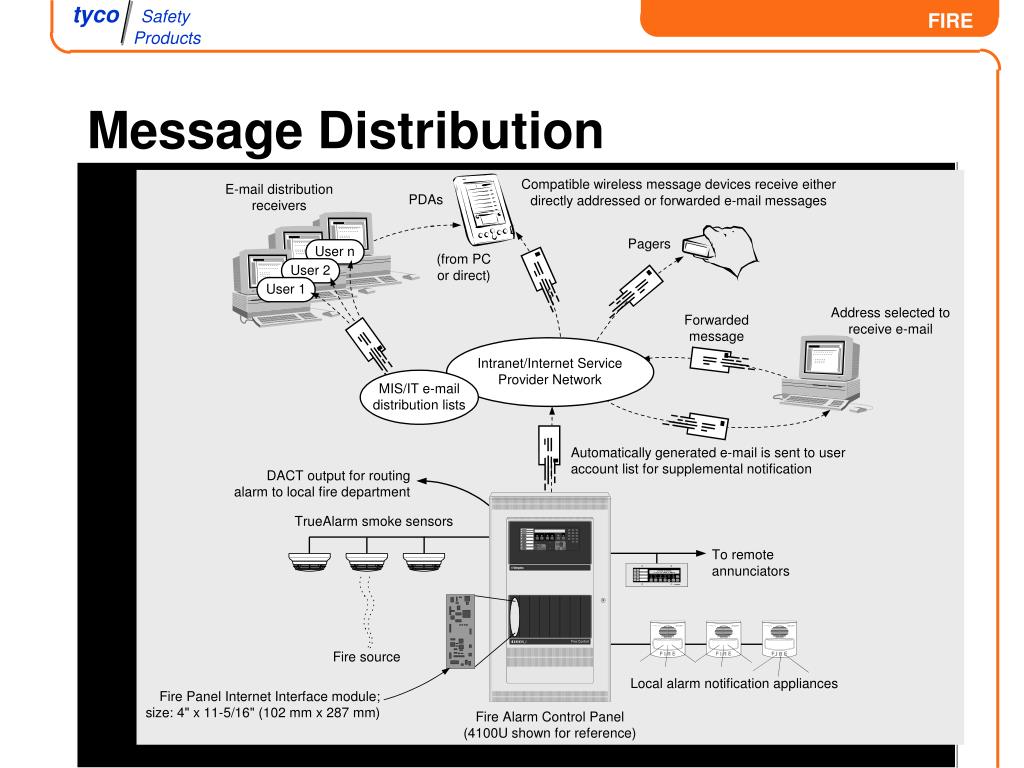

  9. Message Distribution

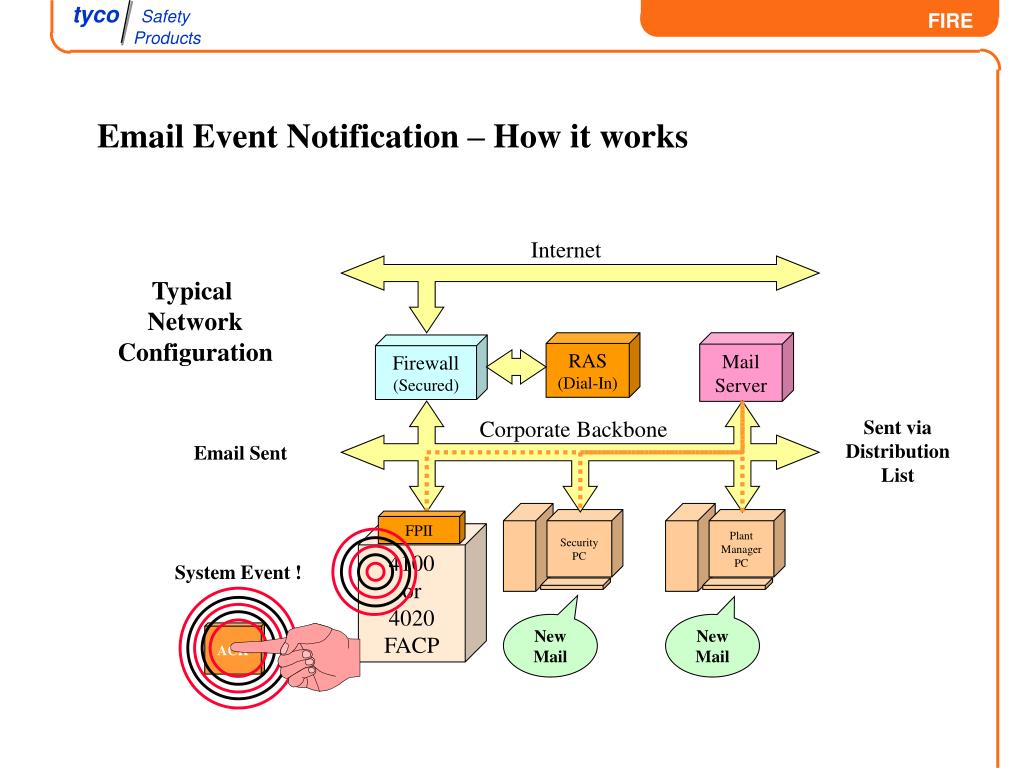

  10. Sent via Distribution List Email Sent Security PC Plant Manager PC System Event ! New Mail New Mail ACK Email Event Notification – How it works Internet Typical Network Configuration RAS (Dial-In) Mail Server Firewall (Secured) Corporate Backbone FPII 4100 or 4020 FACP

  11. Features Panel Status Shown on Internet Browser • Display of Alarm, Priority 2, Supervisory, and Trouble messages & counts • Detailed point information similar to that available on panel user interface • TrueAlarm sensor status and service report viewing • Alarm and Trouble log viewing

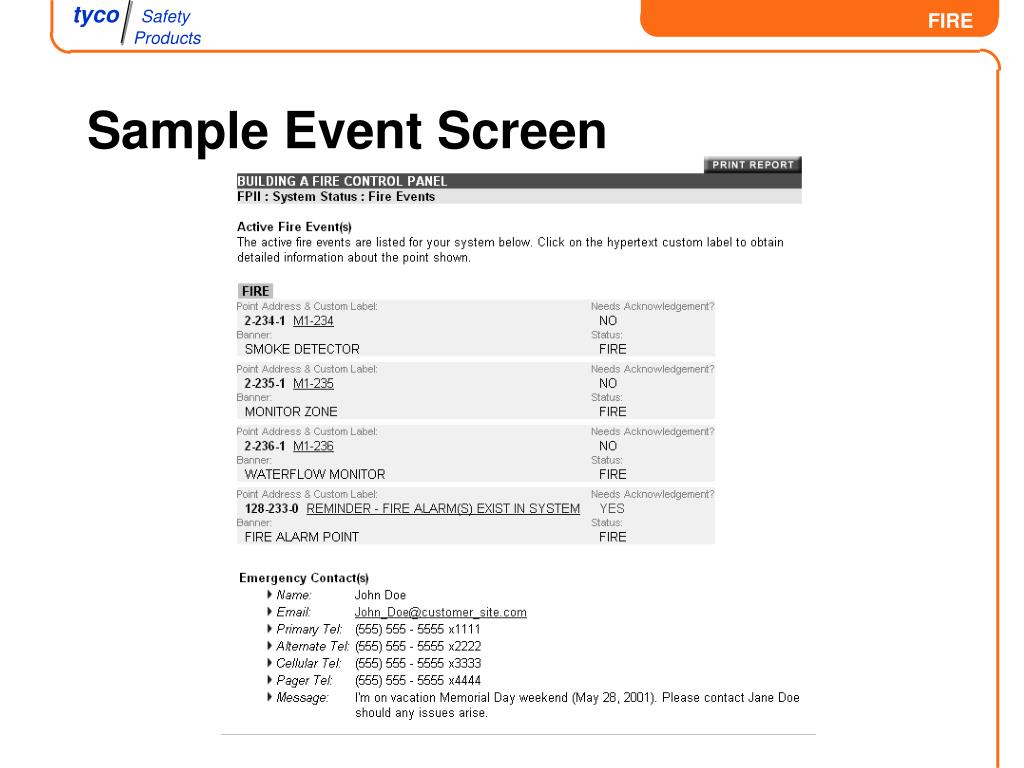

  12. Sample Event Screen

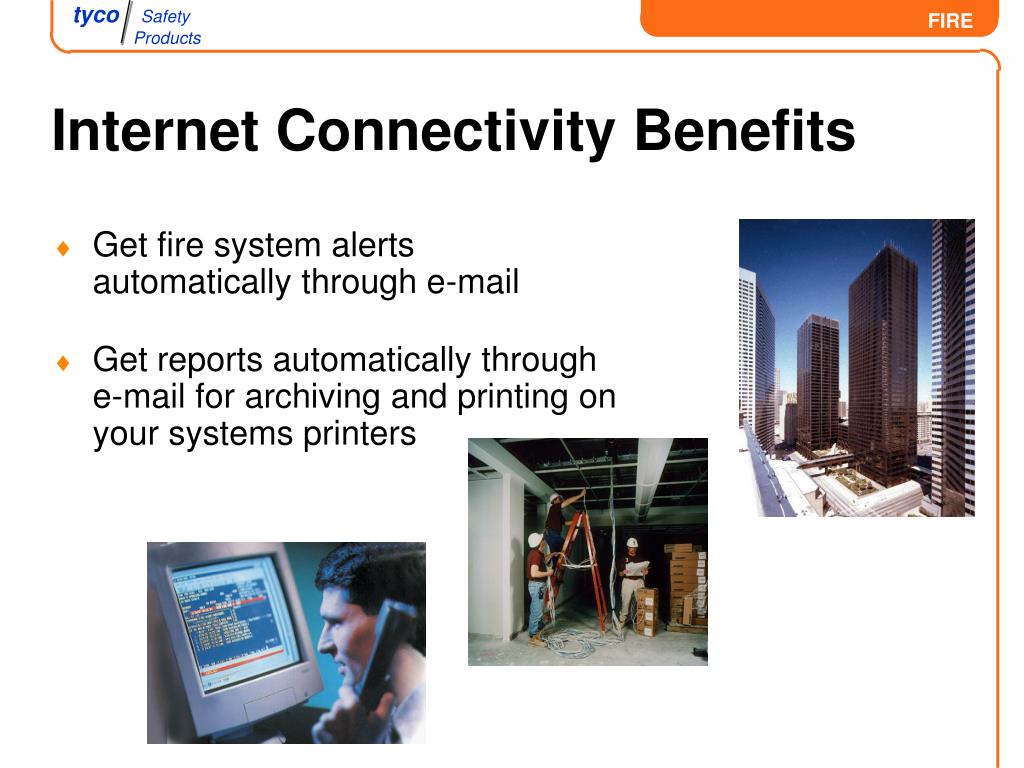

  13. Internet Connectivity Benefits • Get fire system alerts automatically through e-mail • Get reports automatically through e-mail for archiving and printing on your systems printers

  14. Internet Connectivity Uses Access your buildings fire systems from one location, any location
