Geography/Planning 379: “Urban Growth & Development” Lecture 2: The Evolution of Urban Form Historical Urban Transpo

Geography/Planning 379: “Urban Growth & Development” Lecture 2: The Evolution of Urban Form Historical Urban Transportation & Development Eras: The Pedestrian City (1607–1830) The Omnibuses and Early Railroads First Innovations to Increase Mobility (1830–1860)

Sophia
Télécharger la présentation

Geography/Planning 379: “Urban Growth & Development” Lecture 2: The Evolution of Urban Form Historical Urban Transpo

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Geography/Planning 379: “Urban Growth & Development” • Lecture 2: The Evolution of Urban Form • Historical Urban Transportation & Development Eras: • The Pedestrian City (1607–1830) • The Omnibuses and Early Railroads • First Innovations to Increase Mobility (1830–1860) • 3. The Horsecar Era (1860–1895) • (Cable Cars: A Transitional Mode, 1870s–1900) • 4. Streetcar Suburbs (1895–1949) • 5. The Demise of the Streetcar: The “Great Transportation Conspiracy” (1930s & 1940s) • 6. The Freeway Age (1950–?) • Reading • Required: Kaplan et al. TEXTBOOK, Ch. 3, 58-70;72-82 (skip “Central Place Theory” section) • Supplementary: Yeates & Garner • www.u.arizona.edu/~plane/geog379.html

  2. Just how rapid is recent Population Growth in the Tucson Metropolitan Area? By comparison, World growth rate: 1.3%

  3. How ‘Sprawled out’ is Tucson? • Approximate City of Tucson Population Density: 5 People per Acre (3,338 People per Square Mile) • By Comparison: New York City back in 1850: 136 People per Acre • Per Person: Tucson, 2000: 91’ x 91’ NYC 1850: 18’ x 18’ • In 1850, the largest city in the World was London… • …Its density: 117 People per Acre • New York City’s approximate density today: 39 People per Acre

  4. The Pedestrian City (ca. 1607-1830) • Why begin with the year 1607? • Structure of pre-Industrial Revolution cities in U.S. like in Europe • Where were cities located & what were their functions? • Early manufacturing locatedonly on waterfront or took place in craft shops in homes • Simple land use map would show three zones: • I Waterfront • II Homes of Well-to-do and public bldgs • III General population & craftshops & stores I III II Harbor

  5. The Pedestrian City (ca. 1607-1830) • Riding to work too expensive until the 1860s for average person; had to live nearby in walking distance • Irony: land was essentially “limitless” from the perspective of the Colonists, but people in the cities lived packed together. • Nation was overwhelmingly a rural one: 1790, only 5% of the population was living in ‘urban places’ (recall definition!) • Why weren’t there more people in the cities? • Concept of ‘Agricultural Surplus’

  6. The Pedestrian City (continued) • Land for urban growth was constrained by water (see sketches: Philadelphia & NYC) • Rowhouses – solid blocks of housing units as was common in Europe • Conclusion:Tremendous Population Pressure >>> Need for transportation

  7. Omnibus and Early Railroads: First Innovations to Increase Mobility (1830 – 1860) The Omnibus invented in France, ca. 1826 • First U.S. lines in 1830s • Cart drawn by 2 horses • Only carried 12 passengers • Started many traditions of U.S. public transportation: traveled fixed routes with designated stops and a flat-rate fare • This was first real public transportation…The only for-hire transportation before this: • hackney coach(like horse-era taxi cab) • prohibitively expensive except for the wealthiest

  8. A 19th Century Paris Omnibus Wikipedia (public domain photo)

  9. Omnibus and Early Railroads: First Innovations to Increase Mobility (1830 – 1860) 1830s – 1850s: Era of the Omnibus • 1830s: 70 omnibus lines in NYC; 683 lines by 1853 Not yet mass transportation • Fares were too high • Inefficient to have 2 horses and a driver to carry 12 passengers • Who rode omnibus lines? Not average worker • Fares were pushed down due to competition • 12 ½ ¢ in 1830s to 5 ¢ in 1860s • But average laborer made < $1 / day

  10. Omnibus and Early Railroads: First Innovations to Increase Mobility (1830 – 1860) • New transportation increased social separation • Wealthier business people could escape congested central areas and ride to workplace • They did a lot of riding -- they went home for lunch, so 4 trips per day • Still true today that higher income people travel more than lower income • Top 20% income group accounts for 33% of travel • Bottom 20%, only 9%

  11. Omnibus and Early Railroads: First Innovations to Increase Mobility (1830 – 1860) • We spend huge amounts on transportation • 22% of US personal expenditures for transport • Only 9% in Japan • Railroads also began to be used for commuting • “Ideal of the Agrarian Existence” • Most successful in Boston, less so in Philadelphia and NYC

  12. The Horsecar Era (1860 – 1895) • Early ordinances banned the railroads as dangerous • Railroads had to pull trains into stations using teams of horses • This, though, led to invention of the horsecar railway (aka ‘horsecar’) • Horsecars immensely successful! Huge demand • Building costs: NYC street railways $214,000/mile; all US railways: $43,000 Why? “The costs of Common Councils and Aldermen are included in the right-of-way costs.” American Railway Times(ca. 1850)

  13. A horsecar… Wikipedia (pubic domain photo)

  14. Many advantages of horsecar railway overomnibuses… • Quieter. • How were streets paved? • Omnibus called: “A perfect bedlam on wheels’ • Safer • More efficient • Carried 40-70 passengers, used same 2 horses • Cheaper to ride – lower fares per mile • Faster • Longer routes possible, opening up new areas to live • Expedited traffic flow • Fewer vehicles and horses on the streets

  15. Advances in Urban Transportation from 1830 to 1895 (Omnibus and Horsecar) Resulted in… • A radial, monocentric pattern of growth (with focus of commerce in old walking city) • Increased mobility for upper & high middle income groups • Increased social separation – because the poor and lower-income workers could not afford to leave the slums in the old walking city • The emergence of specialized business and residential districts • The separation of business districts into sections for particular functions

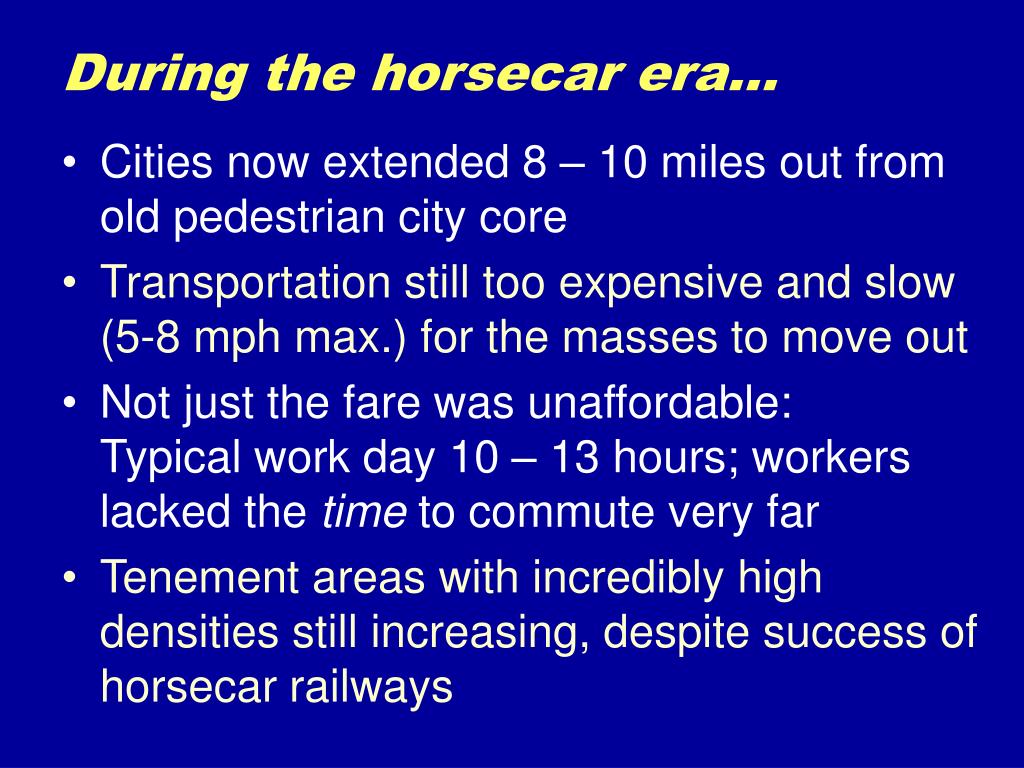

  16. During the horsecar era… • Cities now extended 8 – 10 miles out from old pedestrian city core • Transportation still too expensive and slow (5-8 mph max.) for the masses to move out • Not just the fare was unaffordable: Typical work day 10 – 13 hours; workers lacked the time to commute very far • Tenement areas with incredibly high densities still increasing, despite success of horsecar railways

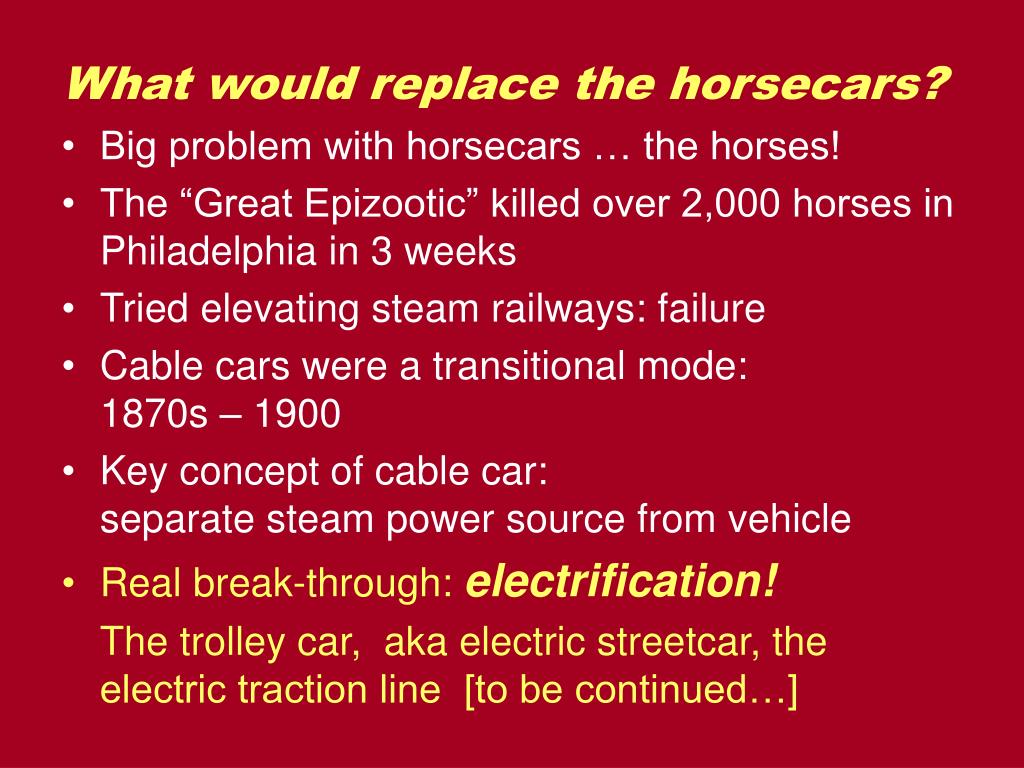

  17. What would replace the horsecars? • Big problem with horsecars … the horses! • The “Great Epizootic” killed over 2,000 horses in Philadelphia in 3 weeks • Tried elevating steam railways: failure • Cable cars were a transitional mode: 1870s – 1900 • Key concept of cable car: separate steam power source from vehicle • Real break-through: electrification! The trolley car, aka electric streetcar, the electric traction line [to be continued…]

  18. POP QUIZ Name________ • Put the following forms of transportation in the correct order of chronological adoption in American cities: • Electric Streetcar or Trolley Car • Omnibus • Automobile • Horsecar Railway ANSWER:
