The Use of Nanobubbles in Water to Increase the Performance of Cavitation Steam Generators

1. The Use of Nanobubbles in Water to Increase the Performance of Cavitation Steam Generators The article was written with the participation of GverLab, www.gver.dx.am Abstract Cavitation steam generators represent a promising technology for efficient steam production through controlled bubble collapse phenomena. Recent advances in nanotechnology have introduced the concept of nanobubbles - gas-filled spherical structures with diameters typically ranging from 10 to 1000 nanometers - as potential performance enhancers for cavitation-based systems. This article explores the mechanisms by which nanobubbles can improve cavitation steam generator efficiency, examining their stability, nucleation properties, and practical implementation challenges. Introduction Cavitation steam generators utilize the rapid formation and collapse of vapor bubbles in liquid water to produce steam through localized heating effects. Traditional cavitation systems often suffer from unpredictable bubble formation, energy losses, and equipment wear due to uncontrolled cavitation events. The introduction of nanobubbles into the working fluid presents an innovative approach to address these limitations while potentially enhancing overall system performance. Nanobubbles possess unique properties that distinguish them from conventional microbubbles, including exceptional stability in aqueous solutions, high internal pressures, and the ability to serve as nucleation sites for cavitation events.

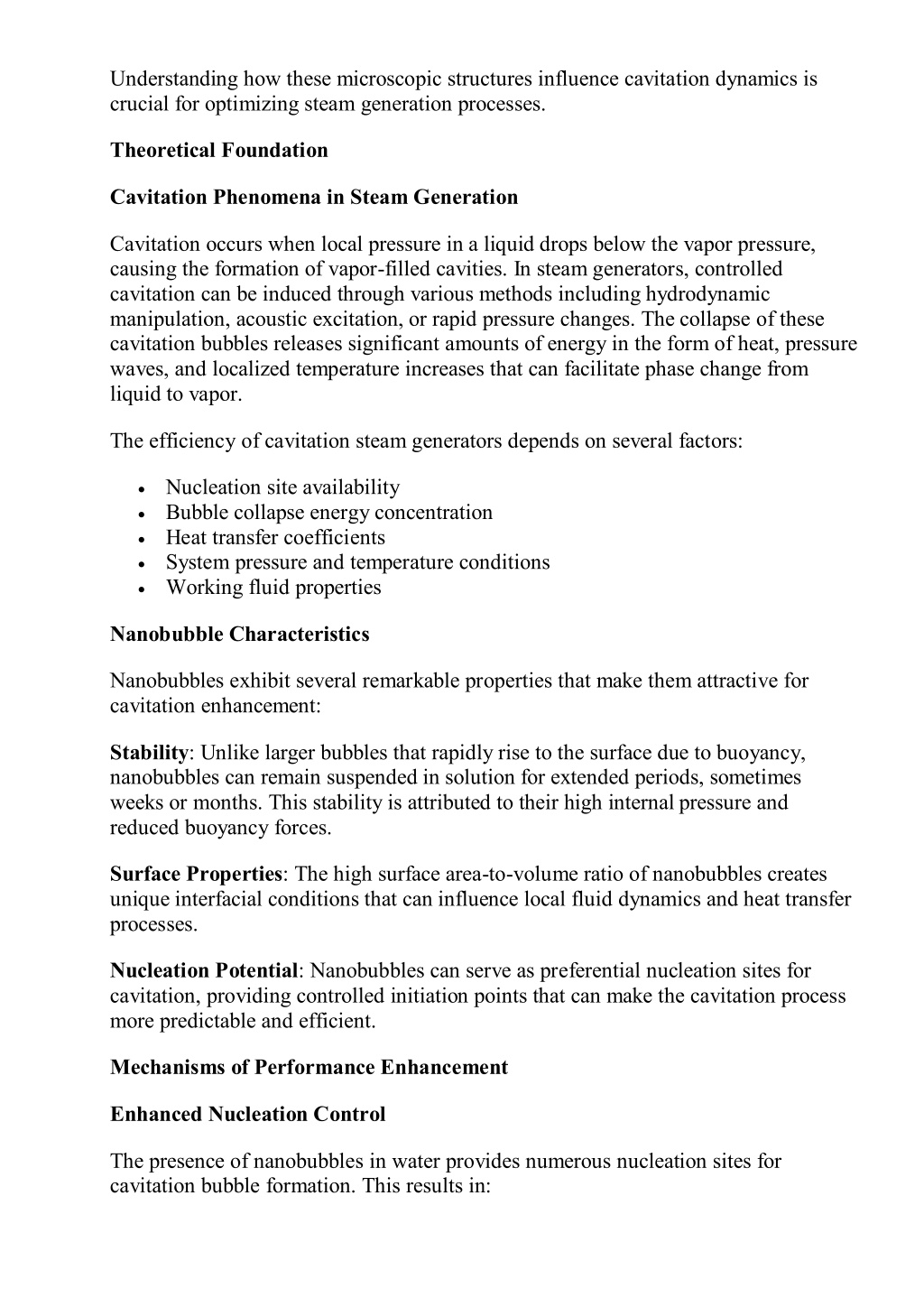

2. Understanding how these microscopic structures influence cavitation dynamics is crucial for optimizing steam generation processes. Theoretical Foundation Cavitation Phenomena in Steam Generation Cavitation occurs when local pressure in a liquid drops below the vapor pressure, causing the formation of vapor-filled cavities. In steam generators, controlled cavitation can be induced through various methods including hydrodynamic manipulation, acoustic excitation, or rapid pressure changes. The collapse of these cavitation bubbles releases significant amounts of energy in the form of heat, pressure waves, and localized temperature increases that can facilitate phase change from liquid to vapor. The efficiency of cavitation steam generators depends on several factors: •Nucleation site availability •Bubble collapse energy concentration •Heat transfer coefficients •System pressure and temperature conditions •Working fluid properties Nanobubble Characteristics Nanobubbles exhibit several remarkable properties that make them attractive for cavitation enhancement: Stability: Unlike larger bubbles that rapidly rise to the surface due to buoyancy, nanobubbles can remain suspended in solution for extended periods, sometimes weeks or months. This stability is attributed to their high internal pressure and reduced buoyancy forces. Surface Properties: The high surface area-to-volume ratio of nanobubbles creates unique interfacial conditions that can influence local fluid dynamics and heat transfer processes. Nucleation Potential: Nanobubbles can serve as preferential nucleation sites for cavitation, providing controlled initiation points that can make the cavitation process more predictable and efficient. Mechanisms of Performance Enhancement Enhanced Nucleation Control The presence of nanobubbles in water provides numerous nucleation sites for cavitation bubble formation. This results in:

3. •More uniform spatial distribution of cavitation events •Reduced threshold pressures for cavitation inception •Improved control over bubble size and collapse timing •Decreased energy required for cavitation initiation Improved Energy Transfer Efficiency Nanobubbles can enhance energy transfer in cavitation steam generators through several mechanisms: Acoustic Enhancement: Nanobubbles can modify the acoustic properties of the working fluid, potentially improving the transmission and focusing of acoustic energy used to induce cavitation. Heat Transfer Augmentation: The presence of nanobubbles can increase the effective surface area for heat transfer and modify local convection patterns, leading to improved thermal efficiency. Pressure Wave Amplification: During cavitation collapse, the interaction between nanobubbles and larger cavitation bubbles can amplify pressure waves, concentrating energy more effectively. Reduced System Wear By providing controlled nucleation sites, nanobubbles can help distribute cavitation events more evenly throughout the system, potentially reducing the intensity of localized erosion and extending equipment lifespan. Practical Implementation Considerations Nanobubble Generation Methods Several techniques can be employed to generate nanobubbles in water: Hydrodynamic Cavitation: Using venturi tubes, orifice plates, or rotating devices to create pressure differentials that form nanobubbles. Gas Injection Systems: Introducing gas through fine porous materials or specialized injectors to create nanobubble populations. Electrolytic Methods: Using electrolysis to generate gas nanobubbles directly in the working fluid. Ultrasonic Generation: Employing high-frequency acoustic fields to create and stabilize nanobubbles. System Integration Challenges

4. Implementing nanobubble technology in cavitation steam generators presents several challenges: Bubble Stability Management: Maintaining optimal nanobubble concentrations throughout system operation requires careful control of pressure, temperature, and fluid flow conditions. Contamination Control: Foreign particles and dissolved gases can affect nanobubble stability and performance, necessitating appropriate filtration and water treatment systems. Monitoring and Control: Developing reliable methods for real-time monitoring of nanobubble populations and their effects on cavitation performance. Experimental Evidence and Results Research studies have demonstrated promising results for nanobubble-enhanced cavitation systems: •Laboratory experiments have shown 15-30% improvements in heat transfer coefficients when nanobubbles are present in cavitating flows •Acoustic cavitation systems with nanobubble injection have exhibited reduced power requirements for steam generation •Controlled studies indicate more uniform temperature distributions in nanobubble-enhanced cavitation chambers However, results can vary significantly based on system design, operating conditions, and nanobubble generation methods, highlighting the need for continued research and optimization. Economic and Environmental Considerations Energy Efficiency Benefits The enhanced performance of nanobubble-augmented cavitation steam generators can lead to: •Reduced energy consumption per unit of steam produced •Lower operating costs due to improved system efficiency •Potential for smaller, more compact system designs Environmental Impact Improved efficiency in steam generation can contribute to reduced carbon emissions and energy consumption. Additionally, nanobubble technology typically uses only water and dissolved gases, avoiding the need for chemical additives that might pose environmental concerns.

5. Implementation Costs While nanobubble generation systems require additional equipment and energy, the potential efficiency gains may justify the investment in many applications. Cost- benefit analyses should consider both initial capital requirements and long-term operational savings. Future Research Directions Several areas warrant further investigation to fully realize the potential of nanobubble-enhanced cavitation steam generators: Advanced Modeling and Simulation Developing comprehensive computational models that accurately predict the interactions between nanobubbles and cavitation phenomena will be crucial for system optimization. Long-term Stability Studies Understanding how nanobubble populations evolve over extended operating periods and developing methods to maintain optimal concentrations. Scale-up Challenges Investigating how nanobubble enhancement performs in larger, industrial-scale steam generation systems. Hybrid Technologies Exploring combinations of nanobubble technology with other enhancement methods such as surface modifications, electromagnetic fields, or chemical additives. Conclusion The integration of nanobubbles into cavitation steam generators represents a promising advancement in steam generation technology. The unique properties of nanobubbles - including their stability, nucleation capabilities, and ability to modify fluid dynamics - offer multiple pathways for enhancing system performance. While experimental evidence demonstrates clear benefits in terms of energy efficiency and heat transfer enhancement, successful implementation requires careful consideration of generation methods, system integration challenges, and economic factors. As research continues to advance our understanding of nanobubble behavior and their interactions with cavitation phenomena, this technology is likely to play an increasingly important role in the development of more efficient and environmentally friendly steam generation systems. The key to successful adoption lies in continued research, practical demonstration projects, and the development of cost-effective

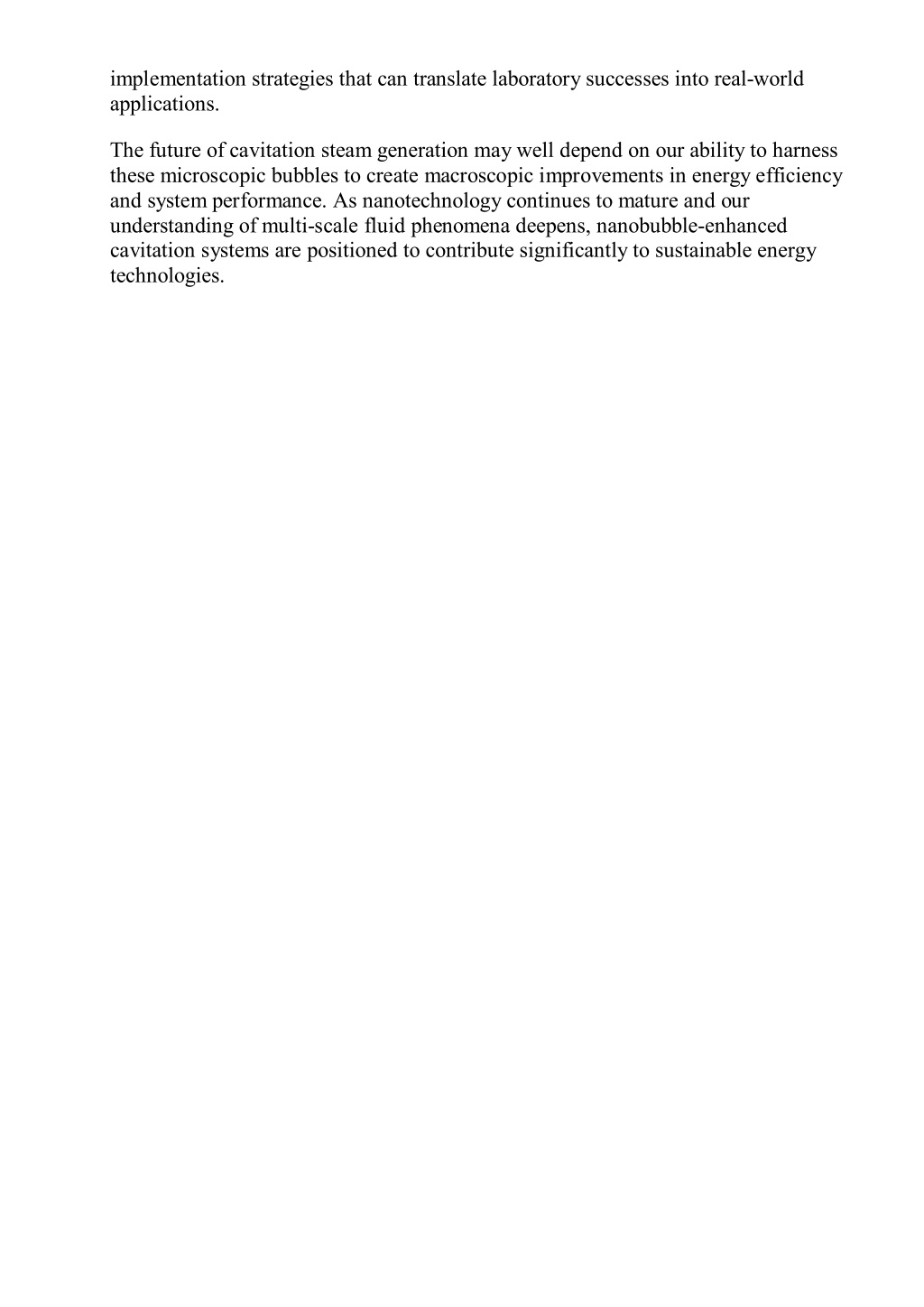

6. implementation strategies that can translate laboratory successes into real-world applications. The future of cavitation steam generation may well depend on our ability to harness these microscopic bubbles to create macroscopic improvements in energy efficiency and system performance. As nanotechnology continues to mature and our understanding of multi-scale fluid phenomena deepens, nanobubble-enhanced cavitation systems are positioned to contribute significantly to sustainable energy technologies.
