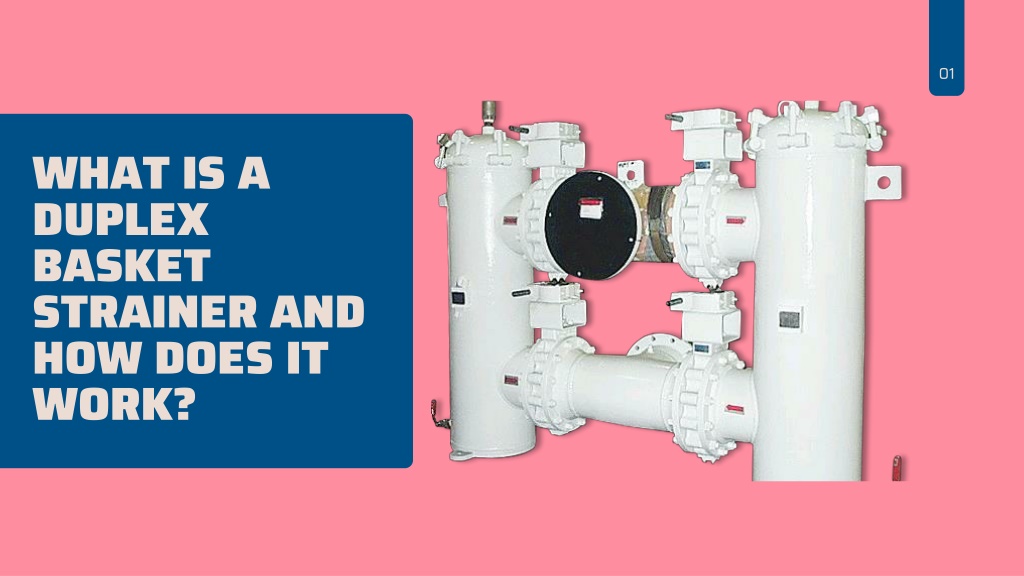

  1. 01 WHAT IS A DUPLEX BASKET STRAINER AND HOW DOES IT WORK?

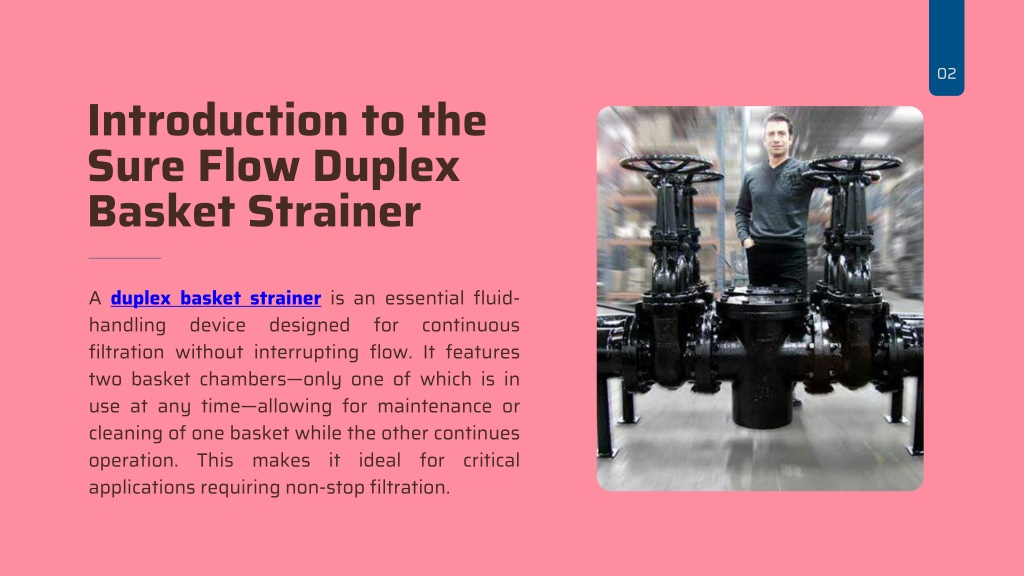

  2. 02 Introduction to the Sure Flow Duplex Basket Strainer A duplex basket strainer is an essential fluid-handling device designed for continuous filtration without interrupting flow. It features two basket chambers—only one of which is in use at any time—allowing for maintenance or cleaning of one basket while the other continues operation. This makes it ideal for critical applications requiring non-stop filtration.

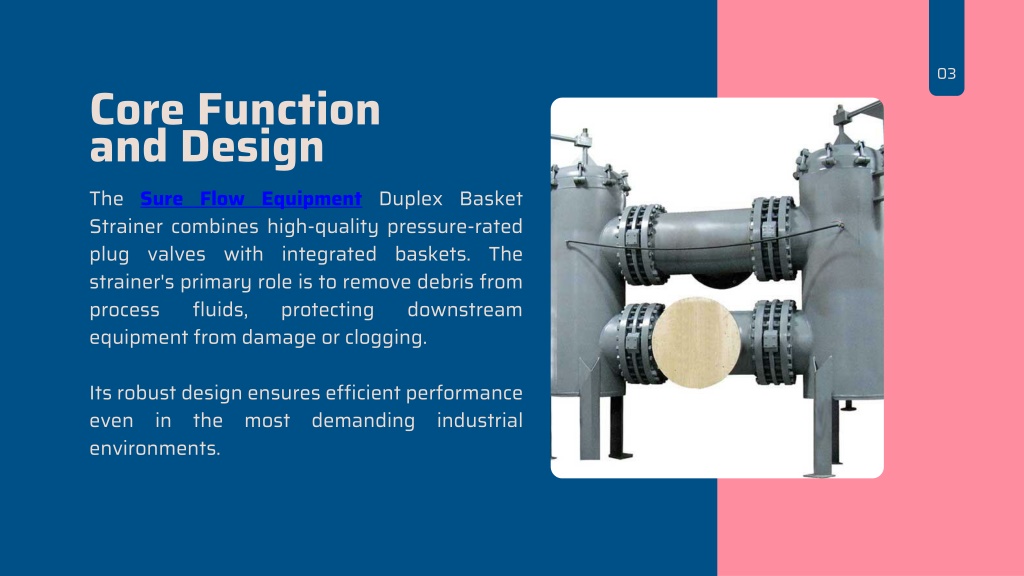

  3. 03 Core Function and Design The Sure Flow Equipment Duplex Basket Strainer combines high-quality pressure-rated plug valves with integrated baskets. The strainer's primary role is to remove debris from process fluids, protecting downstream equipment from damage or clogging. Its robust design ensures efficient performance even in the most demanding industrial environments.

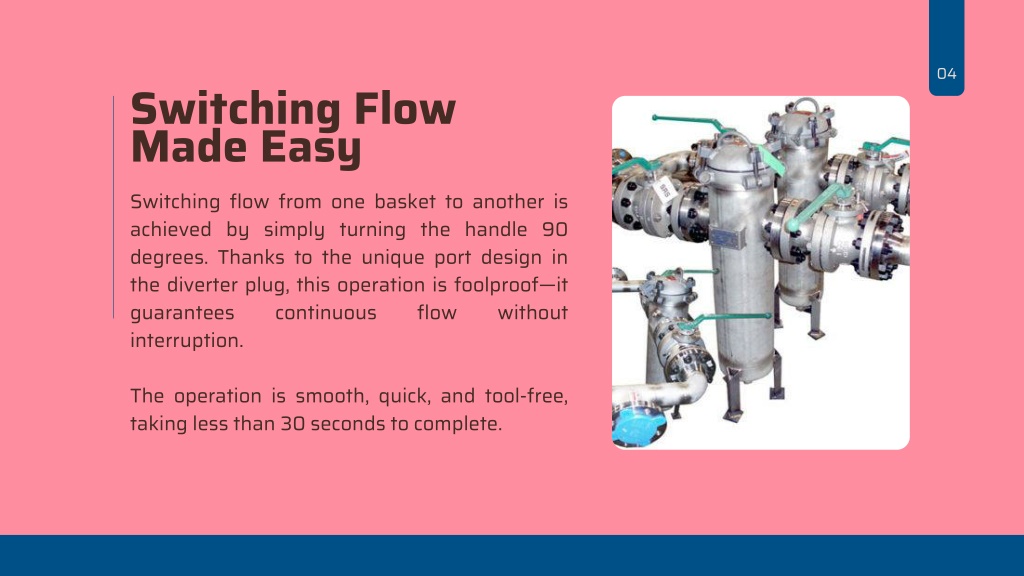

  4. 04 Switching Flow Made Easy Switching flow from one basket to another is achieved by simply turning the handle 90 degrees. Thanks to the unique port design in the diverter plug, this operation is foolproof—it guarantees continuous flow without interruption. The operation is smooth, quick, and tool-free, taking less than 30 seconds to complete.

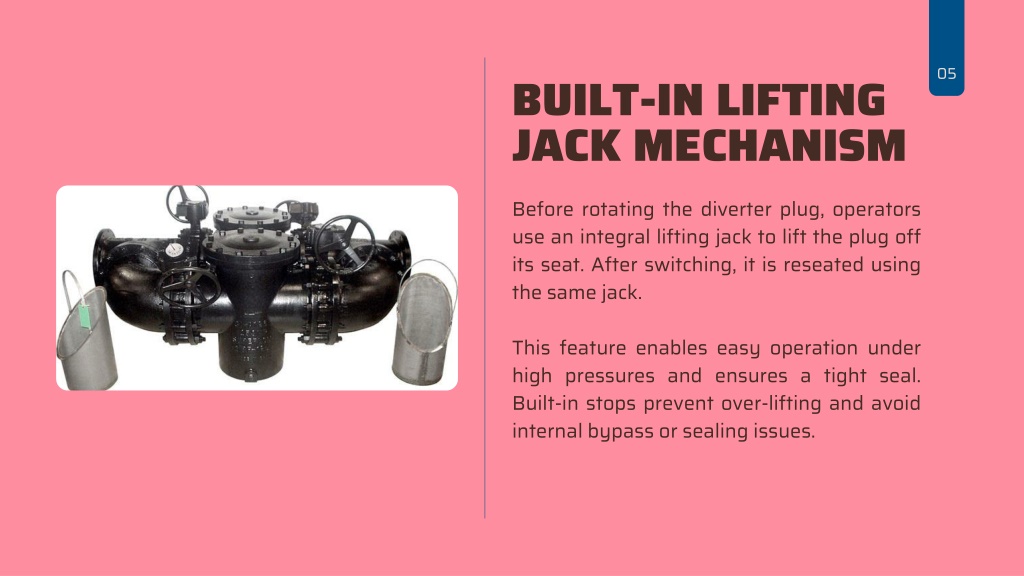

  5. 05 BUILT-IN LIFTING JACK MECHANISM Before rotating the diverter plug, operators use an integral lifting jack to lift the plug off its seat. After switching, it is reseated using the same jack. This feature enables easy operation under high pressures and ensures a tight seal. Built-in stops prevent over-lifting and avoid internal bypass or sealing issues.

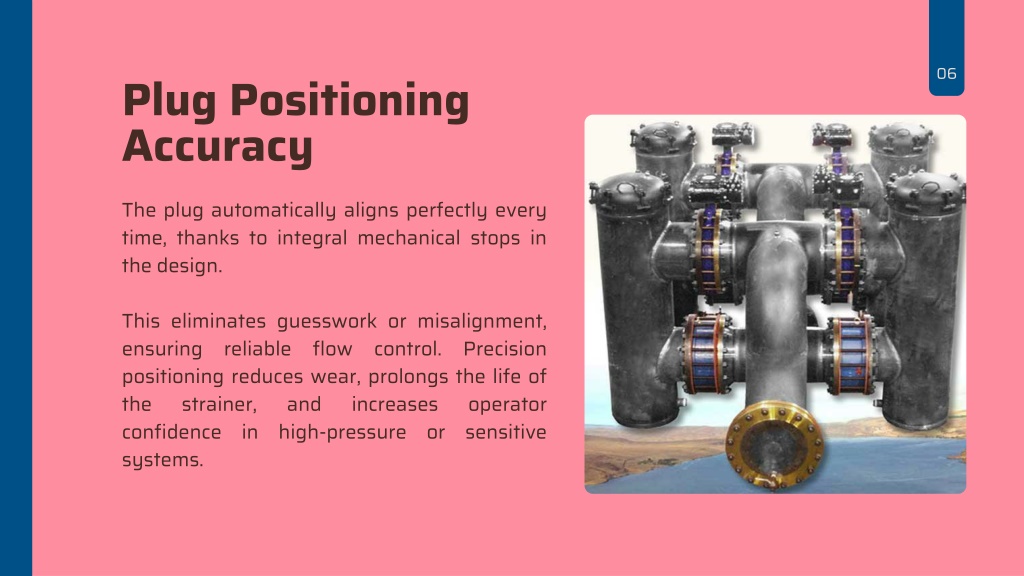

  6. 06 Plug Positioning Accuracy The plug automatically aligns perfectly every time, thanks to integral mechanical stops in the design. This eliminates guesswork or misalignment, ensuring reliable flow control. Precision positioning reduces wear, prolongs the life of the strainer, and increases operator confidence in high-pressure or sensitive systems.

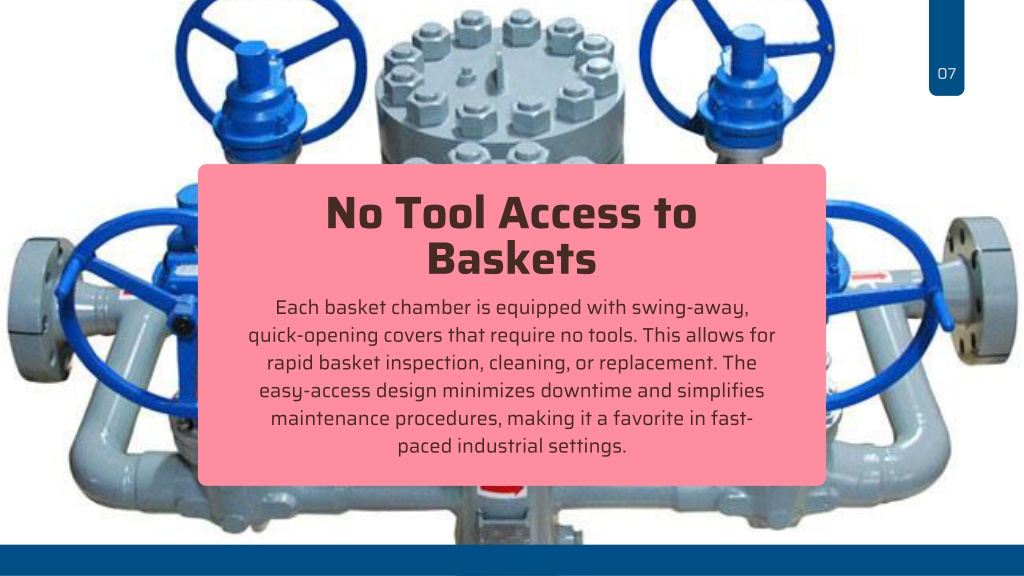

  7. 07 No Tool Access to Baskets Each basket chamber is equipped with swing-away, quick-opening covers that require no tools. This allows for rapid basket inspection, cleaning, or replacement. The easy-access design minimizes downtime and simplifies maintenance procedures, making it a favorite in fast-paced industrial settings.

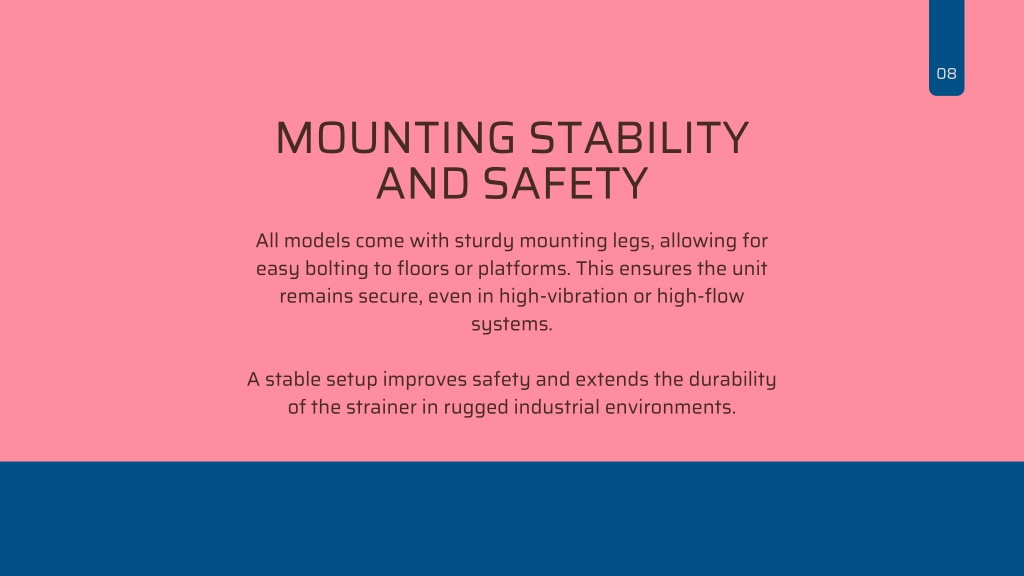

  8. 08 MOUNTING STABILITY AND SAFETY All models come with sturdy mounting legs, allowing for easy bolting to floors or platforms. This ensures the unit remains secure, even in high-vibration or high-flow systems. A stable setup improves safety and extends the durability of the strainer in rugged industrial environments.

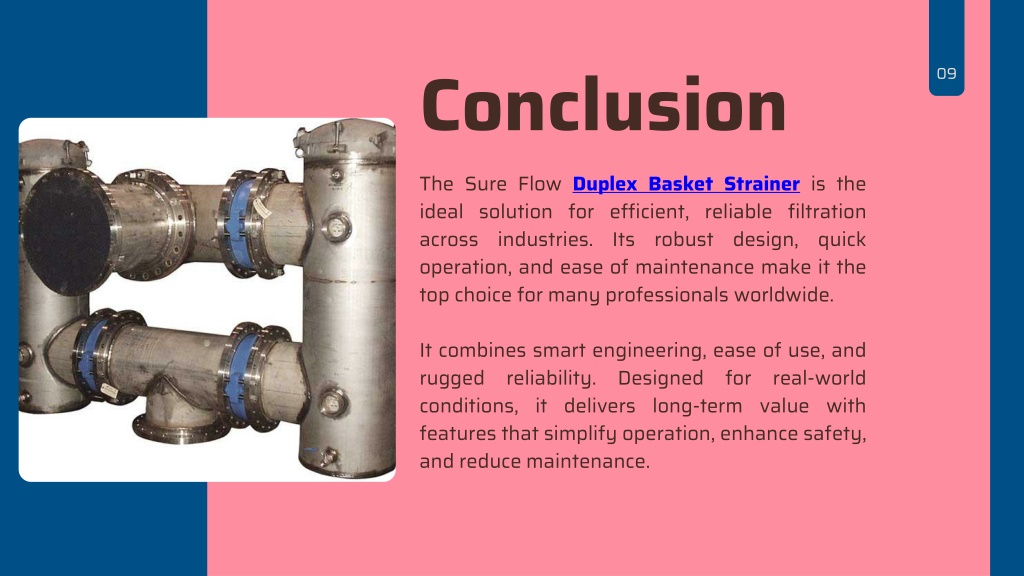

  9. 09 Conclusion The Sure Flow Duplex Basket Strainer is the ideal solution for efficient, reliable filtration across industries. Its robust design, quick operation, and ease of maintenance make it the top choice for many professionals worldwide. It combines smart engineering, ease of use, and rugged reliability. Designed for real-world conditions, it delivers long-term value with features that simplify operation, enhance safety, and reduce maintenance.

  10. 10 800-263-8251 info@sureflowequipment.com 5010 North Service Road, Burlington, Ontario L7L 5R5 www.sureflowequipment.com
