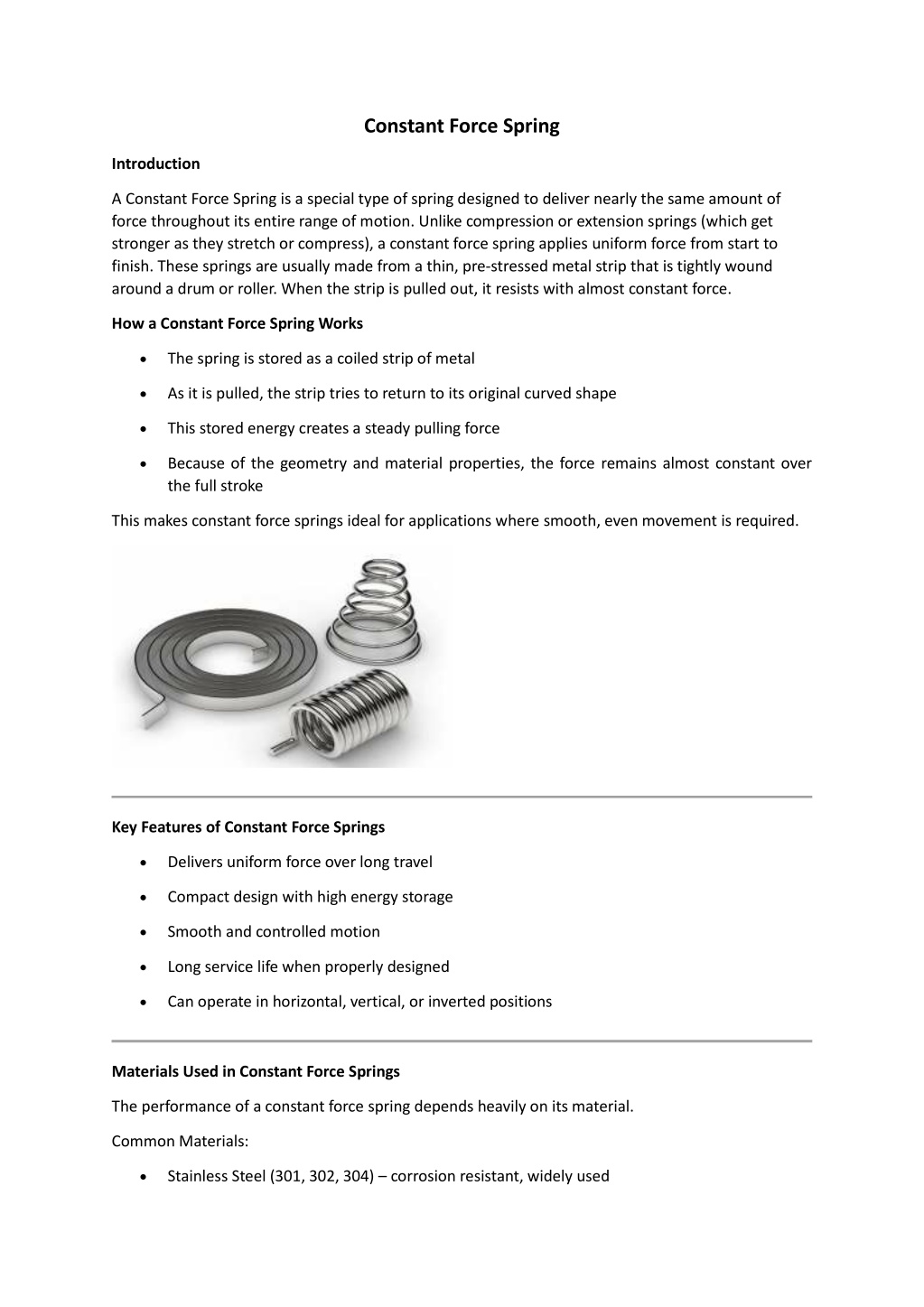

1. Constant Force Spring Introduction A Constant Force Spring is a special type of spring designed to deliver nearly the same amount of force throughout its entire range of motion. Unlike compression or extension springs (which get stronger as they stretch or compress), a constant force spring applies uniform force from start to finish. These springs are usually made from a thin, pre-stressed metal strip that is tightly wound around a drum or roller. When the strip is pulled out, it resists with almost constant force. How a Constant Force Spring Works • The spring is stored as a coiled strip of metal • As it is pulled, the strip tries to return to its original curved shape • This stored energy creates a steady pulling force • Because of the geometry and material properties, the force remains almost constant over the full stroke This makes constant force springs ideal for applications where smooth, even movement is required. Key Features of Constant Force Springs • Delivers uniform force over long travel • Compact design with high energy storage • Smooth and controlled motion • Long service life when properly designed • Can operate in horizontal, vertical, or inverted positions Materials Used in Constant Force Springs The performance of a constant force spring depends heavily on its material. Common Materials: • Stainless Steel (301, 302, 304) – corrosion resistant, widely used

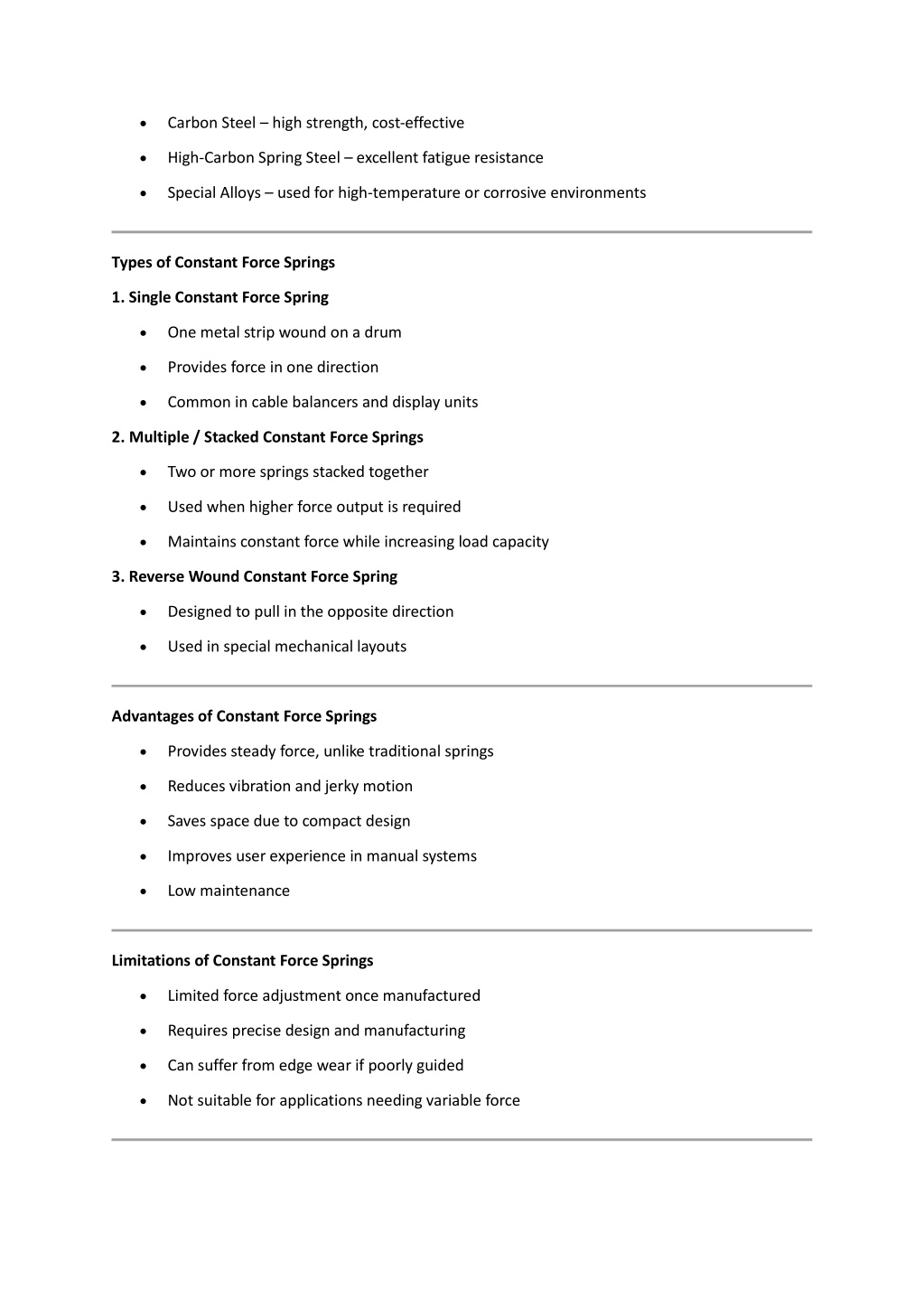

2. • Carbon Steel – high strength, cost-effective • High-Carbon Spring Steel – excellent fatigue resistance • Special Alloys – used for high-temperature or corrosive environments Types of Constant Force Springs 1. Single Constant Force Spring • One metal strip wound on a drum • Provides force in one direction • Common in cable balancers and display units 2. Multiple / Stacked Constant Force Springs • Two or more springs stacked together • Used when higher force output is required • Maintains constant force while increasing load capacity 3. Reverse Wound Constant Force Spring • Designed to pull in the opposite direction • Used in special mechanical layouts Advantages of Constant Force Springs • Provides steady force, unlike traditional springs • Reduces vibration and jerky motion • Saves space due to compact design • Improves user experience in manual systems • Low maintenance Limitations of Constant Force Springs • Limited force adjustment once manufactured • Requires precise design and manufacturing • Can suffer from edge wear if poorly guided • Not suitable for applications needing variable force

3. Common Applications of Constant Force Springs • Cable management systems • Retractable banners and displays • Window balance systems • Medical equipment • Battery ejection systems • Tool balancers • Automotive seat mechanisms • Consumer electronics (DVD trays, printers) • Solar panel tracking systems Installation Guidelines • Ensure smooth guiding to avoid twisting • Avoid sharp bends in the metal strip • Use proper mounting brackets • Maintain alignment between drum and spring • Do not exceed recommended stroke length Why Choose a Constant Force Spring? If your application needs: • Smooth motion • Even force throughout travel • Compact mechanical design Then a Constant Force Spring is one of the most reliable and efficient solutions. For More Details https://www.neximalloys.com/constant-force-spring1-manufacturers-exporters-suppliers- stockists.html Contact US: +91- 8082302533 If any enquiries please contact us our support team will connect you as soon as possible
