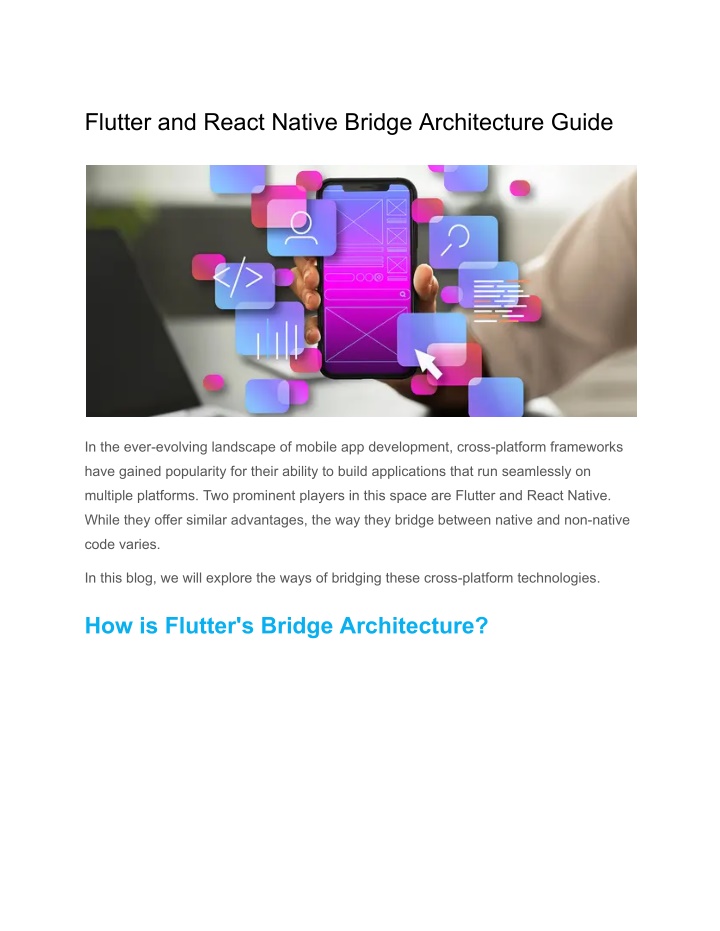

1. Flutter and React Native Bridge Architecture Guide In the ever-evolving landscape of mobile app development, cross-platform frameworks have gained popularity for their ability to build applications that run seamlessly on multiple platforms. Two prominent players in this space are Flutter and React Native. While they offer similar advantages, the way they bridge between native and non-native code varies. In this blog, we will explore the ways of bridging these cross-platform technologies. How is Flutter's Bridge Architecture?

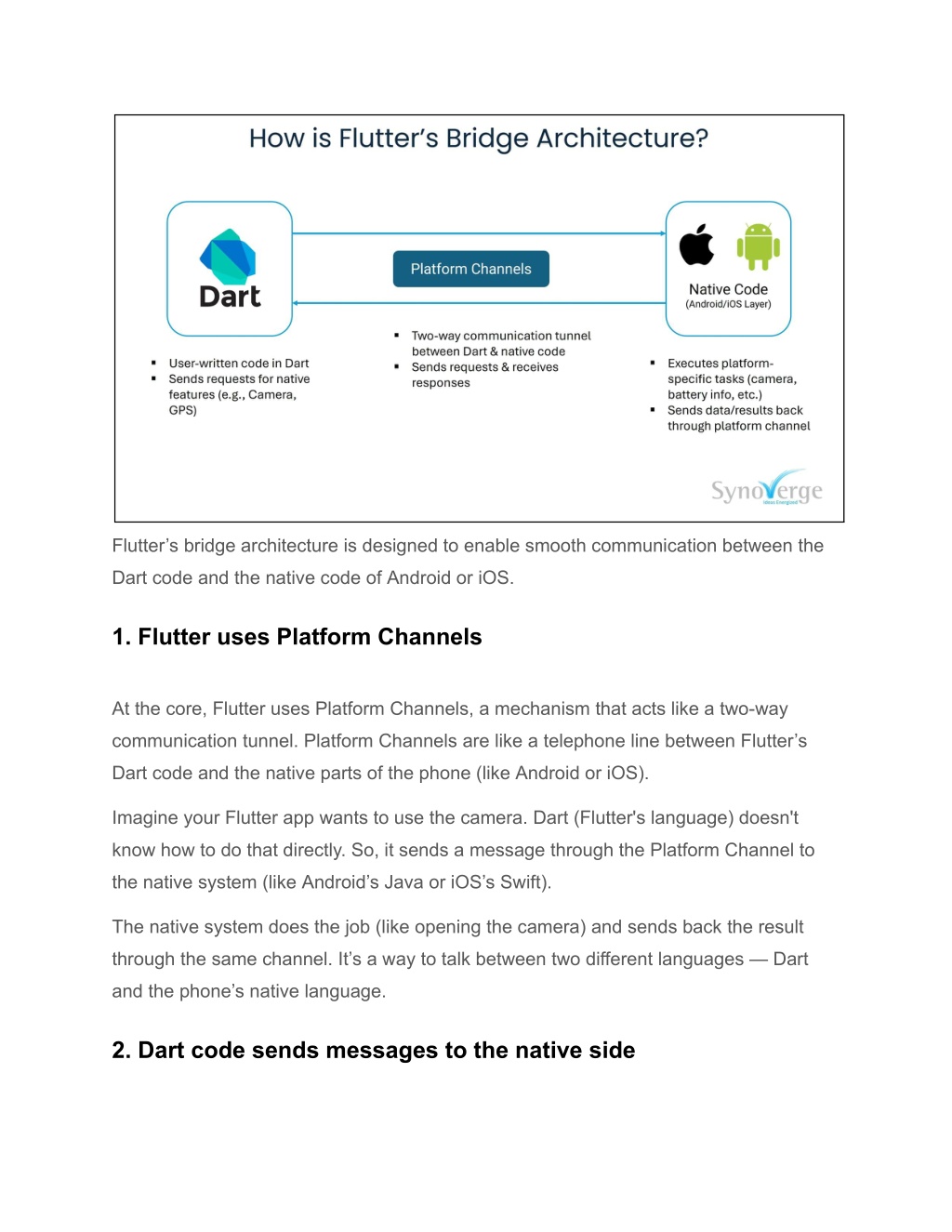

2. Flutter’s bridge architecture is designed to enable smooth communication between the Dart code and the native code of Android or iOS. 1. Flutter uses Platform Channels At the core, Flutter uses Platform Channels, a mechanism that acts like a two-way communication tunnel. Platform Channels are like a telephone line between Flutter’s Dart code and the native parts of the phone (like Android or iOS). Imagine your Flutter app wants to use the camera. Dart (Flutter's language) doesn't know how to do that directly. So, it sends a message through the Platform Channel to the native system (like Android’s Java or iOS’s Swift). The native system does the job (like opening the camera) and sends back the result through the same channel. It’s a way to talk between two different languages — Dart and the phone’s native language. 2. Dart code sends messages to the native side

3. Through this tunnel, the Dart code sends messages to the native side when it needs platform-specific functionality — such as accessing the camera or GPS — and receives responses in return. This means the communication goes both ways, like a conversation between two people. Dart code can ask native code to do something (like get battery level). Native code can also send back information to Dart. So, it’s not just one side sending commands, both can talk and listen. That is the reason why it’s called a two-way tunnel. 3. Flutter compiles Dart into native ARM code Unlike other frameworks, Flutter compiles Dart into native ARM code ahead of time, which allows for faster performance and less reliance on the bridge during runtime. Phones use processors (like your computer’s CPU), and most smartphones use an ARM processor. Dart, the language Flutter uses, is converted into native machine code that ARM processors understand, before the app runs. This is called Ahead-of-Time (AOT) Compilation. Because this step is done in advance, the app runs faster and smoother, just like a native app. Think of it like translating a speech before a conference, so there’s no delay during the event. It makes the app feel more responsive and professional. The Flutter Engine, written in C++, also plays a key role in managing rendering and communication. This architecture is beneficial because it keeps the app experience smooth, reduces lag, and makes it easier to use native features — all while using a single codebase. How is React Native's Bridge Architecture?

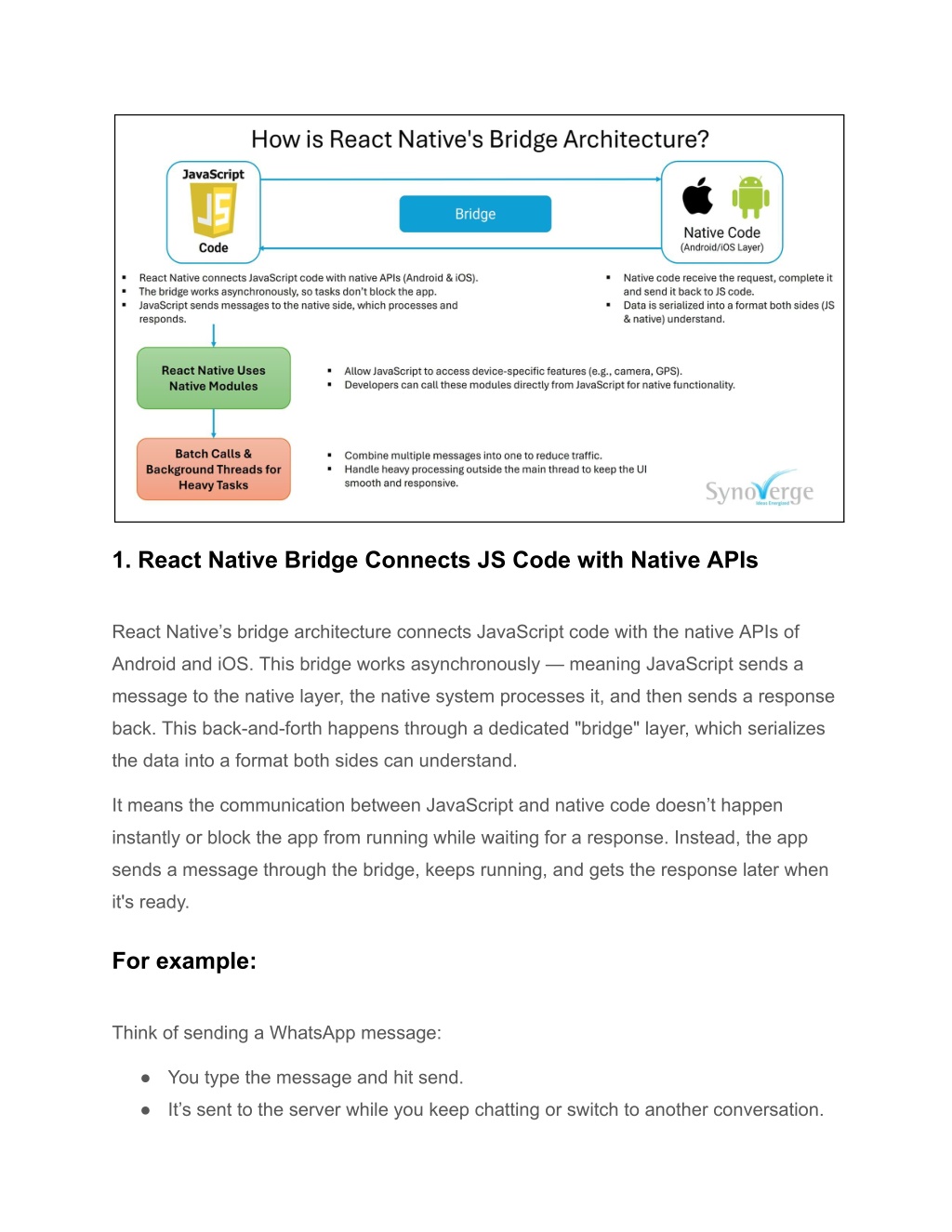

4. 1. React Native Bridge Connects JS Code with Native APIs React Native’s bridge architecture connects JavaScript code with the native APIs of Android and iOS. This bridge works asynchronously — meaning JavaScript sends a message to the native layer, the native system processes it, and then sends a response back. This back-and-forth happens through a dedicated "bridge" layer, which serializes the data into a format both sides can understand. It means the communication between JavaScript and native code doesn’t happen instantly or block the app from running while waiting for a response. Instead, the app sends a message through the bridge, keeps running, and gets the response later when it's ready. For example: Think of sending a WhatsApp message: ● You type the message and hit send. ● It’s sent to the server while you keep chatting or switch to another conversation.

5. ● Later, you see the double tick once it’s delivered. That’s how asynchronous communication works, your app doesn’t wait around doing nothing. It sends the task, moves on, and handles the result later when it’s ready. 2. React Native Use Native Modules To access native functionalities, React Native uses Native Modules — small pieces of native code written in Java (Android) or Objective-C/Swift (iOS). These modules can be called from JavaScript when device-specific actions are needed. 3. Use batch Calls & Background Threads for Heavy Tasks While this architecture offers flexibility, it can lead to performance issues if too many messages cross the bridge frequently. To avoid this, developers often batch calls (Instead of sending many small messages one by one, developers group them together and send them all at once) and use background threads (doing the heavy work silently in the background so the app stays smooth) for heavy tasks. Overall, React Native’s bridge makes it possible to build apps using JavaScript while still tapping into powerful native features. Common Challenges and Best Practices: Framework Best Practice

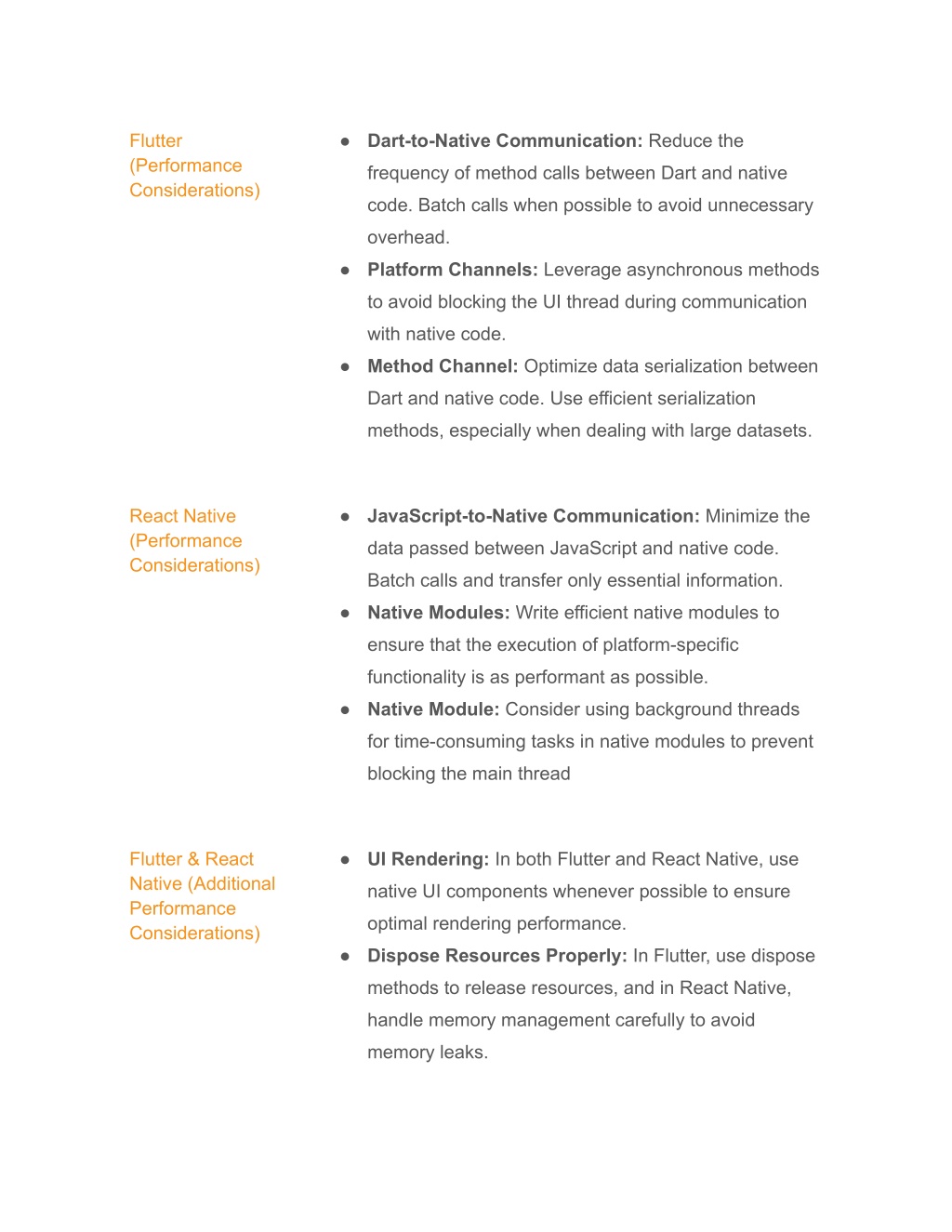

6. Flutter (Performance Considerations) ● Dart-to-Native Communication: Reduce the frequency of method calls between Dart and native code. Batch calls when possible to avoid unnecessary overhead. ● Platform Channels: Leverage asynchronous methods to avoid blocking the UI thread during communication with native code. ● Method Channel: Optimize data serialization between Dart and native code. Use efficient serialization methods, especially when dealing with large datasets. React Native (Performance Considerations) ● JavaScript-to-Native Communication: Minimize the data passed between JavaScript and native code. Batch calls and transfer only essential information. ● Native Modules: Write efficient native modules to ensure that the execution of platform-specific functionality is as performant as possible. ● Native Module: Consider using background threads for time-consuming tasks in native modules to prevent blocking the main thread Flutter & React Native (Additional Performance Considerations) ● UI Rendering: In both Flutter and React Native, use native UI components whenever possible to ensure optimal rendering performance. ● Dispose Resources Properly: In Flutter, use dispose methods to release resources, and in React Native, handle memory management carefully to avoid memory leaks.

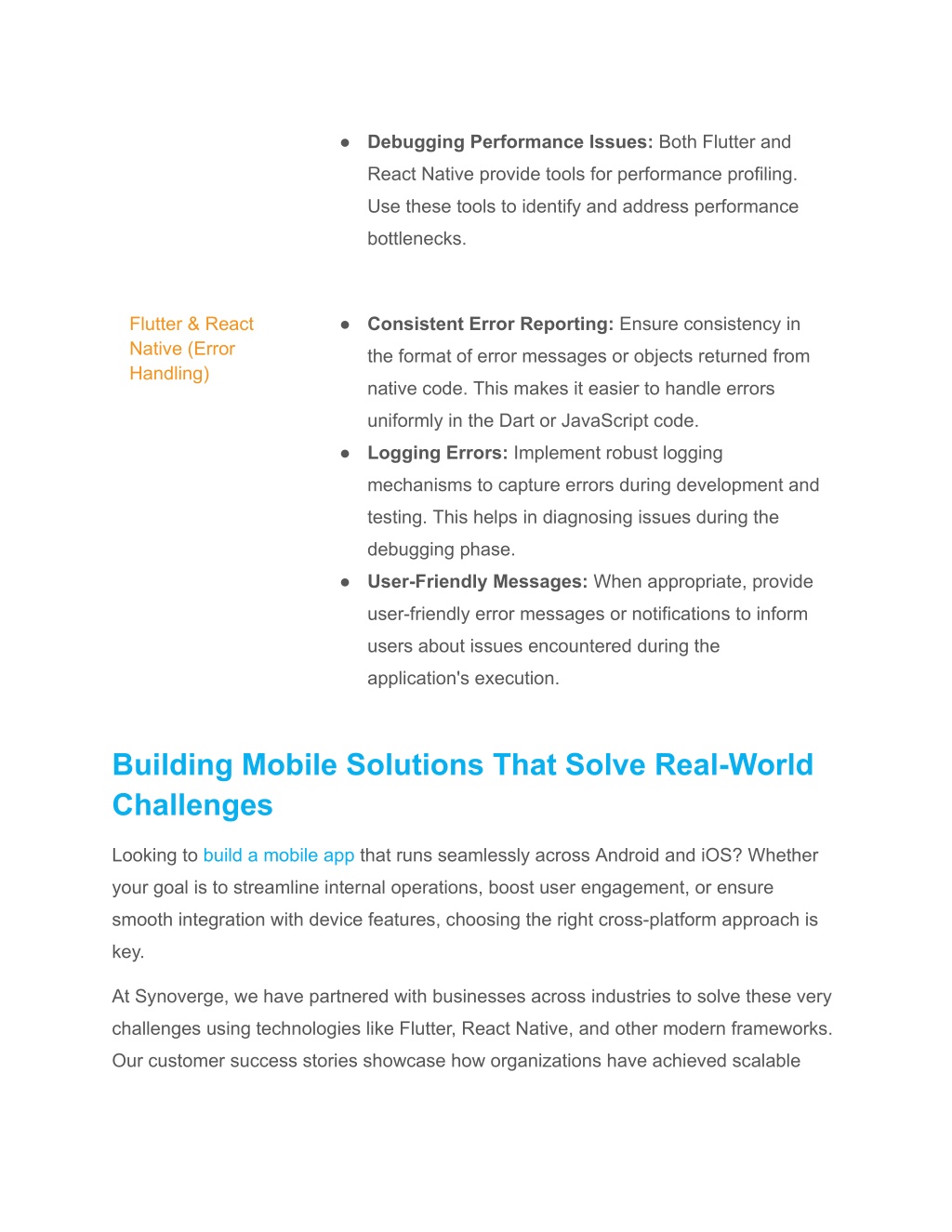

7. ● Debugging Performance Issues: Both Flutter and React Native provide tools for performance profiling. Use these tools to identify and address performance bottlenecks. Flutter & React Native (Error Handling) ● Consistent Error Reporting: Ensure consistency in the format of error messages or objects returned from native code. This makes it easier to handle errors uniformly in the Dart or JavaScript code. ● Logging Errors: Implement robust logging mechanisms to capture errors during development and testing. This helps in diagnosing issues during the debugging phase. ● User-Friendly Messages: When appropriate, provide user-friendly error messages or notifications to inform users about issues encountered during the application's execution. Building Mobile Solutions That Solve Real-World Challenges Looking to build a mobile app that runs seamlessly across Android and iOS? Whether your goal is to streamline internal operations, boost user engagement, or ensure smooth integration with device features, choosing the right cross-platform approach is key. At Synoverge, we have partnered with businesses across industries to solve these very challenges using technologies like Flutter, React Native, and other modern frameworks. Our customer success stories showcase how organizations have achieved scalable

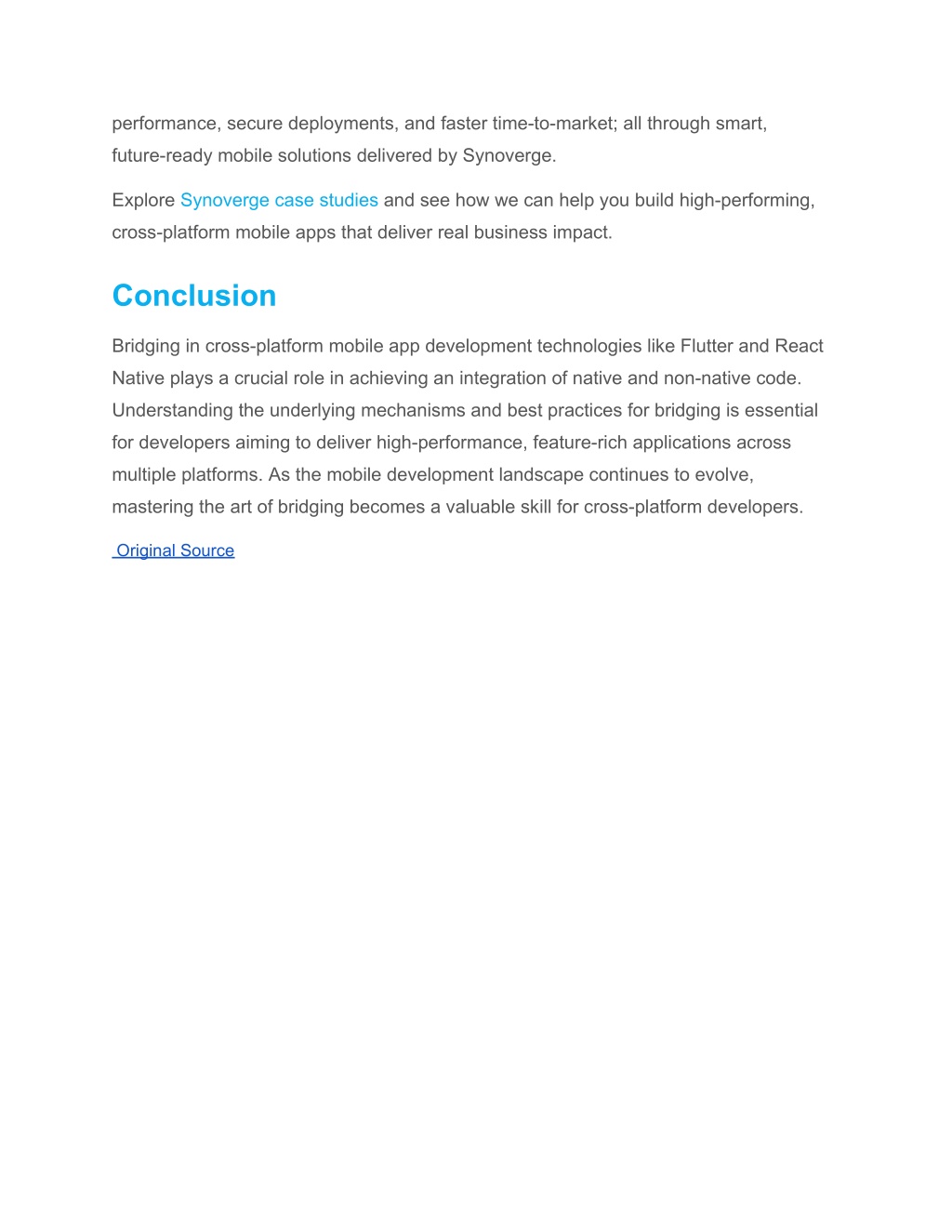

8. performance, secure deployments, and faster time-to-market; all through smart, future-ready mobile solutions delivered by Synoverge. Explore Synoverge case studies and see how we can help you build high-performing, cross-platform mobile apps that deliver real business impact. Conclusion Bridging in cross-platform mobile app development technologies like Flutter and React Native plays a crucial role in achieving an integration of native and non-native code. Understanding the underlying mechanisms and best practices for bridging is essential for developers aiming to deliver high-performance, feature-rich applications across multiple platforms. As the mobile development landscape continues to evolve, mastering the art of bridging becomes a valuable skill for cross-platform developers. Original Source
