Anti-termite Reticulation System Most Frequently Asked Question: What Size Pipes Should We Install At Our Site?
Anti-termite Reticulation System We Manufacture Multiple Sizes of Preventive Anti-termite Reticulation Pipes 14mm, 17mm, or 19mm And we have simple guidelines to decide Which size to select…….

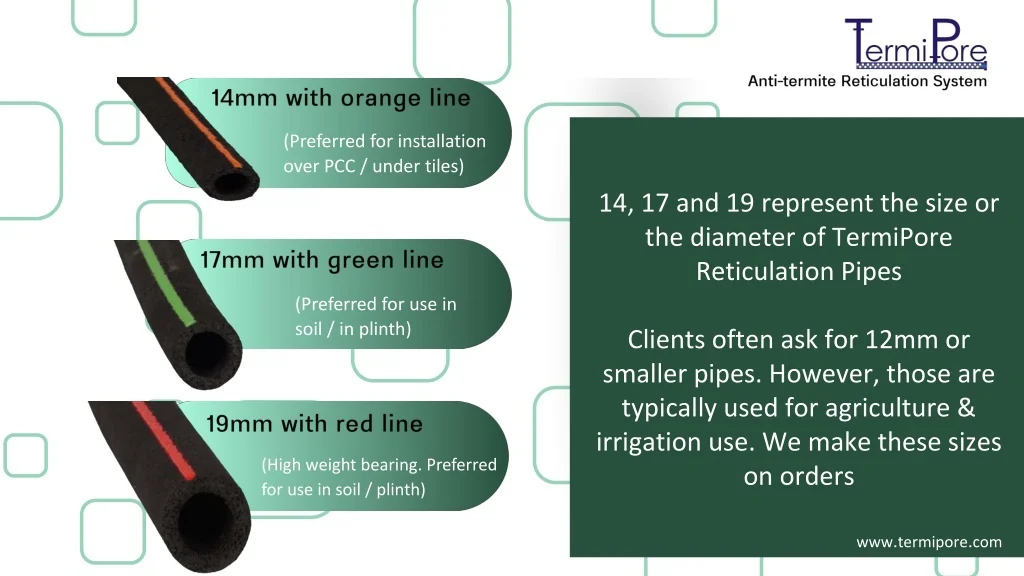

Anti-termite Reticulation System 14mm with orange line (Preferred for installation over PCC / under tiles) 14, 17 and 19 represent the size or the diameter of TermiPore Reticulation Pipes Clients often ask for 12mm or smaller pipes. However, those are typically used for agriculture & irrigation use. We make these sizes on orders 17mm with green line (Preferred for use in soil / in plinth) 19mm with red line (High weight bearing. Preferred for use in soil / plinth) www.termipore.com

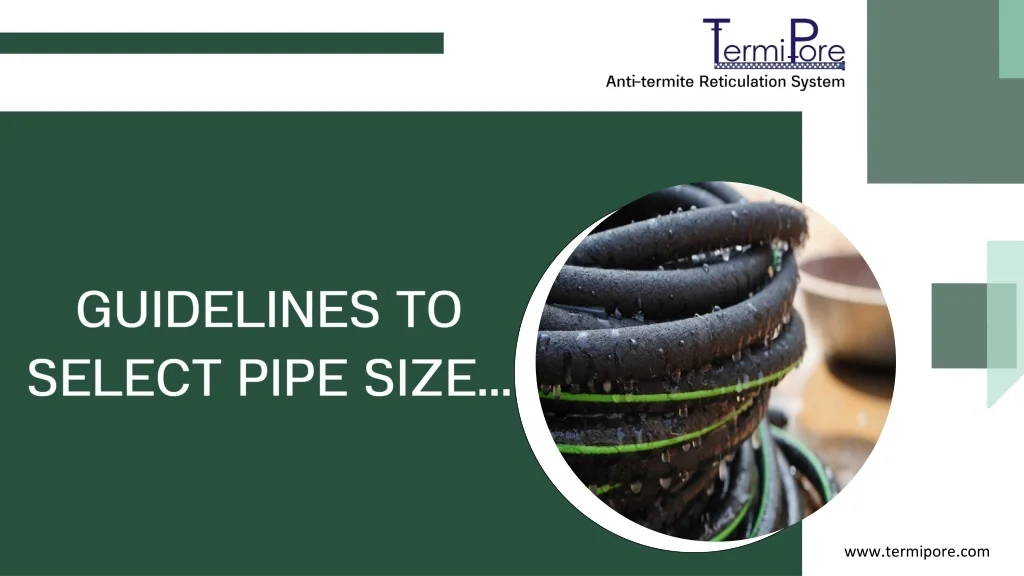

Anti-termite Reticulation System GUIDELINES TO SELECT PIPE SIZE… www.termipore.com

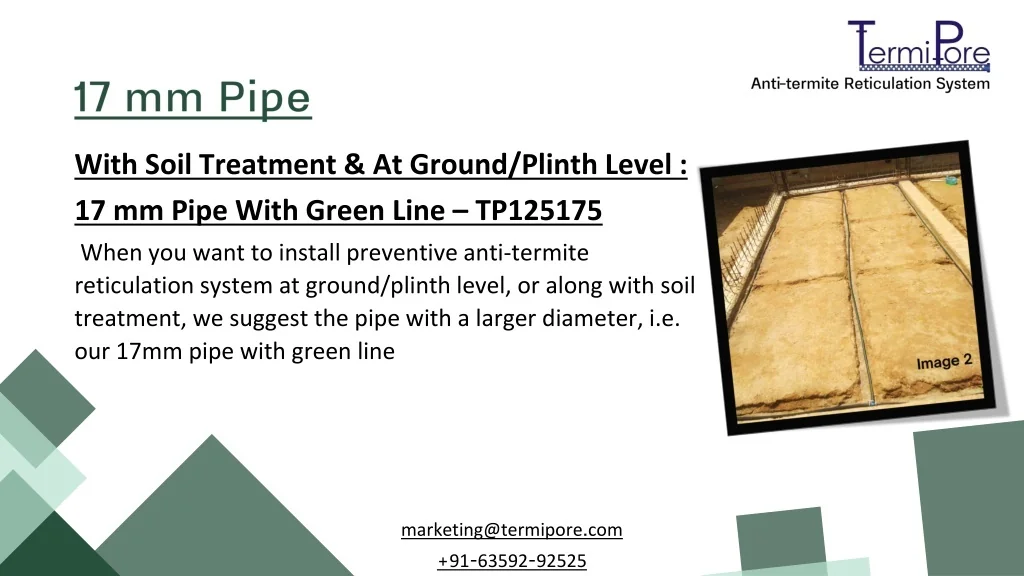

Anti-termite Reticulation System 17 mm Pipe With Soil Treatment & At Ground/Plinth Level : 17 mm Pipe With Green Line – TP125175 When you want to install preventive anti-termite reticulation system at ground/plinth level, or along with soil treatment, we suggest the pipe with a larger diameter, i.e. our 17mm pipe with green line marketing@termipore.com +91-63592-92525

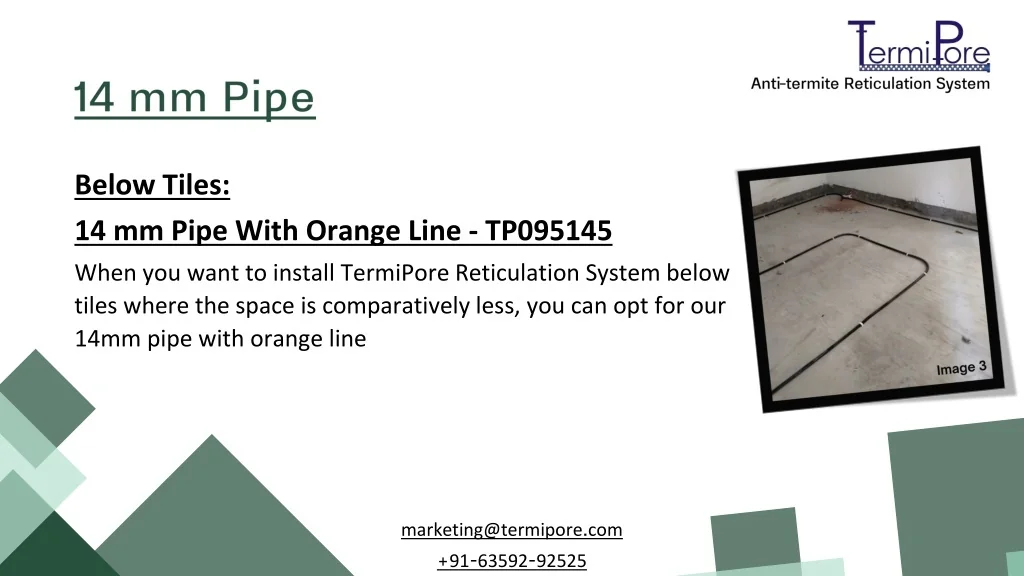

Anti-termite Reticulation System 14 mm Pipe Below Tiles: 14 mm Pipe With Orange Line - TP095145 When you want to install TermiPore Reticulation System below tiles where the space is comparatively less, you can opt for our 14mm pipe with orange line marketing@termipore.com +91-63592-92525

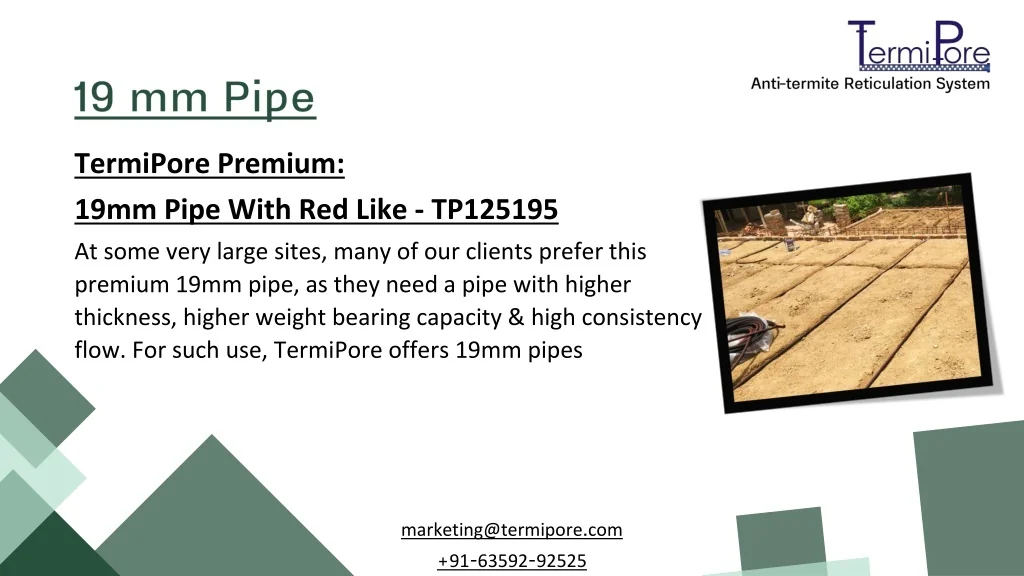

Anti-termite Reticulation System 19 mm Pipe TermiPore Premium: 19mm Pipe With Red Like - TP125195 At some very large sites, many of our clients prefer this premium 19mm pipe, as they need a pipe with higher thickness, higher weight bearing capacity & high consistency flow. For such use, TermiPore offers 19mm pipes marketing@termipore.com +91-63592-92525

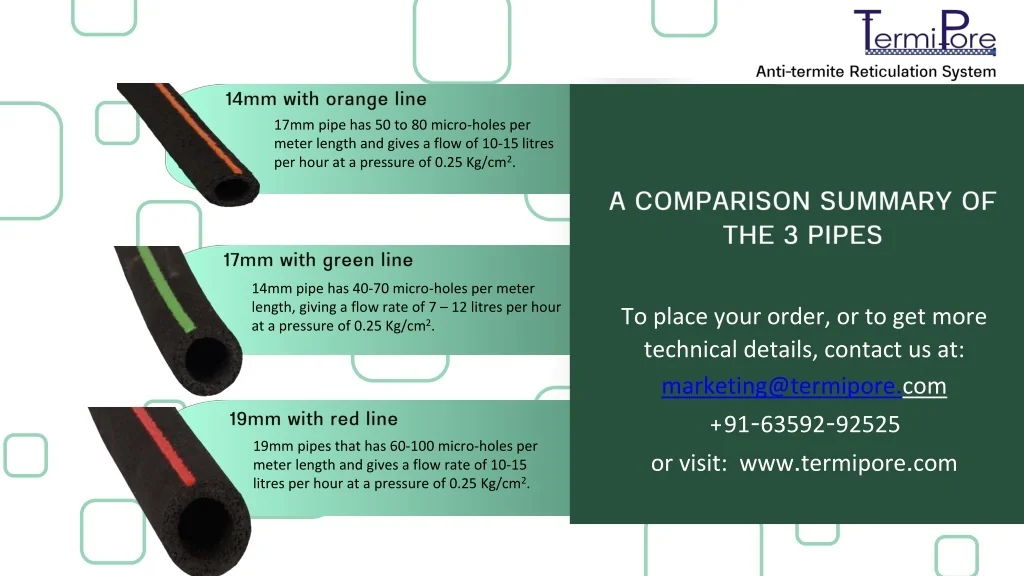

Anti-termite Reticulation System 14mm with orange line 17mm pipe has 50 to 80 micro-holes per meter length and gives a flow of 10-15 litres per hour at a pressure of 0.25 Kg/cm2. A COMPARISON SUMMARY OF THE 3 PIPES 17mm with green line 14mm pipe has 40-70 micro-holes per meter length, giving a flow rate of 7 – 12 litres per hour at a pressure of 0.25 Kg/cm2. To place your order, or to get more technical details, contact us at: marketing@termipore.com +91-63592-92525 or visit: www.termipore.com 19mm with red line 19mm pipes that has 60-100 micro-holes per meter length and gives a flow rate of 10-15 litres per hour at a pressure of 0.25 Kg/cm2.
