  1. INTRODUCTION ENGINE FUEL SYSTEM TORQUE CONVERTER POWERSHIFT GEAR SHIFT FRONT / REAR AXLES BRAKING SYSTEMS HYDRAULIC SYSTEMS STEERING SYSTEM 695 SUPER MLOADERBACKHOE Section 10 - ENGINE ELECTRICAL SYSTEM LOADER BACKHOE

  2. CNH BASILDON SERIES DIESEL 5 litre - 4 cyl - Turbo 108 hp @ 2070 rpm 442 Nm @ 1400 rpm

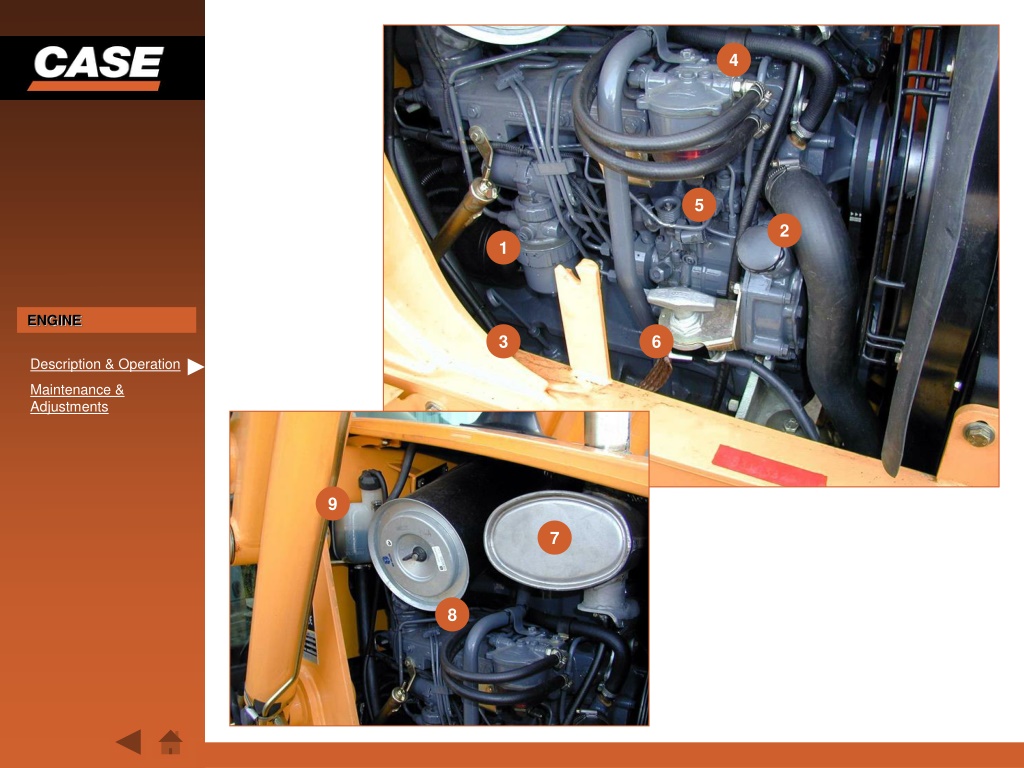

  3. 4 5 2 1 3 6 9 7 8

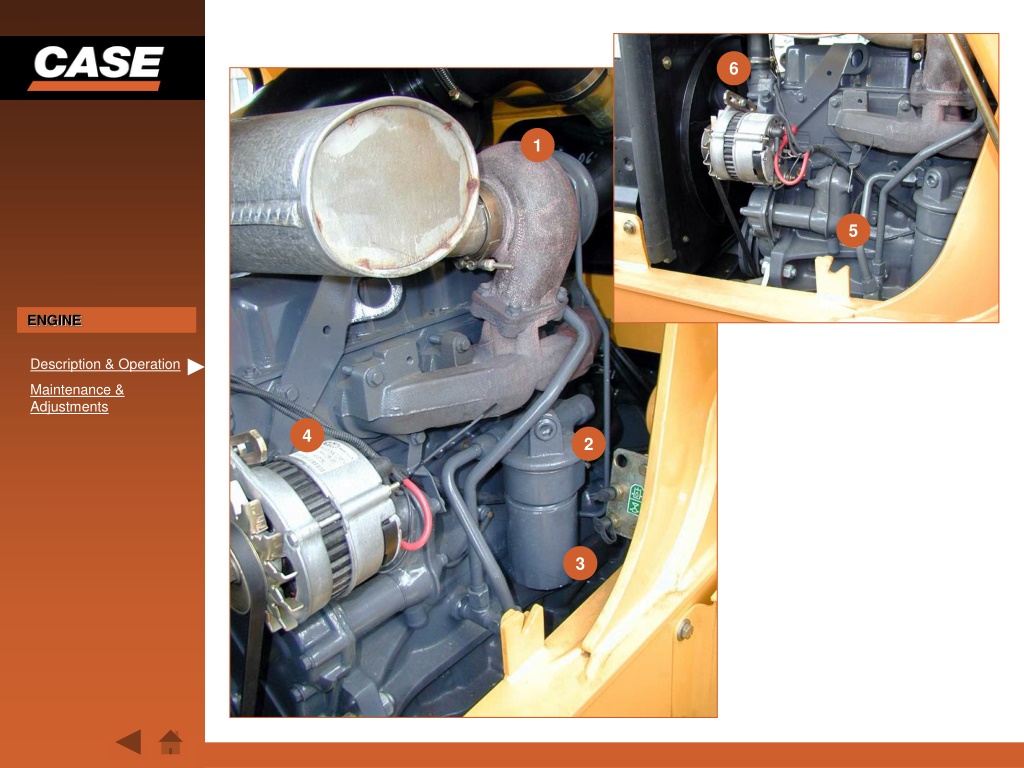

  4. 6 1 5 4 2 3

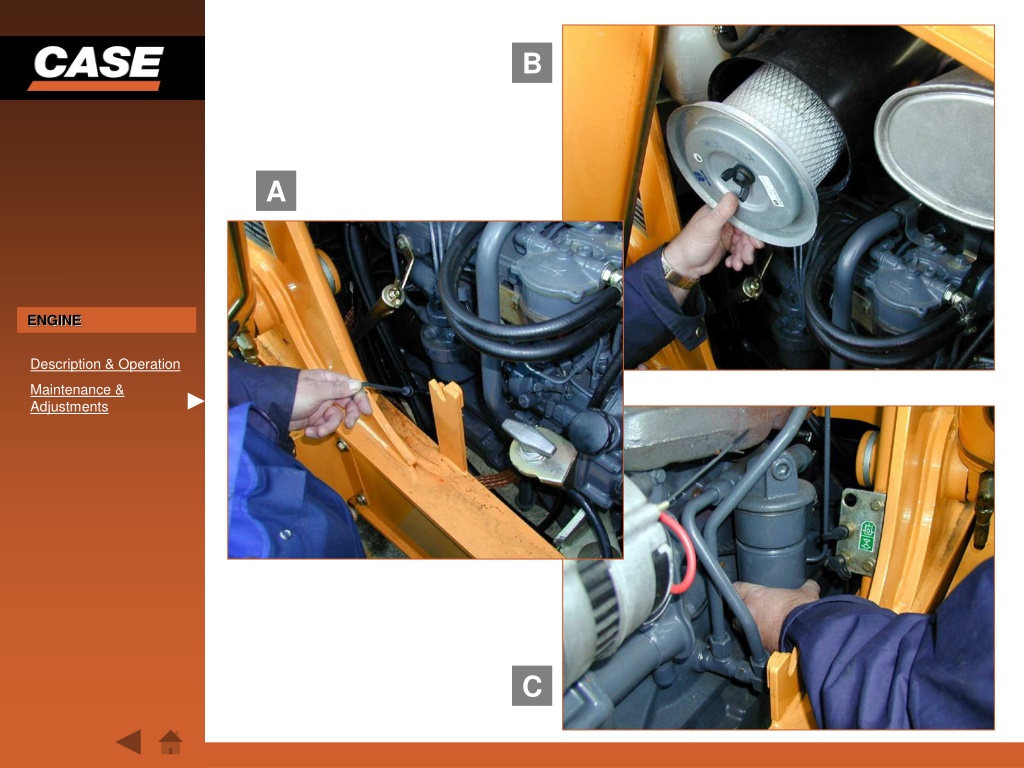

  5. D C B A

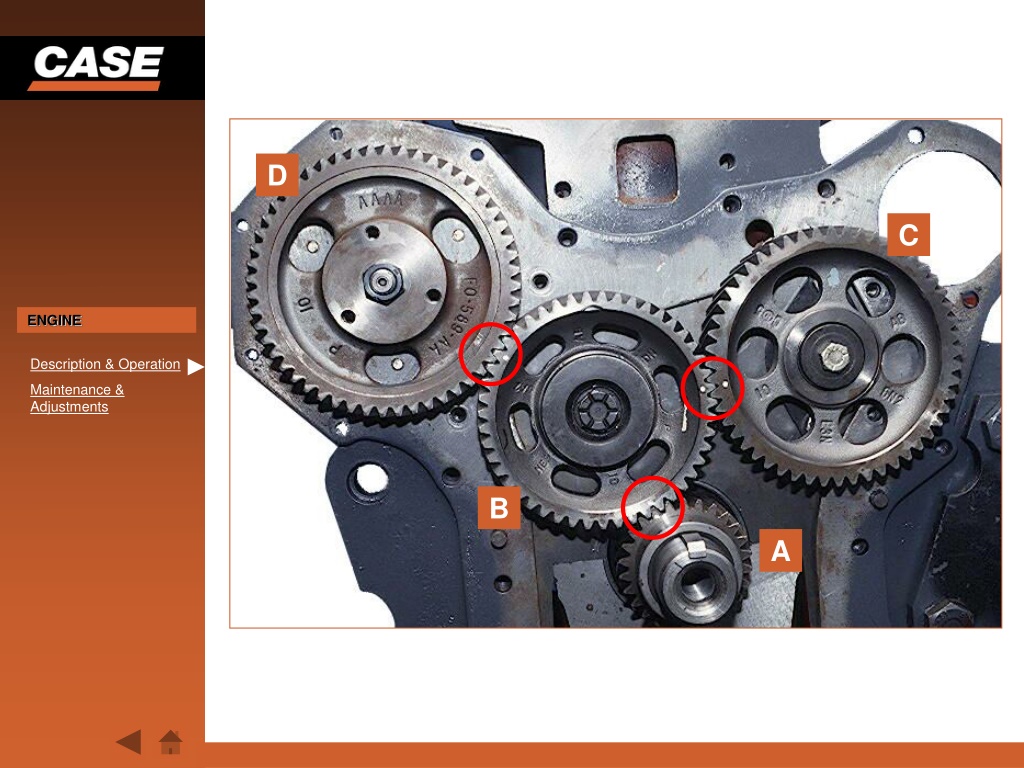

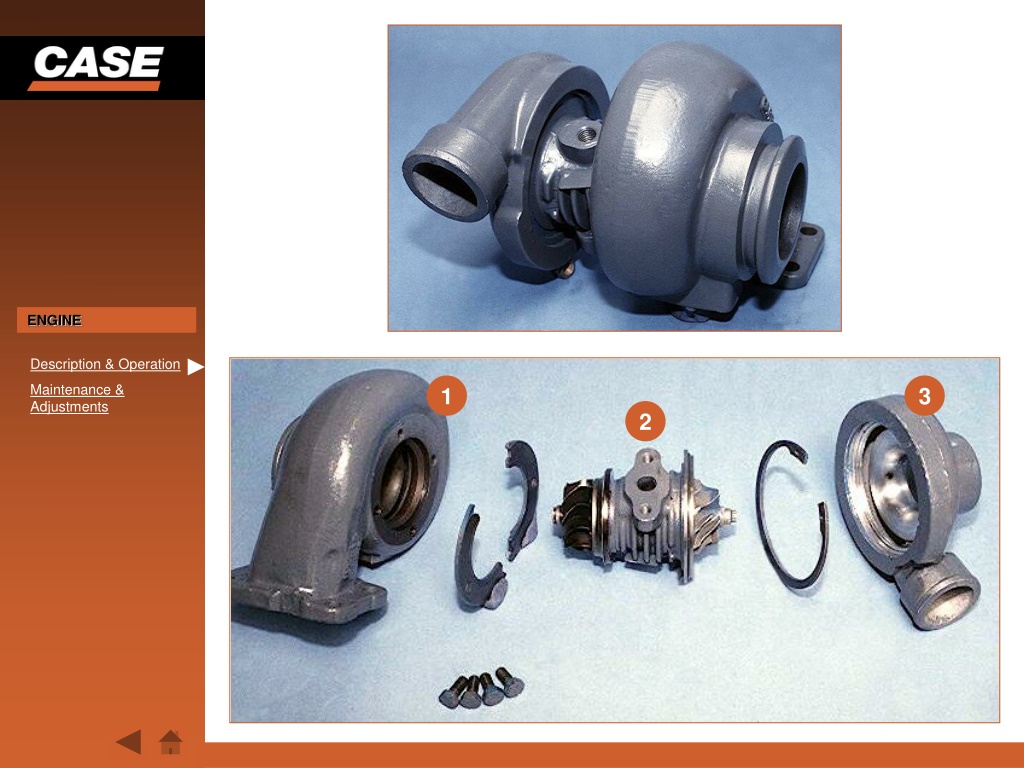

  6. 1 3 2

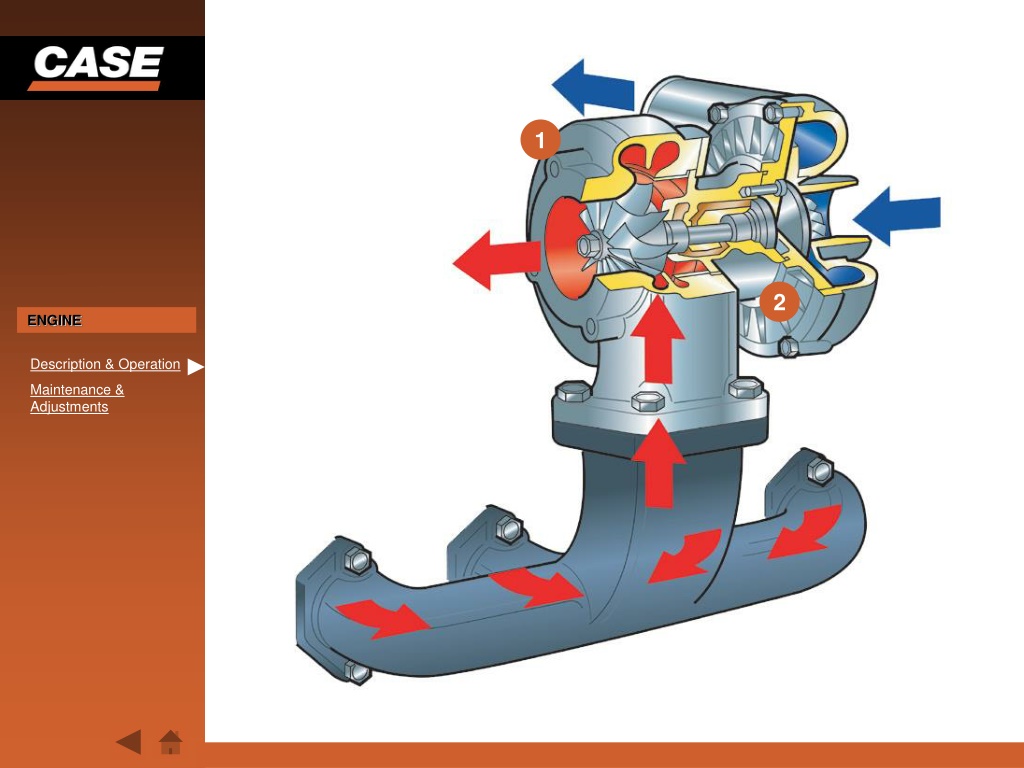

  7. 1 2

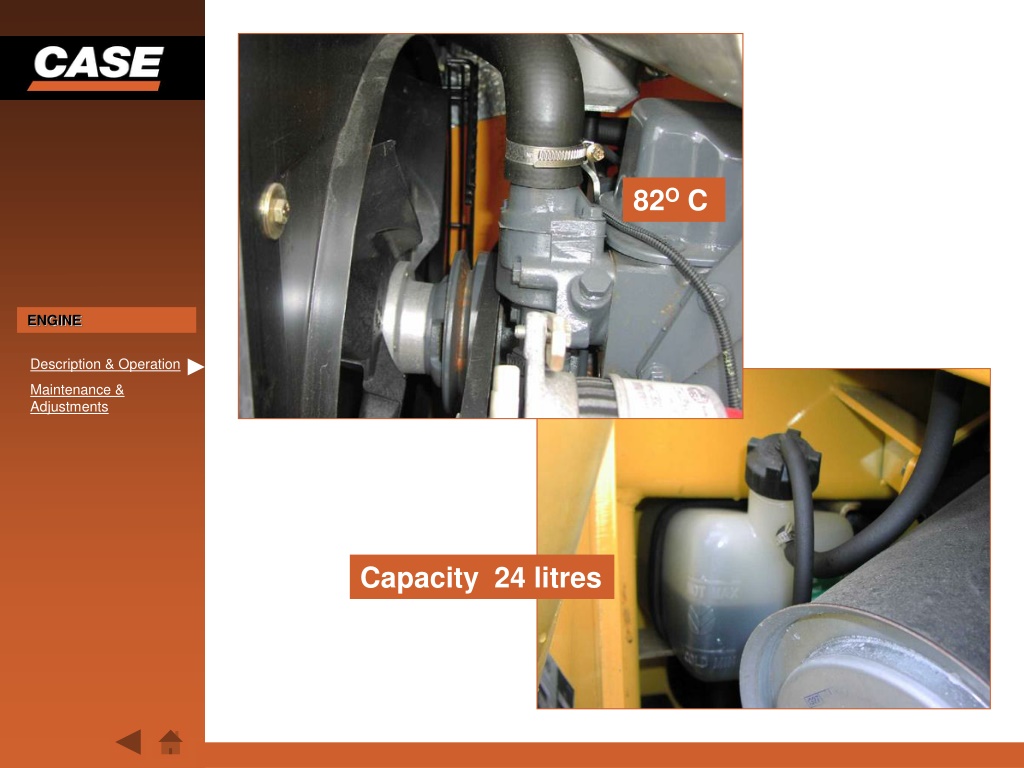

  8. 82O C Capacity 24 litres

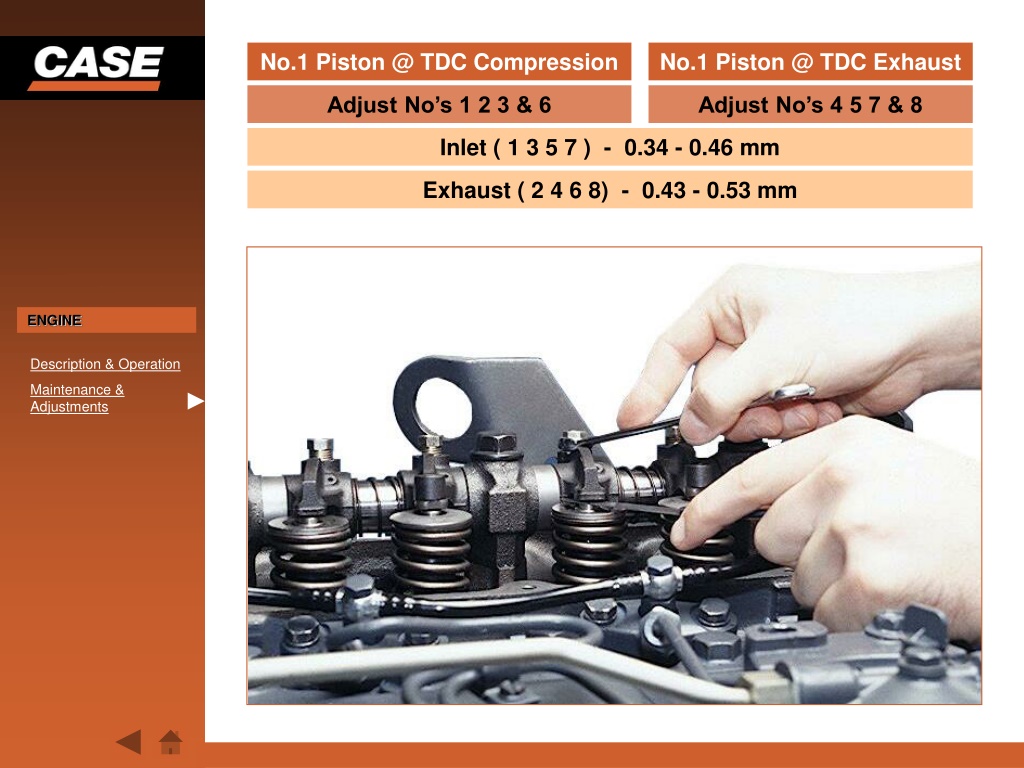

  9. No 1 Piston @ TDC Compression No 1Piston @ TDC Exhaust Adjust No 1 2 3 & 6 Adjust No 4 5 7 & 8 Inlet (1 3 5 7) 0.34-0.46 mm No.1 Piston @ TDC Compression No.1 Piston @ TDC Exhaust Adjust No’s 1 2 3 & 6 Adjust No’s 4 5 7 & 8 Inlet ( 1 3 5 7 ) - 0.34 - 0.46 mm Exhaust ( 2 4 6 8) - 0.43 - 0.53 mm
