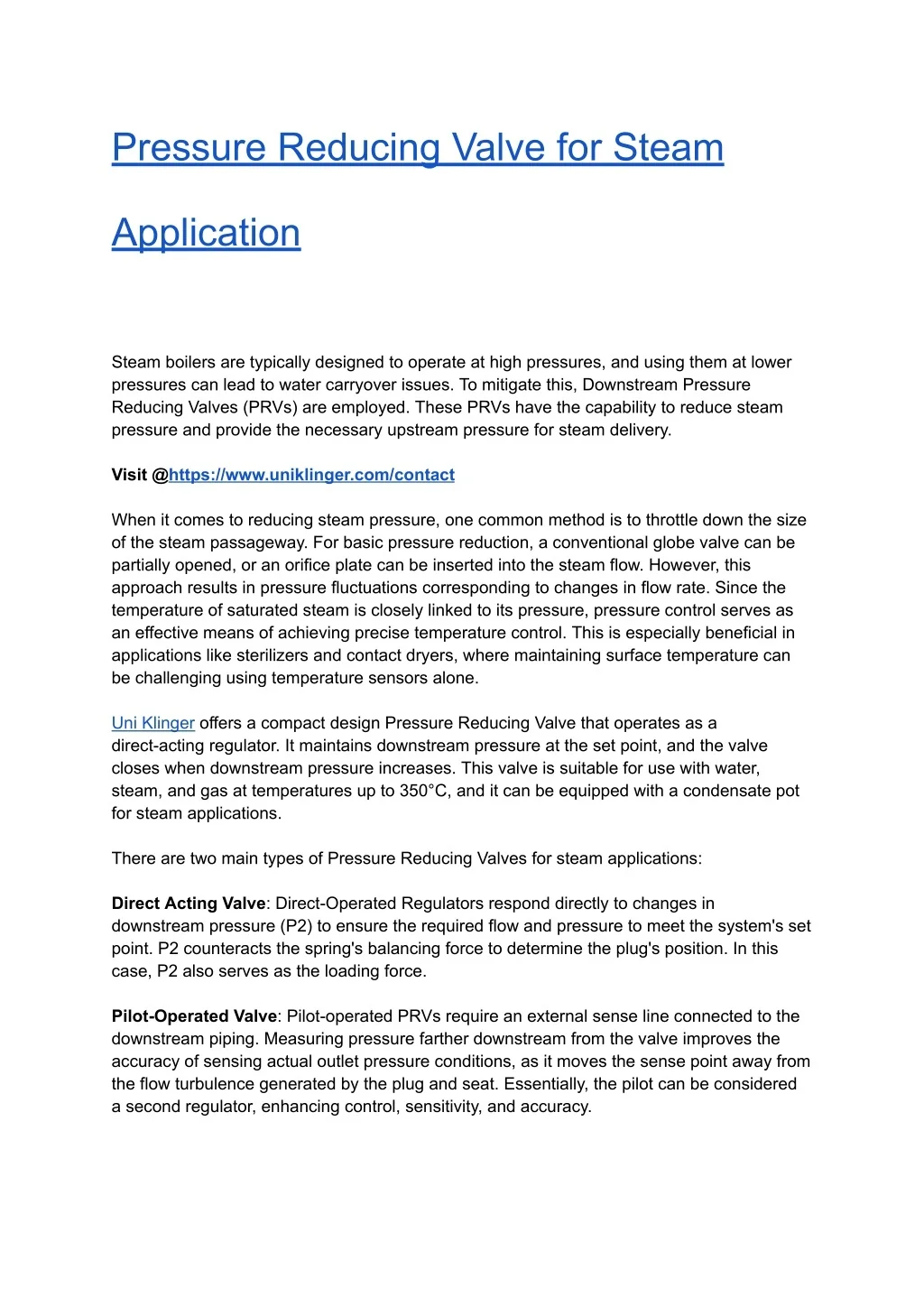

1. Pressure Reducing Valve for Steam Application Steam boilers are typically designed to operate at high pressures, and using them at lower pressures can lead to water carryover issues. To mitigate this, Downstream Pressure Reducing Valves (PRVs) are employed. These PRVs have the capability to reduce steam pressure and provide the necessary upstream pressure for steam delivery. Visit @ https://www.uniklinger.com/contact When it comes to reducing steam pressure, one common method is to throttle down the size of the steam passageway. For basic pressure reduction, a conventional globe valve can be partially opened, or an orifice plate can be inserted into the steam flow. However, this approach results in pressure fluctuations corresponding to changes in flow rate. Since the temperature of saturated steam is closely linked to its pressure, pressure control serves as an effective means of achieving precise temperature control. This is especially beneficial in applications like sterilizers and contact dryers, where maintaining surface temperature can be challenging using temperature sensors alone. Uni Klinger offers a compact design Pressure Reducing Valve that operates as a direct-acting regulator. It maintains downstream pressure at the set point, and the valve closes when downstream pressure increases. This valve is suitable for use with water, steam, and gas at temperatures up to 350°C, and it can be equipped with a condensate pot for steam applications. There are two main types of Pressure Reducing Valves for steam applications: Direct Acting Valve : Direct-Operated Regulators respond directly to changes in downstream pressure (P2) to ensure the required flow and pressure to meet the system's set point. P2 counteracts the spring's balancing force to determine the plug's position. In this case, P2 also serves as the loading force. Pilot-Operated Valve : Pilot-operated PRVs require an external sense line connected to the downstream piping. Measuring pressure farther downstream from the valve improves the accuracy of sensing actual outlet pressure conditions, as it moves the sense point away from the flow turbulence generated by the plug and seat. Essentially, the pilot can be considered a second regulator, enhancing control, sensitivity, and accuracy.

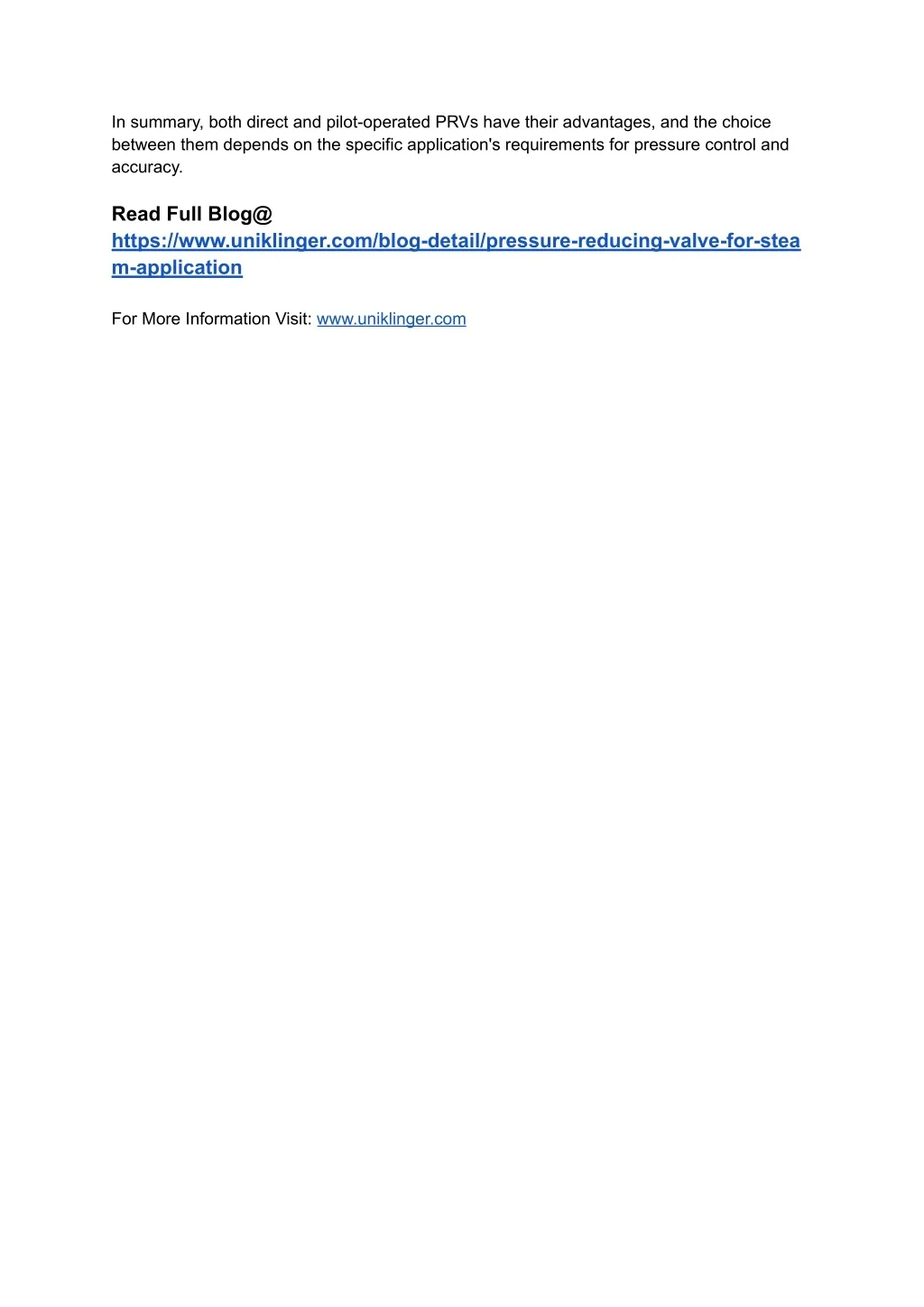

2. In summary, both direct and pilot-operated PRVs have their advantages, and the choice between them depends on the specific application's requirements for pressure control and accuracy. Read Full Blog@ https://www.uniklinger.com/blog-detail/pressure-reducing-valve-for-stea m-application For More Information Visit: www.uniklinger.com
