  1. Butterfly Valve Manufacturer A disc is joined to the rod in this valve. The fluid can flow through the valve because of the disc. The body, disc, stem, and seal are the main parts of a butterfly valve. The large butterfly valve comes with a gear box that connects the hand wheel to the stem through gears. It is utilised in a variety of industries, including the chemical, food processing, and pharmaceutical industries, as well as steam, fire, and water treatment plants. A butterfly valve is a quarter-turn rotational motion valve for stopping, regulating, and starting flow. A disc is positioned on a spinning shaft in a butterfly valve. The disc totally stops the line when the butterfly valve is fully closed. The disc of the butterfly valve is at a right angle to the flow of gas or liquid when it is fully opened. Butterfly Valve Symbol: Applications of Butterfly Valve: Butterfly valves can be utilised in a variety of situations. They work effectively in both large- volume water and slurry applications. Butterfly valves are commonly used in the following applications: Water for cooling, air, gases, and fire prevention, among other things. Services like slurry and others. Service for vacuuming. Service like high-pressure and high-temperature water and steam. Applications involving compressed air or gas. Industries that use Butterfly Valve: Chemical Industry. Petroleum Industry. Pharmaceutical Industry. Mining Industry. Food Industry.

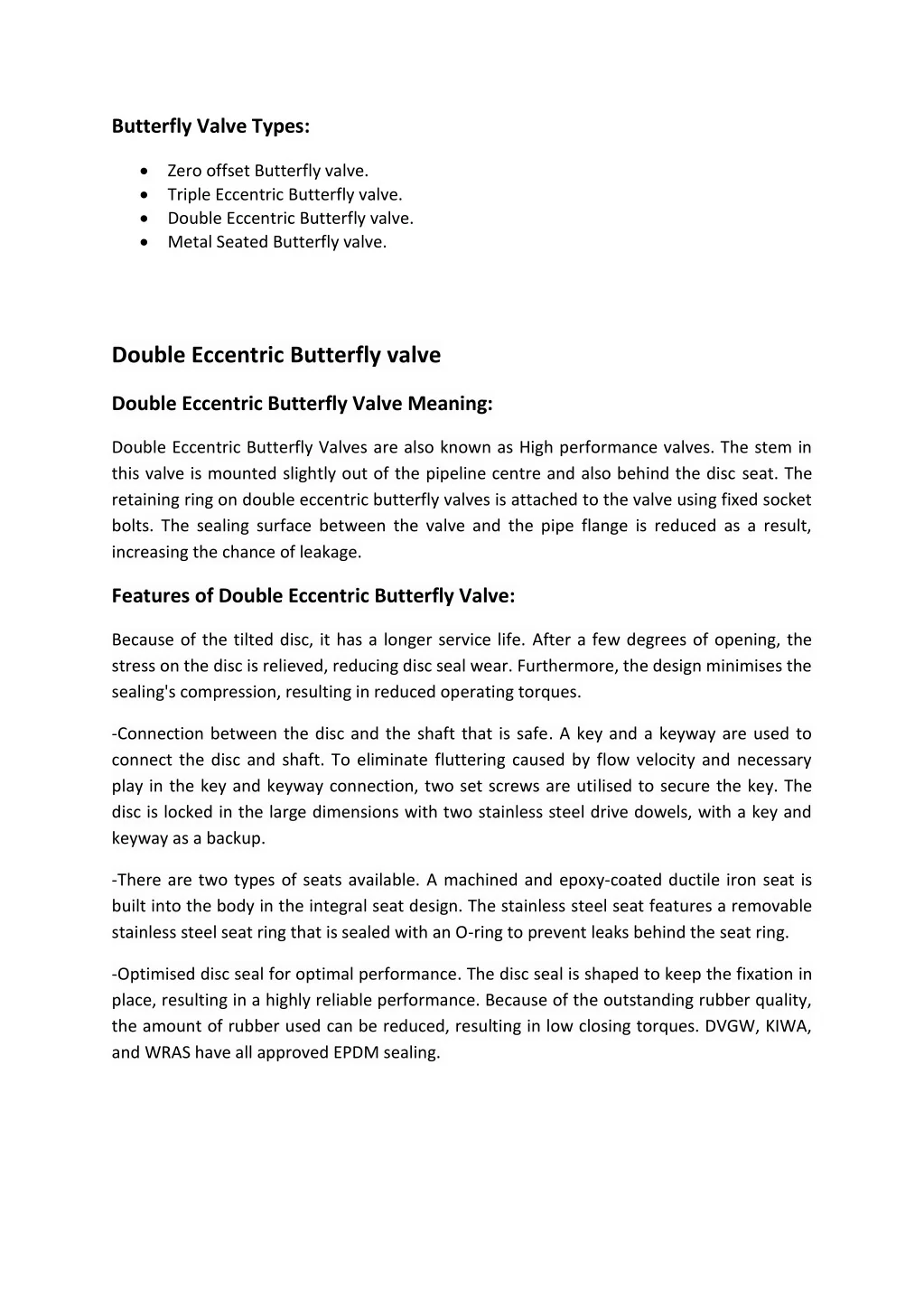

  2. Butterfly Valve Types: Zero offset Butterfly valve. Triple Eccentric Butterfly valve. Double Eccentric Butterfly valve. Metal Seated Butterfly valve. Double Eccentric Butterfly valve Double Eccentric Butterfly Valve Meaning: Double Eccentric Butterfly Valves are also known as High performance valves. The stem in this valve is mounted slightly out of the pipeline centre and also behind the disc seat. The retaining ring on double eccentric butterfly valves is attached to the valve using fixed socket bolts. The sealing surface between the valve and the pipe flange is reduced as a result, increasing the chance of leakage. Features of Double Eccentric Butterfly Valve: Because of the tilted disc, it has a longer service life. After a few degrees of opening, the stress on the disc is relieved, reducing disc seal wear. Furthermore, the design minimises the sealing's compression, resulting in reduced operating torques. -Connection between the disc and the shaft that is safe. A key and a keyway are used to connect the disc and shaft. To eliminate fluttering caused by flow velocity and necessary play in the key and keyway connection, two set screws are utilised to secure the key. The disc is locked in the large dimensions with two stainless steel drive dowels, with a key and keyway as a backup. -There are two types of seats available. A machined and epoxy-coated ductile iron seat is built into the body in the integral seat design. The stainless steel seat features a removable stainless steel seat ring that is sealed with an O-ring to prevent leaks behind the seat ring. -Optimised disc seal for optimal performance. The disc seal is shaped to keep the fixation in place, resulting in a highly reliable performance. Because of the outstanding rubber quality, the amount of rubber used can be reduced, resulting in low closing torques. DVGW, KIWA, and WRAS have all approved EPDM sealing.

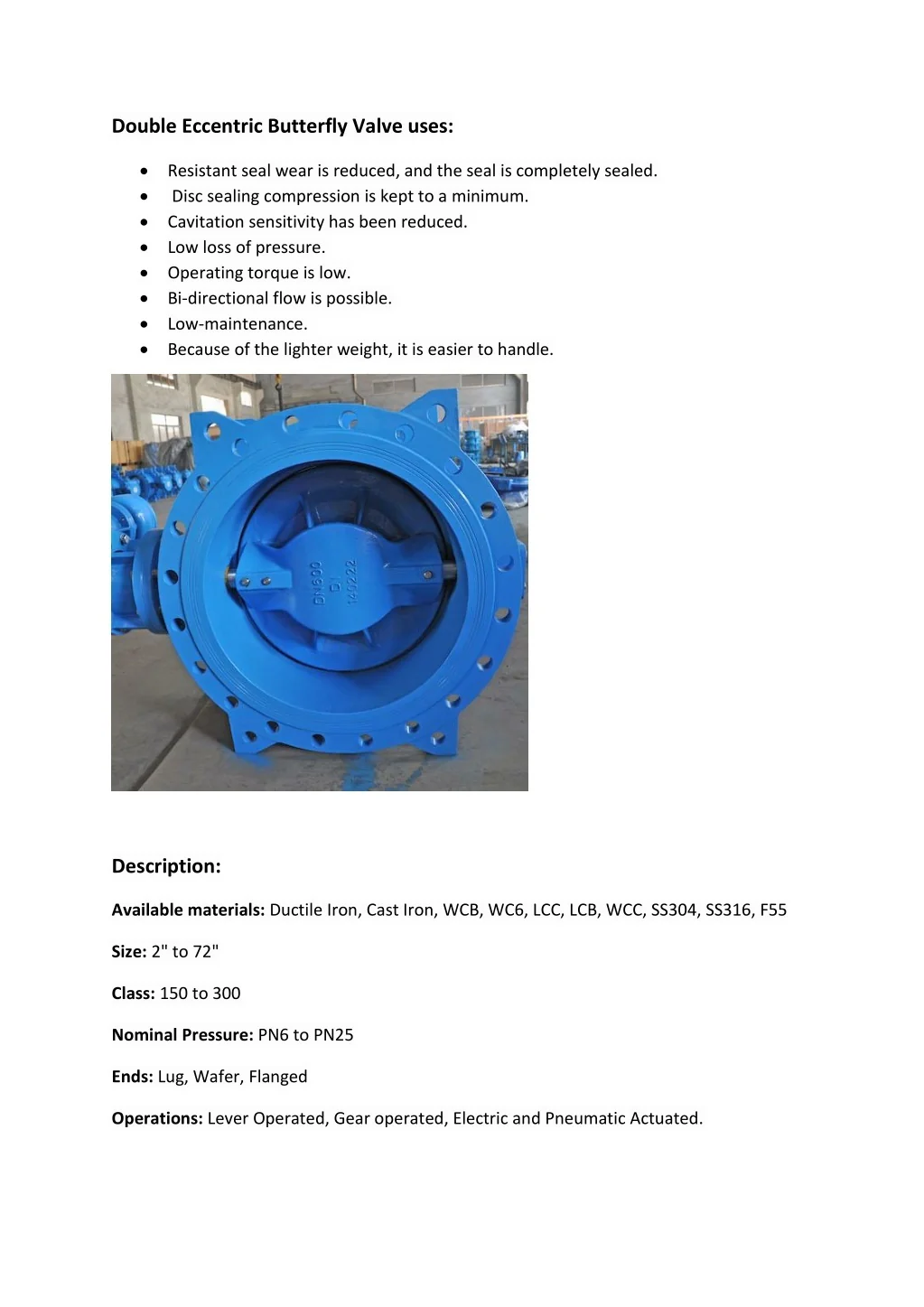

  3. Double Eccentric Butterfly Valve uses: Resistant seal wear is reduced, and the seal is completely sealed.  Disc sealing compression is kept to a minimum. Cavitation sensitivity has been reduced. Low loss of pressure. Operating torque is low. Bi-directional flow is possible. Low-maintenance. Because of the lighter weight, it is easier to handle. Description: Available materials: Ductile Iron, Cast Iron, WCB, WC6, LCC, LCB, WCC, SS304, SS316, F55 Size: 2" to 72" Class: 150 to 300 Nominal Pressure: PN6 to PN25 Ends: Lug, Wafer, Flanged Operations: Lever Operated, Gear operated, Electric and Pneumatic Actuated.

  4. Valvesonly is a leading and reputed Double Eccentric Butterfly valve manufacturer in USA. We have qualified professionals and experienced engineers to provide our clients with high quality and cost-effective products. Having an engineering-based team means we can understand the technical needs of our clients better. We believe in continuous improvements and innovation in our products to keep ourselves competent in the market. Our motive is to supply defect free valves to our customers. Our valves are specially designed to meet the needs of various industries. Visit here for more details: https://valvesonly.com/product-category/double-eccentric-butterfly-valve/ Triple Eccentric Butterfly valve: Valvesonly is the best Triple Eccentric Butterfly Valve Manufacturer in USA. A Triple Eccentric Butterfly Valve has three offsets.Two offsets are fixed to the shaft and the third offset us on the axis if the seat. A Triple Eccentric Butterfly valve is also called as Triple Offset Butterfly Valve. Some applications can work They are useful in applications requiring bubble tight shutoff. These valves are used to provide right angled rotation with no friction at all. They are more resistant to high pressure and high temperature when compared to other butterfly valves. In this type of butterfly valve, there is no friction in between the body and the disc when the valve is opened or closed. Class : PN10 to PN100 ANSI 150 to 600 Material : Cast iron, Ductile iron, Stainless steel (SS304, SS316, F304, F316, CF8, CF8M, SS316L, SS409L), Carbon steel, Duplex steel. End Connection: Wafer , Lug, Flanged Size : 2" to 72” Operation: Handwheel operated, Gear Operated, Electric Actuated, Pneumatic Actuated Advantages: • Resistant to high temperature and pressure • Zero leakage • Can be used in applications working with harsh chemicals • No friction between the body and disc

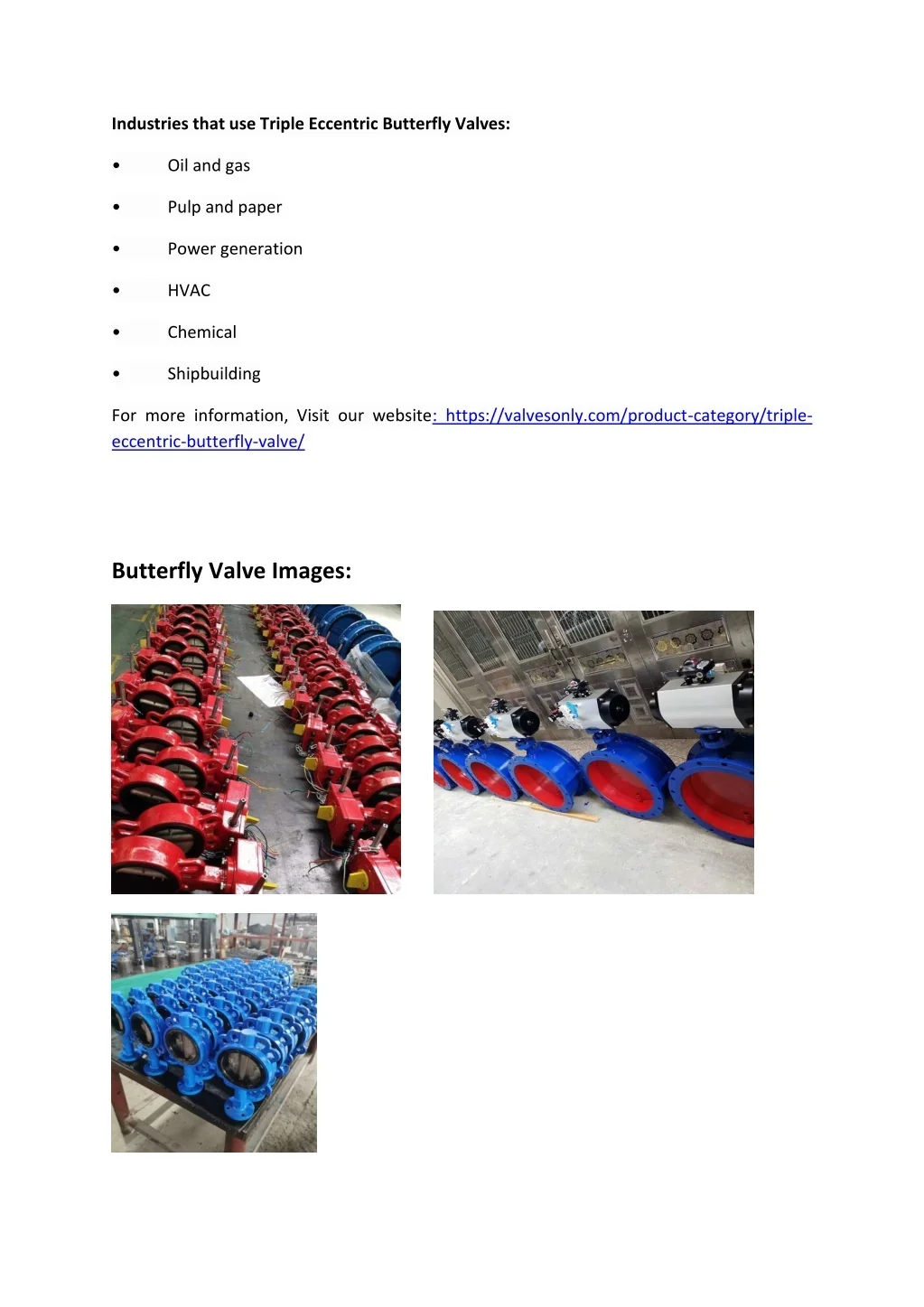

  5. Industries that use Triple Eccentric Butterfly Valves: • Oil and gas • Pulp and paper • Power generation • HVAC • Chemical • Shipbuilding For more information, Visit our website: https://valvesonly.com/product-category/triple- eccentric-butterfly-valve/ Butterfly Valve Images:

  6. Valvesonly is the largest Butterfly Valve Manufacturer in USA. To supply our clients with high-quality and cost-effective products, we have qualified specialists and experienced engineers. We can better grasp our clients' technological needs because we have an engineering-based team. To be competitive in the market, we believe in continual product improvement and innovation. Our goal is to provide our customers with defect-free valves. Our valves are custom-made to fulfil the needs of a variety of industries. Visit here for more details: https://valvesonly.com/product-category/butterfly- valve/
