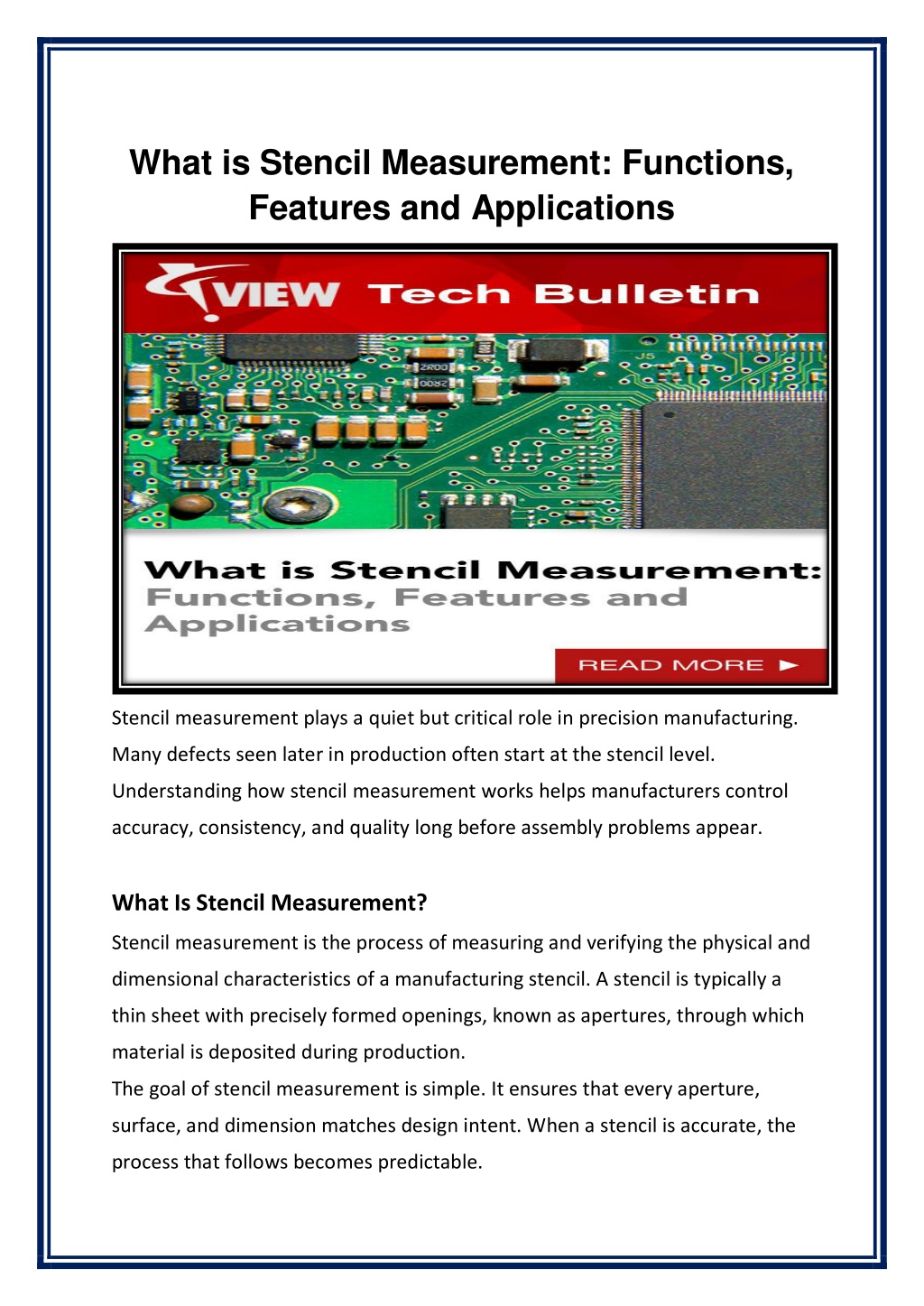

1. What is Stencil Measurement: Functions, Features and Applications Stencil measurement plays a quiet but critical role in precision manufacturing. Many defects seen later in production often start at the stencil level. Understanding how stencil measurement works helps manufacturers control accuracy, consistency, and quality long before assembly problems appear. What Is Stencil Measurement? Stencil measurement is the process of measuring and verifying the physical and dimensional characteristics of a manufacturing stencil. A stencil is typically a thin sheet with precisely formed openings, known as apertures, through which material is deposited during production. The goal of stencil measurement is simple. It ensures that every aperture, surface, and dimension matches design intent. When a stencil is accurate, the process that follows becomes predictable.

2. Stencil measurement focuses on: ●Dimensional accuracy ●Geometric consistency ●Wear and deformation detection ●Long-term usability This process is not about visual judgment. It is about measurable data. Role of Stencil Measurement in Precision Manufacturing In precision manufacturing, processes operate within tight tolerances. Small dimensional errors at early stages multiply as production continues. Stencil measurement acts as an early control point. Its role includes: ●Preventing downstream defects ●Supporting stable and repeatable processes ●Reducing scrap and rework ●Improving overall yield In electronics and micro-component manufacturing, stencils often control material volume and placement. Any deviation directly affects the final product. This is why stencil inspection and dimensional verification are treated as critical quality steps. Stencil Measurement vs Visual Inspection Visual inspection relies on human judgment. It can detect obvious damage, contamination, or misalignment. However, it cannot be measured. Stencil measurement, on the other hand, provides: ●Quantitative dimensional data ●Repeatable and traceable results

3. ●Detection of subtle wear or distortion Visual inspection may confirm that a stencil looks acceptable. Measurement confirms whether it actually meets the specification. This difference becomes important when: ●Apertures are very small ●Tolerances are tight ●Production volumes are high In such cases, visual checks are not sufficient. Key Functions of Stencil Measurement Stencil measurement serves several practical functions across the stencil life cycle. Each function supports process control and manufacturing reliability. 1. Ensuring Accurate Material Deposition Stencil apertures define how much material passes through during deposition. The aperture size, shape, and thickness together control volume. Measurement ensures: ●Apertures match design dimensions ●Thickness is uniform ●No unintended blockage or enlargement exists When apertures are accurate, material deposition becomes predictable. This reduces defects related to excess or insufficient material. 2. Maintaining Process Consistency Manufacturing stability depends on consistency. A stencil that slowly changes over time introduces variation. Stencil measurement helps by: ●Establishing baseline dimensions ●Monitoring dimensional drift

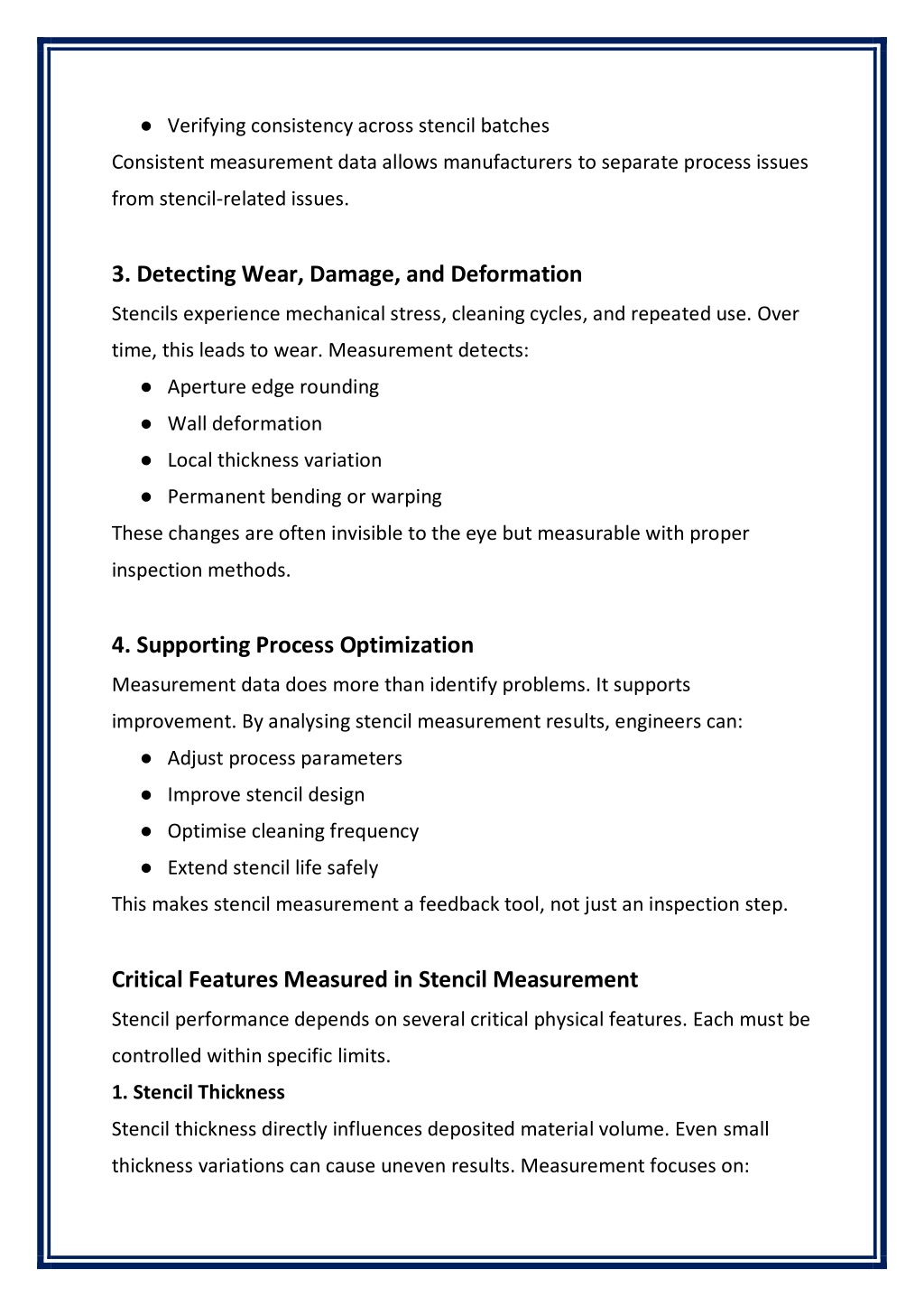

4. ●Verifying consistency across stencil batches Consistent measurement data allows manufacturers to separate process issues from stencil-related issues. 3. Detecting Wear, Damage, and Deformation Stencils experience mechanical stress, cleaning cycles, and repeated use. Over time, this leads to wear. Measurement detects: ●Aperture edge rounding ●Wall deformation ●Local thickness variation ●Permanent bending or warping These changes are often invisible to the eye but measurable with proper inspection methods. 4. Supporting Process Optimization Measurement data does more than identify problems. It supports improvement. By analysing stencil measurement results, engineers can: ●Adjust process parameters ●Improve stencil design ●Optimise cleaning frequency ●Extend stencil life safely This makes stencil measurement a feedback tool, not just an inspection step. Critical Features Measured in Stencil Measurement Stencil performance depends on several critical physical features. Each must be controlled within specific limits. 1. Stencil Thickness Stencil thickness directly influences deposited material volume. Even small thickness variations can cause uneven results. Measurement focuses on:

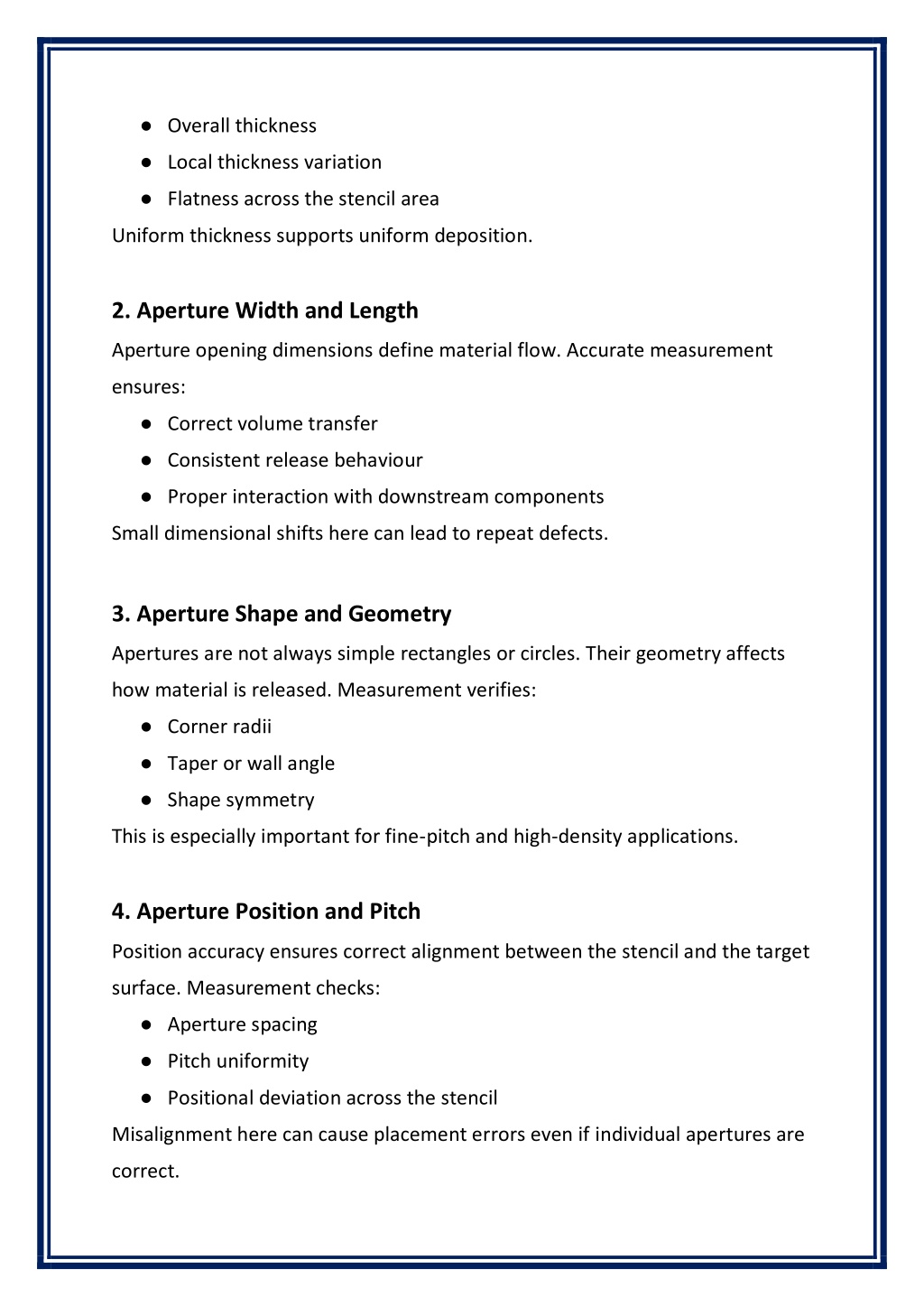

5. ●Overall thickness ●Local thickness variation ●Flatness across the stencil area Uniform thickness supports uniform deposition. 2. Aperture Width and Length Aperture opening dimensions define material flow. Accurate measurement ensures: ●Correct volume transfer ●Consistent release behaviour ●Proper interaction with downstream components Small dimensional shifts here can lead to repeat defects. 3. Aperture Shape and Geometry Apertures are not always simple rectangles or circles. Their geometry affects how material is released. Measurement verifies: ●Corner radii ●Taper or wall angle ●Shape symmetry This is especially important for fine-pitch and high-density applications. 4. Aperture Position and Pitch Position accuracy ensures correct alignment between the stencil and the target surface. Measurement checks: ●Aperture spacing ●Pitch uniformity ●Positional deviation across the stencil Misalignment here can cause placement errors even if individual apertures are correct.

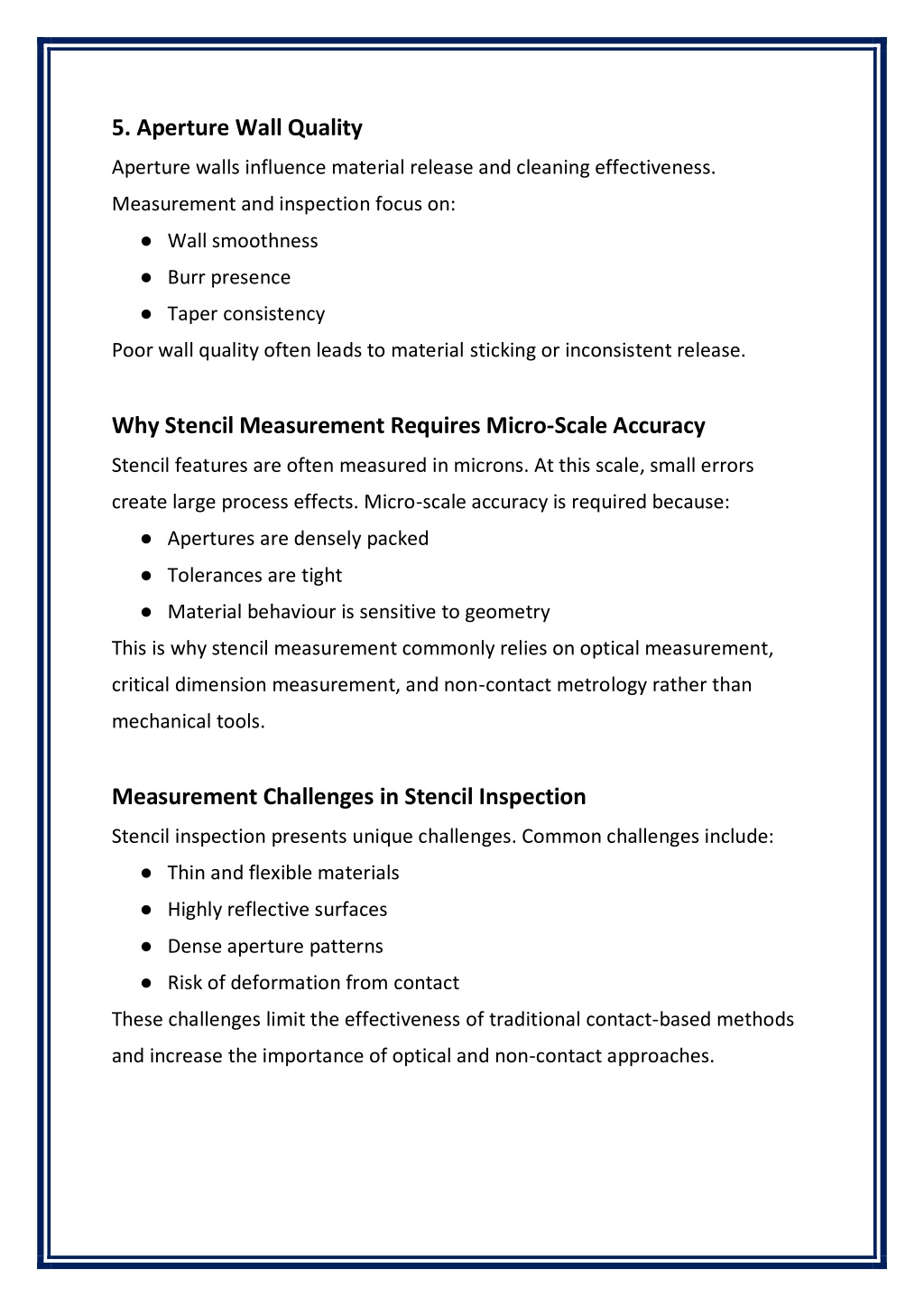

6. 5. Aperture Wall Quality Aperture walls influence material release and cleaning effectiveness. Measurement and inspection focus on: ●Wall smoothness ●Burr presence ●Taper consistency Poor wall quality often leads to material sticking or inconsistent release. Why Stencil Measurement Requires Micro-Scale Accuracy Stencil features are often measured in microns. At this scale, small errors create large process effects. Micro-scale accuracy is required because: ●Apertures are densely packed ●Tolerances are tight ●Material behaviour is sensitive to geometry This is why stencil measurement commonly relies on optical measurement, critical dimension measurement, and non-contact metrology rather than mechanical tools. Measurement Challenges in Stencil Inspection Stencil inspection presents unique challenges. Common challenges include: ●Thin and flexible materials ●Highly reflective surfaces ●Dense aperture patterns ●Risk of deformation from contact These challenges limit the effectiveness of traditional contact-based methods and increase the importance of optical and non-contact approaches.

7. Optical and Non-Contact Metrology for Stencil Measurement Stencil measurement demands accuracy without physical interference. This is where optical and non-contact metrology becomes essential. These methods measure stencil features using light and imaging instead of physical touch. Stencils are thin and sensitive. Contact-based tools can bend them, scratch surfaces, or distort apertures. Non-contact measurement avoids these risks completely. It allows inspection while keeping the stencil in its natural state. Optical metrology is especially useful when: ●Apertures are very small ●Patterns are dense ●Surfaces are reflective ●Repeatability is critical This approach supports both inspection accuracy and stencil longevity. Why Optical Metrology Is Ideal? Optical metrology captures dimensional information using cameras, lenses, and controlled lighting. It converts visual data into precise measurements. The main advantage is resolution. Optical systems can measure features that are too small or too delicate for mechanical tools. This is critical for fine apertures and micro-scale stencil features. Optical metrology also offers: ●High measurement repeatability ●Stable results across operators ●Digital records for traceability Because measurements are image-based, engineers can review data, re-check features, and compare results over time. This supports both quality control and process improvement.

8. Role of Video Measuring Machines Video Measuring Machines, often called VMMs, play a key role in stencil measurement. They combine optics, software, and automation into a single measurement platform. VMMs are well-suited for stencil inspection because they can: ●Measure multiple apertures quickly ●Capture dimensions across large stencil areas ●Detect small geometric variations They allow engineers to measure width, length, pitch, and positional accuracy in one setup. This reduces inspection time while improving consistency. For repetitive stencil patterns, VMMs also support batch measurement. This makes them suitable for both development and production environments. Advantages of Non-Contact Measurement Systems Non-contact measurement systems offer several practical benefits in stencil inspection. Key advantages include: ●No physical stress on the stencil ●No deformation during measurement ●High accuracy for small features ●Long-term measurement stability These systems also support automation. Automated measurement reduces operator influence and improves consistency across shifts and locations. In modern manufacturing, this consistency is just as important as accuracy. Critical Dimensions Measured in Stencil Applications Stencil measurement focuses on dimensions that directly affect process results. These dimensions must be controlled tightly. Common critical dimensions include:

9. ●Aperture opening size ●Aperture spacing and pitch ●Stencil thickness variation ●Flatness across the stencil surface ●Dimensional uniformity across the full stencil area Each of these parameters influences how material transfers through the stencil. When these dimensions remain stable, the process remains stable. Measurement data also helps define acceptance limits and replacement criteria for stencils. Applications of Stencil Measurement Across Industries Stencil measurements are used across multiple high-precision industries. While the stencil design may vary, the measurement principles remain the same. 1. Electronics and SMT Manufacturing In electronics manufacturing, stencils control material deposition during assembly. Accuracy here directly affects defect rates. Stencil measurement supports: ●Consistent deposition volume ●Reduced bridging and opens ●Stable assembly yield This makes stencil inspection a routine quality step in SMT lines. 2. Semiconductor and Advanced Packaging Advanced packaging processes use finer geometries and tighter spacing. Stencils used here have extremely small apertures. Measurement becomes critical because: ●Tolerances are very tight ●Feature density is high

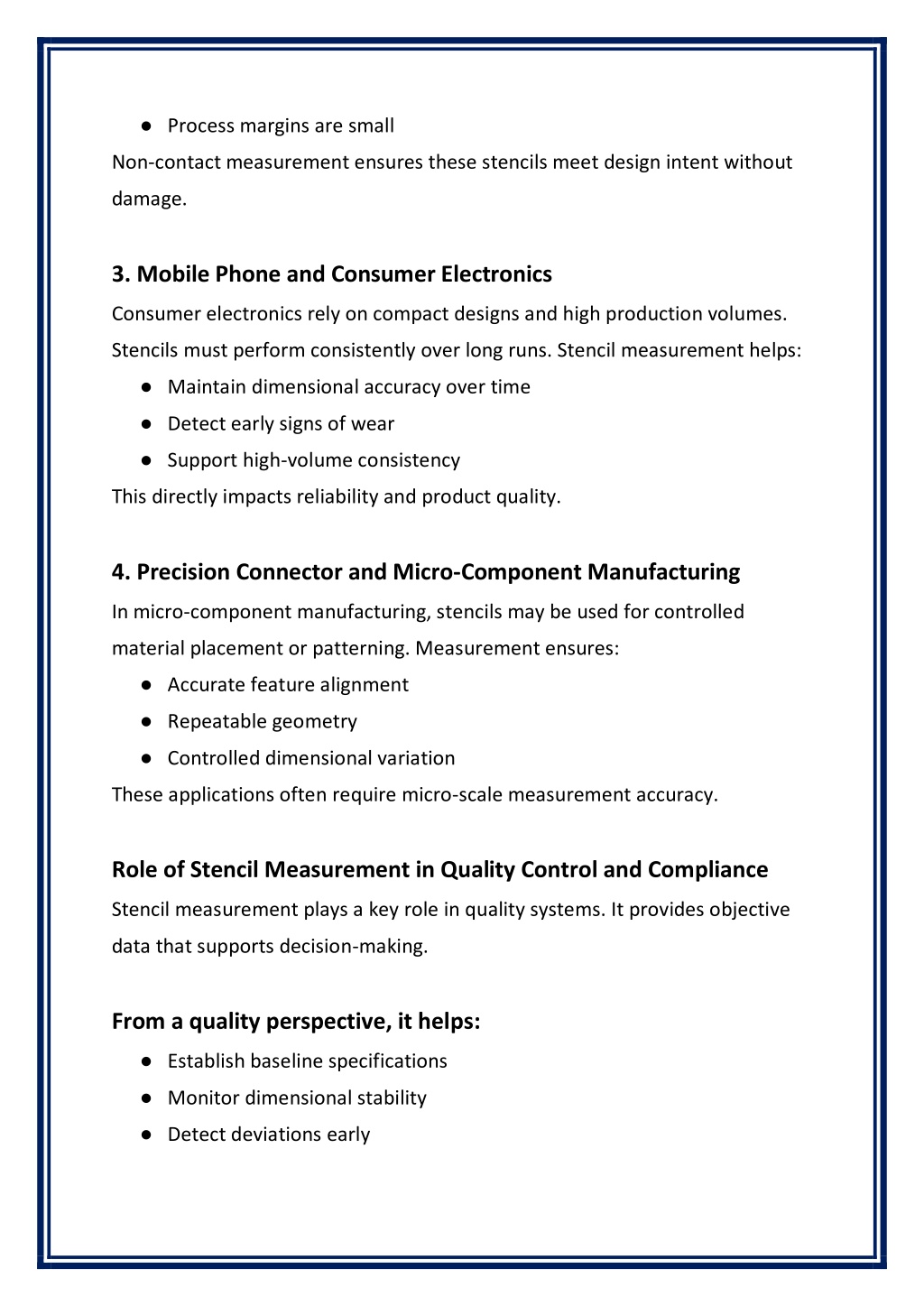

10. ●Process margins are small Non-contact measurement ensures these stencils meet design intent without damage. 3. Mobile Phone and Consumer Electronics Consumer electronics rely on compact designs and high production volumes. Stencils must perform consistently over long runs. Stencil measurement helps: ●Maintain dimensional accuracy over time ●Detect early signs of wear ●Support high-volume consistency This directly impacts reliability and product quality. 4. Precision Connector and Micro-Component Manufacturing In micro-component manufacturing, stencils may be used for controlled material placement or patterning. Measurement ensures: ●Accurate feature alignment ●Repeatable geometry ●Controlled dimensional variation These applications often require micro-scale measurement accuracy. Role of Stencil Measurement in Quality Control and Compliance Stencil measurement plays a key role in quality systems. It provides objective data that supports decision-making. From a quality perspective, it helps: ●Establish baseline specifications ●Monitor dimensional stability ●Detect deviations early

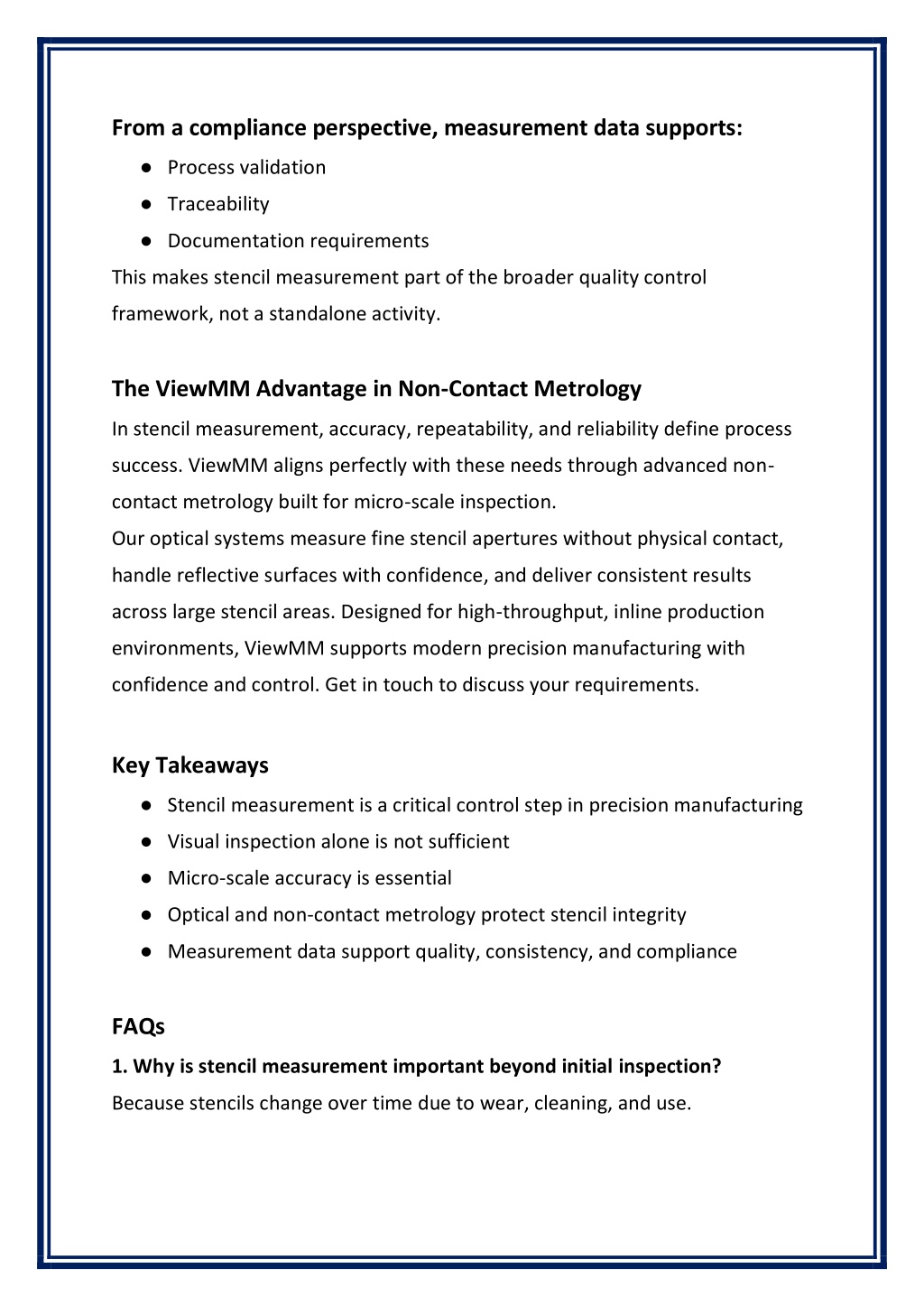

11. From a compliance perspective, measurement data supports: ●Process validation ●Traceability ●Documentation requirements This makes stencil measurement part of the broader quality control framework, not a standalone activity. The ViewMM Advantage in Non-Contact Metrology In stencil measurement, accuracy, repeatability, and reliability define process success. ViewMM aligns perfectly with these needs through advanced non- contact metrology built for micro-scale inspection. Our optical systems measure fine stencil apertures without physical contact, handle reflective surfaces with confidence, and deliver consistent results across large stencil areas. Designed for high-throughput, inline production environments, ViewMM supports modern precision manufacturing with confidence and control. Get in touch to discuss your requirements. Key Takeaways ●Stencil measurement is a critical control step in precision manufacturing ●Visual inspection alone is not sufficient ●Micro-scale accuracy is essential ●Optical and non-contact metrology protect stencil integrity ●Measurement data support quality, consistency, and compliance FAQs 1. Why is stencil measurement important beyond initial inspection? Because stencils change over time due to wear, cleaning, and use.

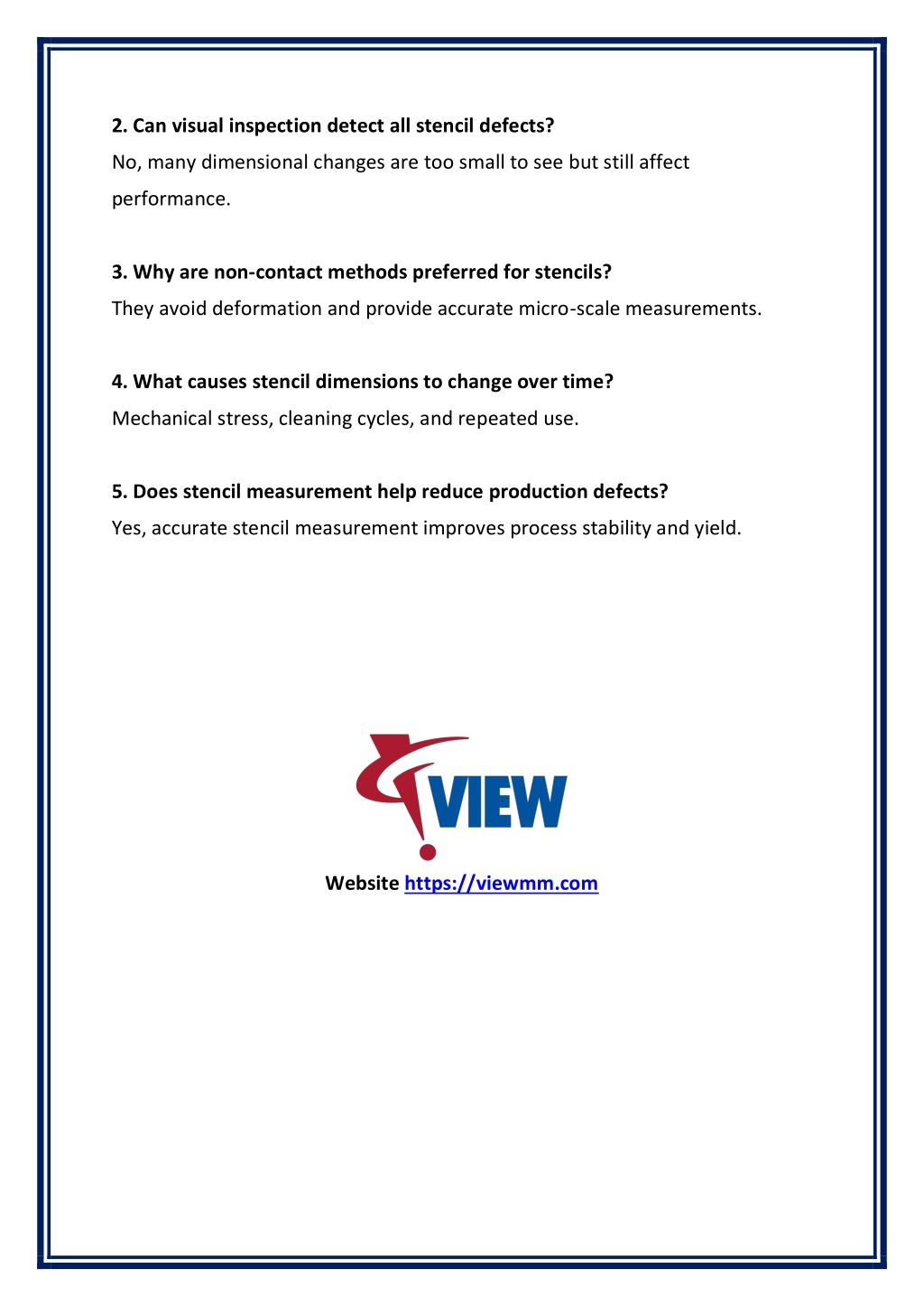

12. 2. Can visual inspection detect all stencil defects? No, many dimensional changes are too small to see but still affect performance. 3. Why are non-contact methods preferred for stencils? They avoid deformation and provide accurate micro-scale measurements. 4. What causes stencil dimensions to change over time? Mechanical stress, cleaning cycles, and repeated use. 5. Does stencil measurement help reduce production defects? Yes, accurate stencil measurement improves process stability and yield. Website https://viewmm.com
