What is Watch Components Measurement?

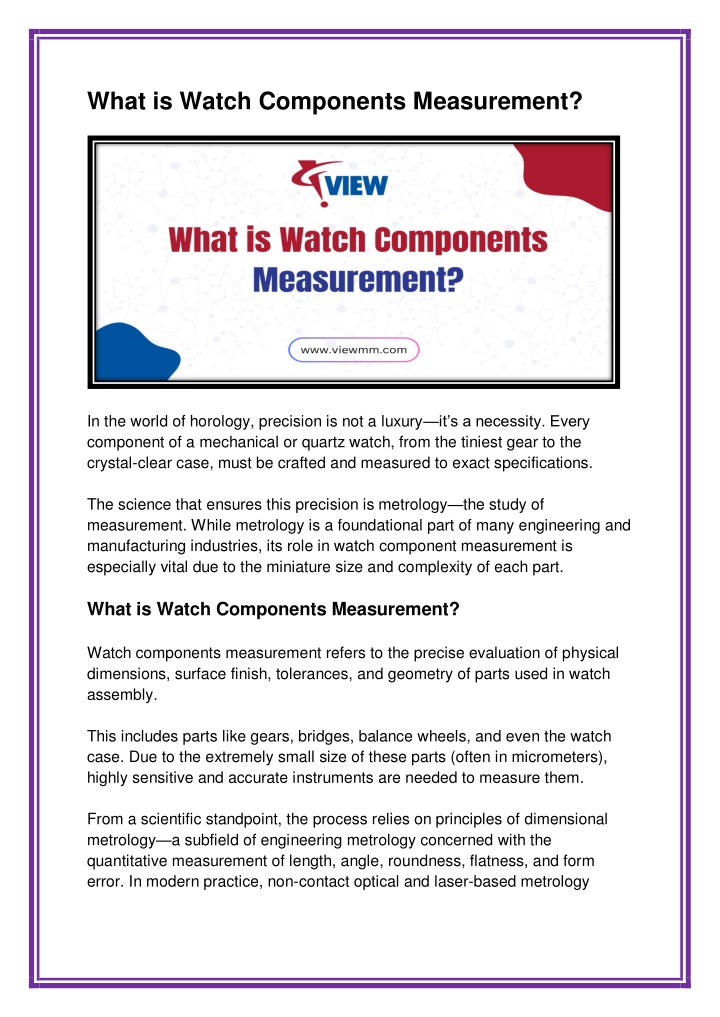

1. What is Watch Components Measurement? In the world of horology, precision is not a luxury—it’s a necessity. Every component of a mechanical or quartz watch, from the tiniest gear to the crystal-clear case, must be crafted and measured to exact specifications. The science that ensures this precision is metrology—the study of measurement. While metrology is a foundational part of many engineering and manufacturing industries, its role in watch component measurement is especially vital due to the miniature size and complexity of each part. What is Watch Components Measurement? Watch components measurement refers to the precise evaluation of physical dimensions, surface finish, tolerances, and geometry of parts used in watch assembly. This includes parts like gears, bridges, balance wheels, and even the watch case. Due to the extremely small size of these parts (often in micrometers), highly sensitive and accurate instruments are needed to measure them. From a scientific standpoint, the process relies on principles of dimensional metrology—a subfield of engineering metrology concerned with the quantitative measurement of length, angle, roundness, flatness, and form error. In modern practice, non-contact optical and laser-based metrology

2. systems are commonly used to achieve measurements with sub-micron precision. Why Measurement is Critical in Watchmaking Watches function through the harmonious interaction of multiple micro- mechanical components. A deviation as small as 5–10 microns in gear alignment can lead to increased friction, power loss, or inaccurate timekeeping. Here's why precise measurement is essential: ●Accuracy of Timekeeping: Every micron of misalignment can affect oscillations in the escapement or gear engagement. ●Interchangeability: Precision enables standardization across mass production lines. ●Durability: Proper fits reduce wear and mechanical degradation. ●Aesthetic Excellence: Luxury watches demand exact symmetry, polish, and finish. Key Watch Components That Require Measurement Main Plate and Bridges These form the skeleton of a mechanical watch. The hole diameters, depth, and distance between mounting points must be accurate to ensure proper alignment of gears and moving parts. Common measurement includes planarity, hole concentricity, and parallelism. Gears (Wheels and Pinions) The gear train transmits energy from the mainspring to the escapement. Accurate tooth profile, module, and backlash are measured using optical comparators or gear measurement software. Deviations lead to transmission errors or ticking irregularities. Balance Wheel & Hairspring The heart of a mechanical watch, this assembly controls oscillations. The mass distribution of the balance wheel and flatness of the hairspring are critical. Laser interferometry and stroboscopic vision systems help measure deformation and dynamic balance.

3. Hands (Hour, Minute, Second) Though lightweight, the hands must be precisely aligned with the dial and shaft. The bore diameter, length, and flatness are measured using 2D vision systems to prevent obstruction or drag. Crown and Stem Thread pitch, cylindricity, and overall length must match the movement casing and ensure waterproofing. These are often measured using contact micrometers and 3D laser scanning. Jewels Synthetic rubies reduce friction and wear. The diameter of bore, countersink angle, and thickness are measured using contact profilometers or laser micrometers. Watch Case and Glass Aesthetic elements with dimensional purpose. Crystal curvature, case roundness, and gasket grooves are evaluated with CMMs and surface testers to ensure fitting and water resistance. Metrology Tools Used in Watch Component Measurement 1. Mechanical Tools ●Calipers Used for basic external and internal length measurements. In horology, they are usually digital calipers with accuracy of ±0.01 mm. ●Micrometers Micrometers provide more precise readings than calipers, typically accurate to ±1 µm. Used for gear thickness, jewel size, and stem length. ●Height Gauges Used on surface plates for vertical dimensioning, especially helpful for bridge thickness or stepped gear measurements. 2. Optical & Digital Tools ●Profile Projectors

4. These magnify the component’s profile for non-contact 2D measurement of contours and angles. Useful for verifying hand shapes and tooth profiles. ●CMM (Coordinate Measuring Machine) These machines use probes or lasers to map 3D coordinates of an object. Highly used in watch case and gear profile verification. ●Vision Inspection Systems Fully automated systems that use high-resolution cameras and AI algorithms to inspect hundreds of micro-components rapidly. ●Laser Micrometers These tools use laser beam interruption to measure tiny dimensions with non-contact accuracy down to sub-micron levels. Ideal for hair-thin parts like hairsprings or micro screws. 3. Surface & Geometry Testers ●Roughness Testers Evaluate surface texture critical for reducing friction in gear trains or improving aesthetic polish. ●Flatness Gauges Used to ensure that plates or bridges are perfectly planar, avoiding misalignment in gear trains. ●Roundness Testers Check concentricity and circularity, especially in gear wheels and balance components. Common Measurement Parameters in Horology ●Length– for stem, shaft, and bridge mounts ●Diameter – wheels, pinions, jewels, and screws ●Roundness – gear wheels and balance ●Flatness – main plate, crystal surface ●Tooth Profile Accuracy– gear teeth ●Surface Finish (Ra)– low Ra ensures reduced friction ●Concentricity – between bores and outer diameters

5. ●Runout and Parallelism– important for moving assemblies Standards and Best Practices ●ISO 2768 – General tolerances for small machined parts ●DIN 3960 – Tolerances for gears ●Calibration Traceability– Instruments must be traceable to national metrology standards (e.g., NIST, PTB) ●Environmental Control – Watch metrology labs are kept at 20 ±1°C with 45-55% RH to avoid thermal expansion during measurement ●Documentation – Every measured part is logged and sometimes serialized for quality control in luxury watchmaking Challenges in Watch Component Measurement ● Miniature size makes even basic measurements tricky ● Reflective and curved surfaces (e.g., polished cases, sapphire crystals) interfere with optical sensors ● Batch variation due to wear of micro-tools during machining ● Need for non-contact methods to avoid deformation of soft parts (like springs) ● Time-consuming process in manual measurement unless automated Viewmm – Advancing Watch Components Measurement Precision watch components demand metrology systems that can handle micron-level tolerances, complex geometries, and varied materials. At VIEW, we address these challenges through robust optical metrology systems, advanced measurement software, and flexible inspection routines. Ideal for engineers, quality controllers, and micro-manufacturers, our solutions enable reliable process control and dimensional verification across the entire watch component spectrum. Conclusion Watch component measurement isn’t just about checking sizes—it’s a science rooted in precision engineering and metrology. As watch designs become

6. more intricate and consumer expectations rise, the need for scientific-grade, automated, and reliable measurement systems is more critical than ever. Using a mix of traditional mechanical tools and modern optical/laser-based systems, the industry continues to push the boundaries of accuracy, repeatability, and quality control in horology. Behind every elegant timepiece lies a deep world of science—and it begins with measurement. Website: www.viewmm.com Mail ID: info@viewmm.com
