Ethylene-Oxide-Sterilizer

Labdex ethylene oxide sterilizer holds an 80L capacity with a durable 304 stainless steel inner chamber and a carbon steel exterior. It integrates built-in sensors, automatic control, an LCD display, and a printer. The explosion-proof heating system, air replacement, and temperature alarms ensure safe and efficient sterilization.

Zaynab6
Télécharger la présentation

Ethylene-Oxide-Sterilizer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

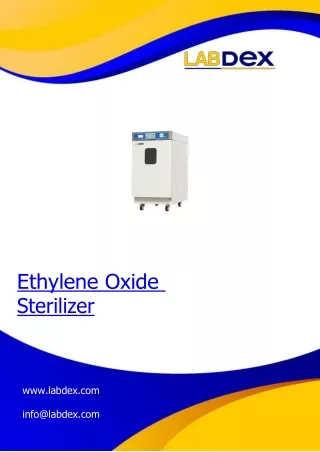

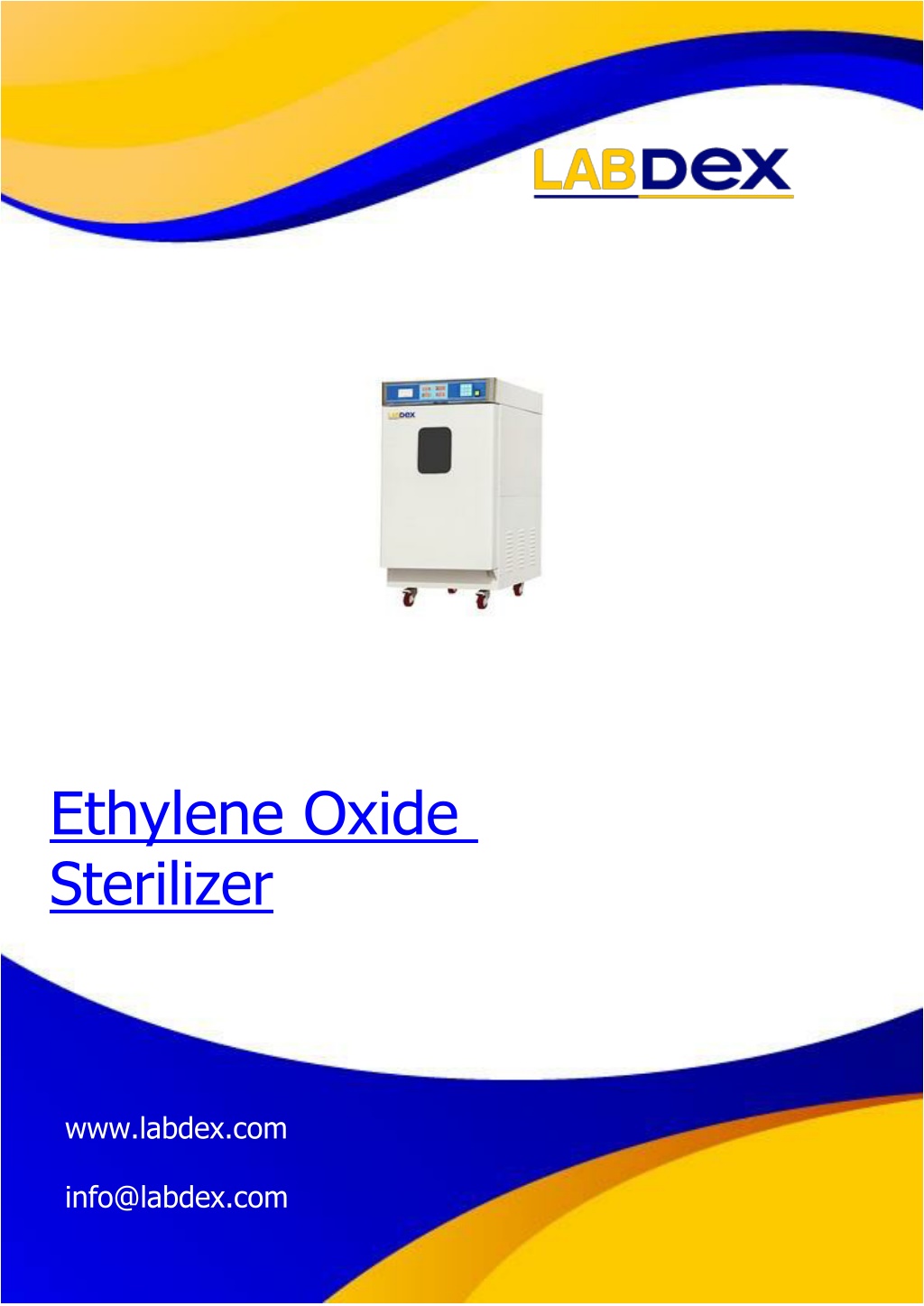

  1. Ethylene Oxide Sterilizer www.labdex.com info@labdex.com

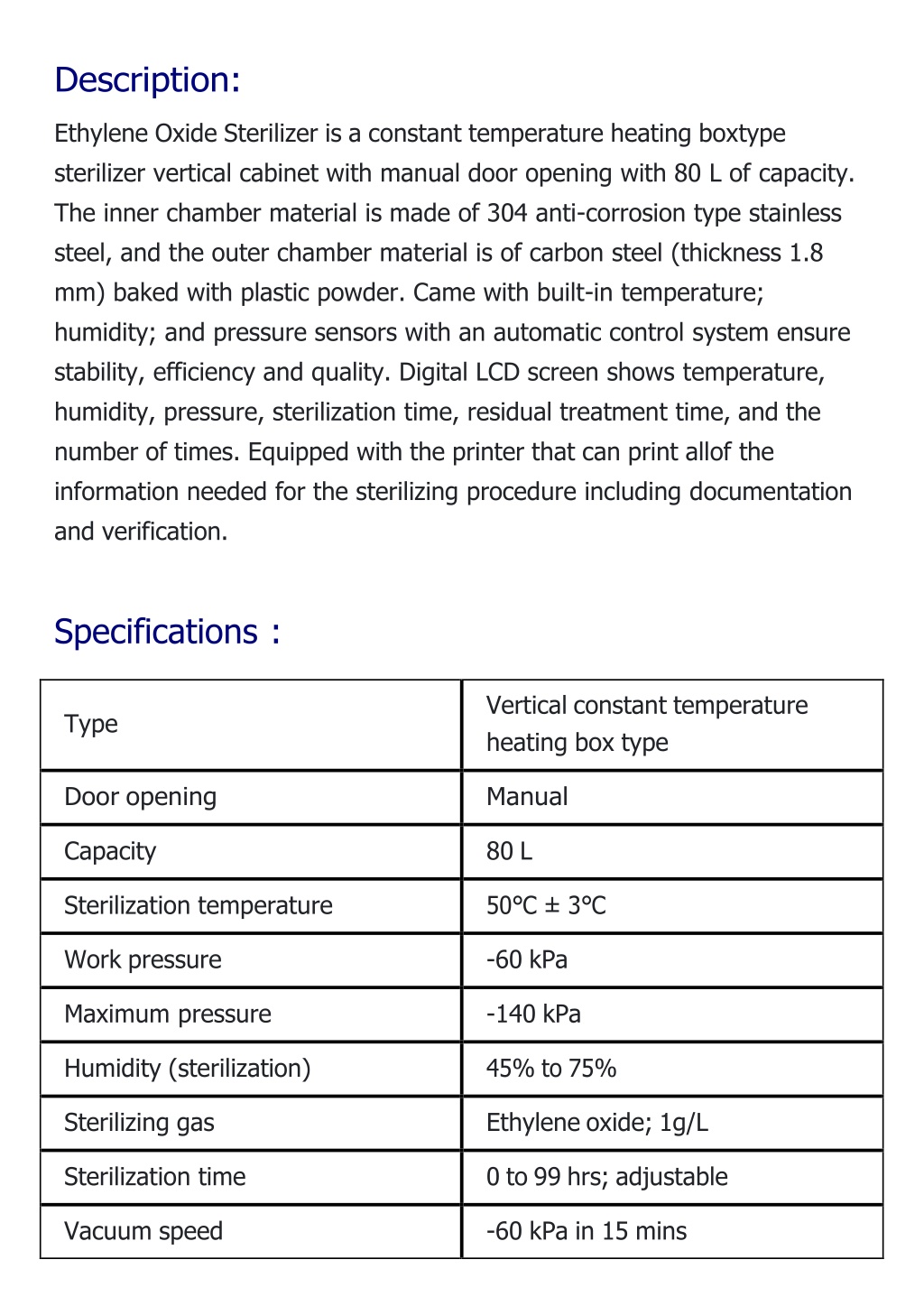

  2. Description: Ethylene Oxide Sterilizer is a constant temperature heating box type sterilizer vertical cabinet with manual door opening with 80 L of capacity. The inner chamber material is made of 304 anti-corrosion type stainless steel, and the outer chamber material is of carbon steel (thickness 1.8 mm) baked with plastic powder. Came with built-in temperature; humidity; and pressure sensors with an automatic control system ensure stability, efficiency and quality. Digital LCD screen shows temperature, humidity, pressure, sterilization time, residual treatment time, and the number of times. Equipped with the printer that can print all of the information needed for the sterilizing procedure including documentation and verification. Specifications : Vertical constant temperature heating box type Type Door opening Manual Capacity 80 L Sterilization temperature 50℃ ± 3℃ Work pressure -60 kPa Maximum pressure -140 kPa Humidity (sterilization) 45% to 75% Sterilizing gas Ethylene oxide; 1g/L Sterilization time 0 to 99 hrs; adjustable Vacuum speed -60 kPa in 15 mins

  3. Ventilation Automatic Ventilation cycle 3 times; 30 mins interval once Control system Automatic; one-button Display Digital LCD display Printer Yes Humidity sensor Yes; cavity humidity: >45% RH Pressure sensor Yes Yes; cavity temperature: 50℃ ± 3℃ (within precise range) Temperature sensor Vacuum system Oil free vacuum pump Electric; explosion-proof electric heating device Heating system Alarm system High/low temperature Over-voltage, over-temperature protection, residual air automatic processing system Protection features 304 anti-corrosion type stainless steel Sterilization room material Carbon steel (thickness 1.8mm) baked plastic powder Outer box material Wear parts Seal Caster Yes Power 1.5 kW Chamber dimensions (W x D x H) 600 x 320 x 450 mm Dimensions (W x D x H) 780 x 620 x 1100 mm

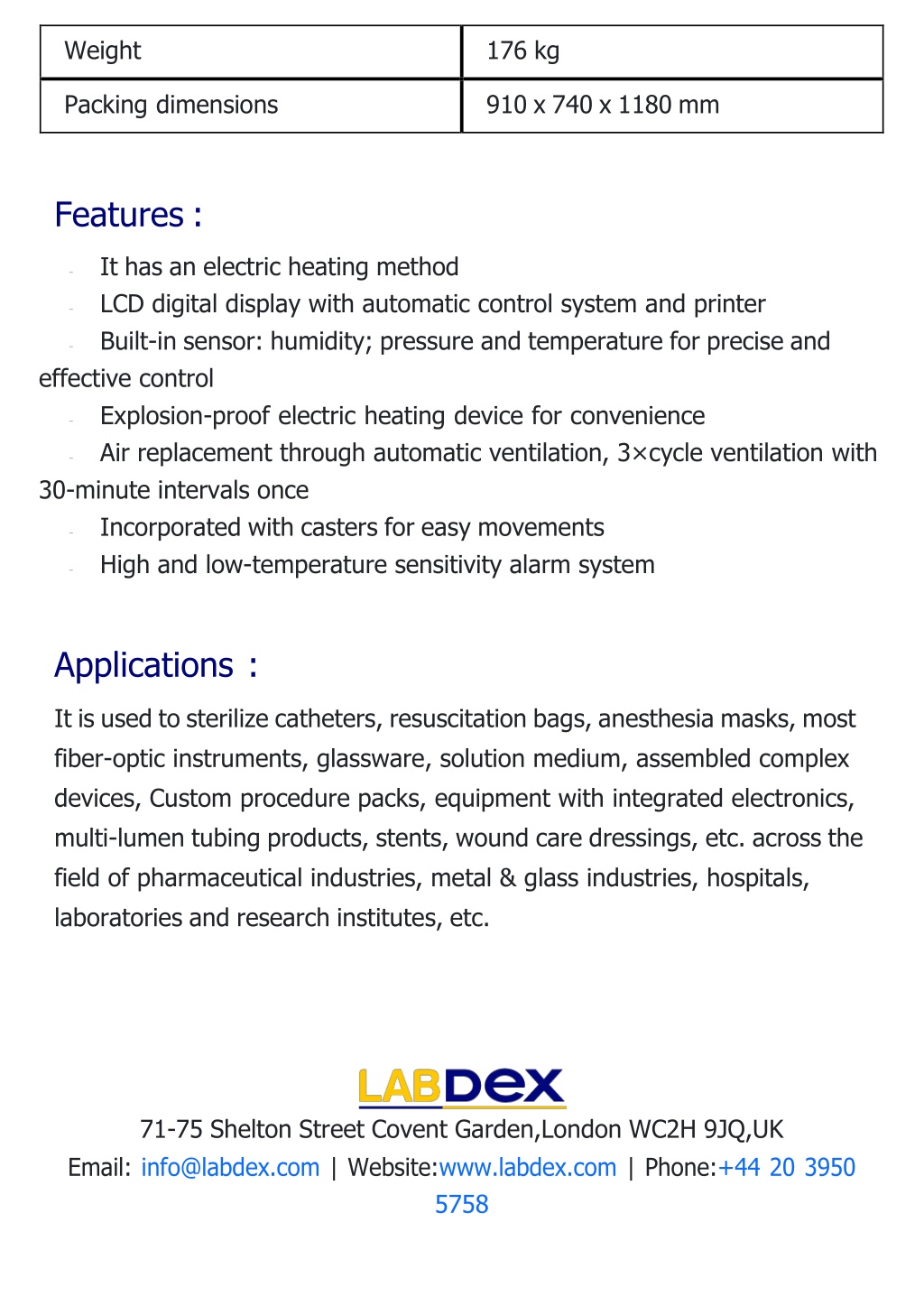

  4. Weight 176 kg Packing dimensions 910 x 740 x 1180 mm Features : It has an electric heating method LCD digital display with automatic control system and printer Built-in sensor: humidity; pressure and temperature for precise and effective control Explosion-proof electric heating device for convenience Air replacement through automatic ventilation, 3×cycle ventilation with 30-minute intervals once Incorporated with casters for easy movements High and low-temperature sensitivity alarm system ¨ ¨ ¨ ¨ ¨ ¨ ¨ Applications : It is used to sterilize catheters, resuscitation bags, anesthesia masks, most fiber-optic instruments, glassware, solution medium, assembled complex devices, Custom procedure packs, equipment with integrated electronics, multi-lumen tubing products, stents, wound care dressings, etc. across the field of pharmaceutical industries, metal & glass industries, hospitals, laboratories and research institutes, etc. 71-75 Shelton Street Covent Garden,London WC2H 9JQ,UK Email: info@labdex.com | Website:www.labdex.com | Phone:+44 20 3950 5758
