Air Shower

DESCRIPTION

Air Shower is a self-contained chamber that can be mounted in clean rooms and other applicable environments at entrances. It <br>reduces the particulate contaminants entering or leaving the clean room with spraying wind speed of 25 m/s. With an audio <br>and visual display prompt, showering time can be changed from 0 seconds to 99 seconds with 6 air flow nozzles employed for <br>contamination lift. Monitoring of different functions becomes simpler with a fully automatic microprocessor-controlled device.

Télécharger la présentation

Air Shower

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

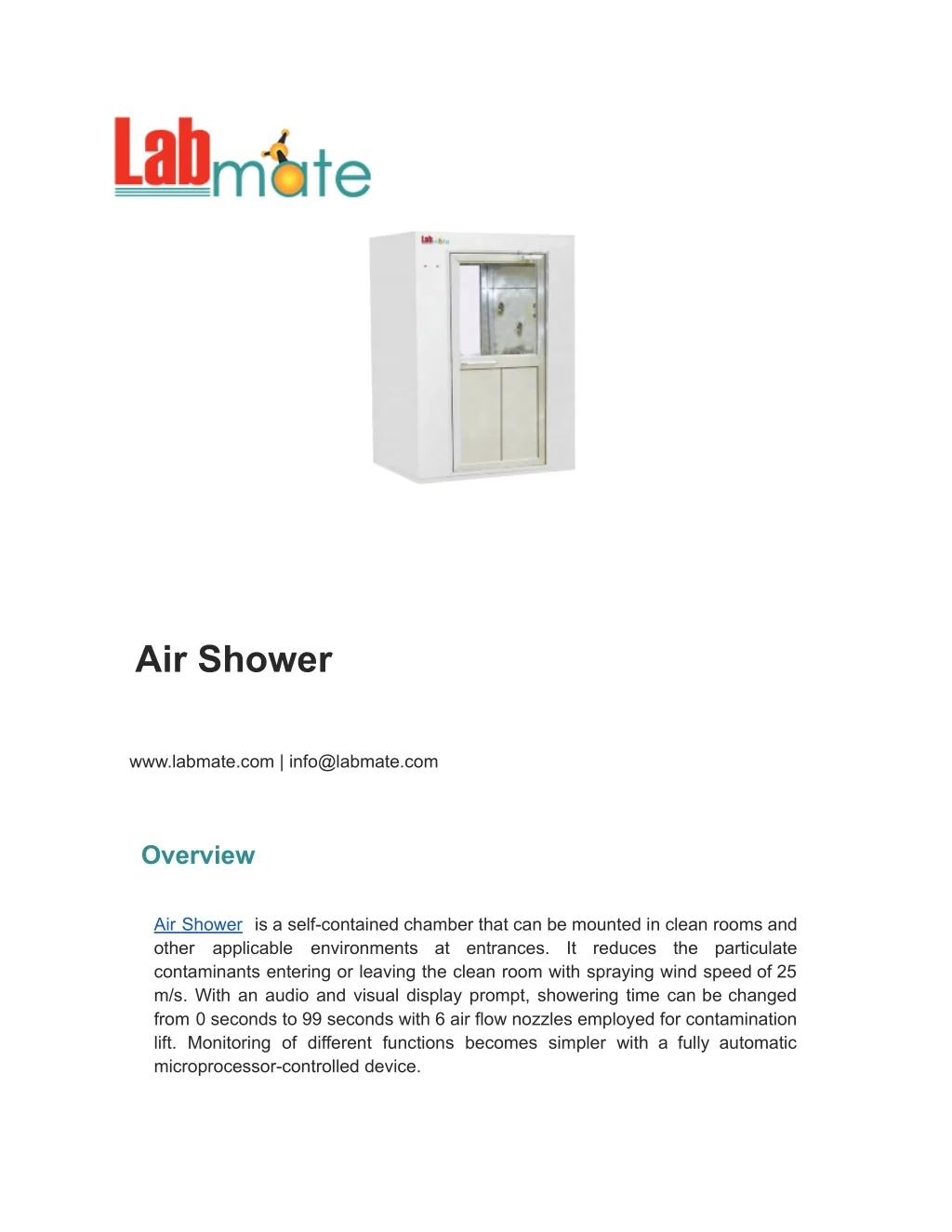

  1. Air Shower www.labmate.com | info@labmate.com Overview Air Shower is a self-contained chamber that can be mounted in clean rooms and other applicable environments at entrances. contaminants entering or leaving the clean room with spraying wind speed of 25 m/s. With an audio and visual display prompt, showering time can be changed from 0 seconds to 99 seconds with 6 air flow nozzles employed for contamination lift. Monitoring of different functions becomes simpler with a fully automatic microprocessor-controlled device. It reduces the particulate

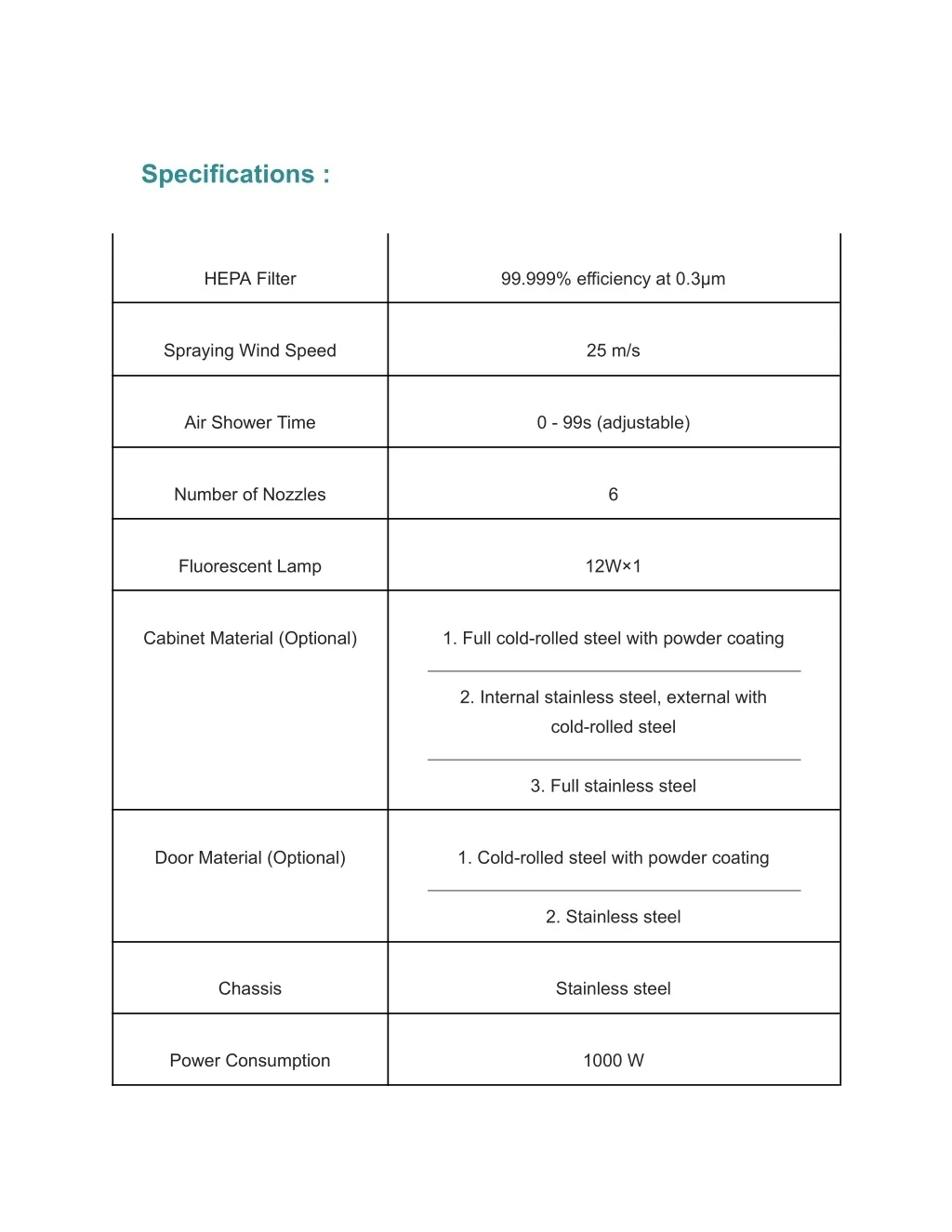

  2. Specifications : HEPA Filter 99.999% efficiency at 0.3µm Spraying Wind Speed 25 m/s Air Shower Time 0 - 99s (adjustable) Number of Nozzles 6 Fluorescent Lamp 12W×1 Cabinet Material (Optional) 1. Full cold-rolled steel with powder coating 2. Internal stainless steel, external with cold-rolled steel 3. Full stainless steel Door Material (Optional) 1. Cold-rolled steel with powder coating 2. Stainless steel Chassis Stainless steel Power Consumption 1000 W

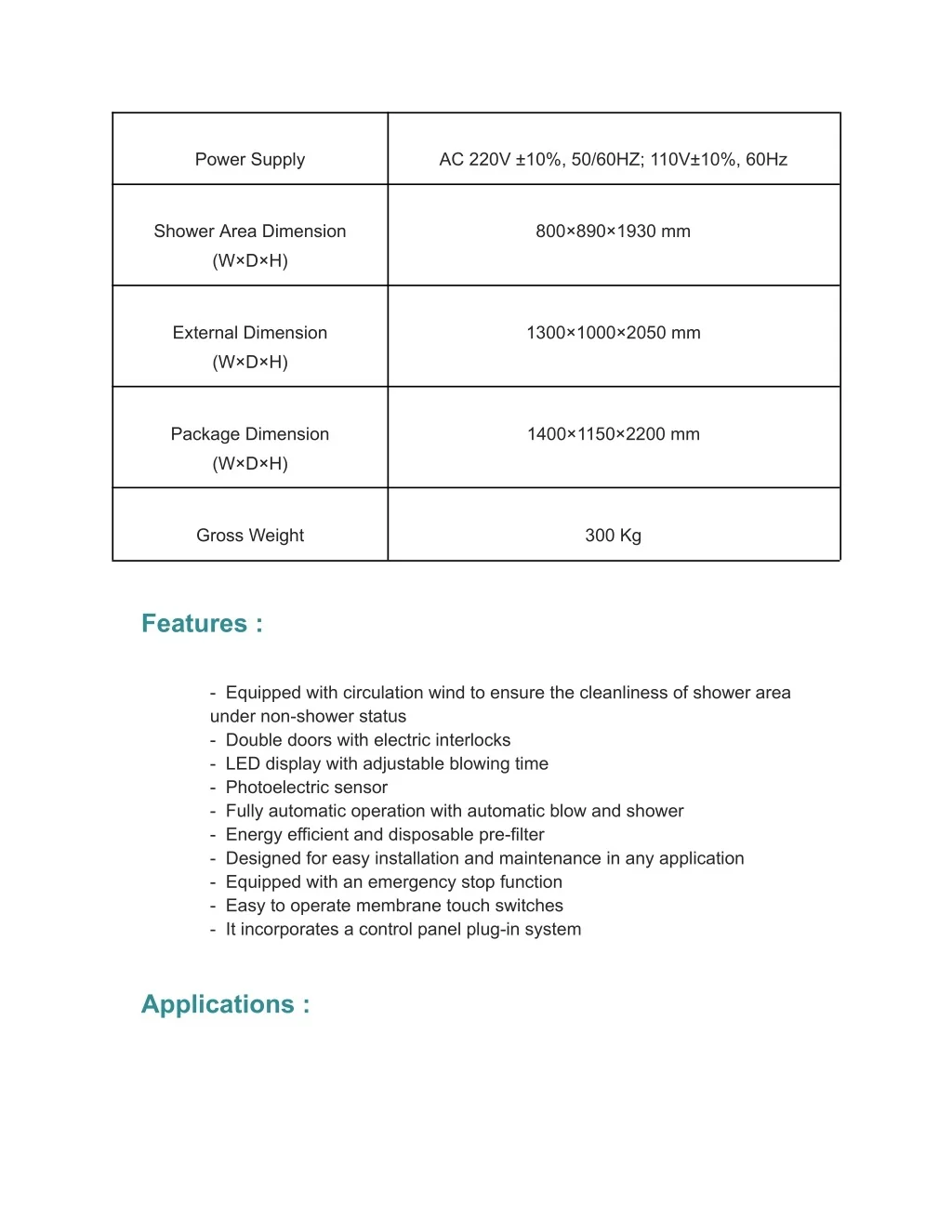

  3. Power Supply AC 220V ±10%, 50/60HZ; 110V±10%, 60Hz Shower Area Dimension 800×890×1930 mm (W×D×H) External Dimension 1300×1000×2050 mm (W×D×H) Package Dimension 1400×1150×2200 mm (W×D×H) Gross Weight 300 Kg Features : - Equipped with circulation wind to ensure the cleanliness of shower area under non-shower status - Double doors with electric interlocks - LED display with adjustable blowing time - Photoelectric sensor - Fully automatic operation with automatic blow and shower - Energy efficient and disposable pre-filter - Designed for easy installation and maintenance in any application - Equipped with an emergency stop function - Easy to operate membrane touch switches - It incorporates a control panel plug-in system Applications :

  4. Used in pharmaceutical and lab animal research applications, electronic, biological manufacturing industry, food processing, space and air, automobile manufacturing industries, etc. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
