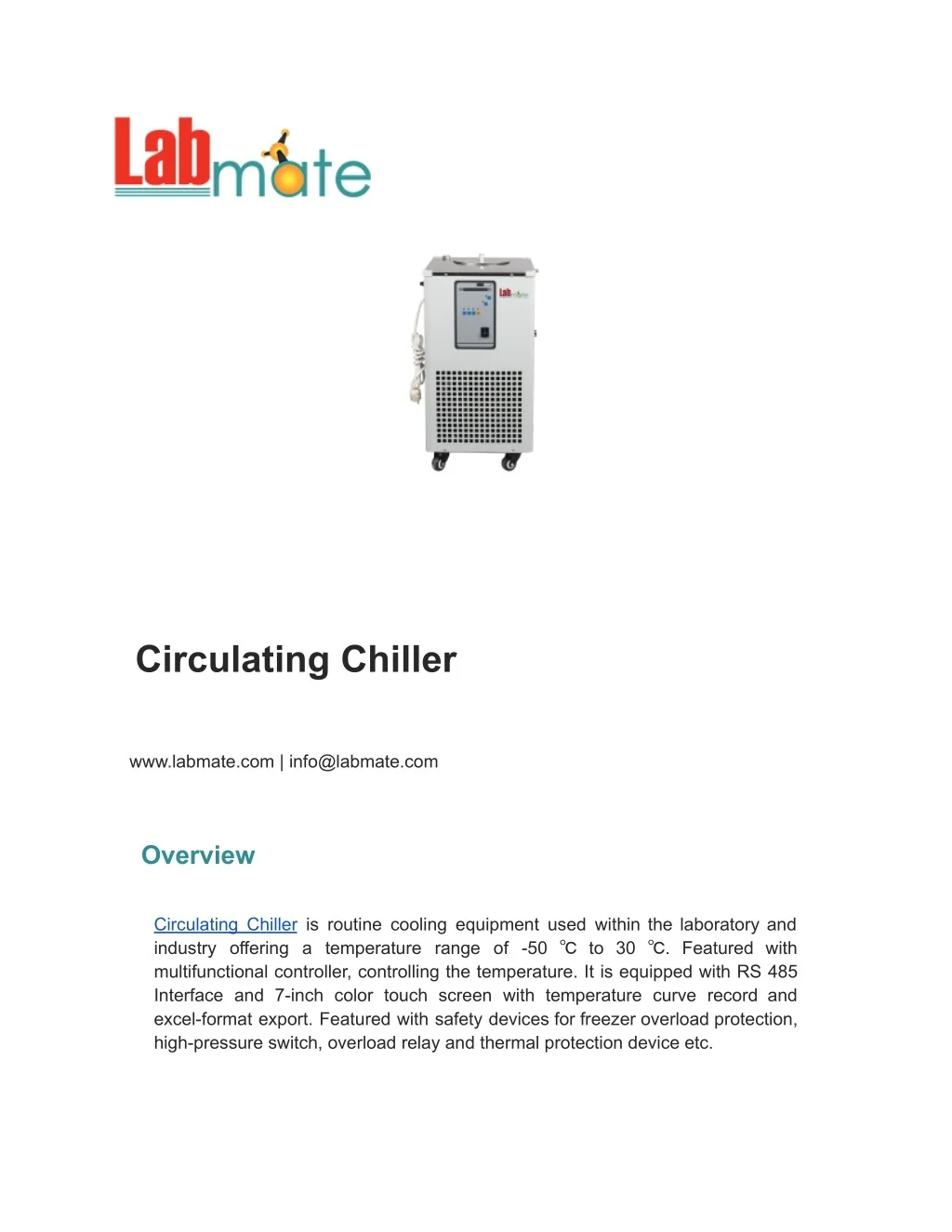

1. Circulating Chiller www.labmate.com | info@labmate.com Overview Circulating Chiller is routine cooling equipment used within the laboratory and industry offering a temperature range of -50 ℃ to 30 ℃. Featured with multifunctional controller, controlling the temperature. It is equipped with RS 485 Interface and 7-inch color touch screen with temperature curve record and excel-format export. Featured with safety devices for freezer overload protection, high-pressure switch, overload relay and thermal protection device etc.

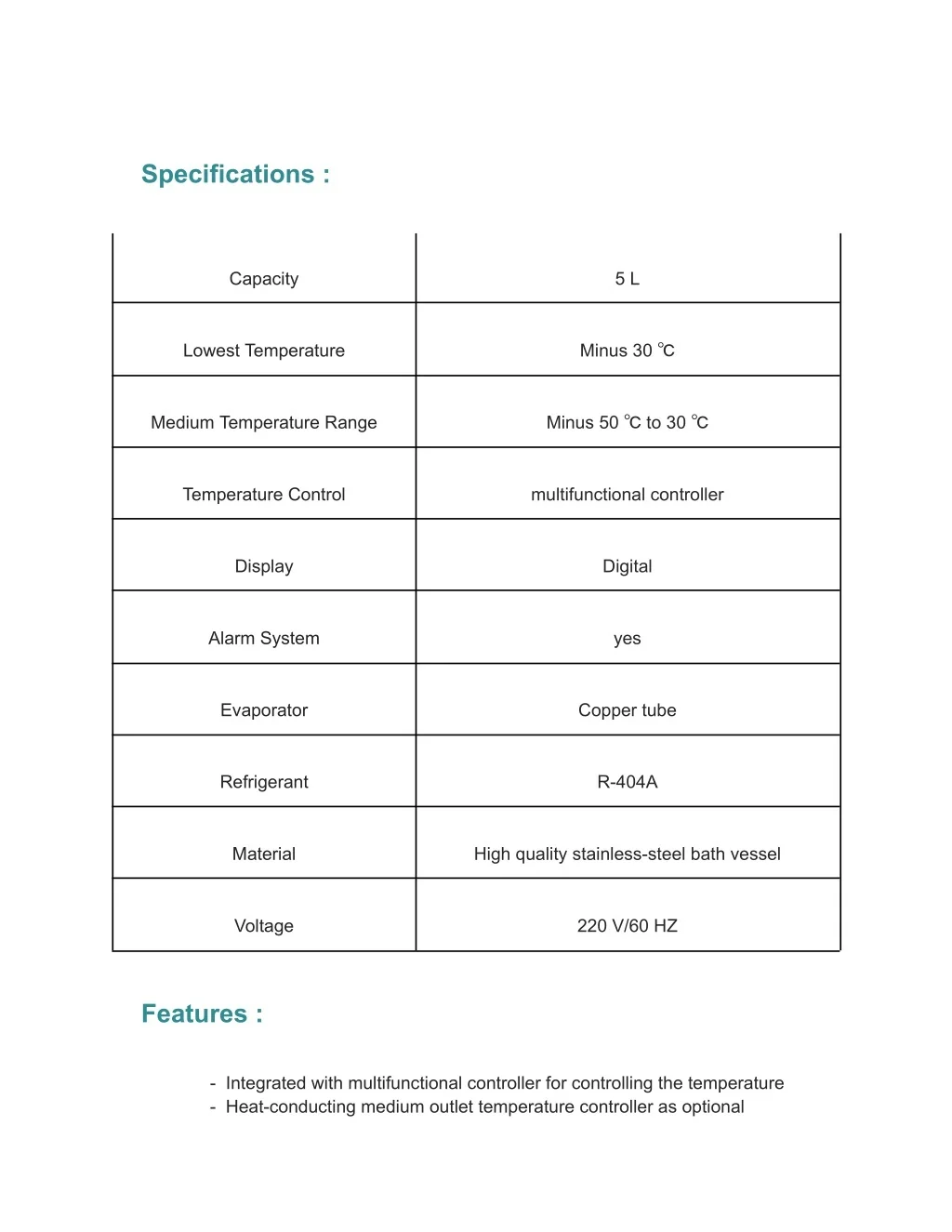

2. Specifications : Capacity 5 L Lowest Temperature Minus 30 ℃ Medium Temperature Range Minus 50 ℃ to 30 ℃ Temperature Control multifunctional controller Display Digital Alarm System yes Evaporator Copper tube Refrigerant R-404A Material High quality stainless-steel bath vessel Voltage 220 V/60 HZ Features : - Integrated with multifunctional controller for controlling the temperature - Heat-conducting medium outlet temperature controller as optional

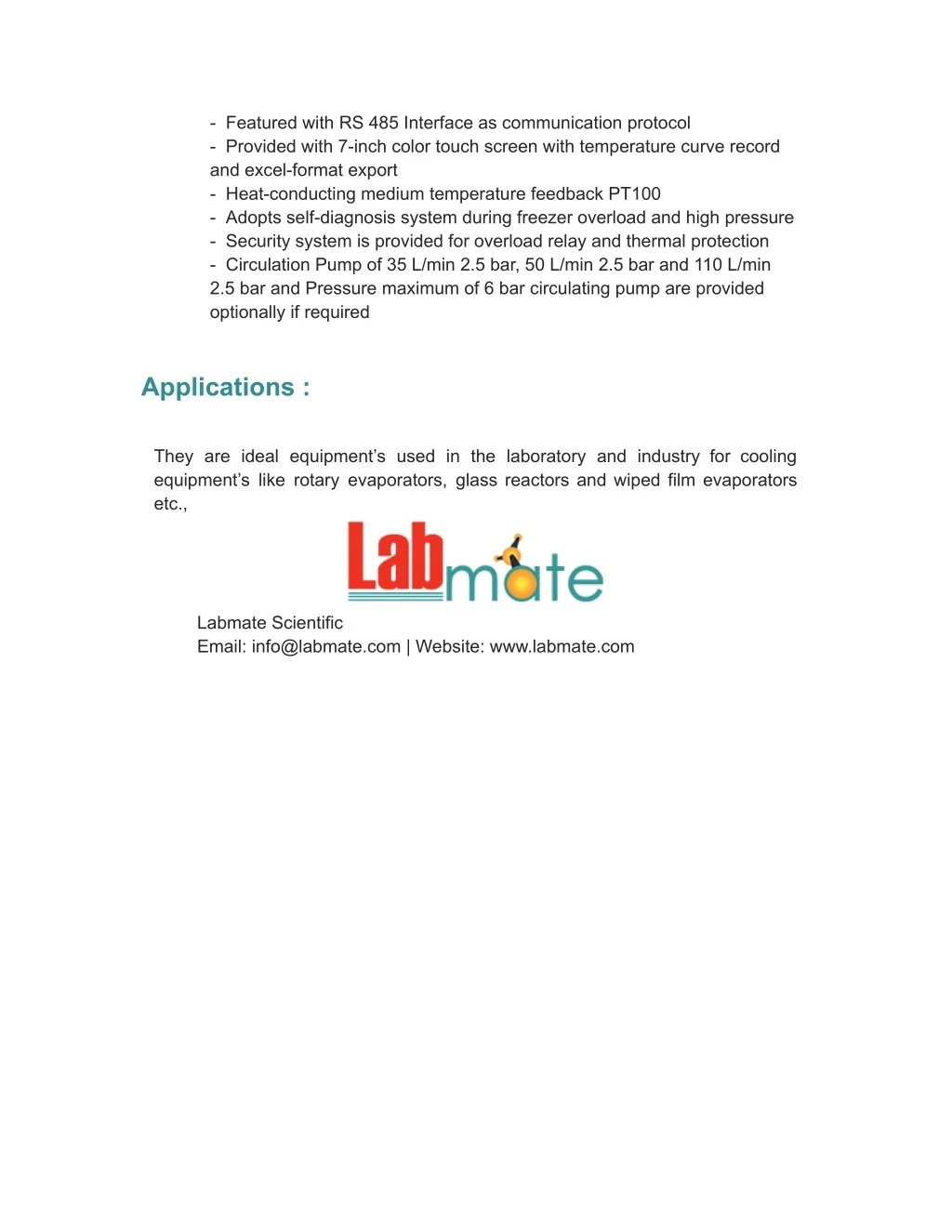

3. - Featured with RS 485 Interface as communication protocol - Provided with 7-inch color touch screen with temperature curve record and excel-format export - Heat-conducting medium temperature feedback PT100 - Adopts self-diagnosis system during freezer overload and high pressure - Security system is provided for overload relay and thermal protection - Circulation Pump of 35 L/min 2.5 bar, 50 L/min 2.5 bar and 110 L/min 2.5 bar and Pressure maximum of 6 bar circulating pump are provided optionally if required Applications : They are ideal equipment’s used in the laboratory and industry for cooling equipment’s like rotary evaporators, glass reactors and wiped film evaporators etc., Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
