Freeze Dryer

DESCRIPTION

<br>Freeze Dryer is a PLC and PID microprocessor controlled and designed to process low temperature lyophilization in small scale production processes. <br>Equipped with 2 Kg water absorption capacity condenser with shelf temperature ranges from u201050u2103 to 60u2103. Gas circuits ensure strong water capturing <br>and faster freeze drying. Embedded with PLC and PID control systems. Digital display indicates lyophilized curve and history curve. <br>

Télécharger la présentation

Freeze Dryer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

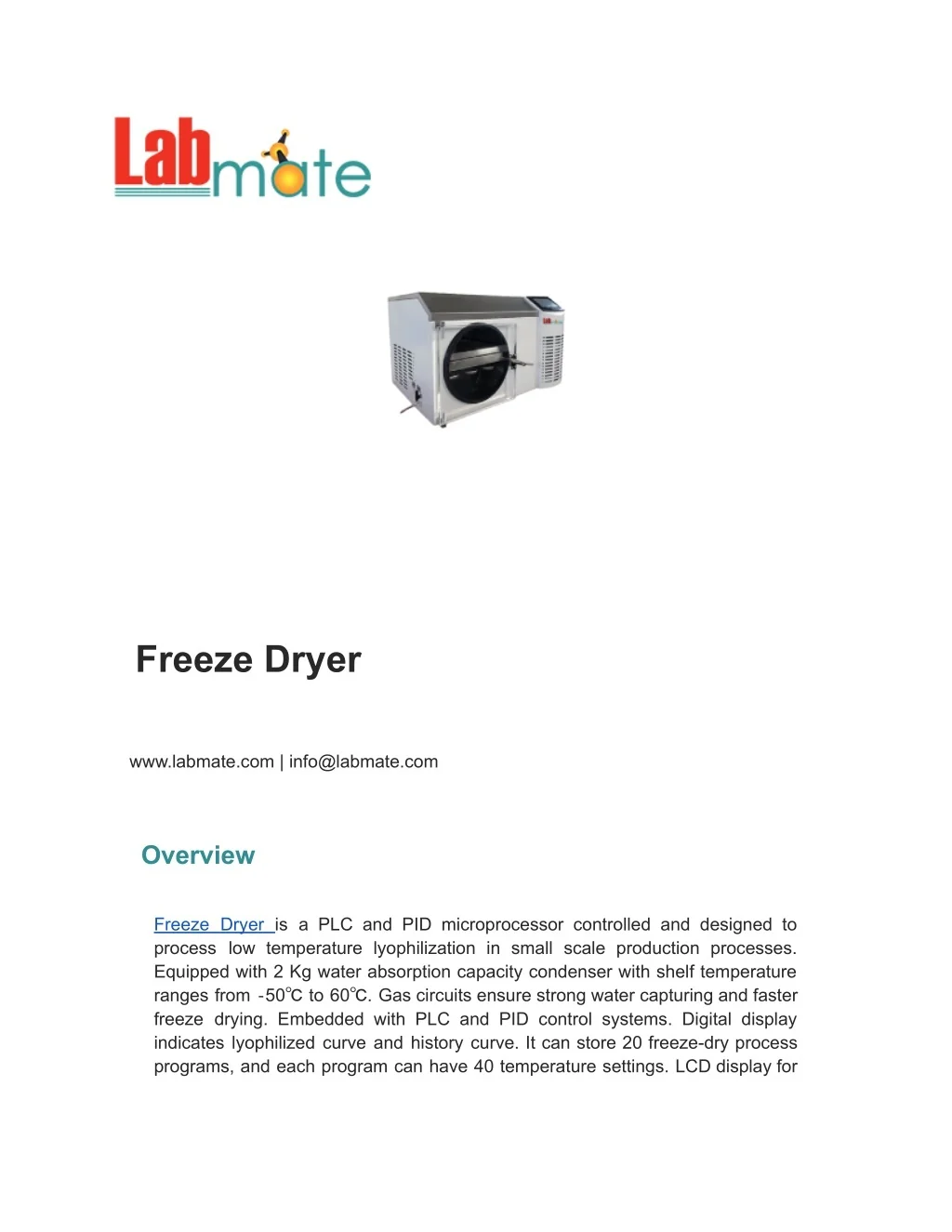

  1. Freeze Dryer www.labmate.com | info@labmate.com Overview Freeze Dryer is a PLC and PID microprocessor controlled and designed to process low temperature lyophilization in small scale production processes. Equipped with 2 Kg water absorption capacity condenser with shelf temperature ranges from ‐50℃ to 60℃. Gas circuits ensure strong water capturing and faster freeze drying. Embedded with PLC and PID control systems. Digital display indicates lyophilized curve and history curve. It can store 20 freeze-dry process programs, and each program can have 40 temperature settings. LCD display for

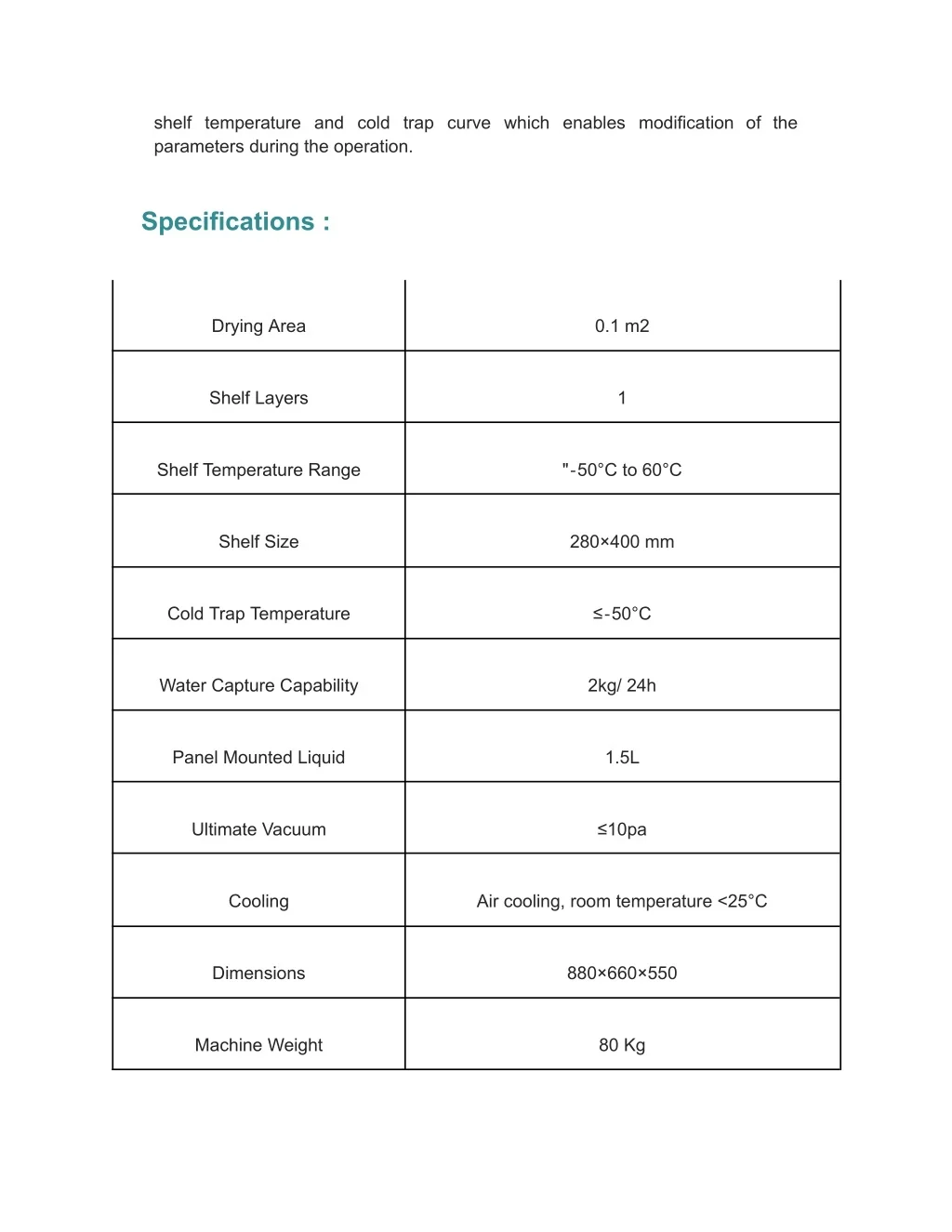

  2. shelf temperature and cold trap curve which enables modification of the parameters during the operation. Specifications : Drying Area 0.1 m2 Shelf Layers 1 Shelf Temperature Range "‐50°C to 60°C Shelf Size 280×400 mm Cold Trap Temperature ≤‐50°C Water Capture Capability 2kg/ 24h Panel Mounted Liquid 1.5L Ultimate Vacuum ≤10pa Cooling Air cooling, room temperature <25°C Dimensions 880×660×550 Machine Weight 80 Kg

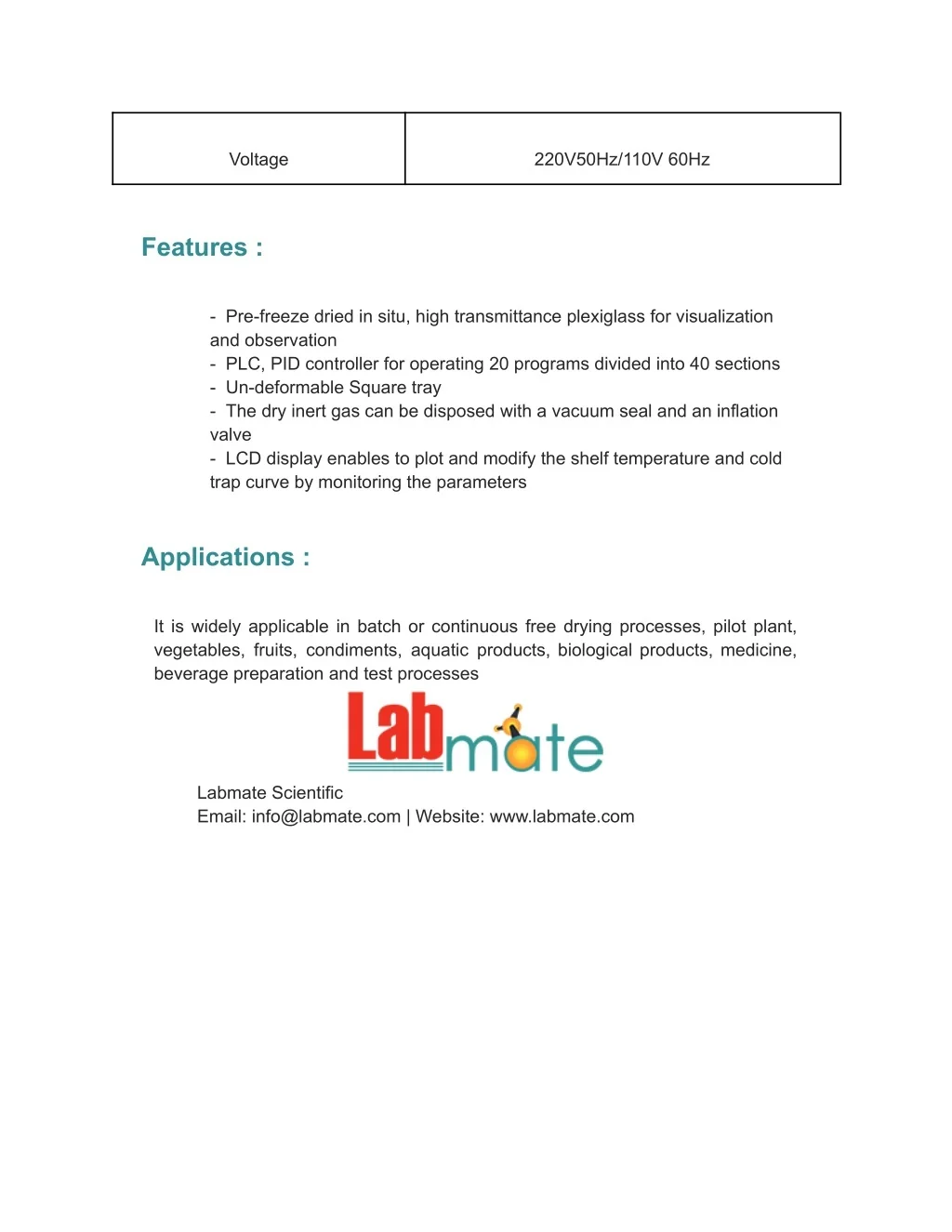

  3. Voltage 220V50Hz/110V 60Hz Features : - Pre-freeze dried in situ, high transmittance plexiglass for visualization and observation - PLC, PID controller for operating 20 programs divided into 40 sections - Un-deformable Square tray - The dry inert gas can be disposed with a vacuum seal and an inflation valve - LCD display enables to plot and modify the shelf temperature and cold trap curve by monitoring the parameters Applications : It is widely applicable in batch or continuous free drying processes, pilot plant, vegetables, fruits, condiments, aquatic products, biological products, medicine, beverage preparation and test processes Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
