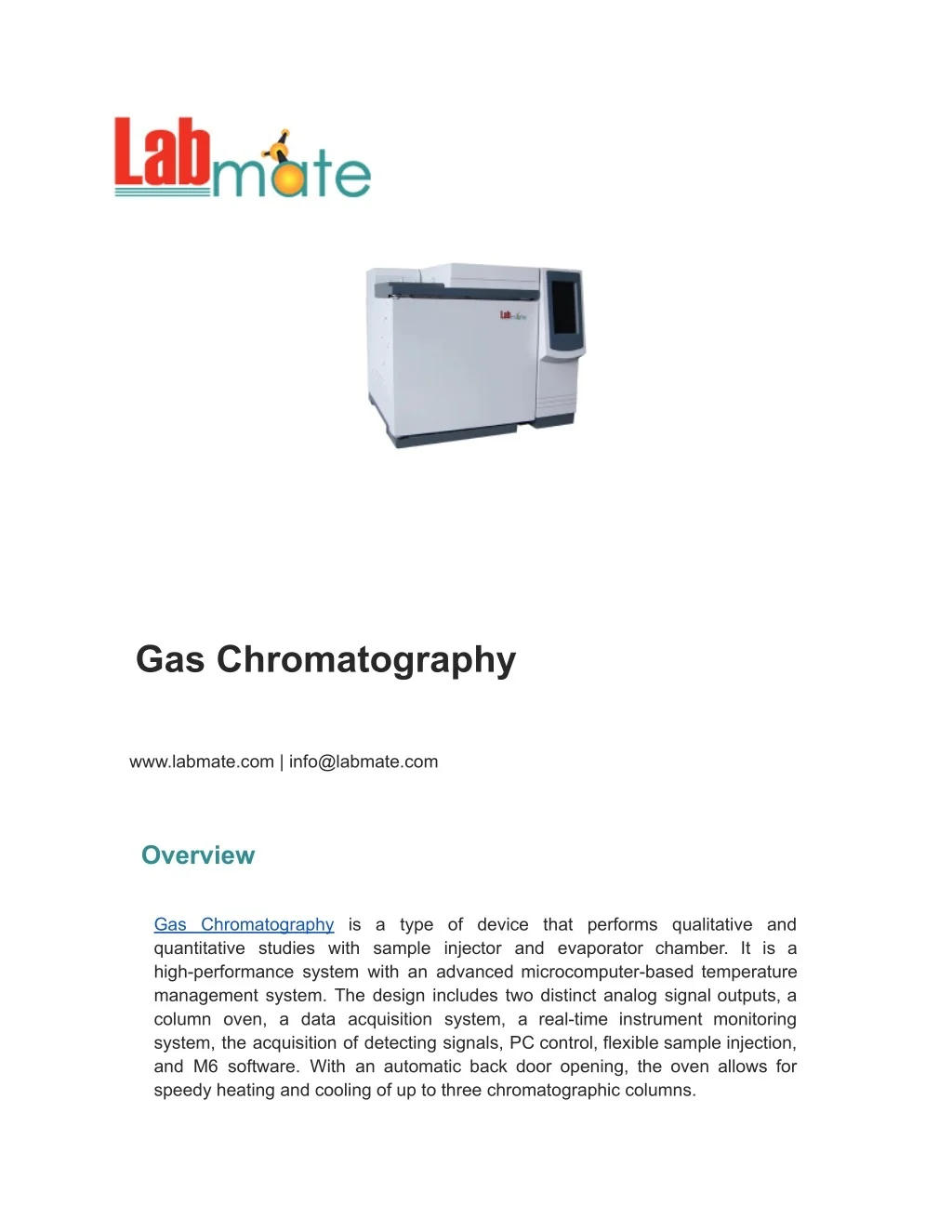

1. Gas Chromatography www.labmate.com | info@labmate.com Overview Gas Chromatography is a type of device that performs qualitative and quantitative studies with sample injector and evaporator chamber. It is a high-performance system with an advanced microcomputer-based temperature management system. The design includes two distinct analog signal outputs, a column oven, a data acquisition system, a real-time instrument monitoring system, the acquisition of detecting signals, PC control, flexible sample injection, and M6 software. With an automatic back door opening, the oven allows for speedy heating and cooling of up to three chromatographic columns.

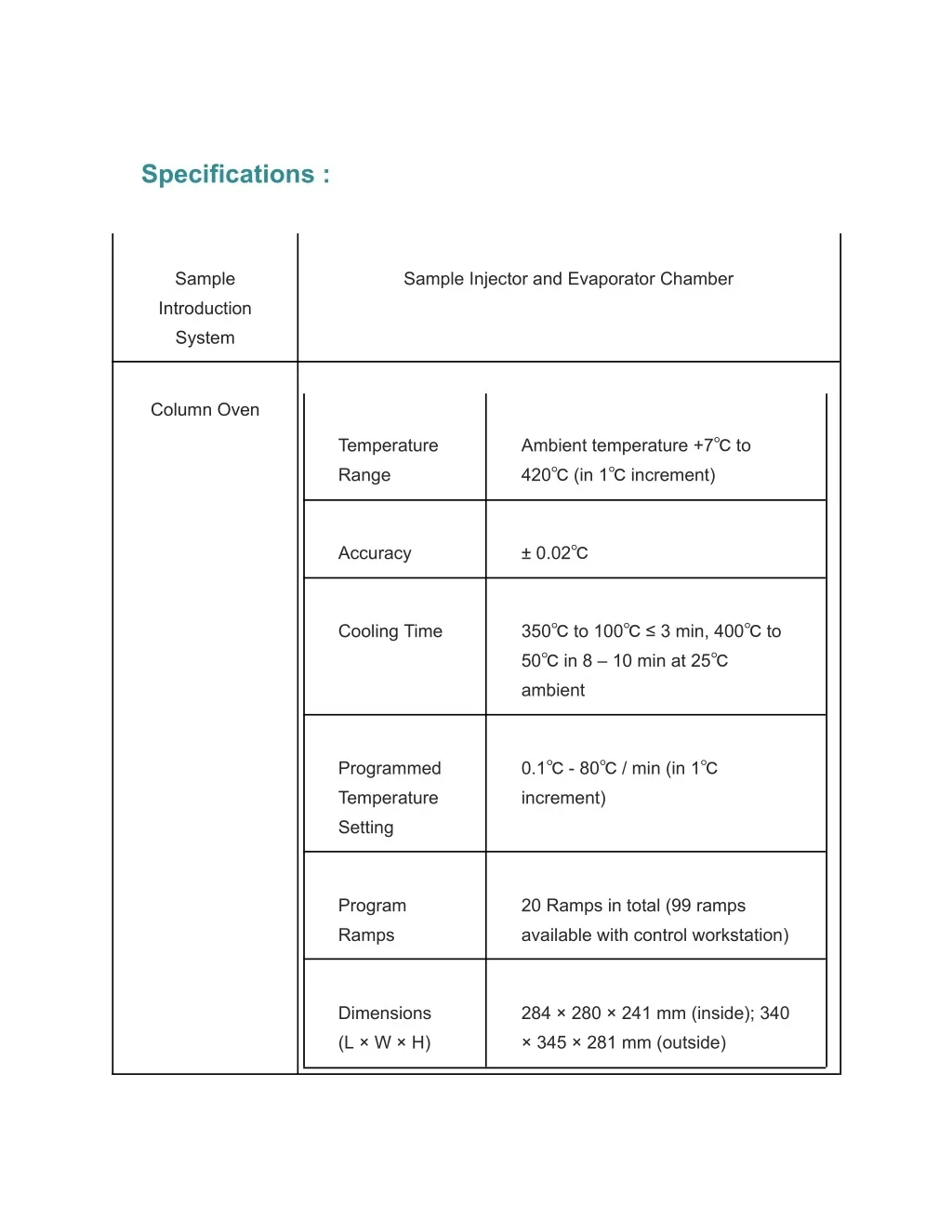

2. Specifications : Sample Sample Injector and Evaporator Chamber Introduction System Column Oven Temperature Ambient temperature +7℃ to Range 420℃ (in 1℃ increment) Accuracy ± 0.02℃ Cooling Time 350℃ to 100℃ ≤ 3 min, 400℃ to 50℃ in 8 – 10 min at 25℃ ambient Programmed 0.1℃ - 80℃ / min (in 1℃ Temperature increment) Setting Program 20 Ramps in total (99 ramps Ramps available with control workstation) Dimensions 284 × 280 × 241 mm (inside); 340 (L × W × H) × 345 × 281 mm (outside)

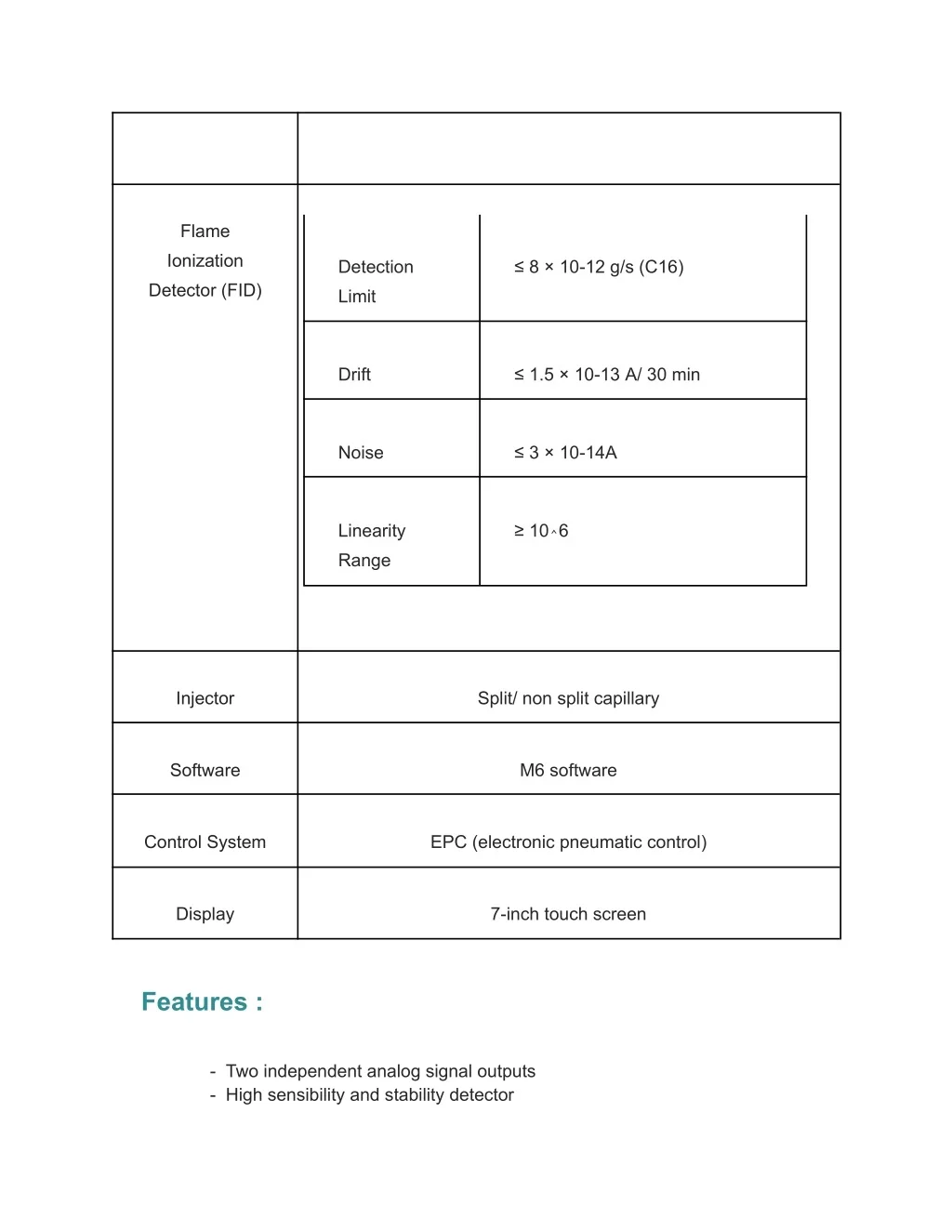

3. Flame Ionization Detection ≤ 8 × 10-12 g/s (C16) Detector (FID) Limit Drift ≤ 1.5 × 10-13 A/ 30 min Noise ≤ 3 × 10-14A ≥ 10⌃6 Linearity Range Injector Split/ non split capillary Software M6 software Control System EPC (electronic pneumatic control) Display 7-inch touch screen Features : - Two independent analog signal outputs - High sensibility and stability detector

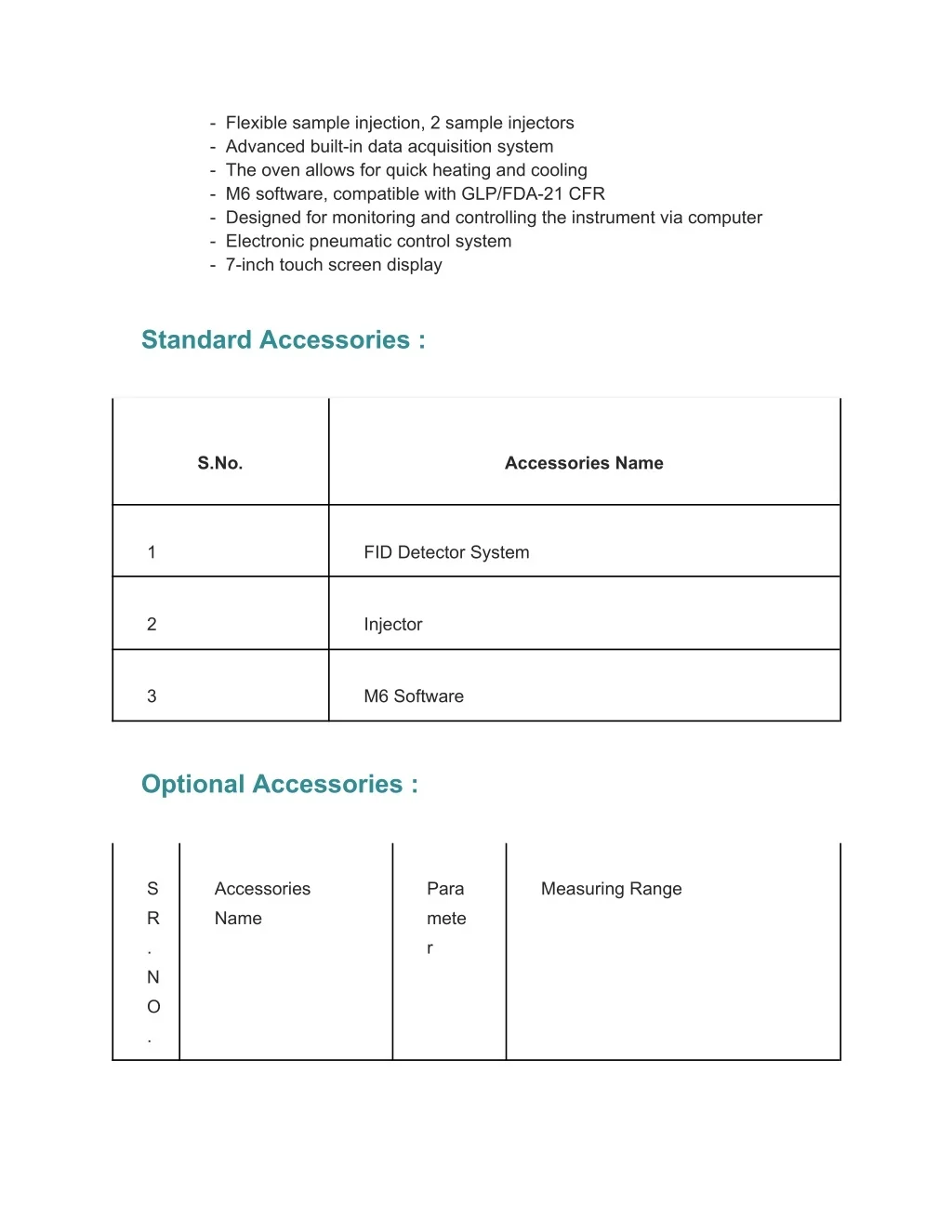

4. - Flexible sample injection, 2 sample injectors - Advanced built-in data acquisition system - The oven allows for quick heating and cooling - M6 software, compatible with GLP/FDA-21 CFR - Designed for monitoring and controlling the instrument via computer - Electronic pneumatic control system - 7-inch touch screen display Standard Accessories : S.No. Accessories Name 1 FID Detector System 2 Injector 3 M6 Software Optional Accessories : S Accessories Para Measuring Range R Name mete . r N O .

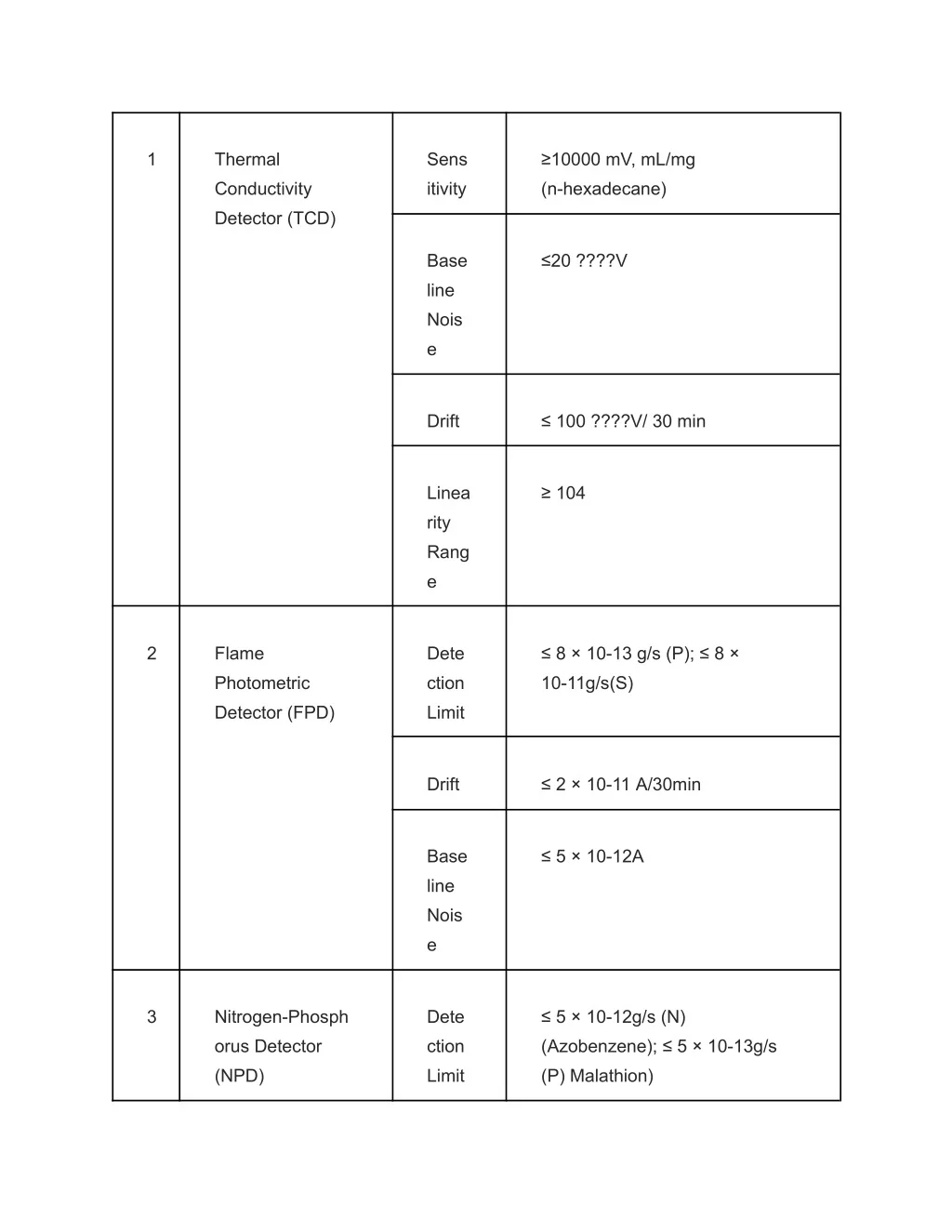

5. 1 Thermal Sens ≥10000 mV, mL/mg Conductivity itivity (n-hexadecane) Detector (TCD) Base ≤20 ????V line Nois e Drift ≤ 100 ????V/ 30 min Linea ≥ 104 rity Rang e 2 Flame Dete ≤ 8 × 10-13 g/s (P); ≤ 8 × Photometric ction 10-11g/s(S) Detector (FPD) Limit Drift ≤ 2 × 10-11 A/30min Base ≤ 5 × 10-12A line Nois e 3 Nitrogen-Phosph Dete ≤ 5 × 10-12g/s (N) orus Detector ction (Azobenzene); ≤ 5 × 10-13g/s (NPD) Limit (P) Malathion)

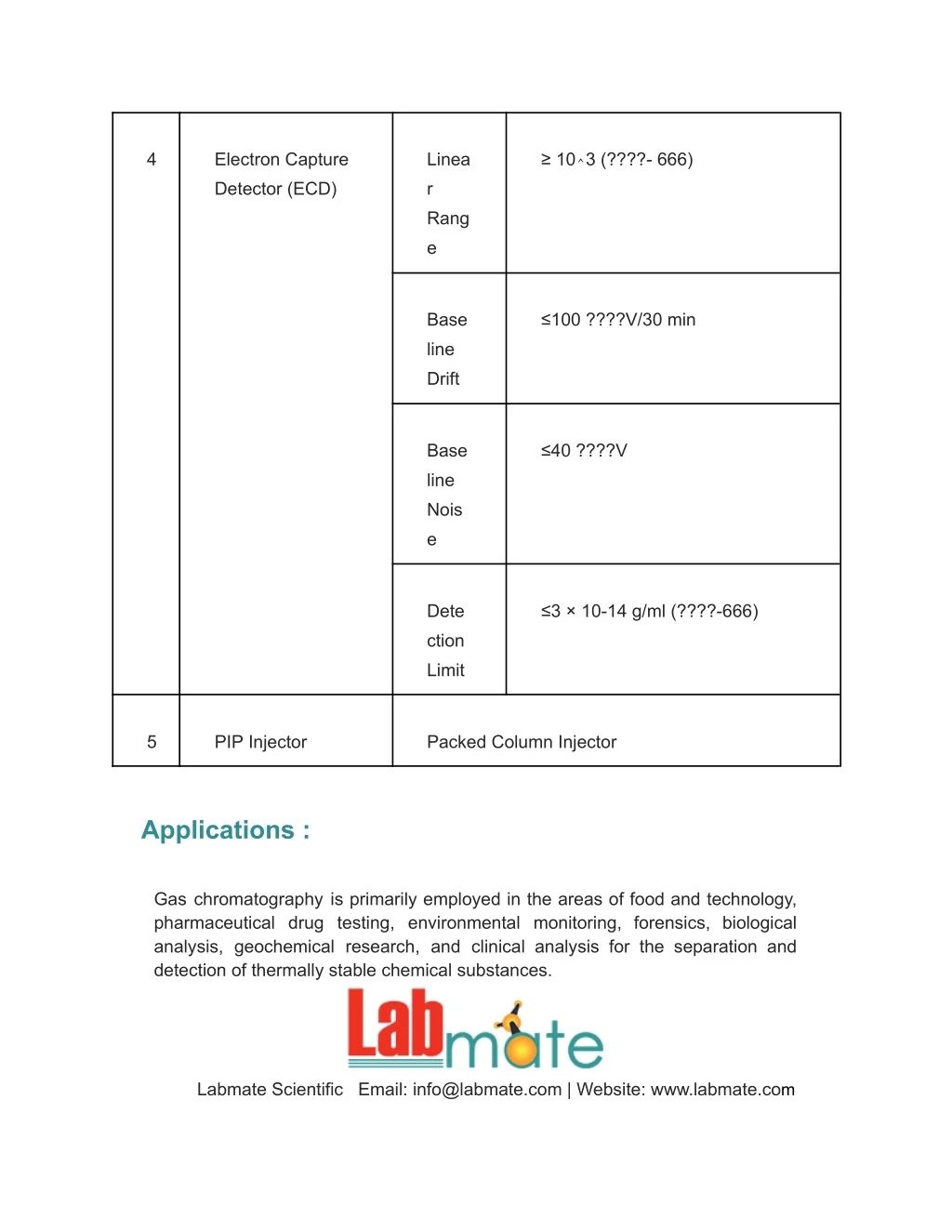

6. ≥ 10⌃3 (????- 666) 4 Electron Capture Linea Detector (ECD) r Rang e Base ≤100 ????V/30 min line Drift Base ≤40 ????V line Nois e Dete ≤3 × 10-14 g/ml (????-666) ction Limit 5 PIP Injector Packed Column Injector Applications : Gas chromatography is primarily employed in the areas of food and technology, pharmaceutical drug testing, environmental monitoring, forensics, biological analysis, geochemical research, and clinical analysis for the separation and detection of thermally stable chemical substances. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
