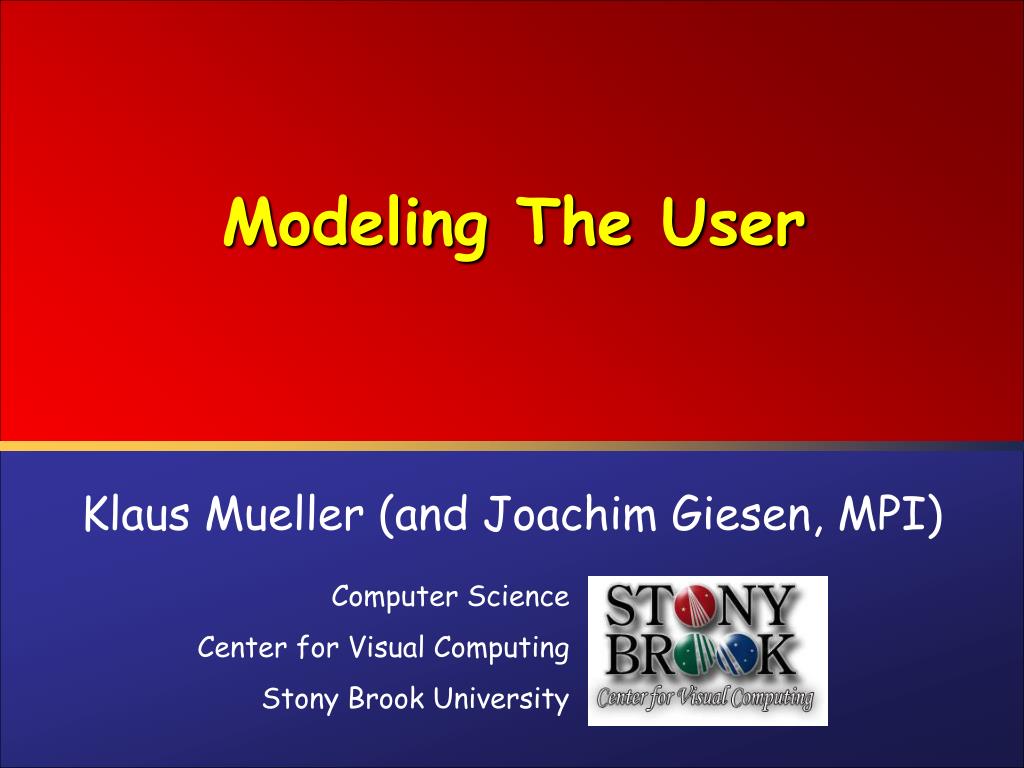

  1. Modeling The User Klaus Mueller (and Joachim Giesen, MPI) Klaus Mueller Computer Science Center for Visual Computing Stony Brook University

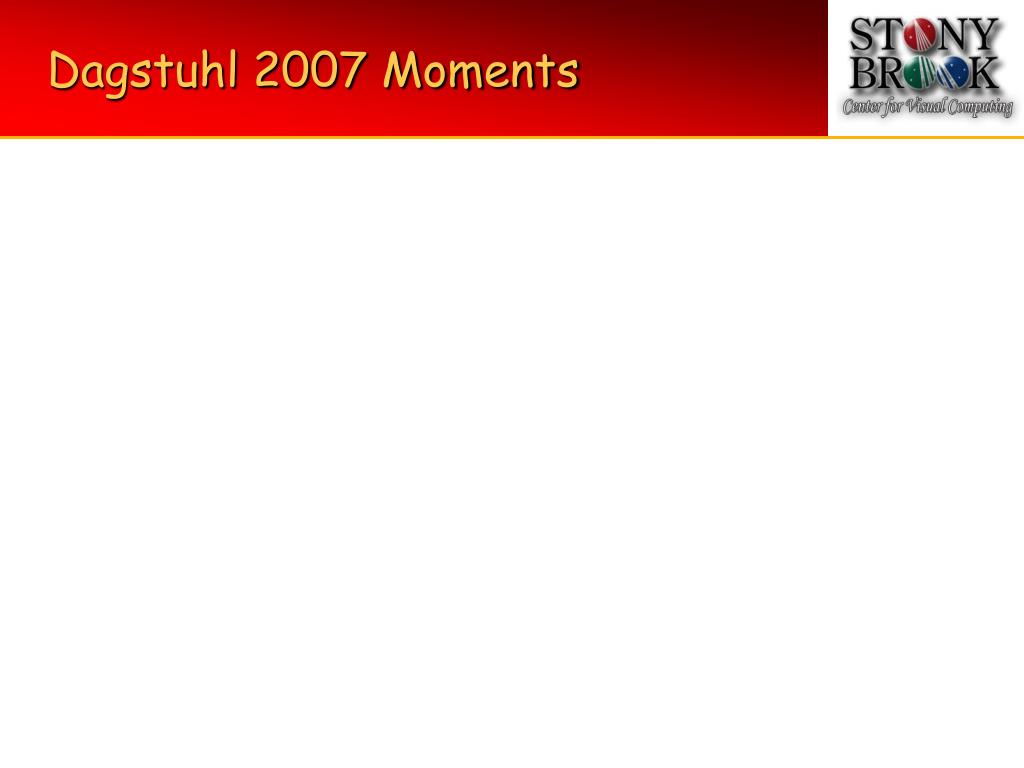

  2. Dagstuhl 2007 Moments

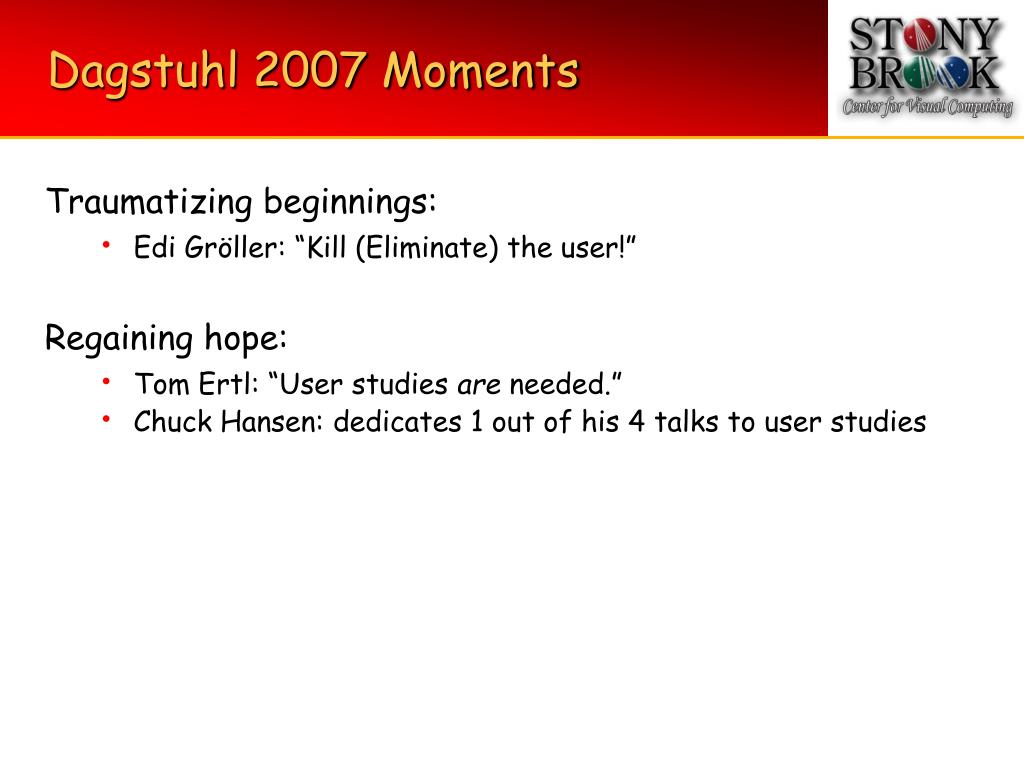

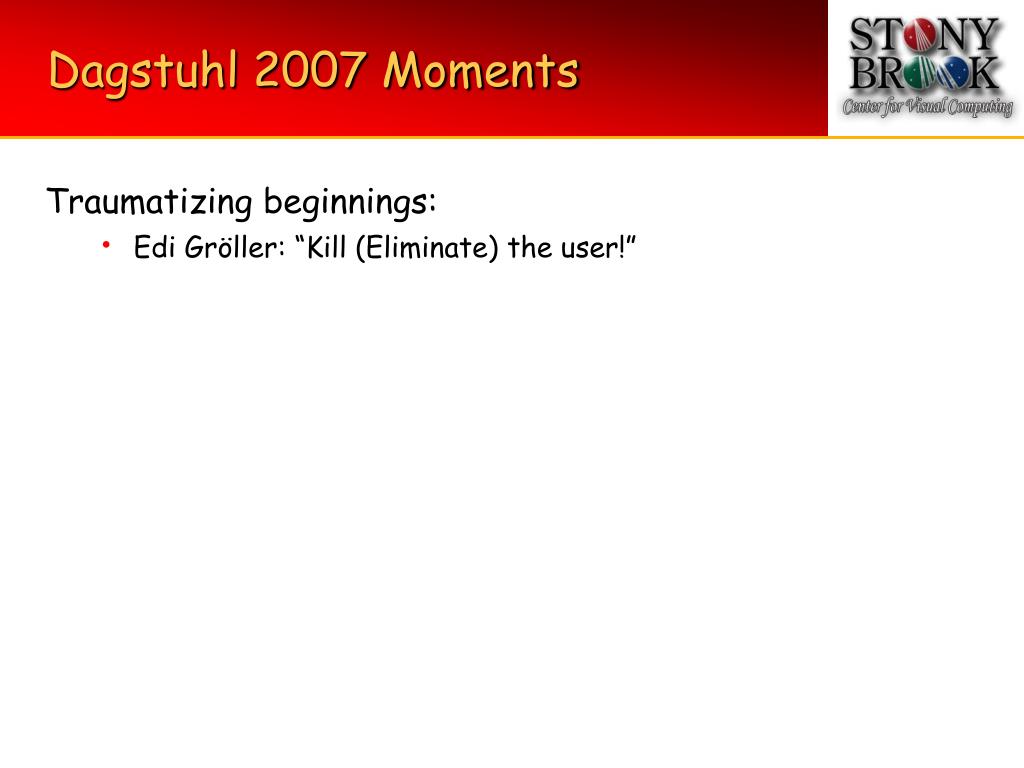

  3. Dagstuhl 2007 Moments • Traumatizing beginnings: • Edi Gröller: “Kill (Eliminate) the user!”

  4. Dagstuhl 2007 Moments • Traumatizing beginnings: • Edi Gröller: “Kill (Eliminate) the user!” • Regaining hope: • Tom Ertl: “User studies are needed.” • Chuck Hansen: dedicates 1 out of his 4 talks to user studies

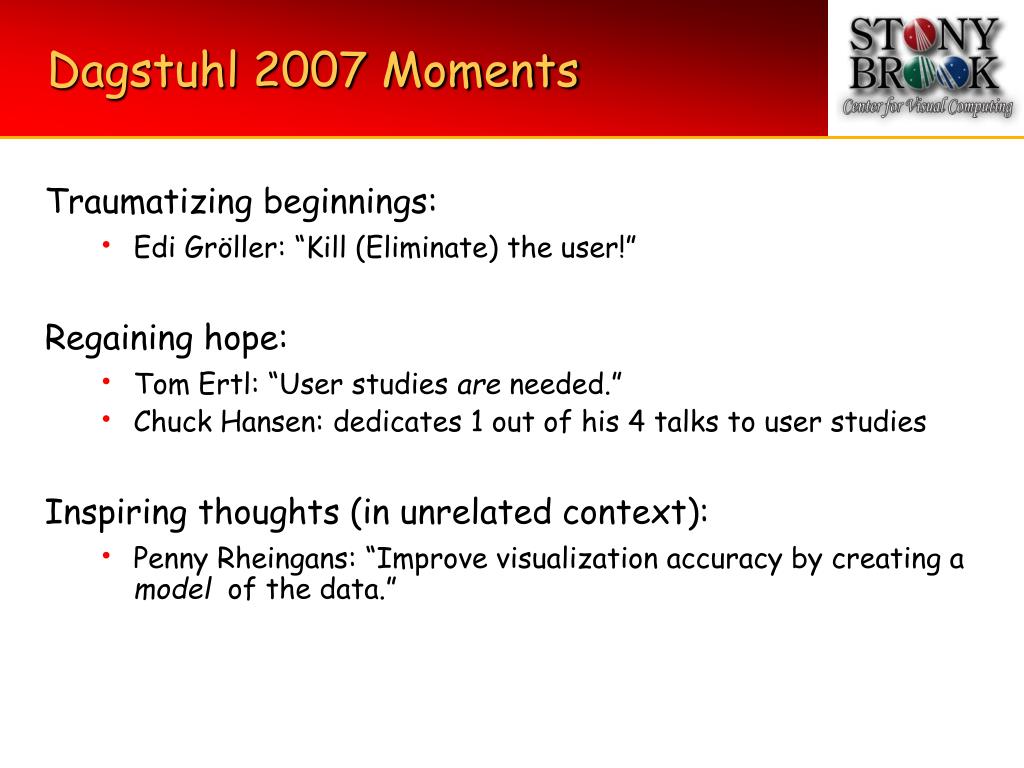

  5. Dagstuhl 2007 Moments • Traumatizing beginnings: • Edi Gröller: “Kill (Eliminate) the user!” • Regaining hope: • Tom Ertl: “User studies are needed.” • Chuck Hansen: dedicates 1 out of his 4 talks to user studies • Inspiring thoughts (in unrelated context): • Penny Rheingans: “Improve visualization accuracy by creating a model of the data.”

  6. Overall Tone: • User studies are sorely needed, but hard to do!!

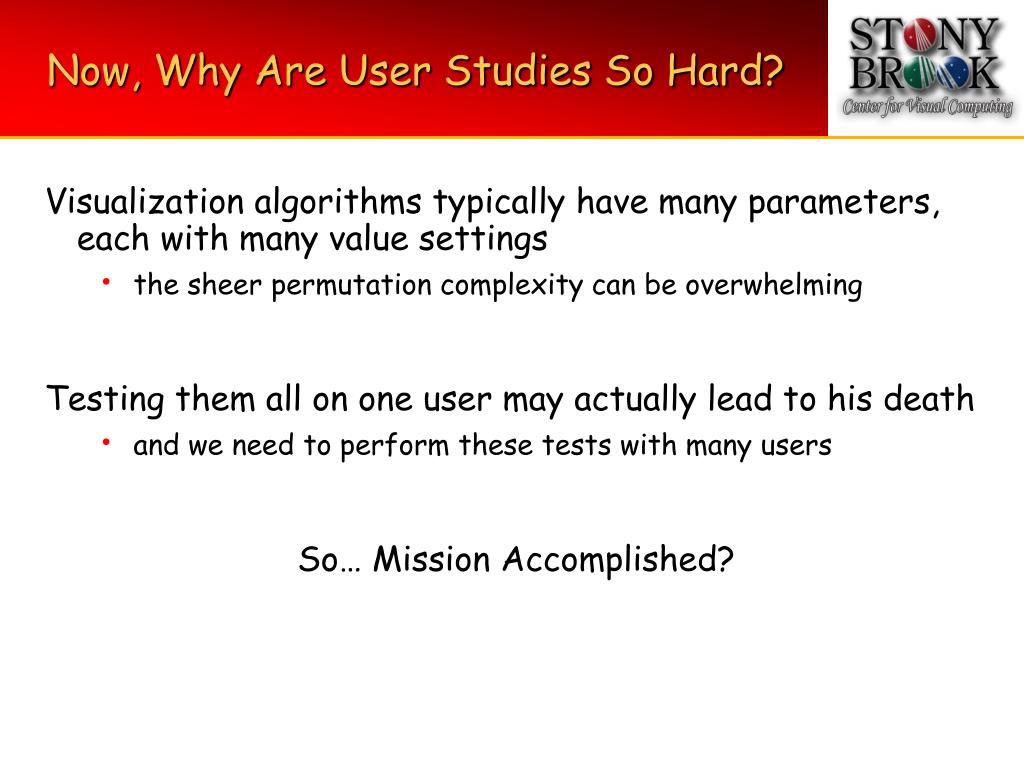

  7. Now, Why Are User Studies So Hard? • Visualization algorithms typically have many parameters, each with many value settings • the sheer permutation complexity can be overwhelming

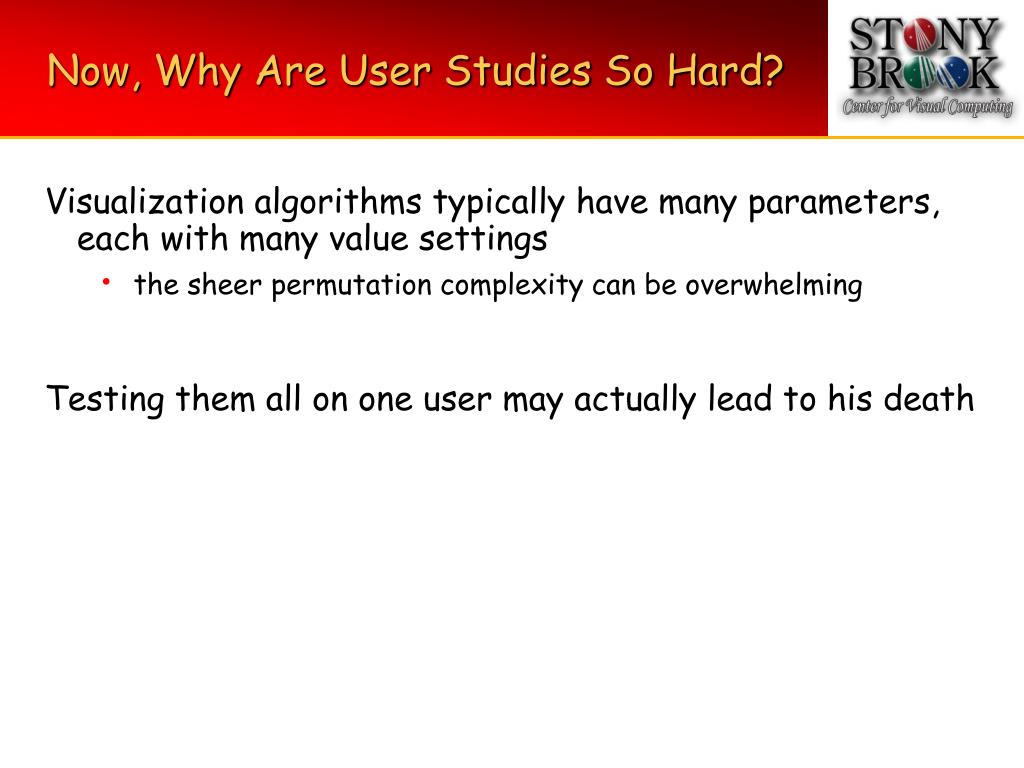

  8. Now, Why Are User Studies So Hard? • Visualization algorithms typically have many parameters, each with many value settings • the sheer permutation complexity can be overwhelming • Testing them all on one user may actually lead to his death

  9. Now, Why Are User Studies So Hard? • Visualization algorithms typically have many parameters, each with many value settings • the sheer permutation complexity can be overwhelming • Testing them all on one user may actually lead to his death • and we need to perform these tests with many users

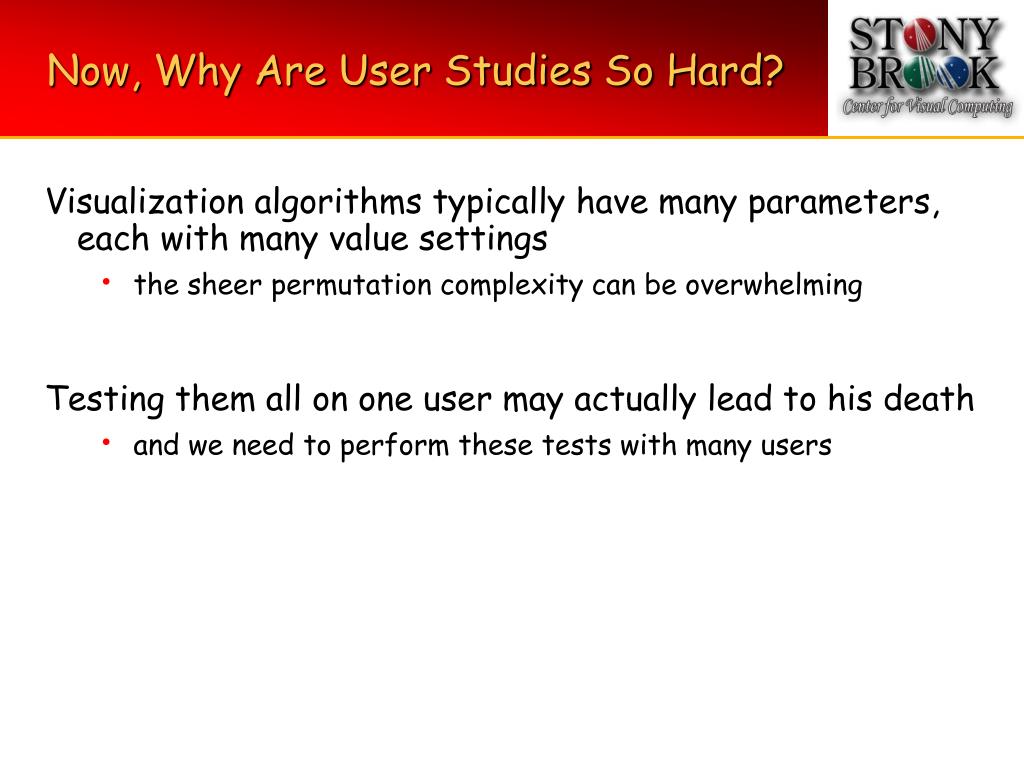

  10. Now, Why Are User Studies So Hard? • Visualization algorithms typically have many parameters, each with many value settings • the sheer permutation complexity can be overwhelming • Testing them all on one user may actually lead to his death • and we need to perform these tests with many users • So… Mission Accomplished?

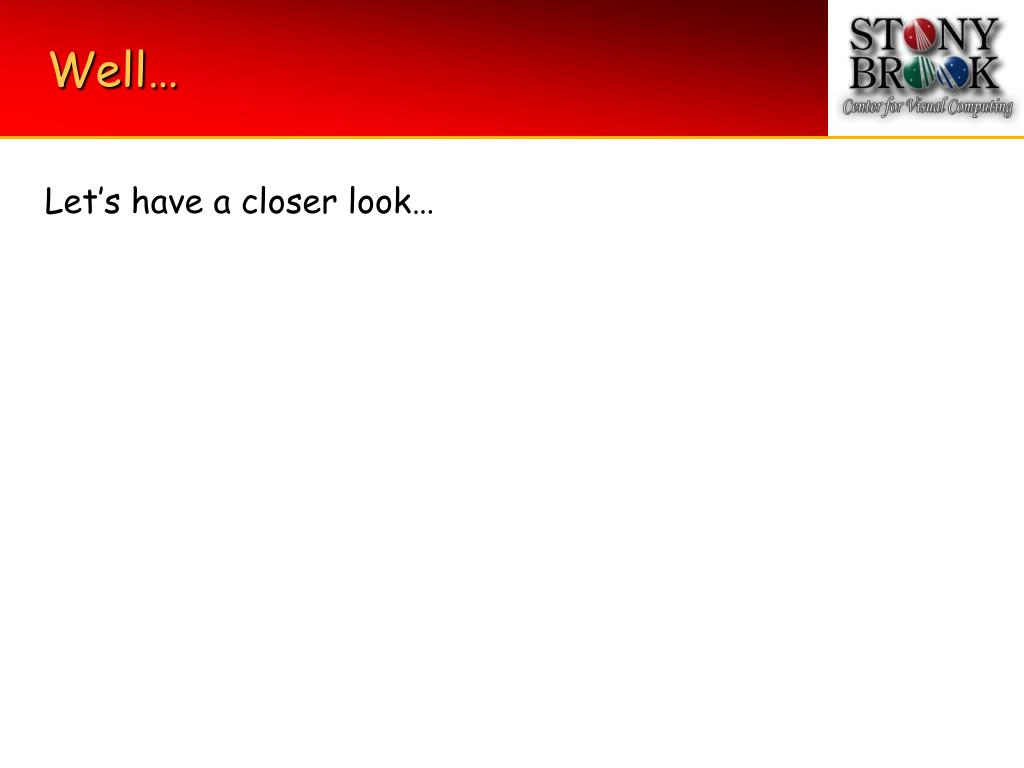

  11. Well… • Let’s have a closer look…

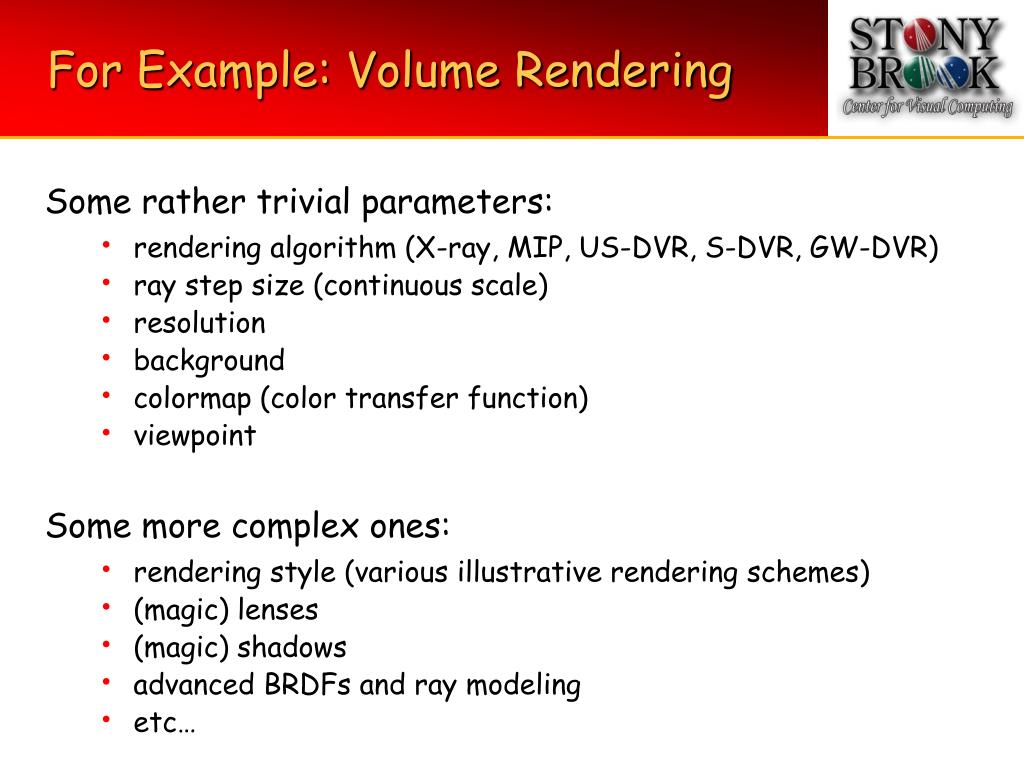

  12. For Example: Volume Rendering • Some rather trivial parameters: • rendering algorithm (X-ray, MIP, US-DVR, S-DVR, GW-DVR) • ray step size (continuous scale) • resolution • background • colormap (color transfer function) • viewpoint

  13. For Example: Volume Rendering • Some rather trivial parameters: • rendering algorithm (X-ray, MIP, US-DVR, S-DVR, GW-DVR) • ray step size (continuous scale) • resolution • background • colormap (color transfer function) • viewpoint • Some more complex ones: • rendering style (various illustrative rendering schemes) • (magic) lenses • (magic) shadows • advanced BRDFs and ray modeling • etc…

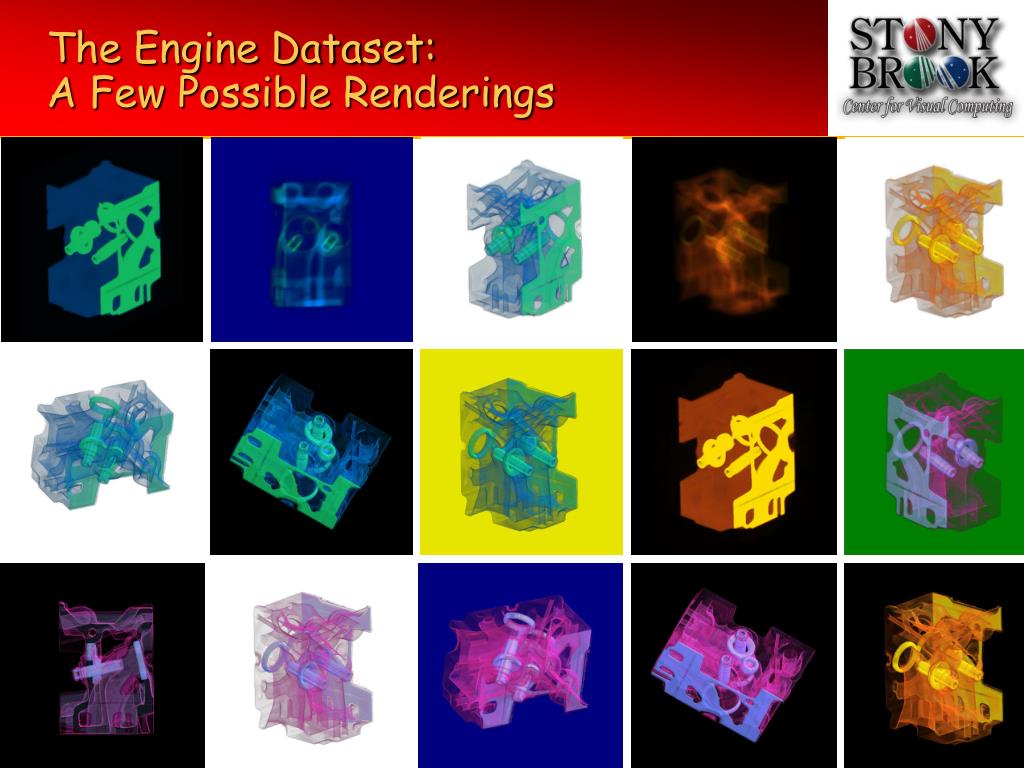

  14. The Engine Dataset: A Few Possible Renderings

  15. Sample Testing Scenario (1) • Which colormap shows more detail?

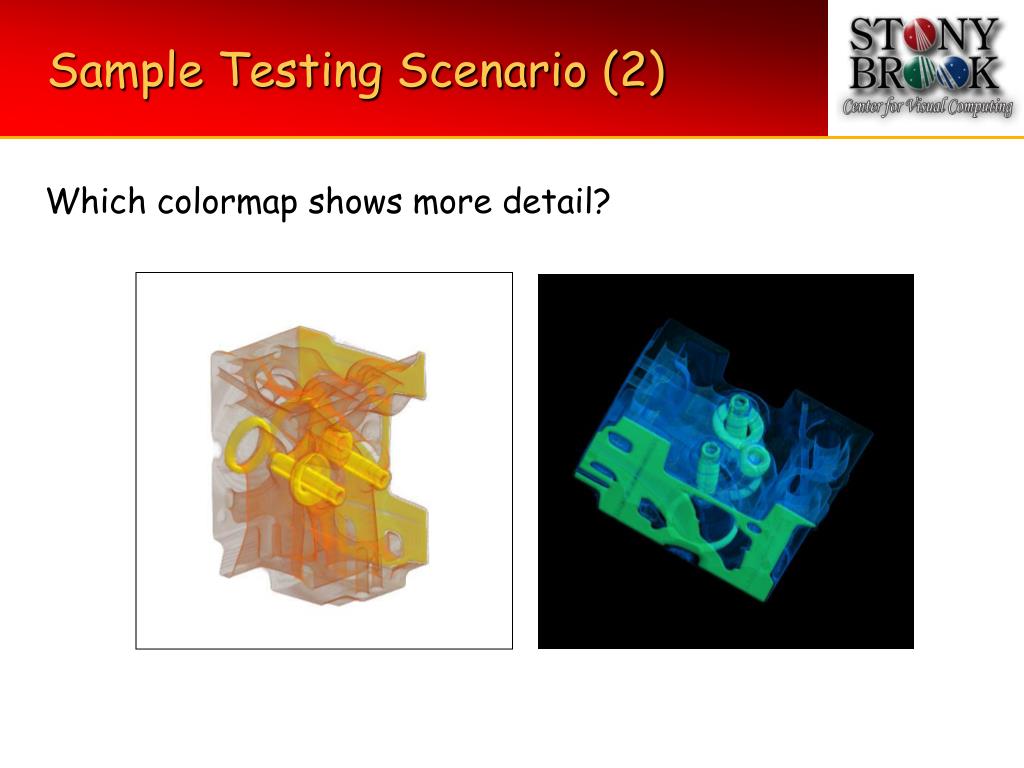

  16. Sample Testing Scenario (2) • Which colormap shows more detail?

  17. Parameter Test Complexity • Notice: • all renderings show all features • all renderings use the same window size • Variables: • 3 colormaps • 5 rendering modes • 6 viewpoints • 2 image resolutions • 3 ray step sizes • 5 backgrounds  2700 permutations  7M pair-wise comparisons

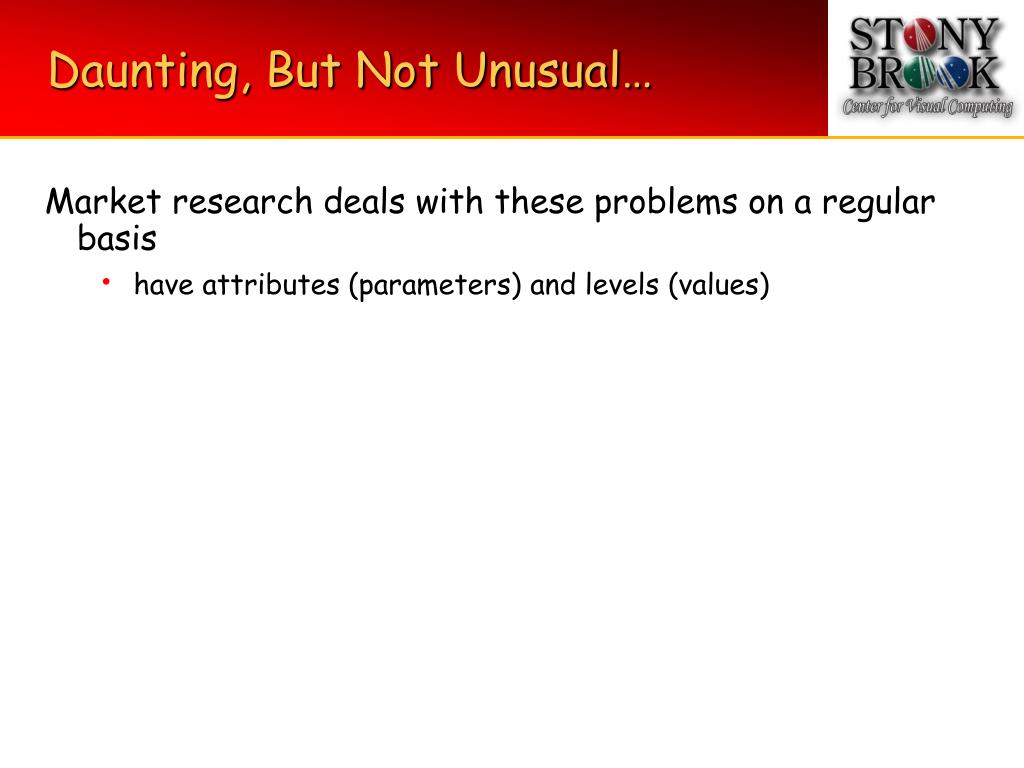

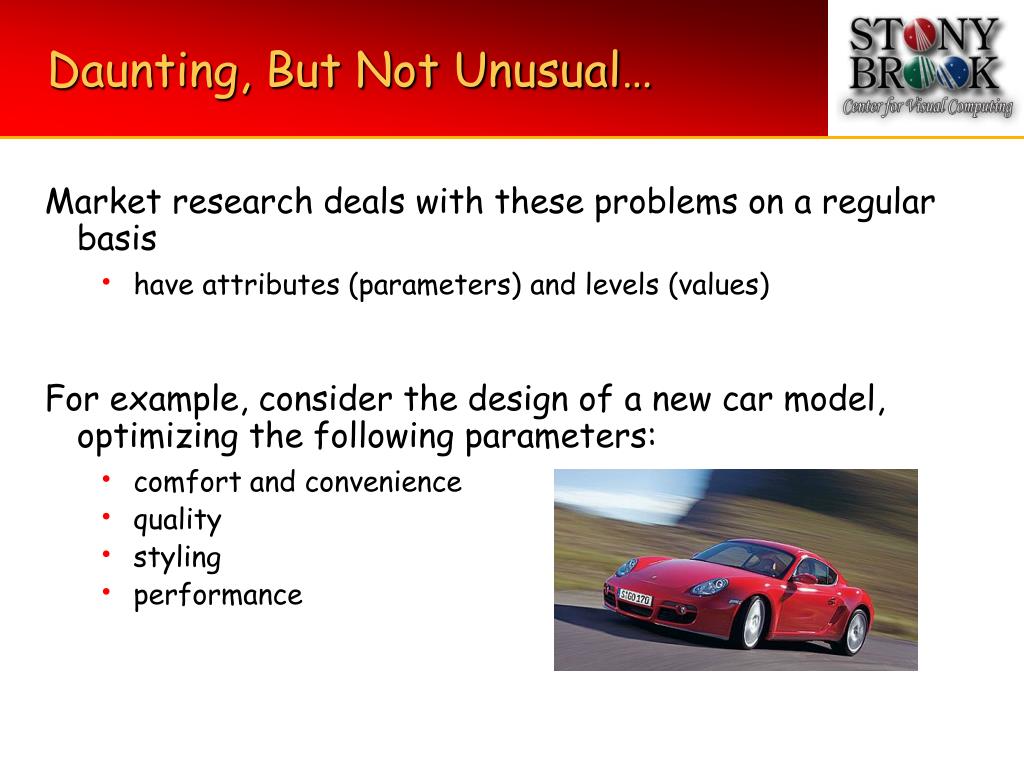

  18. Daunting, But Not Unusual… • Market research deals with these problems on a regular basis • have attributes (parameters) and levels (values)

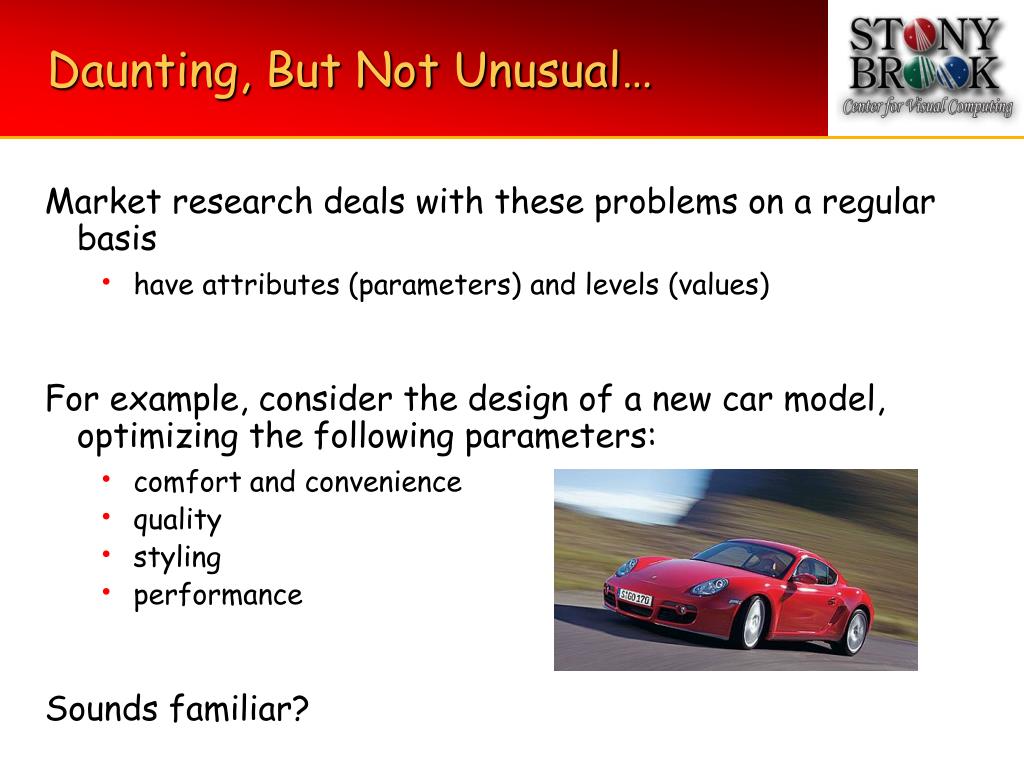

  19. Daunting, But Not Unusual… • Market research deals with these problems on a regular basis • have attributes (parameters) and levels (values) • For example, consider the design of a new car model, optimizing the following parameters: • comfort and convenience • quality • styling • performance

  20. Daunting, But Not Unusual… • Market research deals with these problems on a regular basis • have attributes (parameters) and levels (values) • For example, consider the design of a new car model, optimizing the following parameters: • comfort and convenience • quality • styling • performance • Sounds familiar?

  21. How Can This Help Us? • A common technique used in market research is conjoint analysis • Conjoint analysis allows one to: • interview a modest number of people • with a modest number of pair-wise comparison tests • The tests simulate real buying situations and statistical significance can be determined

  22. How Can This Help Us? • A common technique used in market research is conjoint analysis • Conjoint analysis allows one to: • interview a modest number of people • with a modest number of pair-wise comparison tests • The tests simulate real buying situations and statistical significance can be determined • We have actually done this: • 786 respondents • 20 pair-wise tests each

  23. How Can This Help Us? • A common technique used in market research is conjoint analysis • Conjoint analysis allows one to: • interview a modest number of people • with a modest number of pair-wise comparison tests • The tests simulate real buying situations and statistical significance can be determined • We have actually done this: • 786 respondents • 20 pair-wise tests each • And the results make sense 

  24. Results • Top 10 (detail / aesthetics):

  25. Results • Top 10 (detail / aesthetics): • Flop 10 (detail / aesthetics):

  26. Method • We apply Thurstone’s Method of Comparative Judgment to each attribute separately • isolate attributes in the choice tasks • determine relative rankings of attribute levels using the frequency a level was chosen over another • assume normal distributed rankings (and their differences) • Conjoint structure requires a modification of Thurstone’s method • the rankings of the various attributes must be transformed into a comparable scale • the transformation factor marks the relative influence of this attribute on the overall visualization experience

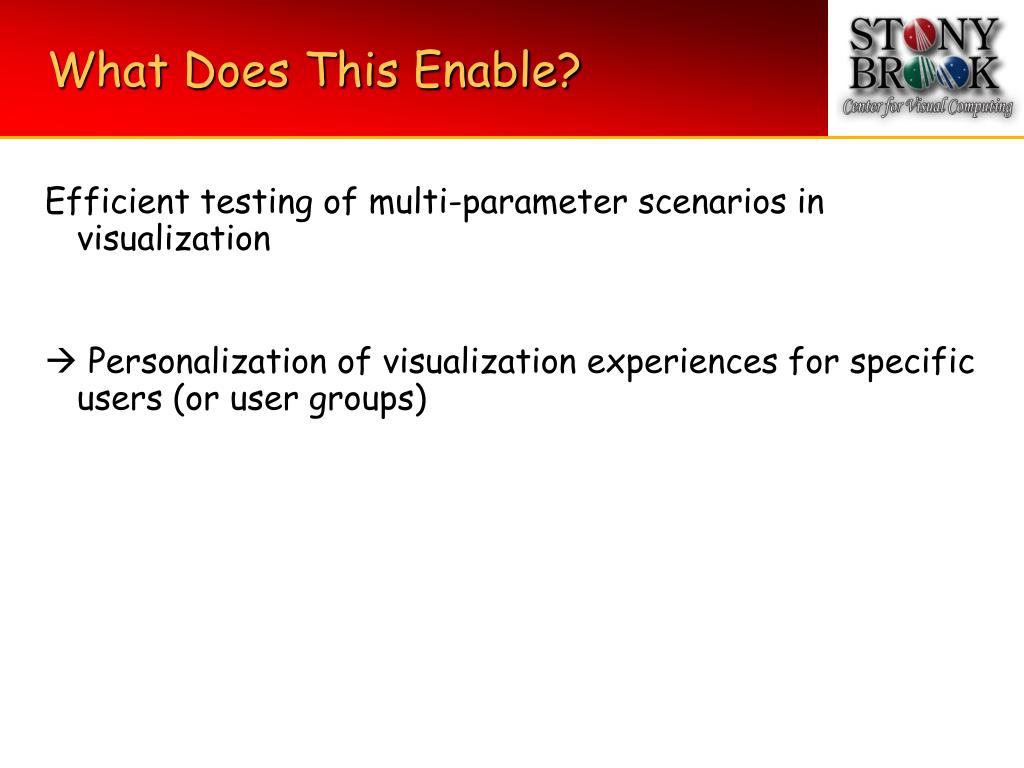

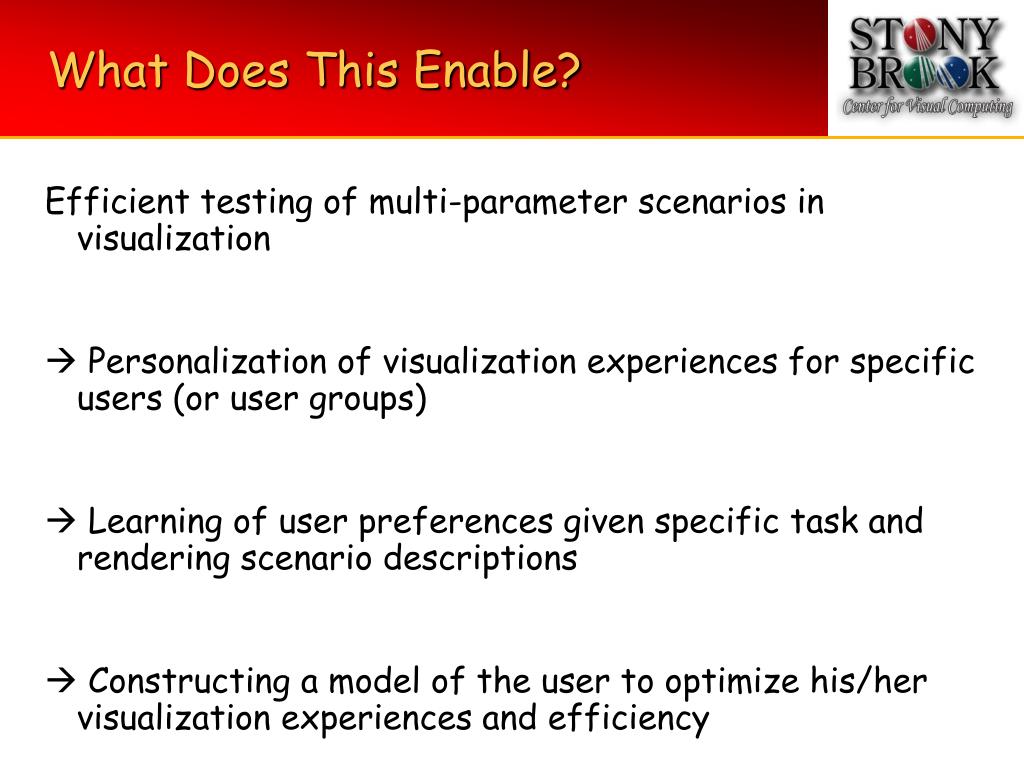

  27. What Does This Enable? • Efficient testing of multi-parameter scenarios in visualization

  28. What Does This Enable? • Efficient testing of multi-parameter scenarios in visualization •  Personalization of visualization experiences for specific users (or user groups)

  29. What Does This Enable? • Efficient testing of multi-parameter scenarios in visualization •  Personalization of visualization experiences for specific users (or user groups) •  Learning of user preferences given specific task and rendering scenario descriptions

  30. What Does This Enable? • Efficient testing of multi-parameter scenarios in visualization •  Personalization of visualization experiences for specific users (or user groups) •  Learning of user preferences given specific task and rendering scenario descriptions •  Constructing a model of the user to optimize his/her visualization experiences and efficiency

  31. Acknowledgments • Lujin Wang (Stony Brook University) • for rendering 5000+ images • Eva Schuberth (ETH Zürich) • for contributing on the statistics • Peter Zolliker (EMPA Dübendorf) • for contributing on perceptional issues and stats

  32. Questions? • Which image do you like best? • Which image shows more detail?
