Understanding Binary Trees: Structure, Traversal, and Memory Management

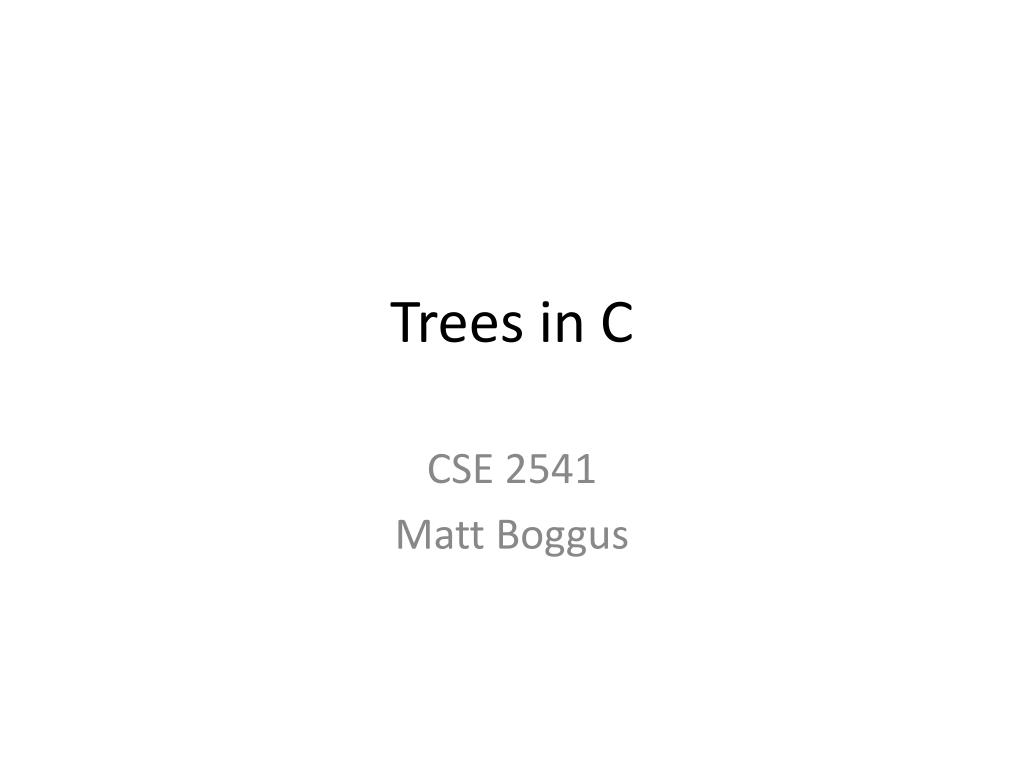

1. Trees in C CSE 2541 Matt Boggus

2. Tree definition • Recursively defined data structure • Tree (in general) • Empty • Data + a specific number of subtrees • Binary tree • Empty • Data + left subtree + right subtree

3. C Binary Tree node structbtnode{ int data; structbtnode *left; structbtnode*right; } ;

4. What is this? structtreenode{ int data; structtreenode *mynode; } ; Equivalent to a linked list

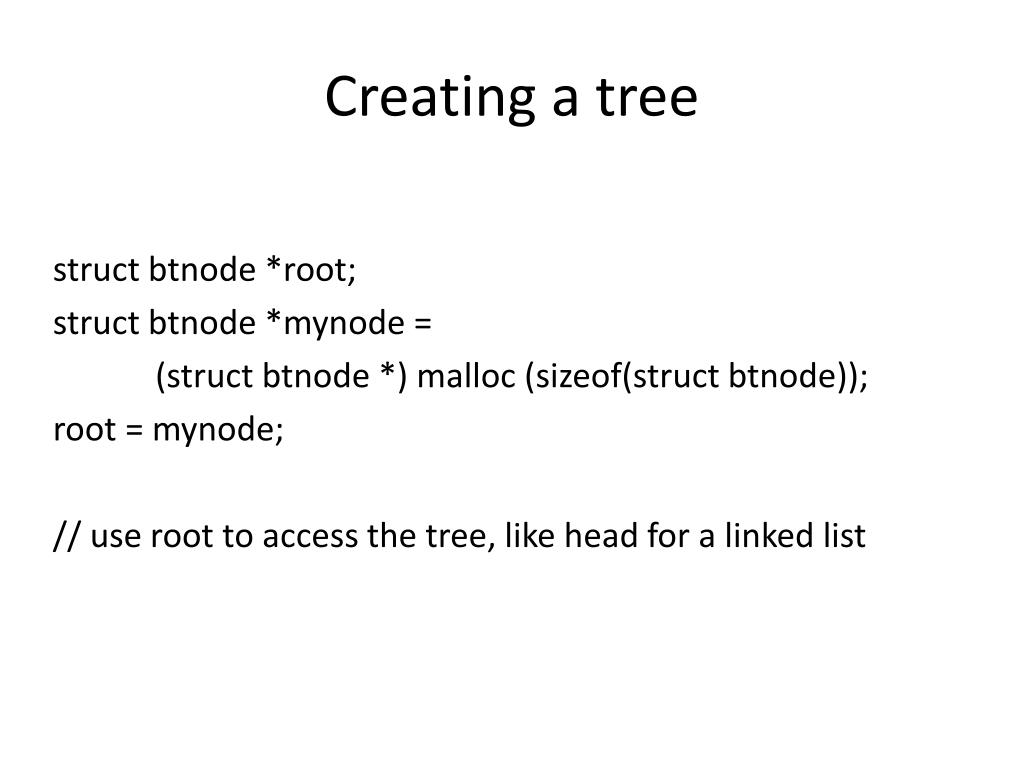

5. Creating a tree structbtnode *root; structbtnode *mynode= (structbtnode *) malloc (sizeof(structbtnode)); root = mynode; // use root to access the tree, like head for a linked list

6. Visual example of a binary tree Each value corresponds to a node in the tree root is a structbtnode pointer that points at the node containing the 9

7. Tree traversal (preorder) PreOrderPrint(structbtnode*anode) { printf(“%i”, anode->data); PreOrderPrint(anode->left); PreOrderPrint(anode->right); } Any problems with this function?

8. Tree traversal (preorder corrected) PreOrderPrint(structbtnode*anode) { if(anode == NULL) return; printf(“%i ”, anode->data); PreOrderPrint(anode->left); PreOrderPrint(anode->right); } Output of PreOrderPrint(root) is: 9 6 2 7 15 12 25

9. Tree traversal (inorder) InOrderPrint(structbtnode*anode) { if(anode == NULL) return; InOrderPrint(anode->left); printf(“%i ”, anode->data); InOrderPrint(anode->right); } Output of InOrderPrint(root) is: 2 6 7 9 12 15 25

10. Tree traversal (postorder) PostOrderPrint(structbtnode*anode) { if(anode == NULL) return; PostOrderPrint(anode->left); PostOrderPrint(anode->right); printf(“%i ”, anode->data); } Output of PostOrderPrint(root) is: 2 7 6 12 25 15 9

11. Tree termination • NULL pointers NULL are not btnodes, but the value of their parent’s left and right pointers • NULL data -1 are btnodes, whose left and right btnodes are uninitialized Assumption: -1 is never valid data in the tree

12. Creating nodes structnode * NewNode(int data) { struct node *mynode= (struct node *) malloc (sizeof(struct node)); mynode->data = data;mynode->left = NULL;mynode->right = NULL; return(node); }

13. Deallocating binary trees • Three things to do • Free current node • Recursively free left subtree • Recursively free right subtree • What is the order? void delete_tree(structbtnode*leaf) { if( leaf != NULL ) { delete_tree(leaf->left); delete_tree(leaf->right); free( leaf ); } }

14. Trees and arrays Map current node, left child, and right child to array positions Order in the array by level in the tree Figure from http://scientopia.org/blogs/goodmath/2008/04/29/implementing-compact-binary-heaps/

15. Trees and arrays Map current node, left child, and right child to array positions t[i] , t[2i+1] , t[2i+2] Order in the array by level in the tree Figure from http://scientopia.org/blogs/goodmath/2008/04/29/implementing-compact-binary-heaps/
