XD ANTI-STATIC BONDING SPOOL - 8” OVERVIEW & APPLICATIONS

This PDF shows the XD Anti-Static Bonding Spool 8 inch by Aaki Corp. It explains its purpose, applications, and features, including static voltage dissipation, extreme duty design, manual operation, sealed construction, and cable capacity. The PDF also lists where the bonding spool is used, such as trucks, tank farms, fuel stations, and industrial environments.<br><br>For more info, visit: https://aaki.ca/product-category/static-bonding-grounding/

aaki
Télécharger la présentation

XD ANTI-STATIC BONDING SPOOL - 8” OVERVIEW & APPLICATIONS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

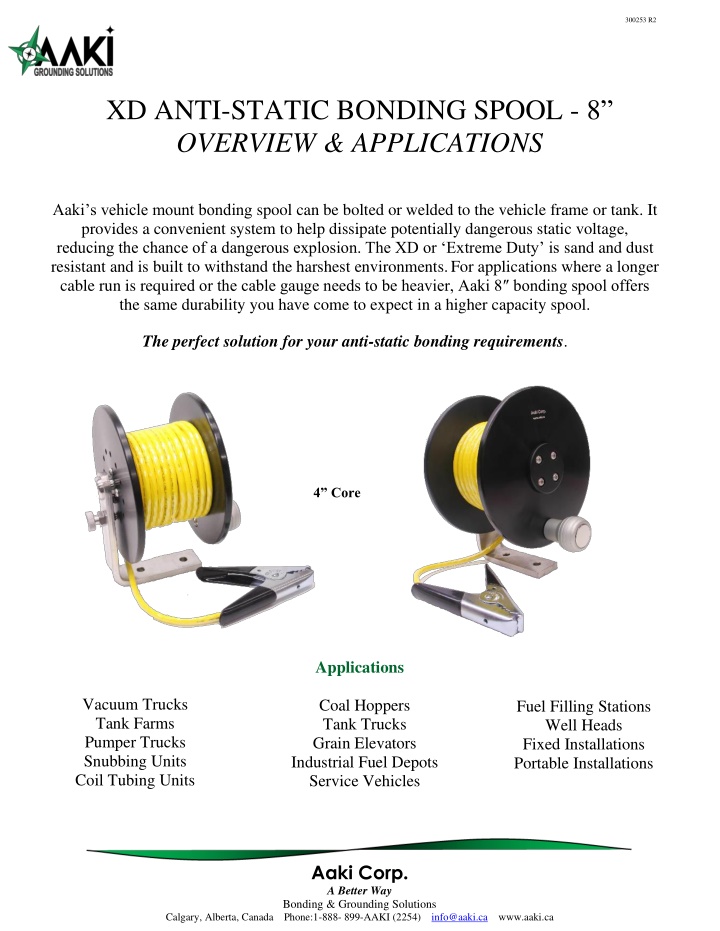

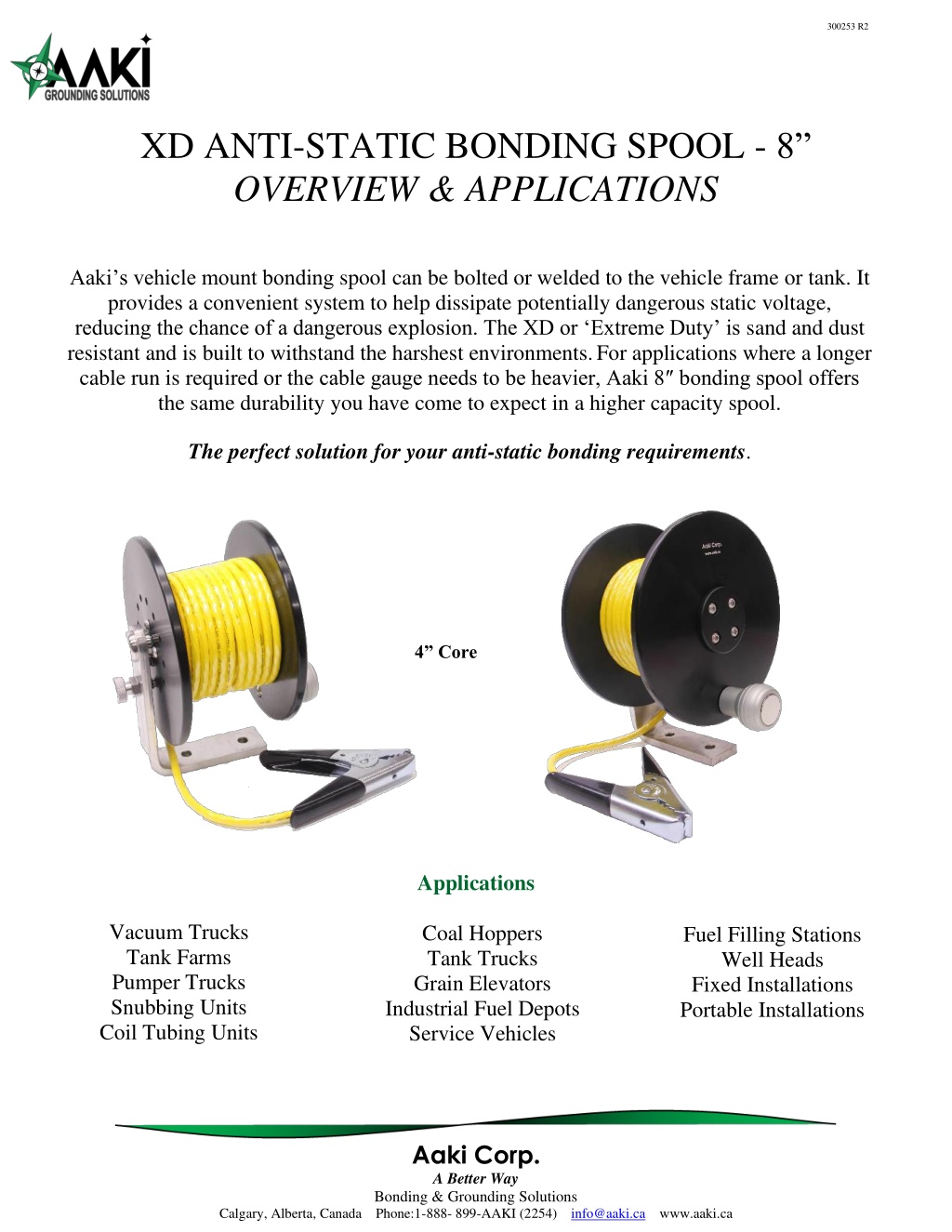

  1. 300253 R2 XD ANTI-STATIC BONDING SPOOL - 8” OVERVIEW & APPLICATIONS Aaki’s vehicle mount bonding spool can be bolted or welded to the vehicle frame or tank. It provides a convenient system to help dissipate potentially dangerous static voltage, reducing the chance of a dangerous explosion. The XD or ‘Extreme Duty’ is sand and dust resistant and is built to withstand the harshest environments.For applications where a longer cable run is required or the cable gauge needs to be heavier, Aaki 8″ bonding spool offers the same durability you have come to expect in a higher capacity spool. The perfect solution for your anti-static bonding requirements. 4” Core Applications Vacuum Trucks Tank Farms Pumper Trucks Snubbing Units Coil Tubing Units Coal Hoppers Tank Trucks Grain Elevators Industrial Fuel Depots Service Vehicles Fuel Filling Stations Well Heads Fixed Installations Portable Installations Aaki Corp. A Better Way Bonding & Grounding Solutions Calgary, Alberta, Canada Phone:1-888- 899-AAKI (2254) info@aaki.ca www.aaki.ca

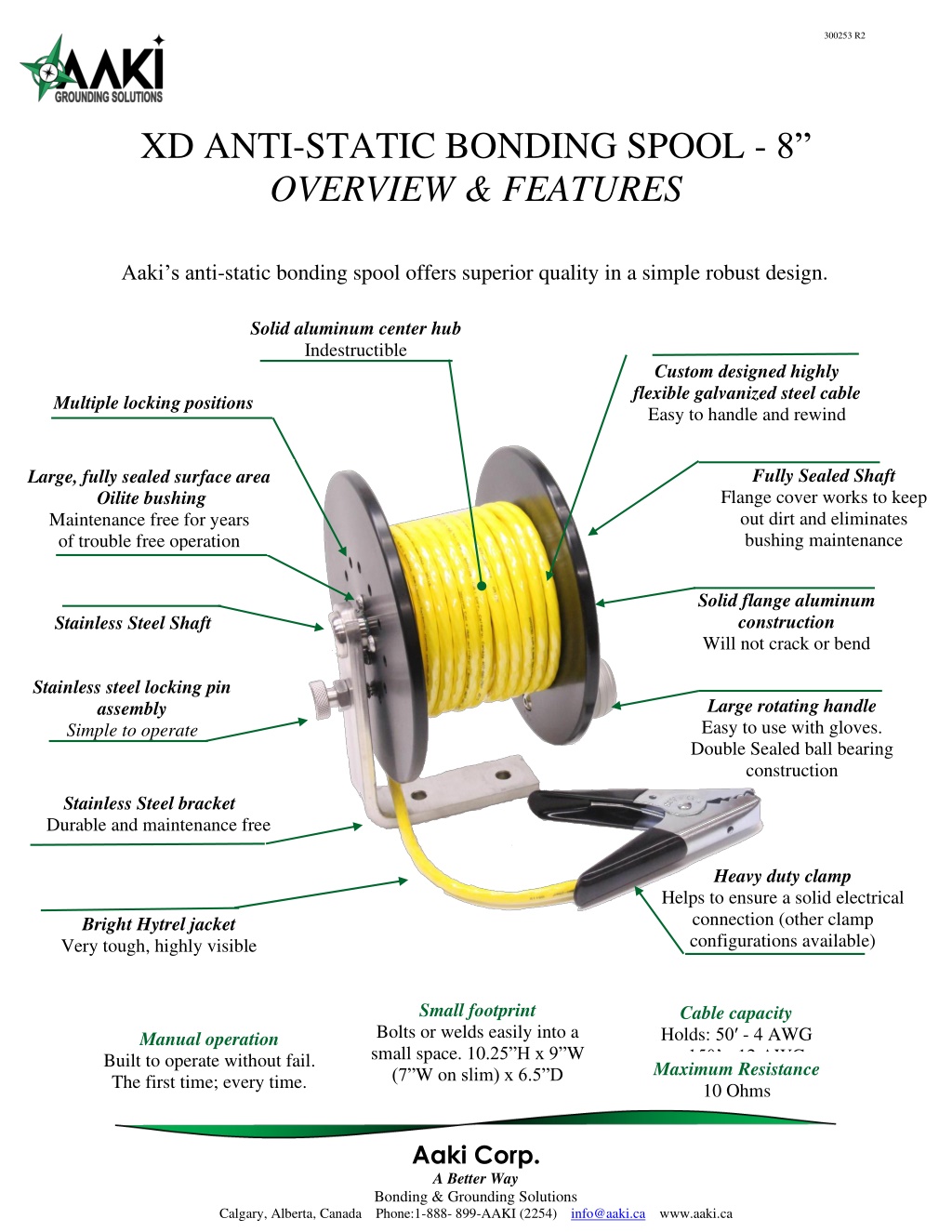

  2. 300253 R2 XD ANTI-STATIC BONDING SPOOL - 8” OVERVIEW & FEATURES Aaki’s anti-static bonding spool offers superior quality in a simple robust design. Solid aluminum center hub Indestructible Custom designed highly flexible galvanized steel cable Easy to handle and rewind Multiple locking positions Fully Sealed Shaft Flange cover works to keep out dirt and eliminates bushing maintenance Large, fully sealed surface area Oilite bushing Maintenance free for years of trouble free operation Solid flange aluminum construction Will not crack or bend Stainless Steel Shaft Stainless steel locking pin assembly Simple to operate Large rotating handle Easy to use with gloves. Double Sealed ball bearing construction Stainless Steel bracket Durable and maintenance free Heavy duty clamp Helps to ensure a solid electrical connection (other clamp configurations available) Bright Hytrel jacket Very tough, highly visible Small footprint Bolts or welds easily into a small space. 10.25”H x 9”W (7”W on slim) x 6.5”D Cable capacity Holds: 50′ - 4 AWG or 150’ - 12 AWG Aaki Bonding Cable Maximum Resistance 10 Ohms Manual operation Built to operate without fail. The first time; every time. Aaki Corp. A Better Way Bonding & Grounding Solutions Calgary, Alberta, Canada Phone:1-888- 899-AAKI (2254) info@aaki.ca www.aaki.ca
