Cloud PIV Authentication and Authorization Demo

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

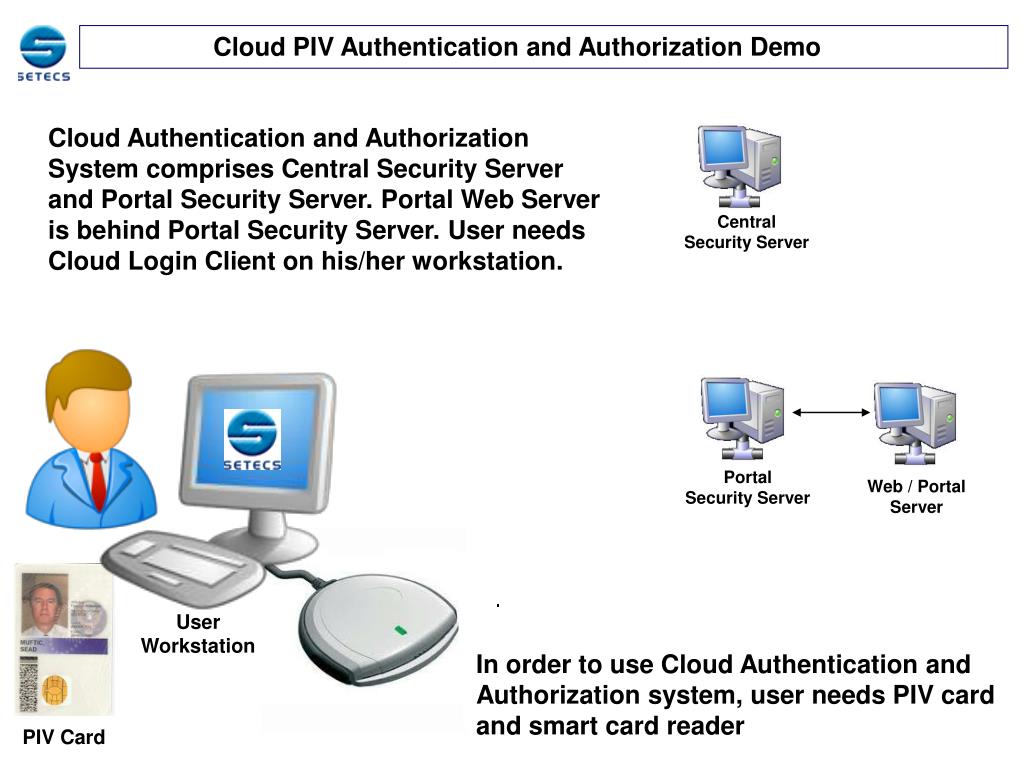

  1. Central Security Server Portal Security Server Web / Portal Server Cloud PIV Authentication and Authorization Demo Cloud Authentication and Authorization System comprises Central Security Server and Portal Security Server. Portal Web Server is behind Portal Security Server. User needs Cloud Login Client on his/her workstation. User Workstation In order to use Cloud Authentication and Authorization system, user needs PIV card and smart card reader PIV Card

  2. Cloud PIV Authentication and Authorization Demo Cloud Login Client is installed on a User Workstation and can be activated using its icon on the desktop. User Workstation PIV Card

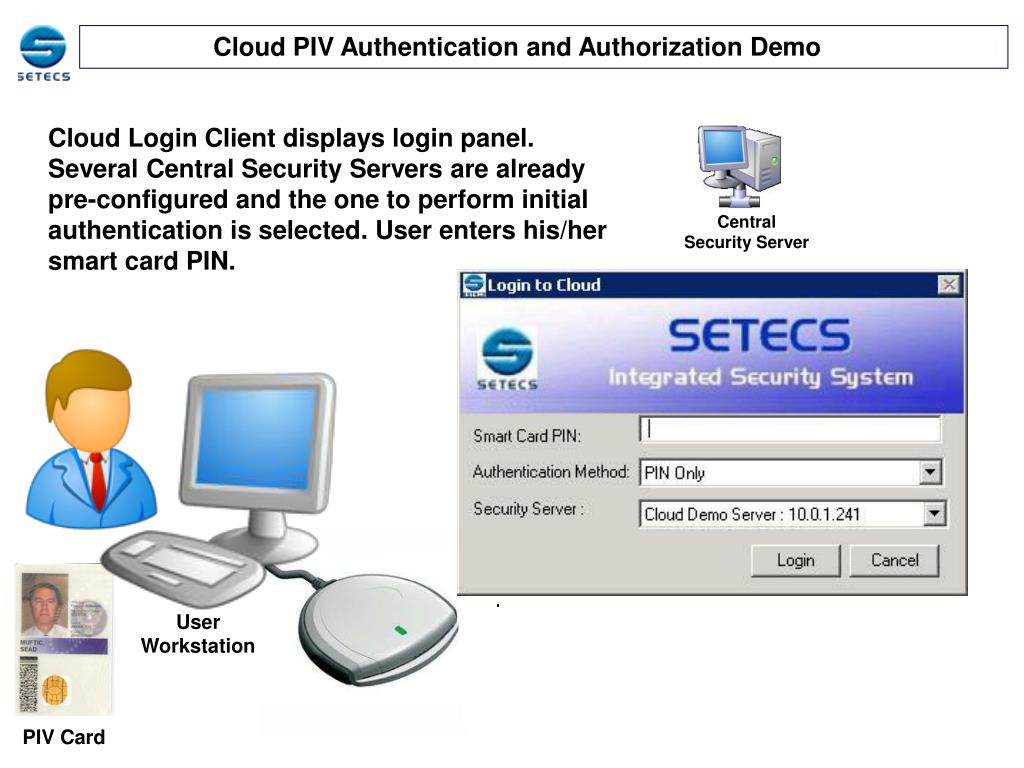

  3. Cloud PIV Authentication and Authorization Demo Cloud Login Client displays login panel. Several Central Security Servers are already pre-configured and the one to perform initial authentication is selected. User enters his/her smart card PIN. Central Security Server User Workstation PIV Card

  4. Authentication Certificate Cloud PIV Authentication and Authorization Demo Cloud Login Client opens PIV card, reads PIV Authentication Certificate and sends it to the Central Security Server. The Server performs strong authentication challenge/response protocol with the PIV card and when successfully completed issues SAML ticket. Central Security Server User Workstation SAML Ticket PIV Card

  5. Portal Security Server Web / Portal Server Cloud PIV Authentication and Authorization Demo Next, Internet Explorer is automatically started and directed to the Portal Security Server. Central Security Server User Workstation SAML Ticket PIV Card

  6. Portal Security Server Web / Portal Server Cloud PIV Authentication and Authorization Demo Portal Security Server fetches SAML ticket and uses it for single sign-on authentication. When completed, it displays success message. Central Security Server User Workstation SAML Ticket PIV Card

  7. Cloud PIV Authentication and Authorization Demo After that, Portal Security Server re-directs user’s request to the Web Portal, which displays its home page. Accessing Portal’s pages is also controlled by the Portal Security Server. Portal Security Server Web / Portal Server User Workstation SAML Ticket PIV Card
