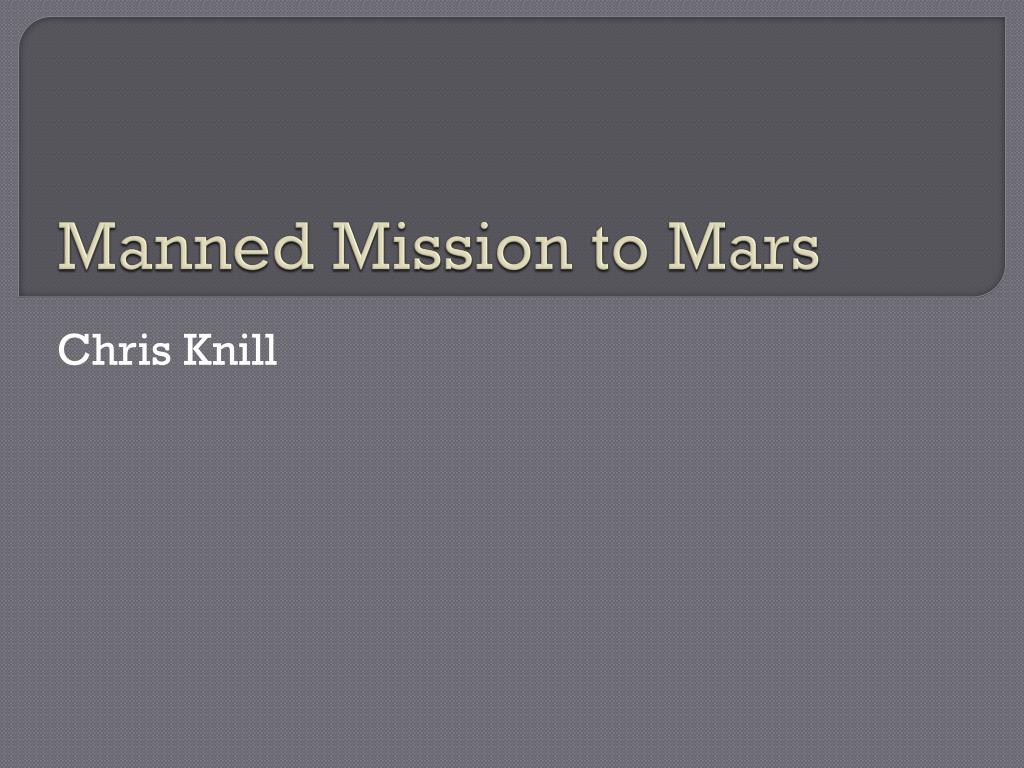

  1. Manned Mission to Mars Chris Knill

  2. Research Question Should international space agencies make a manned mission to Mars their top priority?

  3. Wernher Von Braun Image courtesy of jscreationzs, freedigitalphotos.net • Father of Rocket Science • V-2 Rocket 1942 • First Mars Proposal • 2 Shuttle System • 12 Crew Total

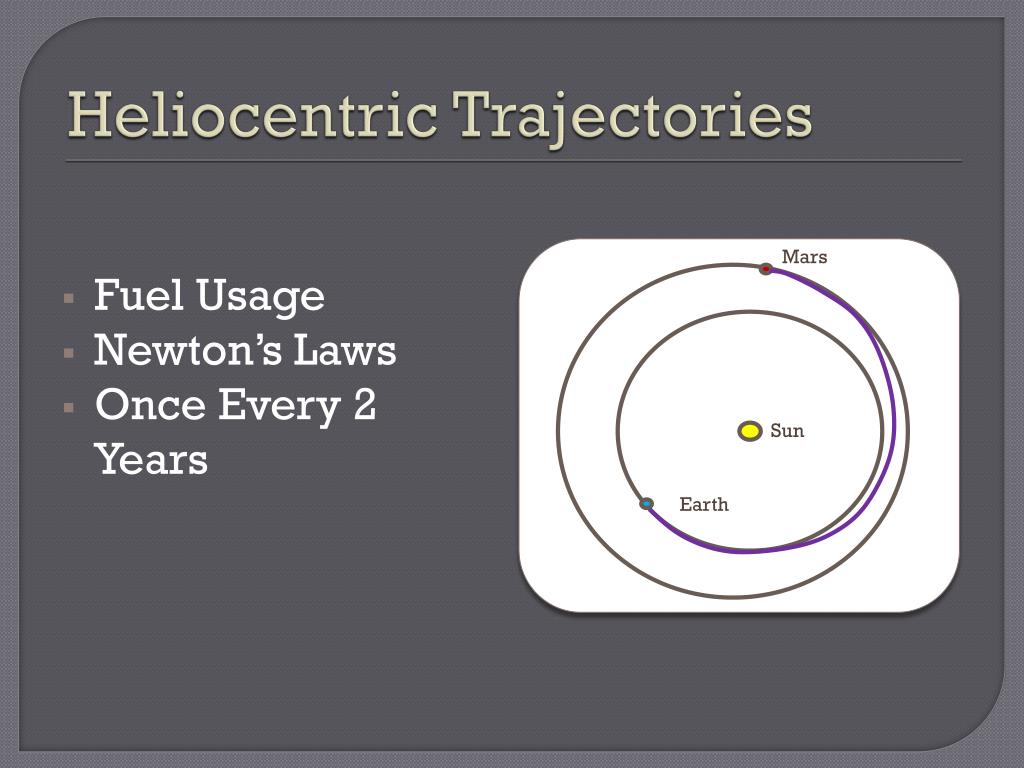

  4. Heliocentric Trajectories Mars Sun Earth • Fuel Usage • Newton’s Laws • Once Every 2 Years

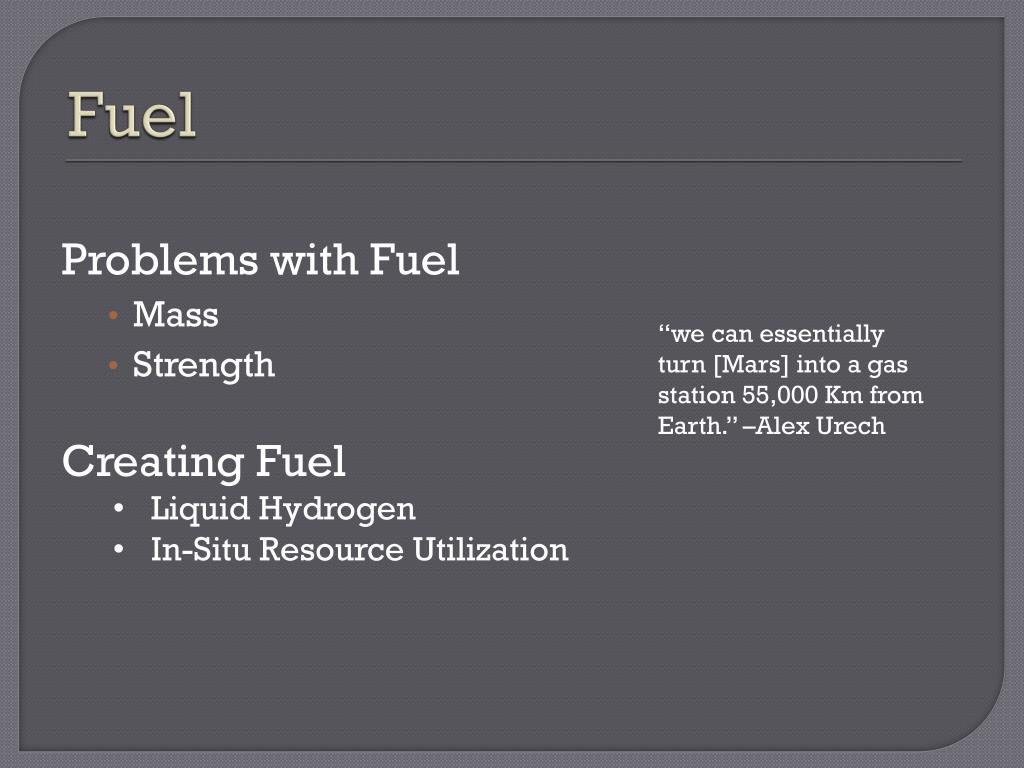

  5. Fuel “we can essentially turn [Mars] into a gas station 55,000 Km from Earth.” –Alex Urech • Creating Fuel • Liquid Hydrogen • In-Situ Resource Utilization Problems with Fuel • Mass • Strength

  6. Radiation • Cosmic Rays • 25 Times Earth Dose • No Magnetic Field • Damage to Instruments Image courtesy of twobee, freedigitalphotos.net

  7. Low Orbit Earth Image courtesy of xedos4, freedigitalphotos.net • 160-2000 Kilometers • Limits Human Risk • Increases Equipment Risk • Radiation Examination • Finances

  8. Jean Marc Salotti Image courtesy of Victor Habbick, freedigitalphotos.net • 2 Shuttle System • 4 Crew Total • Limited Mass • Limited Human Error • Low Orbit Earth • In-Situ Resource Utilization

  9. Konstantinov & Petukhov • 1000 Day Mission • 20% Mass • Low Orbit Earth • Nuclear Electric Propulsion • Cost Effective

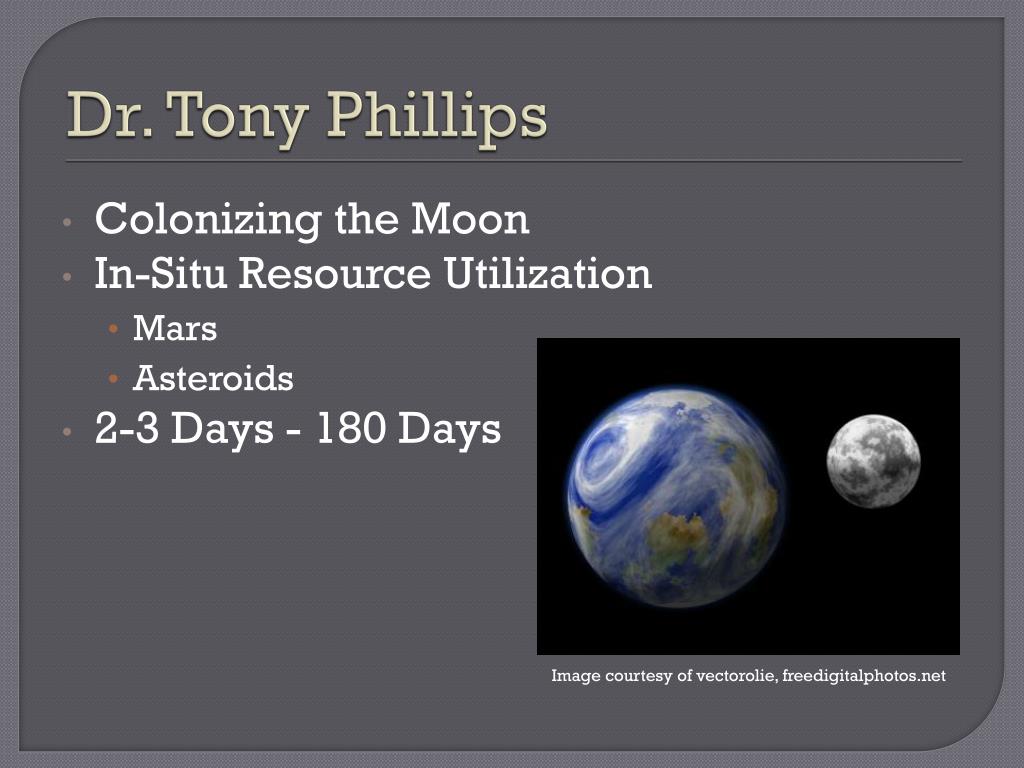

  10. Dr. Tony Phillips Image courtesy of vectorolie, freedigitalphotos.net • Colonizing the Moon • In-Situ Resource Utilization • Mars • Asteroids • 2-3 Days - 180 Days

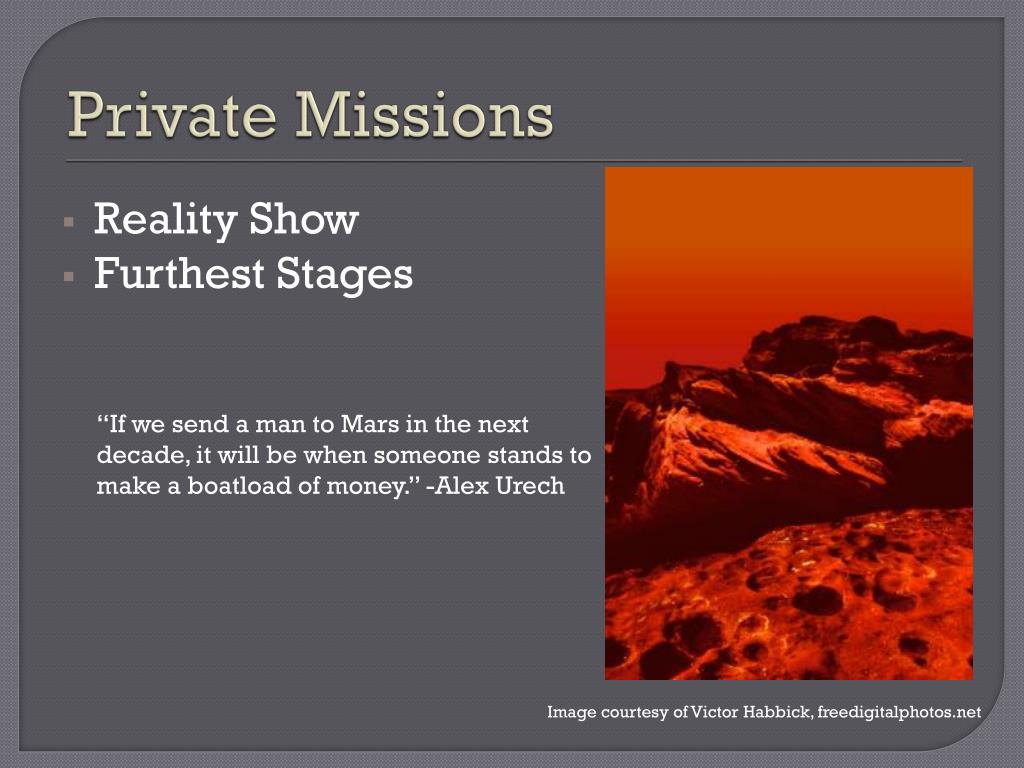

  11. Private Missions “If we send a man to Mars in the next decade, it will be when someone stands to make a boatload of money.” -Alex Urech Image courtesy of Victor Habbick, freedigitalphotos.net • Reality Show • Furthest Stages

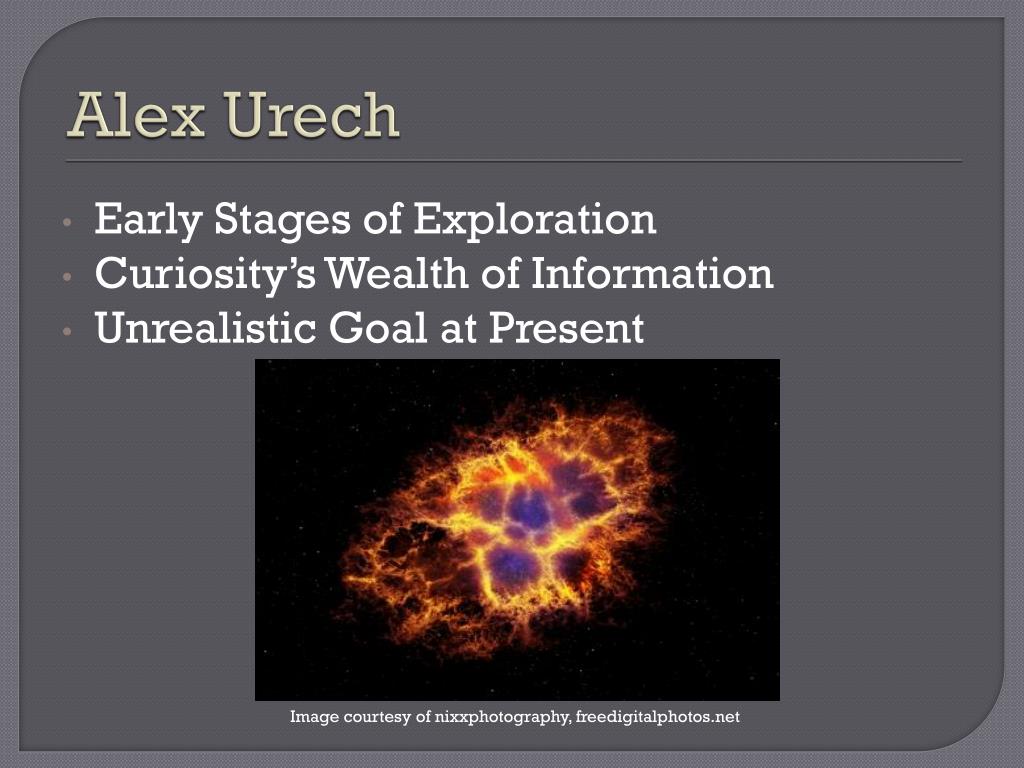

  12. Alex Urech Image courtesy of nixxphotography, freedigitalphotos.net • Early Stages of Exploration • Curiosity’s Wealth of Information • Unrealistic Goal at Present

  13. Conclusion Image courtesy of Victor Habbick, freedigitalphotos.net • Not the Top Priority • Continue Progressive Steps • Best Theories • Heliocentric Trajectories • Low Orbit Earth • Limited Mass • In-Situ Resource Utilization

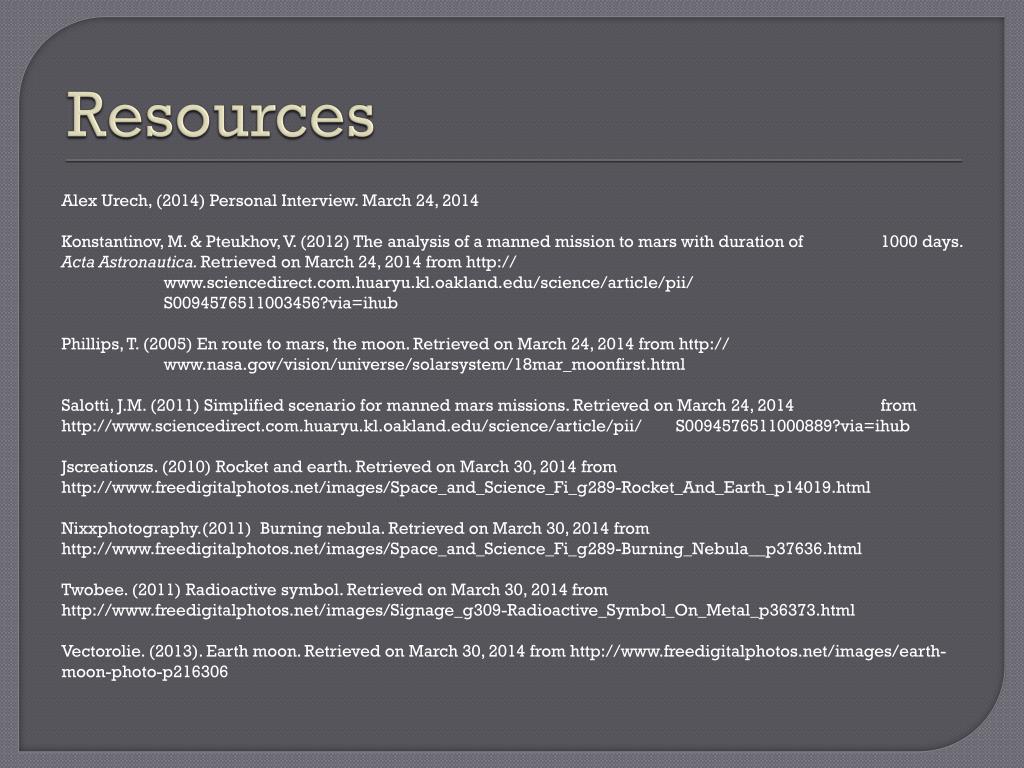

  14. Resources Alex Urech, (2014) Personal Interview. March 24, 2014 Konstantinov, M. & Pteukhov, V. (2012) The analysis of a manned mission to mars with duration of 1000 days. ActaAstronautica. Retrieved on March 24, 2014 from http:// www.sciencedirect.com.huaryu.kl.oakland.edu/science/article/pii/ S0094576511003456?via=ihub Phillips, T. (2005) En route to mars, the moon. Retrieved on March 24, 2014 from http:// www.nasa.gov/vision/universe/solarsystem/18mar_moonfirst.html Salotti, J.M. (2011) Simplified scenario for manned mars missions. Retrieved on March 24, 2014 from http://www.sciencedirect.com.huaryu.kl.oakland.edu/science/article/pii/ S0094576511000889?via=ihub Jscreationzs. (2010) Rocket and earth. Retrieved on March 30, 2014 from http://www.freedigitalphotos.net/images/Space_and_Science_Fi_g289-Rocket_And_Earth_p14019.html Nixxphotography.(2011) Burning nebula. Retrieved on March 30, 2014 from http://www.freedigitalphotos.net/images/Space_and_Science_Fi_g289-Burning_Nebula__p37636.html Twobee. (2011) Radioactive symbol. Retrieved on March 30, 2014 from http://www.freedigitalphotos.net/images/Signage_g309-Radioactive_Symbol_On_Metal_p36373.html Vectorolie. (2013). Earth moon. Retrieved on March 30, 2014 from http://www.freedigitalphotos.net/images/earth-moon-photo-p216306

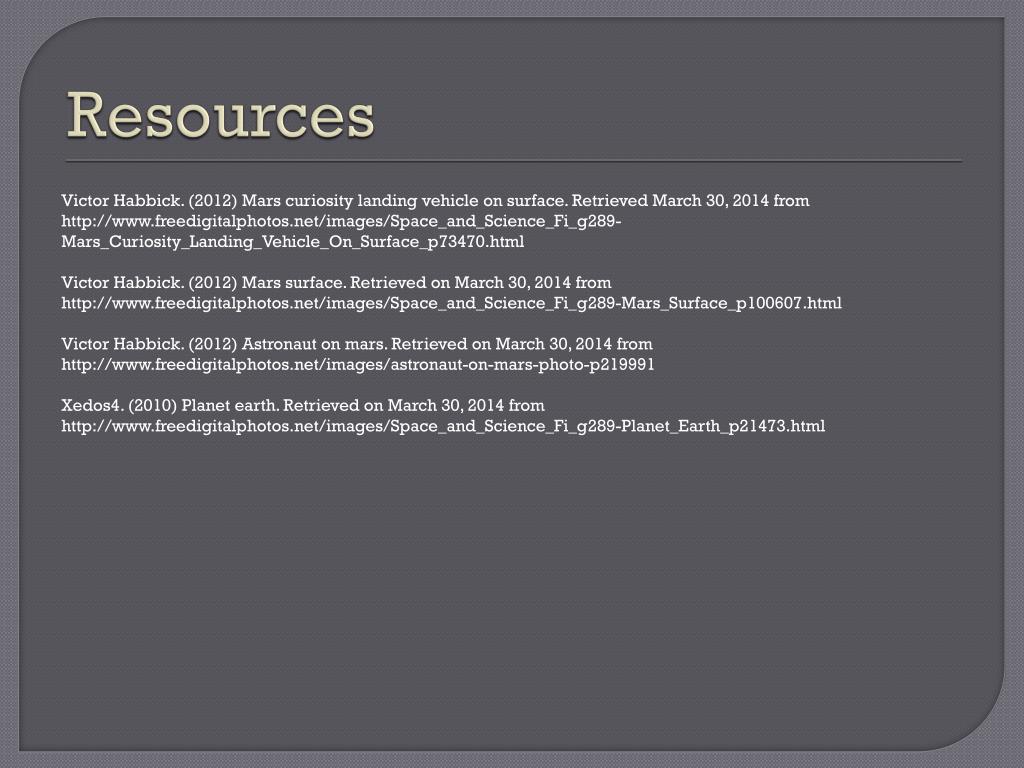

  15. Resources Victor Habbick. (2012) Mars curiosity landing vehicle on surface. Retrieved March 30, 2014 from http://www.freedigitalphotos.net/images/Space_and_Science_Fi_g289-Mars_Curiosity_Landing_Vehicle_On_Surface_p73470.html Victor Habbick. (2012) Mars surface. Retrieved on March 30, 2014 from http://www.freedigitalphotos.net/images/Space_and_Science_Fi_g289-Mars_Surface_p100607.html Victor Habbick. (2012) Astronaut on mars. Retrieved on March 30, 2014 from http://www.freedigitalphotos.net/images/astronaut-on-mars-photo-p219991 Xedos4. (2010) Planet earth. Retrieved on March 30, 2014 from http://www.freedigitalphotos.net/images/Space_and_Science_Fi_g289-Planet_Earth_p21473.html
