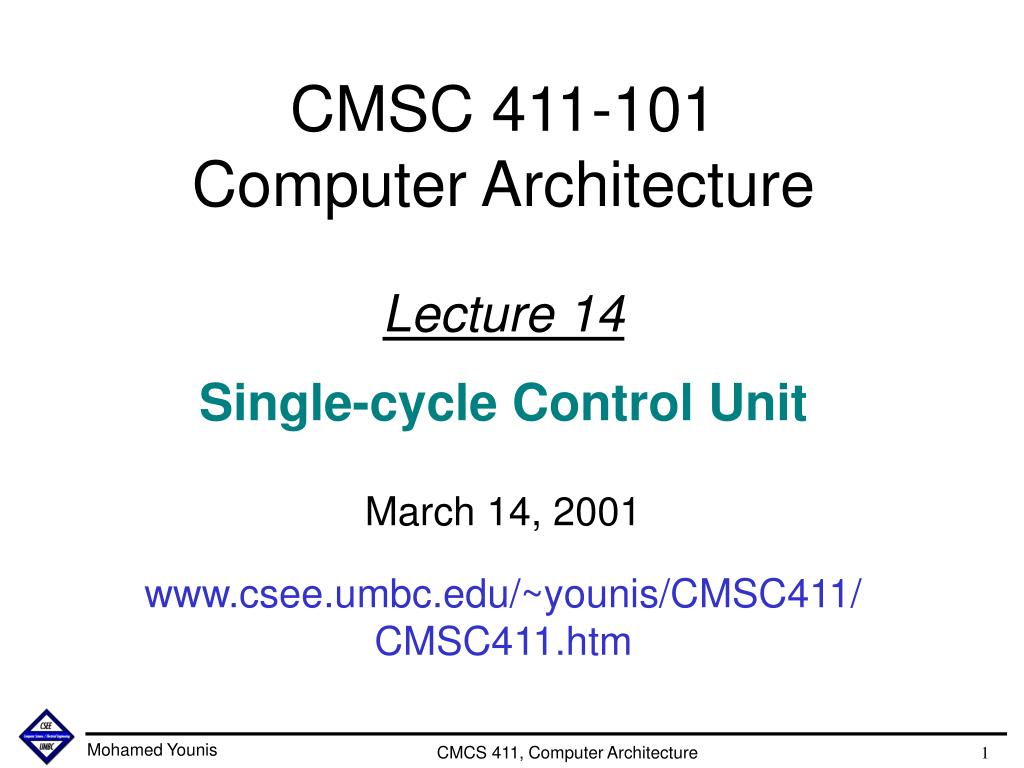

  1. CMSC 411-101Computer ArchitectureLecture 14Single-cycle Control Unit March 14, 2001www.csee.umbc.edu/~younis/CMSC411/ CMSC411.htm CMCS 411, Computer Architecture1

  2. Lecture’s Overview • Previous Lecture: • Processor design steps (ISA analysis, component selection, datapath assembly, control unit) • Basic building blocks • (Register files, adders, multiplexers) • Building a datapath (Instruction fetch, register transfer requirements) • This Lecture: • Control unit design • Single cycle processor • Circuit implementation of control unit CMCS 411, Computer Architecture2

  3. Summary of Previous Lecture Computer Processor Memory Devices Control Input Datapath Output Design Steps: 1. Analyze instruction set => datapath requirements 2. Select set of datapath components and establish clocking methodology 3.Assemble datapath meeting the requirements 4. Analyze implementation of each instruction to determine setting of control points that effects the register transfer 5. Assemble the control logic • Last class • This class Coordination for proper operation • This class Connections for Information flow • Last class CMCS 411, Computer Architecture3

  4. Single-cycle Datapath Instruction<31:0> nPC_sel Instruction Fetch Unit Rd Rt <0:15> <21:25> <16:20> <11:15> Clk RegDst 1 0 Mux Rt Rs Rd Imm16 Rs Rt RegWr ALUctr 5 5 5 MemtoReg busA Zero MemWr Rw Ra Rb busW 32 32 32-bit Registers 0 ALU 32 busB 32 0 Clk Mux 32 Mux 32 1 WrEn Adr 1 Data In 32 Data Memory Extender imm16 32 16 Clk ALUSrc ExtOp • Today’s lecture will show you how to generate the control signals (underline) * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture4

  5. Instruction Fetch Unit Instruction<31:0> Instruction<31:0> Inst Memory Inst Memory Adr Adr nPC_sel nPC_sel 4 4 00 Adder Adder 00 PC PC Ext Mux Mux PC Clk imm16 Adder Adder Clk imm16 PC Ext Instruction  mem[PC] same for all instructions PC  PC + 4 same for all instructions except: Branch & Jump * Figures are courtesy of Dave Patterson CMCS 411, Computer Architecture5

  6. Single Cycle Datapath during Add 31 26 21 16 11 6 0 op rs rt rd shamt funct R[rd]  R[rs] + R[rt] Instruction<31:0> nPC_sel= +4 Instruction Fetch Unit Rd Rt <0:15> <21:25> <16:20> <11:15> Clk RegDst = 1 1 0 Mux ALUctr = Add Rt Rs Rd Imm16 Rs Rt RegWr = 1 5 5 5 MemtoReg = 0 busA Zero MemWr = 0 Rw Ra Rb busW 32 32 32-bit Registers 0 ALU 32 busB 32 0 Clk Mux 32 Mux 32 1 WrEn Adr 1 Data In 32 Data Memory Extender imm16 32 16 Clk ALUSrc = 0 ExtOp = x * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture6

  7. Datapath during Or Immediate 31 26 21 16 0 op rs rt immediate Instruction<31:0> nPC_sel = Instruction Fetch Unit Rd Rt <0:15> <21:25> <16:20> <11:15> Clk RegDst = 1 0 Mux Rt Rs Rd Imm16 Rs Rt ALUctr = RegWr = 5 5 5 MemtoReg = busA Zero MemWr = Rw Ra Rb busW 32 32 32-bit Registers 0 ALU 32 busB 32 0 Clk Mux 32 Mux 32 1 WrEn Adr 1 Data In 32 Data Memory Extender imm16 32 16 Clk ALUSrc = ExtOp = R[rt]  R[rs] or ZeroExt[Imm16] * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture7

  8. Datapath during Or Immediate 31 26 21 16 0 op rs rt immediate R[rt]  R[rs] or ZeroExt[Imm16] Instruction<31:0> nPC_sel= +4 Instruction Fetch Unit Rd Rt <0:15> <21:25> <16:20> <11:15> Clk RegDst = 0 1 0 Mux Rt Rs Rd Imm16 Rs Rt ALUctr = Or RegWr = 1 MemtoReg = 0 5 5 5 busA Zero MemWr = 0 Rw Ra Rb busW 32 32 32-bit Registers 0 ALU 32 busB 32 0 Clk Mux 32 Mux 32 1 WrEn Adr 1 Data In 32 Data Memory Extender imm16 32 16 Clk ALUSrc = 1 ExtOp = 0 * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture8

  9. Single Cycle Datapath during Load 31 26 21 16 0 op rs rt immediate R[rt]  Data Memory {R[rs] + SignExt[imm16]} Instruction<31:0> nPC_sel= +4 Instruction Fetch Unit Rd Rt <0:15> <21:25> <16:20> <11:15> Clk RegDst = 0 1 0 Mux Rt Rs Rd Imm16 Rs Rt ALUctr = Add RegWr = 1 MemtoReg = 1 5 5 5 busA Zero MemWr = 0 Rw Ra Rb busW 32 32 32-bit Registers 0 ALU 32 busB 32 0 Clk Mux 32 Mux 1 WrEn Adr 1 Data In 32 Data Memory Extender 32 imm16 32 16 Clk ALUSrc = 1 ExtOp = 1 * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture9

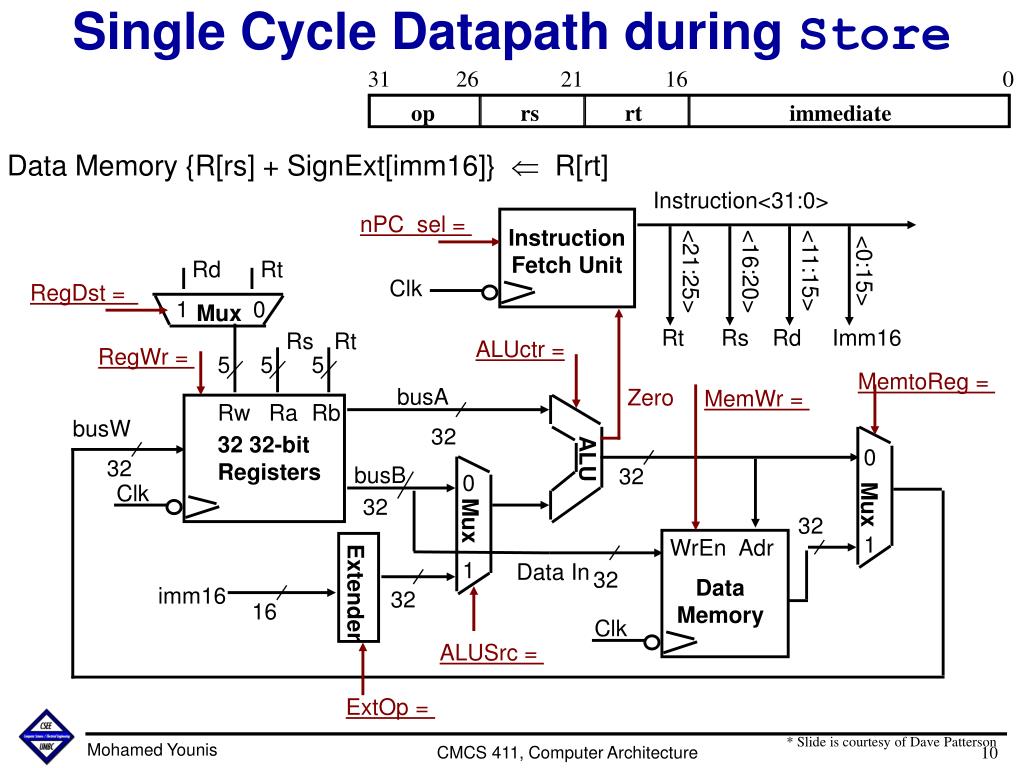

  10. Single Cycle Datapath during Store 31 26 21 16 0 op rs rt immediate Instruction<31:0> nPC_sel = Instruction Fetch Unit Rd Rt <0:15> <21:25> <16:20> <11:15> Clk RegDst = 1 0 Mux Rt Rs Rd Imm16 Rs Rt ALUctr = RegWr = 5 5 5 MemtoReg = busA Zero MemWr = Rw Ra Rb busW 32 32 32-bit Registers 0 ALU 32 busB 32 0 Clk Mux 32 Mux 32 1 WrEn Adr 1 Data In 32 Data Memory Extender imm16 32 16 Clk ALUSrc = ExtOp = Data Memory {R[rs] + SignExt[imm16]}  R[rt] * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture10

  11. Single Cycle Datapath during Store 31 26 21 16 0 op rs rt immediate Data Memory {R[rs] + SignExt[imm16]}  R[rt] Instruction<31:0> nPC_sel= +4 Instruction Fetch Unit Rd Rt <21:25> <16:20> <11:15> <0:15> Clk RegDst = x 1 0 Mux ALUctr = Add Rt Rs Rd Imm16 Rs Rt RegWr = 0 5 5 5 MemtoReg = x busA Zero MemWr = 1 Rw Ra Rb busW 32 32 32-bit Registers 0 ALU 32 busB 32 0 Clk Mux 32 Mux 32 1 WrEn Adr 1 32 Data In Data Memory Extender imm16 32 16 Clk ALUSrc = 1 ExtOp = 1 * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture11

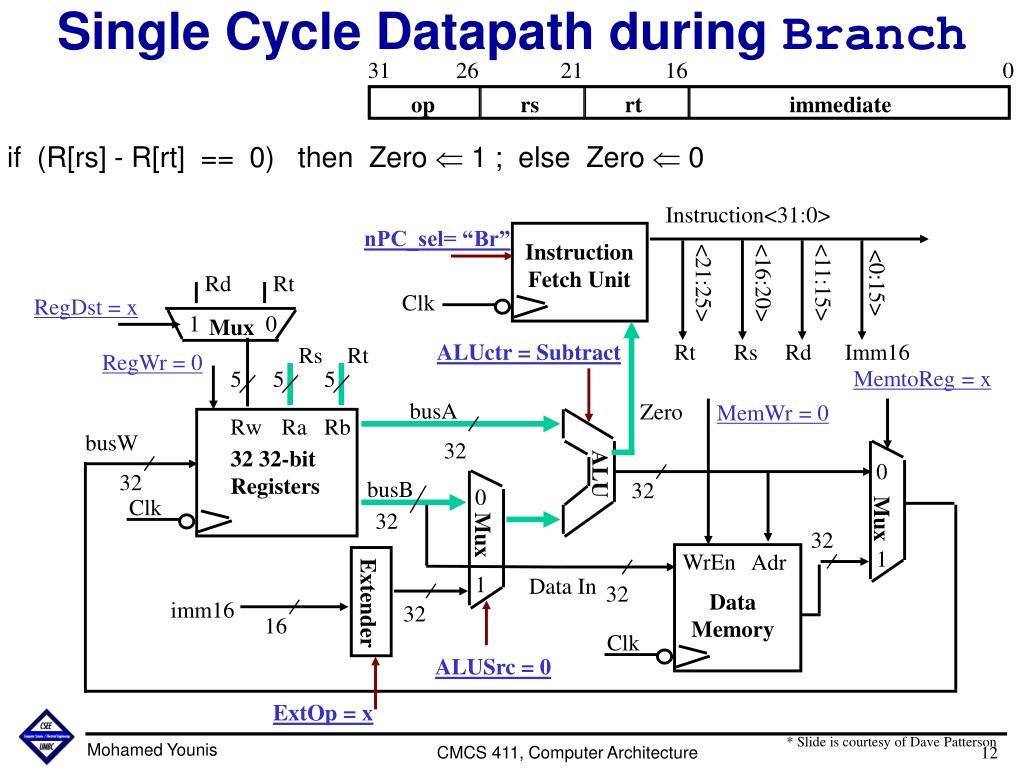

  12. Single Cycle Datapath during Branch 31 26 21 16 0 op rs rt immediate if (R[rs] - R[rt] == 0) then Zero  1 ; else Zero  0 Instruction<31:0> nPC_sel= “Br” Instruction Fetch Unit Rd Rt <21:25> <16:20> <11:15> <0:15> Clk RegDst = x 1 0 Mux ALUctr = Subtract Rt Rs Rd Imm16 Rs Rt RegWr = 0 MemtoReg = x 5 5 5 busA Zero MemWr = 0 Rw Ra Rb busW 32 32 32-bit Registers 0 ALU 32 busB 32 0 Clk Mux 32 Mux 32 1 WrEn Adr 1 Data In 32 Data Memory Extender imm16 32 16 Clk ALUSrc = 0 ExtOp = x * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture12

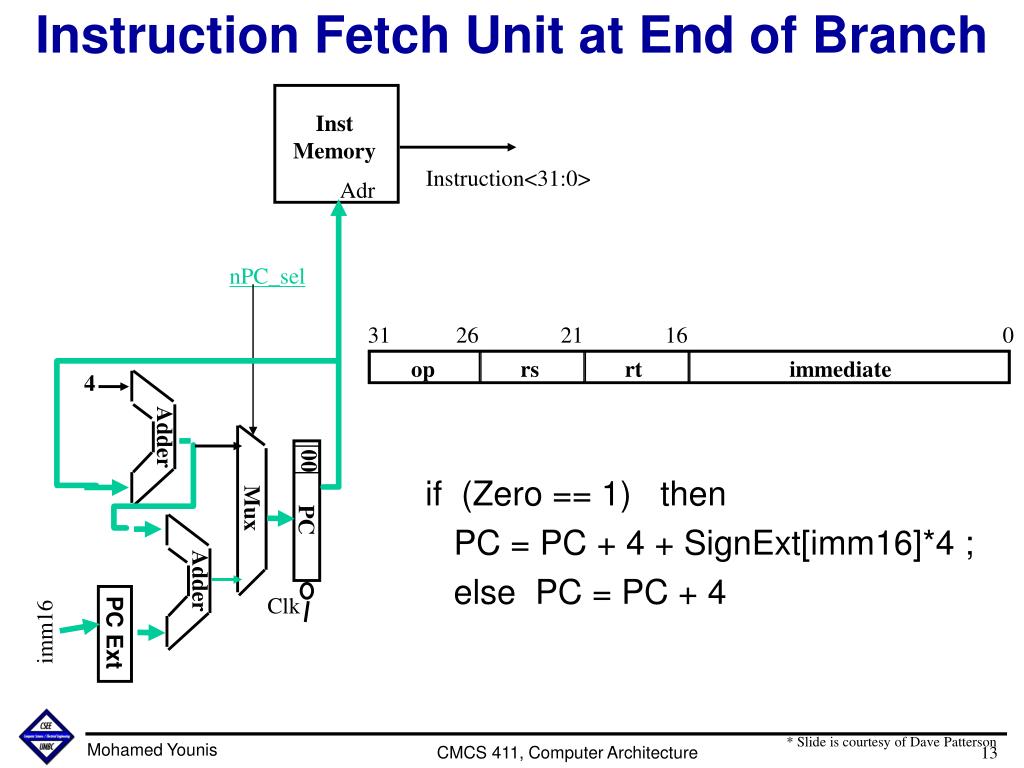

  13. Instruction Fetch Unit at End of Branch 31 26 21 16 0 op rs rt immediate Inst Memory Instruction<31:0> Adr nPC_sel 4 00 Adder PC Mux Clk Adder imm16 PC Ext if (Zero == 1) then PC = PC + 4 + SignExt[imm16]*4 ; else PC = PC + 4 * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture13

  14. Step 4: Given Datapath: RTL  Control Instruction<31:0> Inst Memory <21:25> <0:15> <21:25> <16:20> <11:15> Adr Op Fun Rt Rs Rd Imm16 Control ALUctr nPC_sel MemWr MemtoReg ALUSrc RegWr RegDst ExtOp Equal DATA PATH * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture14

  15. Value of Control Signals inst Register Transfer ADD R[rd]  R[rs] + R[rt]; PC  PC + 4 ALUsrc = RegB, ALUctr = “add”, RegDst = rd, RegWr, nPC_sel = “+4” SUB R[rd]  R[rs] – R[rt]; PC  PC + 4 ALUsrc = RegB, ALUctr = “sub”, RegDst = rd, RegWr, nPC_sel = “+4” ORi R[rt]  R[rs] + zero_ext(Imm16); PC  PC + 4 ALUsrc = Im, Extop = “Z”, ALUctr = “or”, RegDst = rt, RegWr, nPC_sel = “+4” LOAD R[rt]  MEM[ R[rs] + sign_ext(Imm16)]; PC  PC + 4 ALUsrc = Im, Extop = “Sn”, ALUctr = “add”, MemtoReg, RegDst = rt, RegWr, nPC_sel = “+4” STORE MEM[ R[rs] + sign_ext(Imm16)]  R[rs]; PC  PC + 4 ALUsrc = Im, Extop = “Sn”, ALUctr = “add”, MemWr, nPC_sel = “+4” BEQ if ( R[rs] == R[rt] ) then PC PC + sign_ext(Imm16)] || 00 else PC  PC + 4 nPC_sel = “Br”, ALUctr = “sub” * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture15

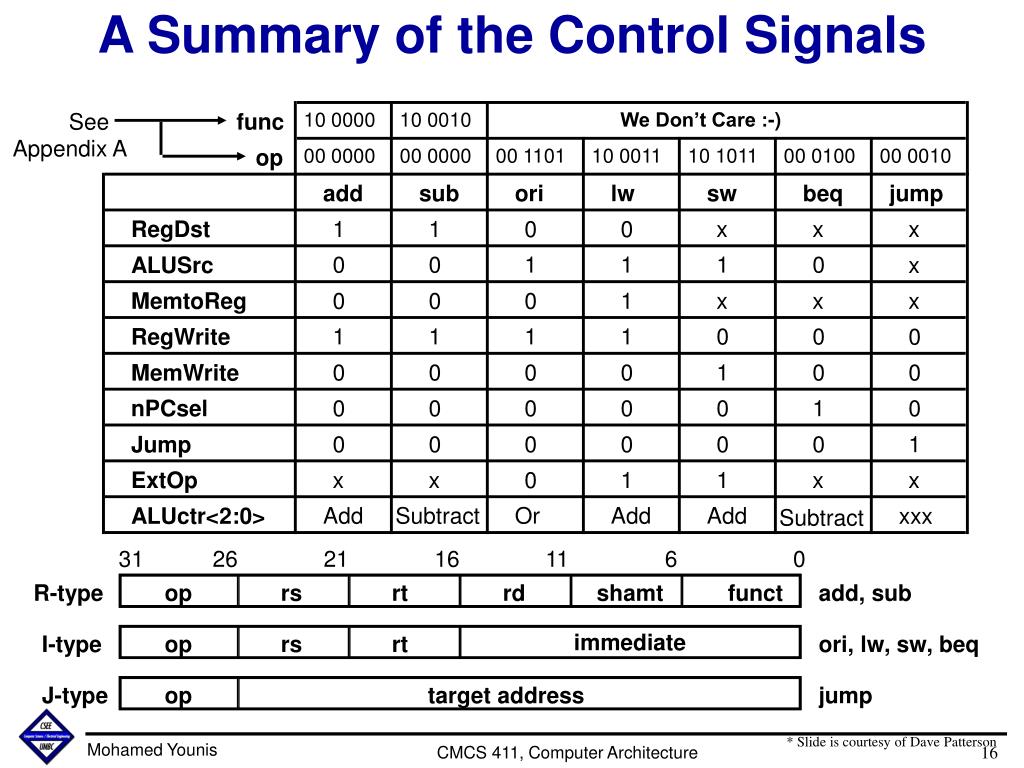

  16. A Summary of the Control Signals See func 10 0000 10 0010 We Don’t Care :-) Appendix A op 00 0000 00 0000 00 1101 10 0011 10 1011 00 0100 00 0010 add sub ori lw sw beq jump RegDst 1 1 0 0 x x x 0 0 1 1 1 0 ALUSrc x MemtoReg 0 0 0 1 x x x 1 1 1 1 0 0 RegWrite 0 0 0 0 0 1 0 0 MemWrite nPCsel 0 0 0 0 0 1 0 0 0 0 0 0 0 1 Jump ExtOp x x 0 1 1 x x Add Subtract Or Add Add ALUctr<2:0> xxx Subtract 31 26 21 16 11 6 0 op rs rt rd shamt funct immediate op rs rt op target address R-type add, sub I-type ori, lw, sw, beq J-type jump * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture16

  17. The Concept of Local Decoding op 00 0000 00 1101 10 0011 10 1011 00 0100 00 0010 R-type ori lw sw beq jump RegDst 1 0 0 x x x ALUSrc 0 1 1 1 0 x MemtoReg 0 0 1 x x x RegWrite 1 1 1 0 0 0 MemWrite 0 0 0 1 0 0 Branch 0 0 0 0 1 0 Jump 0 0 0 0 0 1 ExtOp x 0 1 1 x x ALUop<N:0> “R-type” Or Add Add xxx Subtract func ALUctr ALU Control (Local) op 6 Main Control 3 ALUop 6 N ALU * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture17

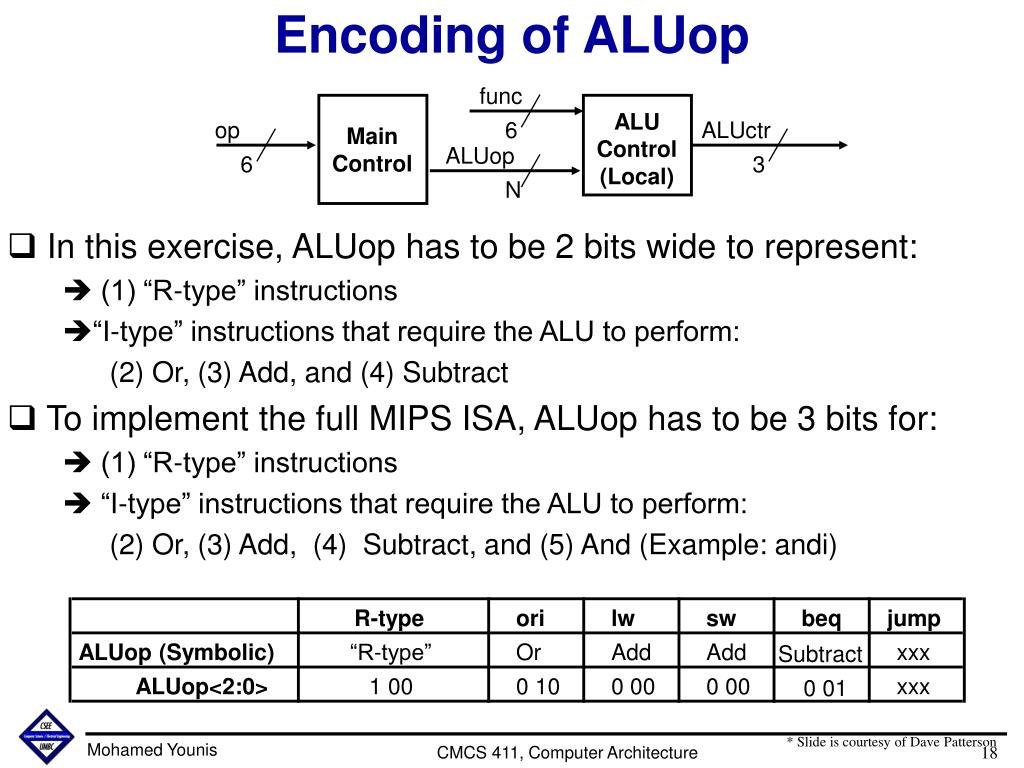

  18. Encoding of ALUop func ALU Control (Local) op 6 ALUctr Main Control ALUop 6 3 N R-type ori lw sw beq jump ALUop (Symbolic) “R-type” Or Add Add xxx Subtract ALUop<2:0> 1 00 0 10 0 00 0 00 xxx 0 01 • In this exercise, ALUop has to be 2 bits wide to represent: • (1) “R-type” instructions • “I-type” instructions that require the ALU to perform: (2) Or, (3) Add, and (4) Subtract • To implement the full MIPS ISA, ALUop has to be 3 bits for: • (1) “R-type” instructions • “I-type” instructions that require the ALU to perform: (2) Or, (3) Add, (4) Subtract, and (5) And (Example: andi) * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture18

  19. Decoding of the “func” Field func ALU Control (Local) op 6 ALUctr Main Control ALUop 6 3 N R-type ori lw sw beq jump ALUop (Symbolic) “R-type” Or Add Add xxx Subtract ALUop<2:0> 1 00 0 10 0 00 0 00 xxx 0 01 31 26 21 16 11 6 0 R-type op rs rt rd shamt funct funct<5:0> Instruction Operation ALUctr ALUctr<2:0> ALU Operation 10 0000 add 000 Add 10 0010 subtract 001 Subtract 10 0100 and 010 And ALU 10 0101 or 110 Or 10 1010 set-on-less-than 111 Set-on-less-than * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture19

  20. The Truth Table for ALUctr R-type ori lw sw beq ALUop (Symbolic) “R-type” Or Add Add Subtract ALUop<2:0> 1 00 0 10 0 00 0 00 0 01 ALUop func ALU Operation ALUctr bit<2> bit<1> bit<0> bit<3> bit<2> bit<1> bit<0> bit<2> bit<1> bit<0> 0 0 0 x x x x Add 0 1 0 0 x 1 x x x x Subtract 1 1 0 0 1 x x x x x Or 0 0 1 1 x x 0 0 0 0 Add 0 1 0 1 x x 0 0 1 0 Subtract 1 1 0 1 x x 0 1 0 0 And 0 0 0 1 x x 0 1 0 1 Or 0 0 1 1 x x 1 0 1 0 Set on < 1 1 1 funct<3:0> Instruction Op. 0000 add 0010 subtract 0100 and 0101 or 1010 set-on-less-than * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture20

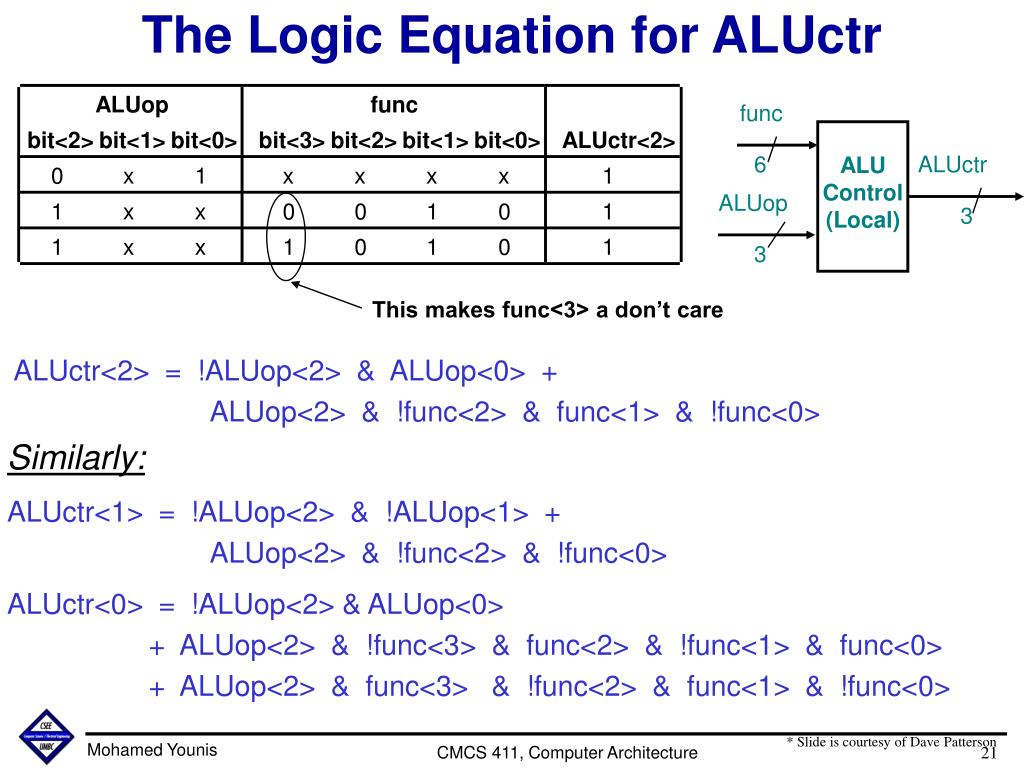

  21. The Logic Equation for ALUctr ALUop func bit<2> bit<1> bit<0> bit<3> bit<2> ALU Control (Local) bit<1> bit<0> ALUctr<2> 0 x 1 x x x x 1 1 x x 0 0 1 0 1 1 x x 1 0 1 0 1 This makes func<3> a don’t care ALUctr<2> = !ALUop<2> & ALUop<0> + ALUop<2> & !func<2> & func<1> & !func<0> Similarly: ALUctr<1> = !ALUop<2> & !ALUop<1> + ALUop<2> & !func<2> & !func<0> ALUctr<0> = !ALUop<2> & ALUop<0> + ALUop<2> & !func<3> & func<2> & !func<1> & func<0> + ALUop<2> & func<3> & !func<2> & func<1> & !func<0> func 6 ALUctr ALUop 3 3 * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture21

  22. Step 5: Logic for each control signal • nPC_sel  if (OP == BEQ) then EQUAL else 0 • ALUsrc  if (OP == “Rtype”) then “regB” else “immed” • ALUctr  if (OP == “Rtype”) then funct elseif (OP == ORi) then “OR” elseif (OP == BEQ) then “sub” else “add” • ExtOp  • MemWr  • MemtoReg  • RegWr:  • RegDst:  if (OP == ORi) then “zero” else “sign” (OP == Store) (OP == Load) if ((OP == Store) || (OP == BEQ)) then 0 else 1 if ((OP == Load) || (OP == ORi)) then 0 else 1 * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture22

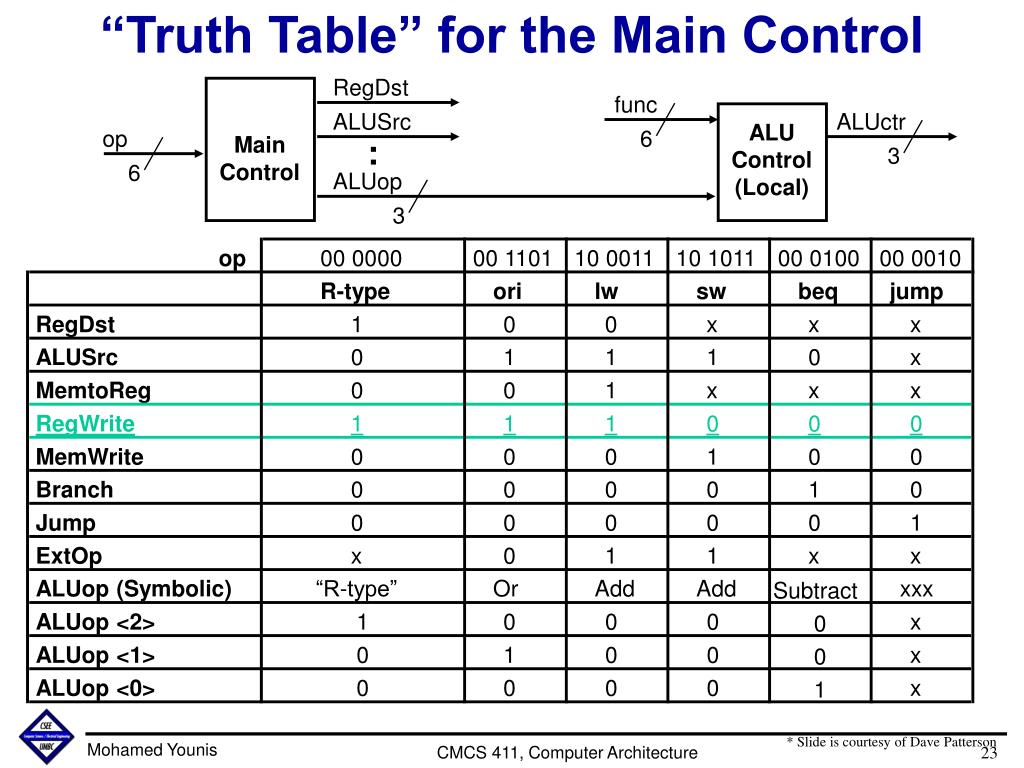

  23. “Truth Table” for the Main Control RegDst func ALUSrc ALUctr ALU Control (Local) op 6 Main Control : 3 6 ALUop 3 op 00 0000 00 1101 10 0011 10 1011 00 0100 00 0010 R-type ori lw sw beq jump RegDst 1 0 0 x x x ALUSrc 0 1 1 1 0 x MemtoReg 0 0 1 x x x RegWrite 1 1 1 0 0 0 MemWrite 0 0 0 1 0 0 Branch 0 0 0 0 1 0 Jump 0 0 0 0 0 1 ExtOp x 0 1 1 x x ALUop (Symbolic) “R-type” Or Add Add xxx Subtract ALUop <2> 1 0 0 0 x 0 ALUop <1> 0 1 0 0 x 0 ALUop <0> 0 0 0 0 x 1 * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture23

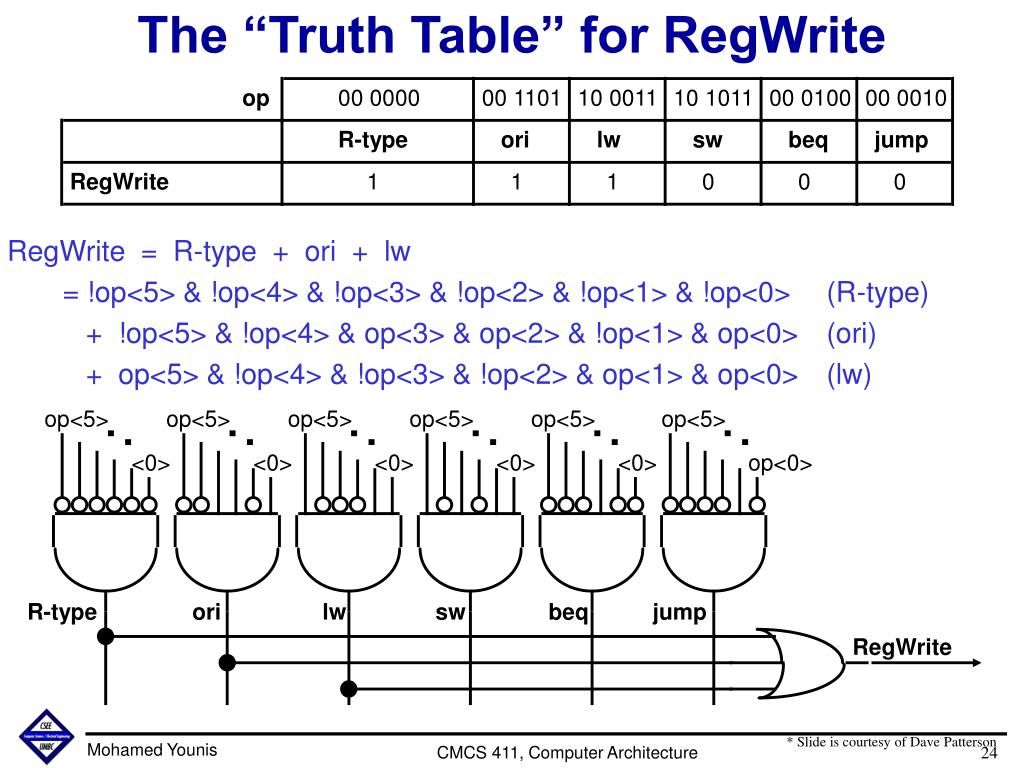

  24. The “Truth Table” for RegWrite op 00 0000 00 1101 10 0011 10 1011 00 0100 00 0010 R-type ori lw sw beq jump RegWrite 1 1 1 0 0 0 . . . . . . op<5> op<5> op<5> op<5> op<5> op<5> . . . . . . <0> <0> <0> <0> <0> op<0> R-type ori lw sw beq jump RegWrite RegWrite = R-type + ori + lw = !op<5> & !op<4> & !op<3> & !op<2> & !op<1> & !op<0> (R-type) + !op<5> & !op<4> & op<3> & op<2> & !op<1> & op<0> (ori) + op<5> & !op<4> & !op<3> & !op<2> & op<1> & op<0> (lw) * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture24

  25. Implementation of the Main Control . . . . . . op<5> op<5> op<5> op<5> op<5> op<5> . . . . . . <0> <0> <0> <0> <0> op<0> R-type ori lw sw beq jump RegWrite ALUSrc RegDst MemtoReg MemWrite Branch Jump ExtOp ALUop<2> ALUop<1> ALUop<0> * Slide is courtesy of Dave Patterson CMCS 411, Computer Architecture25

  26. A Single Cycle Processor ALUop ALU Control ALUctr 3 RegDst func op 3 Main Control Instr<5:0> 6 ALUSrc 6 : Instr<31:26> Instruction<31:0> nPC_sel Instruction Fetch Unit Rd Rt <0:15> <21:25> <16:20> <11:15> Clk RegDst 1 0 Mux Rt Rs Rd Imm16 Rs Rt RegWr ALUctr 5 5 5 MemtoReg busA Zero MemWr Rw Ra Rb busW 32 32 32-bit Registers 0 ALU 32 busB 32 0 Clk Mux 32 Mux 32 1 WrEn Adr 1 Data In 32 Data Memory Extender imm16 32 16 Instr<15:0> Clk ALUSrc ExtOp CMCS 411, Computer Architecture26

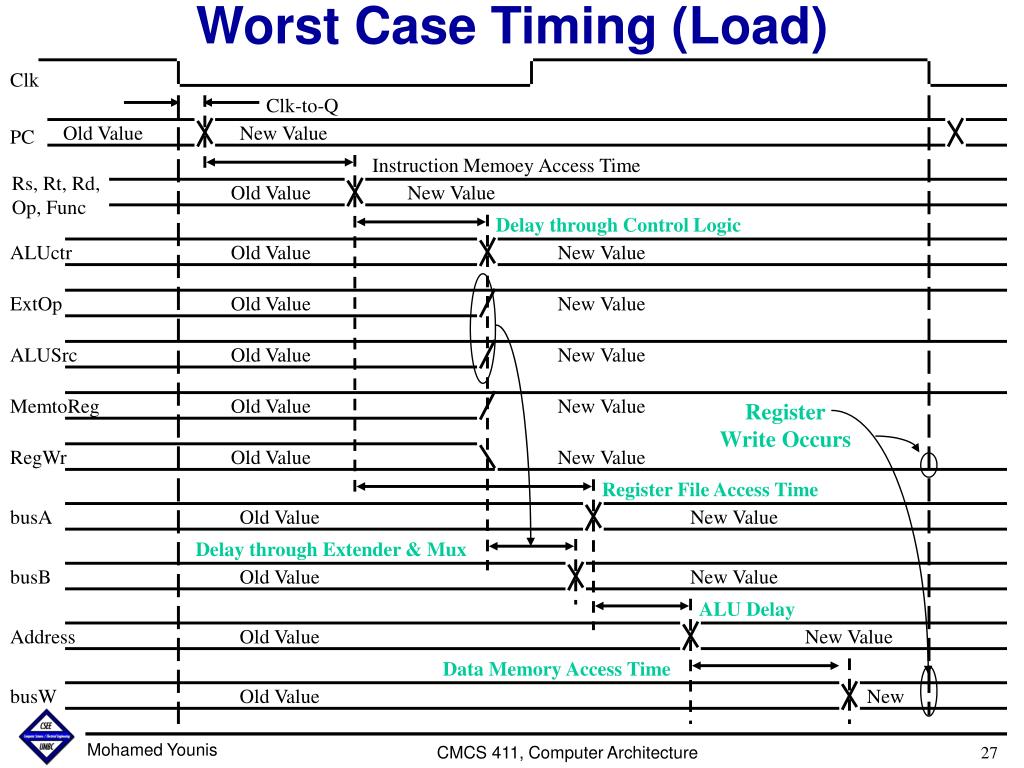

  27. Worst Case Timing (Load) Clk Clk-to-Q Old Value New Value PC Instruction Memoey Access Time Rs, Rt, Rd, Op, Func Old Value New Value Delay through Control Logic ALUctr Old Value New Value ExtOp Old Value New Value ALUSrc Old Value New Value MemtoReg Old Value New Value Register Write Occurs RegWr Old Value New Value Register File Access Time busA Old Value New Value Delay through Extender & Mux busB Old Value New Value ALU Delay Address Old Value New Value Data Memory Access Time busW Old Value New CMCS 411, Computer Architecture27

  28. Conclusion • Summary • Control unit design (Steps of control design, register transfer logic) • Single cycle processor (Advantage and disadvantage, integration of datapath and control) • Circuit implementation of control unit (Logic equations, truth tables, combinational circuit) • Next Lecture • Multi-cycle datapath • Sequencer design • Multi-cycle control Reading assignment includes sections 5.3 in the text book CMCS 411, Computer Architecture28
