  1. Building Systems from ActorsAn approach to addressing the spatial software crisisJörn W. JanneckXilinx Inc.

  2. Crisis? What crisis? [The major cause of the software crisis is] that the machines have become several orders of magnitude more powerful! To put it quite bluntly: as long as there were no machines, programming was no problem at all; when we had a few weak computers, programming became a mild problem, and now we have gigantic computers, programming has become an equally gigantic problem. Edsger Dijkstra: The Humble ProgrammerTuring Award Lecture, 1972 Space-oriented Computing, Dagstuhl 2006

  3. “Silver Bullets” • tools and methodology • formal methods • formalized processes Space-oriented Computing, Dagstuhl 2006

  4. No more crisis? • adjusting expectations “no silver bullet” (Fred Brooks, 1986/87) • domain-specific languages/notations/syntaxes • mix of tools, languages, processes, ... • accepted component model • objects, methods, polymorphism have become software engineering orthodoxy • fertile ground for new abstractions, methods, and tools • design patterns, UML, refactoring, ... • provides vocabulary and idioms to engineers Space-oriented Computing, Dagstuhl 2006

  5. Moore’s Law Goodness Time (Borrowed from Seth.) Space-oriented Computing, Dagstuhl 2006

  6. The Platform FPGA • What’s special about a “Platform FPGA”? • It is big. • It has a variety of different elements on it. • In particular, there may be processors. • Platform FPGAs are heavy-duty spatial computing devices, not just glue logic. Space-oriented Computing, Dagstuhl 2006

  7. good news, bad news • the good news • spatial computing devices commercially available • spatial computing is now feasible • the bad news • “spatial programmers” are facing a “spatial software crisis” • ... and no, C is not the answer Space-oriented Computing, Dagstuhl 2006

  8. FPGA potential spatial productivity gap the business s(l)ide • key FPGA value proposition: low NRE, fast TTM (compared to ASICs) • ASIC programming model evaporates some of that proposition ASIC QoRperformance/$performance/W FPGA reality Total Design CostNRE $, TTM Space-oriented Computing, Dagstuhl 2006

  9. newmethodology motivating methodology • Quality of result (QoR) is not a design goal • Performance, power, cost budgets make QoR a design constraint • The real problem is to meet the QoR target and minimize: • Non-recurring engineering costs (NRE) • Time-to-market (TTM) • Methodology saves design cost by enabling • Design of portable, retargetable, composable IP blocks • Rapid design space exploration and system composition QoRperformance/$performance/W FPGA potential FPGA reality Total Design CostNRE $, TTM Space-oriented Computing, Dagstuhl 2006

  10. fixing the spatial software crisis • adjusting expectations • it seems we have done this already! • spatial components • related to spatial computation models • i.e., there may be more than one kind(... but maybe not) Space-oriented Computing, Dagstuhl 2006

  11. spatial components • key characteristics • weak coupling • small, explicit interfaces • exposed parallelism • make it available to tools, explicit to programmers • encapsulation of state • simplicity Space-oriented Computing, Dagstuhl 2006

  12. actor/dataflow programming model • dataflow/stream-based composition • hierarchical, compositional • “actors” as atomic components • specified in an actor language, CAL • actors have localized state • ... and make atomic, guarded state transitions • related to “transactors”/UTL (Asanovic et al.) • CAL allows more expressive guards (activation conditions) • ... and permits non-determinism Space-oriented Computing, Dagstuhl 2006

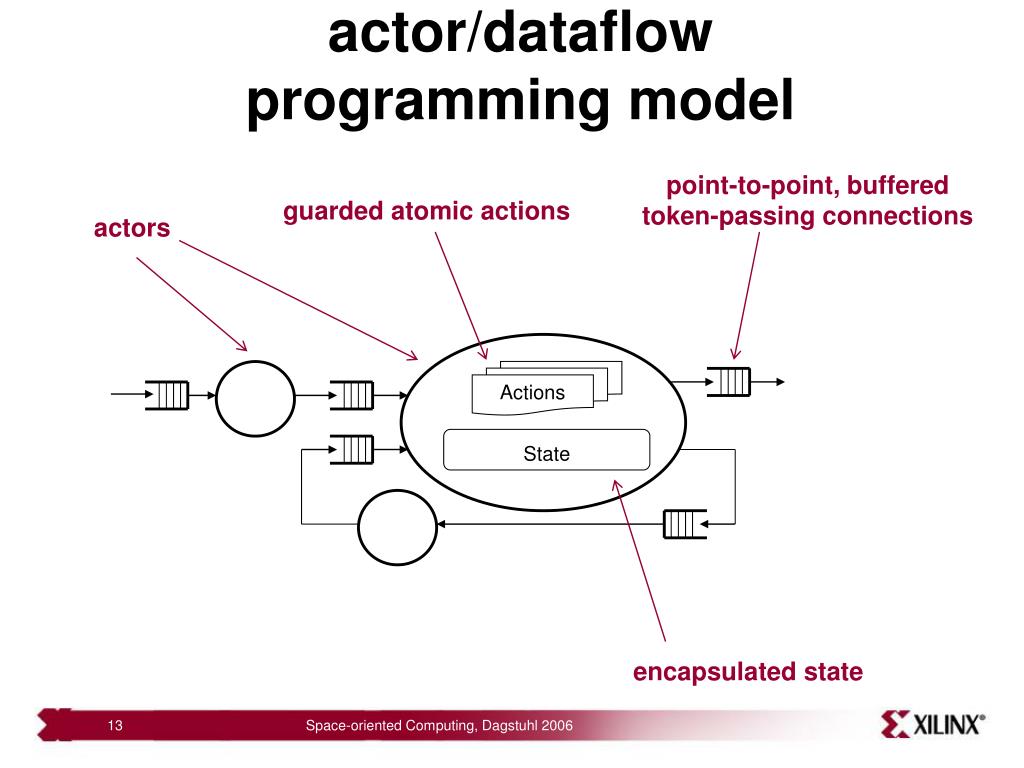

  13. point-to-point, buffered token-passing connections guarded atomic actions actors Actions State encapsulated state actor/dataflow programming model Space-oriented Computing, Dagstuhl 2006

  14. ... 6 7 3 A X ... 11 -1 5 B s := 2 pick input prefix pick input prefix transition transition ... 6 7 A X 3 ... 11 -1 B s := 4 ... 6 A X 12 3 ... 11 B s := 12 actors: stream processing engines a is token on A, b is token on B if a > b: s := s + (a – b) send new s to output else s := s + (b – a) send a to output actor Foo () A, B ==> X: s := 2; action [a], [b] ==> [s] guard a > b do s := s + (a – b); end action [a], [b] ==> [a] guard a <= b do s := s + (b – a); end end Space-oriented Computing, Dagstuhl 2006

  15. properties of (CAL) actors • simple, sequential execution model • with a lot of potential for parallel implementation • expressions are side-effect-free, guards can be parallelized • action firing may be pipelined“Language implementation is the art of cheating without getting caught.” • no aliasing of stateful structures • actors can be non-deterministic • i.e. non-prefix-monotonic • but we can tell when they might be! Space-oriented Computing, Dagstuhl 2006

  16. benefits • dataflow natural to DSP • explicit concurrency, encapsulated state • simplifies design and debug of concurrent systems • abstraction of time • is a strength and weakness • extensive abstraction of control • token flow triggers computation • allows HW and SW implementations • and also allows them to be interfaced easily • works naturally with run-time reconfiguration Space-oriented Computing, Dagstuhl 2006

  17. Actions Schedule State actor/dataflow toolflow actor source+ network simulation software class MyActor { schedule(); readPort( portNum ); writePort( portNum ); } high-level synthesis simulation hardware Space-oriented Computing, Dagstuhl 2006

  18. driver: MPEG-4 SP decoder Space-oriented Computing, Dagstuhl 2006

  19. motion compensator (potentially)non-deterministic component native IP component Space-oriented Computing, Dagstuhl 2006

  20. results – MPEG-4 decoder Functional Unit Lines of Code Area slice/bram/mult CAL VHDL1 CAL VHDL Parser 1856 5980 1542/3/0 1720/1/1 AC/DC Recon 507 1890 963+/4/4 801/6/9 2d-IDCT 528 1290 929/0/4 909/0/16 Motion Comp 866 4610 2020/22/4 797/0/6 3913/9/13 Total 3757 13770 5450/29/30 1 XRL VHDL hand design (Area #’s are XST reported) Space-oriented Computing, Dagstuhl 2006

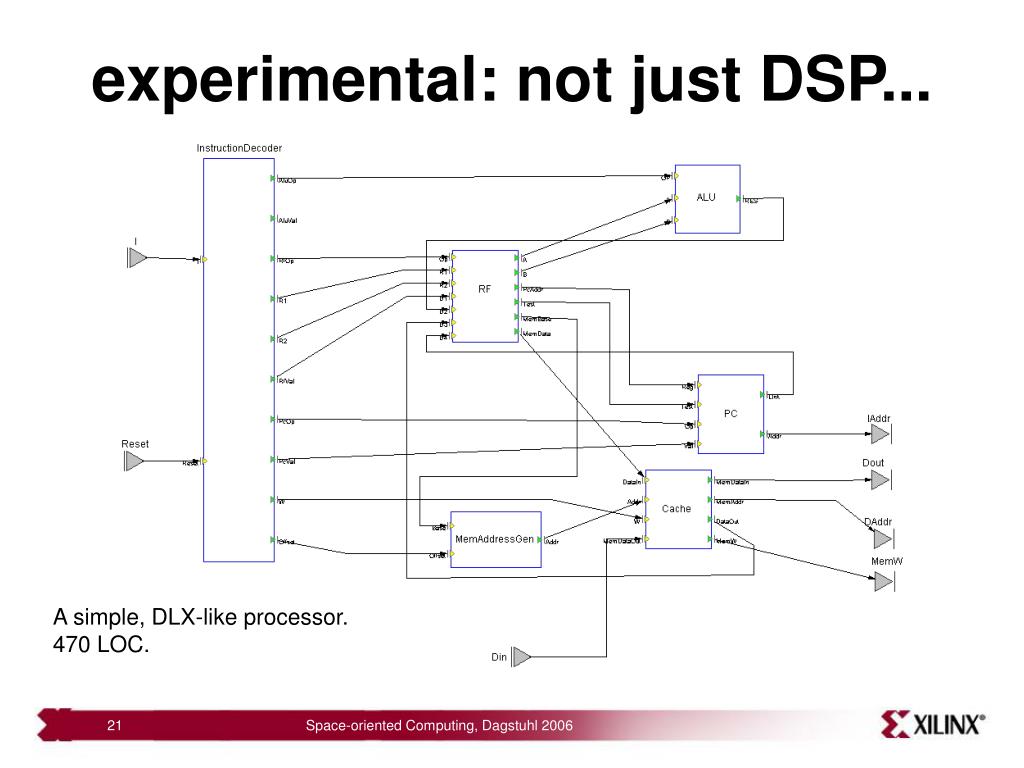

  21. experimental: not just DSP... A simple, DLX-like processor. 470 LOC. Space-oriented Computing, Dagstuhl 2006

  22. summary • Spatial Programming should to be addressed as an engineering problem. • Need to solve the spatial software crisis. • How to build large systems efficiently? • Actors and dataflow are a good model for DSP applications. • ... and likely others. • Need to encourage non-sequential programming. Space-oriented Computing, Dagstuhl 2006

  23. Thanks. Credits: Dave B. Parlour, Ian A. Miller, Johan Eker, Edward A. Lee, and many others. CAL actor language: embedded.eecs.berkeley.edu/caltrop Ptolemy II: ptolemy.eecs.berkeley.edu Moses: mosestoolsuite.sf.net Space-oriented Computing, Dagstuhl 2006
