Presentation Transcript

  1. HDP User Group International, Inc.Halogen Free (HF) Database Property Project May 20, 2010 Bruchsal, Germany ©HDP User Group International, Inc.

  2. HDPUG Halogen-Free Project Overview ©HDP User Group International, Inc. 2 Current project: • Halogen-Free Database – develop a searchable, online database that will contain halogen-free material sets and components offered within the industry. “One stop shop” to identify halogen-free materials, relevant properties, supplier contacts, etc. • Project now in “Proof of Concept” Phase • First implementation will be PWB Materials • Still open to members and non-members at this time

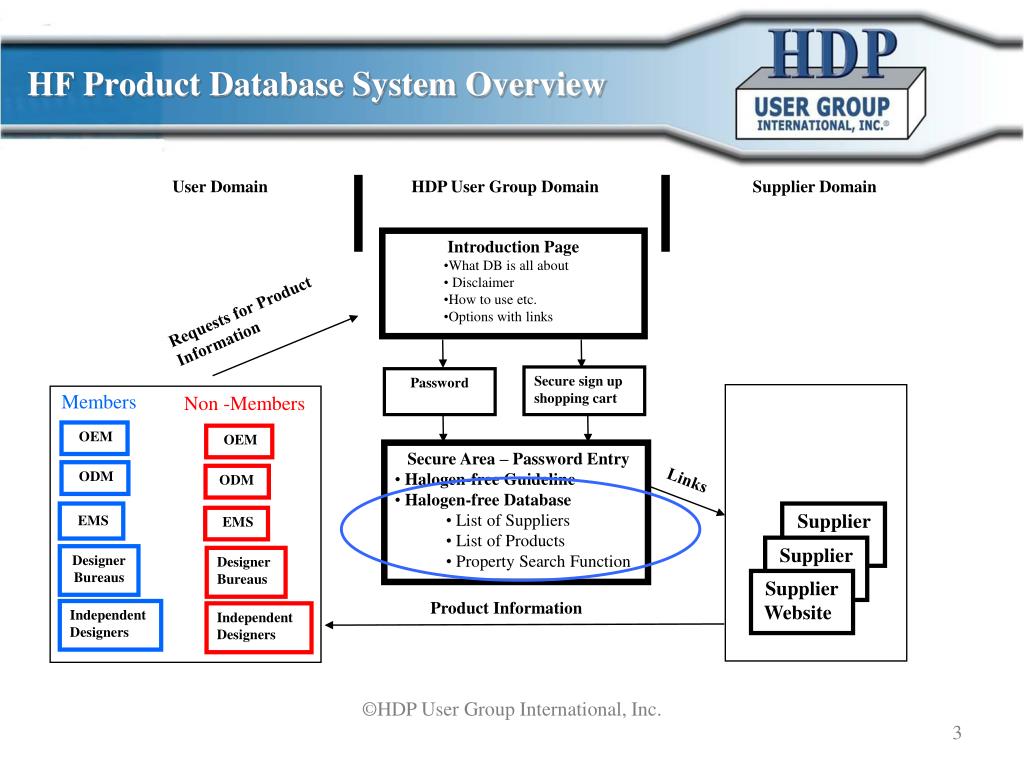

  3. Supplier Website Supplier Website Supplier Website HF Product Database System Overview User Domain HDP User Group Domain Supplier Domain • Introduction Page • What DB is all about • Disclaimer • How to use etc. • Options with links Requests for Product Information Secure sign up shopping cart Password Members Non -Members OEM OEM • Secure Area – Password Entry • Halogen-free Guideline • Halogen-free Database • List of Suppliers • List of Products • Property Search Function ODM Links ODM EMS EMS Designer Bureaus Designer Bureaus Product Information Independent Designers Independent Designers ©HDP User Group International, Inc.

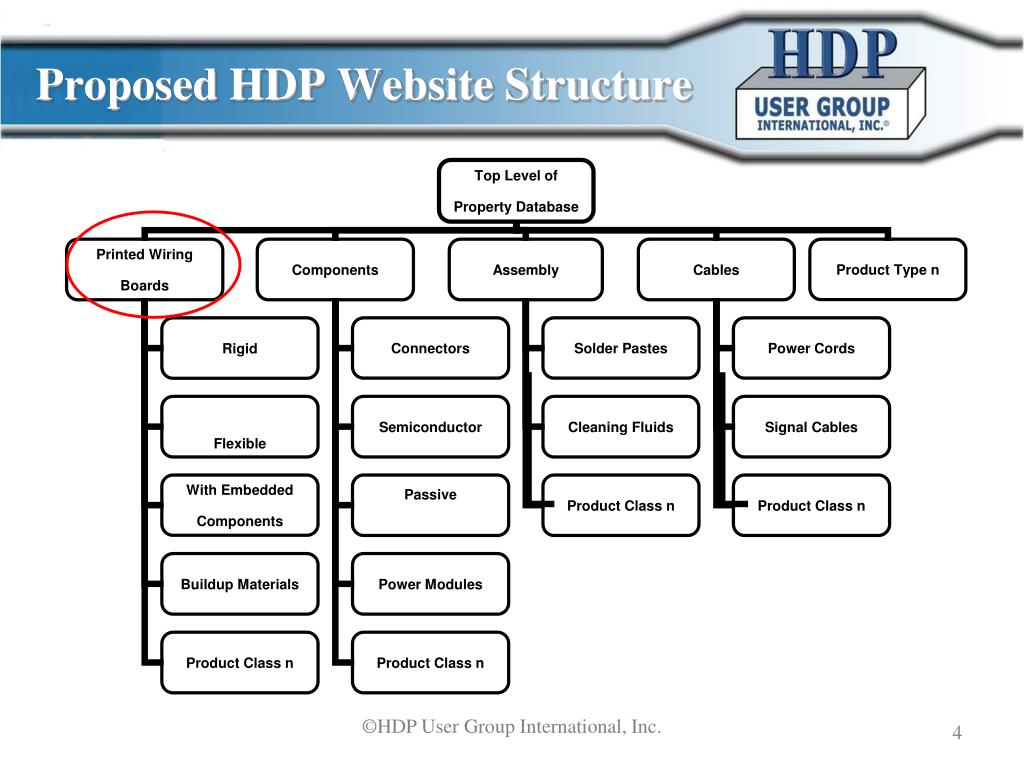

  4. Proposed HDP Website Structure ©HDP User Group International, Inc.

  5. Supplier Data Results Results using a standard IPC slash sheet as a template: • Would like elevated Cu Peels Strength tested at 245C • Dk/Df values at 1, 5 and 10GHz—1MHz not useful • Would like Dk/Df values at different Humidity/Temperatures • Would like Thermal Conductivity • Would like to know if Fillers are present Is UL certification a must????? ©HDP User Group International, Inc.

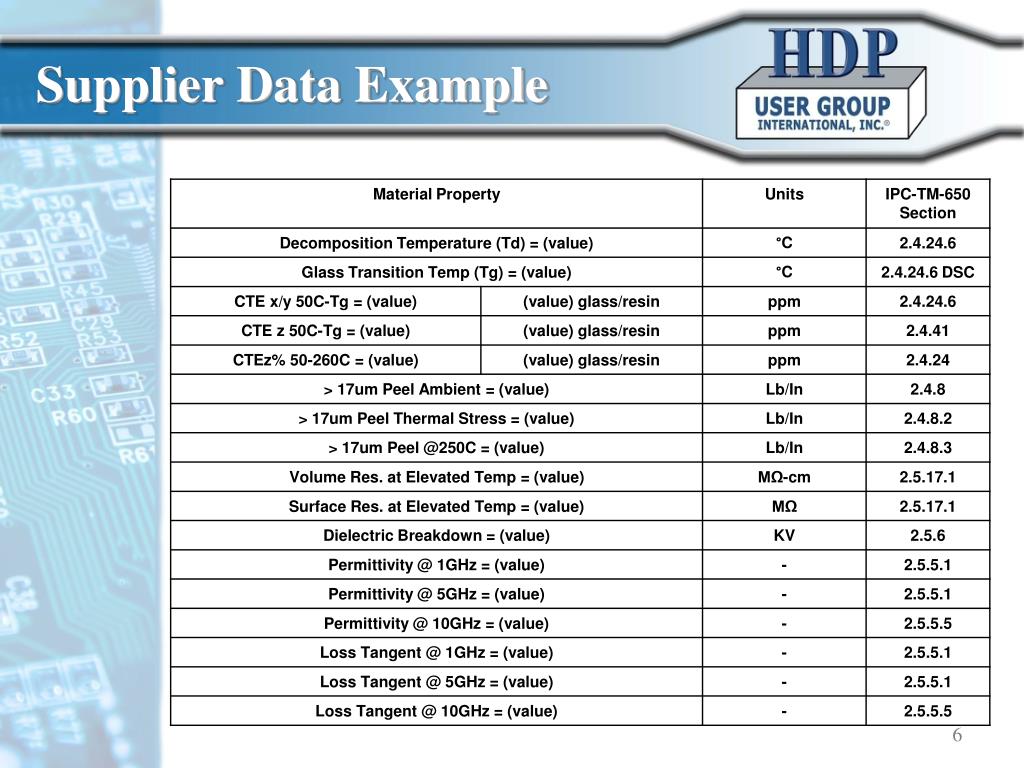

  6. Supplier Data Example

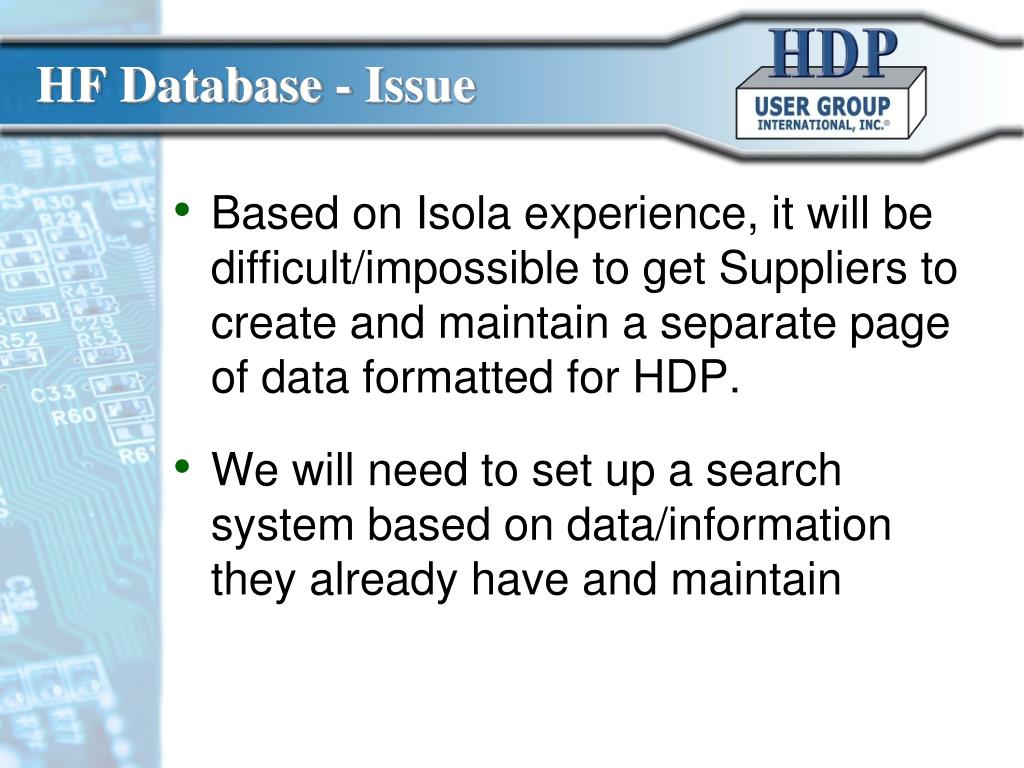

  7. HF Database - Issue • Based on Isola experience, it will be difficult/impossible to get Suppliers to create and maintain a separate page of data formatted for HDP. • We will need to set up a search system based on data/information they already have and maintain

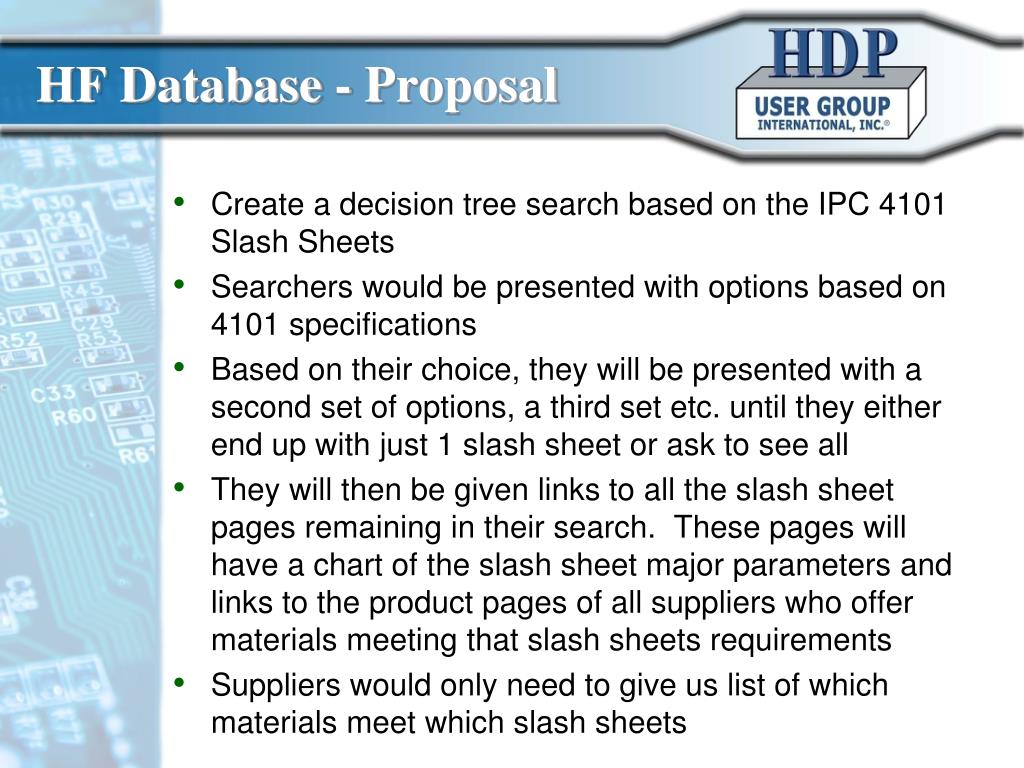

  8. HF Database - Proposal • Create a decision tree search based on the IPC 4101 Slash Sheets • Searchers would be presented with options based on 4101 specifications • Based on their choice, they will be presented with a second set of options, a third set etc. until they either end up with just 1 slash sheet or ask to see all • They will then be given links to all the slash sheet pages remaining in their search. These pages will have a chart of the slash sheet major parameters and links to the product pages of all suppliers who offer materials meeting that slash sheets requirements • Suppliers would only need to give us list of which materials meet which slash sheets

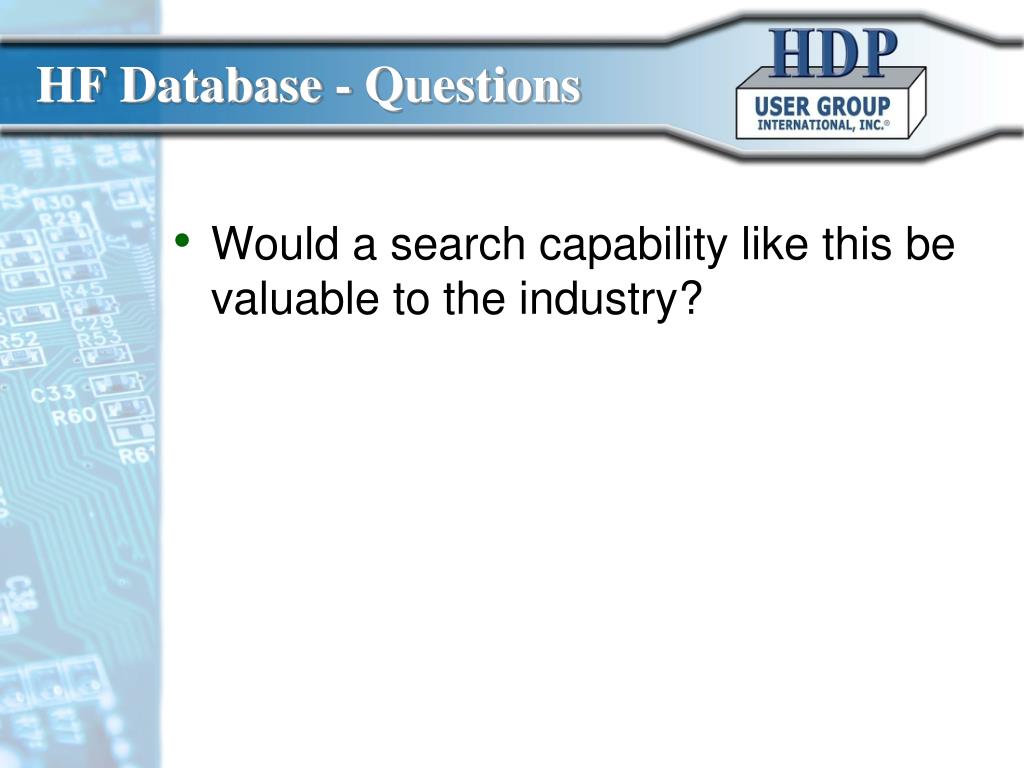

  9. HF Database - Questions • Would a search capability like this be valuable to the industry?

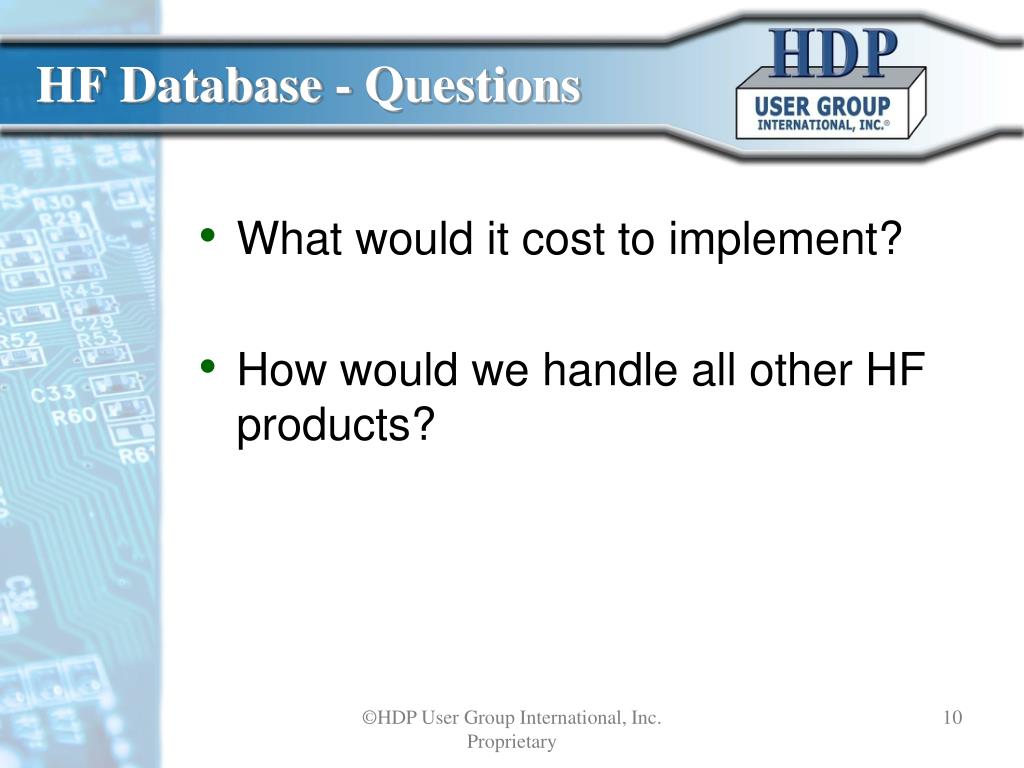

  10. HF Database - Questions • What would it cost to implement? • How would we handle all other HF products? ©HDP User Group International, Inc. Proprietary

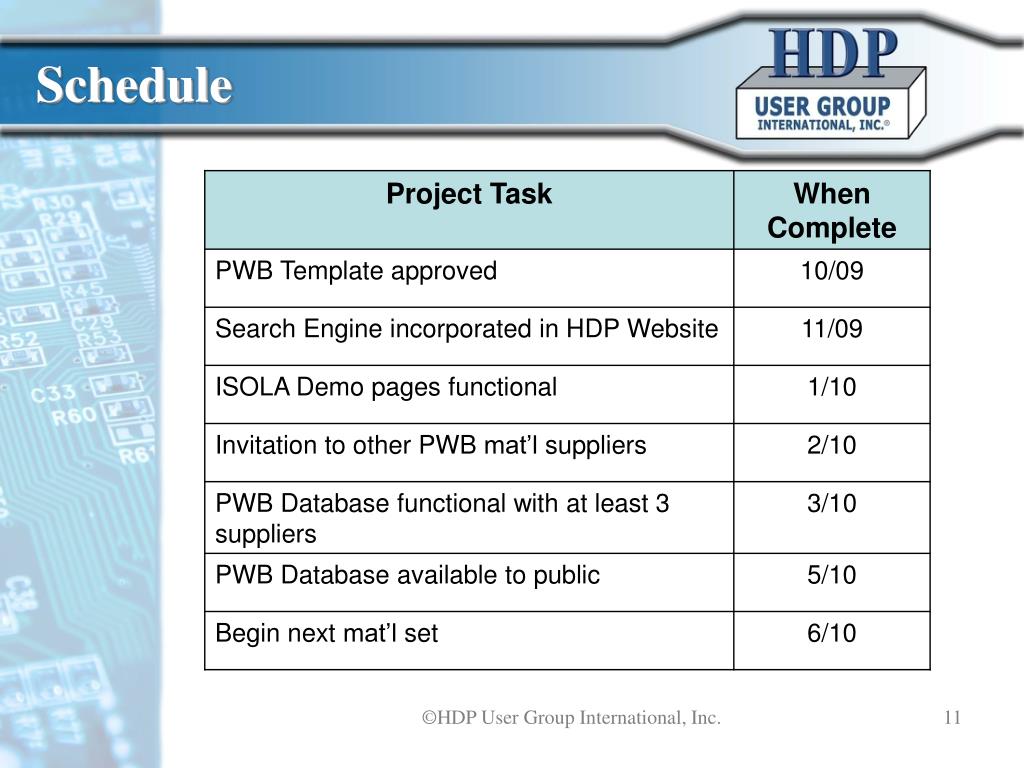

  11. Schedule ©HDP User Group International, Inc.

  12. HF Database - Current Team Members David Bedner (Team Leader) Isola Mike Loo AMD Donna Sadowy AMD Jerome DeBoysere Clariant Adrian Beard Clariant Scott O’Connell Dell Art Fong IBM Wayne Rothschild IBM Paris Dieker HP Hans Wendschlag HP Harry Witschas Fujitsu-Siemens Mark Buczek Supresta Sergei Levchik Supresta Susan Landry Albemarle Brian Carter Albemarle Louis Lin Nan Ya Bruce Sorenson Nan Ya Silvio Bertling Park Nelco Kathleen Vokes EPA Paul Collander Poltronic Doug Sober Kaneka Texas Ed Kelly Isola Gary Hoeppel Coretec Dave Bender Tyco Jeff Toran FCI Pete Elmgren Molex Jack Fisher HDPUG staff ©HDP User Group International, Inc.
