  1. Introduction toData on PMR Mark Redman BSc(Eng) CEng MIEERadiocommunications Agency, UK 1

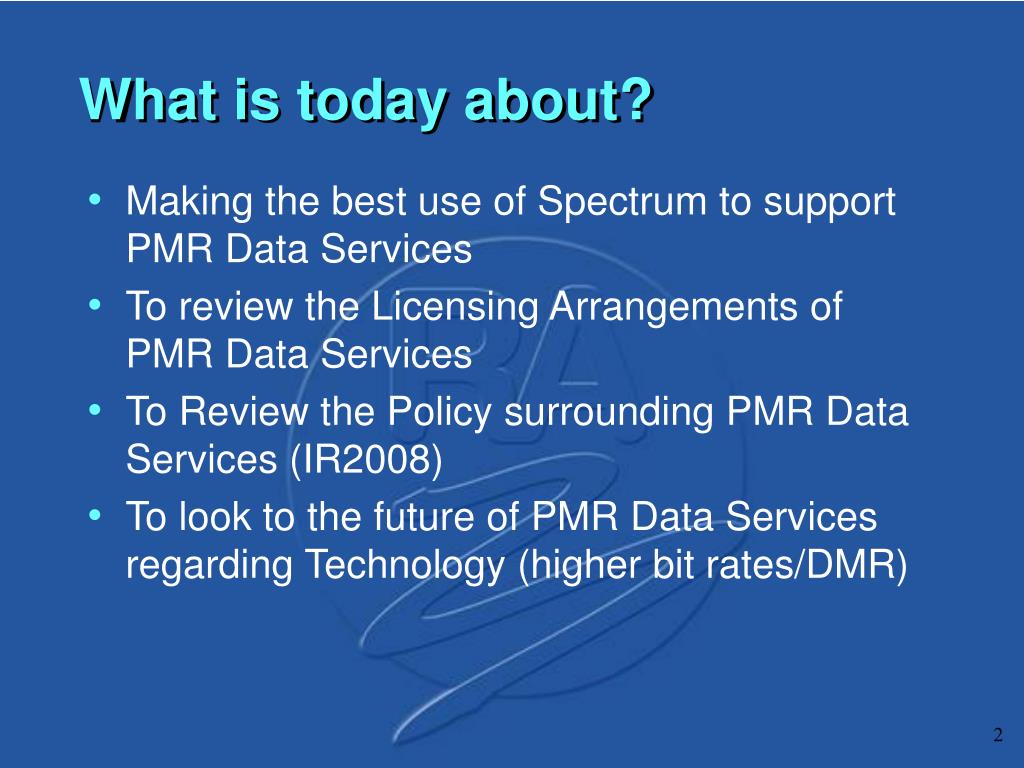

  2. What is today about? • Making the best use of Spectrum to support PMR Data Services • To review the Licensing Arrangements of PMR Data Services • To Review the Policy surrounding PMR Data Services (IR2008) • To look to the future of PMR Data Services regarding Technology (higher bit rates/DMR) 2

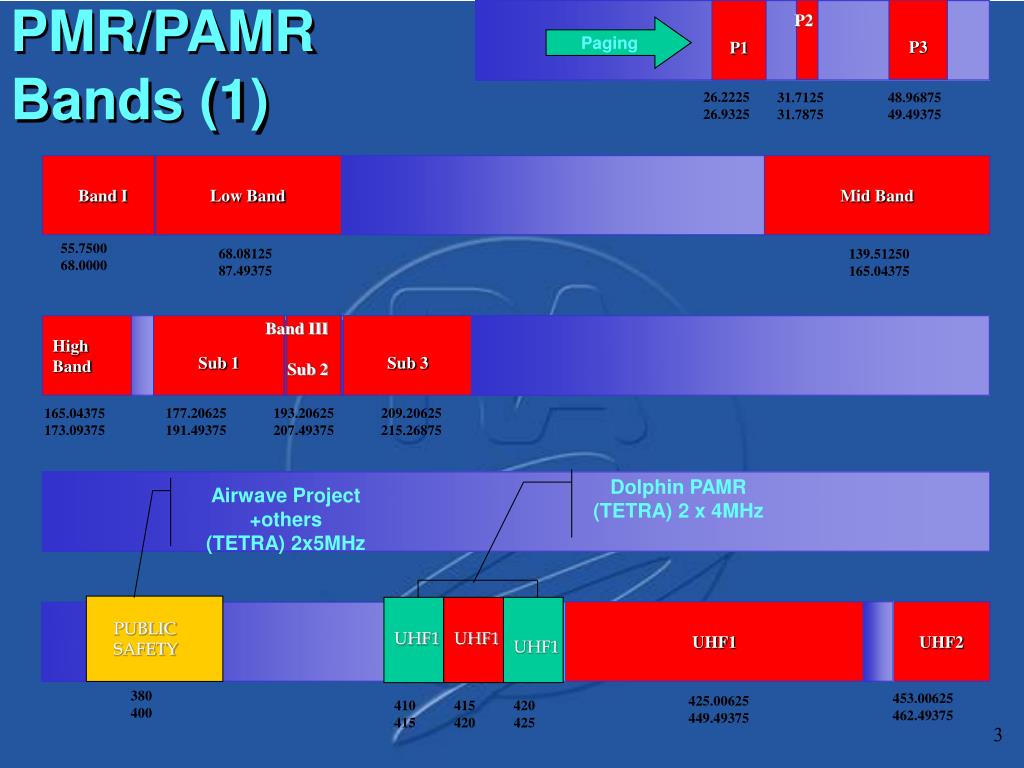

  3. P3 P1 P2 26.2225 26.9325 31.7125 31.7875 48.96875 49.49375 Band I Low Band Mid Band 55.7500 68.0000 68.08125 87.49375 139.51250 165.04375 Band III High Band Sub 1 Sub 3 Sub 2 177.20625 191.49375 193.20625 207.49375 209.20625 215.26875 165.04375 173.09375 UHF1 UHF2 453.00625 462.49375 425.00625 449.49375 Paging PMR/PAMR Bands (1) Dolphin PAMR (TETRA) 2 x 4MHz Airwave Project +others (TETRA) 2x5MHz PUBLIC SAFETY UHF1 UHF1 UHF1 380 400 410 415 415 420 420 425 3

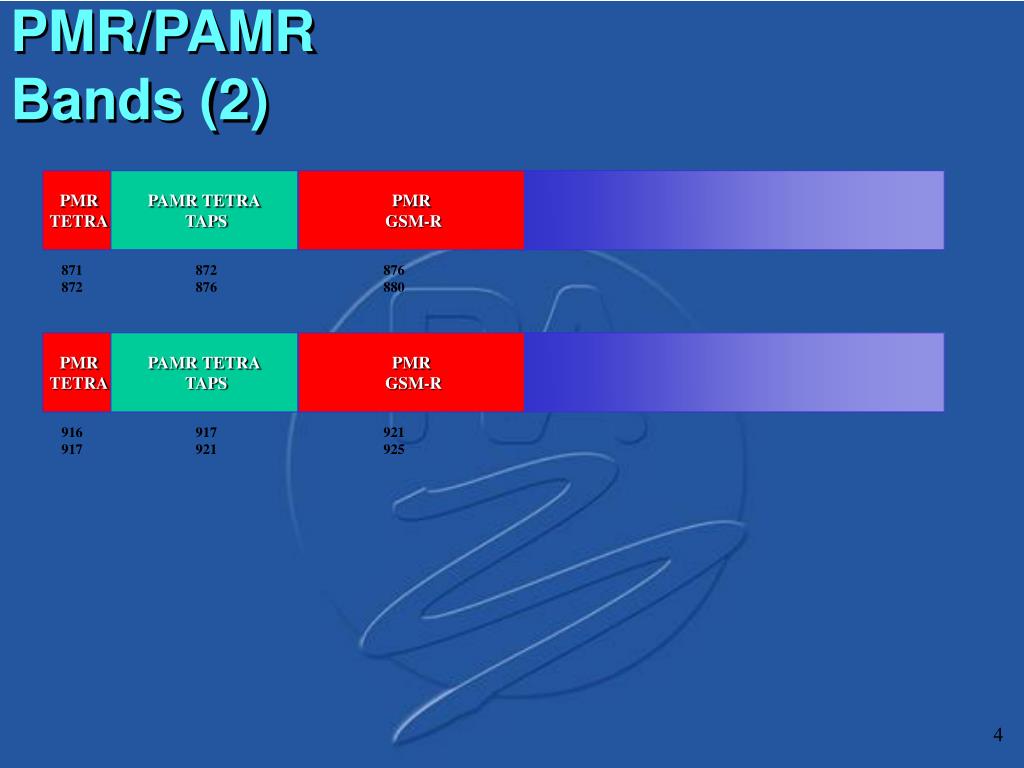

  4. PMR/PAMR Bands (2) PMR TETRA PAMR TETRA TAPS PMR GSM-R 871 872 872 876 876 880 PMR TETRA PAMR TETRA TAPS PMR GSM-R 916 917 917 921 921 925 4

  5. 5

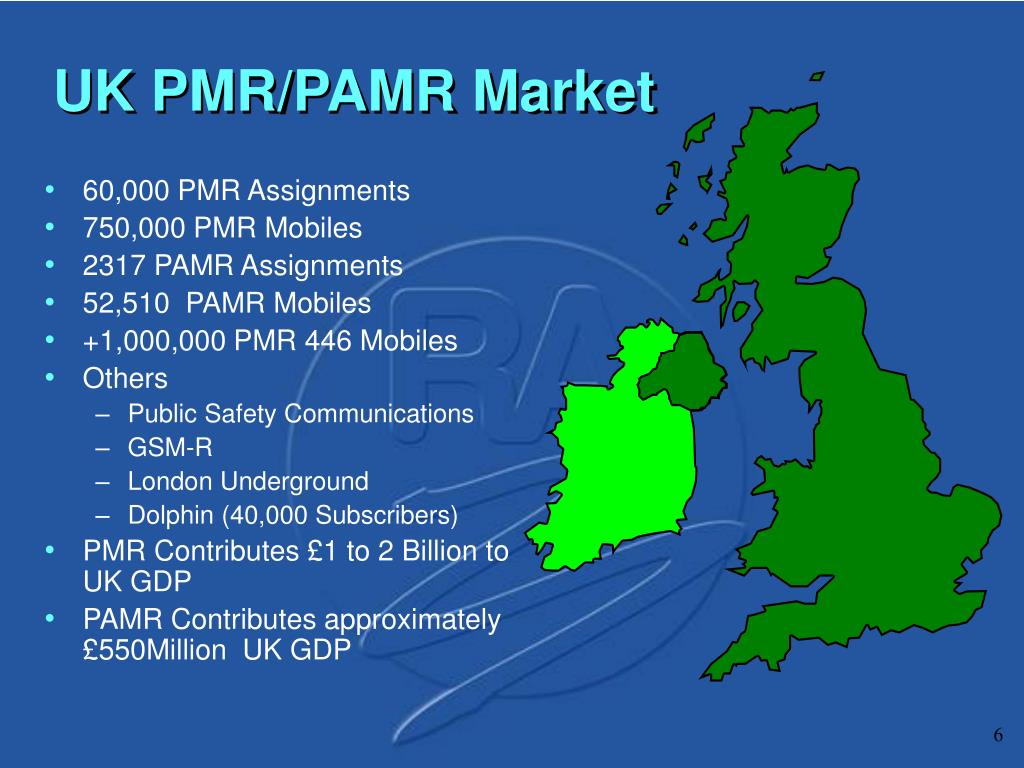

  6. UK PMR/PAMR Market • 60,000 PMR Assignments • 750,000 PMR Mobiles • 2317 PAMR Assignments • 52,510 PAMR Mobiles • +1,000,000 PMR 446 Mobiles • Others • Public Safety Communications • GSM-R • London Underground • Dolphin (40,000 Subscribers) • PMR Contributes £1 to 2 Billion to UK GDP • PAMR Contributes approximately £550Million UK GDP 6

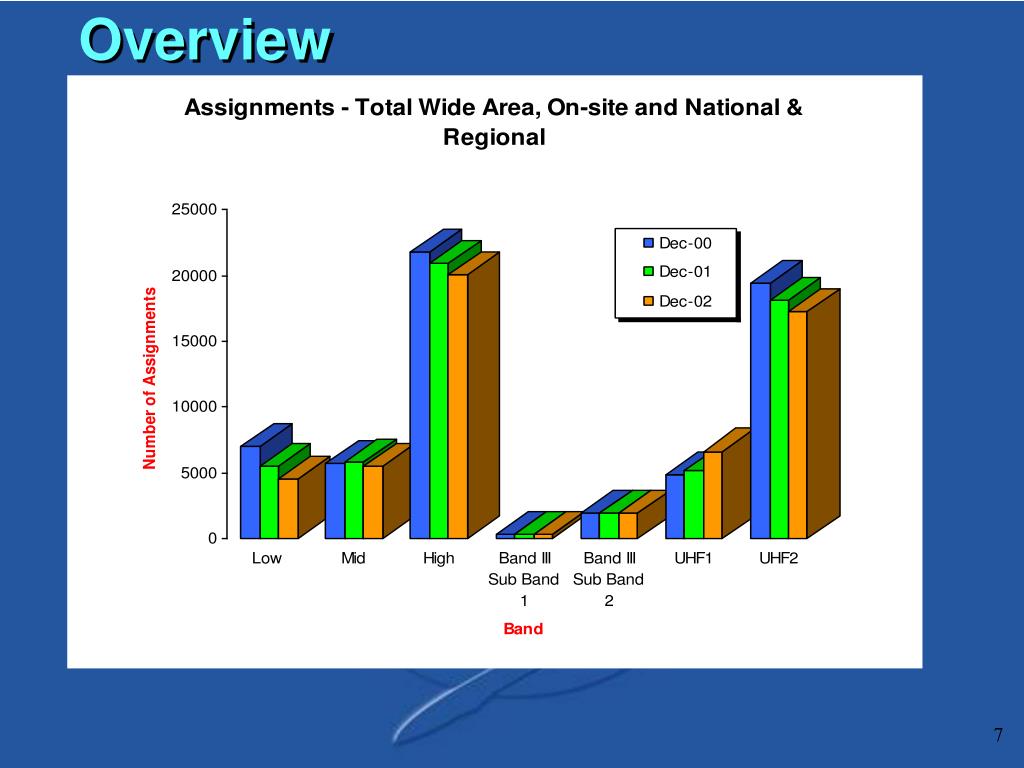

  7. Overview 7

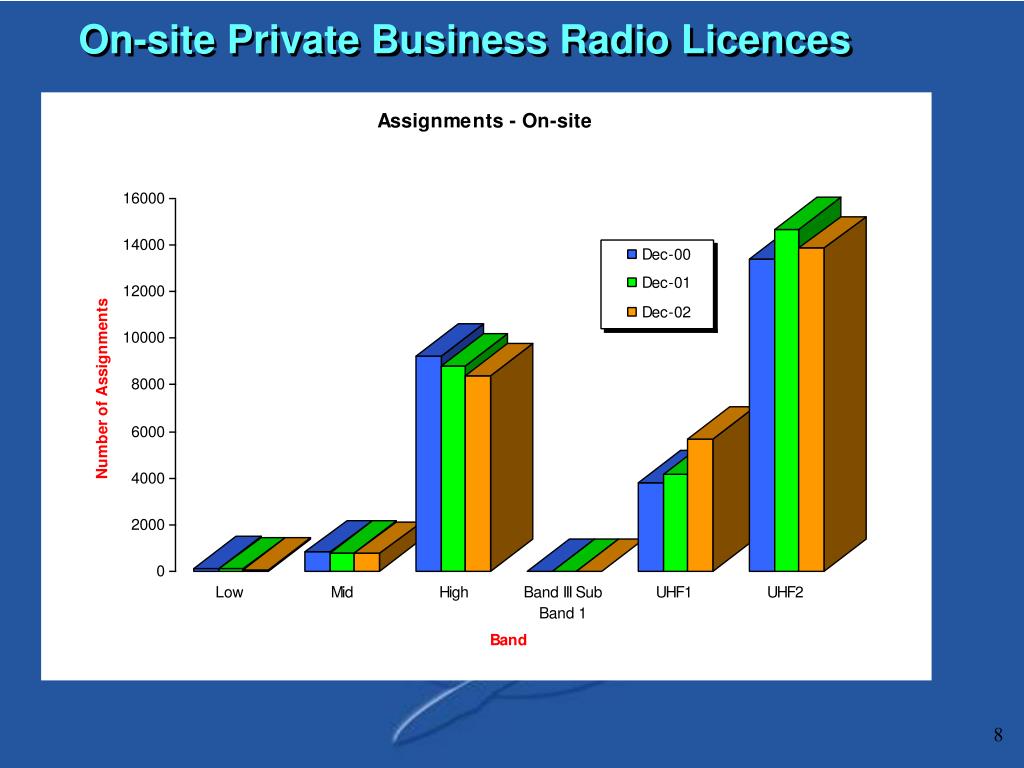

  8. On-site Private Business Radio Licences 8

  9. Wide Area PMR Data Licences • 20000 wide area assignments • In 2002, 2.5% use data • Data usage is growing steadily 9

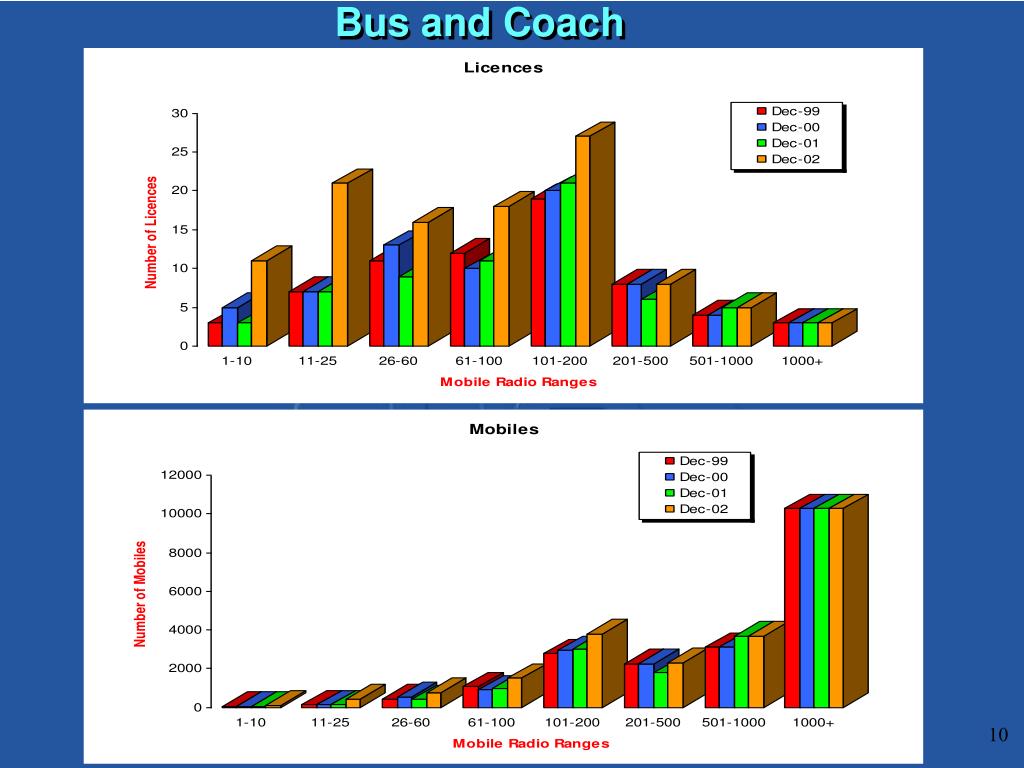

  10. Bus and Coach 10

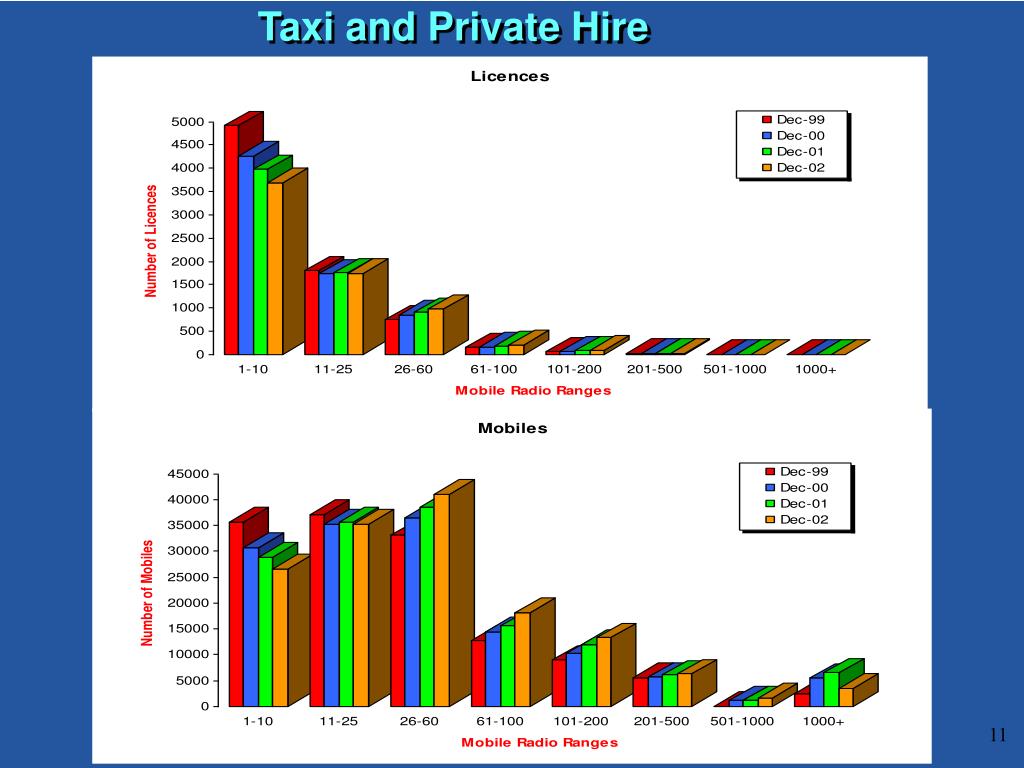

  11. Taxi and Private Hire 11

  12. What is the RA’s view? • Using current Analogue techniques - Voice doesn’t share with Data • Virtual exclusive channels (IR2008), the way forward with analogue PMR using data to ‘share’ channels politely • We support the new Low cost DMR standard being developed within ETSI 12

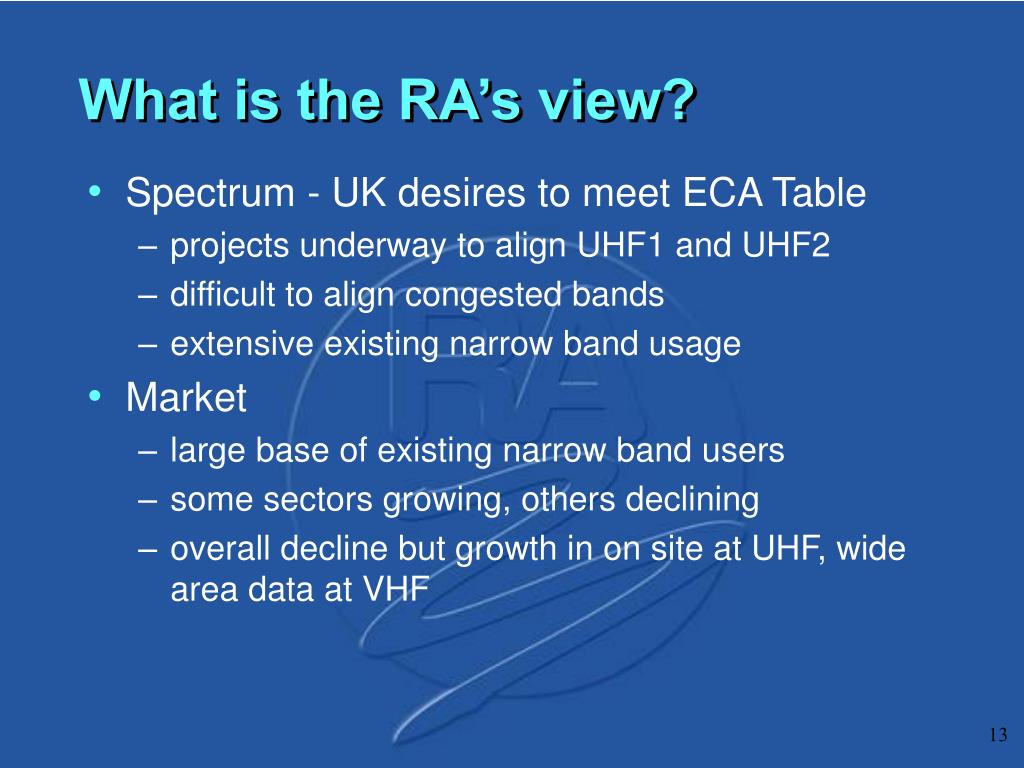

  13. What is the RA’s view? • Spectrum - UK desires to meet ECA Table • projects underway to align UHF1 and UHF2 • difficult to align congested bands • extensive existing narrow band usage • Market • large base of existing narrow band users • some sectors growing, others declining • overall decline but growth in on site at UHF, wide area data at VHF 13

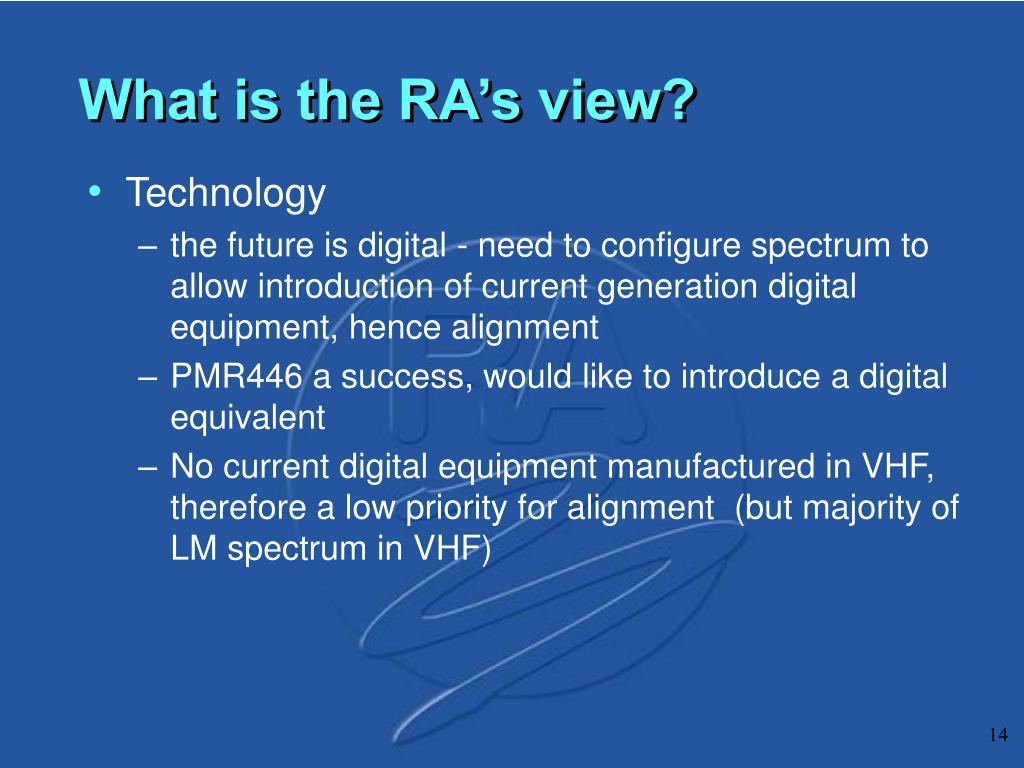

  14. What is the RA’s view? • Technology • the future is digital - need to configure spectrum to allow introduction of current generation digital equipment, hence alignment • PMR446 a success, would like to introduce a digital equivalent • No current digital equipment manufactured in VHF, therefore a low priority for alignment (but majority of LM spectrum in VHF) 14
