  1. Update on the SCHAC Activity Diego R. Lopez

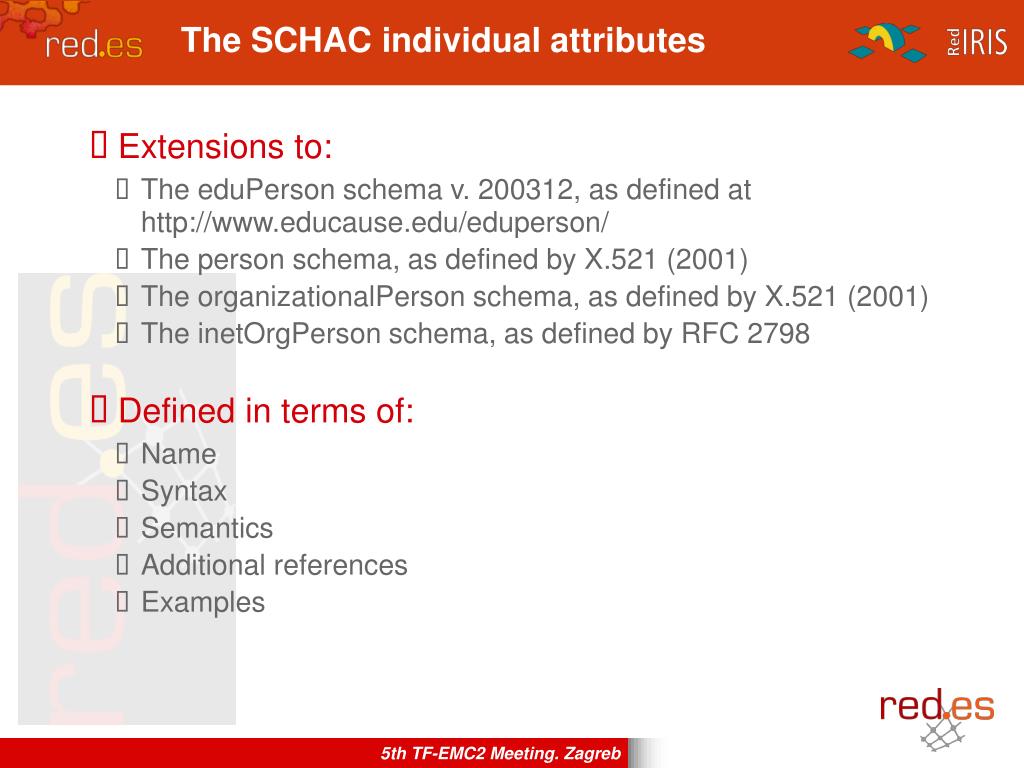

  2. The SCHAC individual attributes • Extensions to: • The eduPerson schema v. 200312, as defined at http://www.educause.edu/eduperson/ • The person schema, as defined by X.521 (2001) • The organizationalPerson schema, as defined by X.521 (2001) • The inetOrgPerson schema, as defined by RFC 2798 • Defined in terms of: • Name • Syntax • Semantics • Additional references • Examples

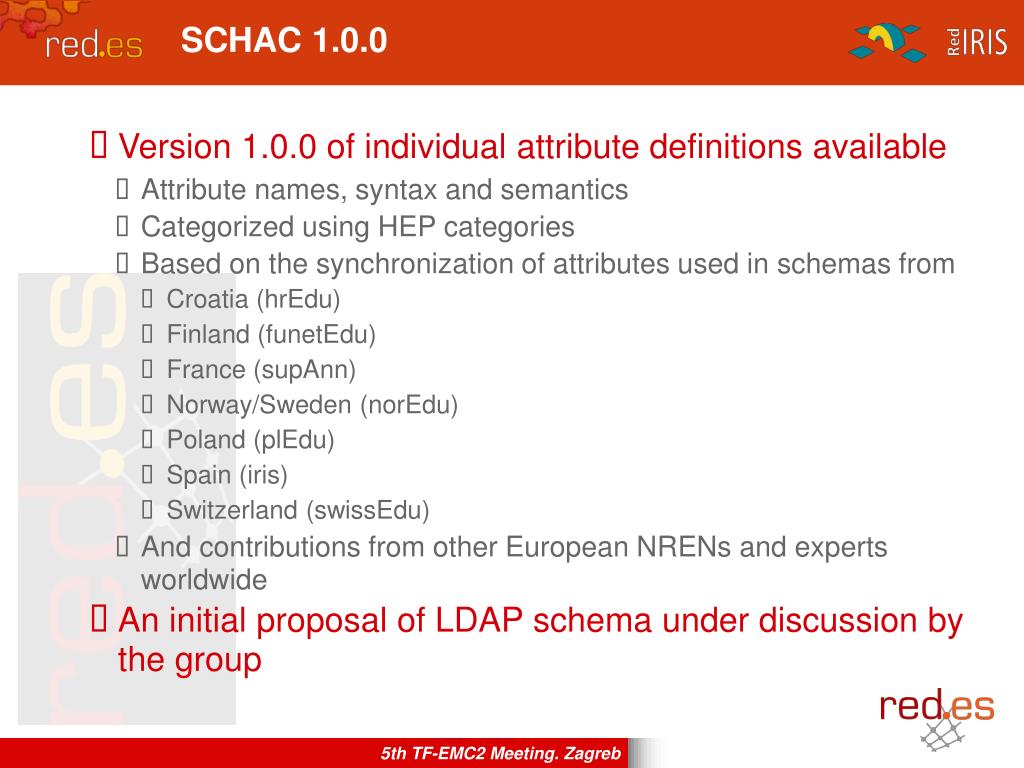

  3. SCHAC 1.0.0 • Version 1.0.0 of individual attribute definitions available • Attribute names, syntax and semantics • Categorized using HEP categories • Based on the synchronization of attributes used in schemas from • Croatia (hrEdu) • Finland (funetEdu) • France (supAnn) • Norway/Sweden (norEdu) • Poland (plEdu) • Spain (iris) • Switzerland (swissEdu) • And contributions from other European NRENs and experts worldwide • An initial proposal of LDAP schema under discussion by the group

  4. The HEP Attribute Categories Higher-Education Person: A comparative Analysis of Collaborative Public LDAP Person Object Classes in Higher Education Personal characteristics Contact / Local information Student information Employee information Linkage identifiers (foreign keys) Entry metadata Security attributes and keys Confidentiality / Attribute release / Visibility Authorization, entitlements Group-related attributes Other Attributes http://middleware.internet2.edu/dir/docs/ draft-internet2-mace-dir-higher-ed-person-analysis-latest.htm

  5. SCHAC Attribute Classification Personal characteristics schacMotherTongue schacGender schacDateOfBirth schacPlaceOfBirth schacCountryOfCitizenship schacSn1 schacSn2 schacPersonalTitle Contact / Local information schacHomeOrganization schacHomeOrganizationType schacCountryOfResidence schacUserPresenceID • Employee information • schacPersonalPosition • Linkage identifiers (foreign keys) • schacPersonalPublicUniqueID • schacPersonalUniqueID • schacUUID • Entry metadata • schacExpiryDate • Confidentiality / Attribute release / Visibility • schacUserPrivateAttribute • Authorization, entitlements • schacUserStatus

  6. SCHAC AttributesPersonal Characteristics - I • schacMotherTongue • Two- or three-letter code (ISO 639 - Lang. Representation Codes) • schacGender • One number (ISO 5218 - Representation of Human Sexes) 0 - Not known 1 - Male 9 - Not specified 2 - Female • schacDateOfBirth • YYYYMMDD (RFC 3399 without dashes) • schacPlaceOfBirth • Free string • schacCountryOfCitizenship • Two-letter code (ISO 3166 - Representation of Countries)

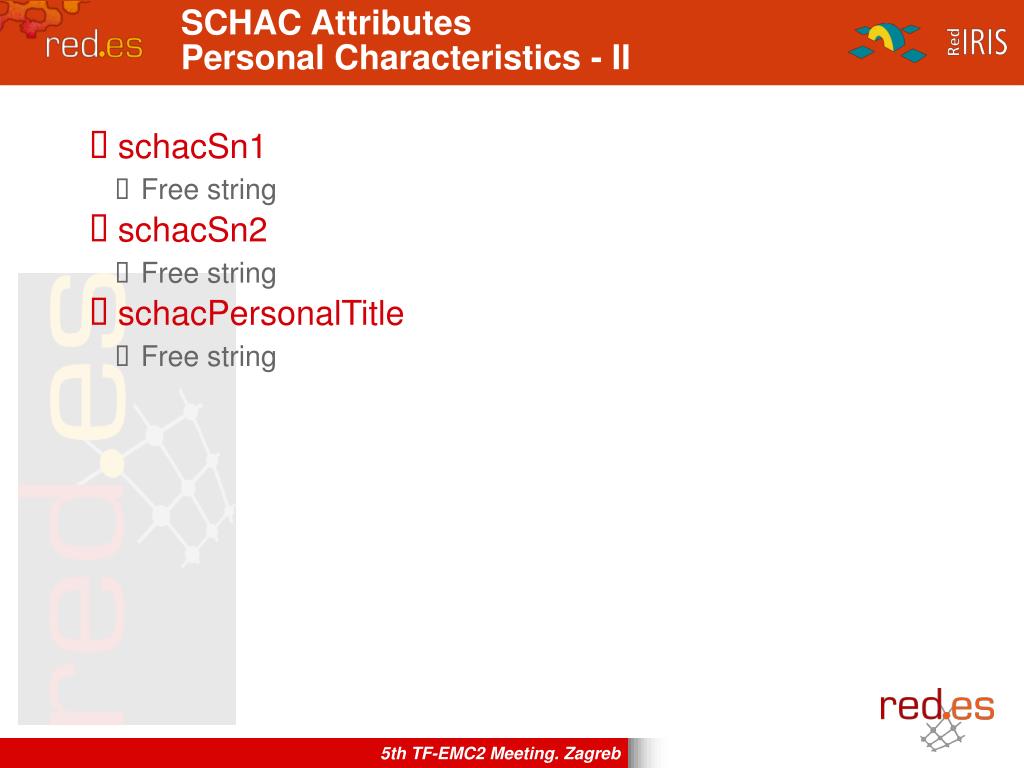

  7. SCHAC AttributesPersonal Characteristics - II • schacSn1 • Free string • schacSn2 • Free string • schacPersonalTitle • Free string

  8. SCHAC AttributesContact / Location Information • schacHomeOrganization • Domain name (RFC 1035) • schacHomeOrganizationType • urn:SCHACPREFIX:homeOrgType:<country-code>:<string> urn:SCHACPREFIX:homeOrgType:ch:vho urn:SCHACPREFIX:homeOrgType:es:opi • schacCountryOfResidence • Two-letter code (ISO 3166 - Representation of Countries) • schacUserPresenceID • urn:SCHACPREFIX:presence:<NSS> • <NSS> is a Namespace Specified String (RFC 2141) urn:SCHACPREFIX:presence:xmpp:jperez@univx.es urn:SCHACPREFIX:presence:sip:jose.perez@univx.es

  9. SCHAC AttributesEmployee Information • schacPersonalPosition • urn:SCHACPREFIX:position:<NSS> • <NSS> is a Namespace Specified String (RFC 2141) urn:SCHACPREFIX:position:umk.pl:programmer

  10. SCHAC AttributesLinkage Identifier / Foreign Keys • schacPersonalPublicUniqueID • urn:<SCHACPREFIX>:PublicUniqueID:<country-type>:<idType>:<idValue> urn:SCHACPREFIX:PublicUniqueID:fi:tut.fi:student:16593 urn:SCHACPREFIX:PublicUniqueID:es:uma:alumno:a3b123c12 urn:SCHACPREFIX:PublicUniqueID:se:LIN:87654312 • schacPersonalUniqueID • urn:<SCHACPREFIX>:UniqueID:<country-type>:<idType>:<idValue> urn:SCHACPREFIX:UniqueID:es:NIF:31888222K urn:SCHACPREFIX:UniqueID:fi:FIC:260667-123F urn:SCHACPREFIX:UniqueID:se:NIN:12345678 • schacUUID • RFC 4122 - draft-mealling-uuid-urn-06.txt f81d4fae-7dec-11d0-a765-00a0c91e6bf6

  11. SCHAC AttributesEntry Metadata / Administration Information • schacExpiryDate • YYYYMMDDhhmmss 20060127235959

  12. SCHAC AttributesConfidentiality / Attribute Release (Visibility) • schacUserPrivateAttribute: • Used to model privacy requirements, as expressed by the user and/or the organizational policies • The values are intended to be attribute type identifiers mail telephoneNumber

  13. SCHAC AttributesAuthorization, Entitlements • schacUserStatus • urn:SCHACPREFIX:status:<NSS> • <NSS> is a Namespace Specified String (RFC 2141) urn:SCHACPREFIX:status:uma.es:affiliation:expired urn:SCHACPREFIX:status:uma.es:sendMail:expired urn:SCHACPREFIX:status:uma.es:getMail:active urn:SCHACPREFIX:status:ujl.si:webmail:active?ttl=20060131

  14. SCHAC LDAP Schema The schacGender Attribute attributetype ( schacAttributeType:2 NAME 'schacGender' DESC 'Representation of human sex (see ISO 5218)' EQUALITY integerMatch SINGLE-VALUE SYNTAX 1.3.6.1.4.1.1466.115.121.1.27{1} )

  15. SCHAC LDAP SchemaschacPersonalCharacteristics objectClass objectClass ( schacObjectClass:1 NAME 'schacPersonalCharacteristics' DESC 'Personal characteristics describe the individual person represented by the entry' SUP top AUXILIARY MAY ( schacMotherTongue $ schacGender $ schacDateOfBirth $ schacPlaceOfBirth $ schacCountryOfCitizenship $ schacSn1 $ schacSn2 $ schacPersonalTitle ) )
