  1. Assistance GIS&RS Combined SPC-SOPAC & Solomon Island Team

  2. Targets of Data Capture • Mataniko river bed • April ridge • Water dam • Mining site

  3. UAV Image Recording • Flight planning • Copying data to UAV • Flying • Data extraction

  4. Image Processing • Image stitching • Geo-referencing • Geometric correction

  5. Image Data Storage& Exchange • New image data and interpretation -> SPC Office • Image interpretation to SPC-SOPAC • External hard drive as buffer

  6. Data Storage

  7. Mataniko River Image

  8. Image Interpretation • Analysis QuickBird data 2008 • Delineation flood extent 2014 Team was working parallel to image data capture

  9. Mataniko River Mapping

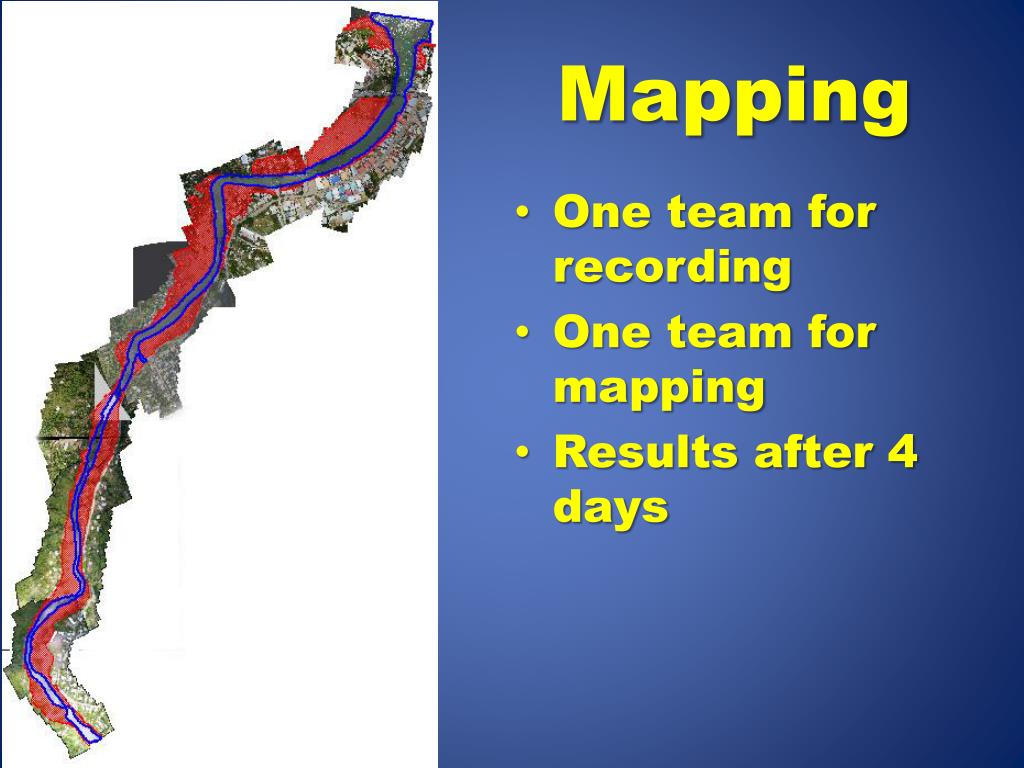

  10. Mapping • One team for recording • One team for mapping • Results after 4 days

  11. Resettlement Area

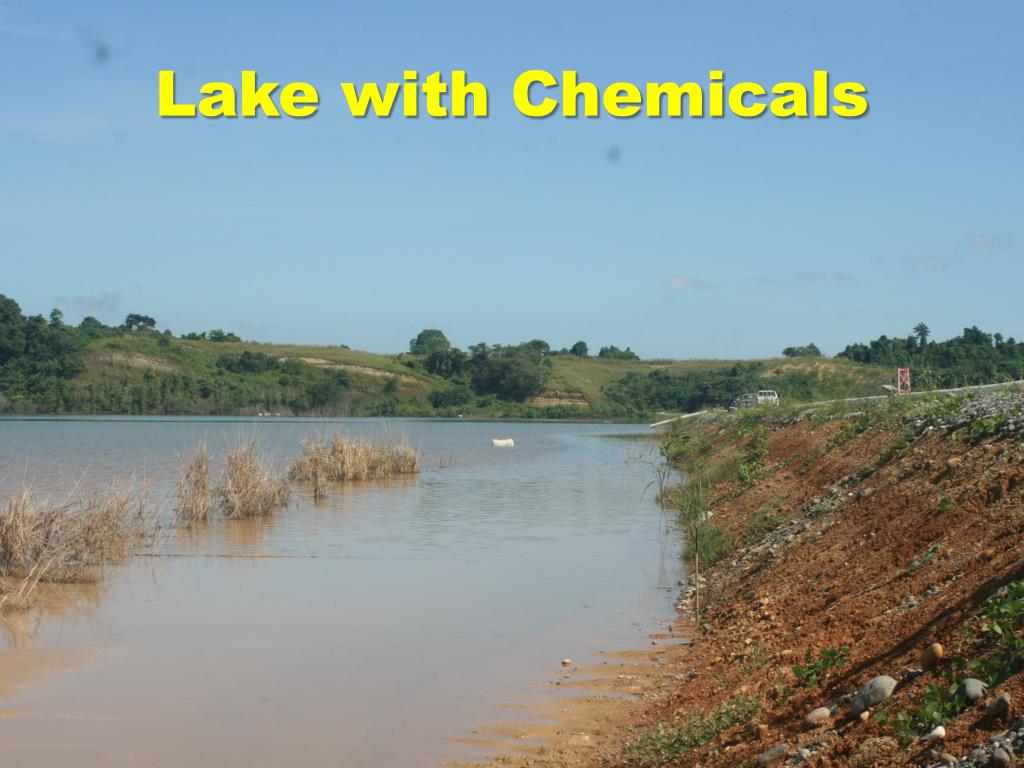

  12. Lake with Chemicals

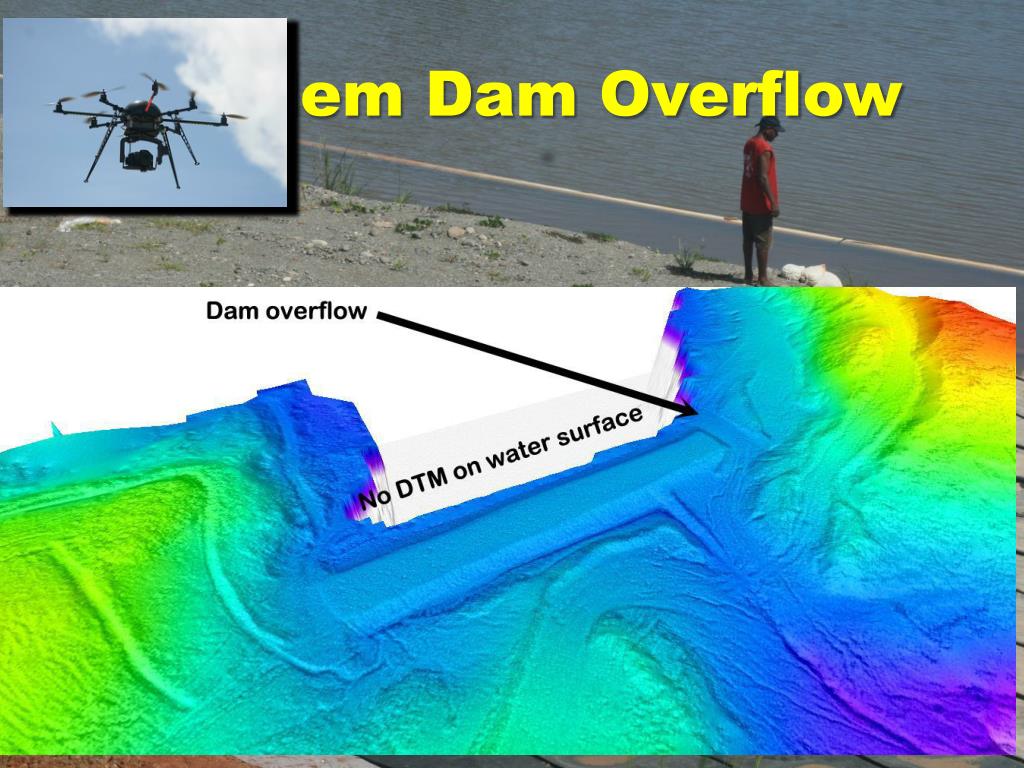

  13. Problem Dam Overflow

  14. Left Over Mine Camp • Possibly left over explosives • Definitely dangerous chemicals • Documentation required

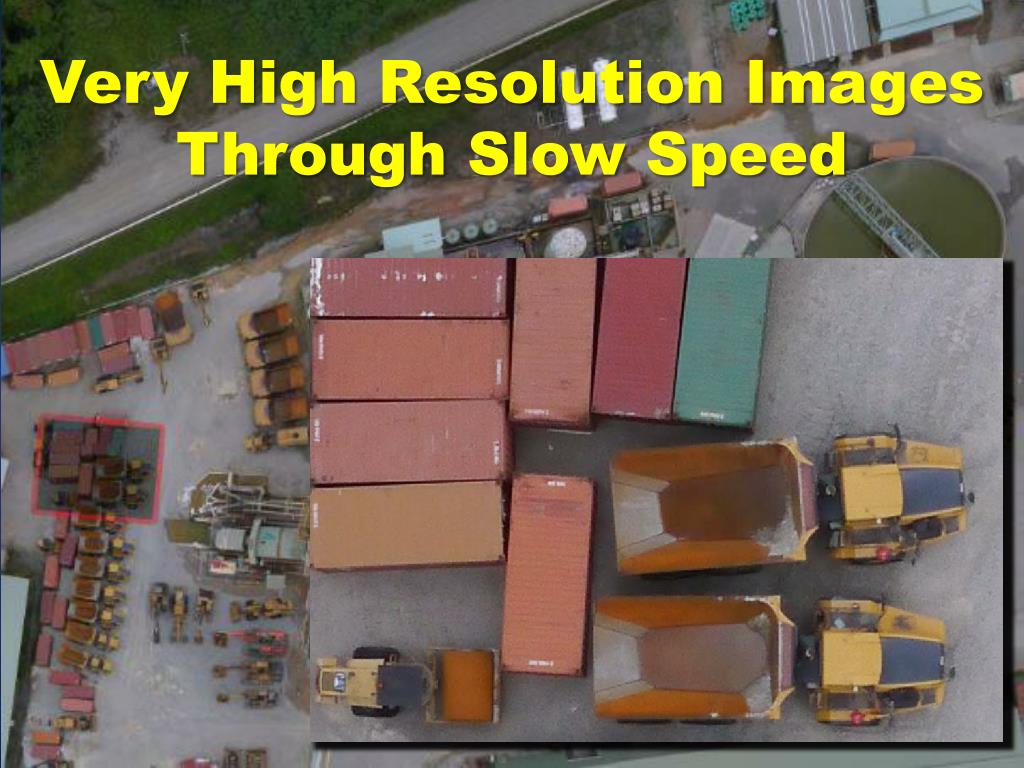

  15. Very High Resolution Images Through Slow Speed

  16. Results: • Image data of Mataniko river recorded & available • Mataniko flooding area available • DSM recorded for dam • Image data April ridge processed • Contour lines of April ridge • Image documentation of mine site • External drive in SPC office • Image database

  17. Thanks …
