Psion Teklogix 8515 Mobile Computer

The Psion Teklogix 8515 is a compact vehicle mount computer designed for optimal performance in supply chain and logistics operations. Ideal for use on forklifts in warehouses and ports, its small footprint makes it cost-effective and suitable for limited space applications. Features include an integrated alphanumeric keyboard for accurate data entry, robust connectivity options (Bluetooth, USB, RS232), and advanced audio support. The 8515 complements the Psion Teklogix portfolio by offering enhanced multimedia communication capabilities, making it a versatile choice for various fixed mount applications.

abraham-clay
Télécharger la présentation

Psion Teklogix 8515 Mobile Computer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Psion Teklogix 8515Mobile Computer

  2. What is the 8515? A Vehicle Mount Computer that • is positioned for Psion Teklogix’ core business: Supply Chain & Logistics, • is primary used on fork lift trucks in warehouses and ports, • is smaller and more cost effective than the 8525 / 8530, • complements Psion Teklogix product portfolio.

  3. 8515 - Secondary Use Fixed mount applications • Time and attendance terminal • Access control terminal • Shop floor data collection

  4. Advantages – Size and Weight • Small Footprint • Where real estate is at a premium, the Psion Teklogix 8515 with its small footprint is ideal • No limit line of site interference • Lightweight • Can be mounted on surfaces normally too weak to accommodate other heavier vehicle computers 46 mm / 1.8” 209 mm 8.2” 203 mm / 8” 1.3 kg 2.8 lb Screen Resolution: 640 x 480

  5. Advantages - Keys • Integrated full Alphanumeric Keyboard • Fast and more accurate data entry • Less trouble with wear and tear on touch-screens • 2 large Enter keys • Highlighted Numeric Keys • Adjustable LED backlight • Easy to clean Elastomer technology with Epoxy coated keys • No extra cost for a keyboard • 10 dedicated Function Keys • Easy to see and access around the display • 20 more Function Keys on the second level

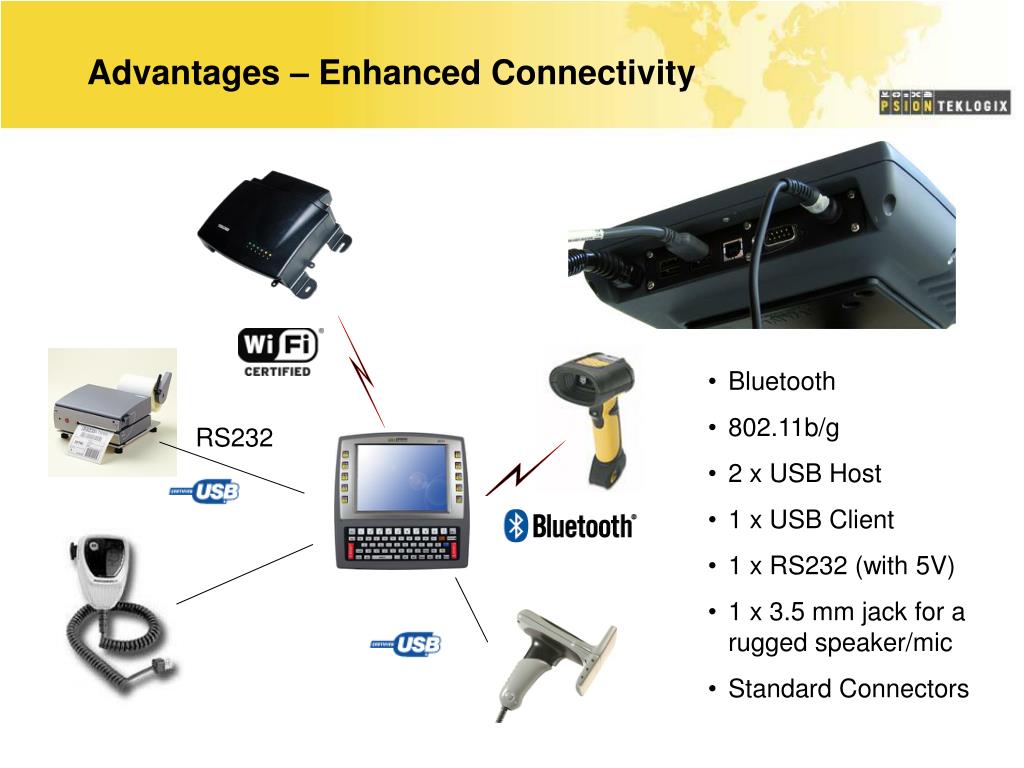

  6. Advantages – Enhanced Connectivity • Bluetooth • 802.11b/g • 2 x USB Host • 1 x USB Client • 1 x RS232 (with 5V) • 1 x 3.5 mm jack for a rugged speaker/mic • Standard Connectors RS232

  7. Advantages – Enhanced Audio Support • The Psion Teklogix 8515 supports a Speaker/Mic with convenient Push-to-Talk function • The Psion Teklogix 8515 supports PTXConnect, a platform that enables rich multimedia (Voice, Free Form, Text, Picture) communications • With PTXConnect, the Psion Teklogix 8515 replaces a Walkie-Talkie by Voice-over-IP • Users can set up or replace a voice network at no extra cost for infrastructure and devices

  8. Radio and Antenna Options Radios • RA2041, 802.11b/g Antennas • Antenna ready • Internal antenna • External Antenna, stubby, 2 dBi • External Antenna, 5 dBi, Mag Mount • External Antenna, 0 dBi, Mag Mount

  9. Other Accessories • 110/220 VAC Power Supply • Pre-Regulator for trucks with batteries >24V • USB / Ethernet Adapter (WA4010 from the WORKABOUT PRO)

  10. Software Same offer as for the 8525/30 G2: • Window Embedded CE 5 • Tekterm • MCC • PTX Connect • Naurtech Browser • JVM

  11. Specifications

  12. 8515 Windows CE Small footprint Cost effective 8525/30 Windows CE Rugged magnesium housing 10 to 90 V power supply UPS battery Narrowband Freezer VMC Product Range • 8560/70 • 8580/90 • Windows XP • Thick client applications • Big screen (12”) • Full screen freezer

  13. The Competition

  14. 8515 Mounting Options

  15. RAM Mounts Same RAM mount offering as for the 8525 / 8530 and the 8580/90 Different plates / clamps on the vehicle side 4” or 12” arm Always VESA plate

  16. When use which mount?

  17. Quick Release Mount • Model MT3250 • Dismount the computer in no time • VESA hole pattern • Can be used alone or in combination with the RAM mounts

  18. Cable Tie Bracket
