Heron’s formula

Heron’s formula. Introduction to heron’s formula . Introduction of another formula for area of a triangle. Most of us are aware with : Area of a triangle = Where b = base and h = corresponding height of the triangle. Examples :. 1) Find the area of a triangle having sides :

abrial
Télécharger la présentation

Heron’s formula

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Heron’s formula

  2. Introduction to heron’s formula

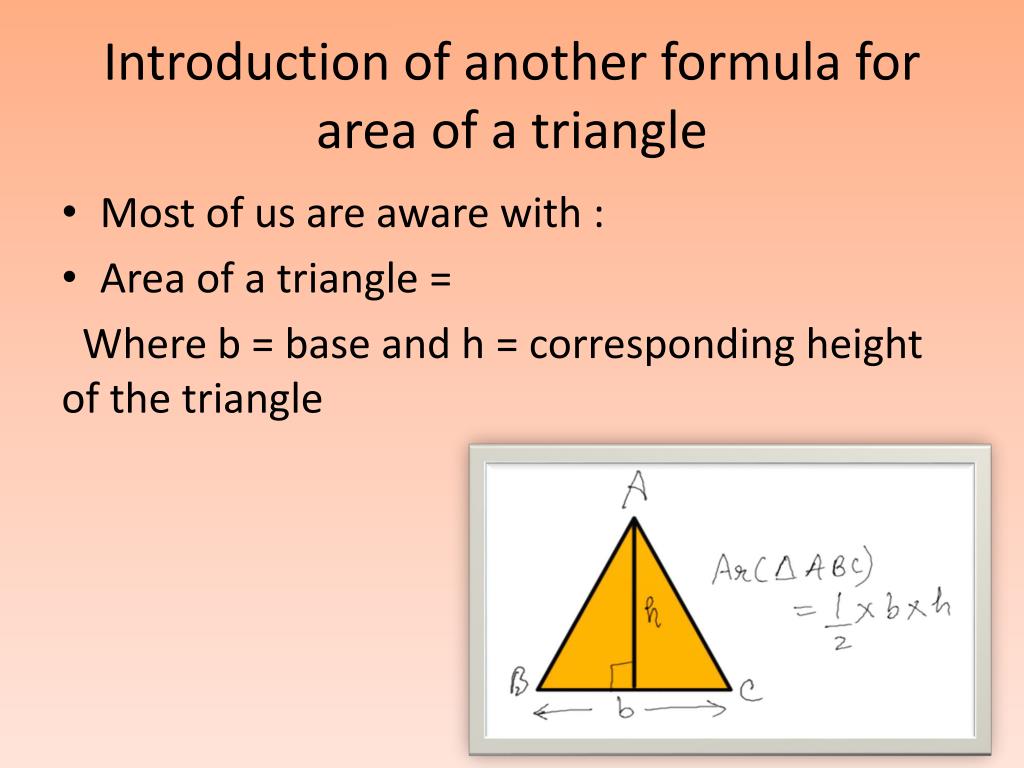

  3. Introduction of another formula for area of a triangle • Most of us are aware with : • Area of a triangle = Where b = base and h = corresponding height of the triangle

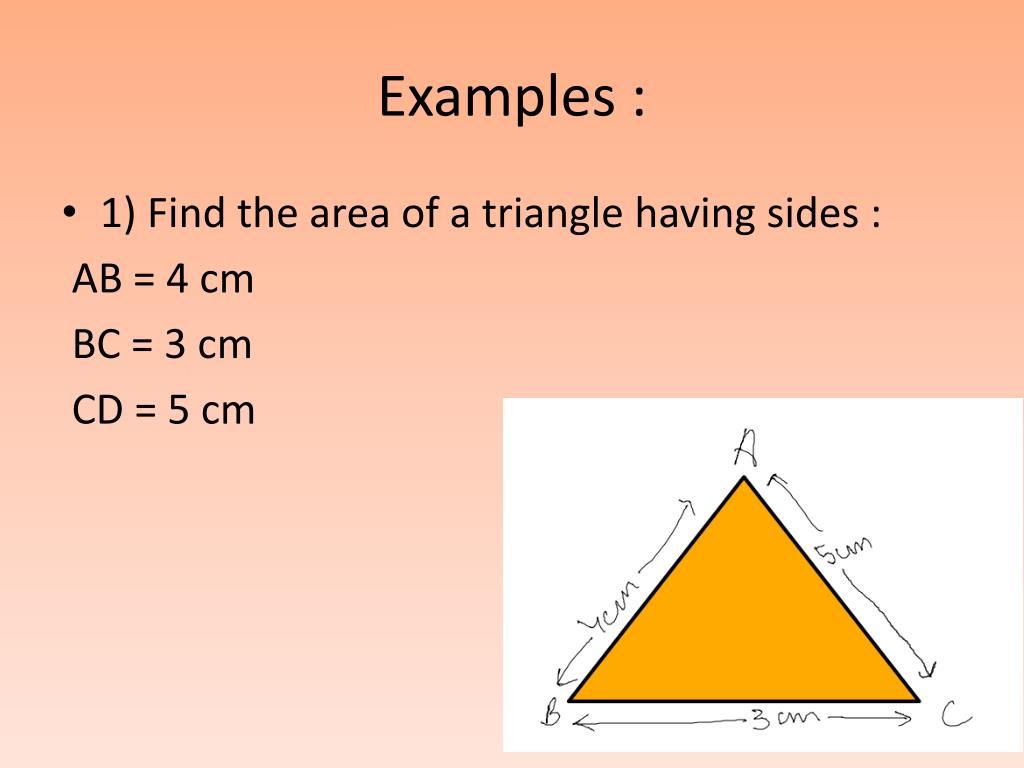

  4. Examples : • 1) Find the area of a triangle having sides : AB = 4 cm BC = 3 cm CD = 5 cm

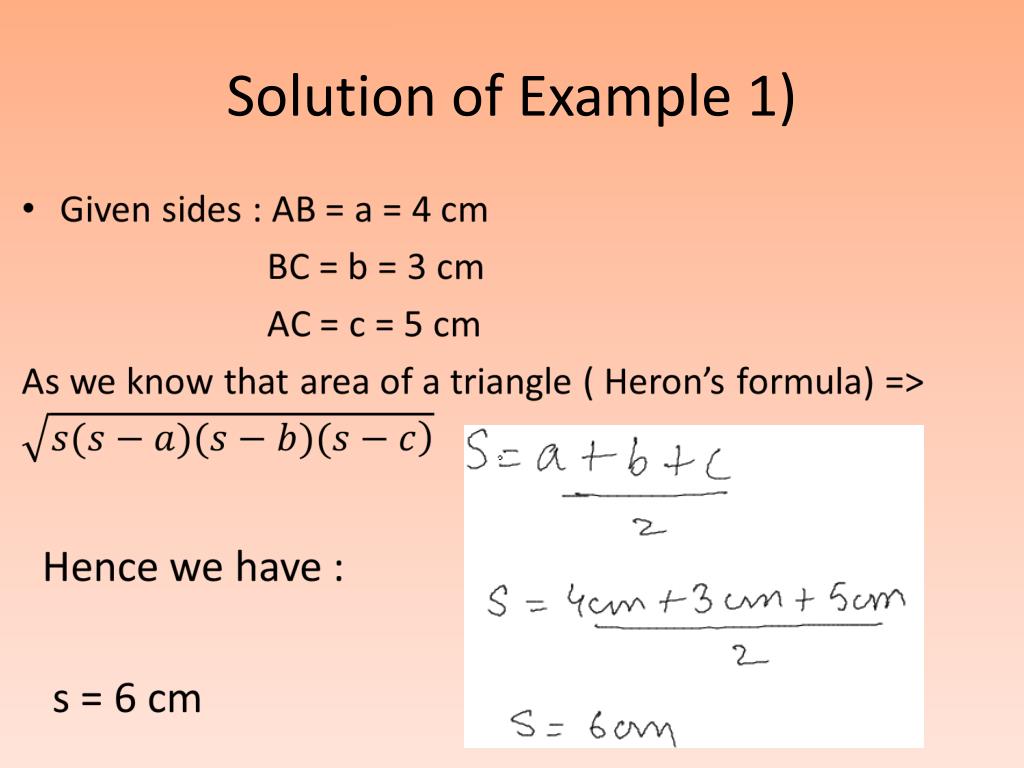

  5. Solution of Example 1)

  6. Continue…

  7. Example 2: 2) Rahul has a garden, which is triangular in shape. The sides of the garden are 13 m, 14 m, and 15 m respectively. He wants to spread fertilizer in the garden and the total cost required for doing it is Rs 10 per m2. He is wondering how much money will be required to spread the fertilizer in the garden

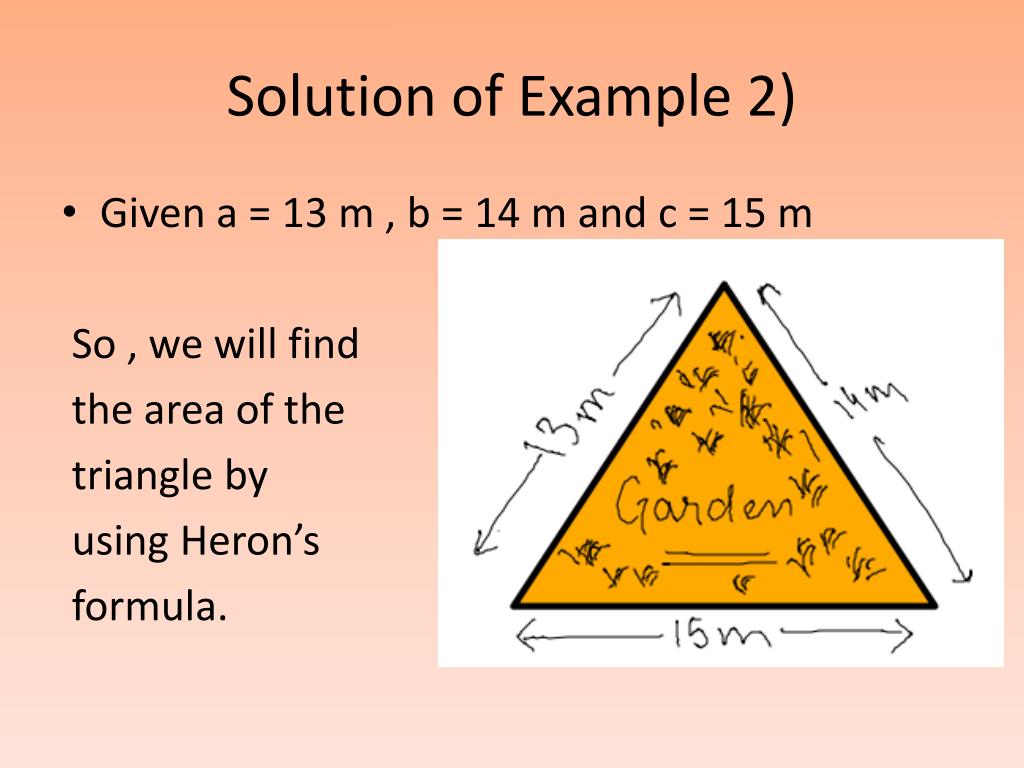

  8. Solution of Example 2) • Given a = 13 m , b = 14 m and c = 15 m So , we will find the area of the triangle by using Heron’s formula.

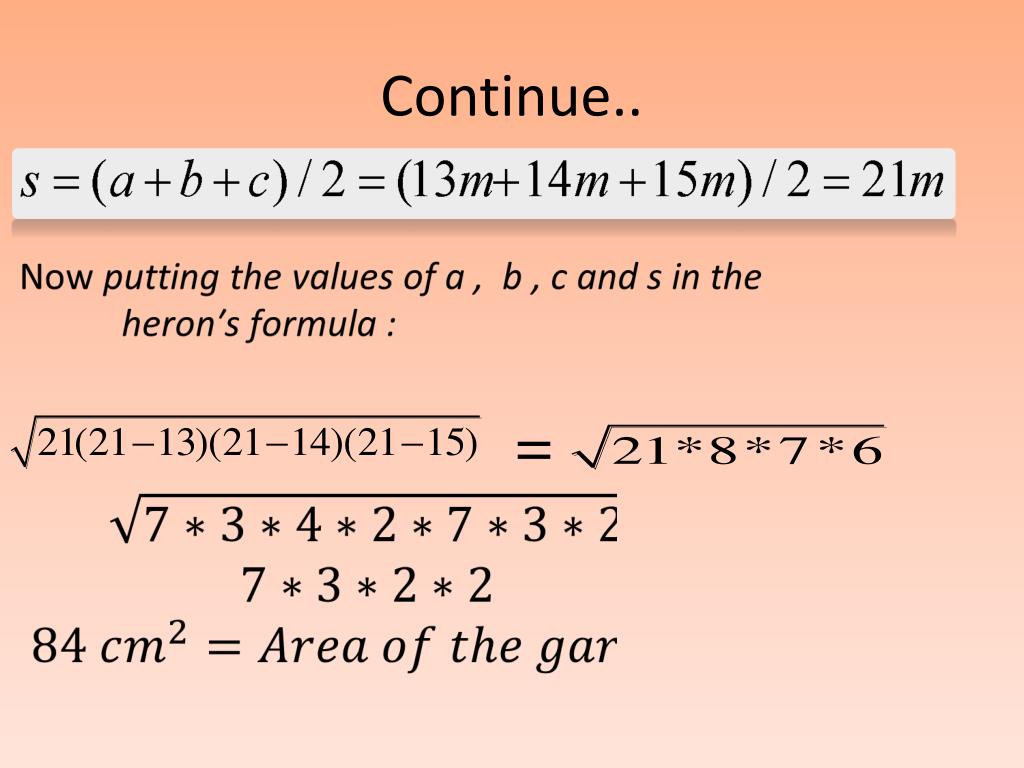

  9. Continue..

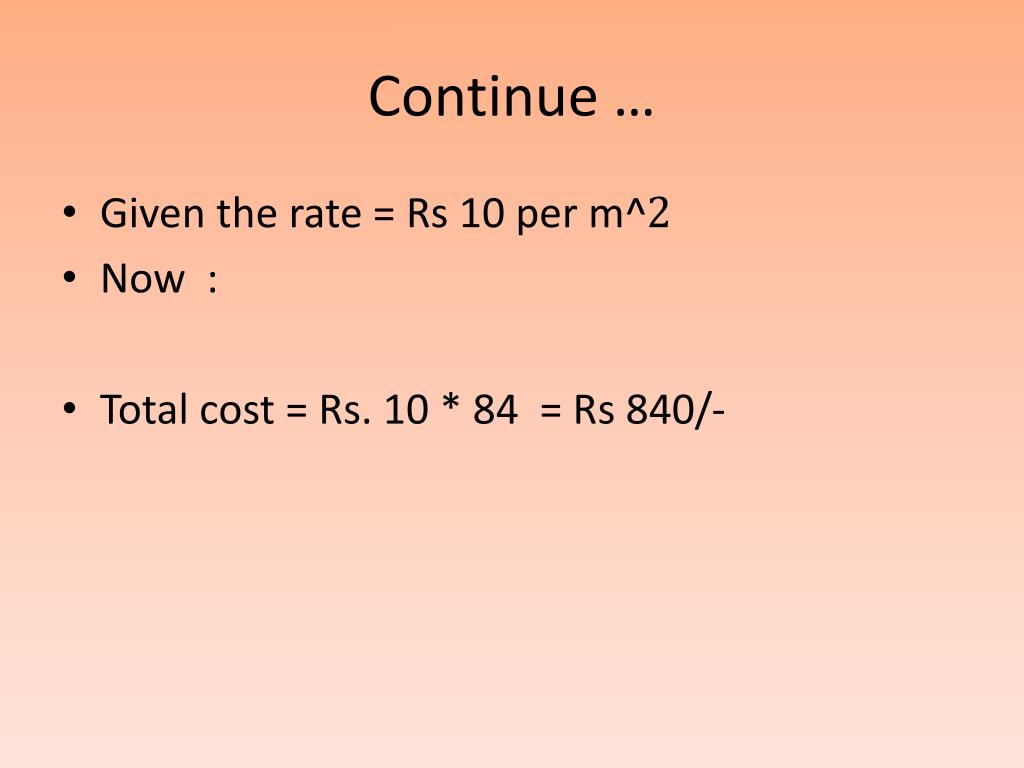

  10. Continue … • Given the rate = Rs 10 per m^2 • Now : • Total cost = Rs. 10 * 84 = Rs 840/-

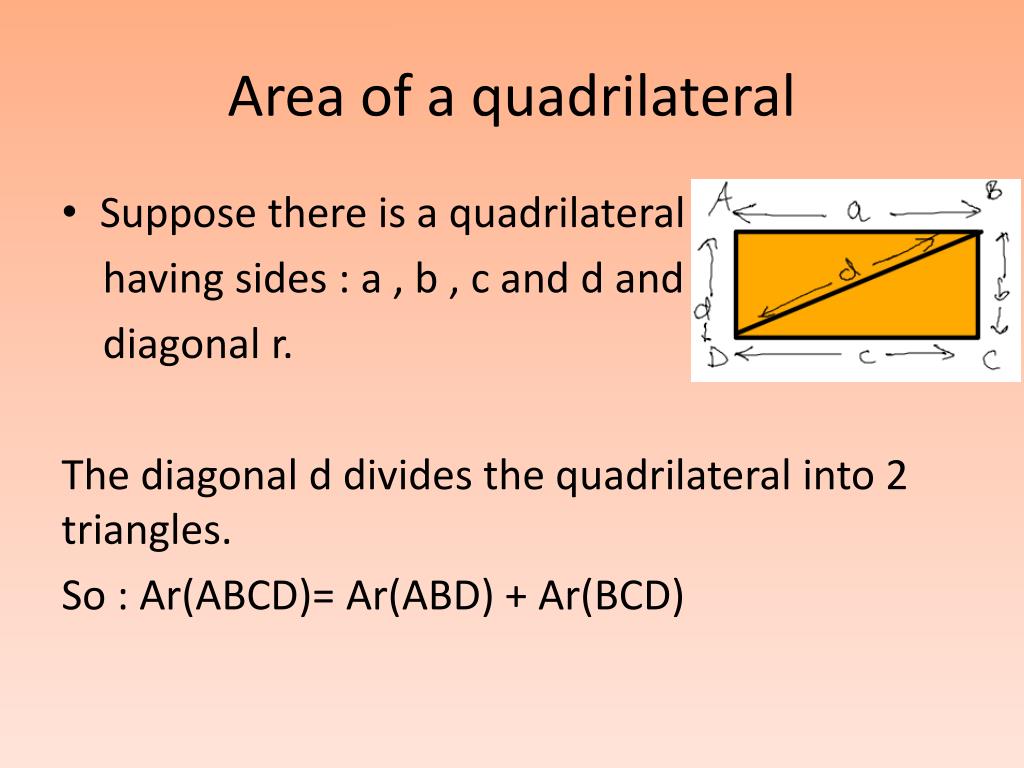

  11. Area of a quadrilateral • Suppose there is a quadrilateral having sides : a , b , c and d and diagonal r. The diagonal d divides the quadrilateral into 2 triangles. So : Ar(ABCD)= Ar(ABD) + Ar(BCD)

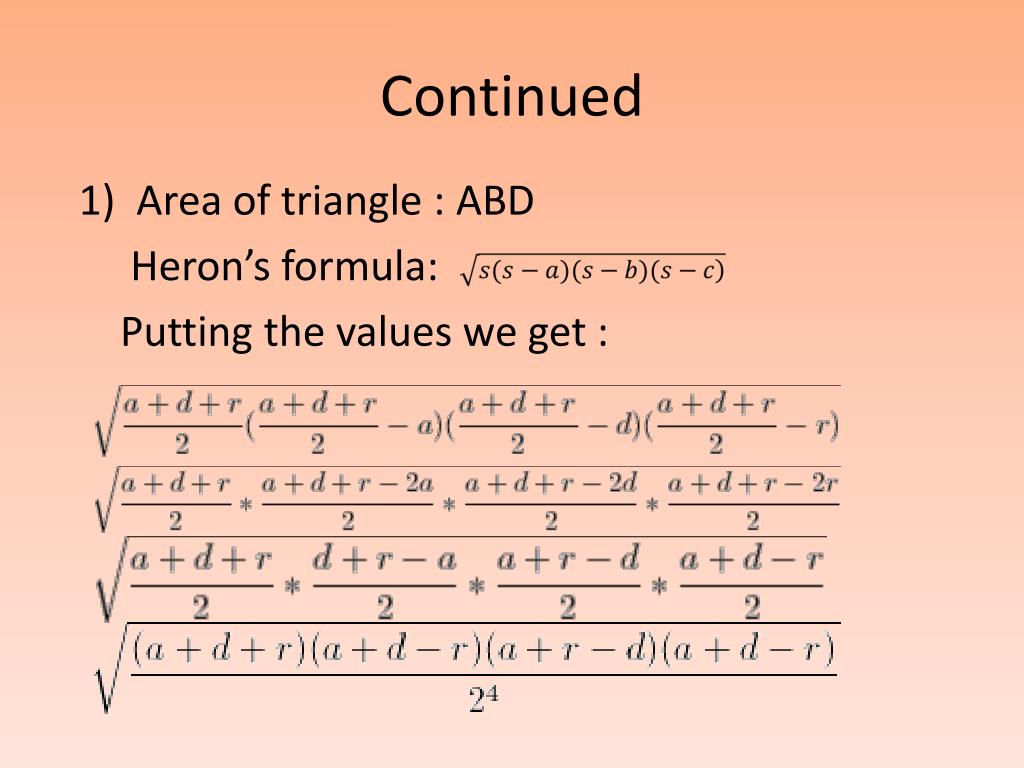

  12. Continued • Area of triangle : ABD Heron’s formula: Putting the values we get :

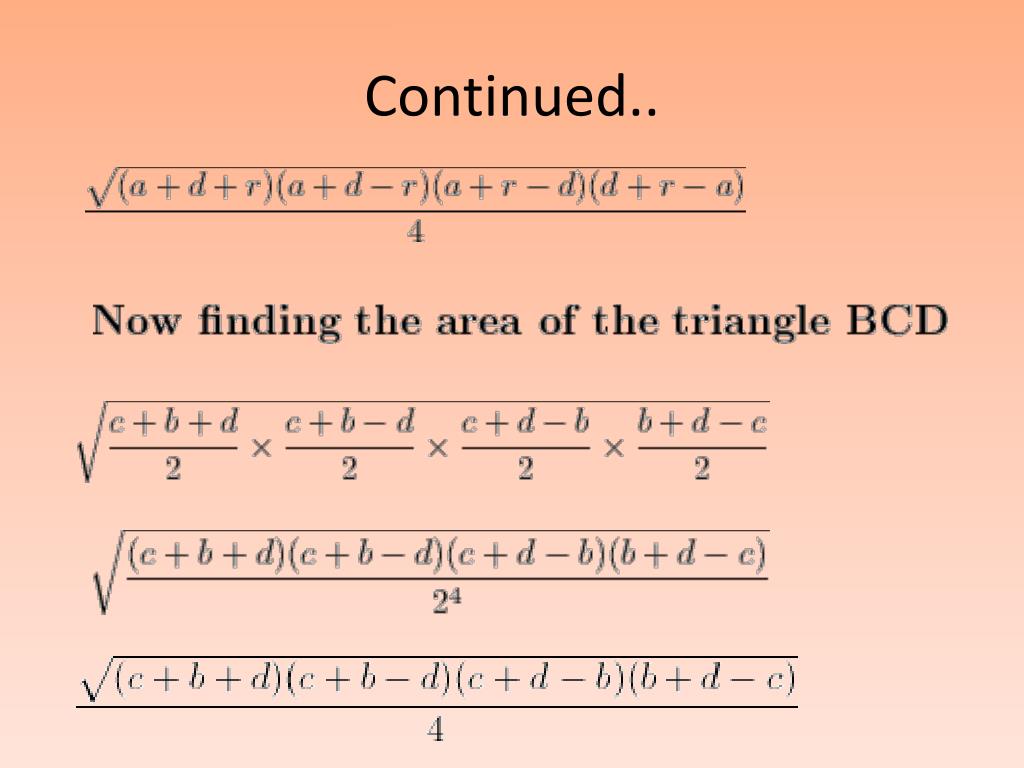

  13. Continued..

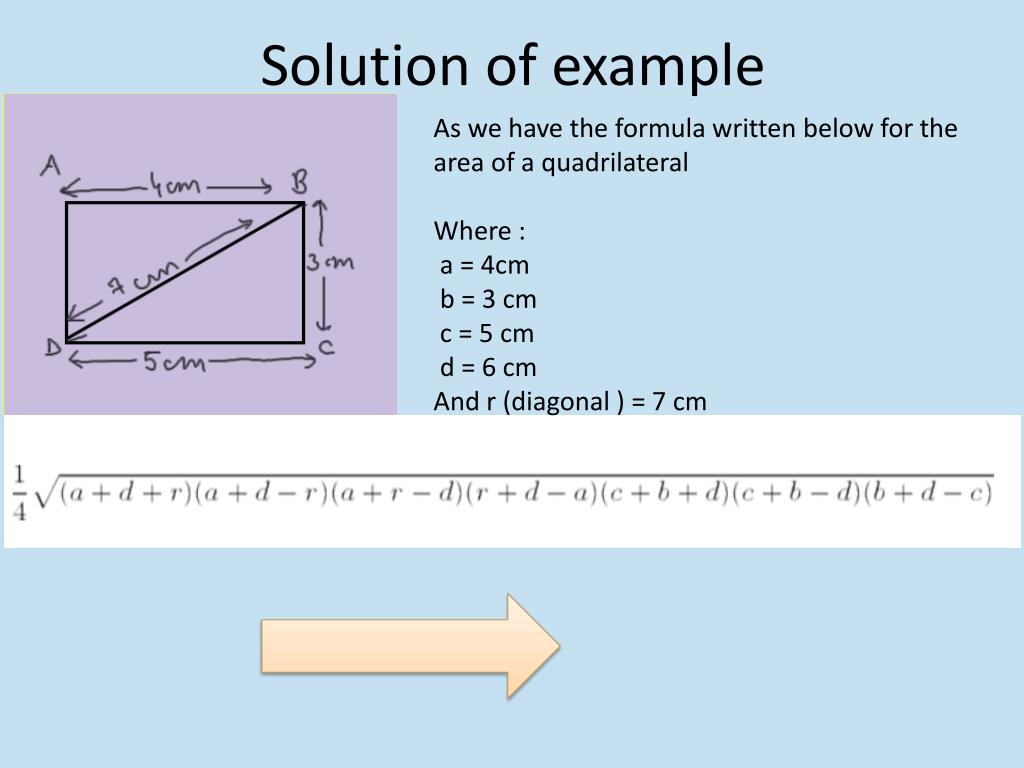

  14. Solution of example As we have the formula written below for the area of a quadrilateral Where : a = 4cm b = 3 cm c = 5 cm d = 6 cm And r (diagonal ) = 7 cm

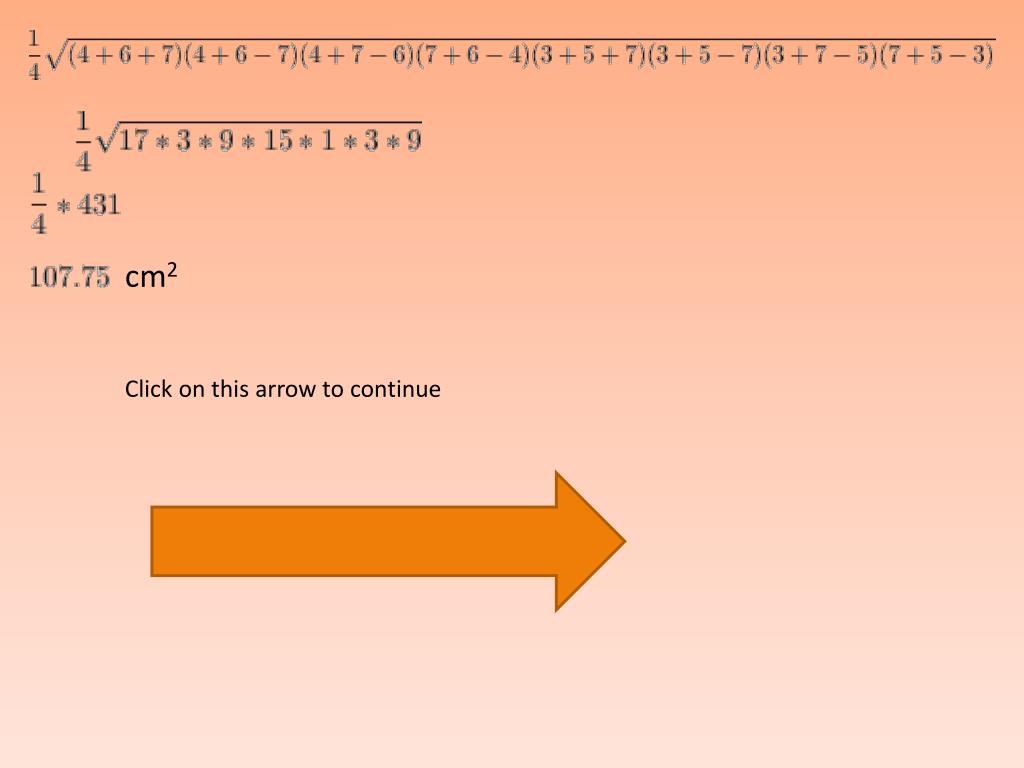

  15. cm2 Click on this arrow to continue

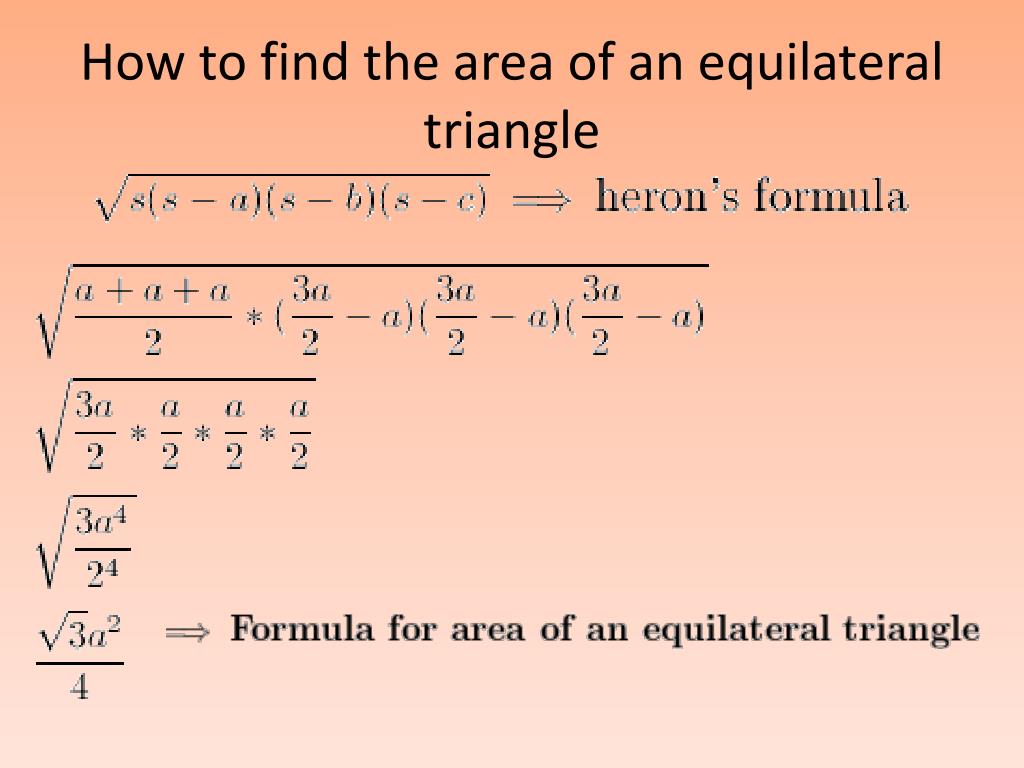

  16. How to find the area of an equilateral triangle

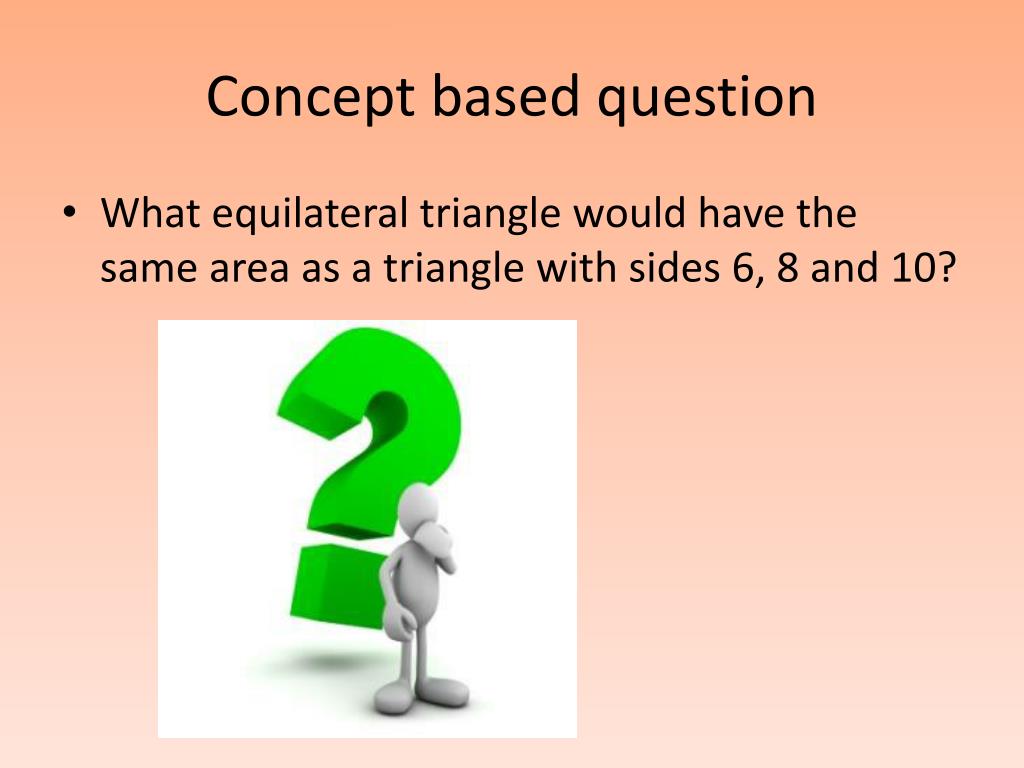

  17. Concept based question • What equilateral triangle would have the same area as a triangle with sides 6, 8 and 10?

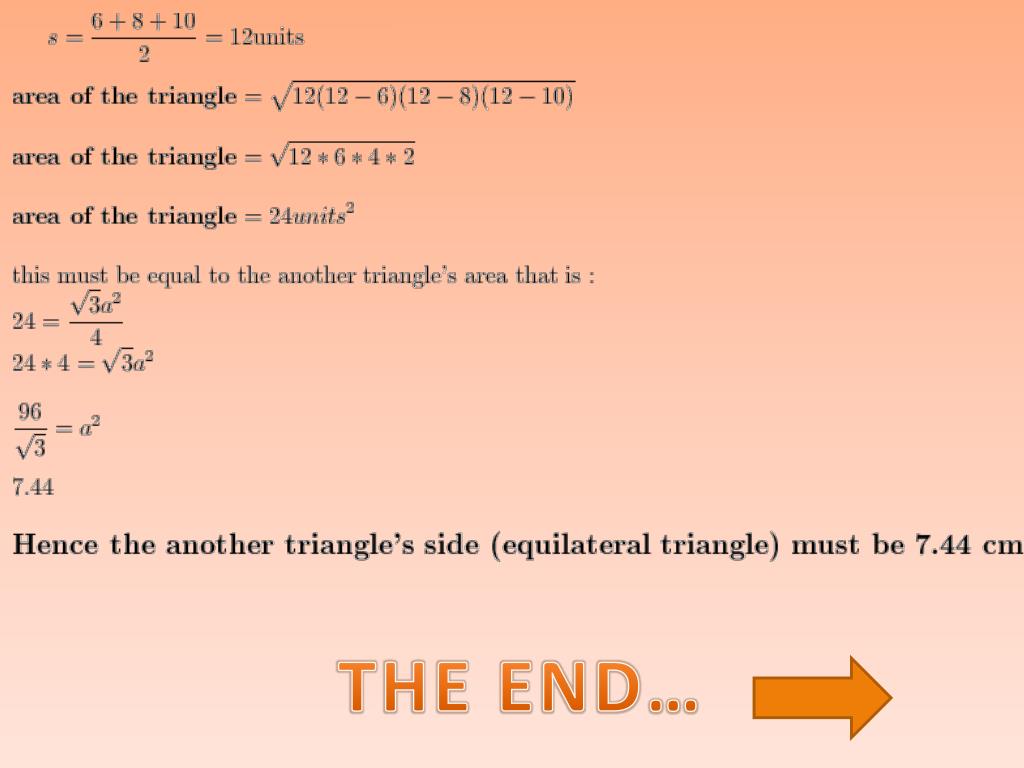

  18. Solution • First of all we will find the area of the triangle having sides : a = 6 units , b = 8 units and c = 10 units

  19. THE END…
