Presentation Transcript

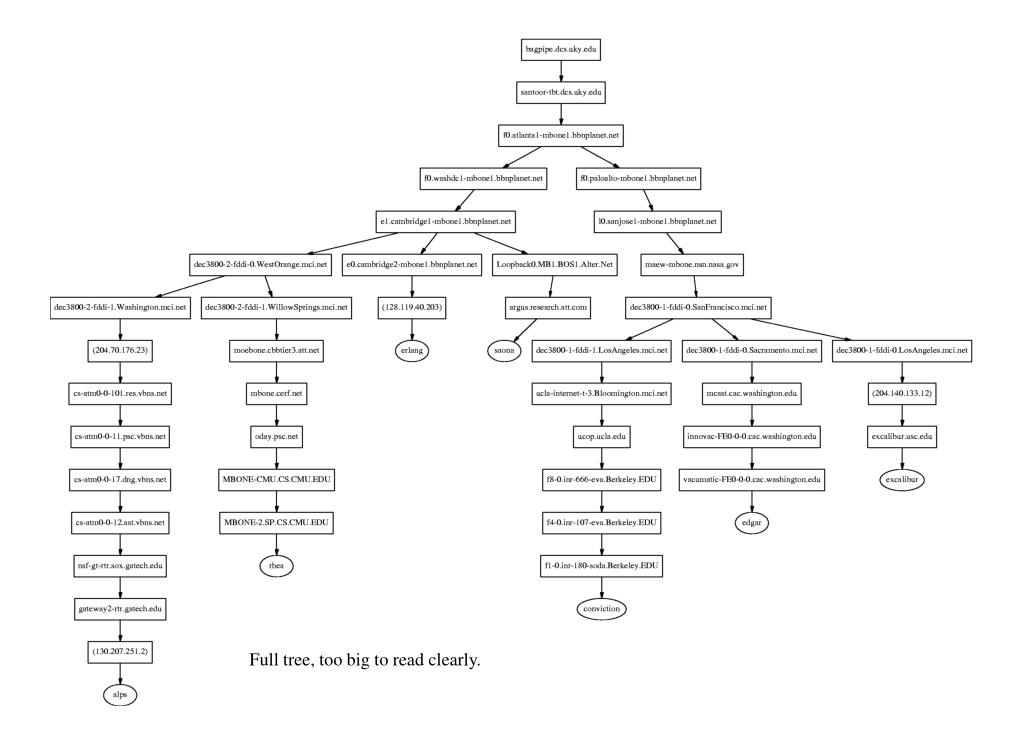

  1. Full tree, too big to read clearly.

  2. Logical multicasting tree.

  3. Logical tree without inter-node name. BTW, even using topology inference, we still be able to know name of end-point

  4. Tree with loss rate and color. The quality is not as good as previous ones, because I add previewer into the postscript file using window version ghostview, while add previewer into the rest of postscript file using unix version of ghostview, the latter doesn’t support color stuff. :-(
