  1. BPEL4WS Stewart Green University of the West of England

  2. Presentation Structure • Purpose • BPM Architecture • Runtime Engine • Theory: Petri Nets • Theory: Pi Calculus • Process Design Patterns • Process Pattern Example • BPEL4WS SMRG: BPEL4WS

  3. Purpose • Introduce BPEL4WS • Introduce “Essential Business Process Modelling”, M. Havey, O’Reilly, 2005 SMRG: BPEL4WS

  4. BPM Architecture • Havey reviewed the 17 candidate BPM standards for an application architecture with the ability to: • Design, run, and monitor and administer business processes that incorporate human and system interactions SMRG: BPEL4WS

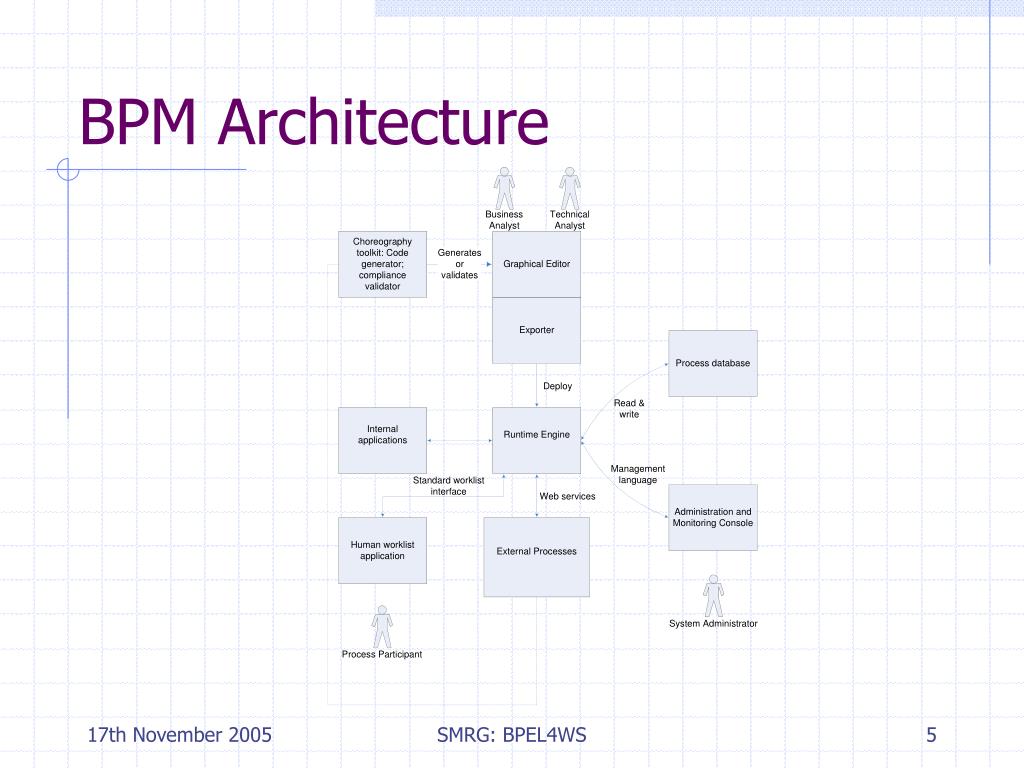

  5. BPM Architecture SMRG: BPEL4WS

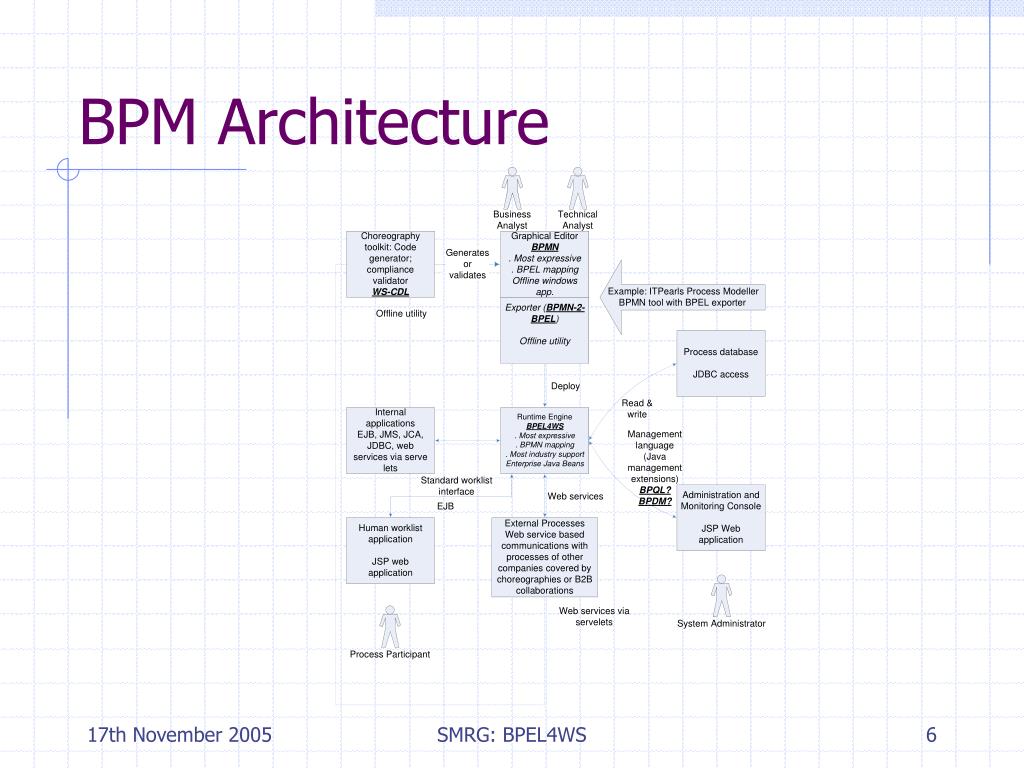

  6. BPM Architecture SMRG: BPEL4WS

  7. Runtime Engine • BPM engine • Loads programs (process definitions) • Runs instances of them (process instances) • BPEL4WS preferred execution language • Most popular • Supports most canonical process patterns (see later) • ActiveBPEL is an open source implementation • http://www.activebpel.org • Process Manager from Oracle may be trialled free • http://www.oracle.com/technology/products/ias/bpel/index.htm SMRG: BPEL4WS

  8. Theory: Petri Nets • Petri nets • Good at describing control flow semantics • Van de Aalst et al have developed theory around process pattern flow semantics and the Petri net • Havey asserts that: “judged on the basis of control flow, the strongest languages are those that are based on Petri nets, including BPEL” since they support more common control flow patterns (see later) SMRG: BPEL4WS

  9. Theory: Petri Nets • Petri nets help describe – and can be used to implement – the semantics of process control flow, including basic branch and join rules, as well as more complicated synchronisation scenarios: notably dead path elimination SMRG: BPEL4WS

  10. Theory: Pi Calculus • Pi calculus is an algebraic system for building process that communicate with each other on channels • Each process has a control flow that supports sequential, conditional or concurrent control flow • When one process sends information to another, it includes the name of the channel to be used for the other process to respond. This name is variable; it may change in response to changing conditions. Channel change is called mobility • The leading choreography language, WS-CDL, bases its constructions and channel passing on the pi calculus SMRG: BPEL4WS

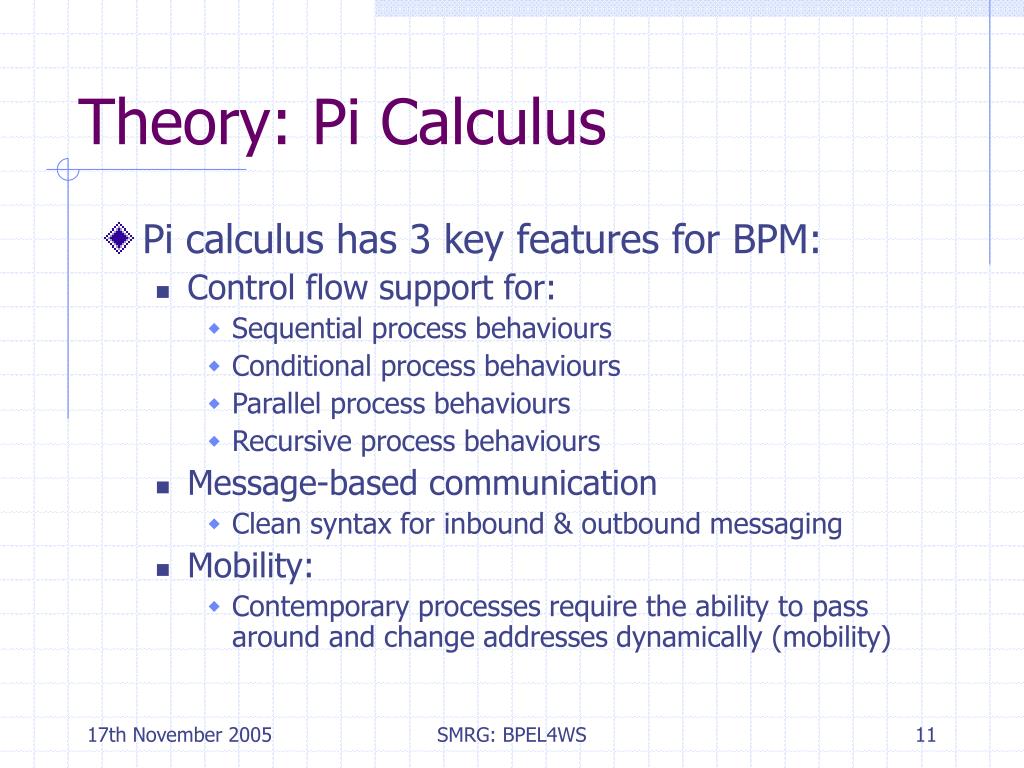

  11. Theory: Pi Calculus • Pi calculus has 3 key features for BPM: • Control flow support for: • Sequential process behaviours • Conditional process behaviours • Parallel process behaviours • Recursive process behaviours • Message-based communication • Clean syntax for inbound & outbound messaging • Mobility: • Contemporary processes require the ability to pass around and change addresses dynamically (mobility) SMRG: BPEL4WS

  12. Process Design Patterns • Vander Aalst et al. (the “process 4” or P4) have documented process patterns to help process designers • Six categories: • Basic • Advanced split and join • Structured • State-based • Cancellation • Multiple instances SMRG: BPEL4WS

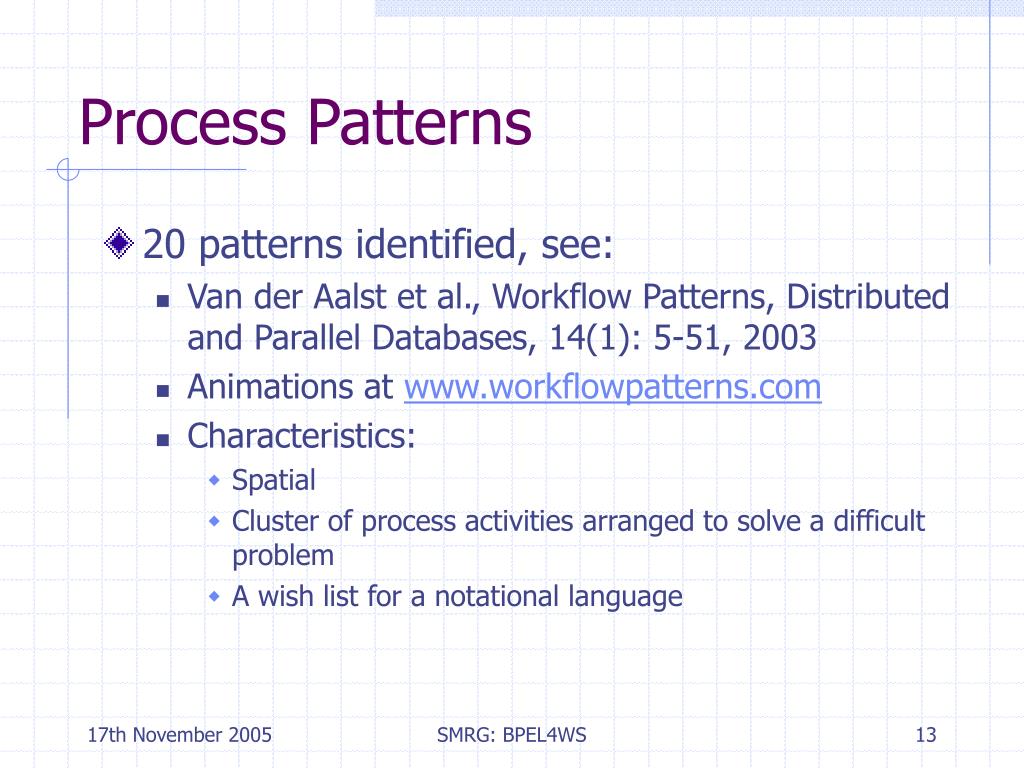

  13. Process Patterns • 20 patterns identified, see: • Van der Aalst et al., Workflow Patterns, Distributed and Parallel Databases, 14(1): 5-51, 2003 • Animations at www.workflowpatterns.com • Characteristics: • Spatial • Cluster of process activities arranged to solve a difficult problem • A wish list for a notational language SMRG: BPEL4WS

  14. Process Patterns: Example • Interleaved parallel routing • Intent: several activities are to be performed in sequence, but order of execution is arbitrary and not known at design time, e.g. an applicant to the army must take 3 tests – medical, dental and optical – but I doesn’t matter in what order SMRG: BPEL4WS

  15. Process Patterns SMRG: BPEL4WS

  16. Process Patterns • Most BPM vendors and standards lack support for interleaved parallel routing • BPEL offers a solution (see van der Aalst et al., Pattern Based Analysis of BPEL4WS, QUT Technical Report FIT-TR-2002-04, Queensland University of Technology, 2002 • Mutual exclusion is used to ensure that paths run serially and while one activity is running the others are blocked. SMRG: BPEL4WS

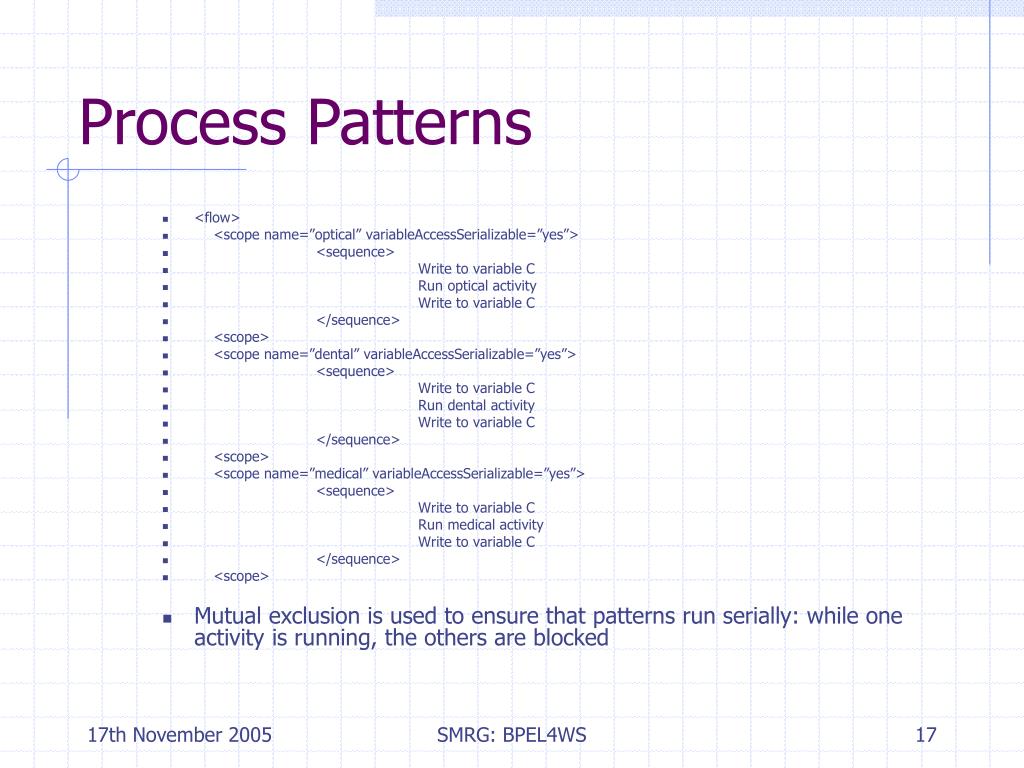

  17. Process Patterns • <flow> • <scope name=”optical” variableAccessSerializable=”yes”> • <sequence> • Write to variable C • Run optical activity • Write to variable C • </sequence> • <scope> • <scope name=”dental” variableAccessSerializable=”yes”> • <sequence> • Write to variable C • Run dental activity • Write to variable C • </sequence> • <scope> • <scope name=”medical” variableAccessSerializable=”yes”> • <sequence> • Write to variable C • Run medical activity • Write to variable C • </sequence> • <scope> • Mutual exclusion is used to ensure that patterns run serially: while one activity is running, the others are blocked SMRG: BPEL4WS

  18. Process Patterns • The P4 rated 15 vendors offerings (see van der Aalst et al., Workflow Patterns: On the Expressive Power of (Petri net based) workflow languages, in K. Jensen (ed.), Proceedings of the 4th Workshop on the Practical Use of Coloured Petri Nets and CPM tools (CPN 2002) vol 560 of DAMI, p 1 – 20, University of Aarhus, 2002 • Even indirectly, most failed to support 10 of the 20 patterns SMRG: BPEL4WS

  19. Process Patterns • Communication patterns • Receive request • A process triggered by an inbound service request; in BPEL pattern is implemented with the receive activity • Call Partner Service • A process sends a message to a partner’s service; in BPLE invoke • Human workflow patterns SMRG: BPEL4WS

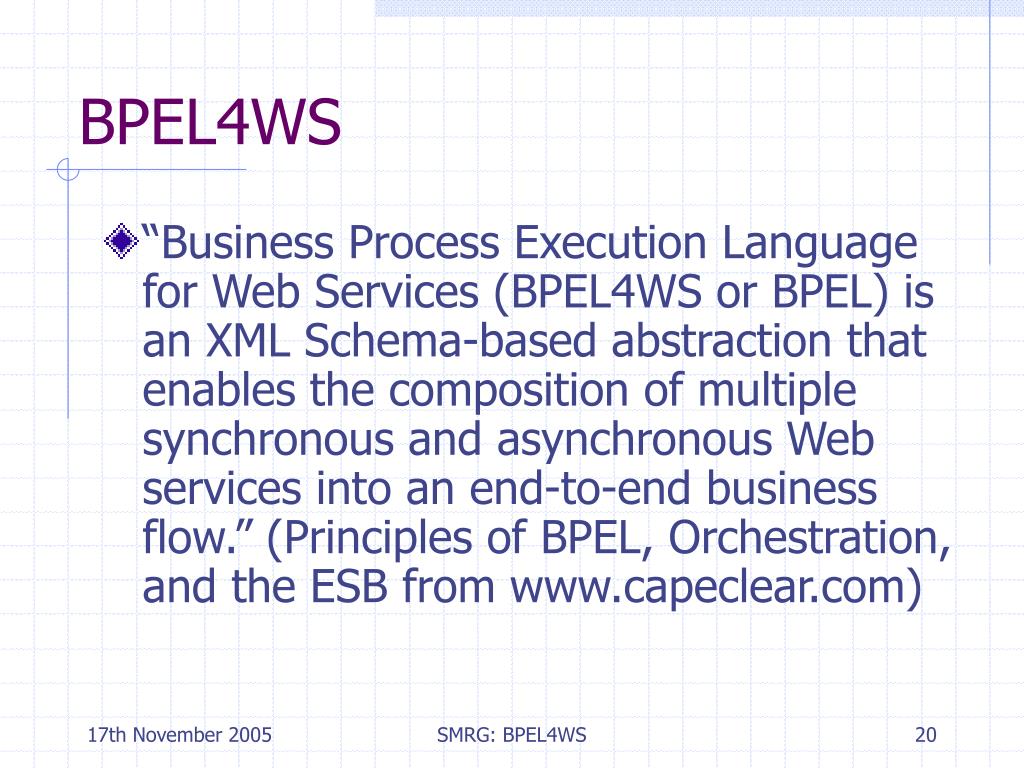

  20. BPEL4WS • “Business Process Execution Language for Web Services (BPEL4WS or BPEL) is an XML Schema-based abstraction that enables the composition of multiple synchronous and asynchronous Web services into an end-to-end business flow.” (Principles of BPEL, Orchestration, and the ESB from www.capeclear.com) SMRG: BPEL4WS

  21. BPEL4WS • “A BPEL script is an XML document that conforms to the BPEL schema. The BPEL script is interpreted at runtime by a BPEL processor [engine] that identifies keywords or activities and executes them as defined in the BPEL script.” (www.capeclear.com) SMRG: BPEL4WS

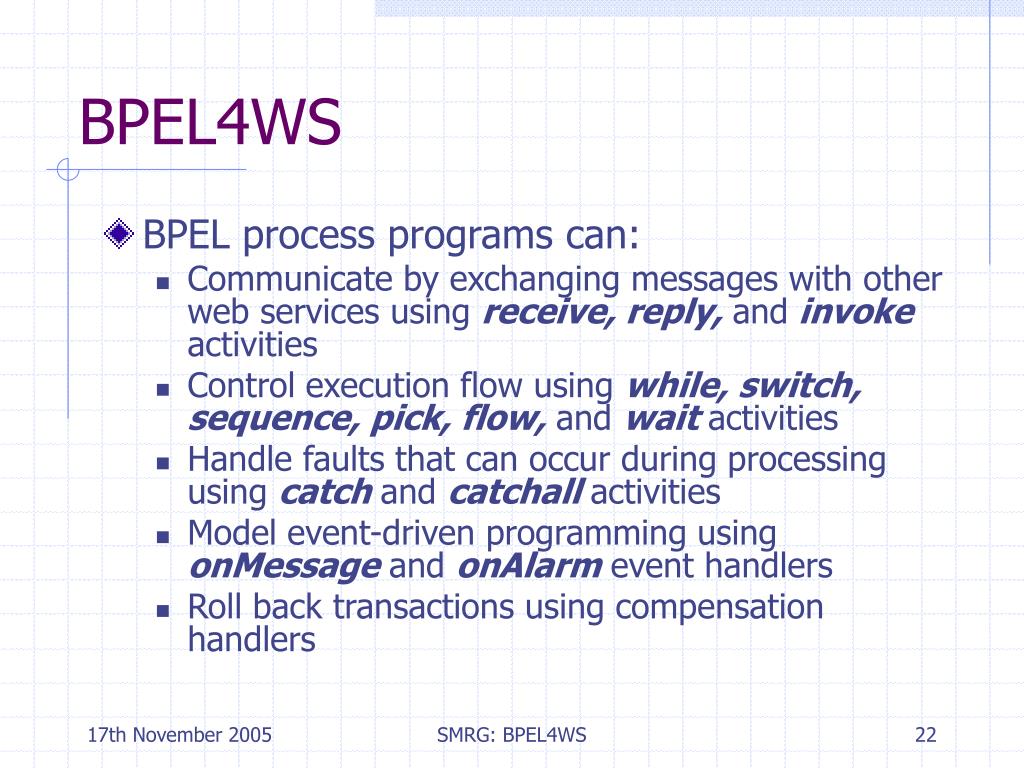

  22. BPEL4WS • BPEL process programs can: • Communicate by exchanging messages with other web services using receive, reply, and invoke activities • Control execution flow using while, switch, sequence, pick, flow, and wait activities • Handle faults that can occur during processing using catch and catchall activities • Model event-driven programming using onMessage and onAlarm event handlers • Roll back transactions using compensation handlers SMRG: BPEL4WS

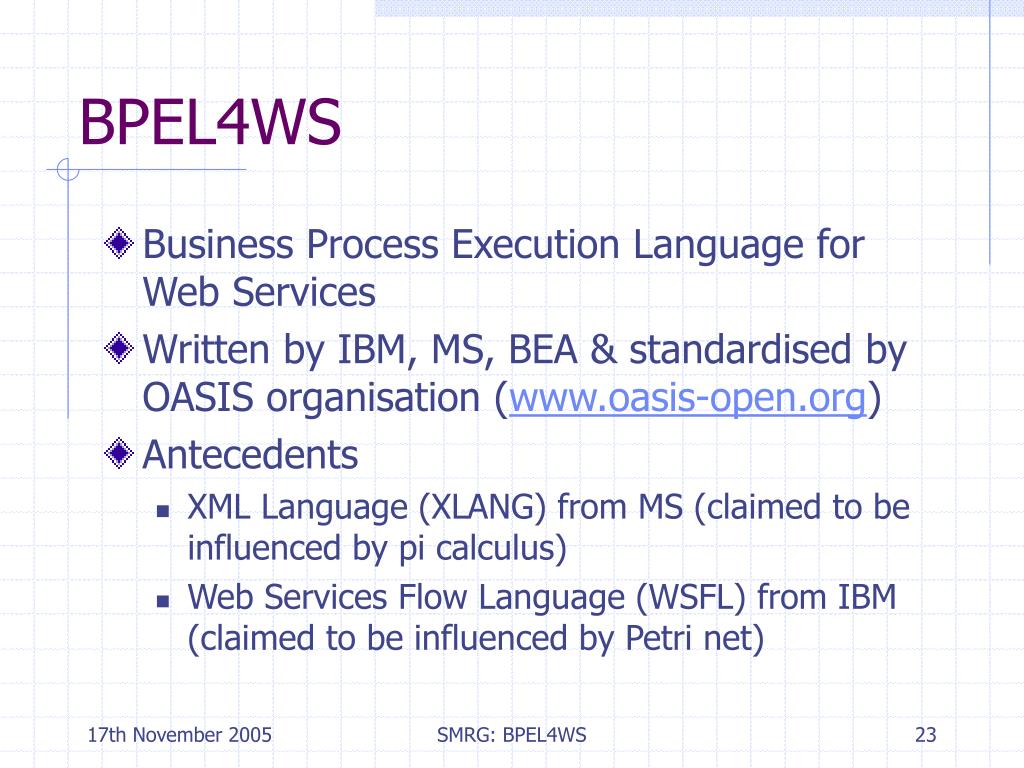

  23. BPEL4WS • Business Process Execution Language for Web Services • Written by IBM, MS, BEA & standardised by OASIS organisation (www.oasis-open.org) • Antecedents • XML Language (XLANG) from MS (claimed to be influenced by pi calculus) • Web Services Flow Language (WSFL) from IBM (claimed to be influenced by Petri net) SMRG: BPEL4WS

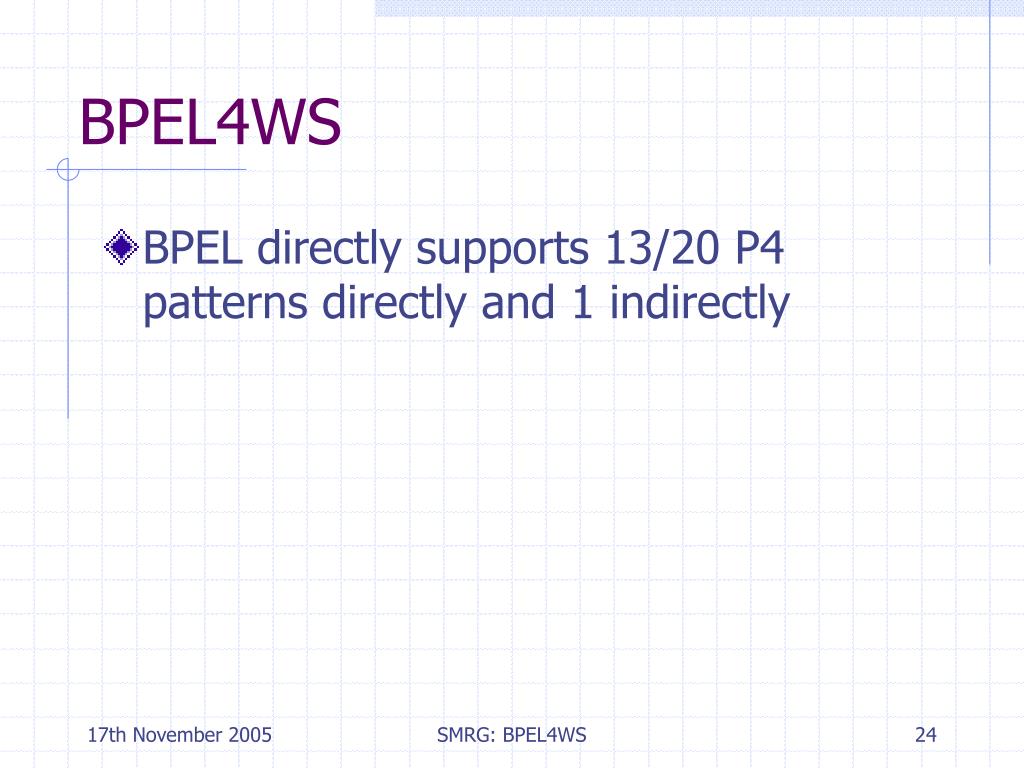

  24. BPEL4WS • BPEL directly supports 13/20 P4 patterns directly and 1 indirectly SMRG: BPEL4WS

  25. BPEL4WS • The source code for a BPEL XML-based process definition is: • A set of Web Service Definition Language (WSDL) files specifying the web services • A BPEL XML file for the process logic • The process definition references the WSDL partner link types and variables based on WSDL defined message types. SMRG: BPEL4WS

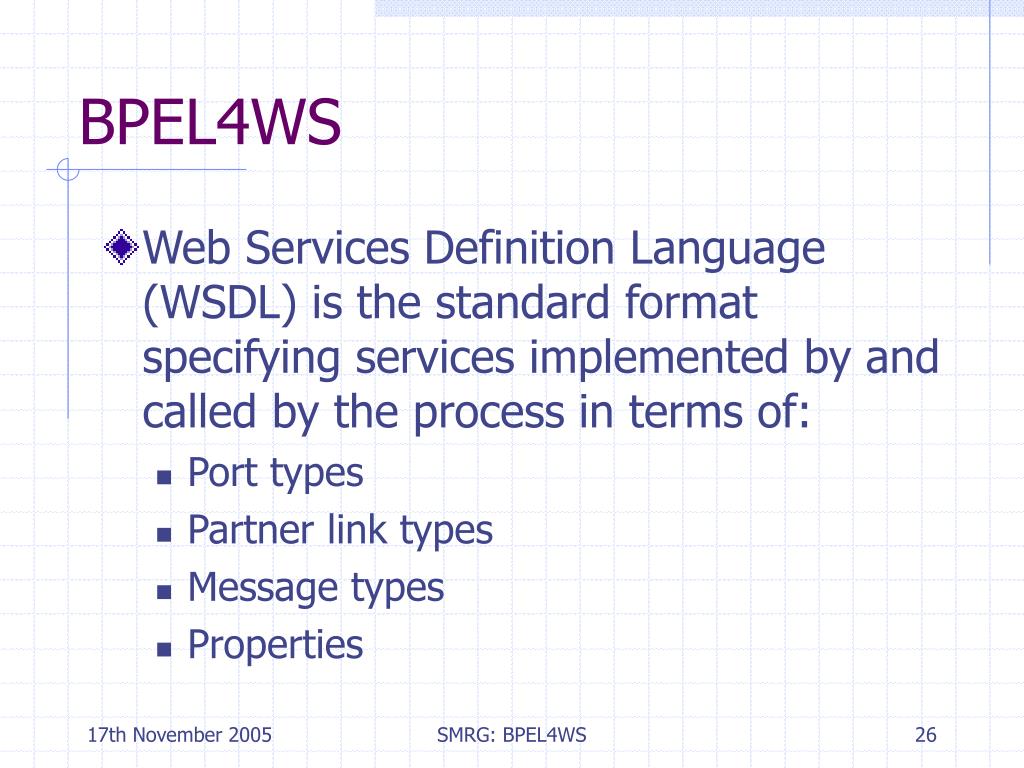

  26. BPEL4WS • Web Services Definition Language (WSDL) is the standard format specifying services implemented by and called by the process in terms of: • Port types • Partner link types • Message types • Properties SMRG: BPEL4WS
