Spacelabs Transport Monitors Easy things to make sure transport is always ready to go

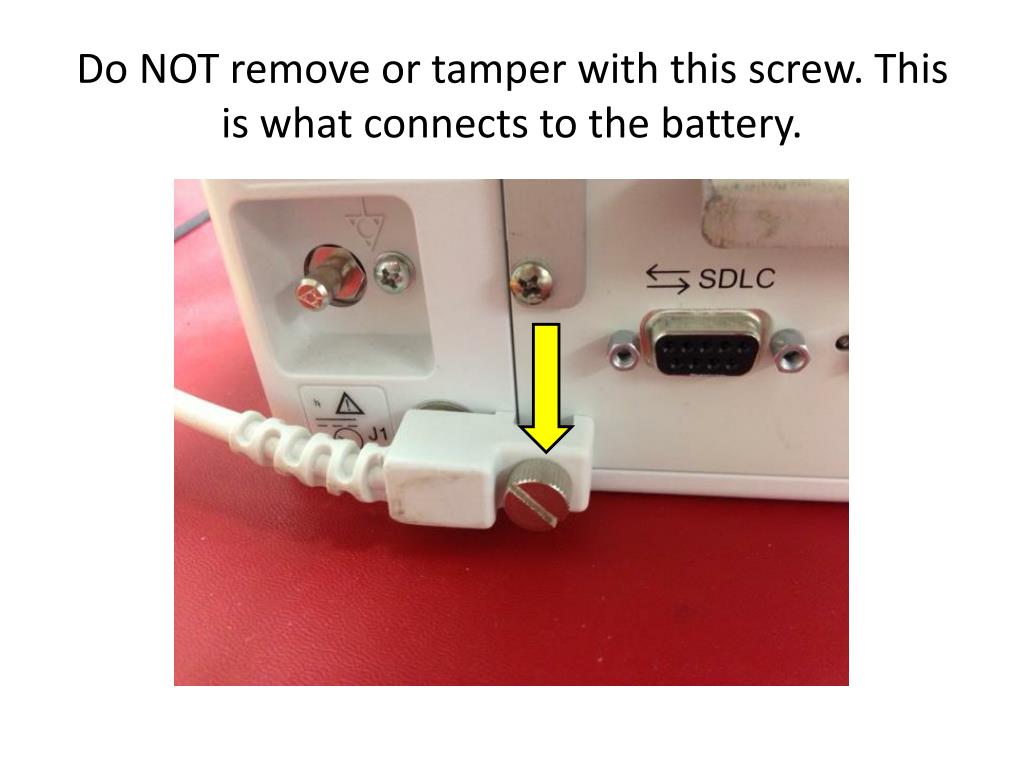

Do NOT remove or tamper with this screw. This is what connects to the battery.
Check connections. Secure power supply to unit connection Make sure power supply is fully plugged in.
Battery Indicators These will appear on the bottom right corner of the screen. Fully Charged No Charge
For the power supply, • Make sure power supply is secured on back of transport with Velcro. • If dropped, this will not work properly.
When not in use, transport should always be plugged in. Pay attention to the lights below the screen: -Blinking  Charging -Solid Fully Charged Both A and B should be lit, this indicates two batteries are present. If only one is lit, report it to Clinical Engineering.
