Advanced solution methods for Stochastic Petri Nets

1. Advanced solution methods for Stochastic Petri Nets Prof.ssa Susanna Donatelli Universita’ di Torino, Italy www.di.unito.it susi@di.unito.it

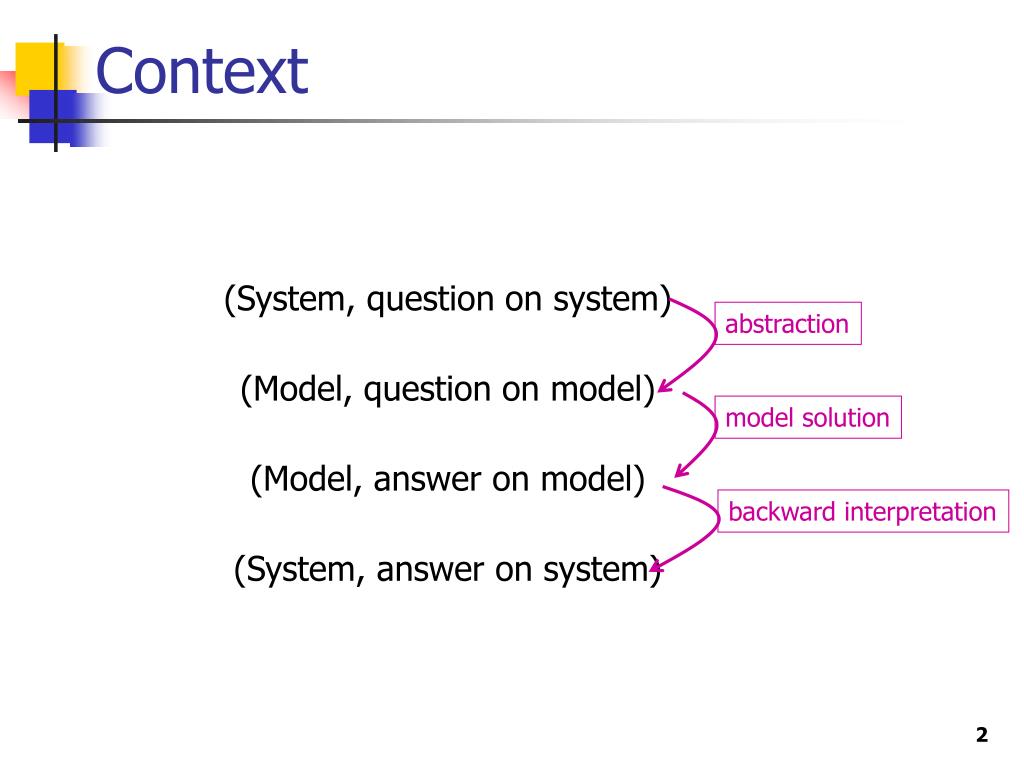

2. Context (System, question on system) (Model, question on model) (Model, answer on model) (System, answer on system) abstraction model solution backward interpretation

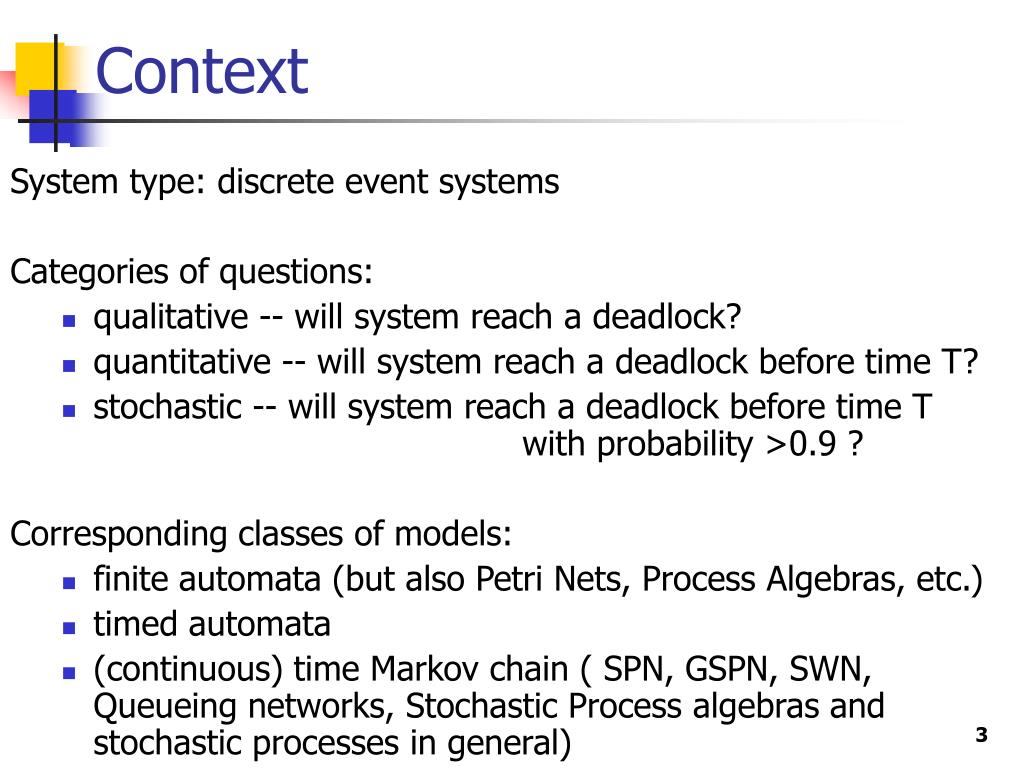

3. Context • System type: discrete event systems • Categories of questions: • qualitative -- will system reach a deadlock? • quantitative -- will system reach a deadlock before time T? • stochastic -- will system reach a deadlock before time T with probability >0.9 ? • Corresponding classes of models: • finite automata (but also Petri Nets, Process Algebras, etc.) • timed automata • (continuous) time Markov chain ( SPN, GSPN, SWN, Queueing networks, Stochastic Process algebras and stochastic processes in general)

4. Context • Typical questions/properties • qualitative -- reachability, deadlock, liveness, state/action condition, system evolution (path properties) • quantitative -- timed reachability, timed system evolution (timed path properties) • stochastic -- reachability in probability • We concentrate on stochastic properties for stochastic systems • Revisit CSL for Petri Nets • Go beyond CSL (not only for nets)

5. Outline • Verifying quantitative behaviour: CSL for SPN and SWN definition and model checking • Verifying quantitative behaviour: CSL for GSPN • Beyond CSL • Solving large (G)SPN: symbolic representation and tensor-based techniques • Bibliographical references

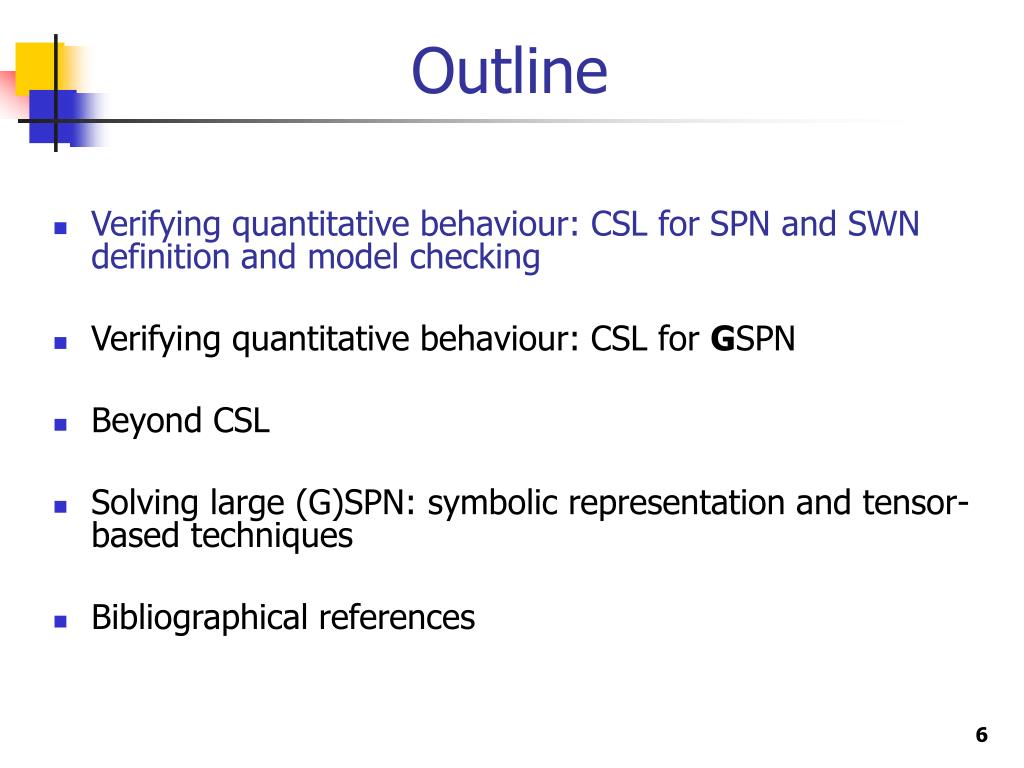

6. Outline • Verifying quantitative behaviour: CSL for SPN and SWN definition and model checking • Verifying quantitative behaviour: CSL for GSPN • Beyond CSL • Solving large (G)SPN: symbolic representation and tensor-based techniques • Bibliographical references

7. Recall on SWN • Stochastic Well-formed Nets (SWN) are a colored extension of Stochastic Petri Nets • Color and arc function definition meant to favour a symmetric specification of the system • Symmetries are automatically exploited in state space generation • Underlying stochastic process is a CTMC

8. Recall on SWN s_srv is enabled for x = color colored place neutral place color domain D = {d1, d2, ..}

9. Recall on SWN Equivalent GSPN when D = {d1, d2}

10. Recall on SWN • GSPN state: M(wait_d1)=2 • SWN colored state: M(wait) = 2·d1 • SWN symbolic state: • M(wait)= 2·ZD1, with |ZD1|=1 • M(wait)= 1·ZD1, M(srv) = 1·ZD2, |ZD1|=1, |ZD2|=2 two jobs waiting for the same device equivalence class of all markings with 2 tokens of the same color in place wait one job waiting for a device while two jobs are using the other two devices

11. Recall on SWN usually much smaller same cardinality

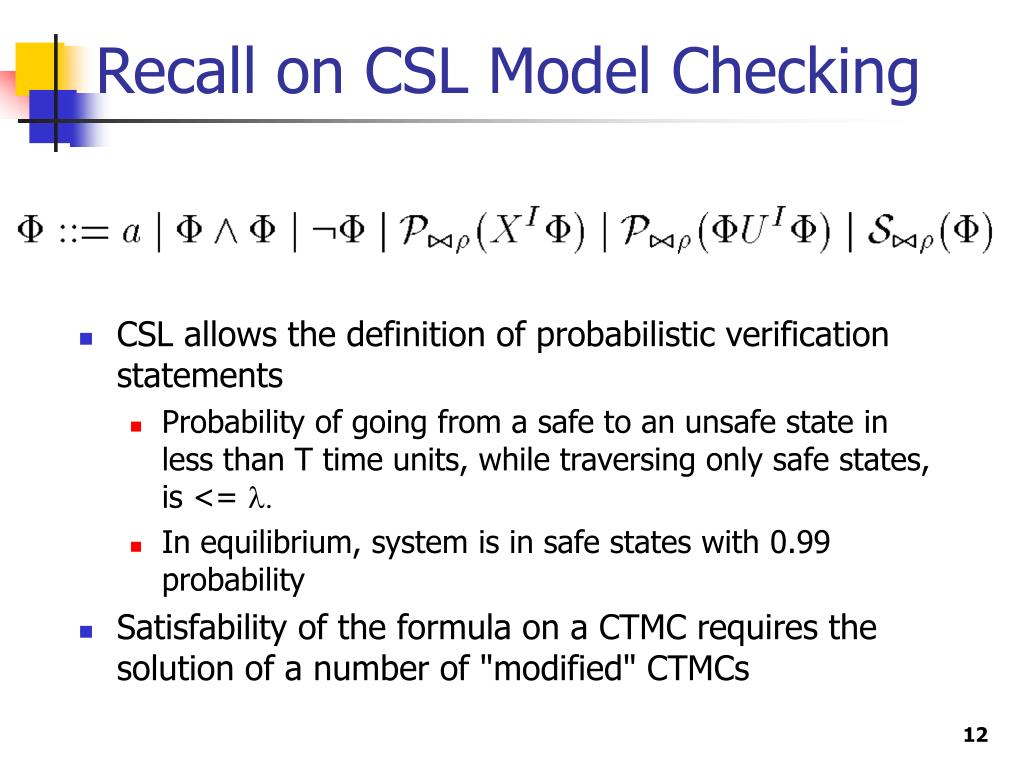

12. Recall on CSL Model Checking • CSL allows the definition of probabilistic verification statements • Probability of going from a safe to an unsafe state in less than T time units, while traversing only safe states, is <= l. • In equilibrium, system is in safe states with 0.99 probability • Satisfability of the formula on a CTMC requires the solution of a number of "modified" CTMCs

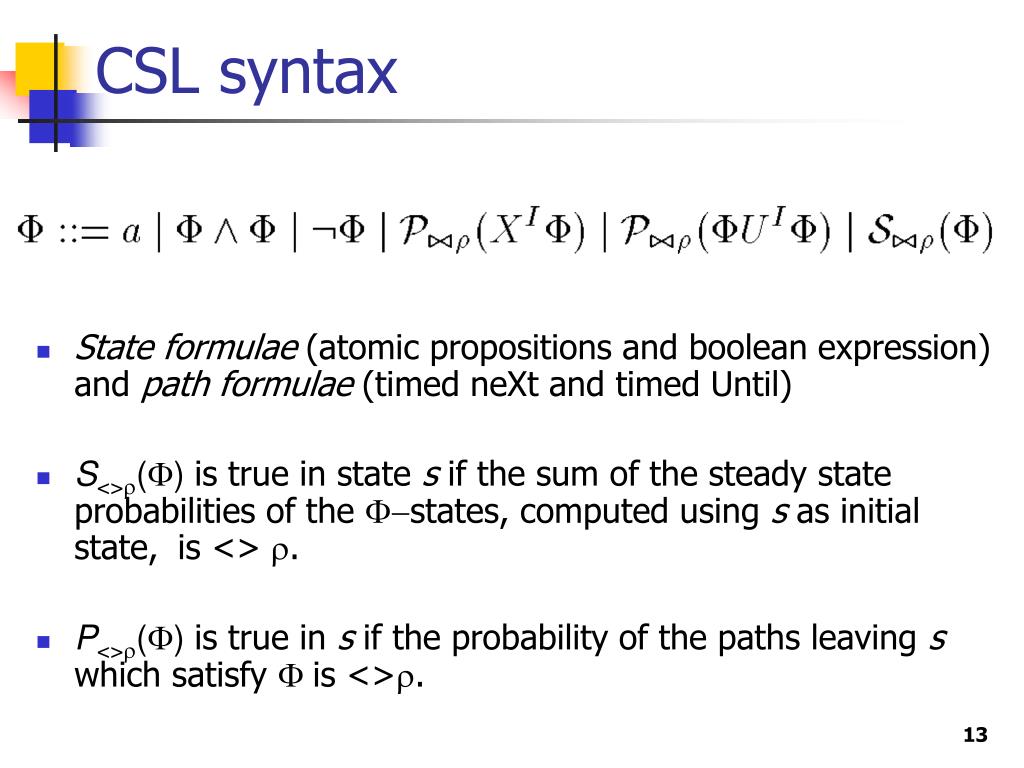

13. CSL syntax • State formulae (atomic propositions and boolean expression) and path formulae (timed neXt and timed Until) • S<>r(F) is true in states if the sum of the steady state probabilitiesof the F-states, computed usings as initial state, is <>r. • P<>r(F) is true in s if the probability of the paths leaving s which satisfy F is <>r.

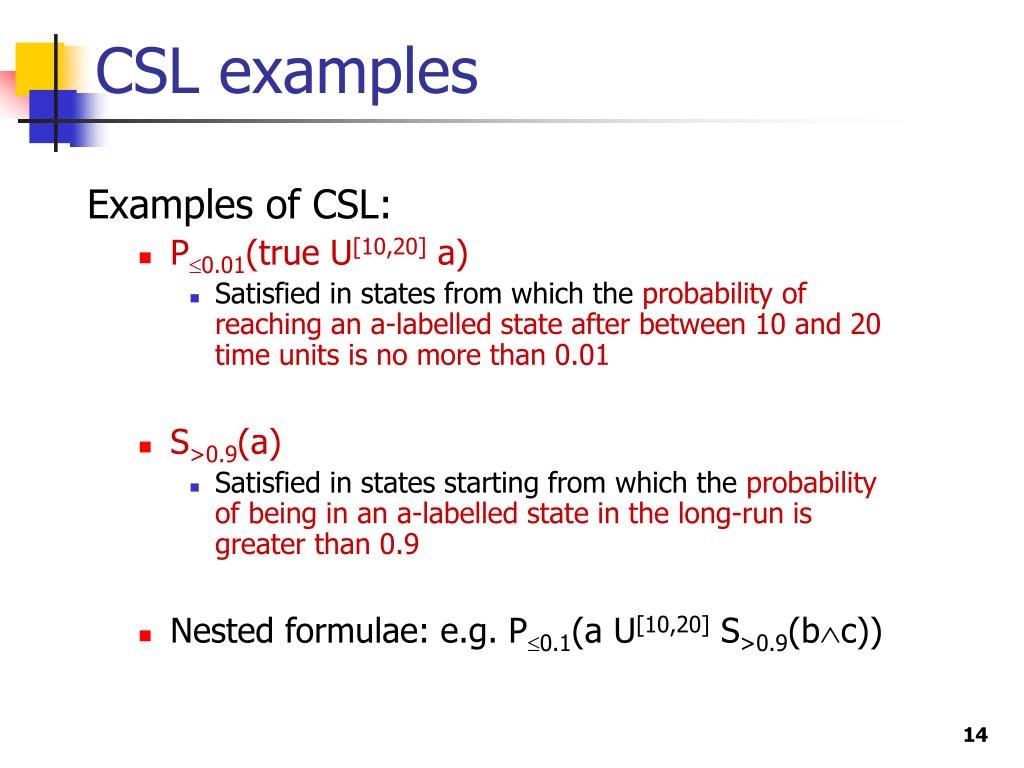

14. CSL examples Examples of CSL: • P0.01(true U[10,20] a) • Satisfied in states from which the probability of reaching an a-labelled state after between 10 and 20 time units is no more than 0.01 • S>0.9(a) • Satisfied in states starting from which the probability of being in an a-labelled state in the long-run is greater than 0.9 • Nested formulae: e.g. P0.1(a U[10,20] S>0.9(bc))

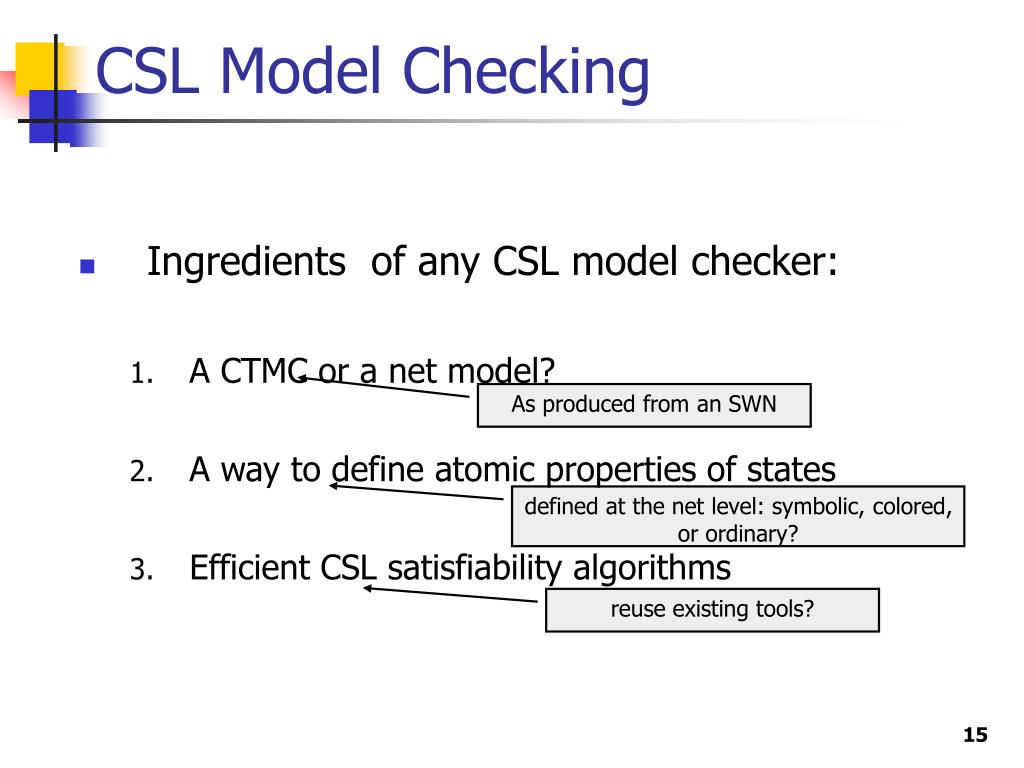

15. CSL Model Checking • Ingredients of any CSL model checker: • A CTMC or a net model? • A way to define atomic properties of states • Efficient CSL satisfiability algorithms As produced from an SWN defined at the net level: symbolic, colored, or ordinary? reuse existing tools?

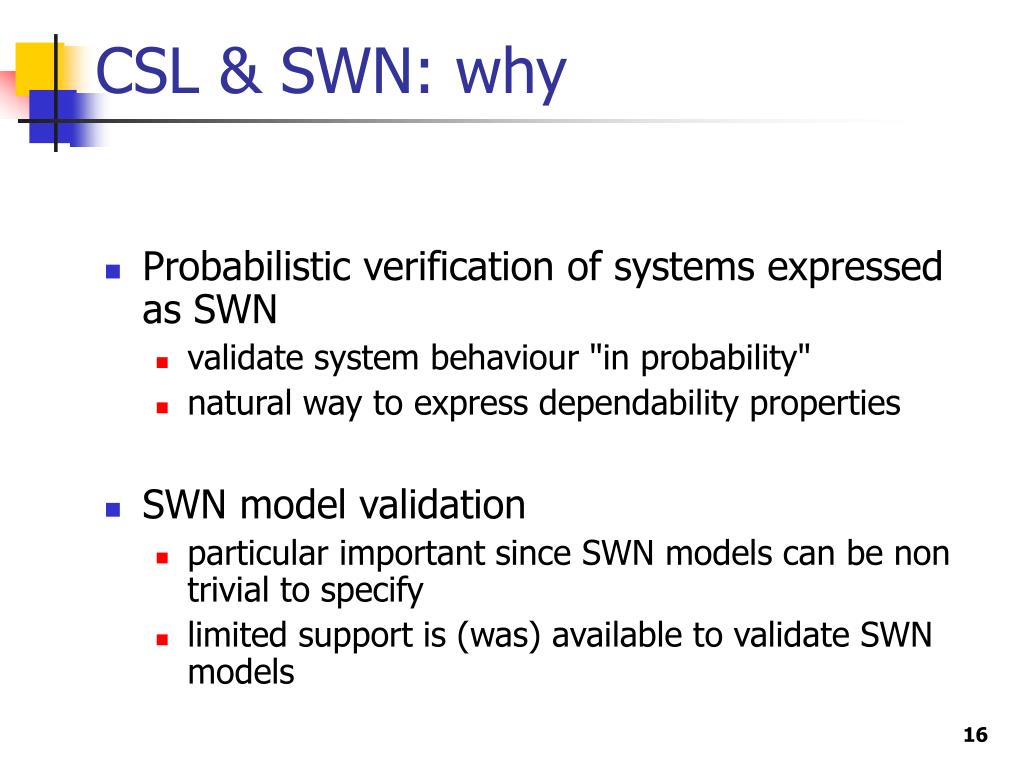

16. CSL & SWN: why • Probabilistic verification of systems expressed as SWN • validate system behaviour "in probability" • natural way to express dependability properties • SWN model validation • particular important since SWN models can be non trivial to specify • limited support is (was) available to validate SWN models

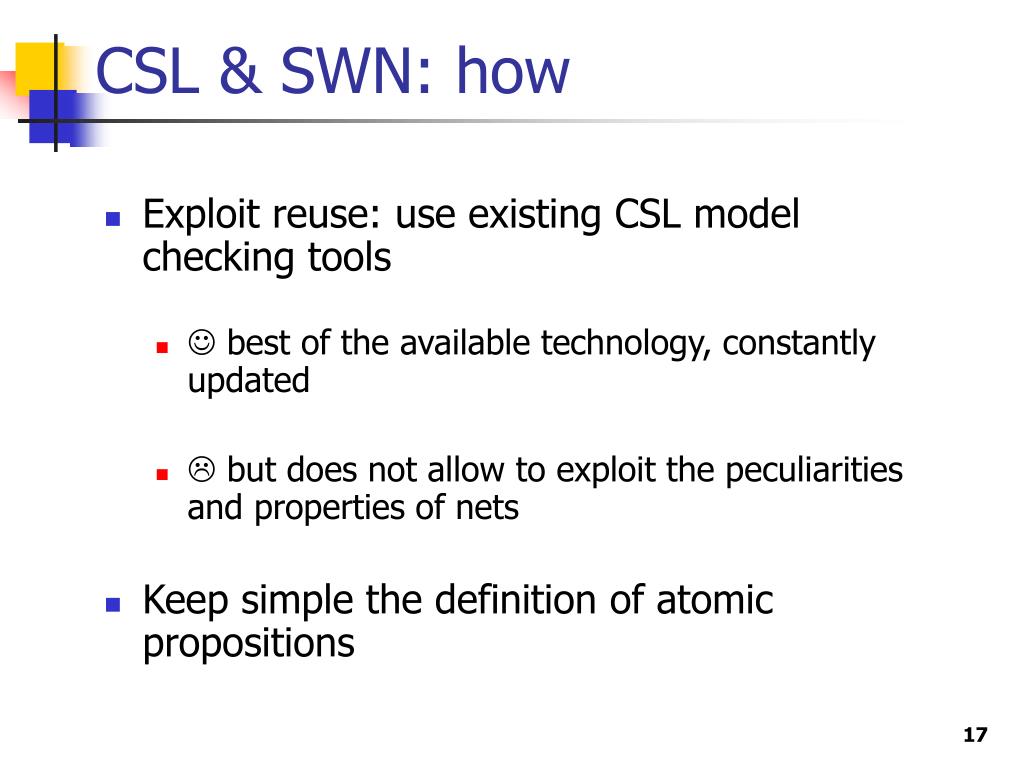

17. CSL & SWN: how • Exploit reuse: use existing CSL model checking tools •  best of the available technology, constantly updated •  but does not allow to exploit the peculiarities and properties of nets • Keep simple the definition of atomic propositions

18. CSL & SWN: how – an example GSPN/SWN tool from the universities of Torino, Piemonte Orientale, Paris-6, Reims CSL model checking facility for SWN models by linking GreatSPN to: • MRMC, the input model is a CTMC • PRISM, the input model is a set of interacting modules specified using a guarded command language from which a CTMC is generated CSL tool from the universities of Twente, Aachen, Munich CSL/PCTL tool of the university of Birmingham

19. CSL & SWN: how • Language for the definition of atomic properties • For SWN this task is not always straightforward, as we may want to refer to neutral, colored and symbolic properties • Discuss the issues of the link from GreatSPN SWN solver to to MRMC and PRISM (which solution for which type of property)

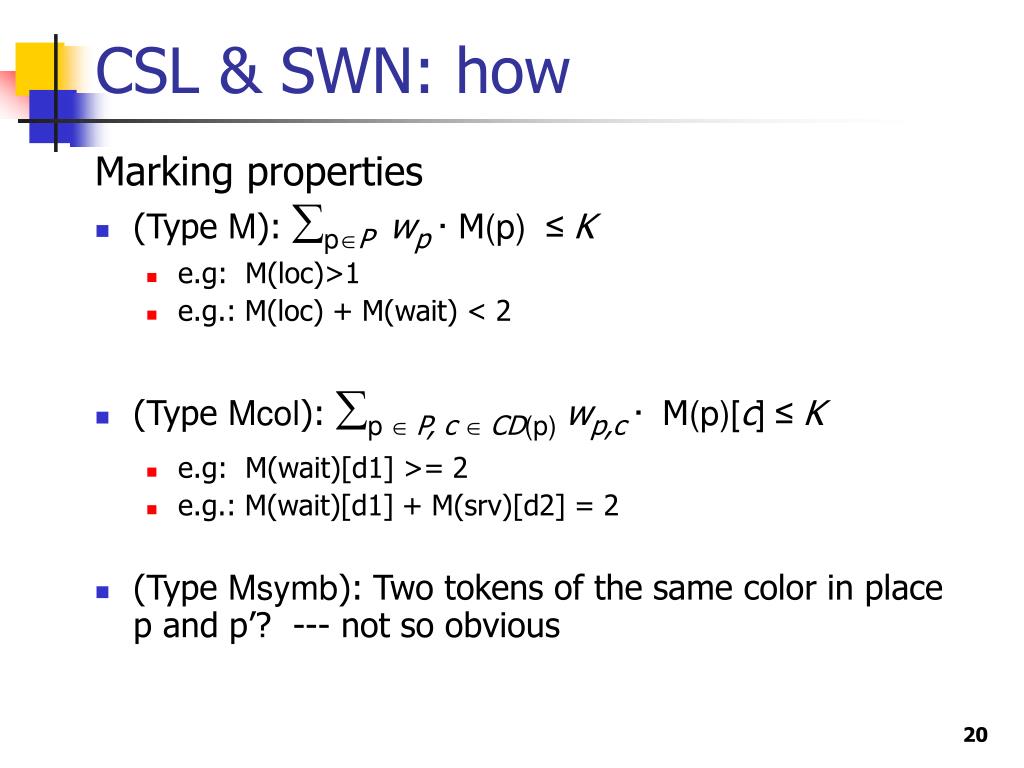

20. CSL & SWN: how Marking properties • (Type M):åpP wp · M(p) ≤ K • e.g: M(loc)>1 • e.g.: M(loc) + M(wait) < 2 • (Type Mcol):åp P, c CD(p)wp,c · M(p)[c] ≤ K • e.g: M(wait)[d1] >= 2 • e.g.: M(wait)[d1] + M(srv)[d2] = 2 • (Type Msymb):Two tokens of the same color in place p and p’? --- not so obvious

21. CSL & SWN: how Transition enabling properties • (Type T): transition t is enabled • e.g.: s_srv is enabled, • s_srv_d1 is enabled • (Type Tcol): transition t is enabled for a given assignment to the variables of t. • e.g.: s_srv is enabled for x=d1 • (Type Tsymb): transition t is enabled for x=y

22. Linking GreatSPN to MRMC • MRMC works with two input files: • the CTMC rate matrix • CTMC generated using GreatSPN from the RG/CRG or SRG • the list of the atomic propositions valid in each state

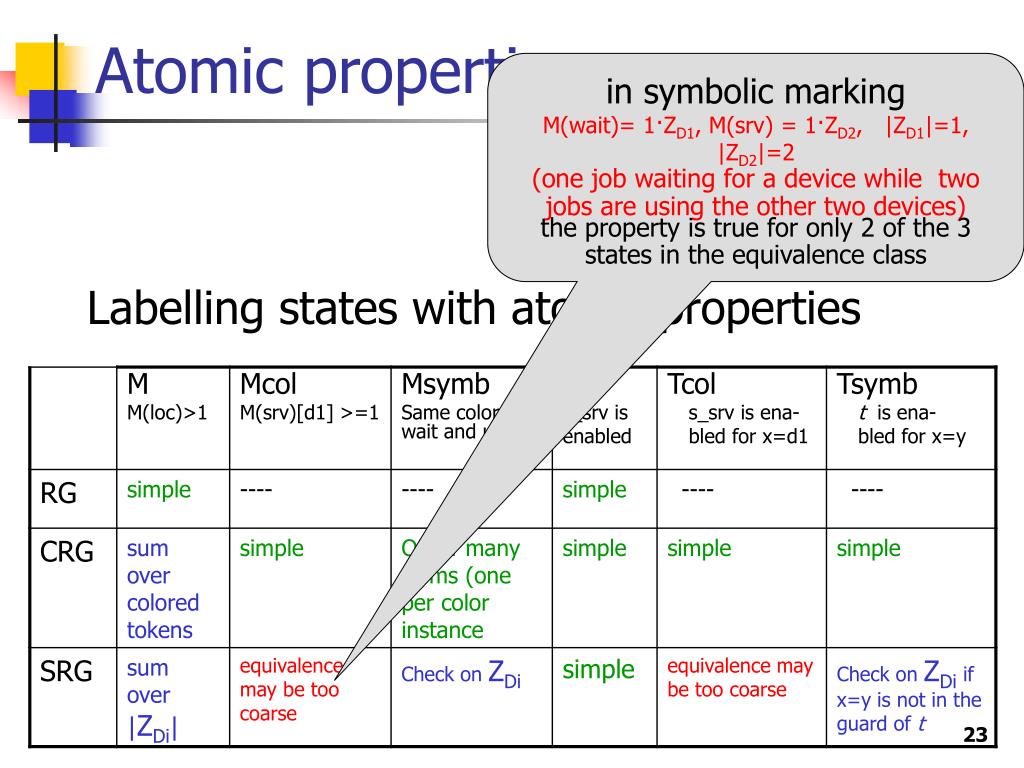

23. Atomic properties in symbolic marking M(wait)= 1·ZD1, M(srv) = 1·ZD2, |ZD1|=1, |ZD2|=2 (one job waiting for a device while two jobs are using the other two devices) the property is true for only 2 of the 3 states in the equivalence class Labelling states with atomic properties

24. Atomic properties Solving the red problem: observation transitions

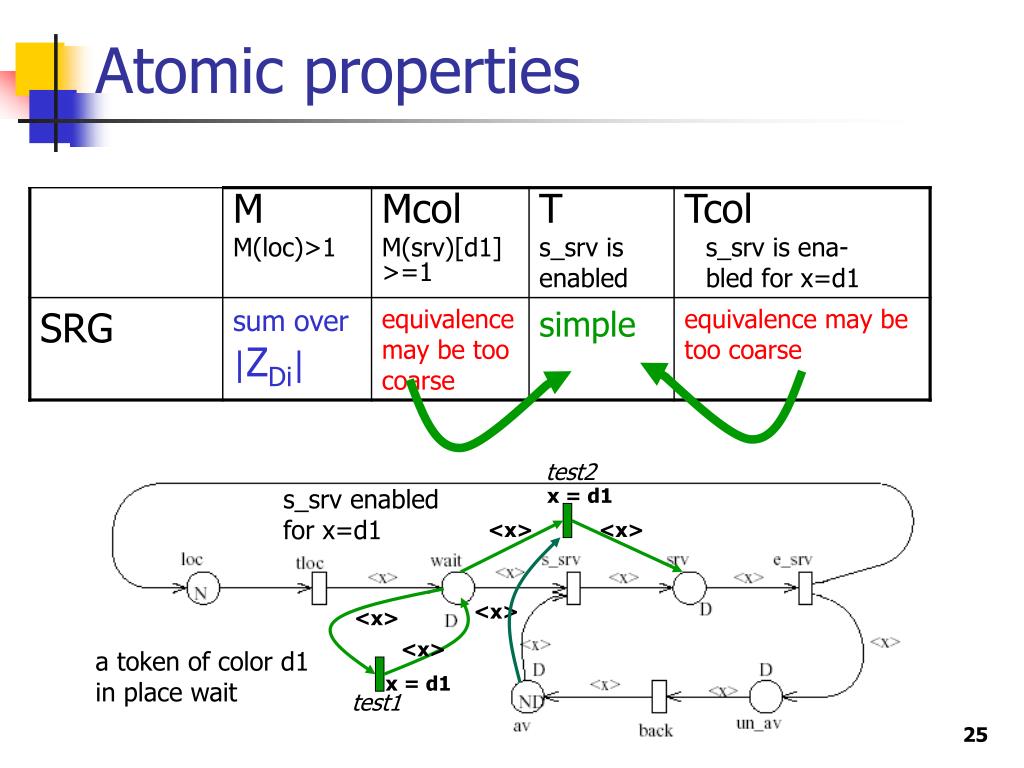

25. Atomic properties test2 s_srv enabled for x=d1 x = d1 <x> <x> <x> <x> a token of color d1 in place wait x = d1 test1 <x>

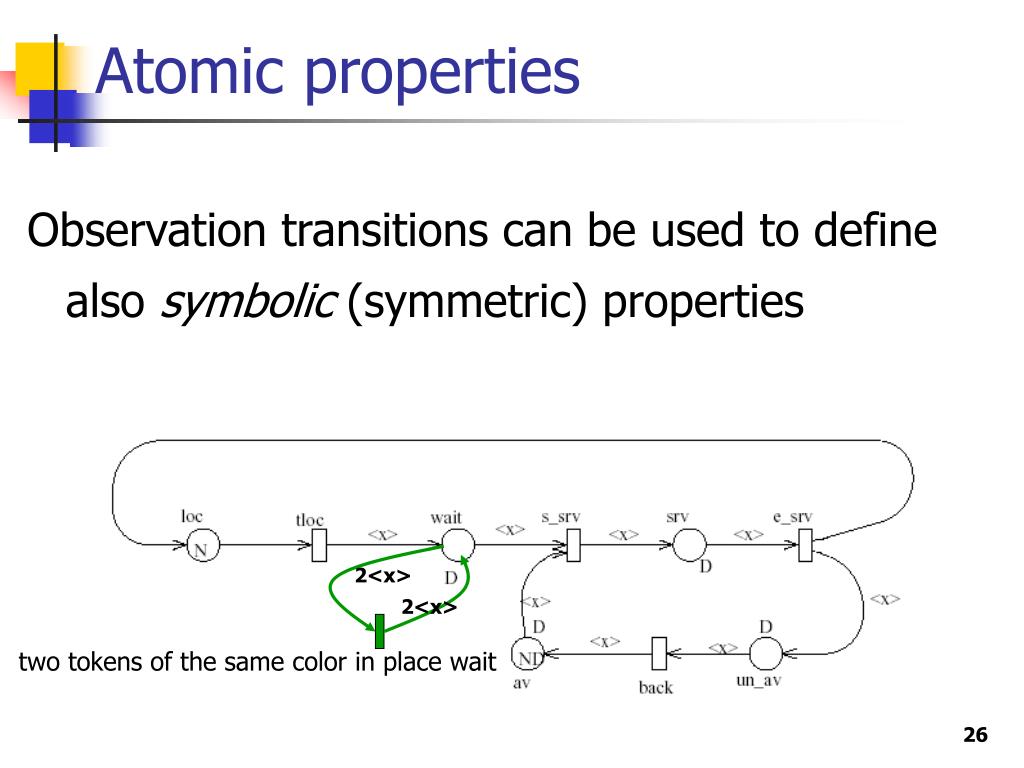

26. Atomic properties 2<x> 2<x> two tokens of the same color in place wait Observation transitions can be used to define also symbolic (symmetric) properties

27. Linking GreatSPN to MRMC user .net wait>=4 wait_d1>=4 wait_d2>=4 GreatSPN .ap .net GreatSPN2MRMC GMC2MRMC STATES 352 TRANSITIONS 1206 1 2 1.000000 1 3 1.000000 2 4 10.000000 … .tra .xlab #DECLARATION t_HS #END ... 25 wait>=4 wait_d1>=4 ... 34 wait>=4 wait_d2>=4 ... .lab APGenerator 1 av(1<d2>1<d1>) loc(8) tloc 2 av(1<d2>1<d1>)loc(7)wait(1<d1>) s_srv_d1 ...

28. Linking GreatSPN to PRISM • The PRISM input language is a state-based language • State = valuation of a number of bounded variables • A set of guarded commands describes the dynamics of the system: from them PRISM derives the CTMC • Atomic propositions are implicitly defined,as a CSL formula can include any logical condition on the variables' values

29. Linking GreatSPN to PRISM • Two possible ways to connect to PRISM: • produce a Prism module directly from the SWN, such that the same CTMC (up to state numbering) is produced; • produce a Prism module directly from the CTMC of the SRG/RG  definition of atomic propositions? • unfolding the SWN into an SPN, followed by the translation of the SPN into a PRISM module using the already-existing translation for SPN. • Current solution does the unfolding, since it is easier and there is already a GSPN->Prism translator.

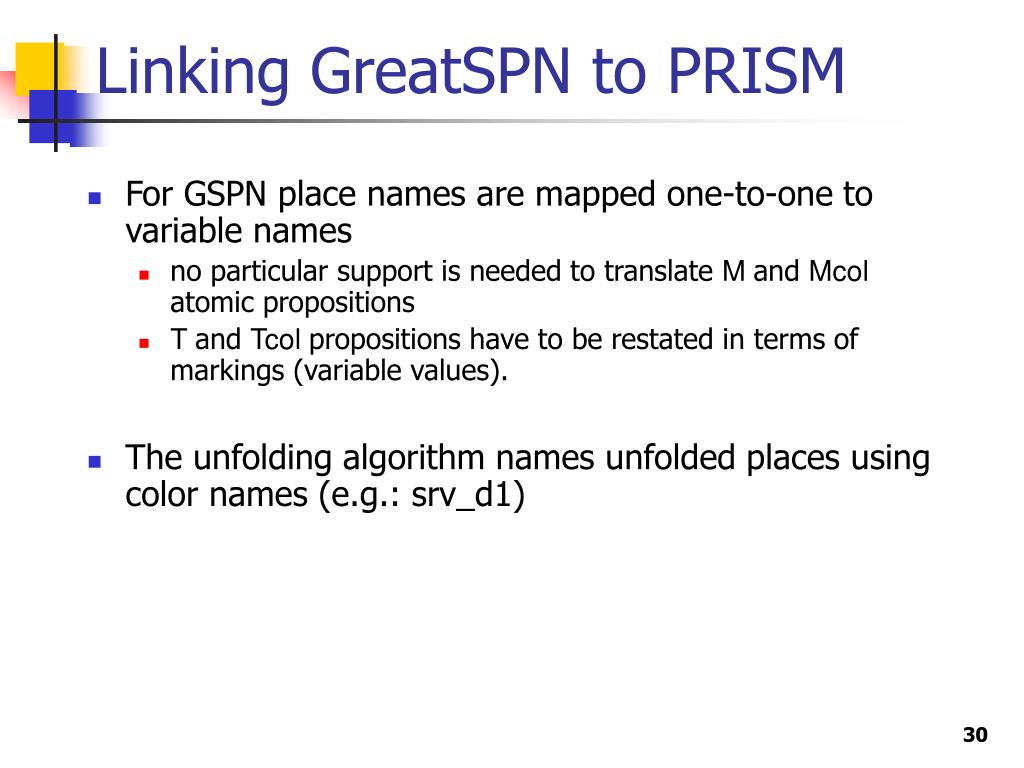

30. Linking GreatSPN to PRISM • For GSPN place names are mapped one-to-one to variable names • no particular support is needed to translate M and Mcol atomic propositions • T and Tcol propositions have to be restated in terms of markings (variable values). • The unfolding algorithm names unfolded places using color names (e.g.: srv_d1)

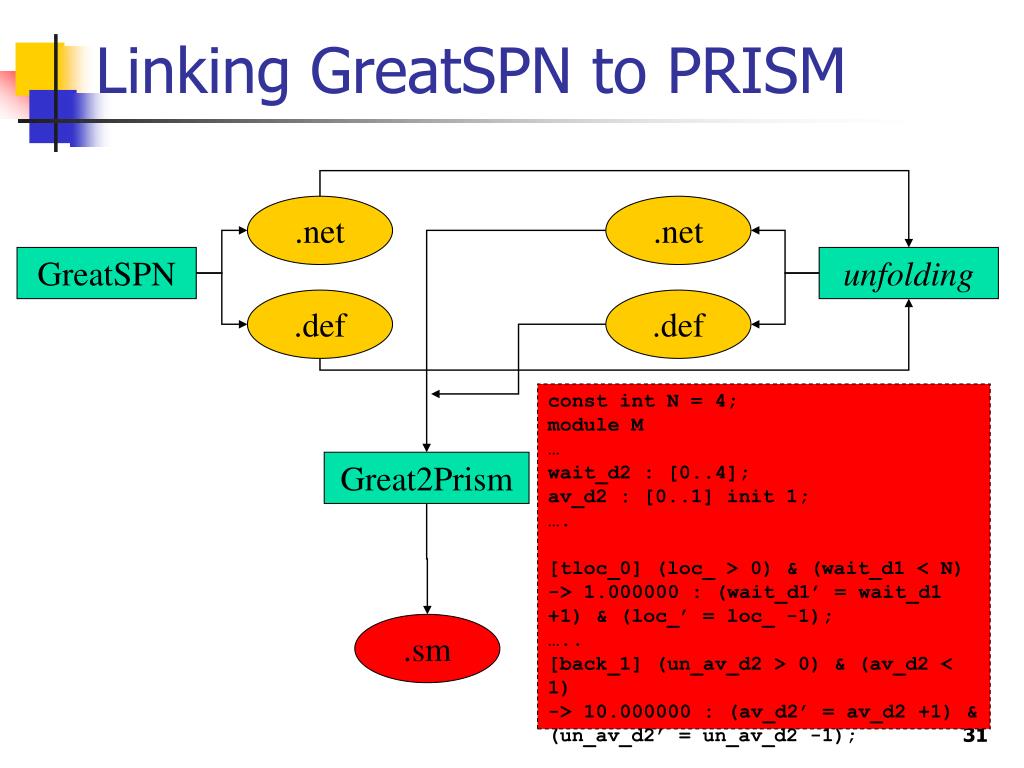

31. Linking GreatSPN to PRISM .net .net GreatSPN unfolding .def .def const int N = 4; module M … wait_d2 : [0..4]; av_d2 : [0..1] init 1; …. [tloc_0] (loc_ > 0) & (wait_d1 < N) -> 1.000000 : (wait_d1’ = wait_d1 +1) & (loc_’ = loc_ -1); ….. [back_1] (un_av_d2 > 0) & (av_d2 < 1) -> 10.000000 : (av_d2’ = av_d2 +1) & (un_av_d2’ = un_av_d2 -1); Great2Prism .sm

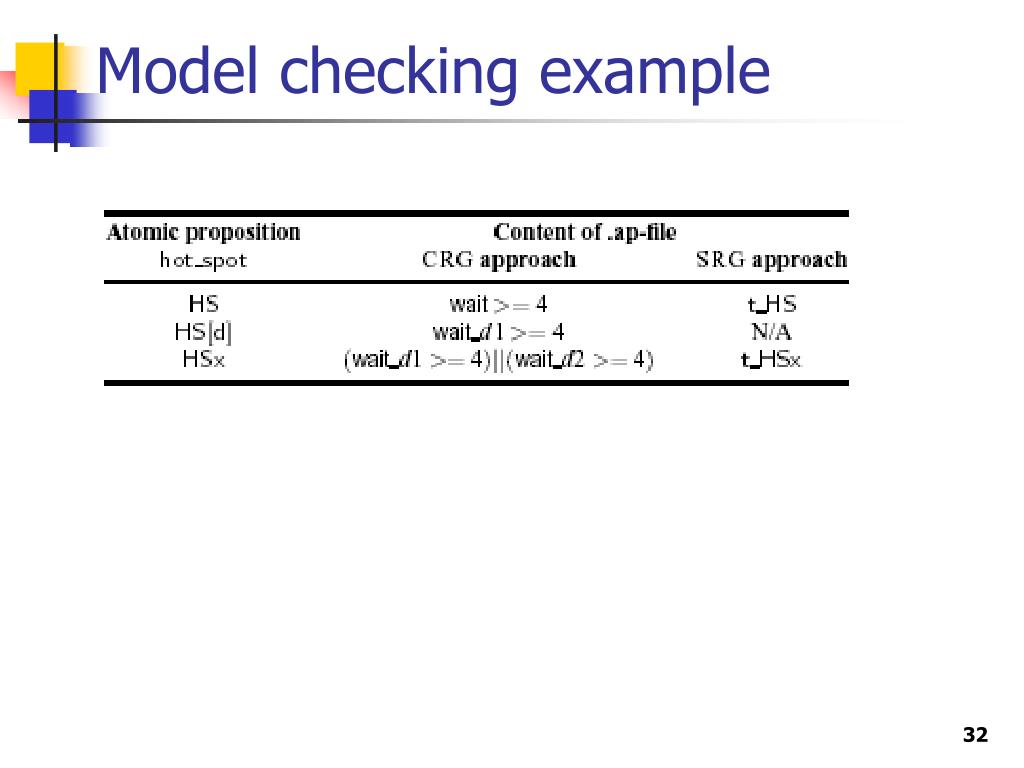

32. Model checking example

33. model checking example • (F1) : S>0.7(hot spot) • the system has a probability > 0.7 of being in an hot-spot state • (F2) : S≤0.2(P≥0.9(F[0,5]hot spot)) • probability of being, in equilibrium, in “dangerous” statesis at most 0.2. • (F3) : P≥0.9(F[0,5](hot spot & P≥0.7(F[0,3]￢hot spot)) dangerous states good hot spot states
